Delivered Apparatus

FEATURES:

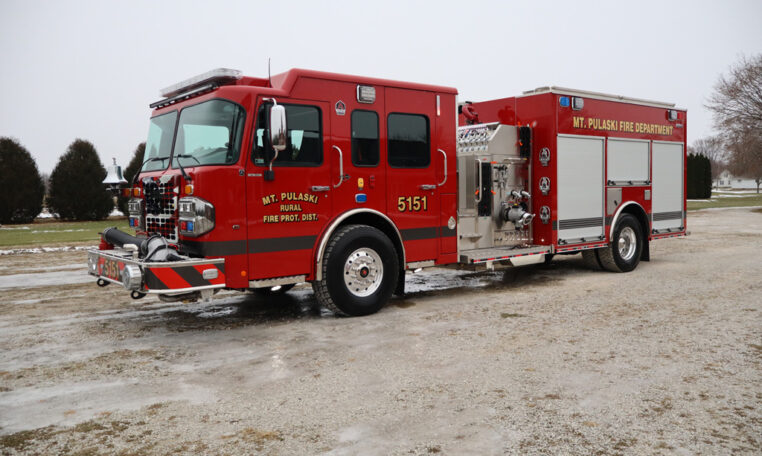

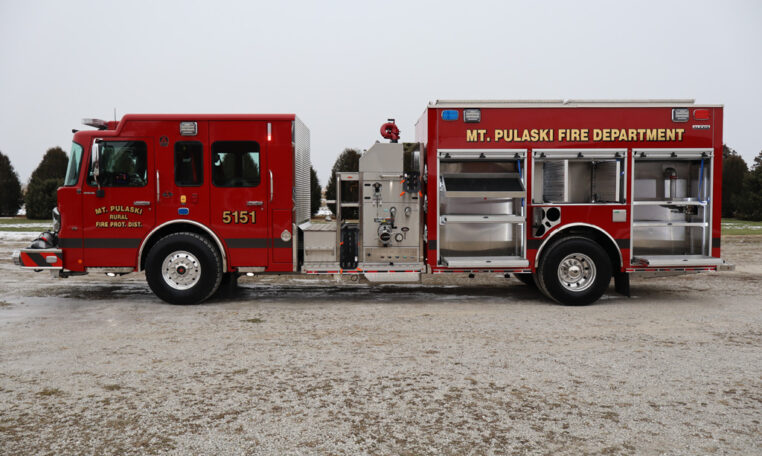

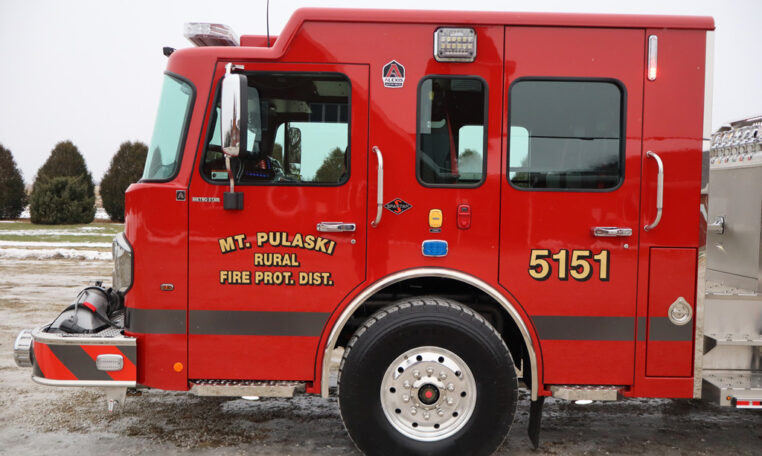

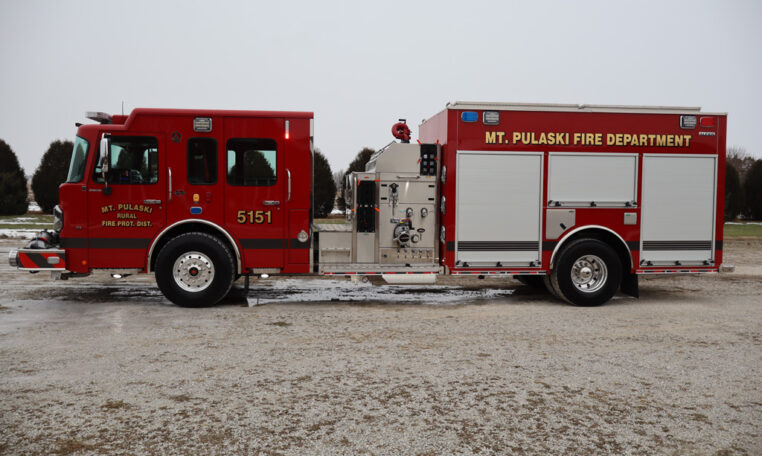

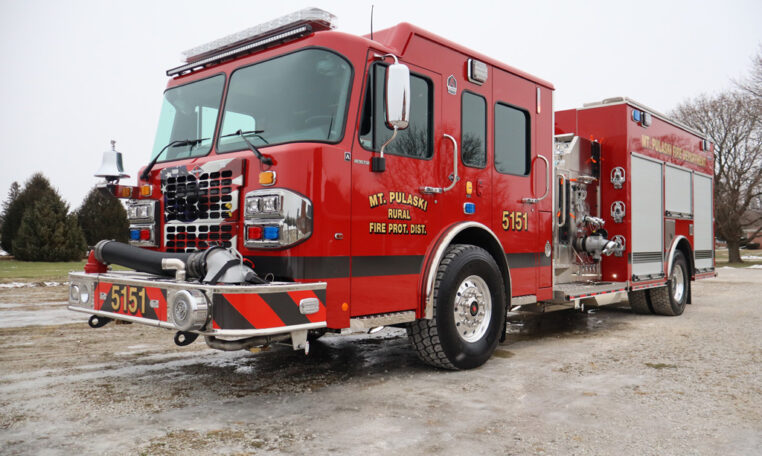

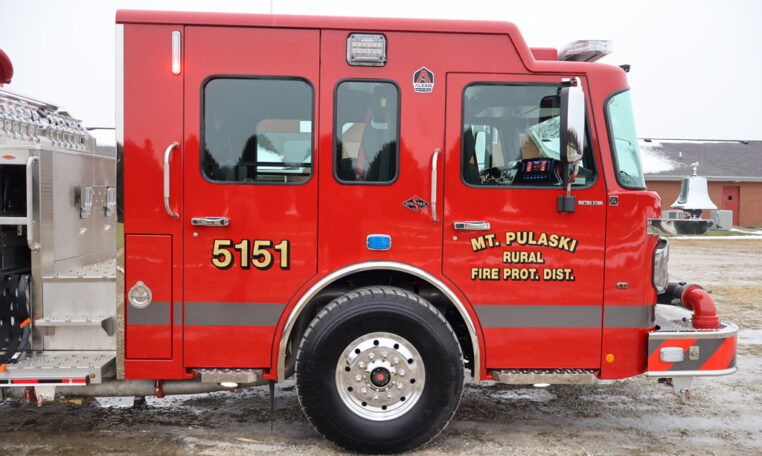

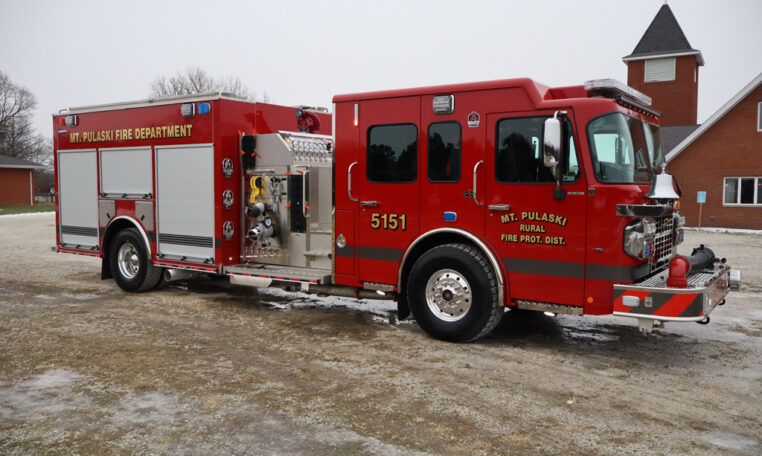

• Spartan Metro Star LFD Chassis with 10” Raised Roof
• Cummins X12 500 HP Diesel Engine

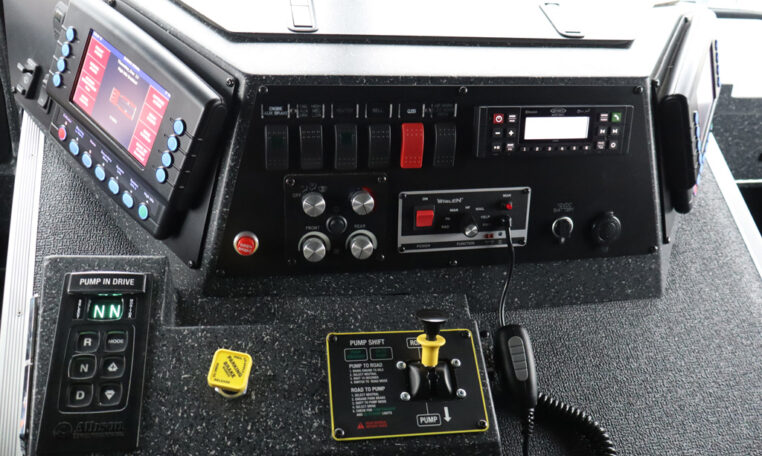

• Allison 4000 EVS Transmission

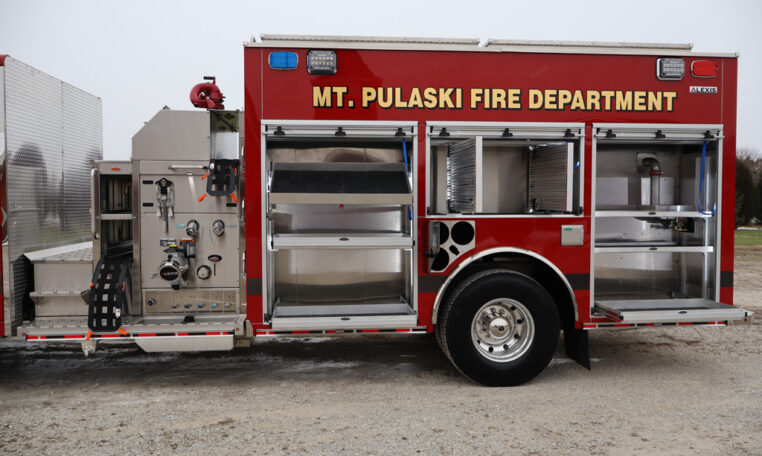

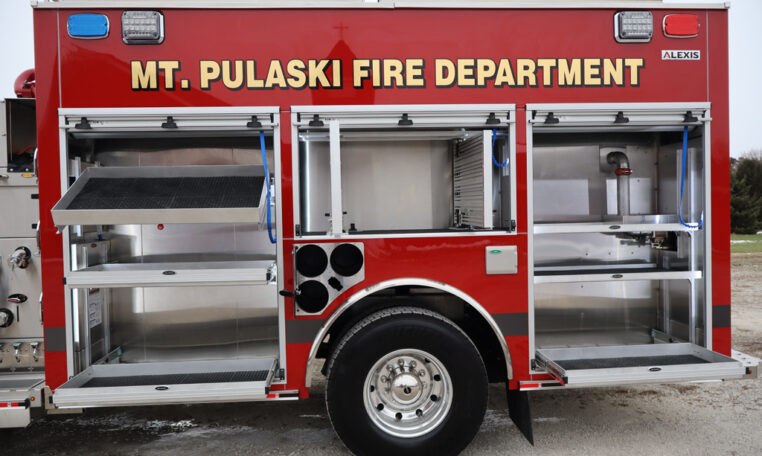

• Heavy Duty Stainless Steel Body with Stainless Steel Subframe

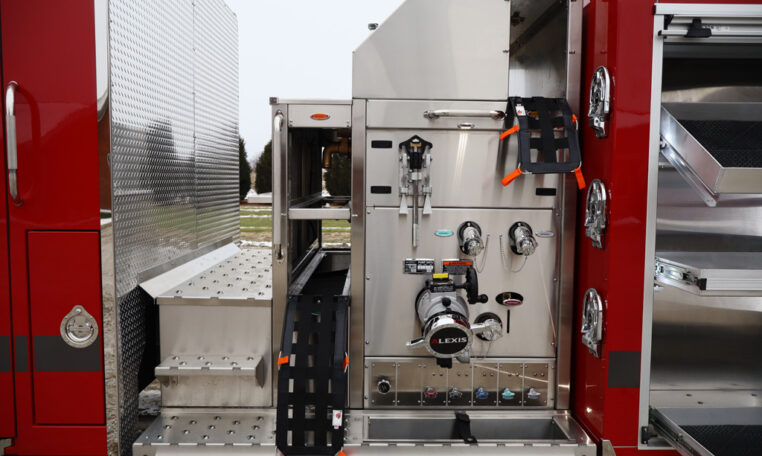

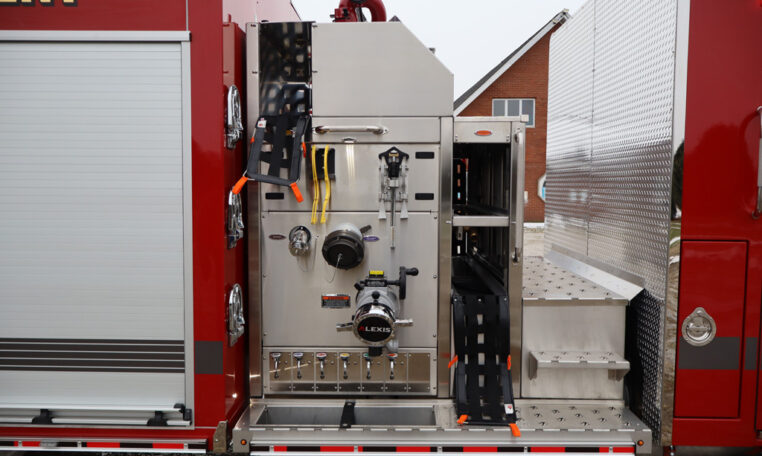

• Stainless Steel Top Mount Pump Module with Stainless Steel Subframe

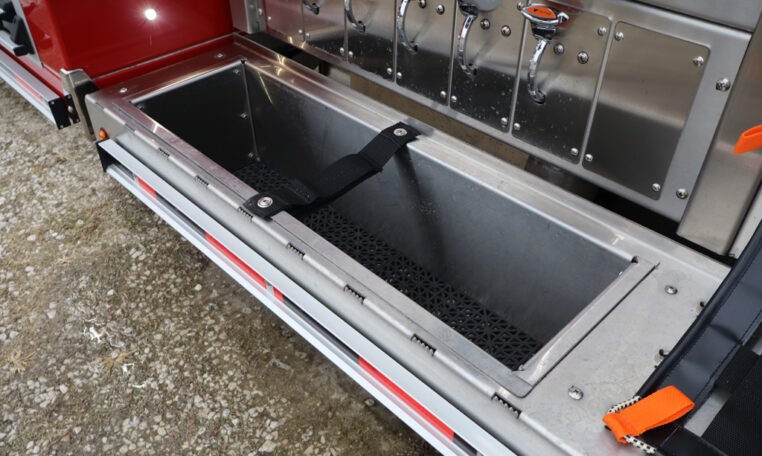

• Two (2) Free Floating Hose Wells for 25’ of 5” Hose, One (1) Each Side
• Waterous CXVC20 1500 GPM Pump
• Trident 2-Location Automatic Air Primer

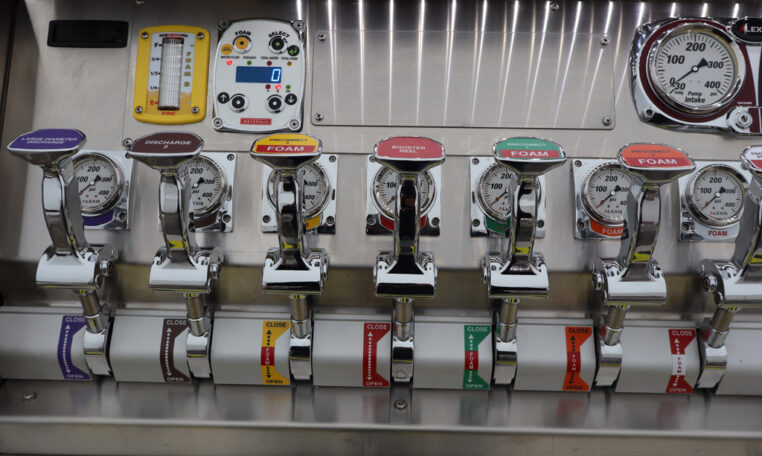

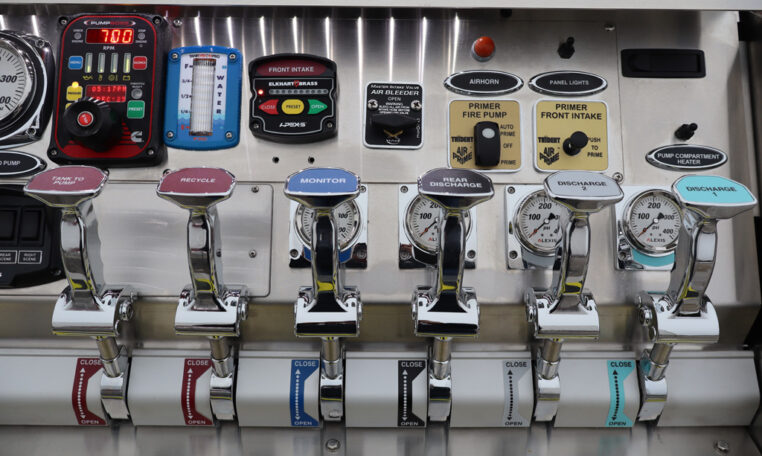

• FRC Pump Boss Pressure Governor Monitoring System
• FRC TankVision Water Tank Level Gauge with Three (3) Whelen PSTANK Strip Lights
• FRC TankVision Foam Tank Level Gauge
• Two (2) 6” Intakes, One (1) Each Side

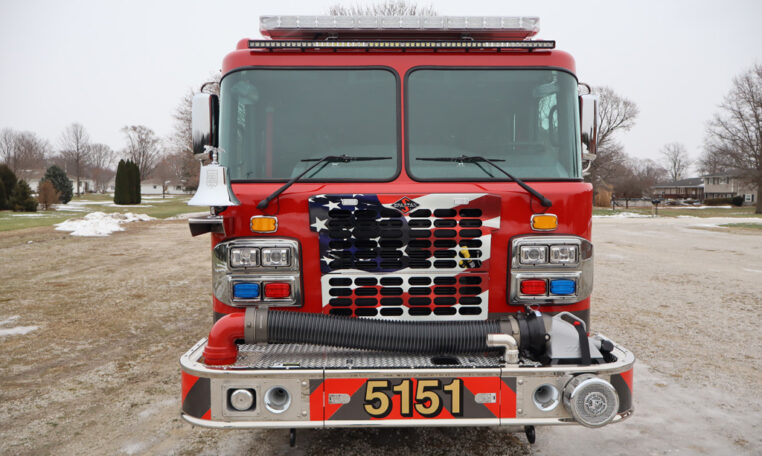

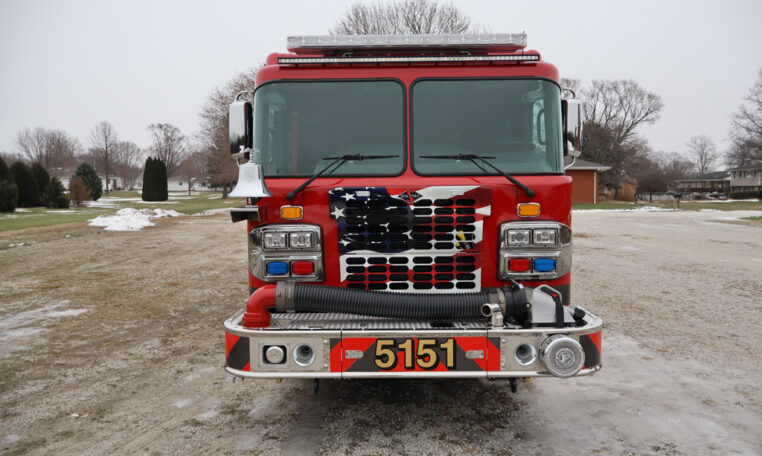

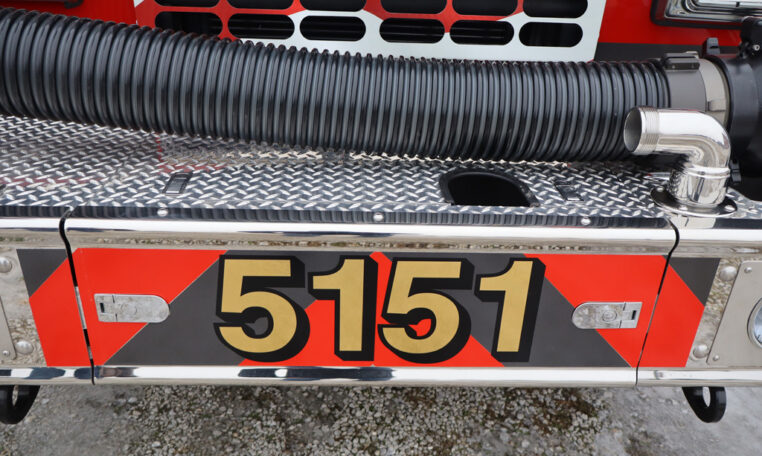

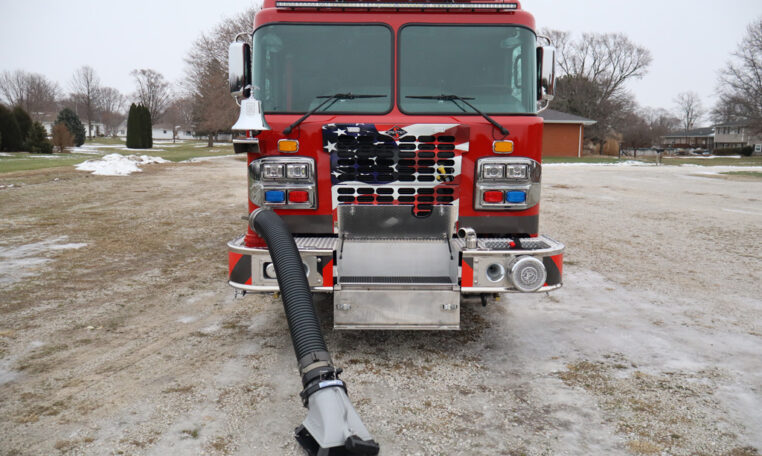

• One (1) 5” Front Intake with 6” Swivel Elbow, Right Side Bumper Extension with Preconnected Suction Hose and Low Level Strainer
• One (1) 2½” Gated Intake, Left Side
• Two (2) 2½” Discharge, Left Side and One (1) 2½” Discharge, Right Side
• One (1) 2½” Discharge, Rear Left Side
• One (1) 3” Discharge with 5” Storz Elbow, Right Side
• Waterous Aquis 3.0 Foam System with 40 Gallon Foam Tank

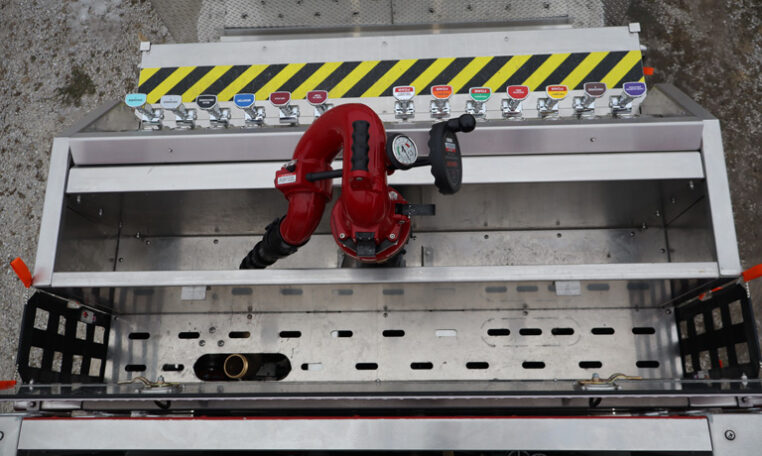

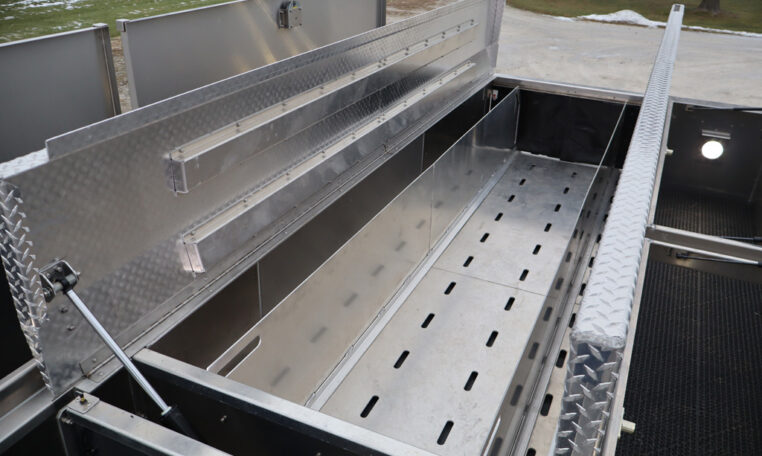

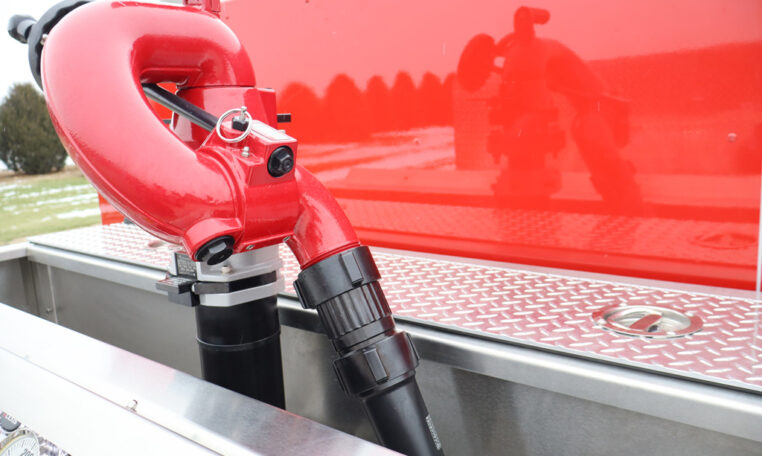

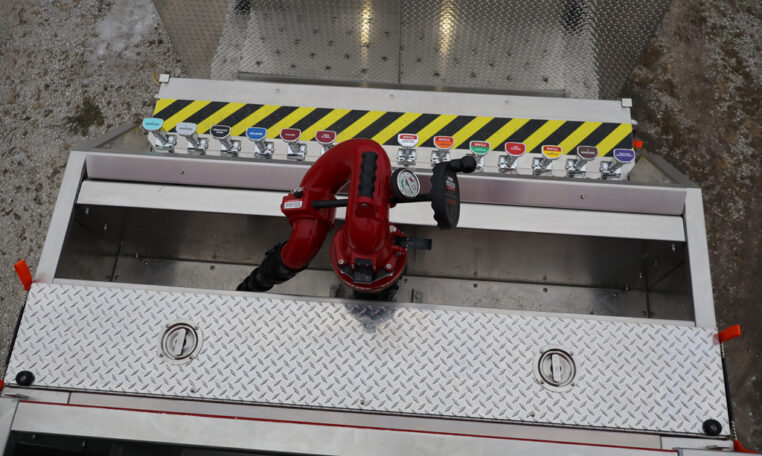

• One (1) 3” Discharge Dunnage Area with TFT Crossfire Deck Gun and TFT Extenda-Gun
• Two (2) 1½” Speedlay Preconnects with Trays
• One (1) 2½” Crosslay Preconnect

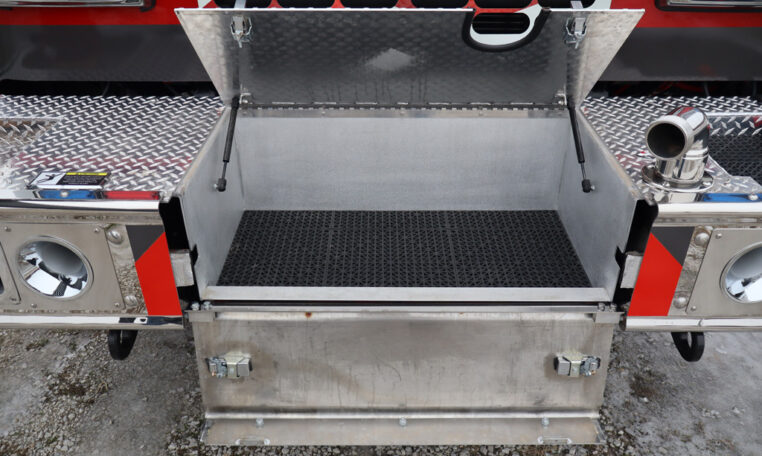

• One (1) 2½” Bumper Extension Preconnect

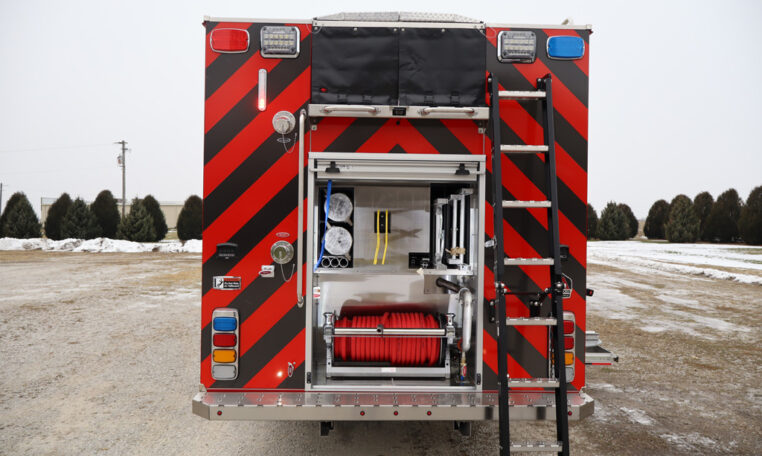

• One (1) Booster Reel in Rear Compartment with 150’ of 1” Hose

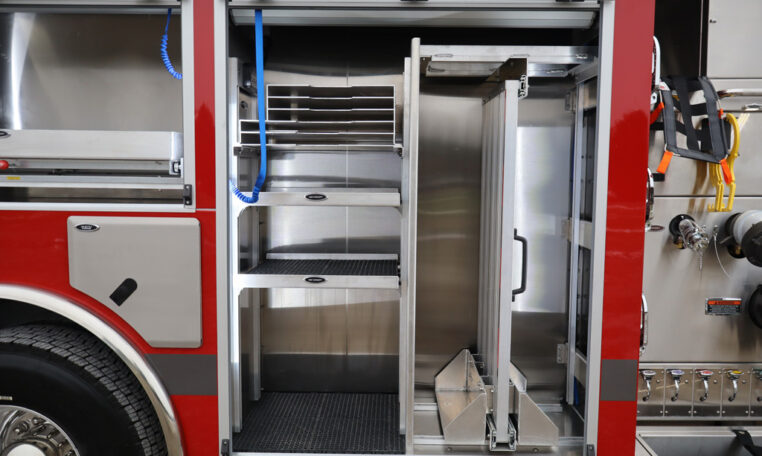

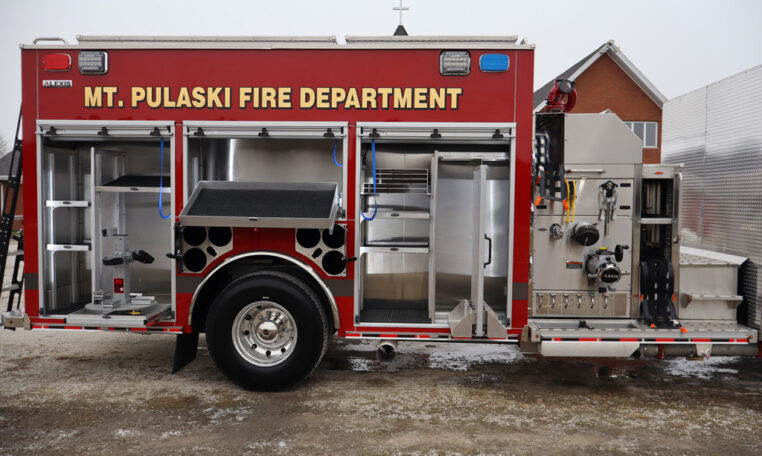

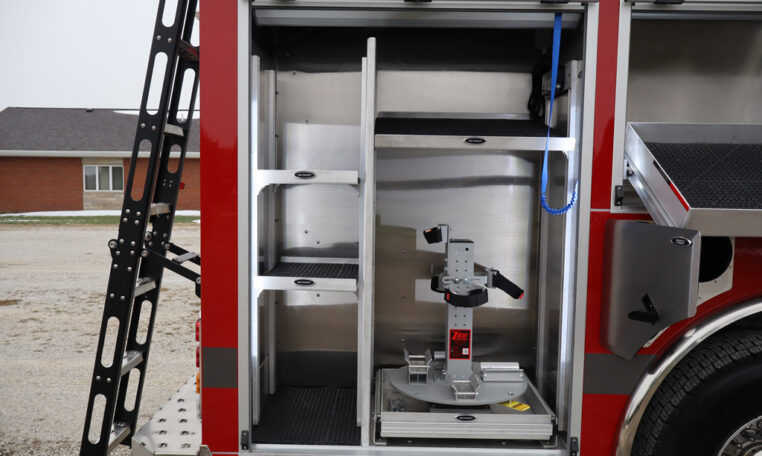

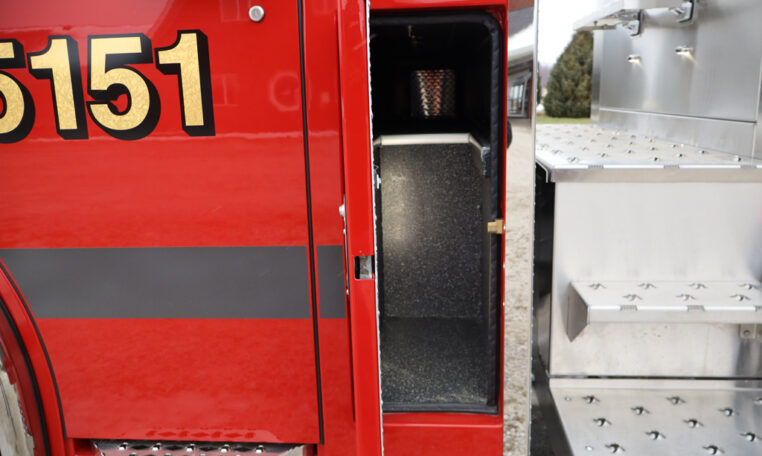

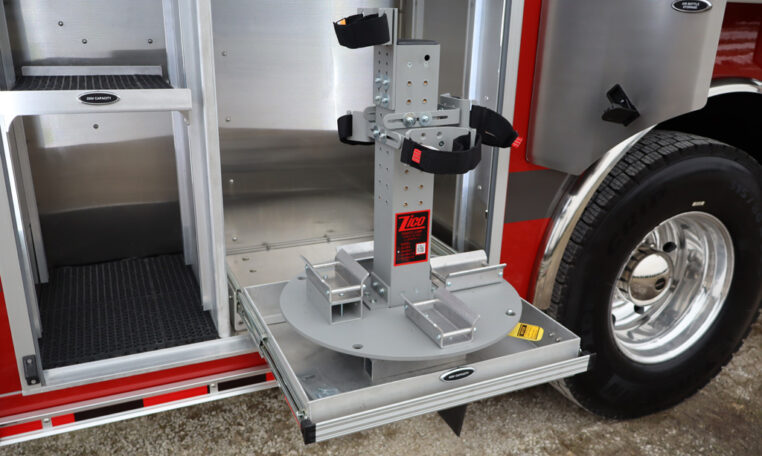

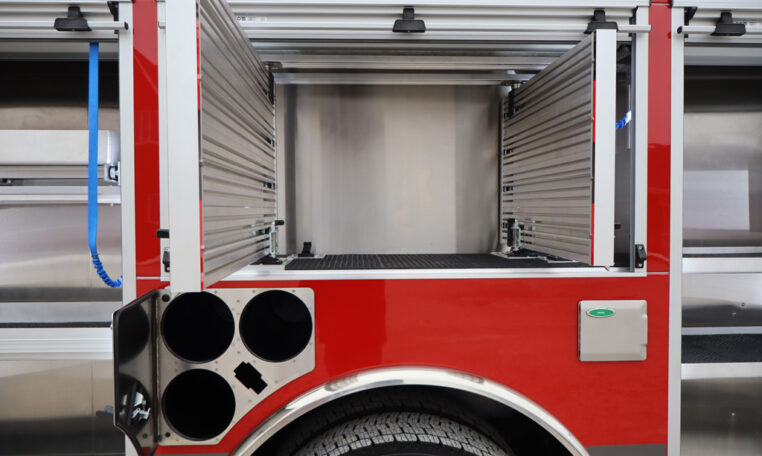

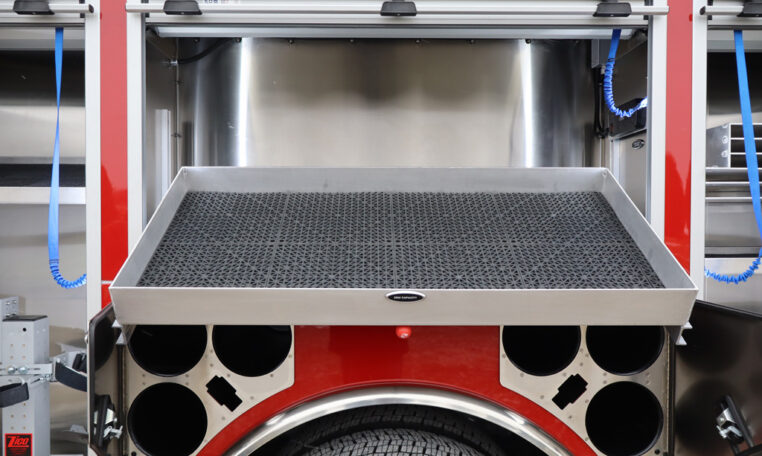

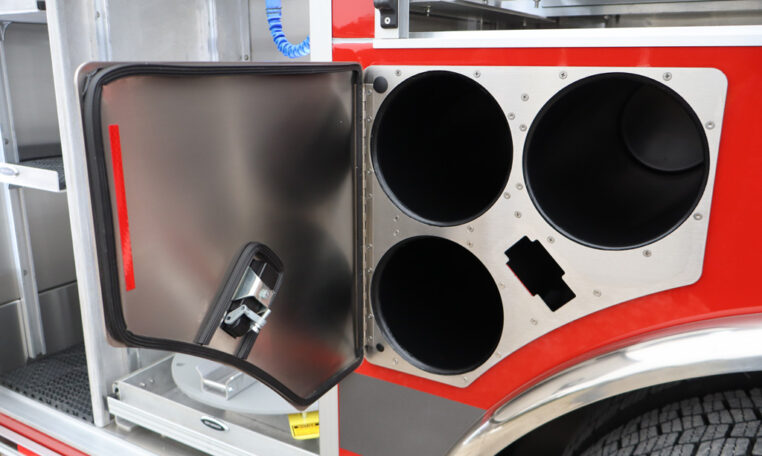

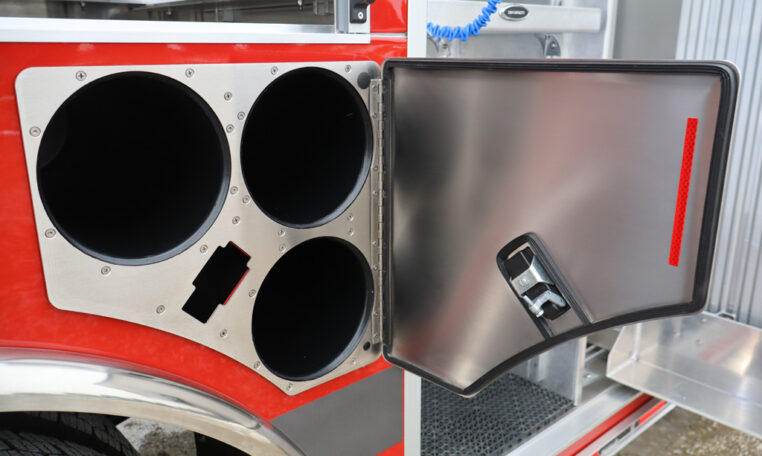

• Three (3) Triple Air Bottle Wheel Well Compartments

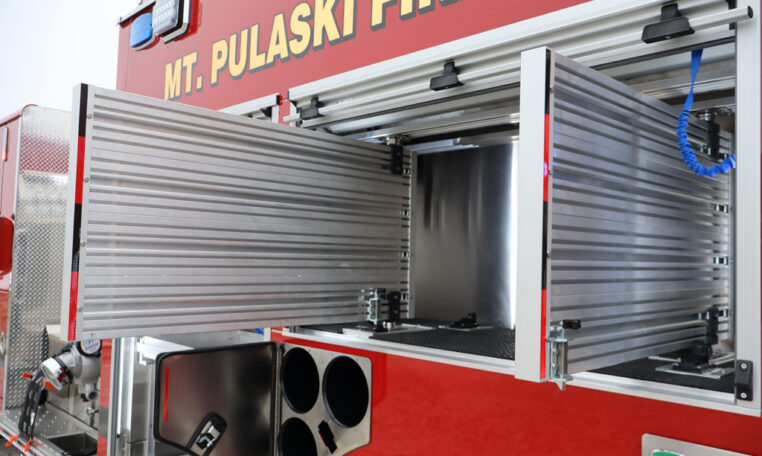

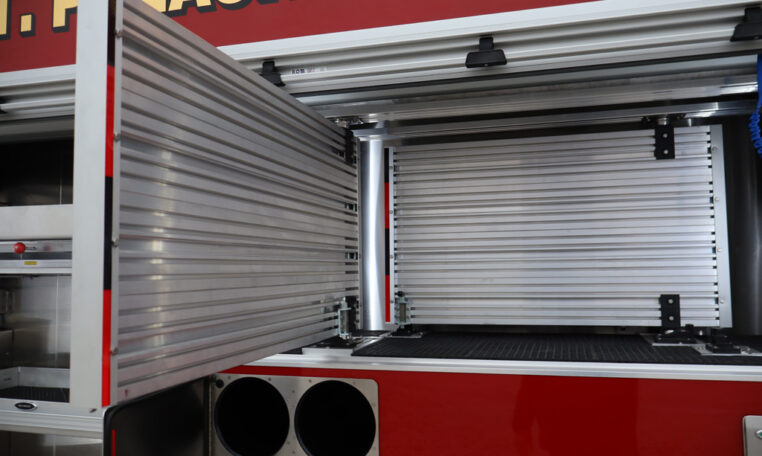

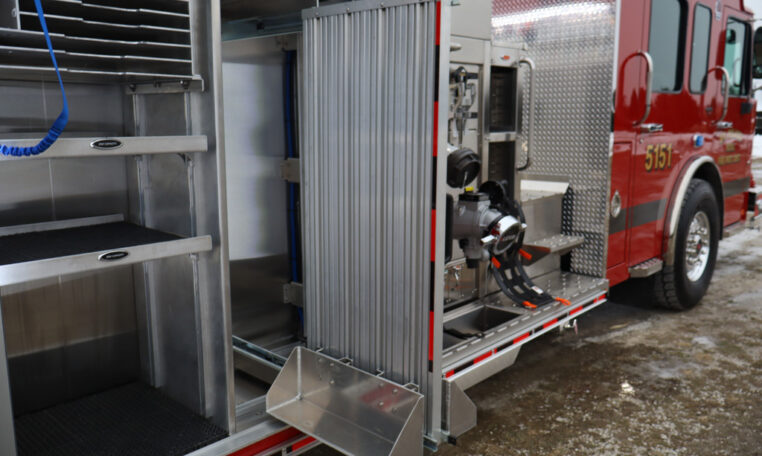

• ROM Roll Up Doors

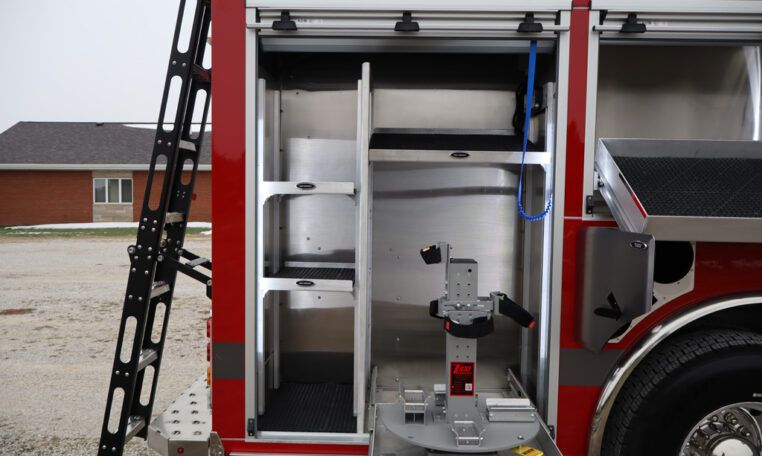

• Ladders Storage Compartment Vertical Through the Tank in the Rear Compartment, Right Side
• Suction Hose Storage Compartment Vertical Through the Tank in the Rear Compartment, Left Side

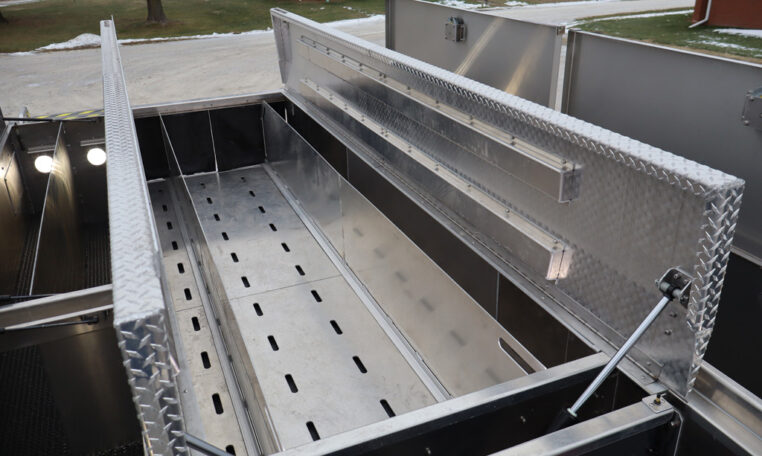

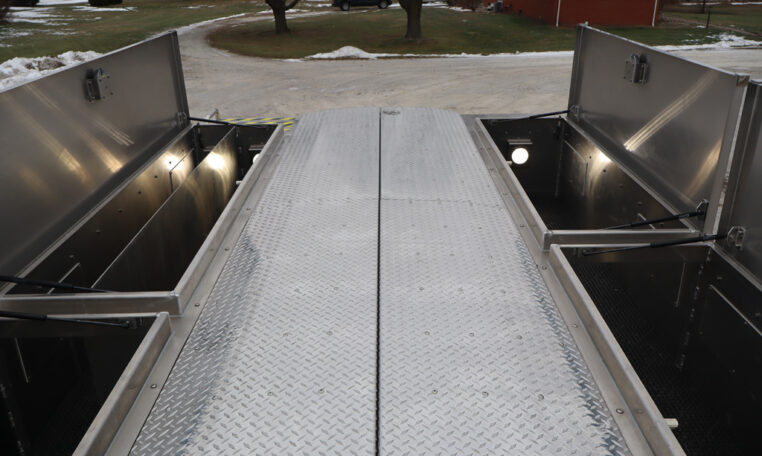

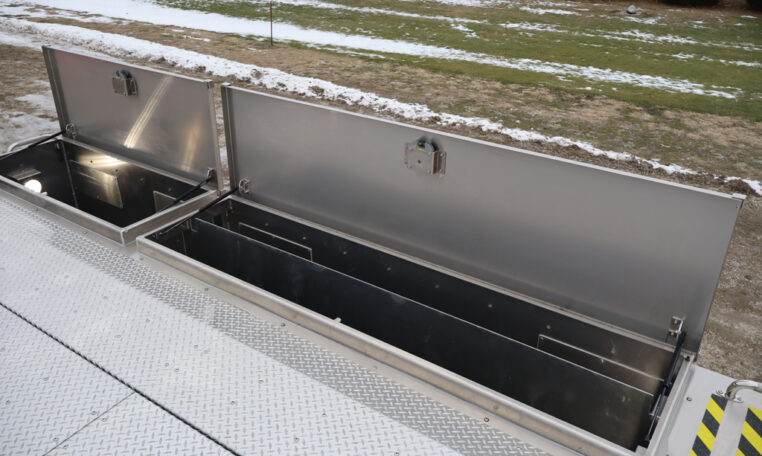

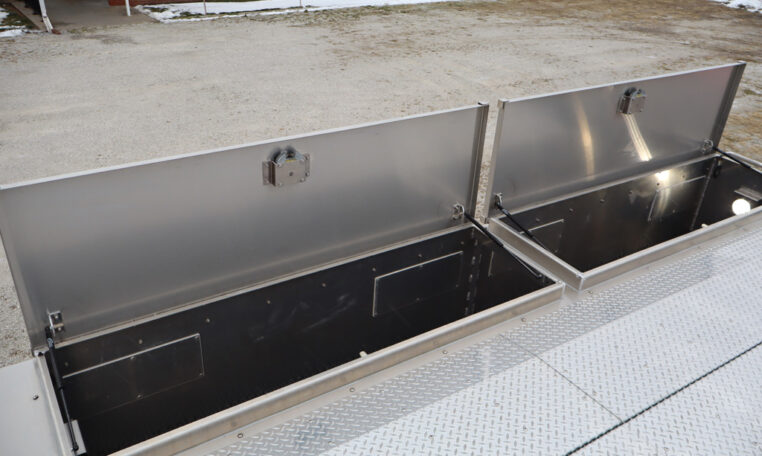

• Two (2) Upper Storage Compartments

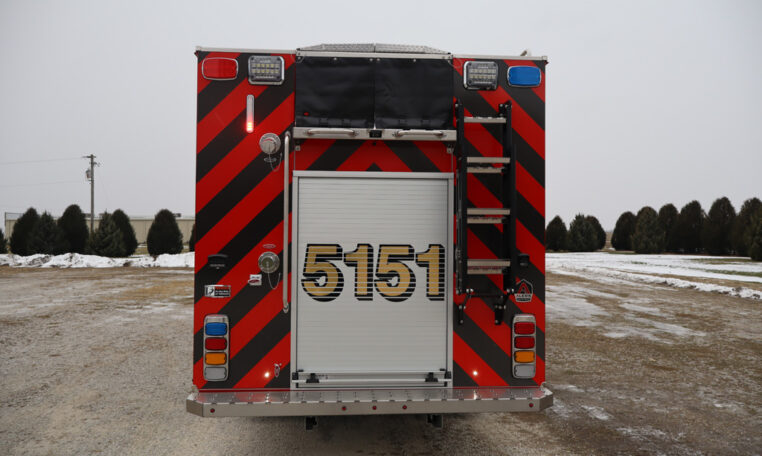

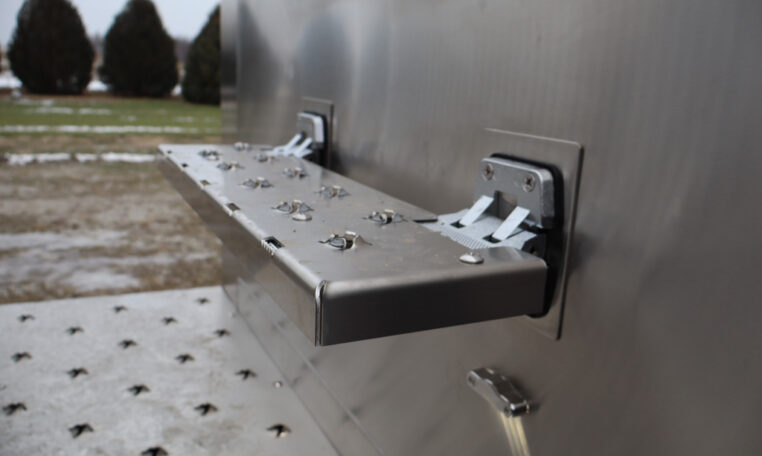

• Stainless Steel Rear Access Ladder with Flip Down Step, Right Side
• 1000 Gallon Poly Tank
• One (1) 2½” Tank Fill, Rear Left
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Kussmaul Chief 4012 Battery Charger with 12 Volt Kussmaul Pump
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab
• Whelen LED Warning Light Package
• Whelen 200W Siren and 100W Speaker

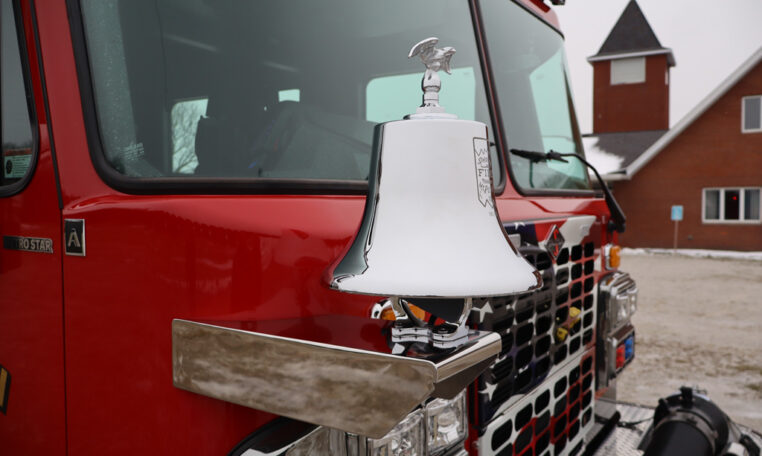

• Federal Q2B Siren and Chrome Bell with Eagle Nut Top
• Four (4) FireTech HiViz GESM LED Scene Lights, Two (2) Each Side
• Two (2) FireTech HiViz GSM LED Scene Lights, One (1) Each Side Rear
• One (1) FireTech HiViz 72” LED Brow Light
• Two (2) FireTech HiViz GSMJR LED Scene Lights, One (1) Each Side of the Cab
• One (1) 10’ Attic Ladder, One (1) 14’ Double Ended Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, and Two (2) 10’ Lengths of Suction Hose
• 10’-7” Overall Height
• 36’-6” Overall Length
• 238” Wheelbase
• 170.5” Cab to Axle
• 21,500 FAWR
• 31,000 RAWR
• 52,500 GVWR
