Delivered Apparatus

FEATURES:

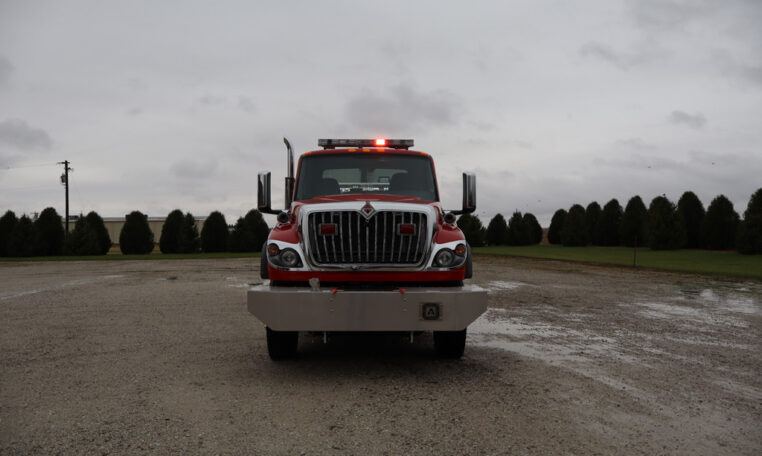

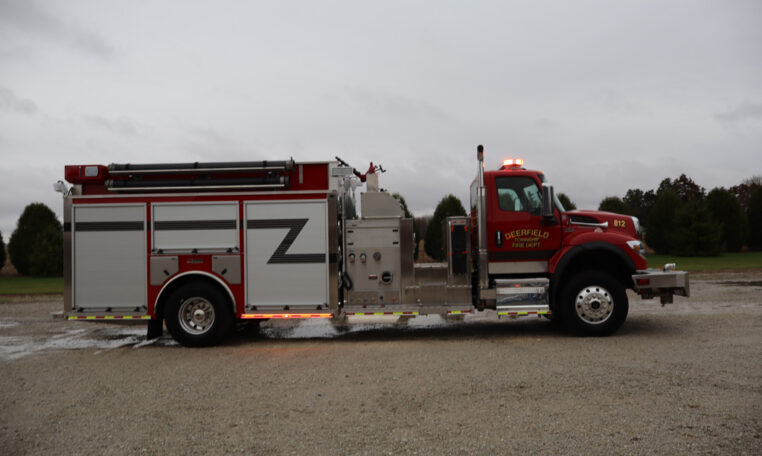

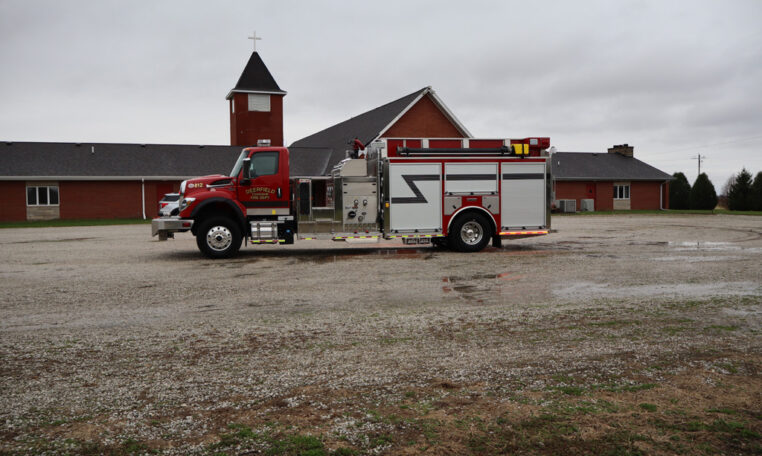

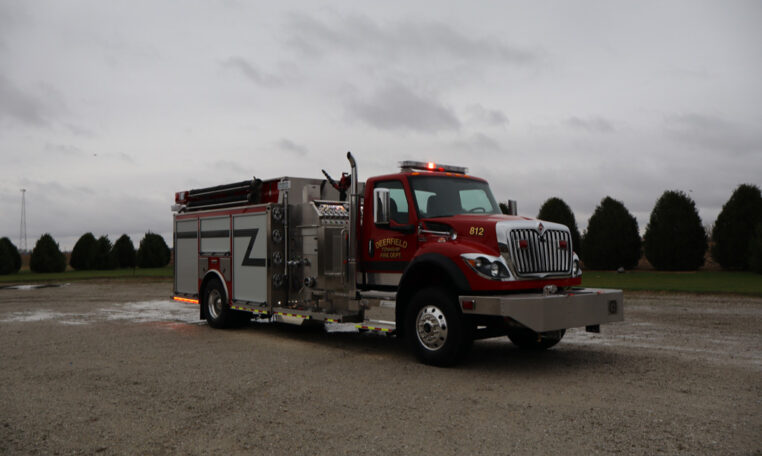

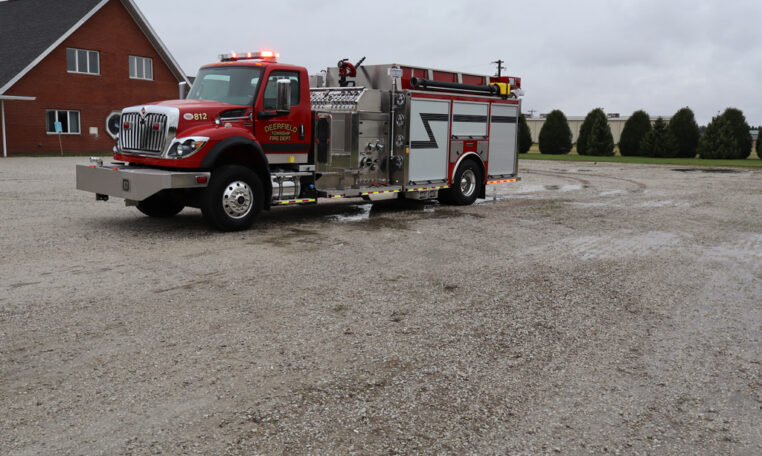

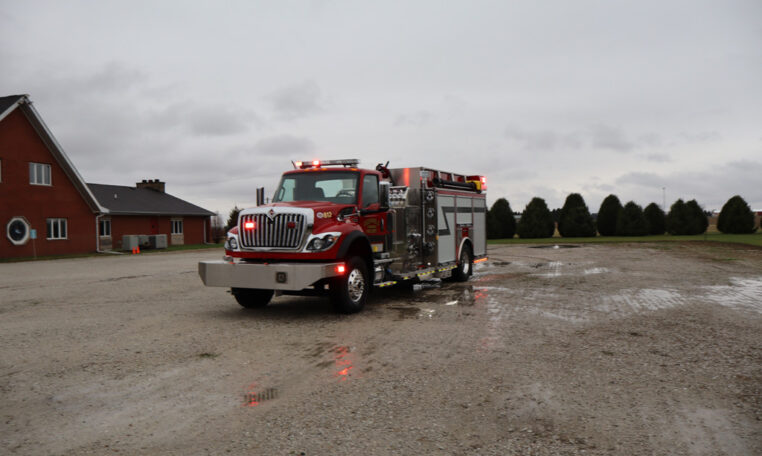

• International HV607 2-Door Chassis
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Stainless Steel Body with Stainless Steel Subframe

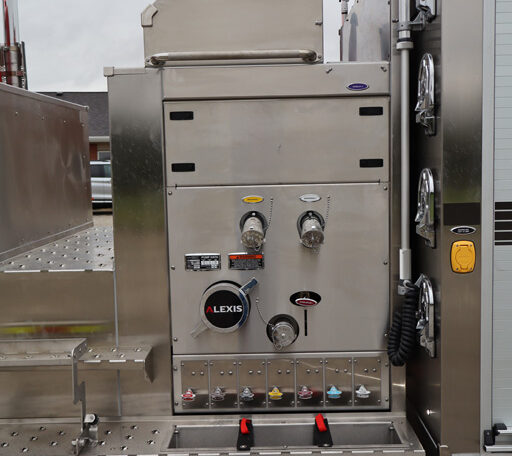

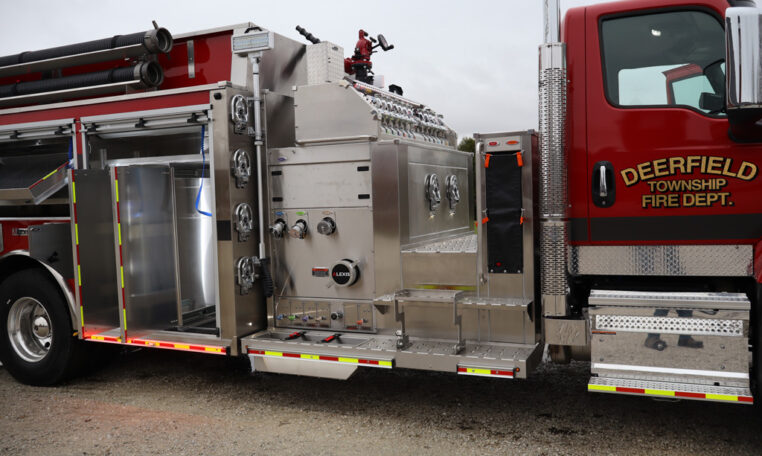

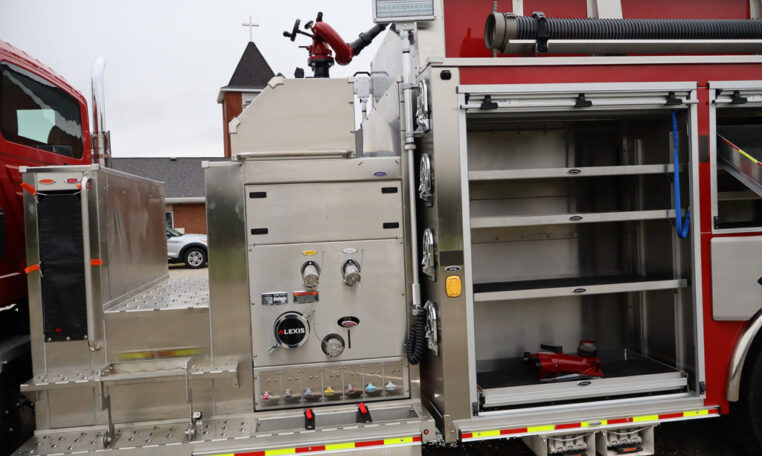

• Stainless Steel Top Mount Pump Module with Stainless Steel Subframe
• Two (2) Stainless Steel Free Floating Hose Wells, One (1) in Each Side Running Board
• Waterous CXVC20 1500 GPM Pump
• Trident 3-Location Automatic Air Primer

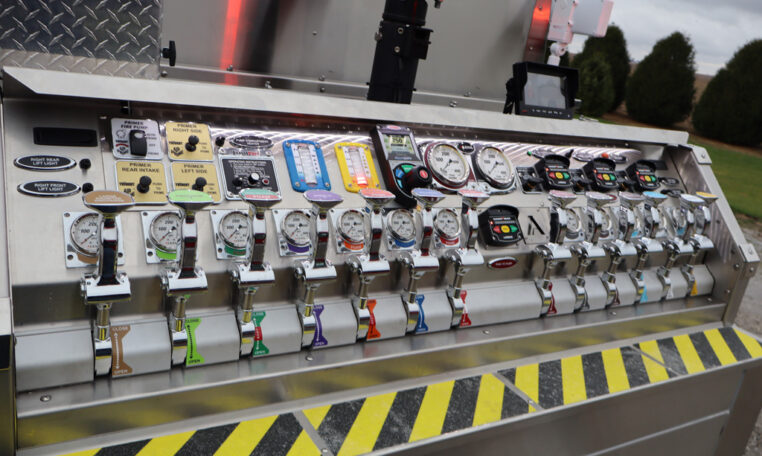

• FRC Pump Boss Pressure Governor Monitoring System
• FRC TankVision Water Tank Level Gauge
• Two (2) 6” Intakes with Electric MIV Valves, One (1) Each Side
• One (1) 5” Intake Adapted to 6” NSTM, Rear Right Side
• One (1) 2½” Gated Intake, Left Side
• Four (4) 2½” Discharges, Two (2) Each Side
• Two (2) 2½” Discharges, Rear One (1) Each Side
• One (1) 3” Discharge, Right Side

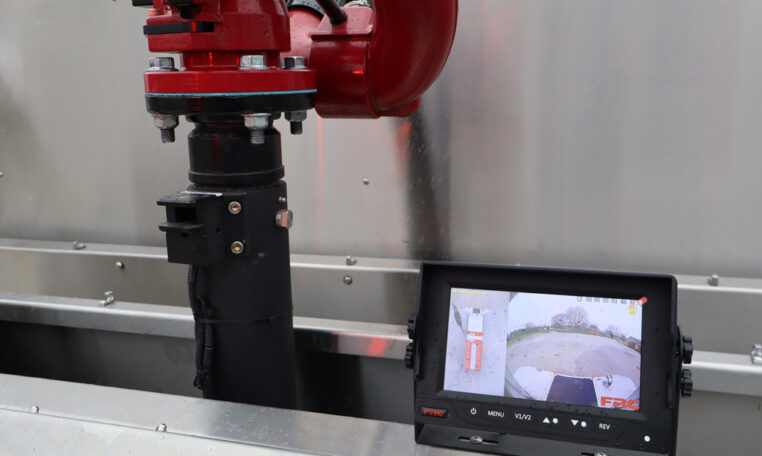

• One (1) 3” Discharge Dunnage Area with TFT Crossfire Deck Gun and Extenda-Gun
• FoamPro 1600 Foam System with 20 Gallon Foam Tank
• Two (2) 1½” Crosslay Preconnects at Front of Walkway
• One (1) 2½” Bumper Extension Preconnect

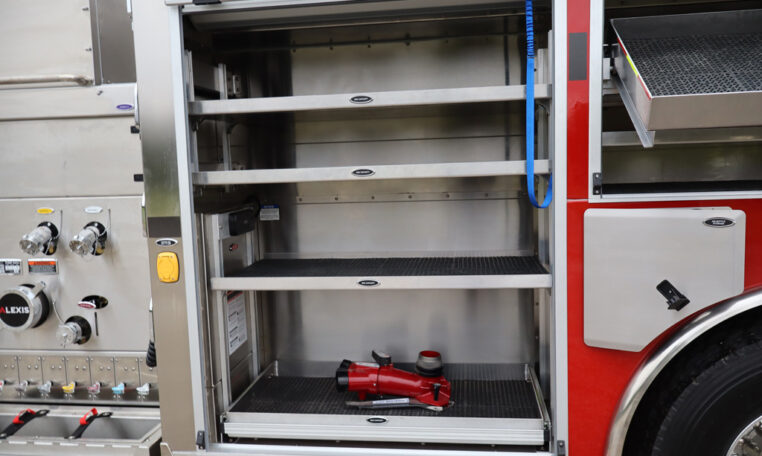

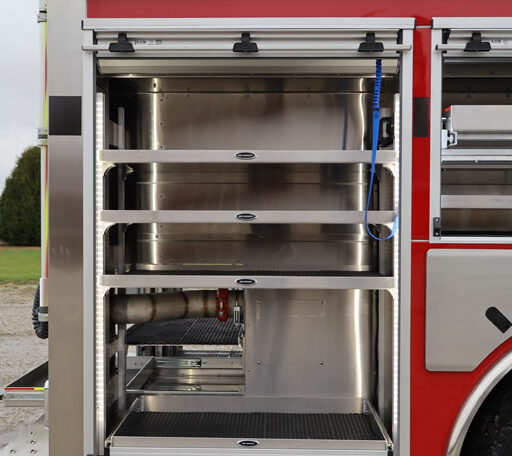

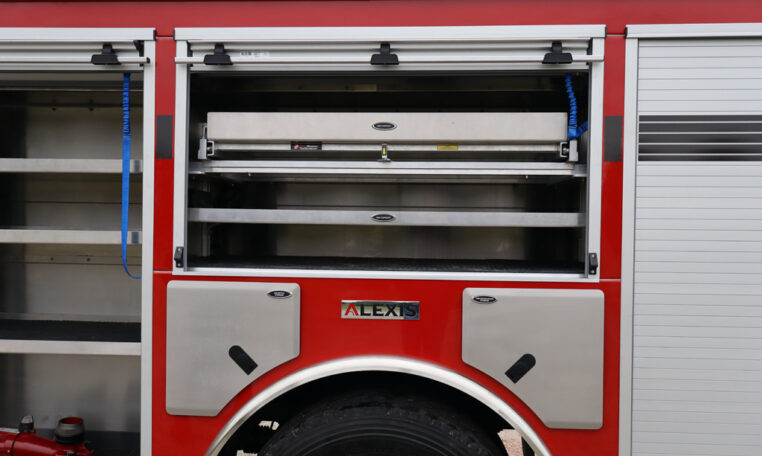

• ROM Roll-Up Doors

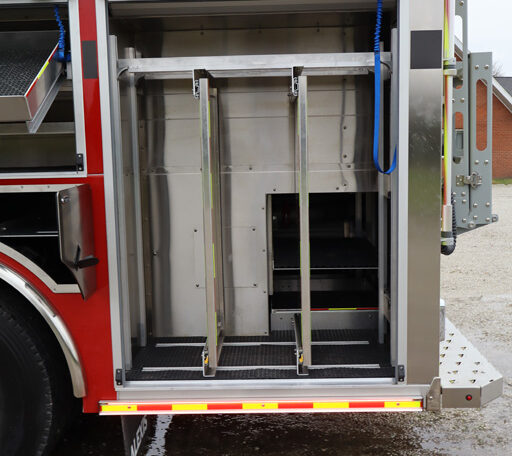

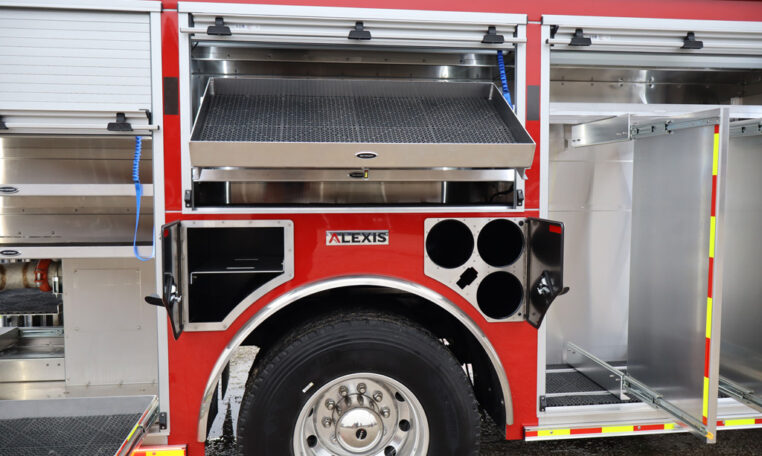

• Two (2) Triple Wheel Well Air Bottle Compartments
• Two (2) Fire Extinguisher Wheel Well Compartments

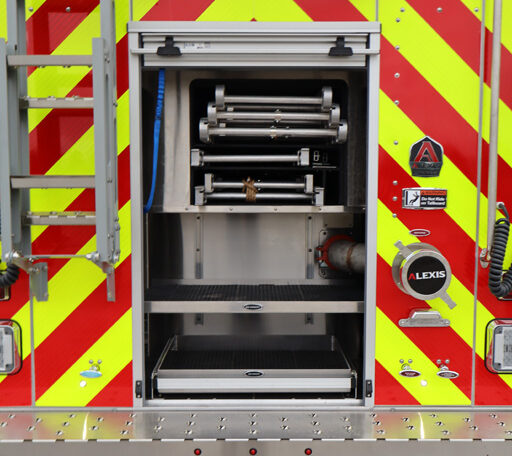

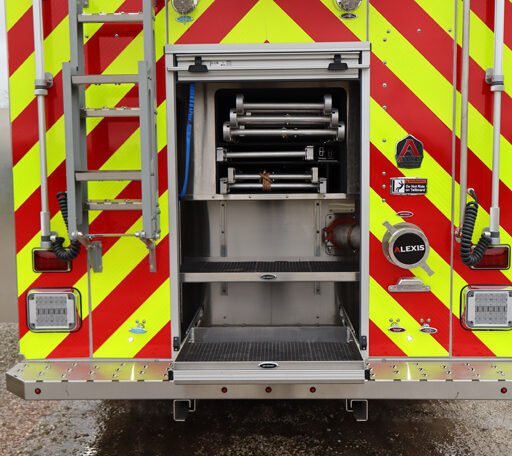

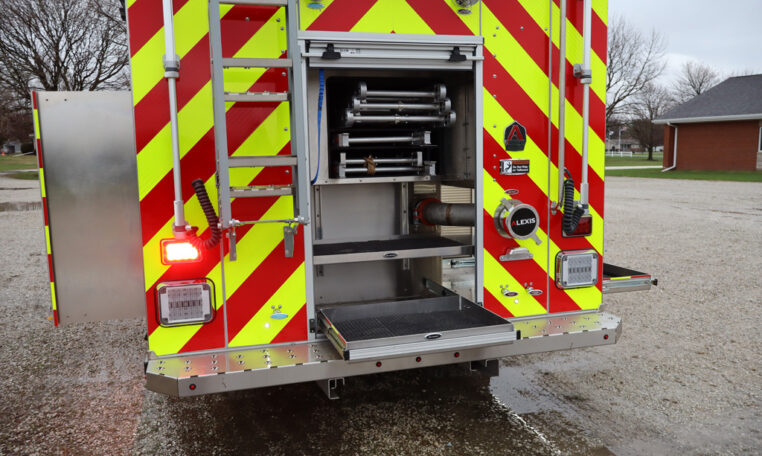

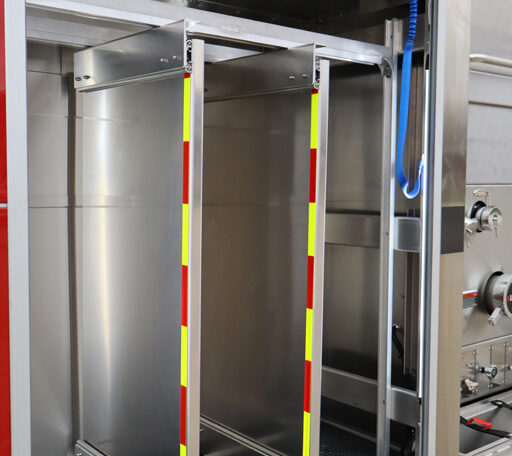

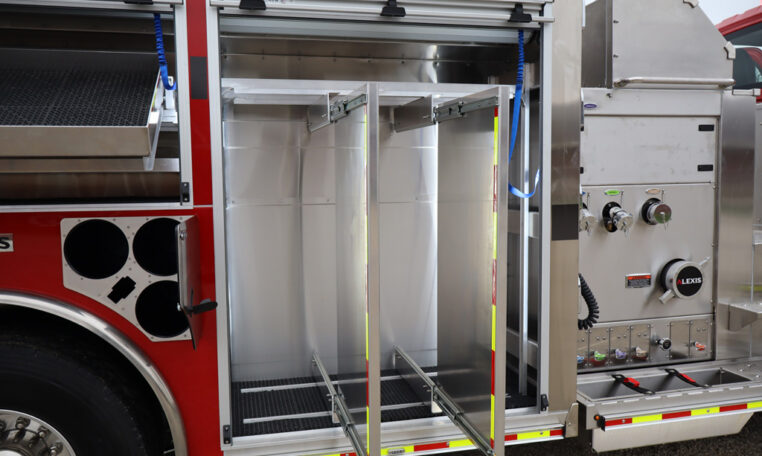

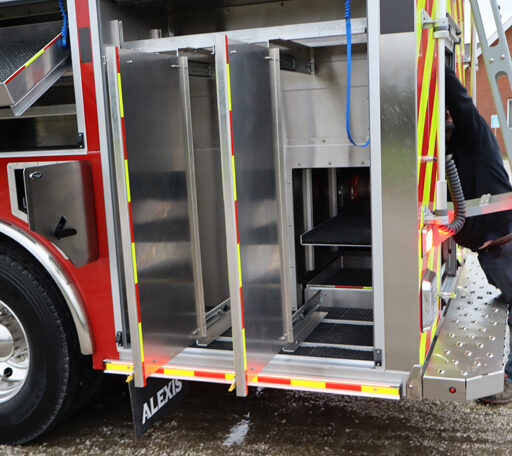

• Ladder Storage Compartment, Horizontal Through the Tank in the Rear Compartment

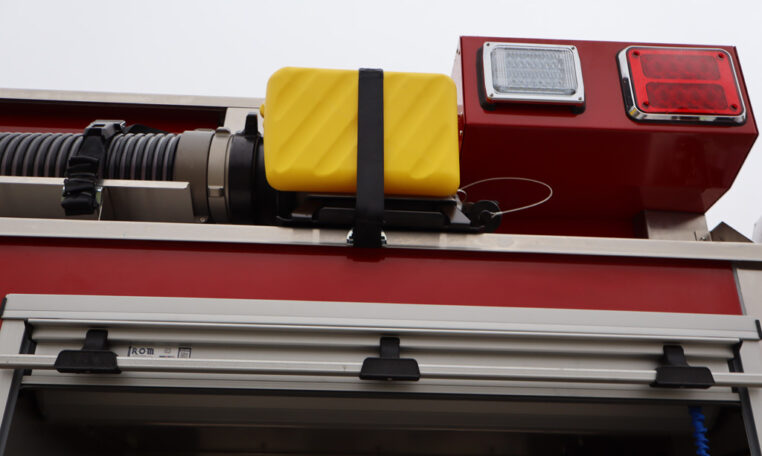

• Suction Hose Storage for Three (3) Sections of Hard Suction Hose, One (1) Left Squirrel Tail and Two (2) Right
• AFE Stainless Steel Rear Access Ladder with Flip Down Step, Left Side
• 1250 Gallon Poly Tank
• 12 Volt Electrical System
• Tecniq/Whelen LED Warning Light Package with Rear Arrow Stick
• Manual Battery Recharge Receptacle for In Station Charger
• Whelen 200W Siren and 100W Speaker
• Four (4) FRC Spectra LED Scene Lights, One (1) Each Side and Two (2) Rear
• Four (4) FRC Spectra LED Telescopic Lights, One (1) Each Side of the Pump Module and One (1) Each Side at the Rear of the Body
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, One (1) 35’ 3-Section Ladder, and Four (4) 10’ Lengths of 6” Suction Hose
• 10’ Overall Height
• 34’-4” Overall Length
• 250” Wheelbase
• 182.9” Cab to Axle
• 16,000 FAWR
• 30,000 RAWR
• 46,000 GVWR
