Delivered Apparatus

FEATURES:

• Freightliner 114SD, 2-Door Chassis
• Detroit DD13, 370-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• On Spot Automatic Tire Chains
• Heavy Duty Stainless Steel Body and Sub-Frame
• ROM Roll Up Doors
• 1500-Gallon Poly Tank
• One (1) 2 ½” FirePrograms Tank Fill, rear
• One (1) Newton 10” square electric swivel dump with 36” manual extension
• Waterous CSU, 1500-GPM Pump

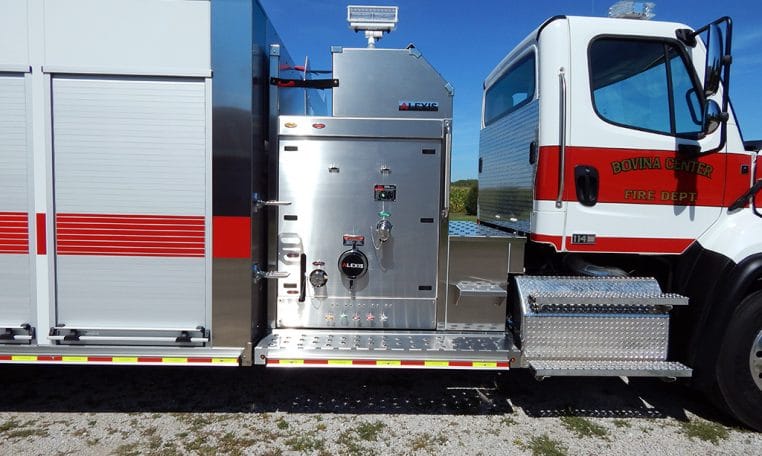

• Pump operator’s panel across top of apparatus
• Four (4) 2 ½” Discharges, two (2) left side, one (1) right side, one (1) rear
• Two (2) 3” Discharges, one (1) left side and one (1) over pump for Deck Gun
• One (1) TFT Extend-A-Gun
• Two (2) 2 ½” Gated Suction, one (1) each side
• Two (2) 1 ½” Mattydale Preconnects, across top of body
• One (1) TFT manually telescoping waterway
• Four (4) Dual bottle Air bottle compartments, two (2) each side wheel well
• Ziamatic Hydraulic folding tank rack for 1500-gallon tank, right side
• Progressive Dynamics on -board battery charger with Viair air compressor
• Kussmaul Super Auto Eject 120-volt shoreline connection

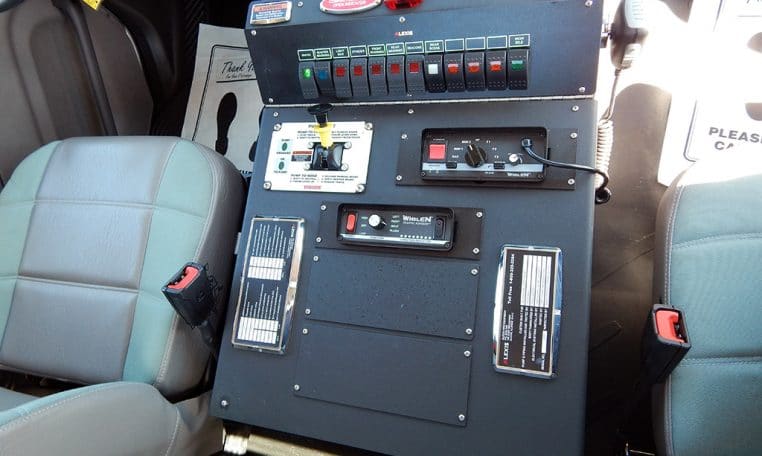

• Floor mounted console for emergency switches, cab
• Suction hose, ladder and pike pole storage, right side with rear access
• Whelen Electronic Siren with 100-watt speaker
• Two (2) Air Horns, one (1) each side of the hood
• Whelen LED Warning and Scene Light Packages
• Diamond Grade Chevron pattern striping, rear
• 10’ 3” Overall height
• 32’ 2” Overall length
• 262” Wheelbase
• 198.7” Cab to Axle
• 20,000 FAWR
• 30,000 RAWR
• 50,000 GVWR
