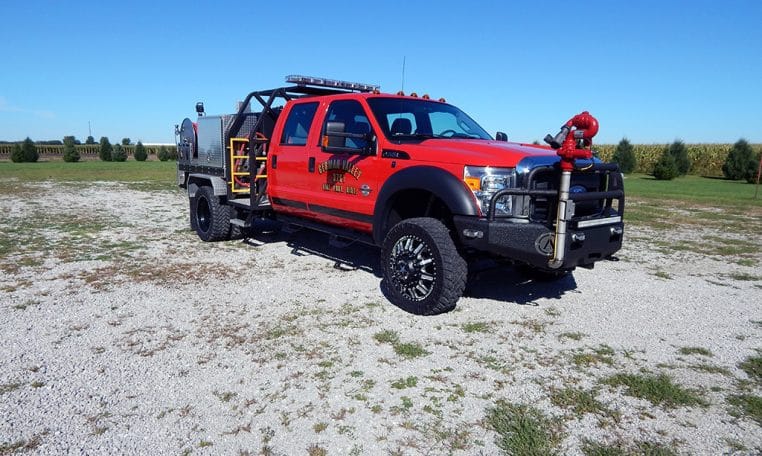

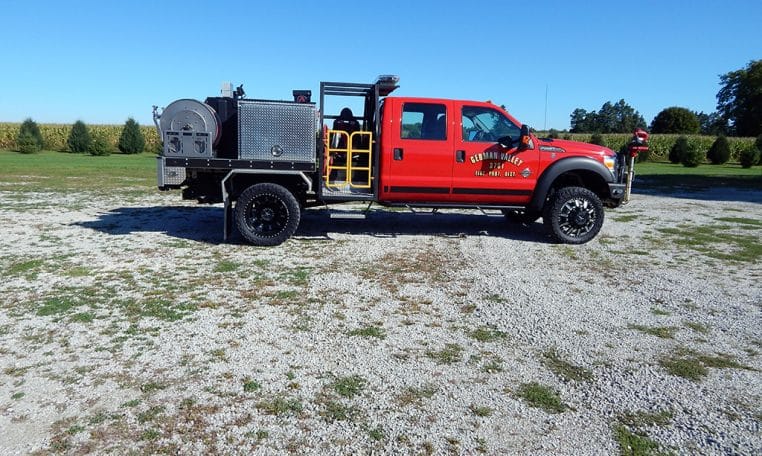

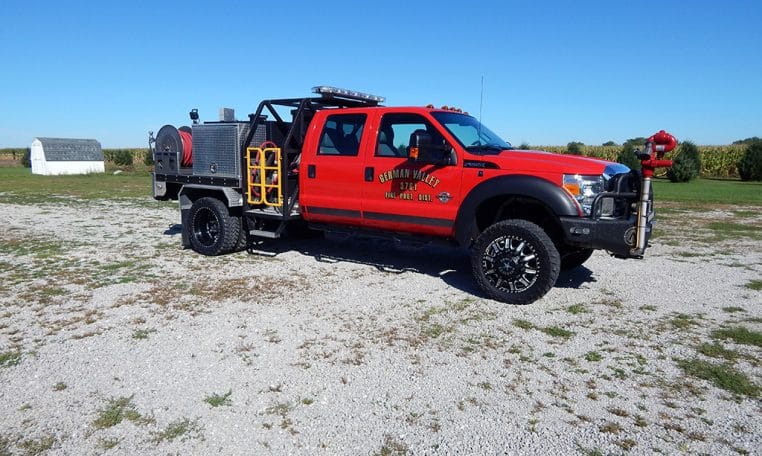

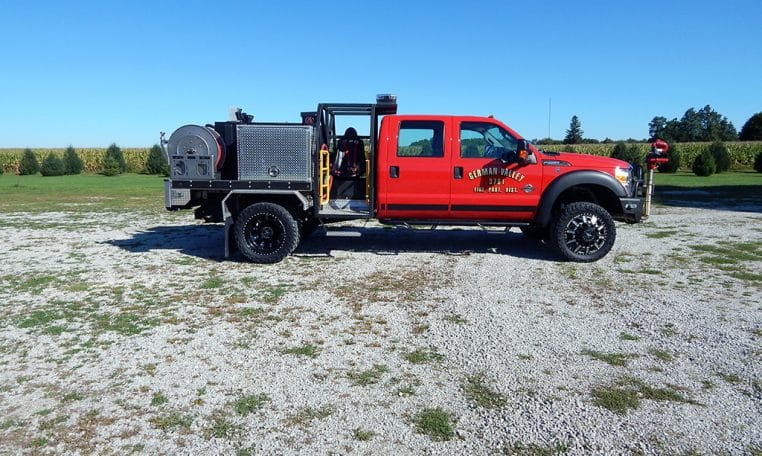

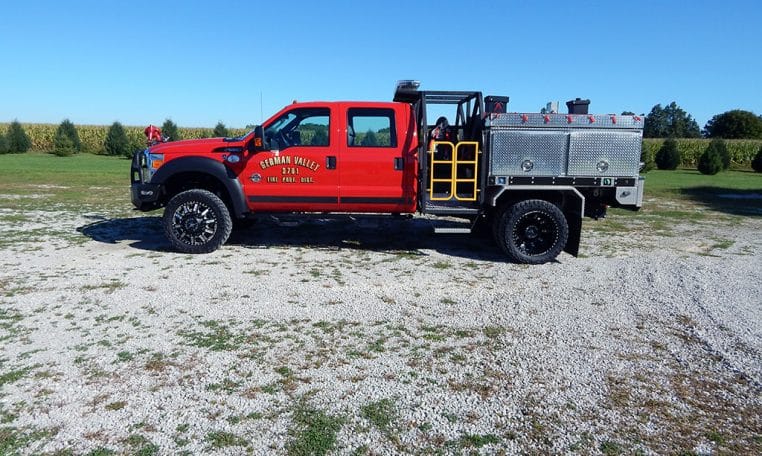

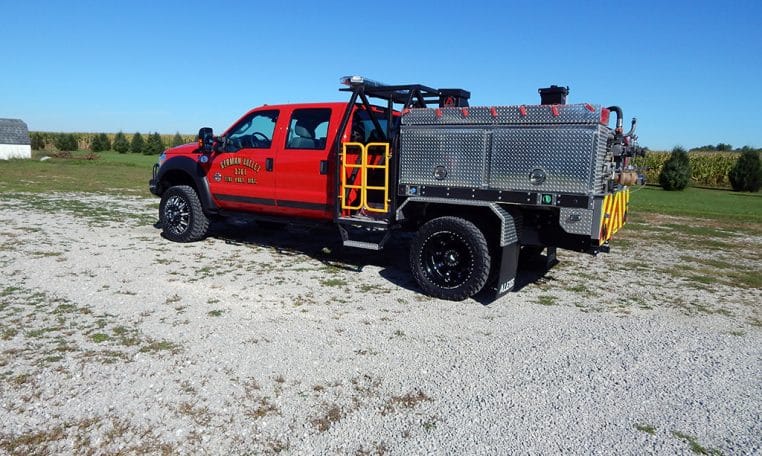

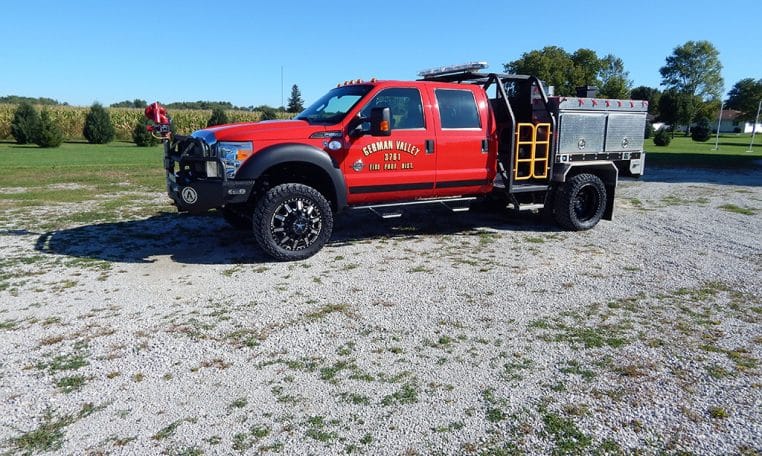

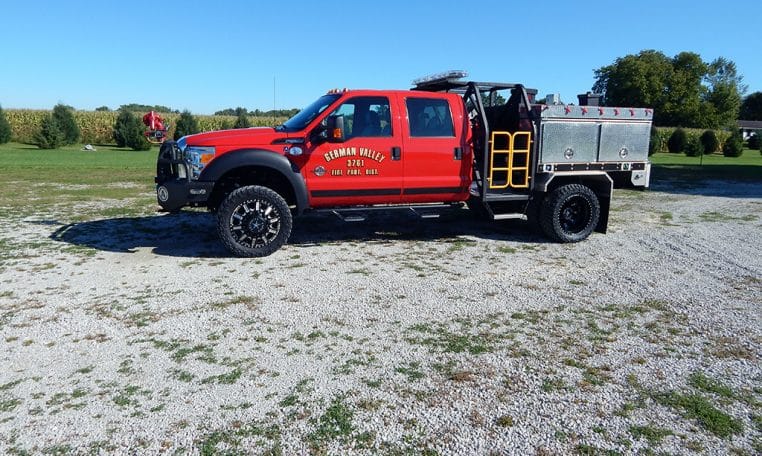

FLATBED BRUSH TRUCK #SK848

GERMAN VALLEY FIRE PROTECTION DISTRICT - GERMAN VALLEY, ILLINOIS
FEATURES:
  • Ford F-550 XL 4×4 4-Door DRW Chassis
  • Ford Power Stroke 6.7L V8, 300-HP Diesel Engine
  • Ford TorqShift 6-speed Automatic Transmission
  • Heavy Duty 3/16” Aluminum Body
  • Luverne Black Baja 4-Door cab steps

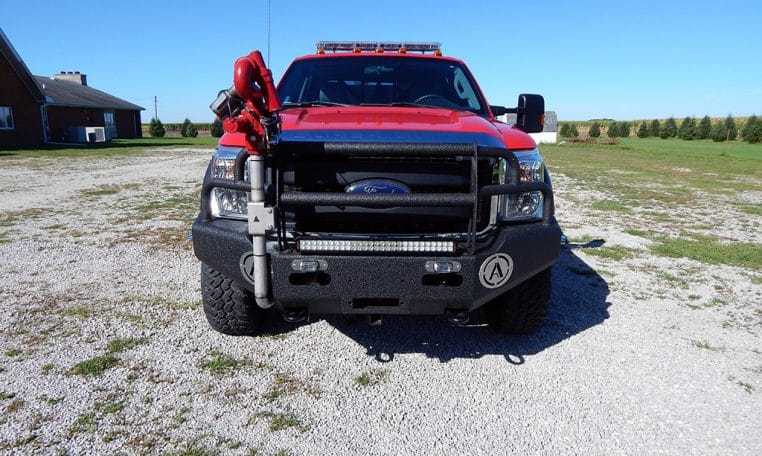

  • Buck Stop Brush Guard
  • One (1) Reese type rear hitch with electrical connections
  • Alexis Ultimate Off road wheel and tire package
  • Sliding rear cab window for communication with attack zone

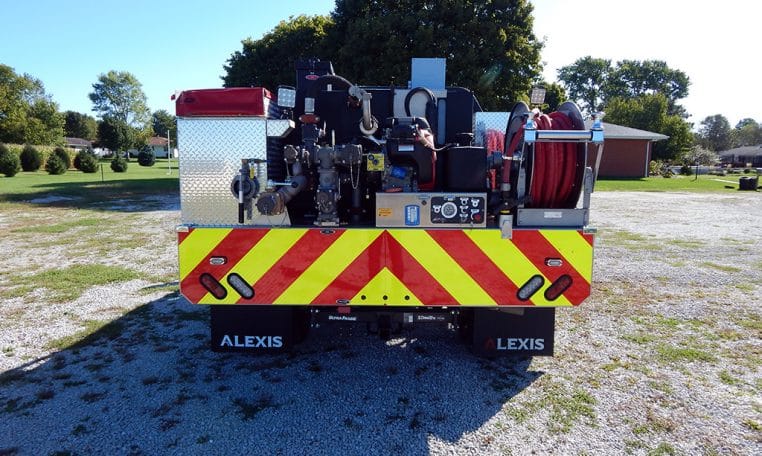

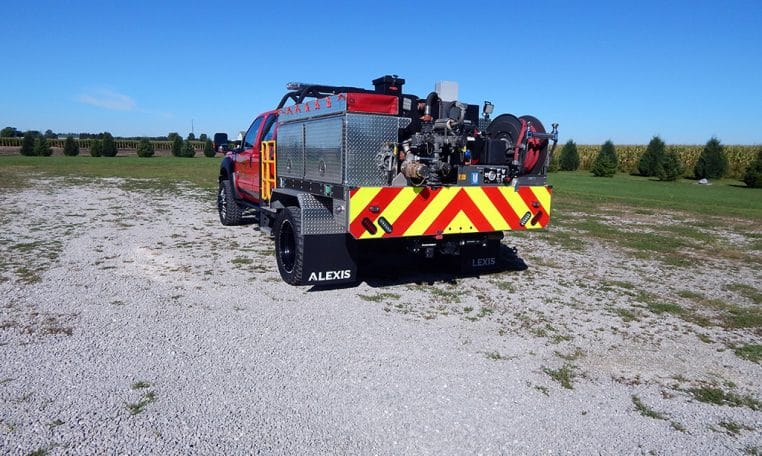

  • 300-Gallon Poly Skid Tank with 10-Gallon Foam Tank

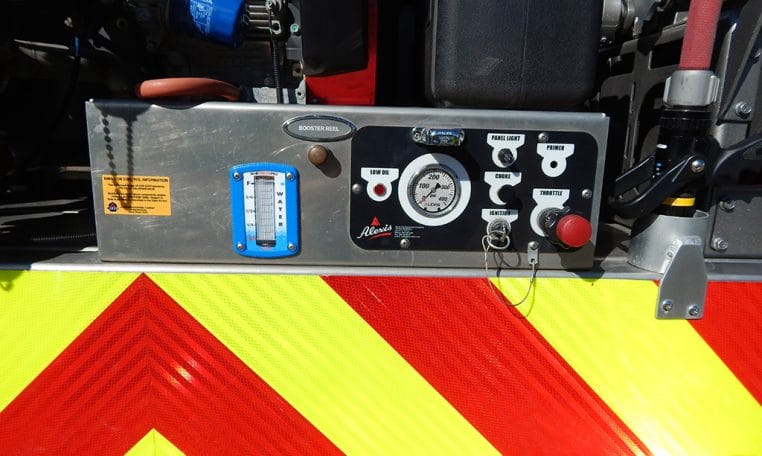

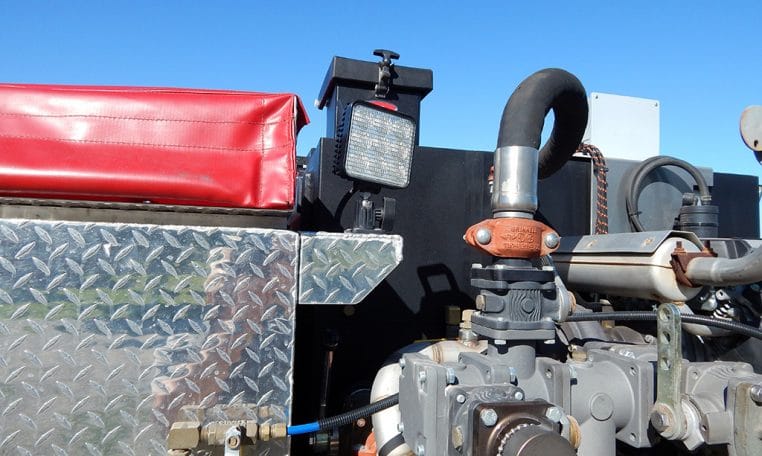

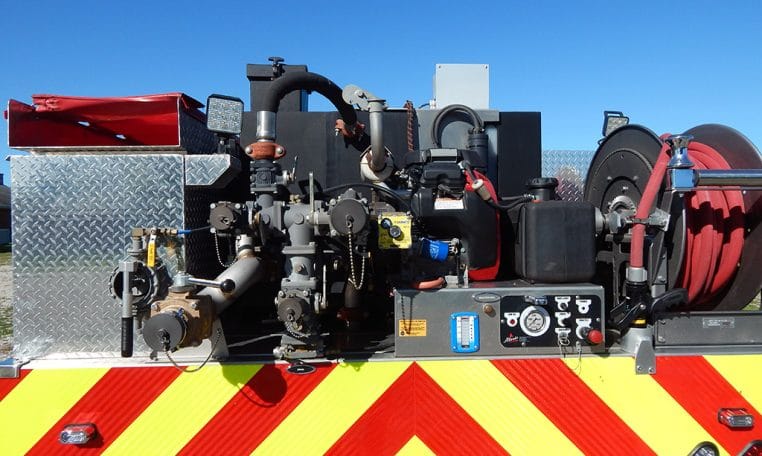

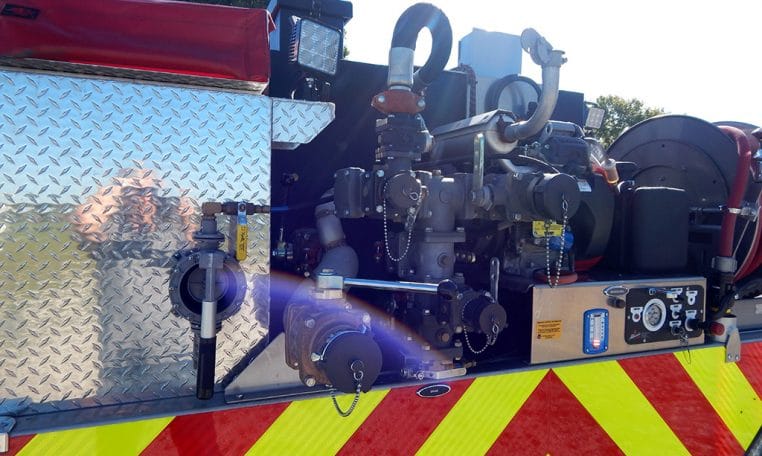

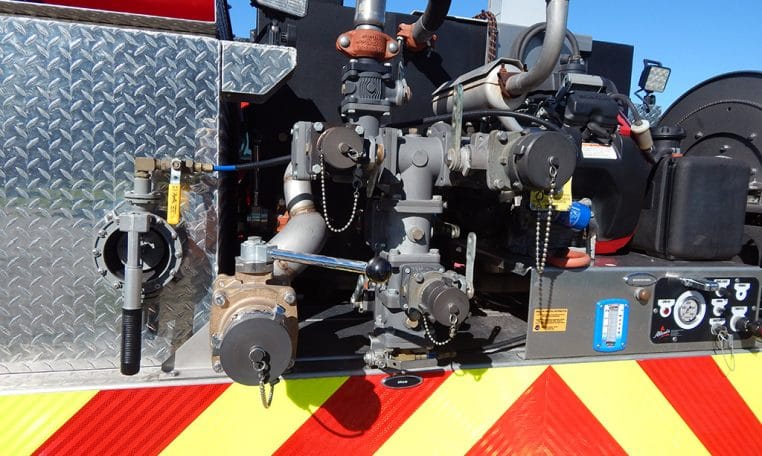

  • Darley 1 ½ AGE Pump with 20-HP Honda gasoline engine
  • Two (2) 1” Booster lines with 10’ of hose each, attack zone
  • One (1) 2 ½” Discharge, rear
  • One (1) 1 ½” Discharge, rear
  • One (1) 2 ½” Gated Suction, rear
  • Trident “Foamate” around-the-pump Foam system

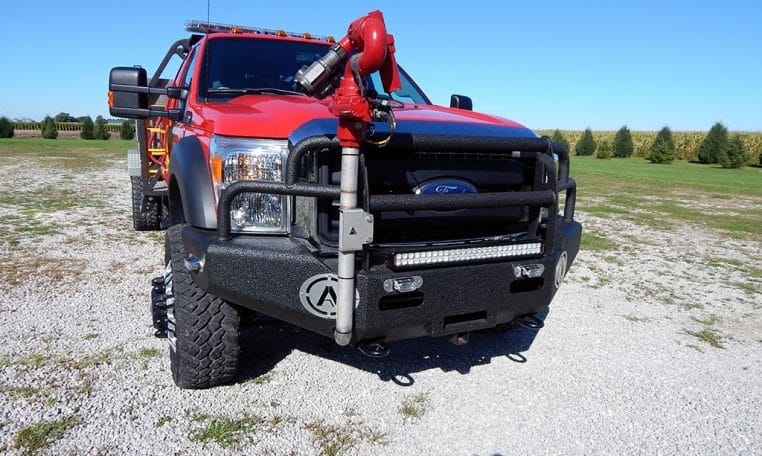

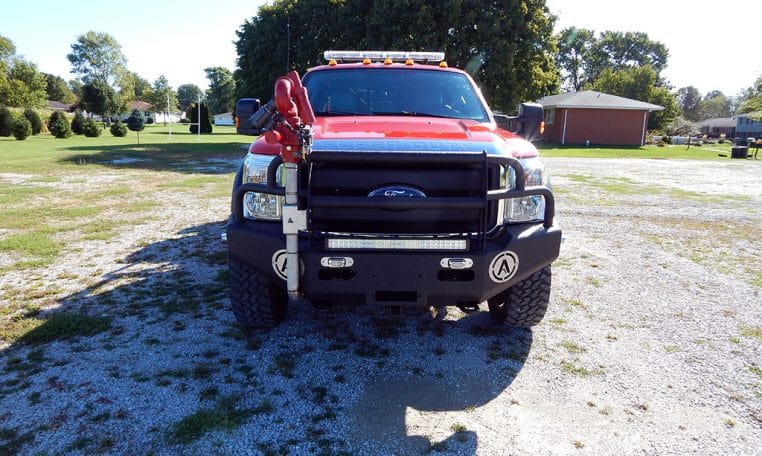

  • One (1) Akron front Turret controlled from the cab

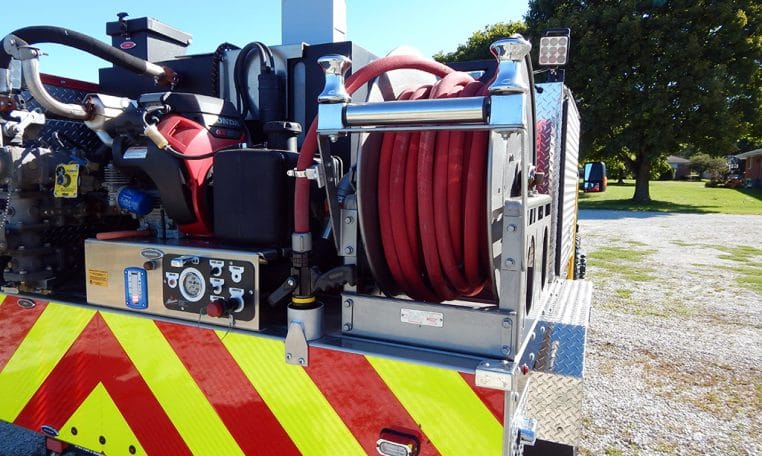

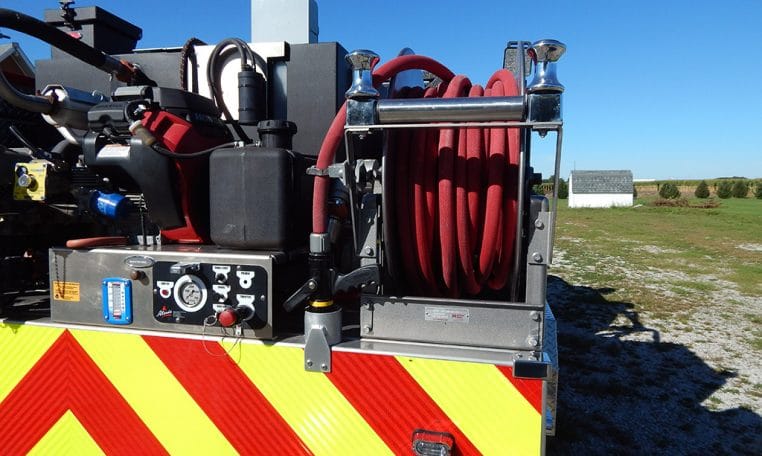

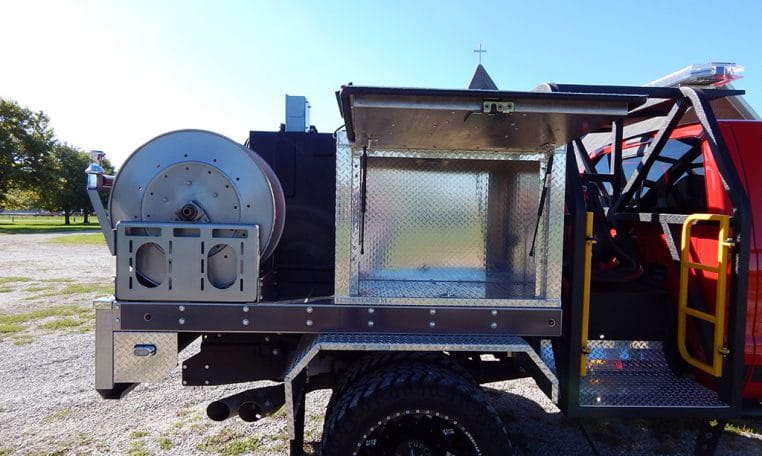

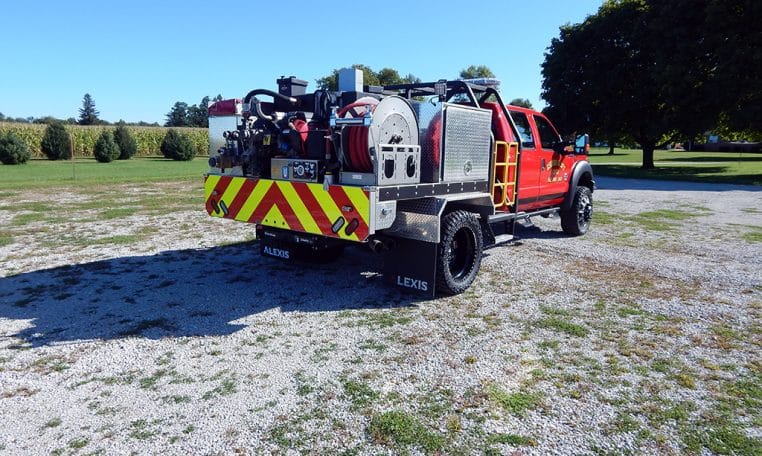

  • One (1) Hannay booster reel with 150-ft of 1” hose, right rear corner of flatbed

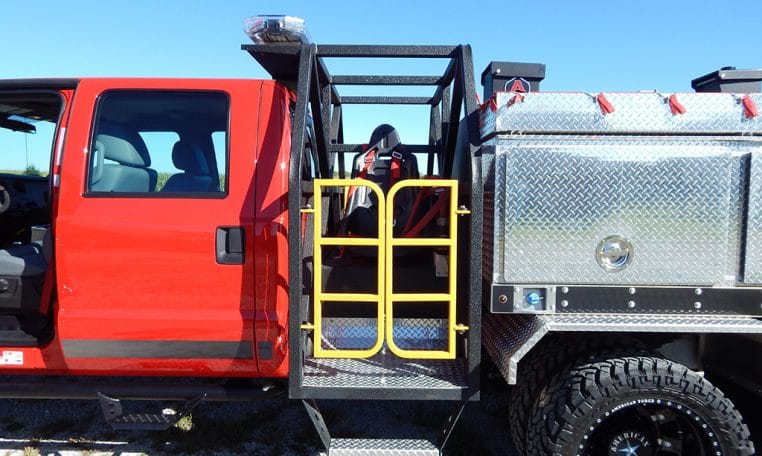

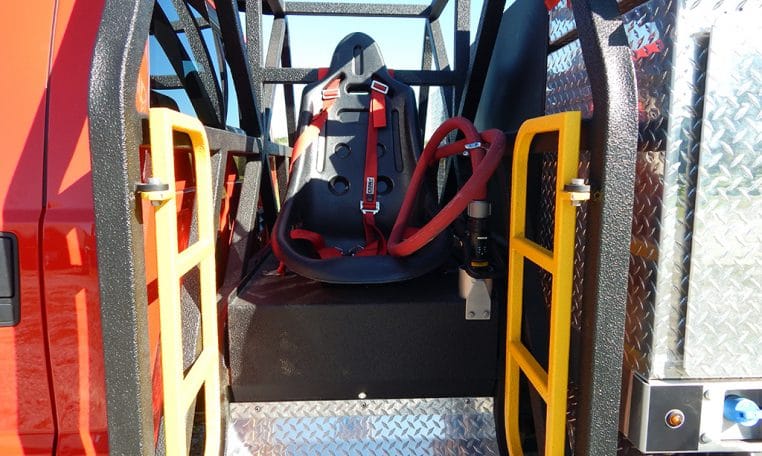

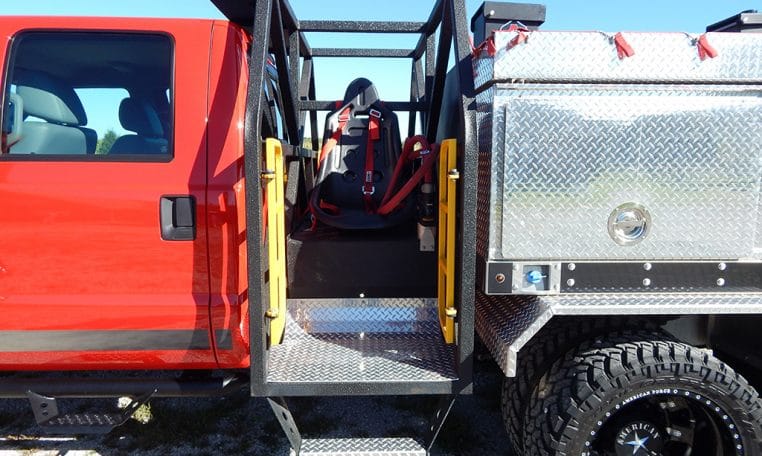

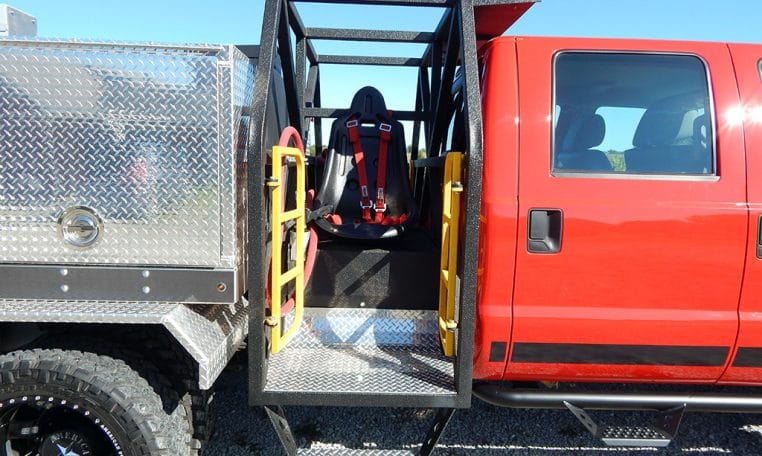

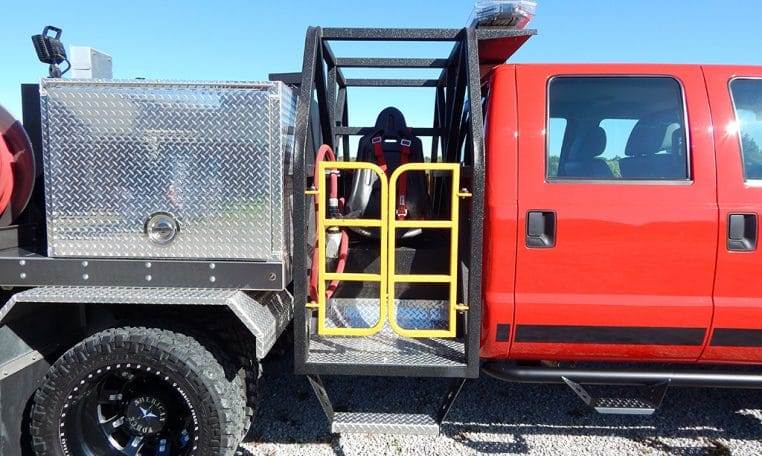

  • One (1) Alexis Attack Zone behind cab with roll cage and seating

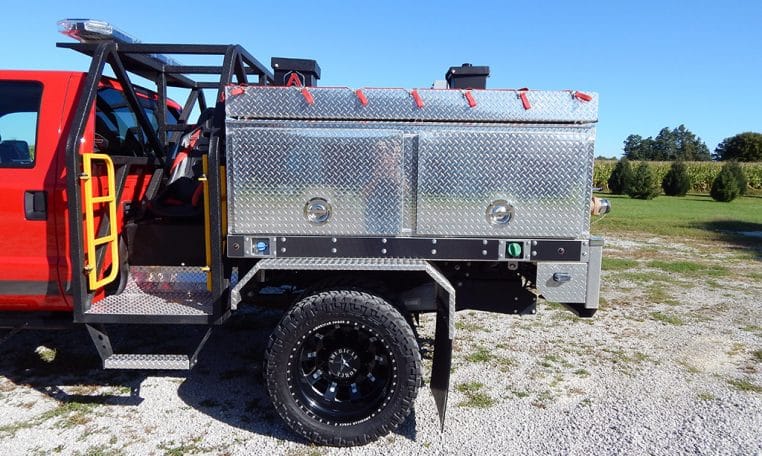

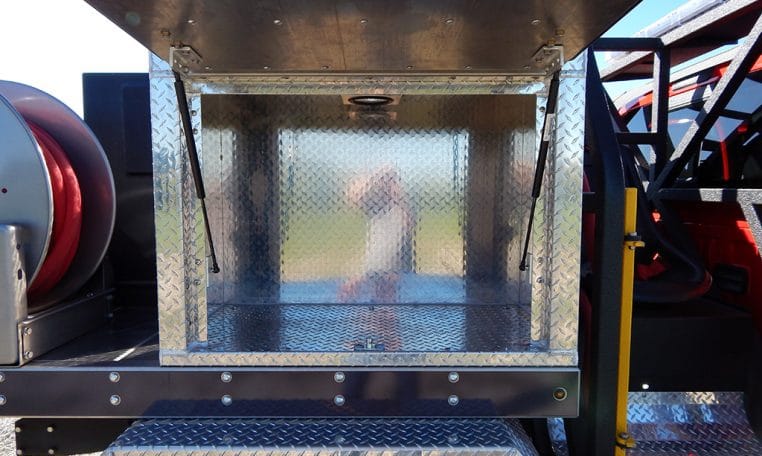

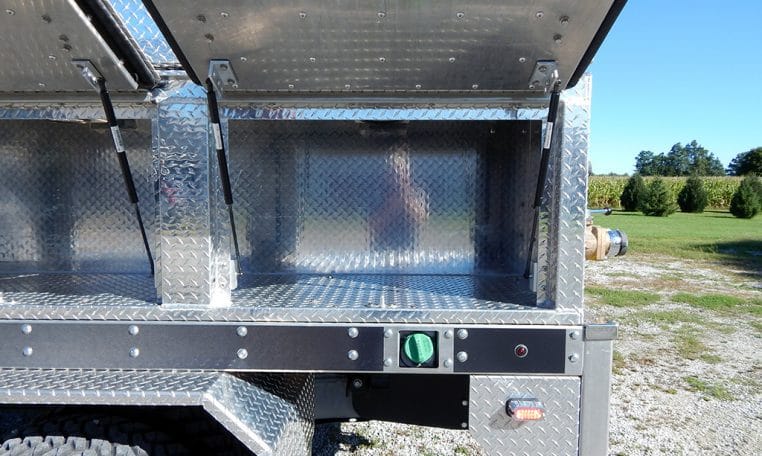

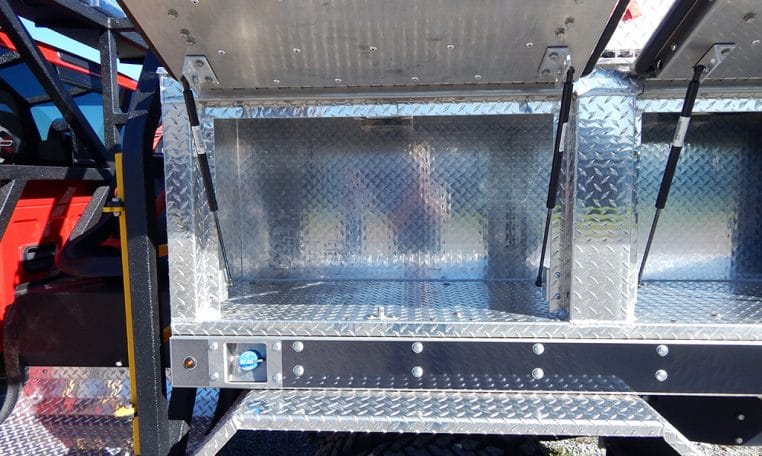

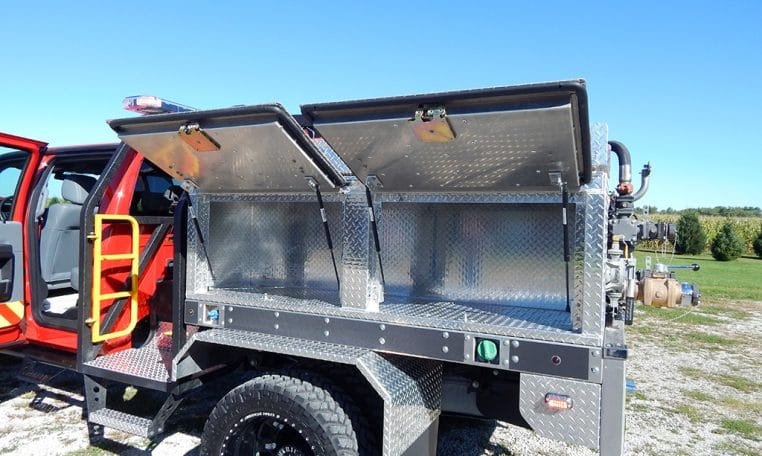

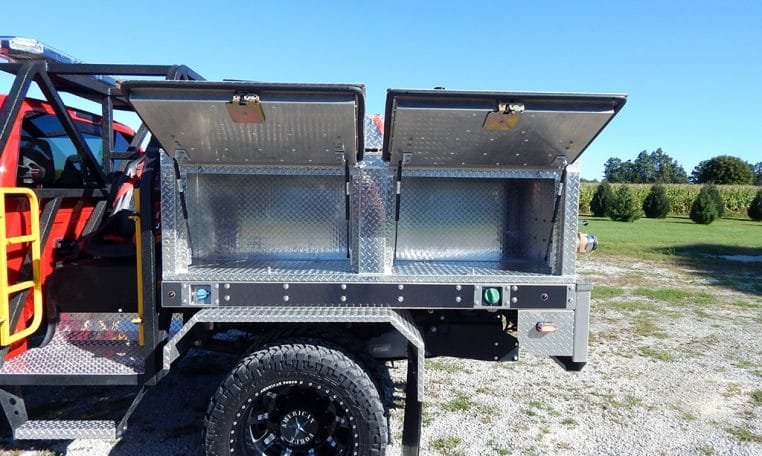

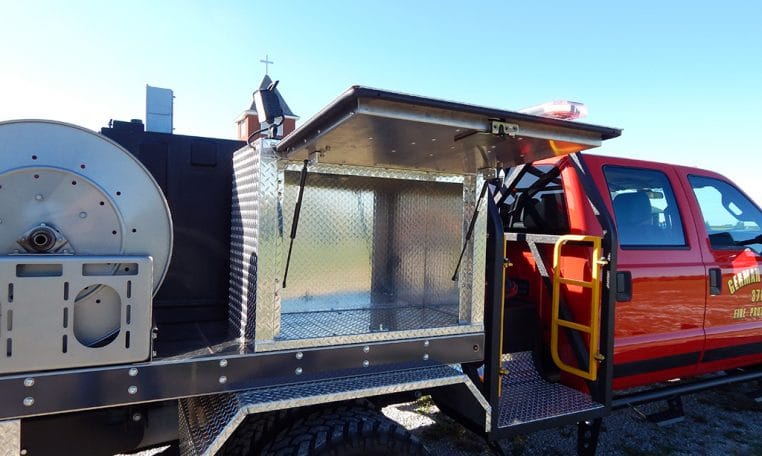

  • Two (2) compartments with two (2) lift up doors left side and one (1) right

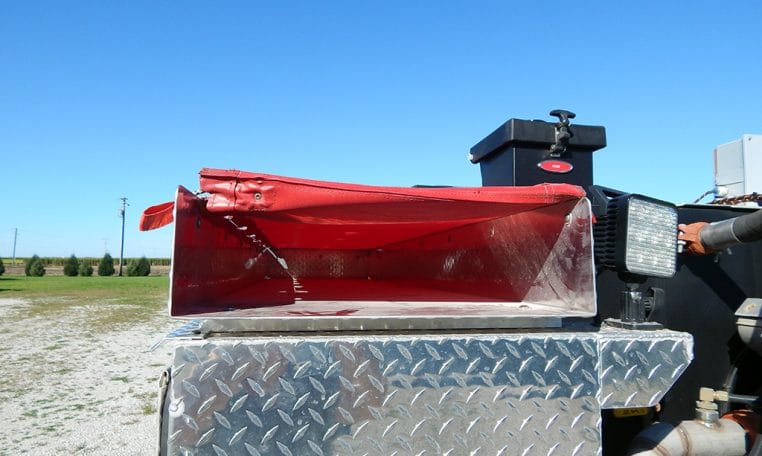

  • One (1) Hose tray with Hypalon cover, left side compartment top

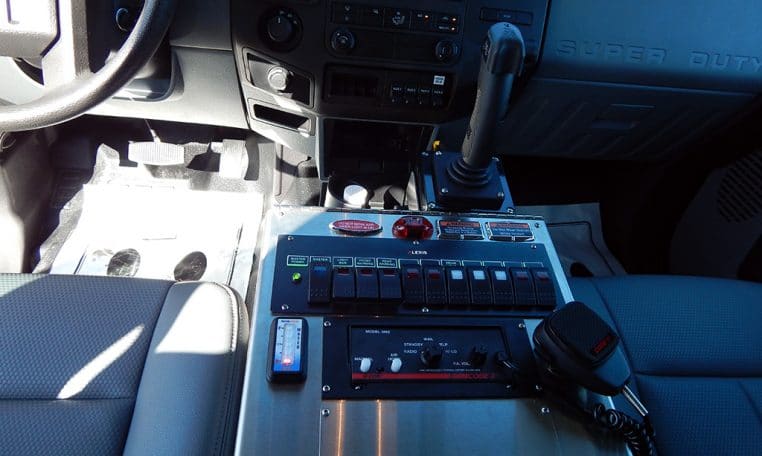

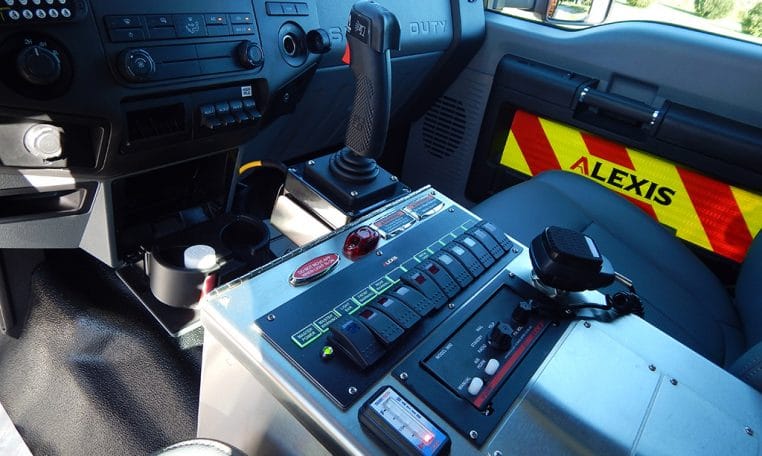

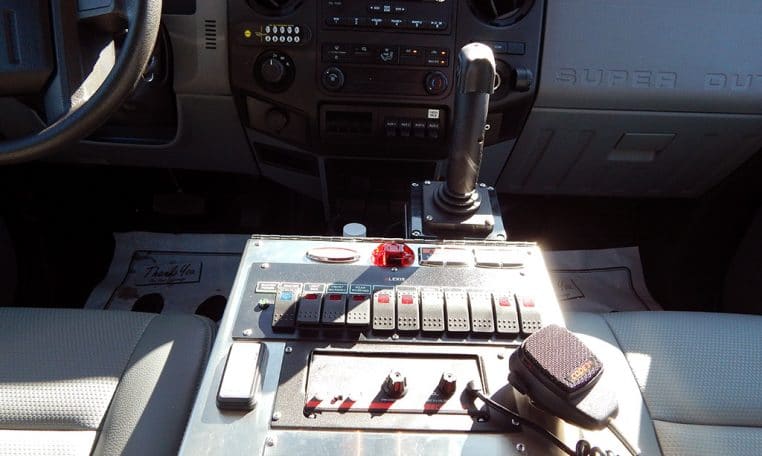

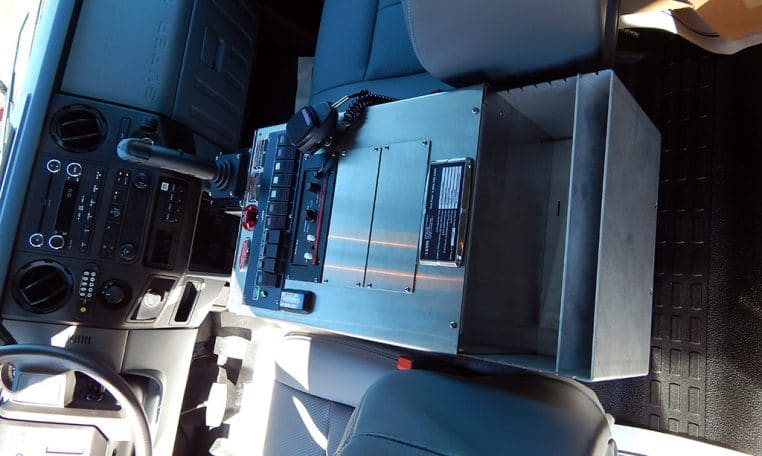

  • Floor mounted console for emergency switches with map/binder storage, cab
  • Code 3 Electronic Siren with two (2) 100-watt Code 3 speakers
  • Code 3 LED Scene Package
  • Code 3 LED Warning Light Package

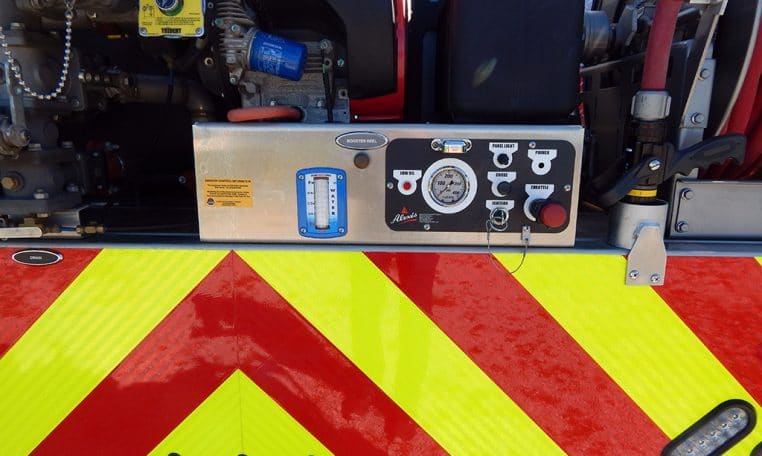

  • One (1) FireResearch Tank Vision Indicator (tank and cab mounted)

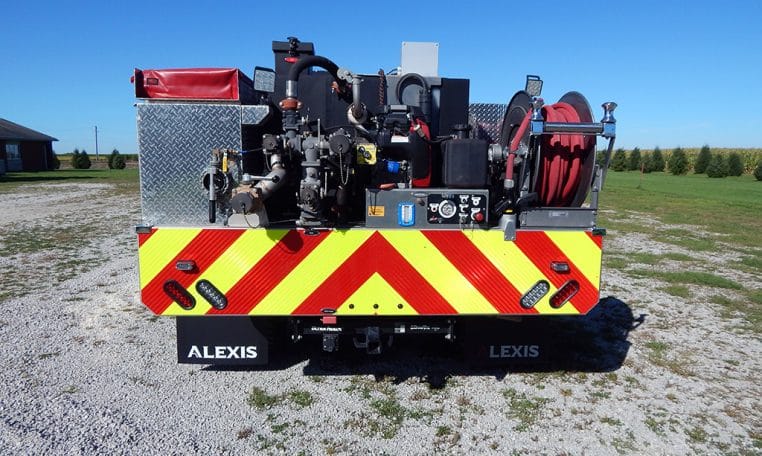

  • Diamond Grade Chevron pattern striping
  • 8’ 2” Overall height
  • 22’ 11” Overall length
  • 176.2” Wheelbase
  • 60” Cab to Axle
  • 7,050 FAWR
  • 12,780 RAWR
  • 19,500 GVWR
  • There are no features available
Year: 2019
Make: Alexis Fire Equipment
Model: Mini Units
Chassis: Ford F-550XL
Body Style: Brush Truck
Pump Size: Darley AGE Pump
Tank Size: 300
Feature: Alexis Attack Zone
Exterior Color: Red
New Delivery: New Delivery
