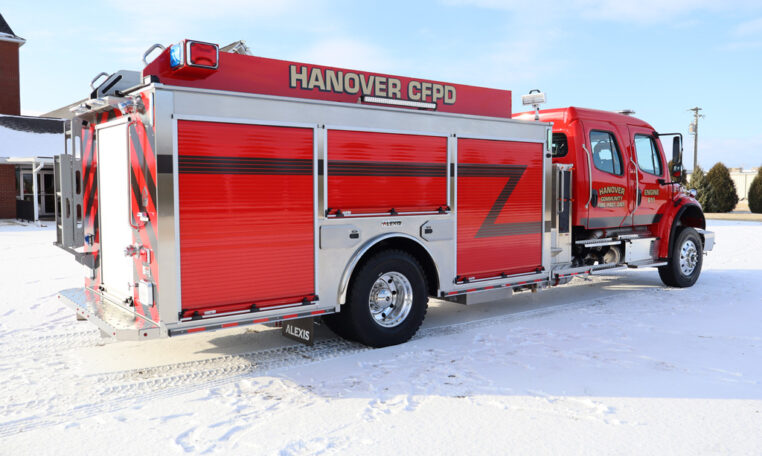

Delivered Apparatus

FEATURES:

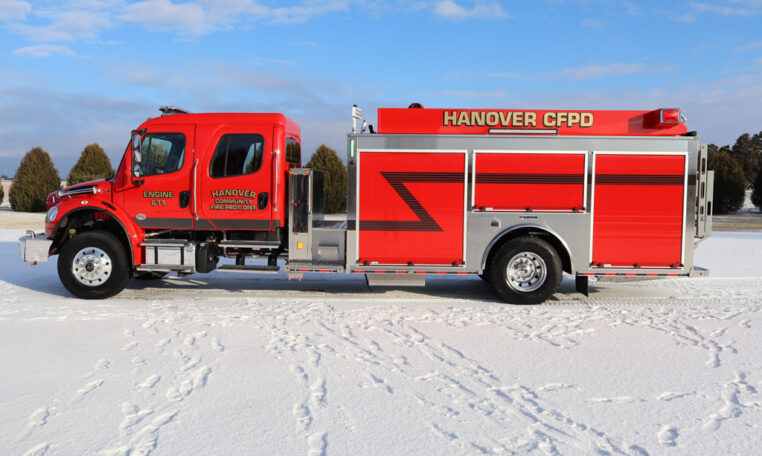

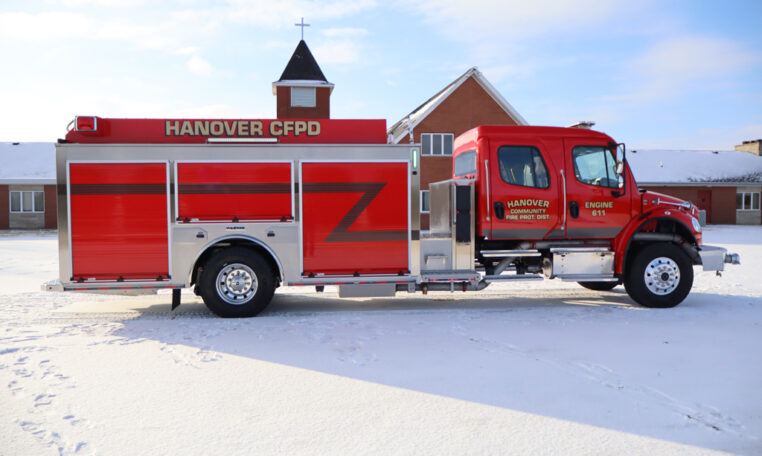

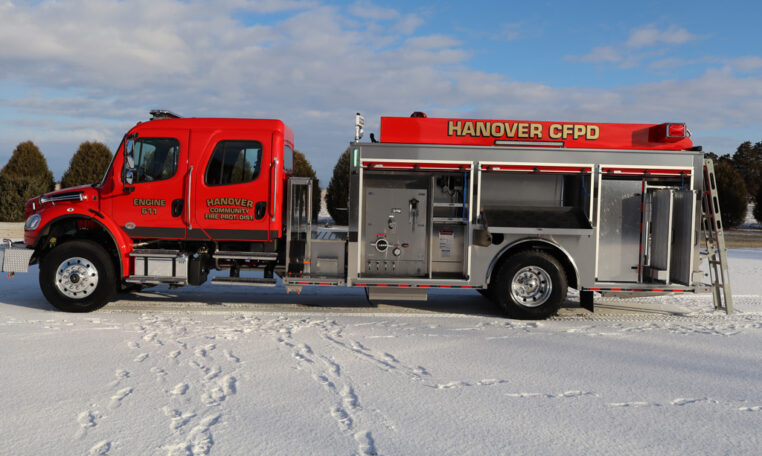

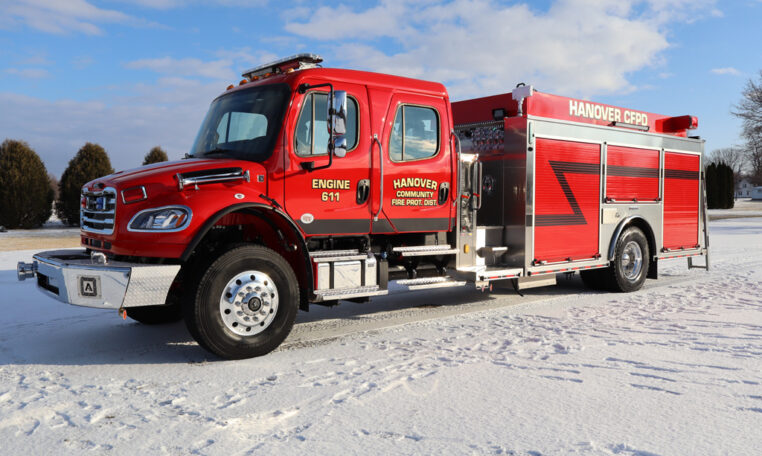

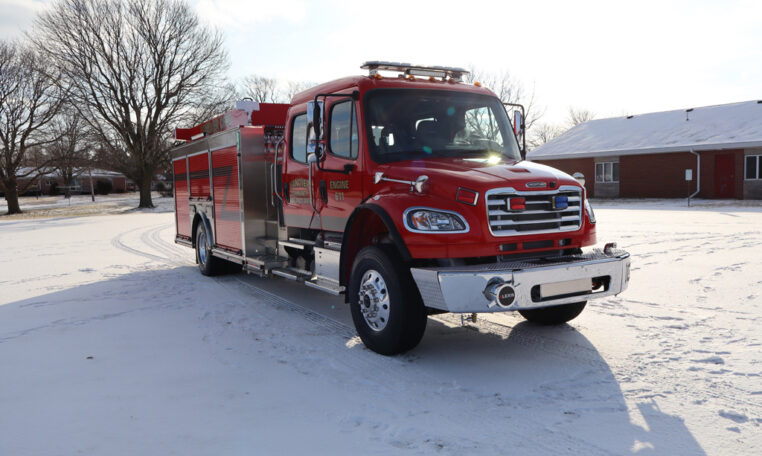

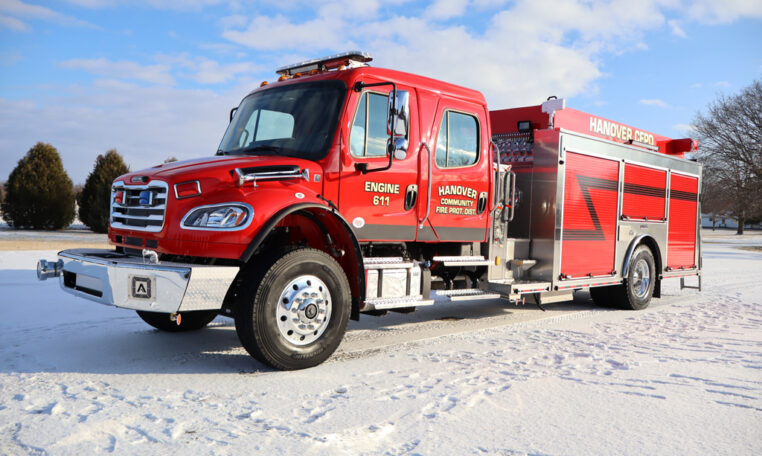

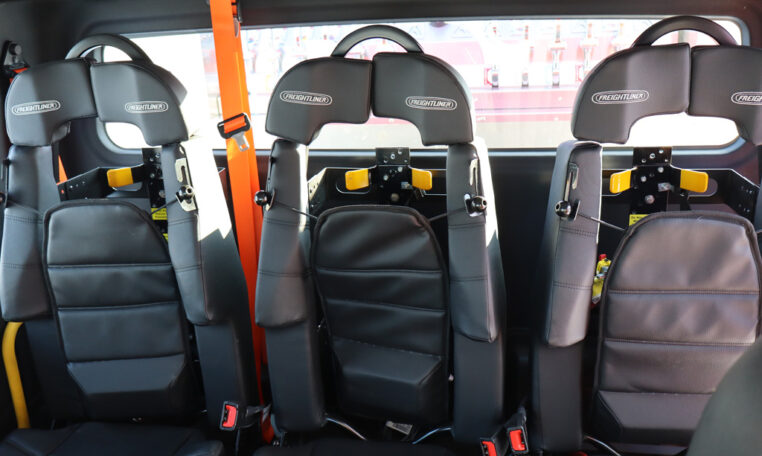

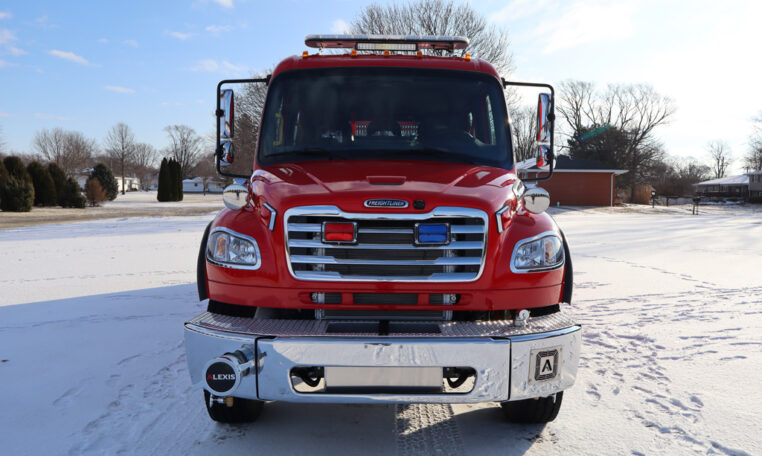

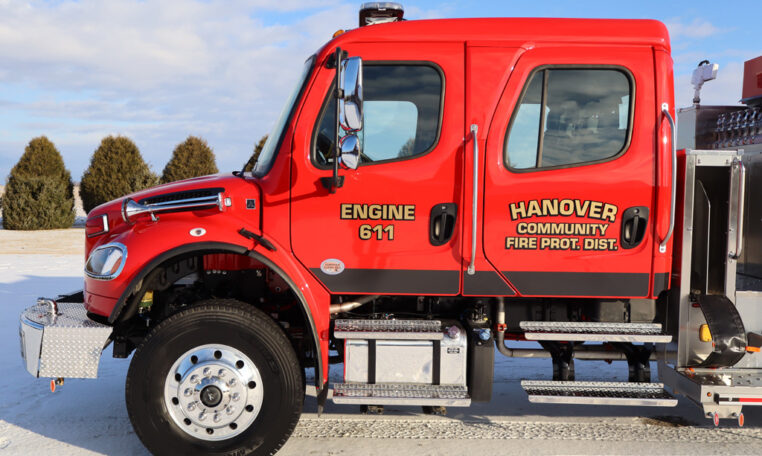

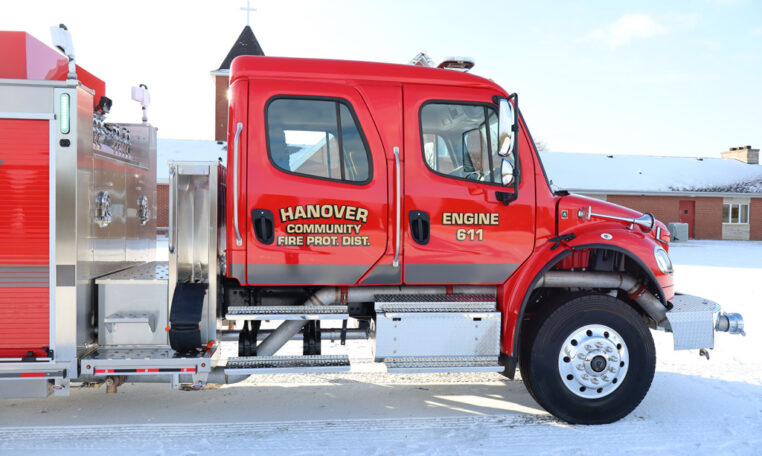

• Freightliner M2 106 Crew Cab Chassis
• Cummins L9 360 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Stainless Steel Body with Stainless Steel Subframe

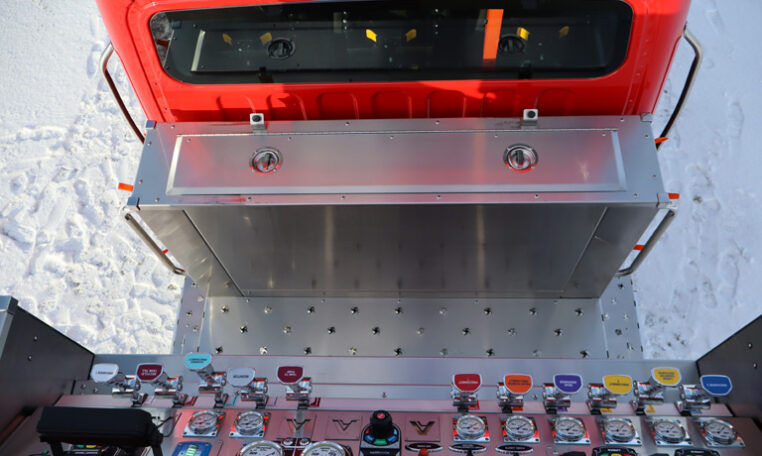

• Integrated Top Mount Pump Module
• Hale DSD 1500 GPM Pump

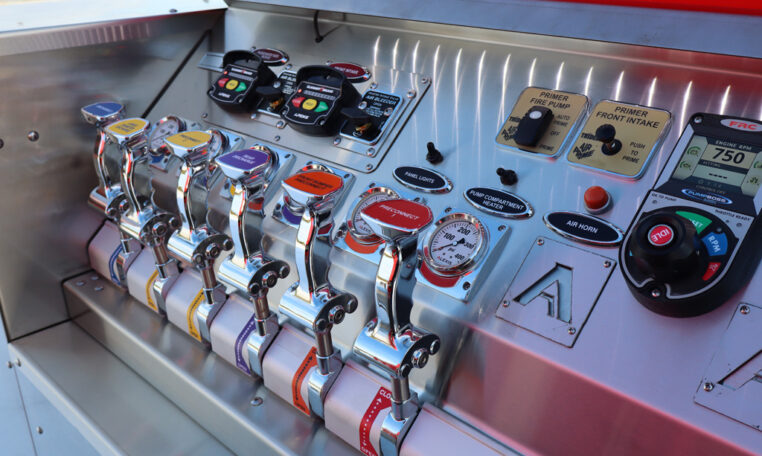

• Trident 2-Location Automatic Air Primer

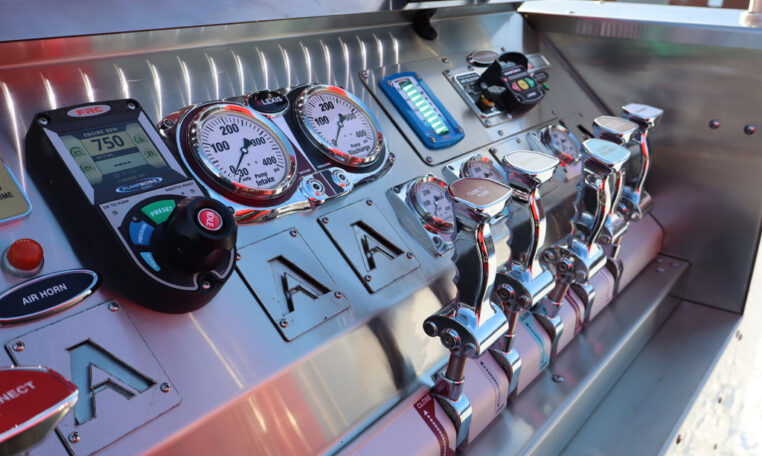

• FRC Pump Boss Max Pressure Governor Monitoring System
• FRC Tankvision Water Tank Level Gauge with Three (3) Whelen PSTANK2 Strip Lites
• Two (2) 6” Intakes, One (1) Each Side with MIV Valves
• One (1) 5” Front Intake with Electric Valve
• One (1) 2½” Gated Intake, Left Side
• One (1) 2½” Discharge, Each Side
• One (1) 3” Discharge Adapted to 5” Storz, Right Side
• One (1) 3” Discharge Adapted to 2½” MNST, Rear Right

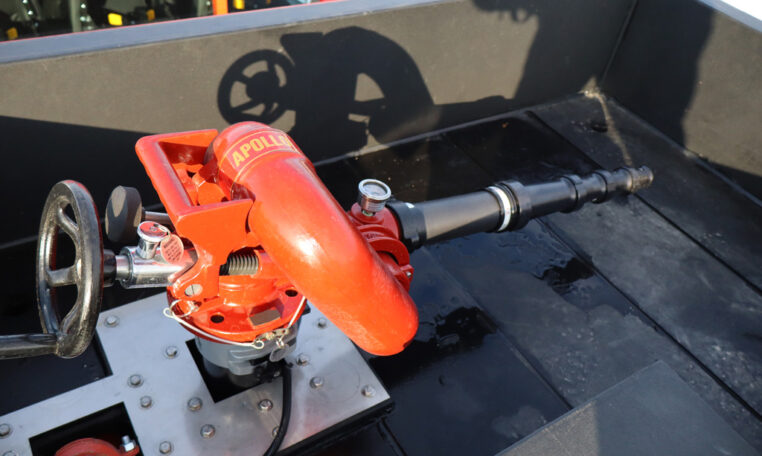

• One (1) 3” Deck Gun Discharge in Dunnage Area with Akron Apollo Deck Gun and
• TFT Extenda-Gun
• One (1) 2½” Preconnect, Hose Bed Bulkhead, Left Side
• Two (2) 1½” Crosslay Preconnects Behind Cab

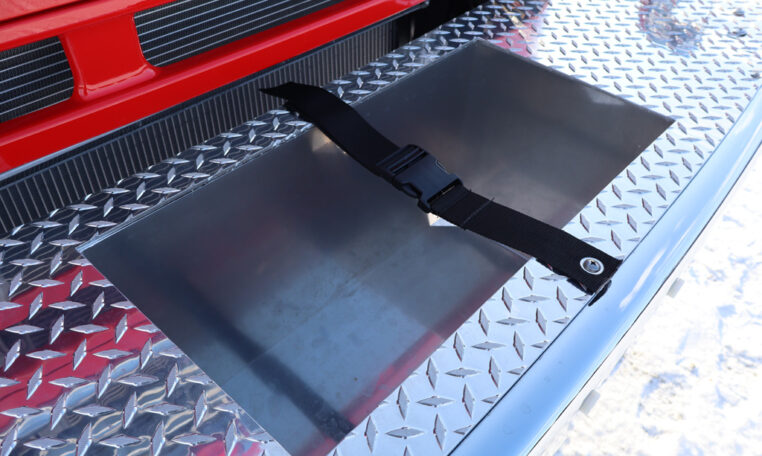

• One (1) 1½” Bumper Extension Preconnect
• ROM Painted Roll-Up Doors

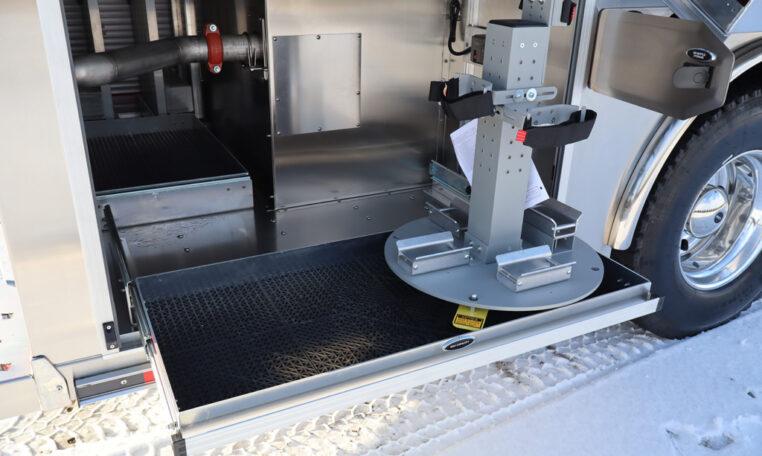

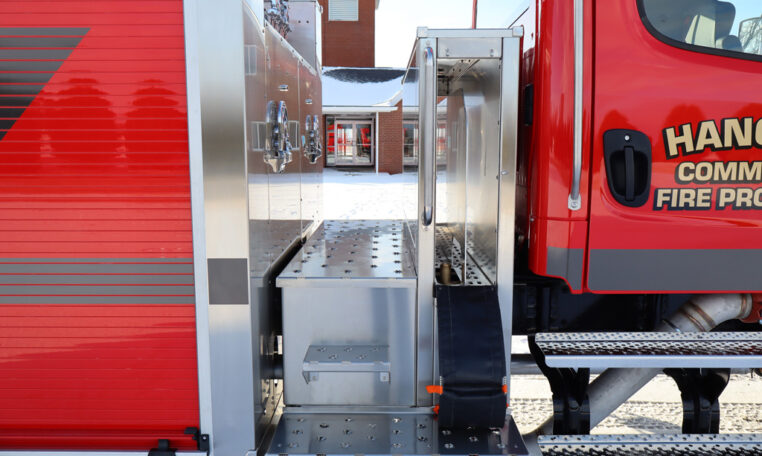

• Three (3) Dual Wheel Well Air Bottle Compartments

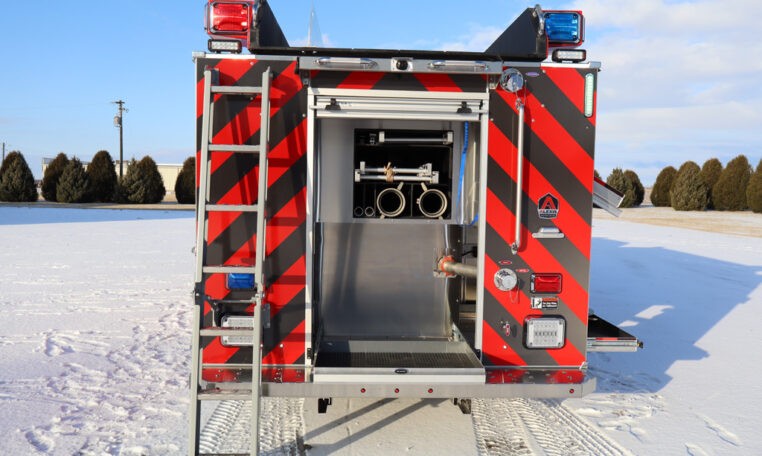

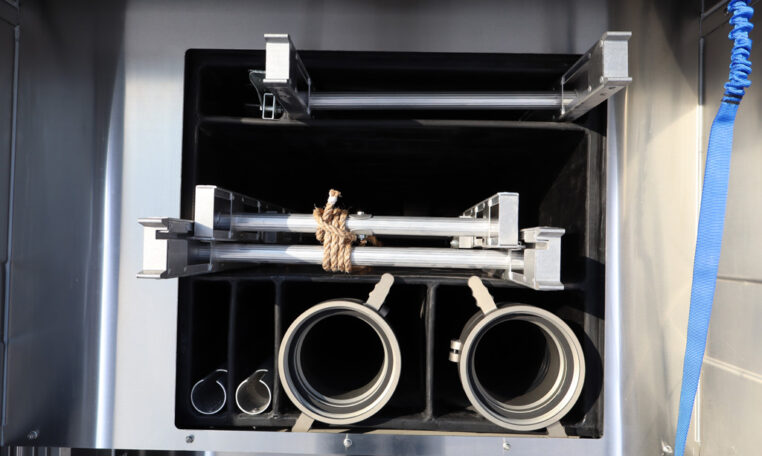

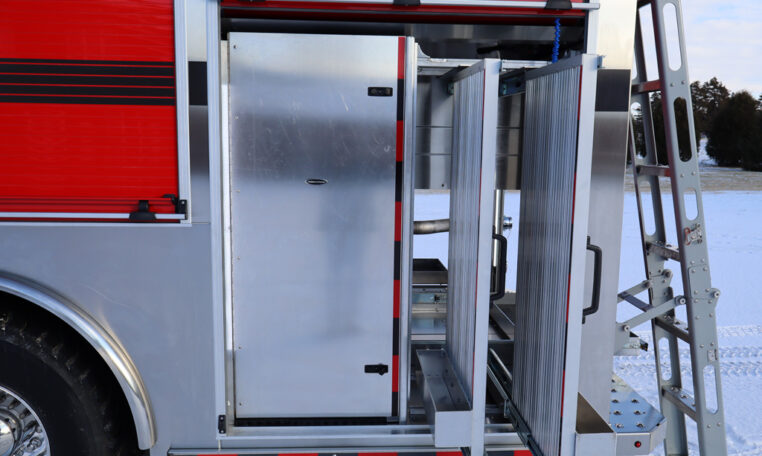

• Ladder Storage Horizontal in Rear Compartment with Two (2) Suction Hose

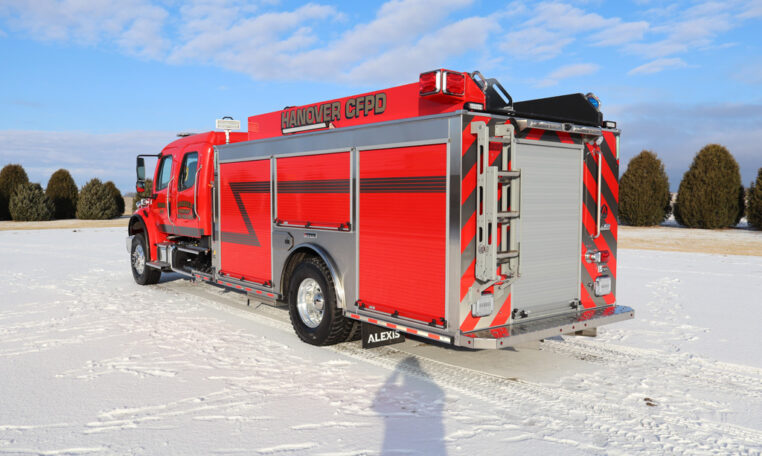

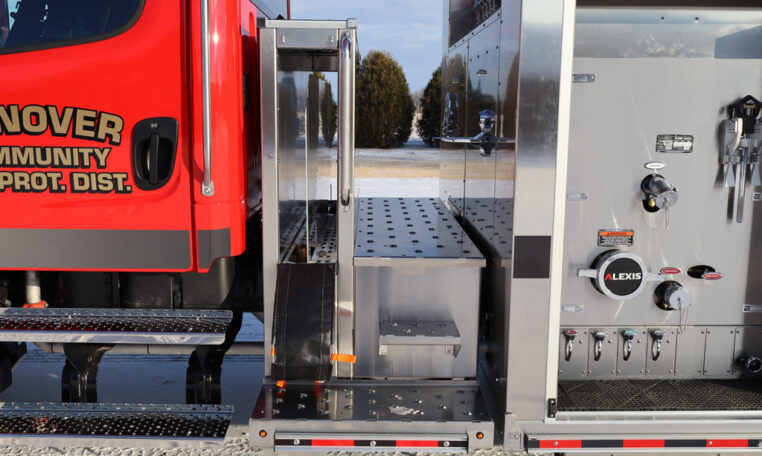

• Stainless Steel Rear Access Ladder, Left Side

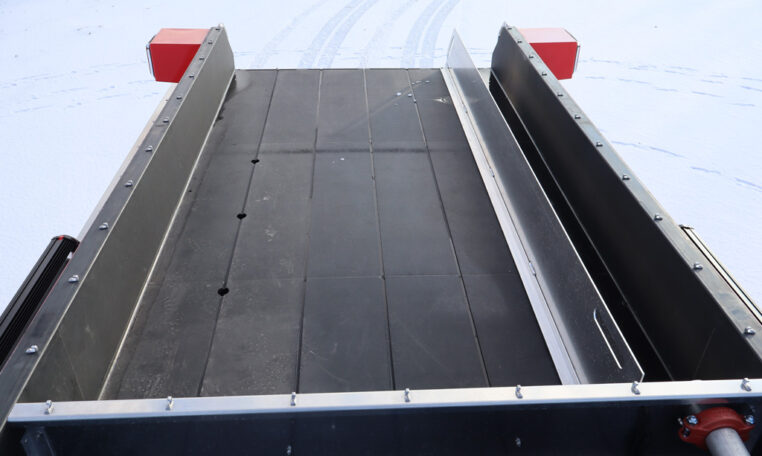

• 1000 Gallon Poly Tank with Hose Bed
• One (1) 2½” FirePrograms Tank Fill, Right Side Pump Panel

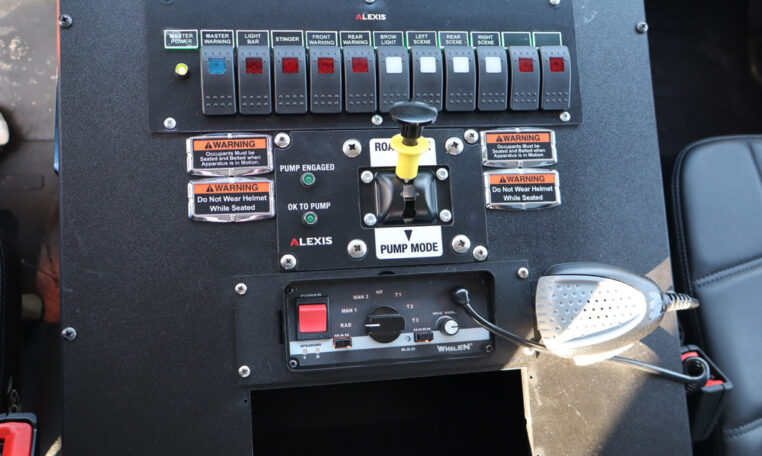

• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Whelen LED Warning Light Package
• Progressive Dynamics Battery Charger with Viair Compressor, L1 Compartment
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side
• Whelen 200W Siren and 100W Speaker
• Two (2) FireTech HiViz 40″ LED Scene Light Bars, One (1) Each Side
• Two (2) FireTech HiViz 8″ LED Scene Light Bars, Rear
• Two (2) FRC Spectra LED Telescopic Lights, One (1) Each Side Front of Body
• One (1) FireTech HiViz 21” LED Brow Light
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, and Two (2) 10’ Lengths of 6” Suction Hose
• 9’-11” Overall Height
• 35’ 6” Overall Length
• 258” Wheelbase
• 145.54” Cab to Axle
• 16,000 FAWR
• 31,000 RAWR
• 47.000 GVWR
