Delivered Apparatus

FEATURES:

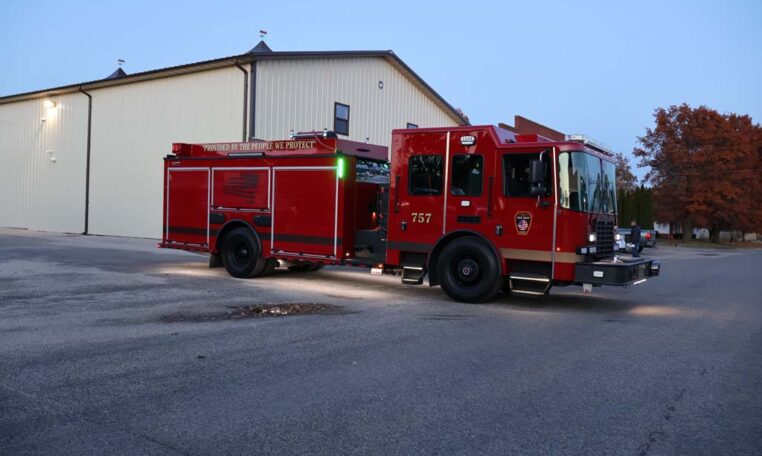

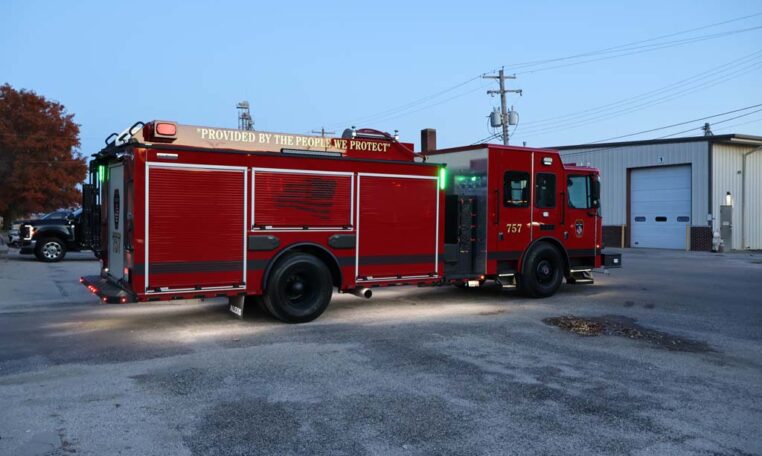

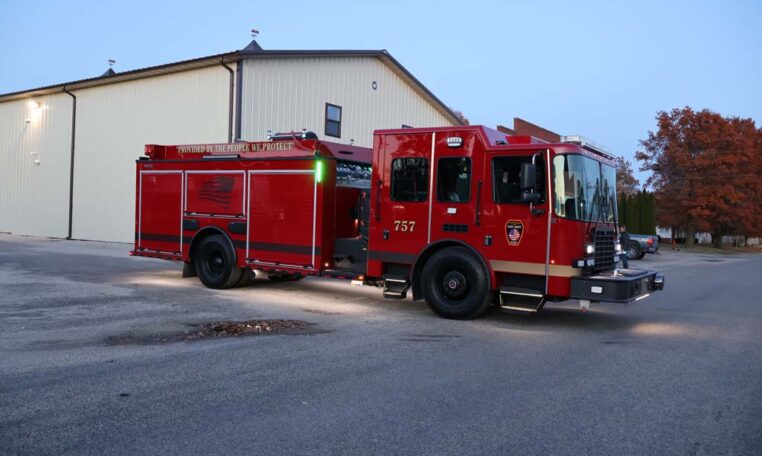

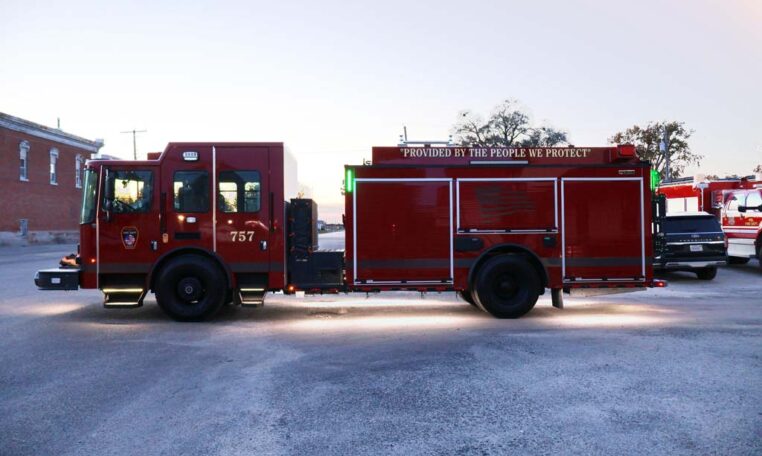

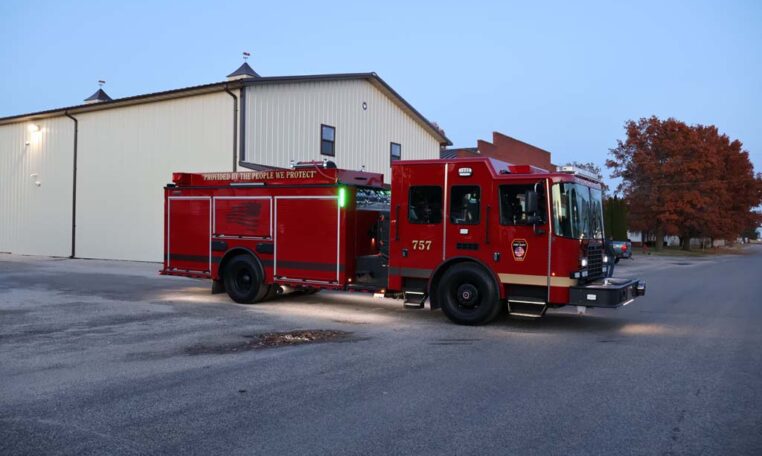

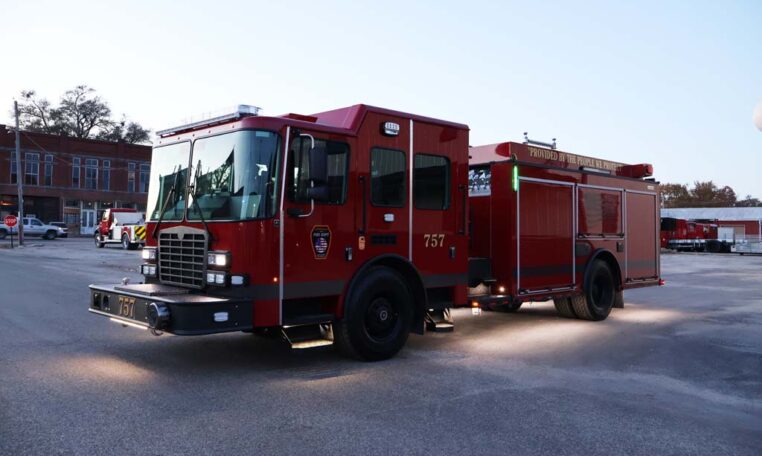

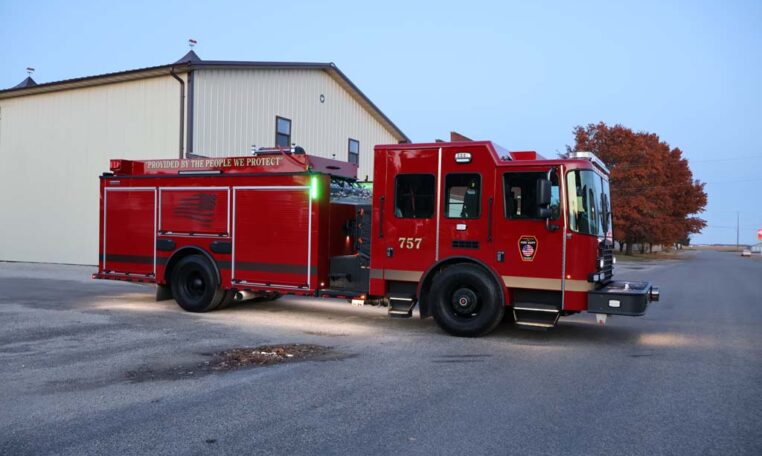

• HME 1871 MFDxL 12” Raised Roof Chassis
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Stainless Steel Body with Stainless Steel Subframe

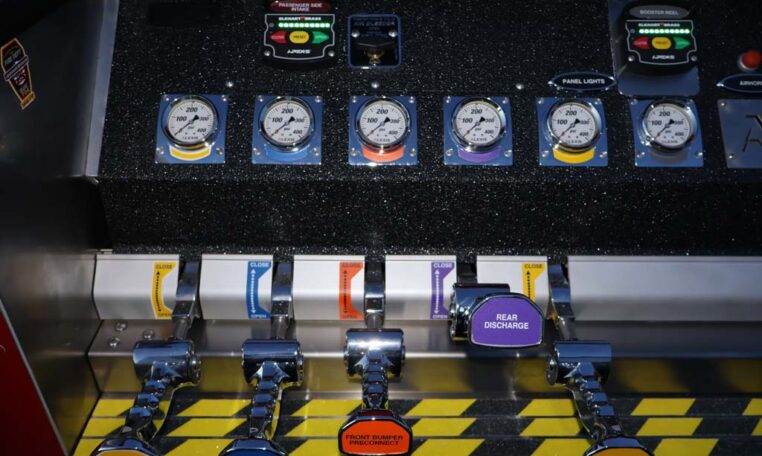

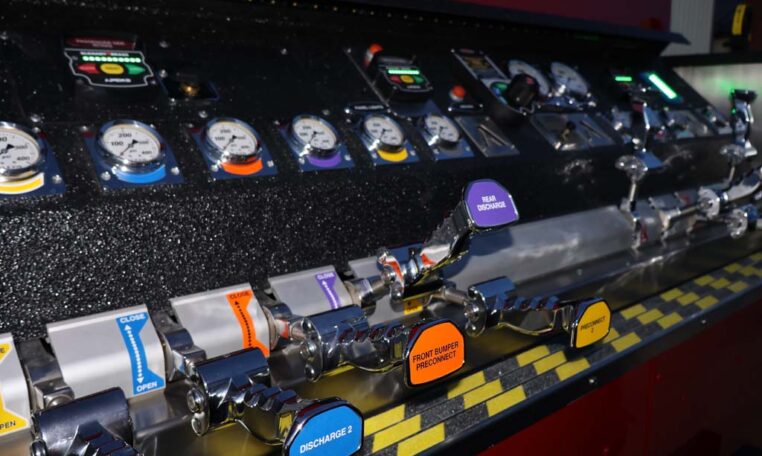

• Integrated Top Mount Pump Module
• Waterous CXVC 1500 GPM PTO Pump
• Trident Air Primer

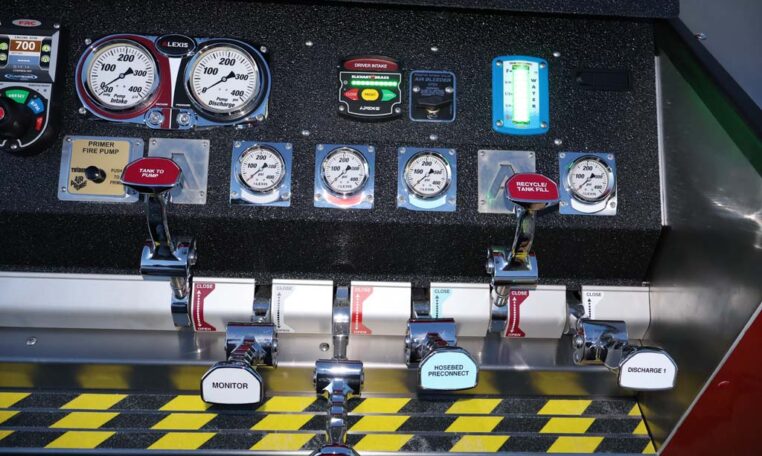

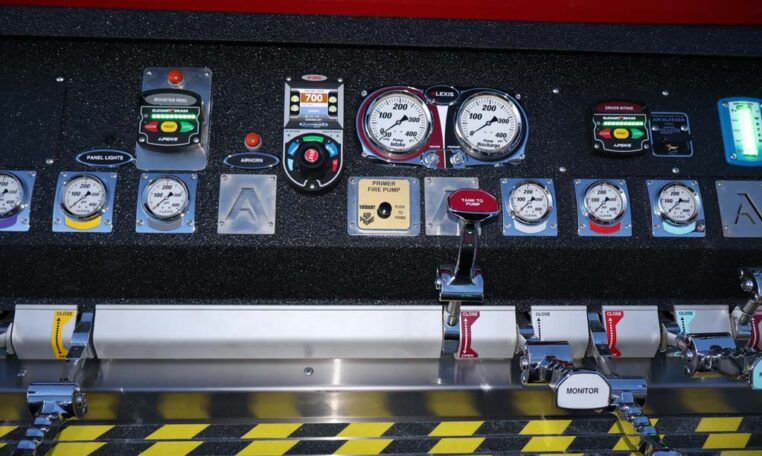

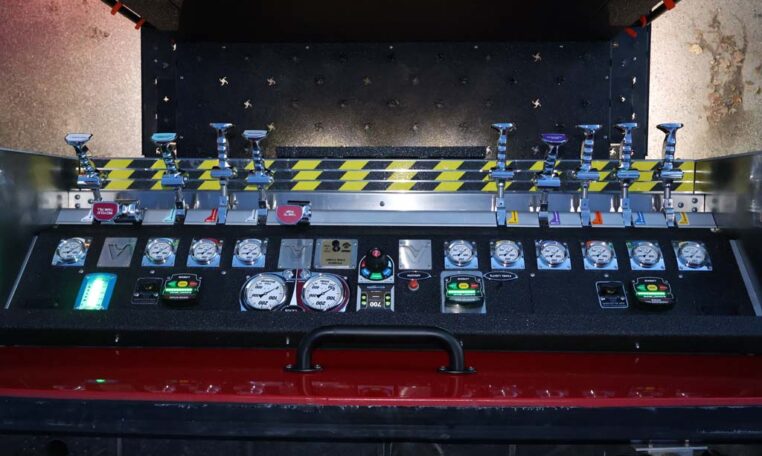

• FRC Pump Boss Max Pressure Governor Monitoring System
• FRC Tankvision Water Tank Level Gauge with Three (3) Whelen PSTANK2 Strip Lites

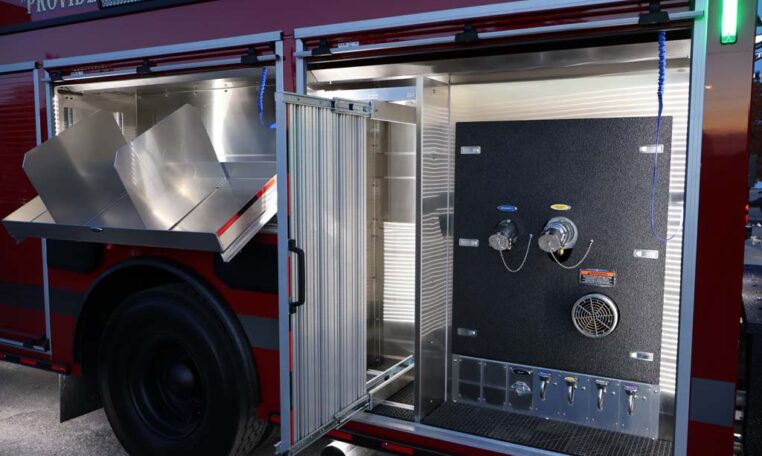

• Two (2) 6” Intakes, One (1) Each Side with Elkhart Electric Valves
• One (1) 2½” Gated Intake, Left Side
• One (1) 2½” Discharge, Each Side
• One (1) 3” Discharge Adapted to 5” Storz, Right Side
• One (1) 3” Discharge Adapted to 2½” MNST, Rear Right

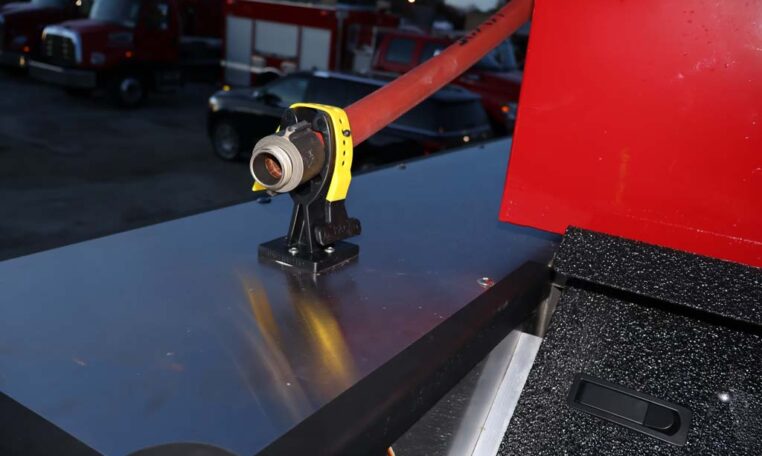

• One (1) 3” Deck Gun Discharge in Dunnage Area with TFT Extenda-Gun
• One (10 2½” Hosebed Preconnect, Left Side

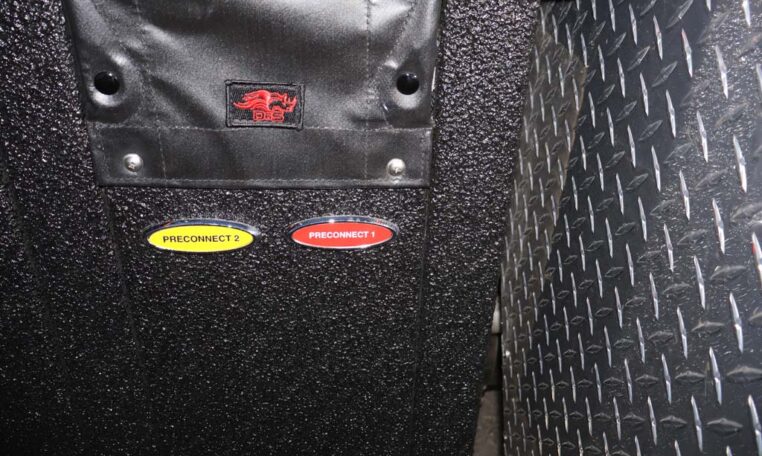

• One (1) 1½” and One (1) 2½” Crosslay Preconnects Behind Cab

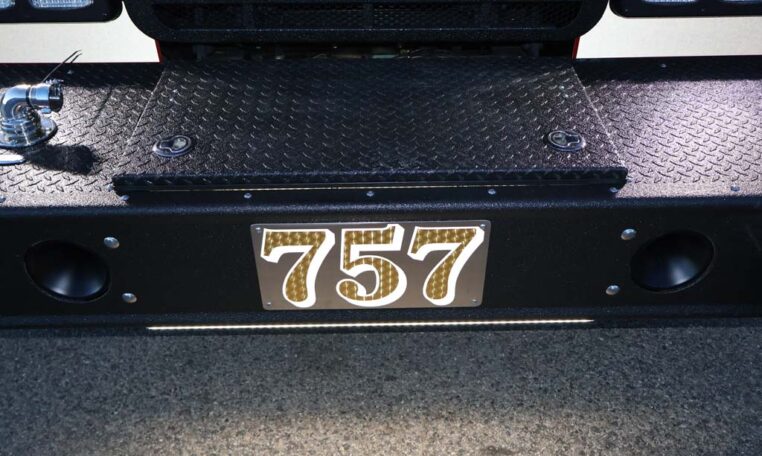

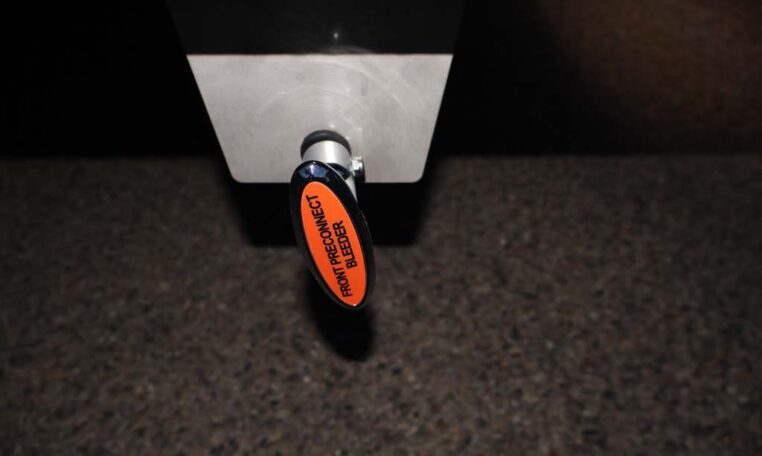

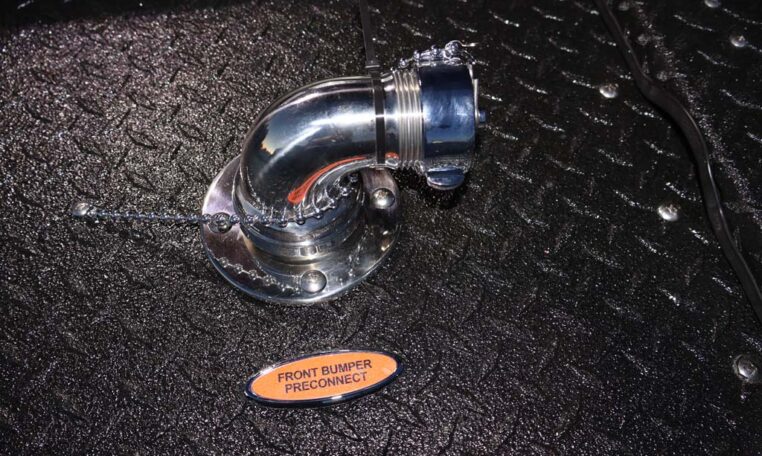

• One (1) 1½” Bumper Extension Preconnect
• One (1) Booster Reel Hose Bed Dunnage Area with 150’ of 1” Booster Hose

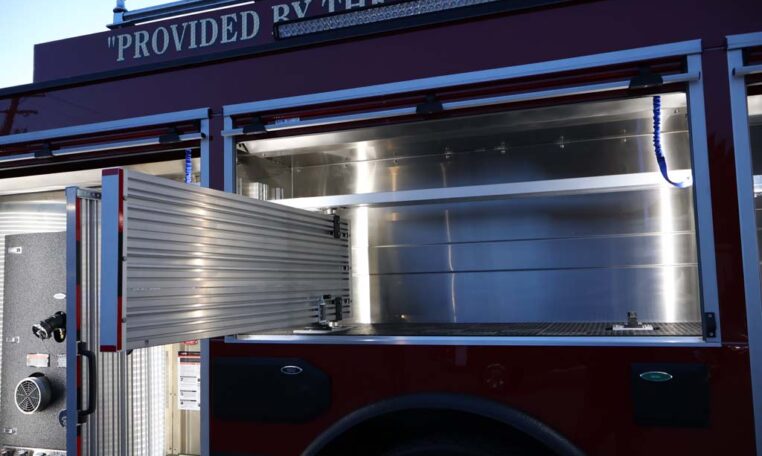

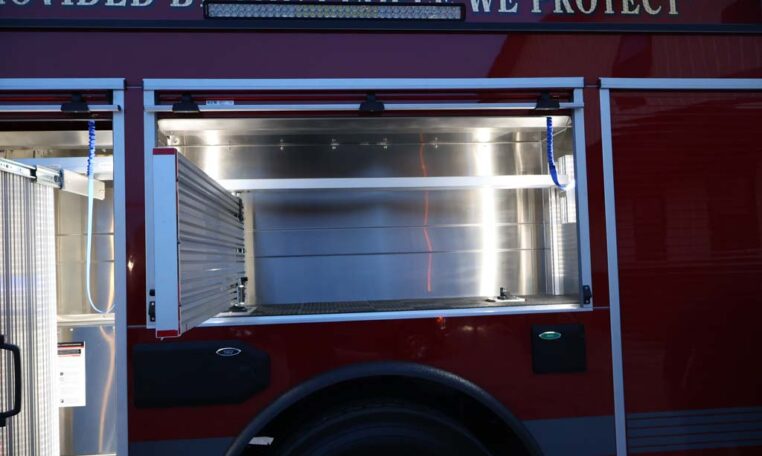

• ROM Painted Roll-Up Doors

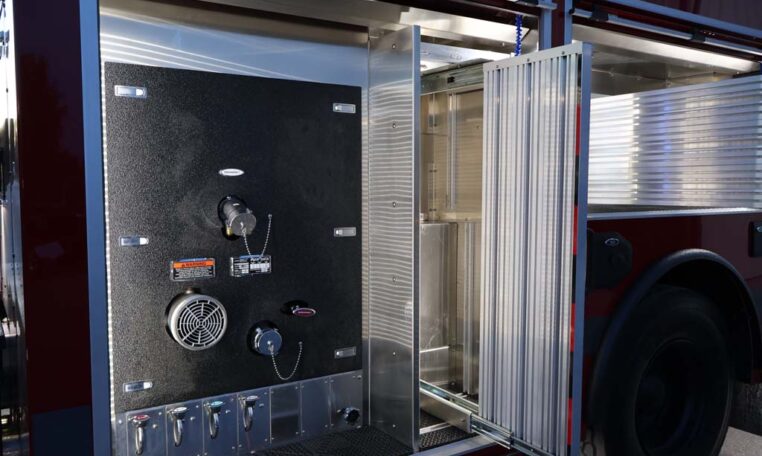

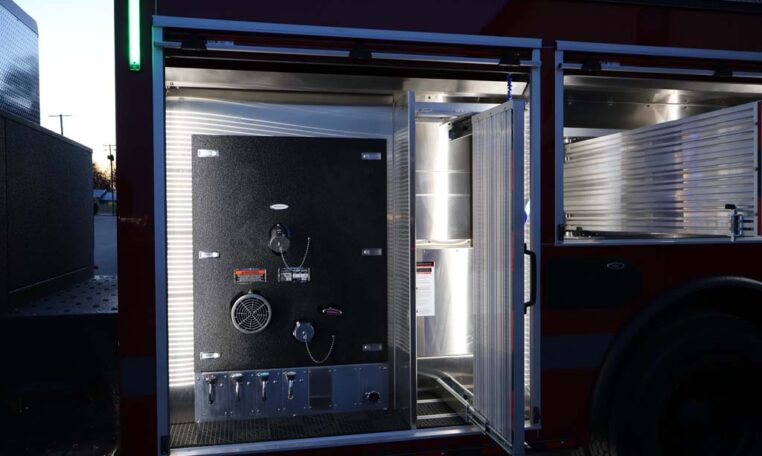

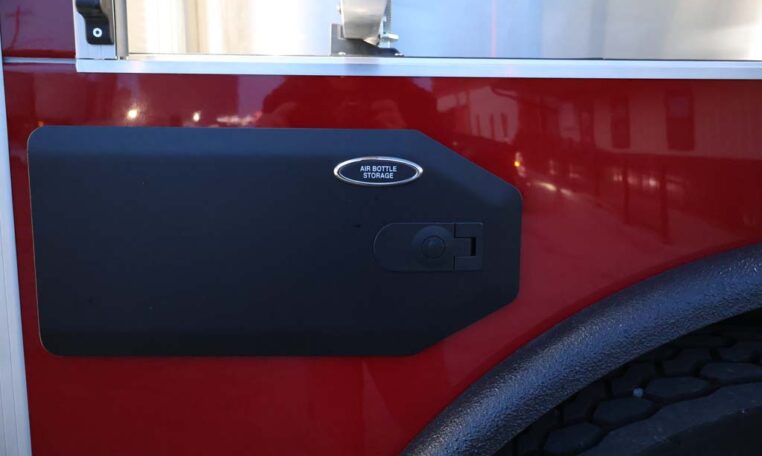

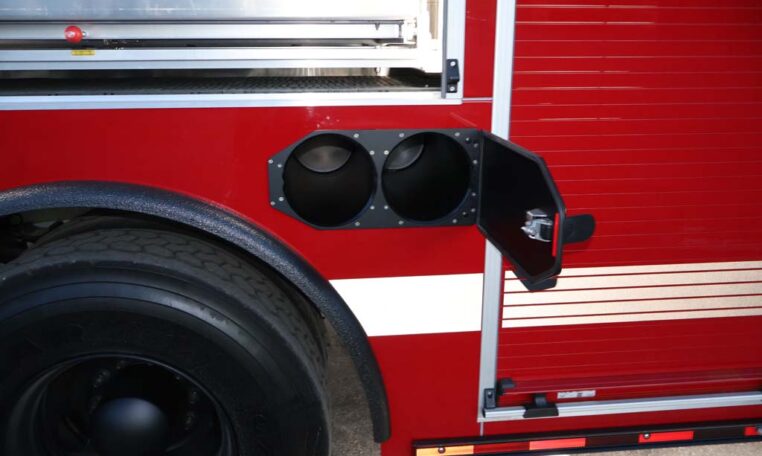

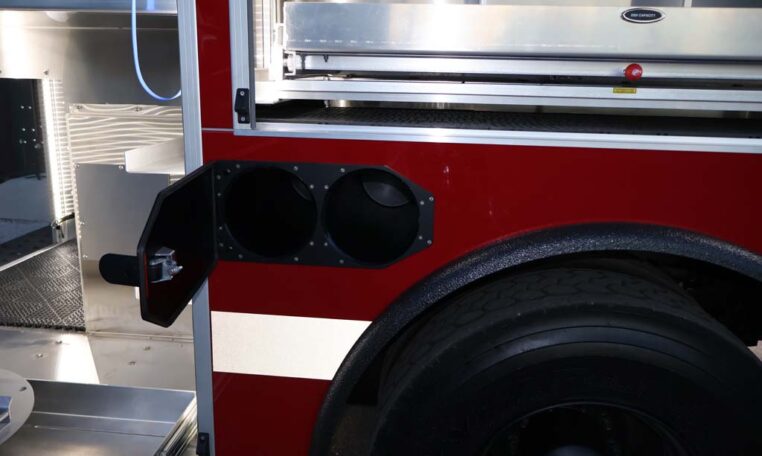

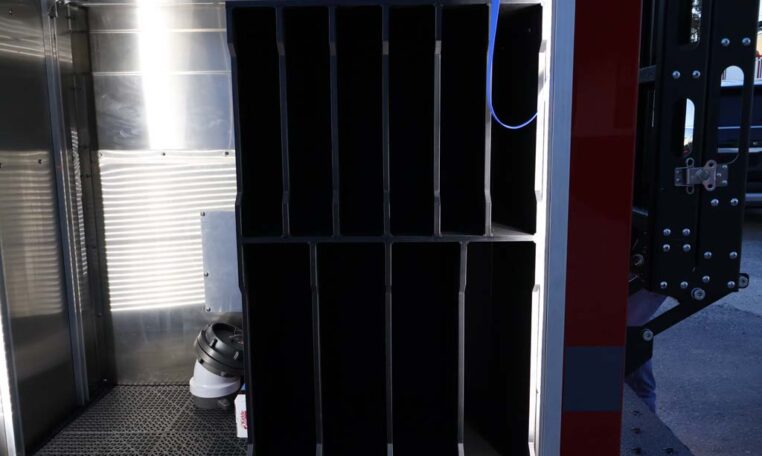

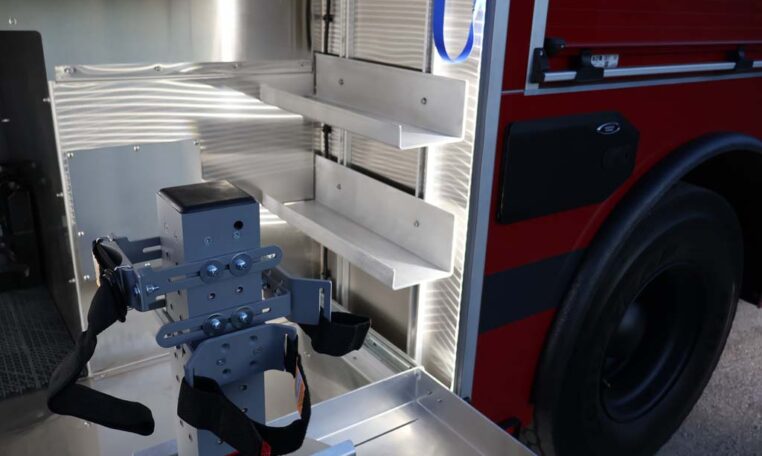

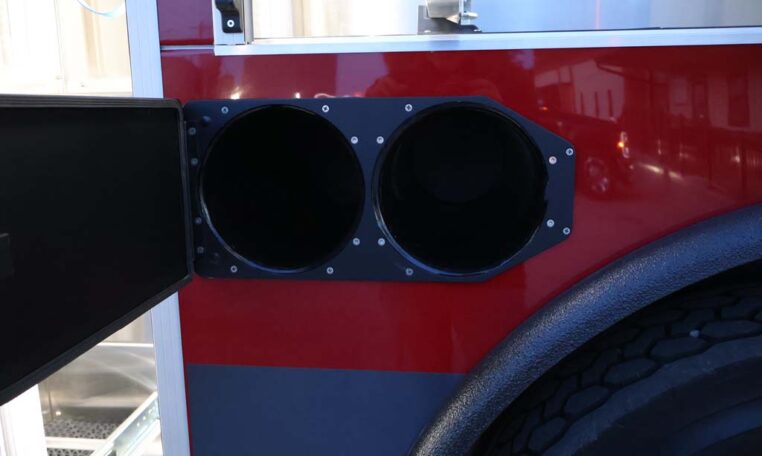

• Three (3) Dual Wheel Well Air Bottle Compartments

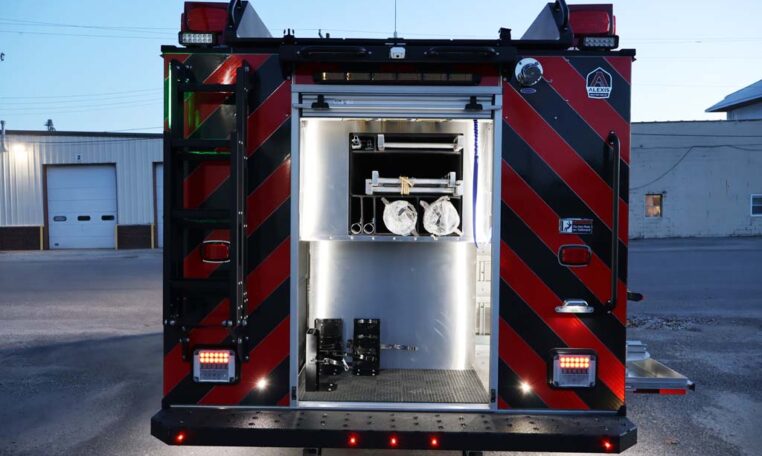

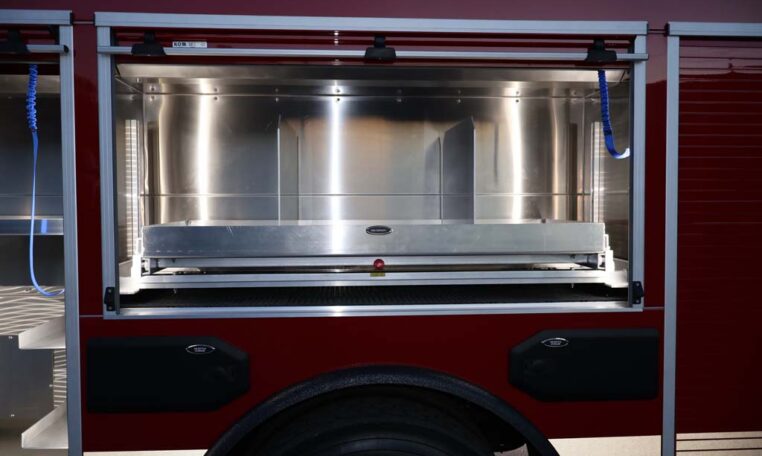

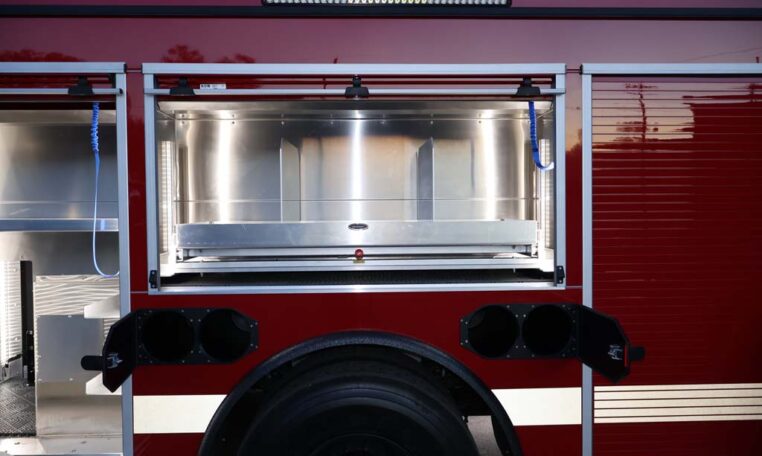

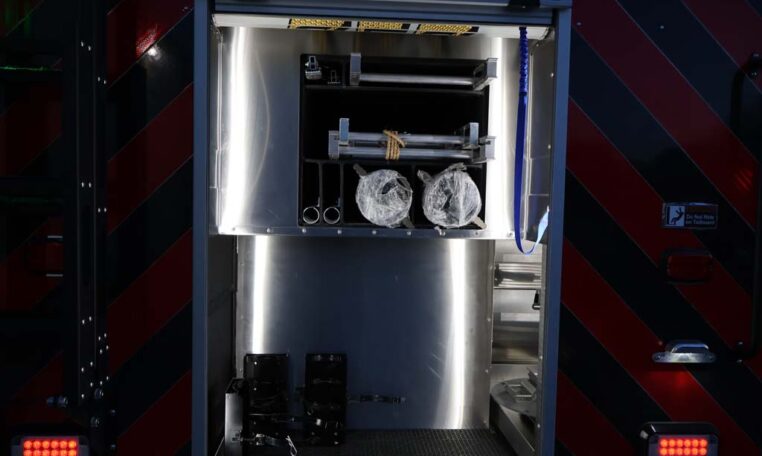

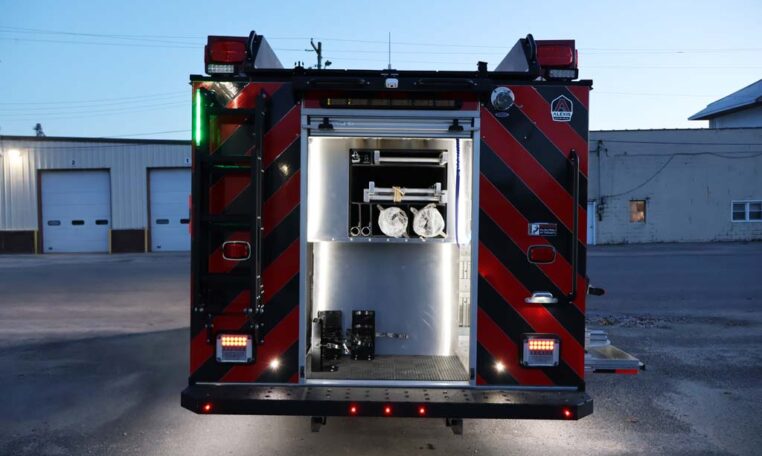

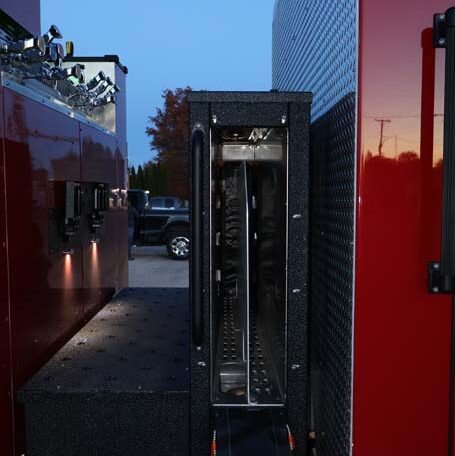

• Ladder Storage Horizontal in Rear Compartment with Two (2) Sections of Suction Hose
• Stainless Steel Rear Access Ladder, Left Side

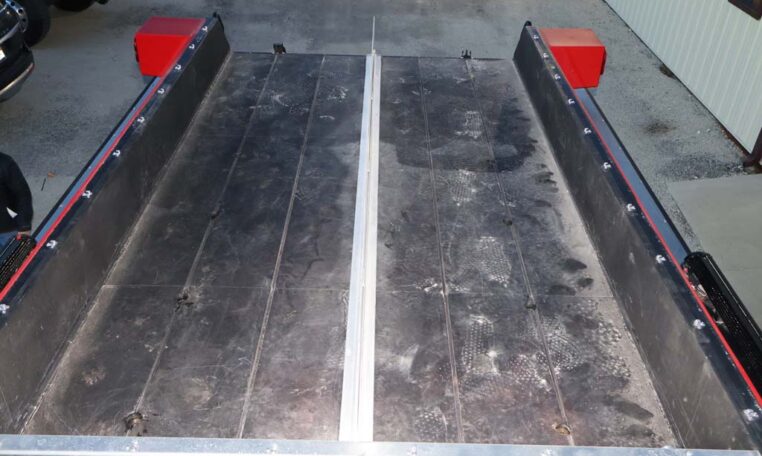

• 1000 Gallon Poly Tank with Hose Bed
• 12 Volt Electrical System with NFPA Compliant Warning Light Package

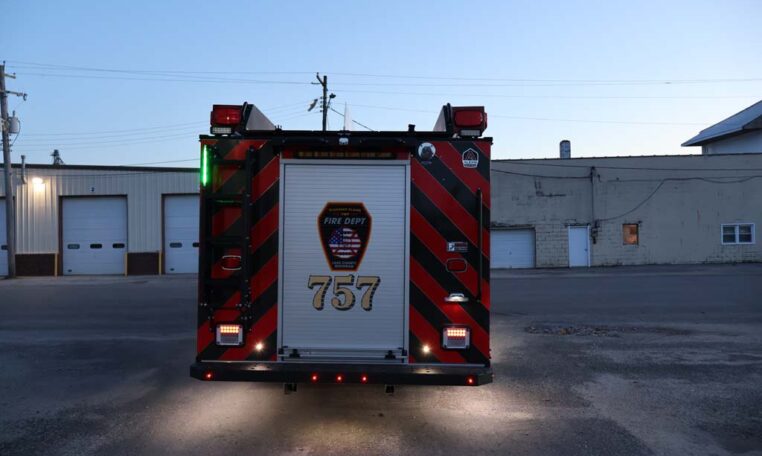

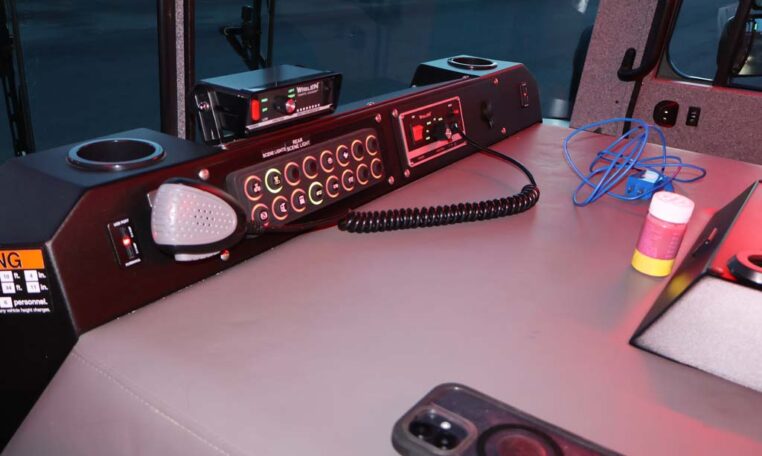

• Whelen LED Warning Light Package with Rear Arrow Stick

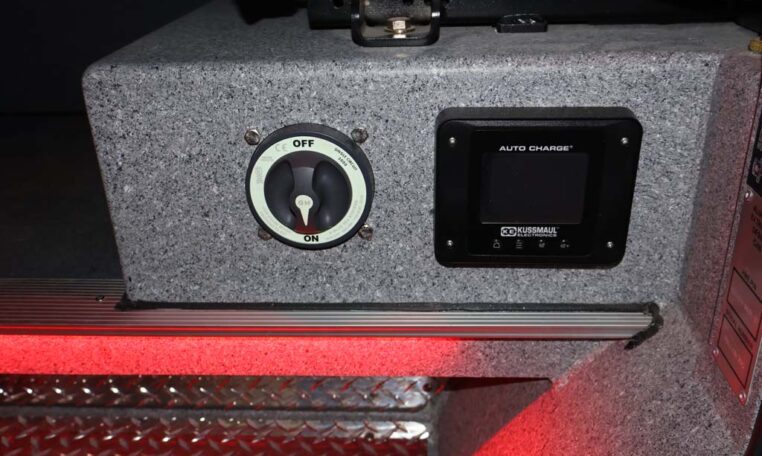

• Kussmaul Chief 4012 Battery Charger with Compressor
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side
• Q2B Mechanical Siren
• Two (2) FireTech HiViz 40″ LED Scene Light Bars, One (1) Each Side
• Two (2) FireTech HiViz 8″ LED Scene Light Bars, Rear
• One (1) FireTech HiViz 72” LED Brow Light
• Two (2) Whelen M9 LED Scene Lights, One (1) Each Side of the Cab
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, and Two (2) 10’ Lengths of 6” Suction Hose
• 10’-6” Overall Height
• 34’8” Overall Length
• 205” Wheelbase
• 145” Cab to Axle
• 21,500 FAWR
• 31,000 RAWR
• 52,500 GVWR
