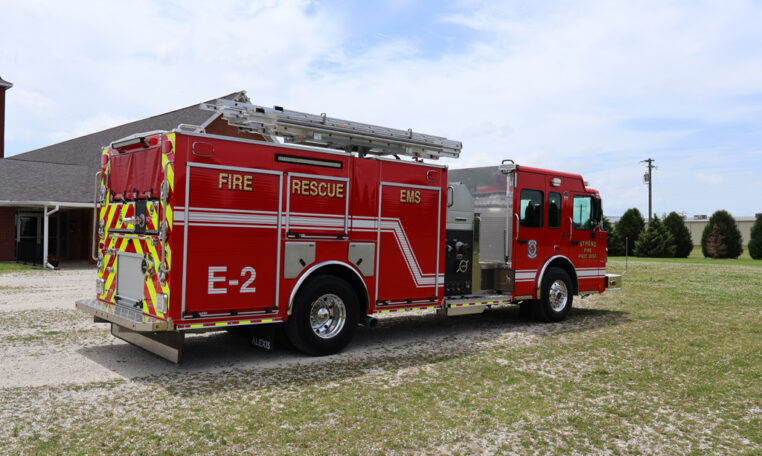

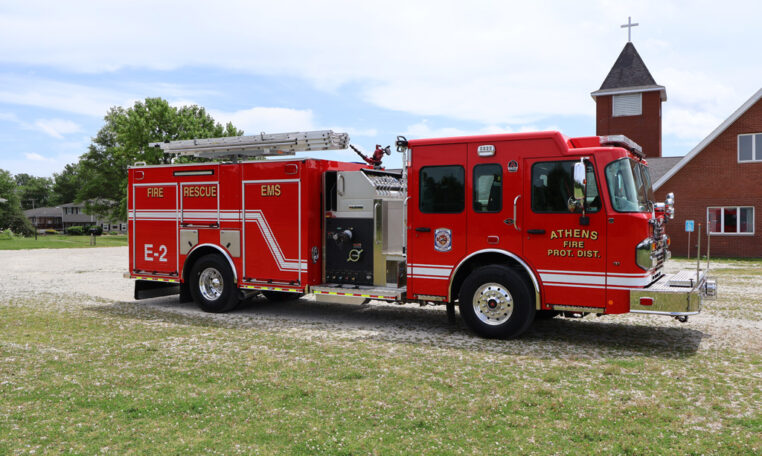

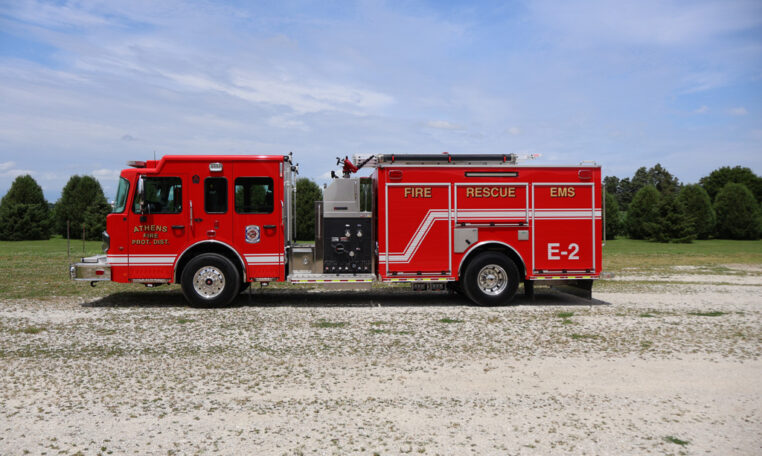

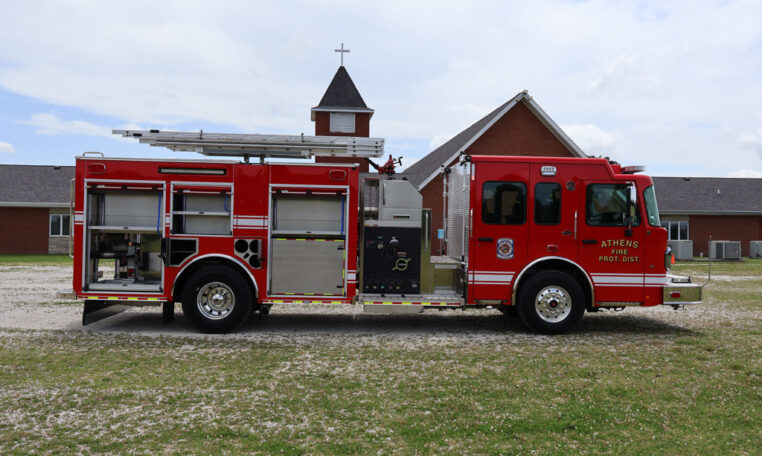

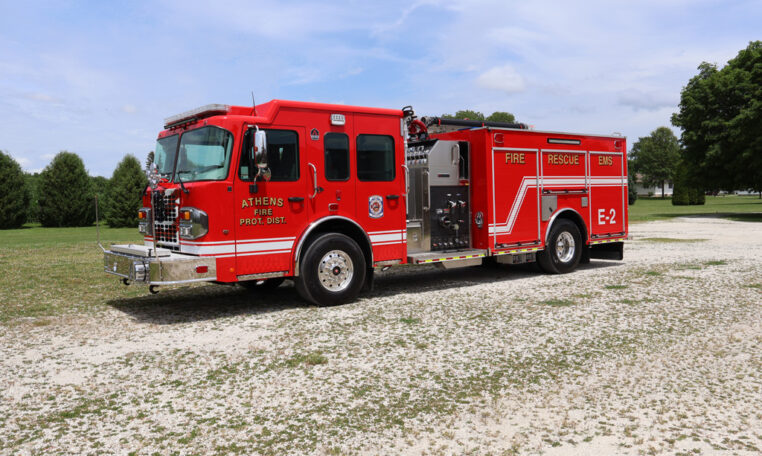

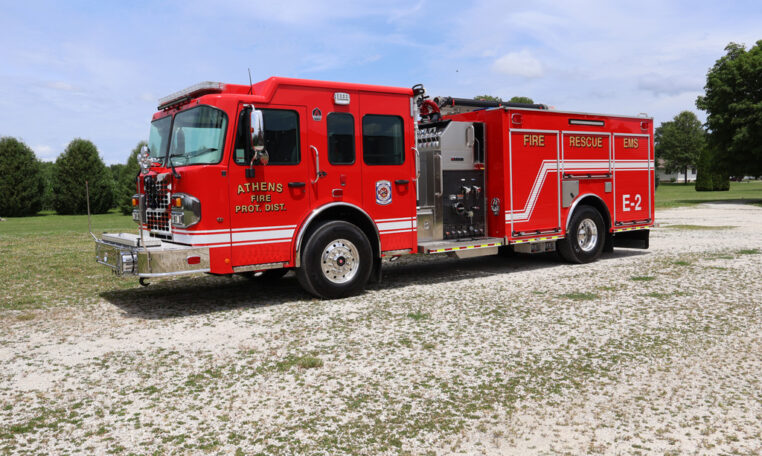

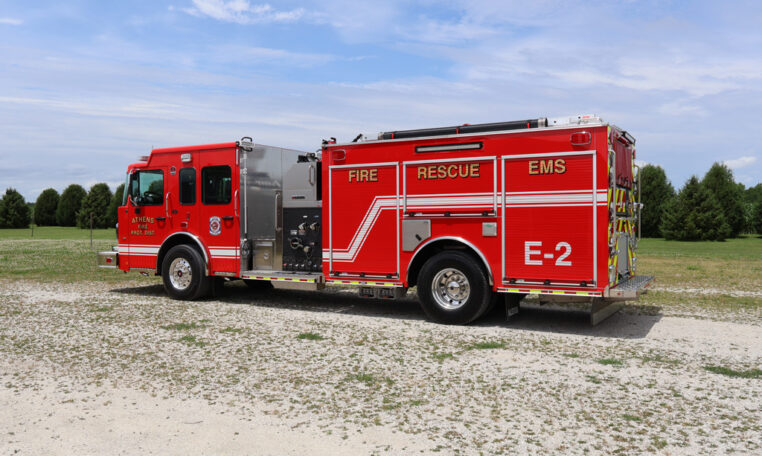

TOP MOUNT 1500GPM PUMPER #2582

ATHENS FANCY PRAIRIE FIRE PROTECTION DISTRICT - ATHENS. ILLINOIS
FEATURES:

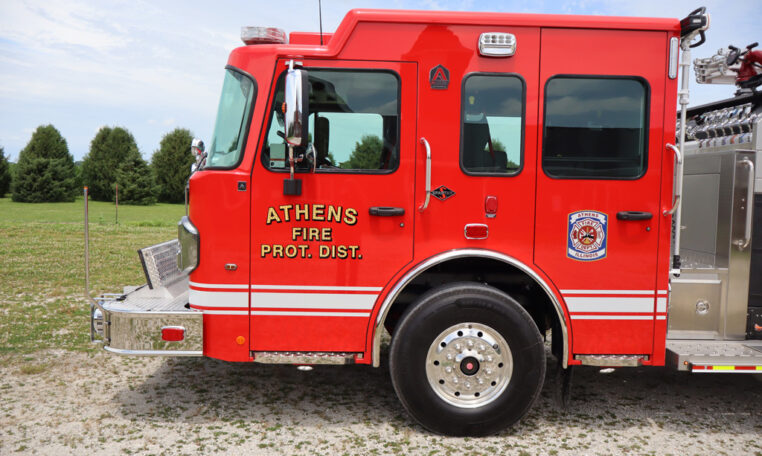

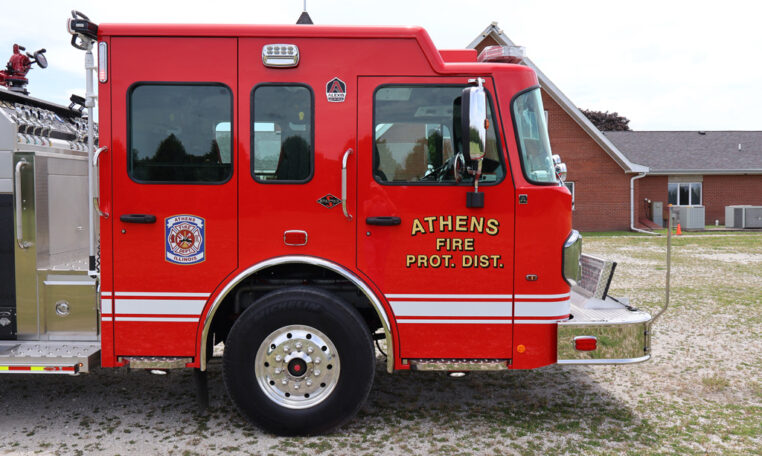

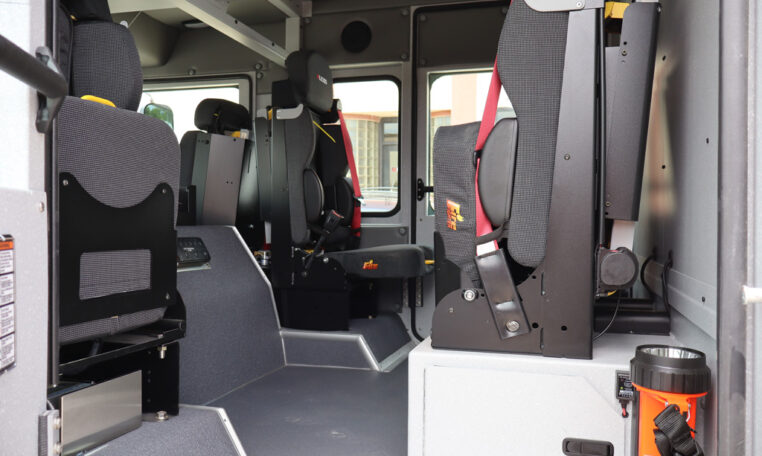

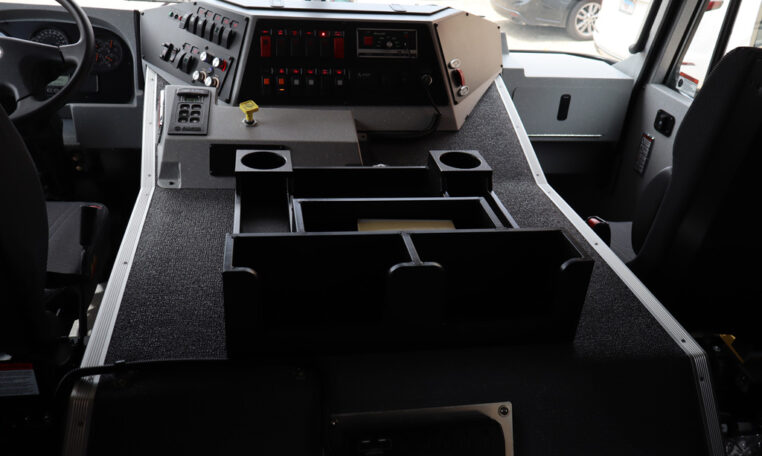

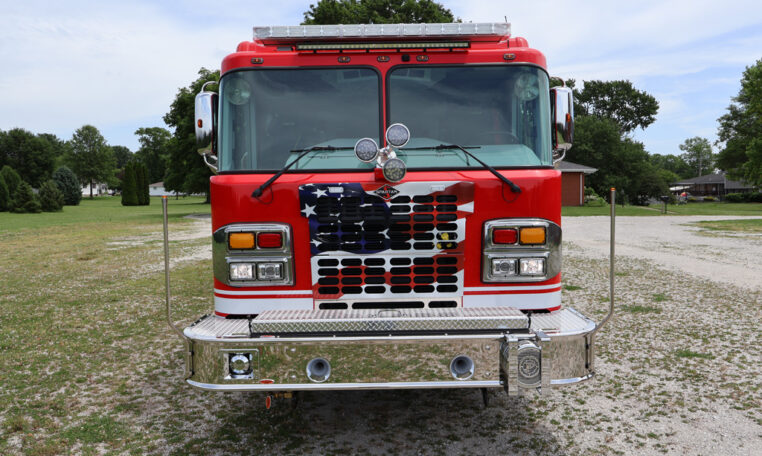

  • Spartan Metro Star MFD Chassis with 10” Raised Roof
  • Cummins L9 450 HP Diesel Engine
  • Allison 3000 EVS Transmission
  • Heavy Duty Stainless Steel Body with Stainless Steel Subframe

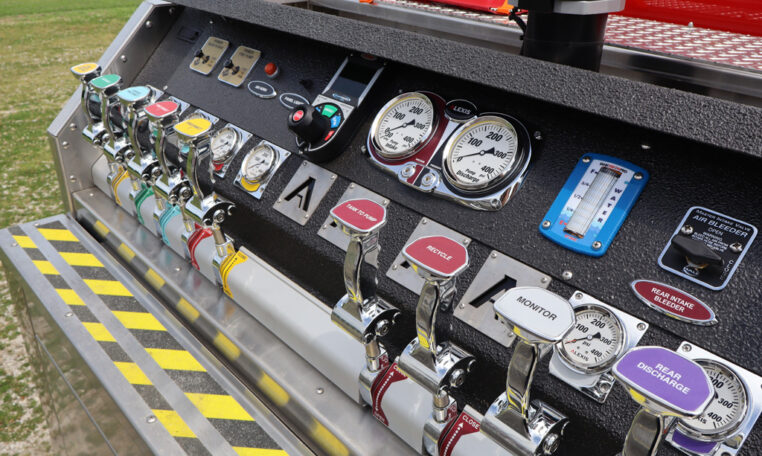

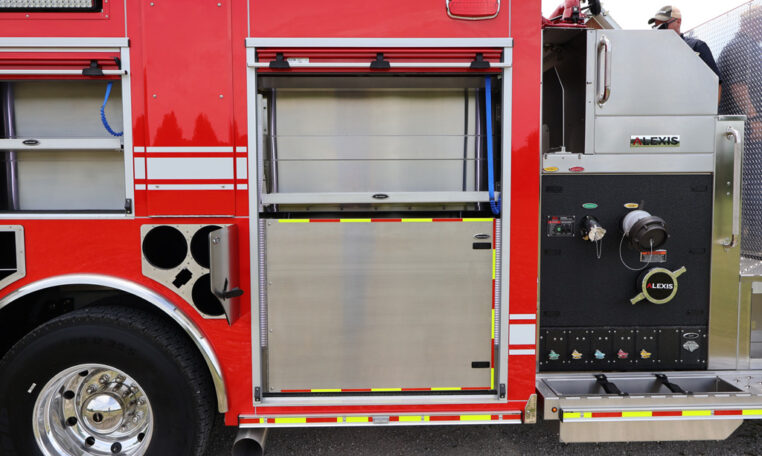

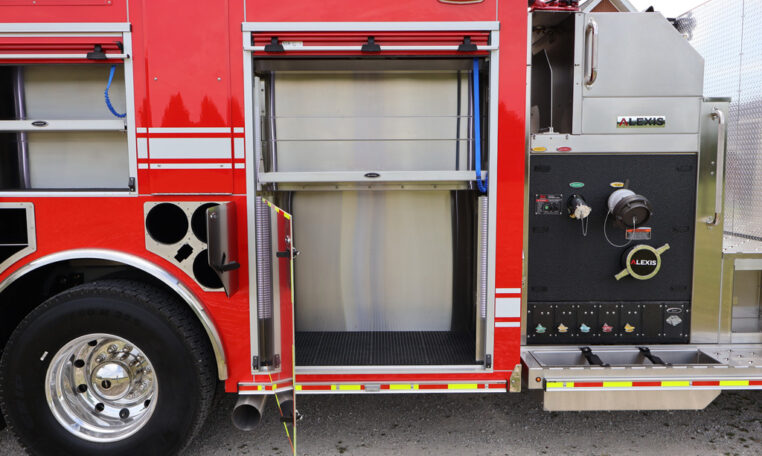

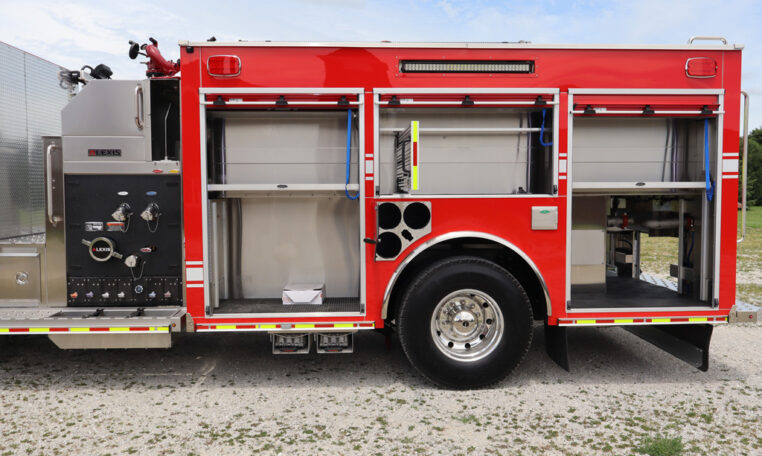

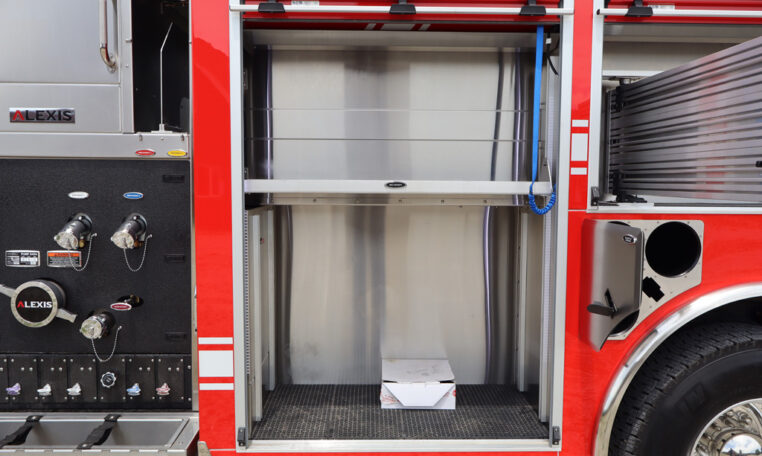

  • Stainless Steel Side Control Pump Module with Stainless Steel Subframe
  • Waterous CXVC20 1500 GPM Pump
  • Trident 2-Location Air Primer

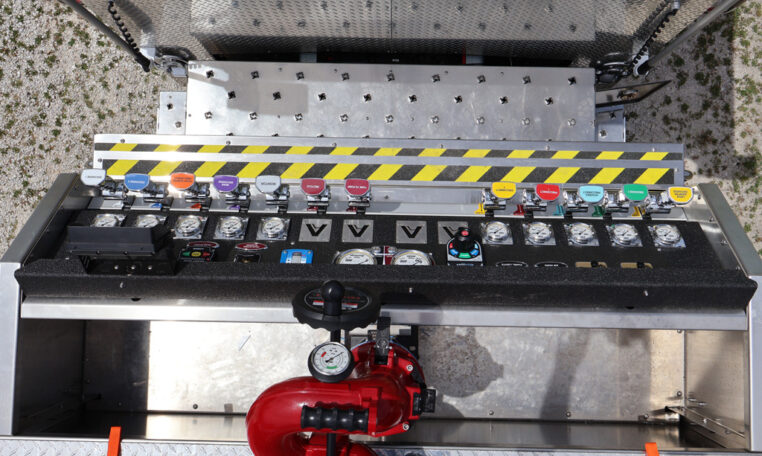

  • FRC Pump Boss Pressure Governor Monitoring System
  • FRC TankVision Water Tank Level Gauge with Three (3) Whelen PSTANK Strip Lights

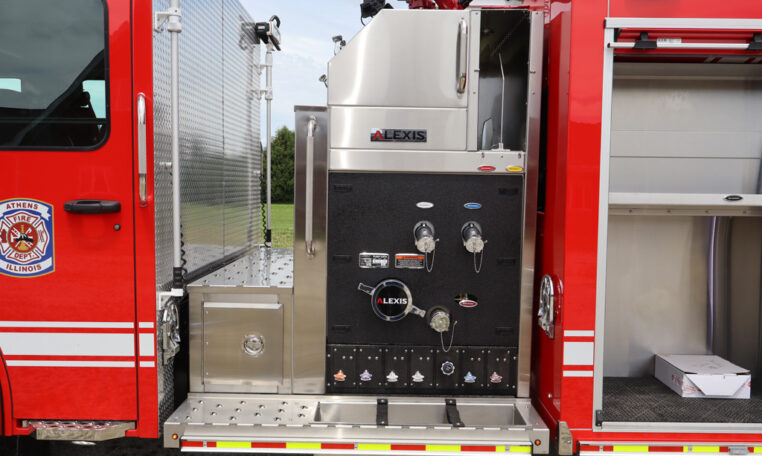

  • Two (2) 6” Intakes, One (1) Each Side
  • One (1) 5” Rear Intake with 6” NSTM Adapter, Right Side

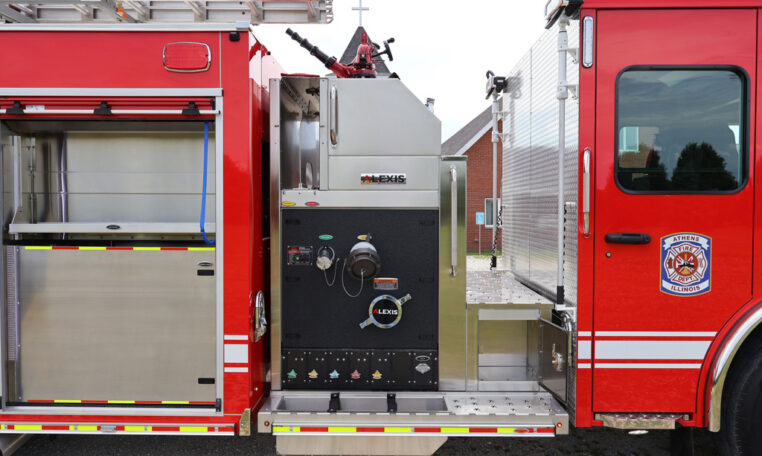

  • One (1) 2½” Gated Intake, Left Side
  • Two (2) 2½” Discharge, Left Side and One (1) 2½” Discharge, Right Side
  • One (1) 2½” Discharge, Rear Right Side
  • One (1) 3” Discharge with 5” Storz Elbow, Right Side

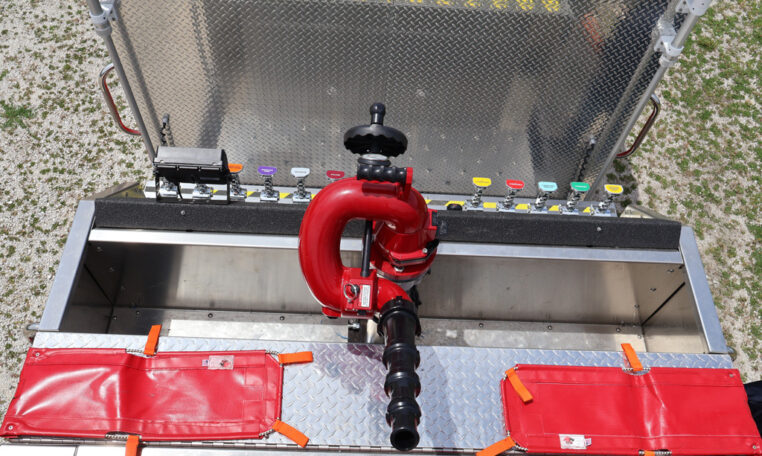

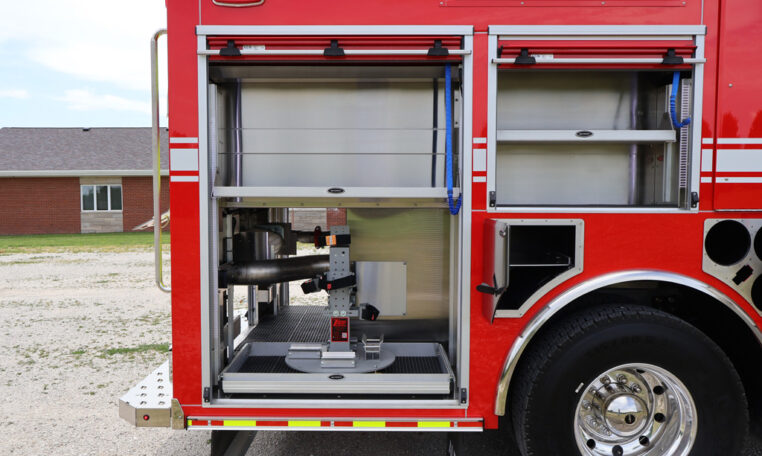

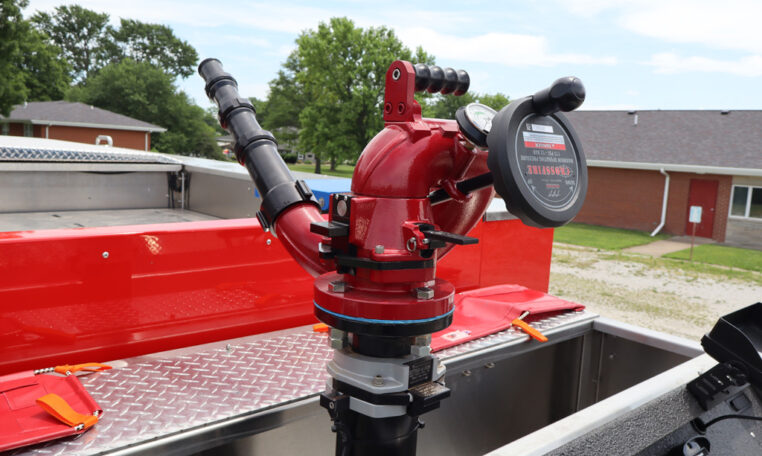

  • One (1) 3” Discharge Dunnage Area with TFT Crossfire Deck Gun and TFT Extenda-Gun

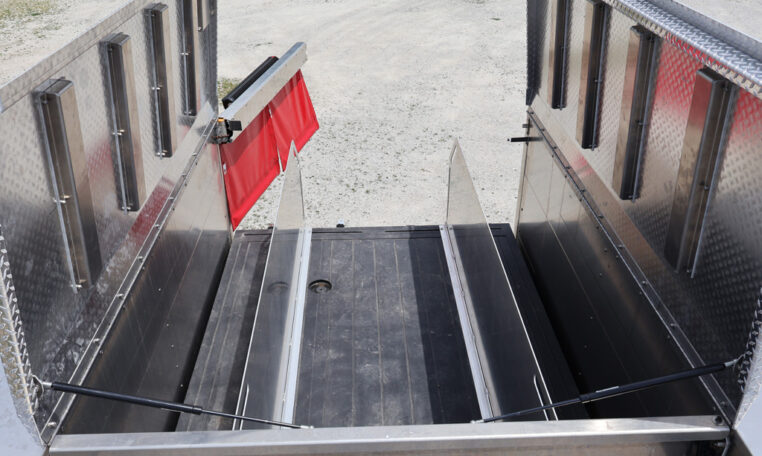

  • One (1) 2½” Hose Bed Preconnect, Right Side
  • Two (2) 1½” Crosslay Preconnects, Deep Cut Single Lay Style

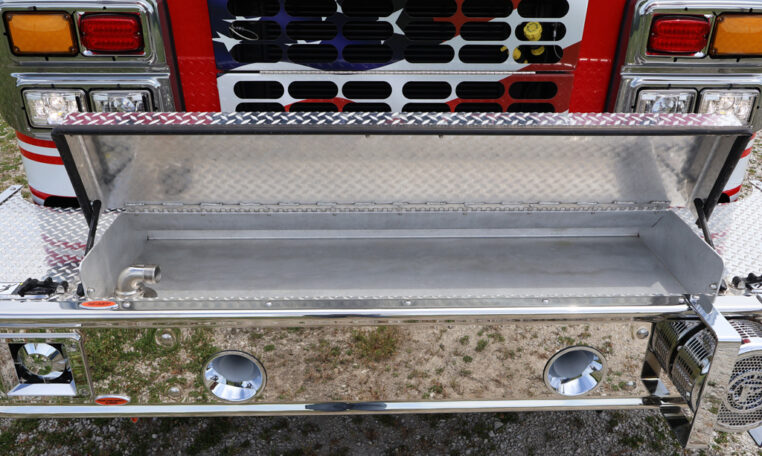

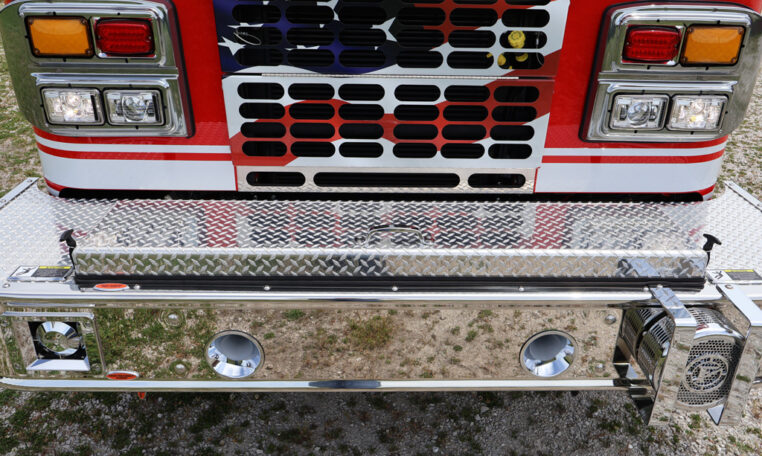

  • One (1) 1½” Bumper Extension Preconnect

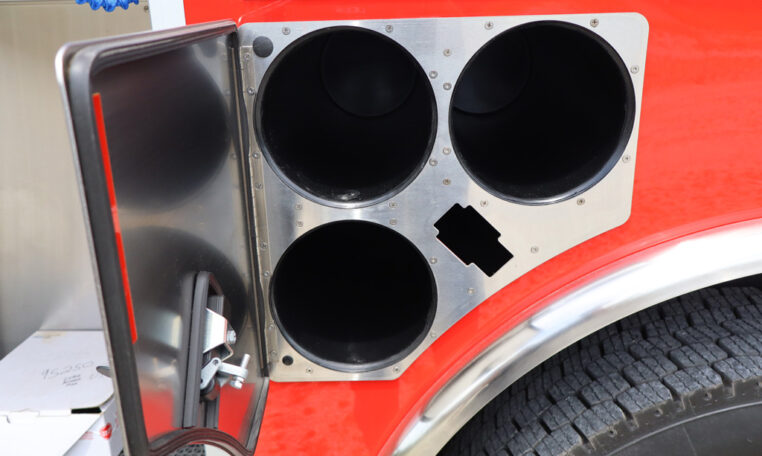

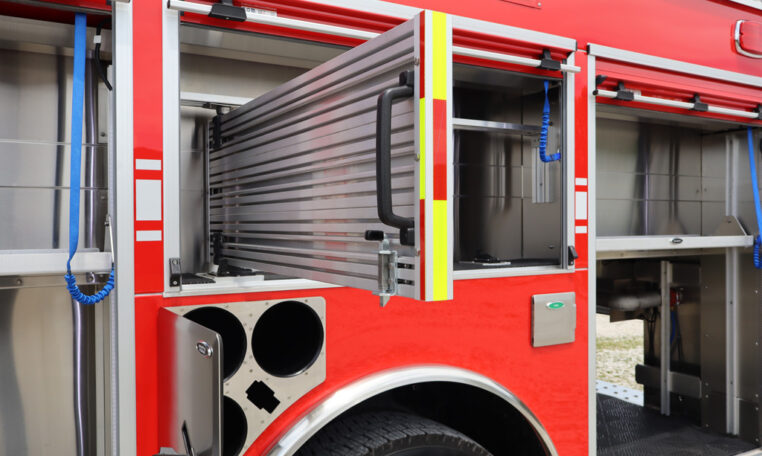

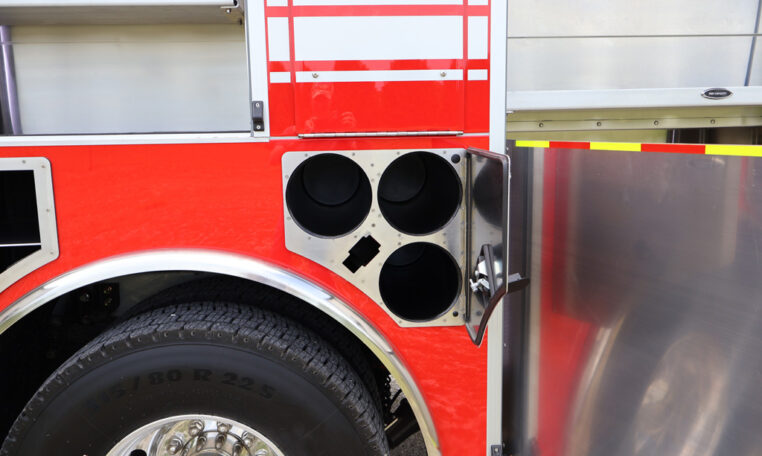

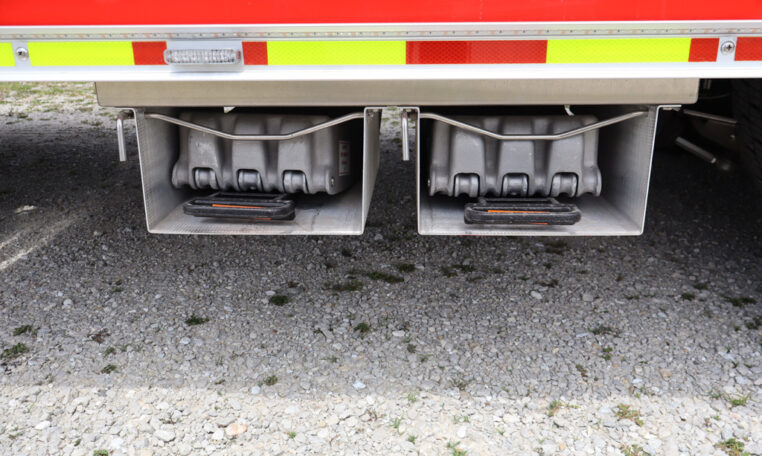

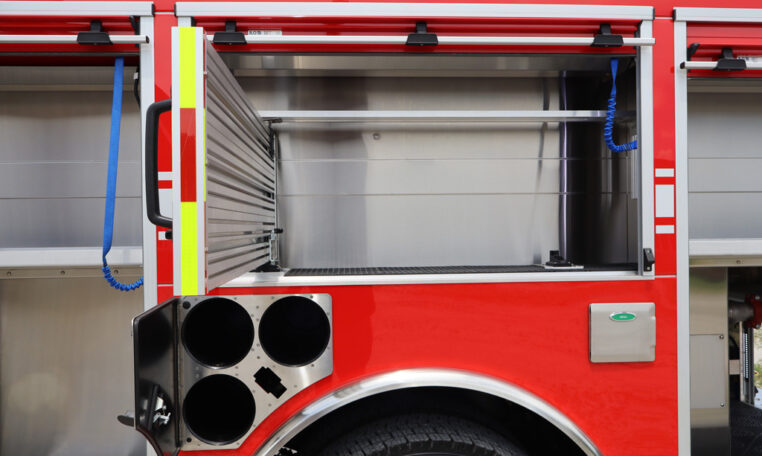

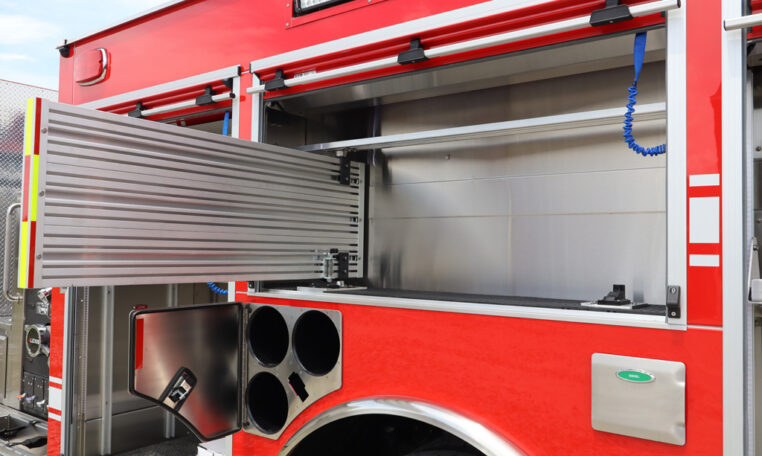

  • Two (2) Triple Air Bottle Wheel Well Compartments

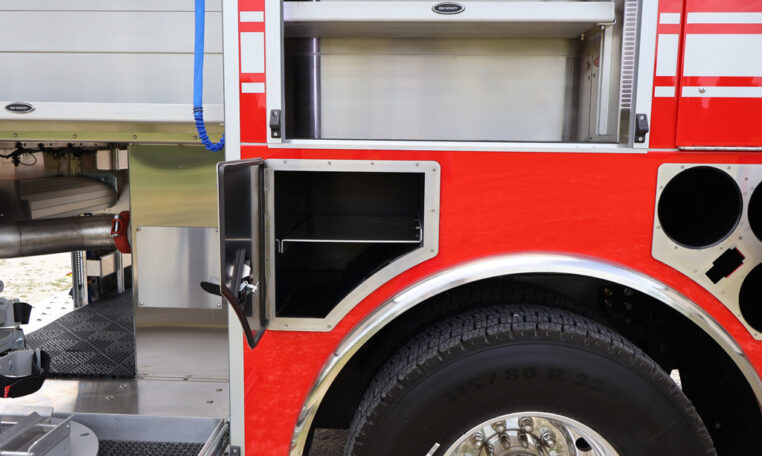

  • One (1) Fire Extinguisher Wheel Well Compartment

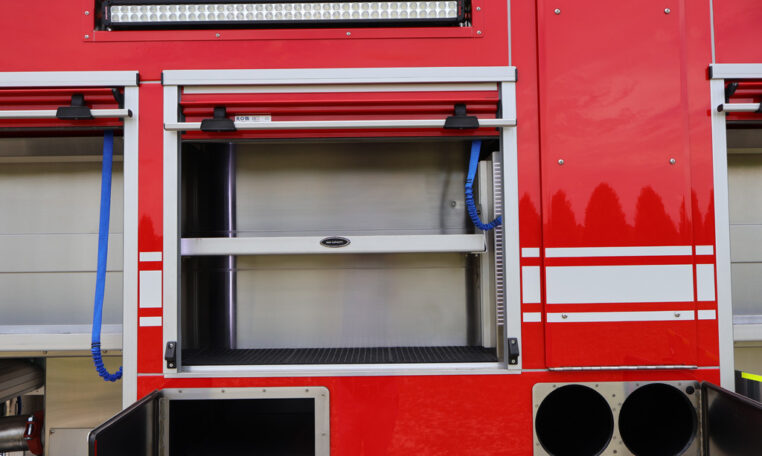

  • ROM Painted Roll Up Doors

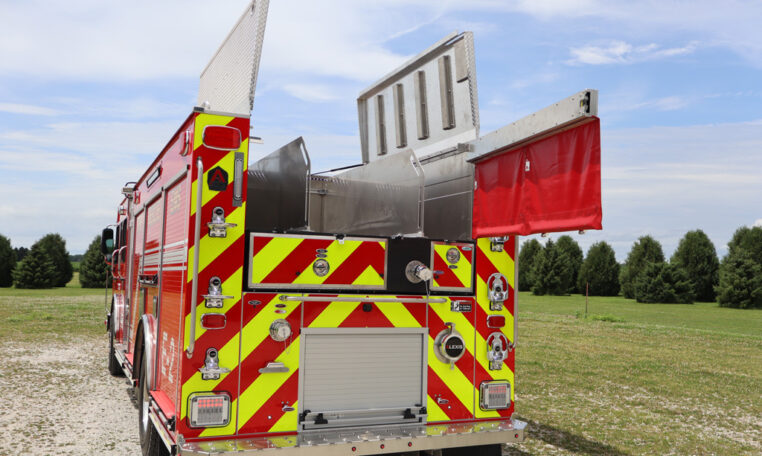

  • Slide-In Storage for a 1500 Gallon Fol-Da-Tank, Left Side Under Hose Bed

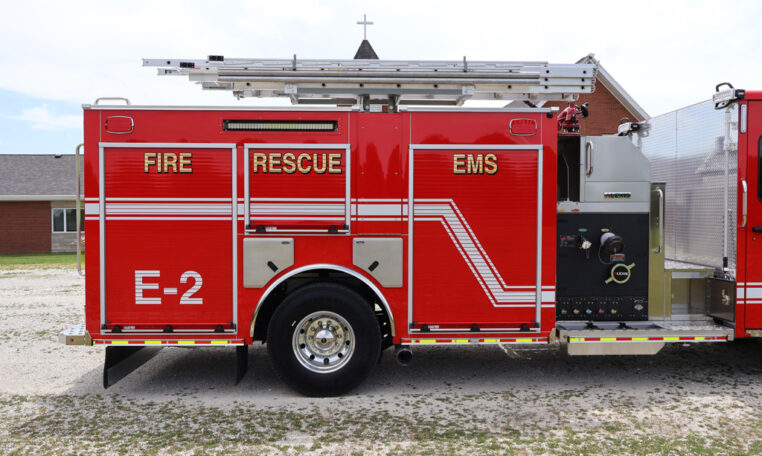

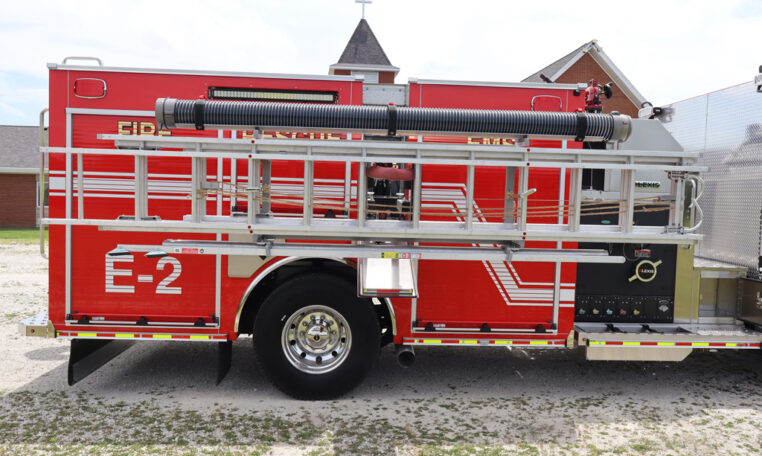

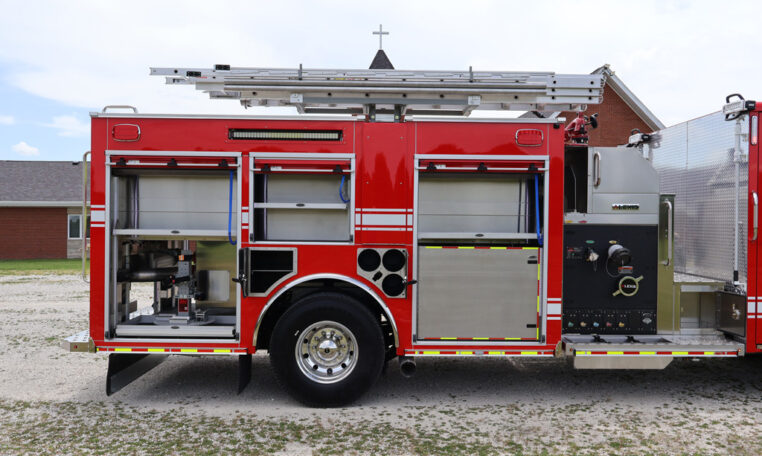

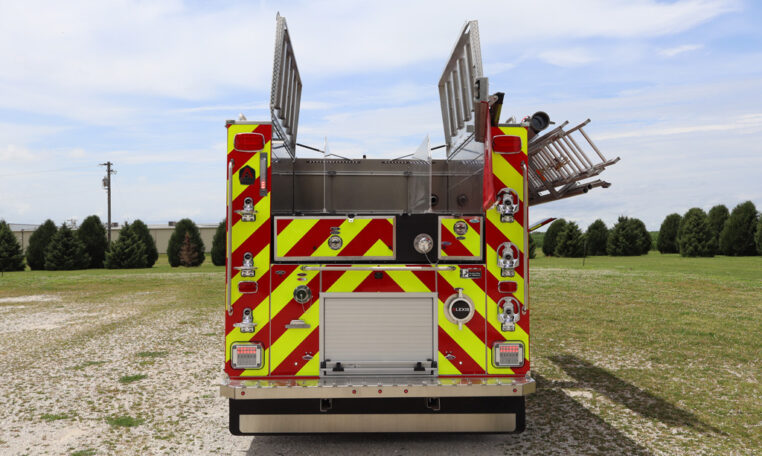

  • Hydraulic Overhead Ladder Rack, Right Side

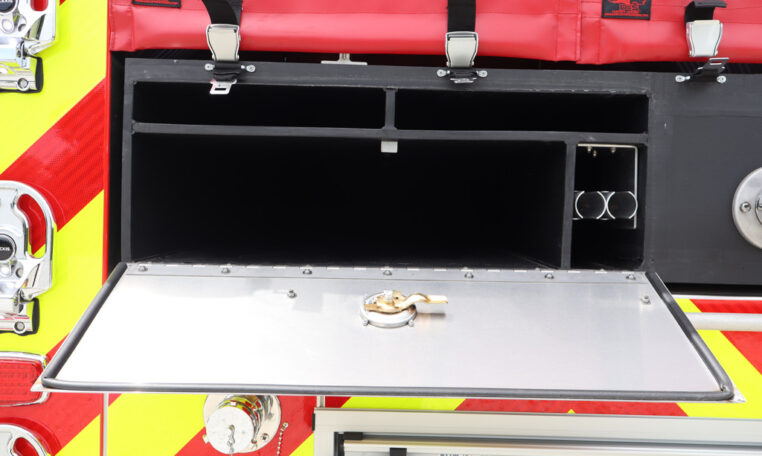

  • Suction Hose Storage Compartment for One (1) 10’ Section of Suction Hose, Right Side Under Hose Bed
  • One (1) 10’ Section of Suction Hose Stored on Hydraulic Ladder Rack
  • 1000 Gallon Poly Tank

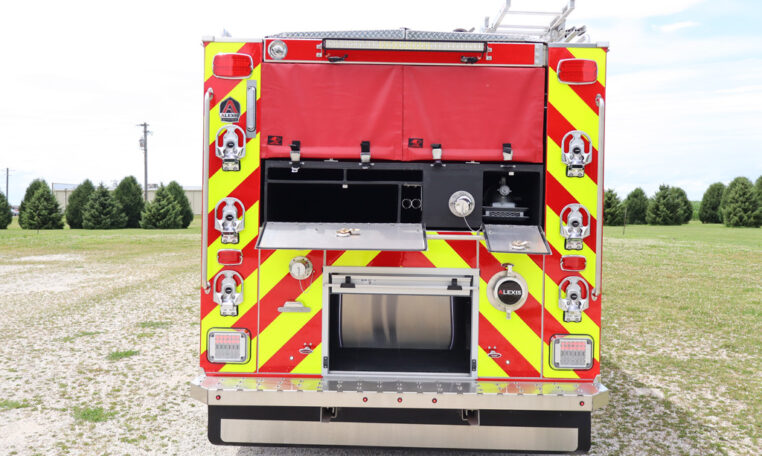

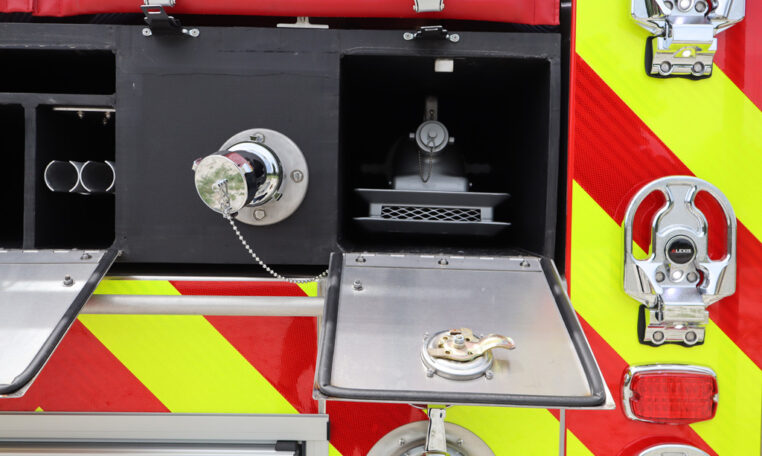

  • One (1) FirePrograms 2½” Tank Fill, Rear Left
  • 12 Volt Electrical System with NFPA Compliant Warning Light Package
  • Progressive Dynamic PD2140 Battery Charger with Kussmaul 120 Volt Auto Pump
  • Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab
  • Whelen LED Warning Light Package
  • Whelen 200W Siren and 100W Speaker
  • Federal Q2B Siren
  • Three (3) FireTech HiViz 40″ LED Scene Light Bars, One (1) Each Side and One (1) Rear
  • Two (2) 12 Volt Akron Scenestar LED Telescopic Lights, One (1) Each Side on the Back of the Cab
  • One (1) FireTech HiViz 46” LED Brow Light
  • Two (2) M9EZ LED Scene Lights, One (1) Each Side of the Cab
  • One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 30’ 3-Section Ladder, and Two (2) 10’ Lengths of Suction Hose
  • 10’-8” Overall Height
  • 34’-4” Overall Length
  • 212” Wheelbase
  • 158” Cab to Axle
  • 21,500 FAWR
  • 27,000 RAWR
  • 48,500 GVWR
Year: 2025
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Top Control Pumper
Pump Size: 1500
Tank Size: 1000
Feature: Hydraulic Ladder Rack
Exterior Color: Red
New Delivery: New Delivery
