CUSTOM TOP CONTROL PUMPER #2354

OGLE LEE FIRE PROTECTION DISTRICT - ROCHELLE, ILLINOIS

FEATURES:

  • Freightliner M2 106 4-Door Chassis
  • Cummins L9, 350-HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy Duty Stainless-Steel Body and Sub-Frame
  • One (1) Reese type rear trailer hitch with electrical connections
  • 18” Front bumper extension with center hose well and 1 ½” Preconnect
  • 1250-Gallon Poly Tank with 20-gallon foam tank
  • One (1) 2 ½” Fire Programs tank fill, rear
  • Darley PSM, 1500-GPM Pump
  • Four (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
  • Two (2) 3” Discharges, one (1) right side and one (1) over pump for deck gun
  • One (1) TFT manually telescoping waterway
  • Two (2) 1 ½” Cartridge Lay Preconnects, ahead of pump module

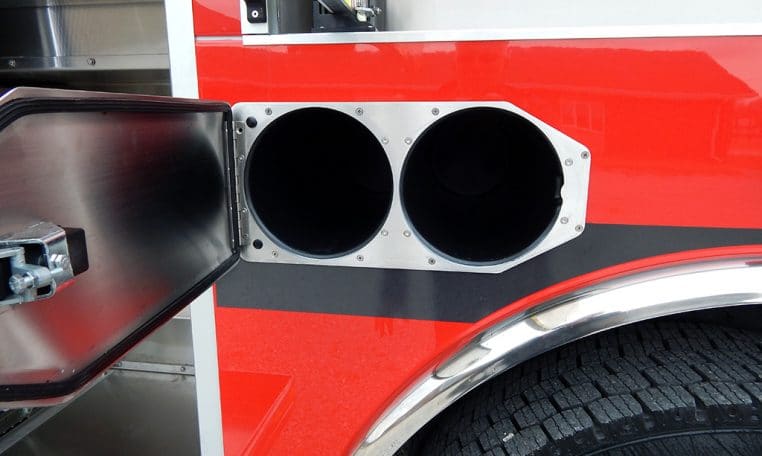

  • Front and Rear 5” Suctions
  • Two (2) 2 ½” Gated Suctions, one (1) each side
  • Waterous Aquis 1.5 Foam System
  • Three (3) Dual bottle Air bottle compartments, one (1) left and two (2) right side
  • One (1) Fire Extinguisher compartment, left side wheel well
  • Ziamatic Electrically controlled Ladder/Pike pole rack, right side
  • One (1) Suction hose compartment for two (2) hose, right side with rear access
  • Progressive Dynamics battery charger with Viair air compressor and Auto Eject
  • Floor mounted console for emergency switches with map binder storage, cab
  • FireCom Wireless Intercom System
  • Code-3 Electronic Siren with100-watt Code-3 speaker
  • Federal Q2B mechanical Siren, front bumper
  • Two (2) Audiovox Back-up Camera Systems, one (1) pump panel and one (1) cab
  • Fire Research and Akron 12-volt Scene Light Packages
  • Golight remote control LED spotlight
  • Code-3 LED Warning Light Package
  • Smart Power 5500-watt Hydraulic Generator with 120-volt system
  • One (1) Akron Electric cord reel with 150-ft of 10/3 cord and Junction box
  • Two (2) Akron Extenda-Lite LED 120-volt tripod lights, rear mounted
  • Diamond Grade Chevron pattern striping, rear
  • 10’ 5” Overall height
  • 35’ 4” Overall length
  • 266” Wheelbase
  • 153.2” Cab to Axle
  • 14,600 FAWR
  • 31,000 RAWR
  • 45,600 GVWR
Year: 2019
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Commercial
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1250
Feature: Exterior Mount Ladder
Exterior Color: Red
New Delivery: New Delivery
