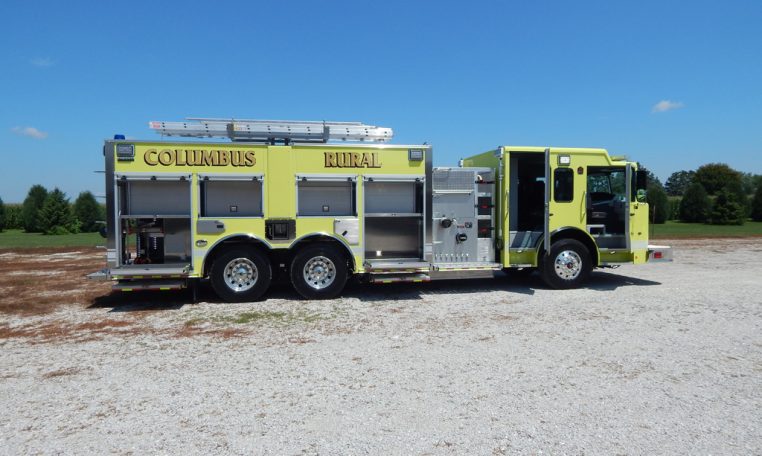

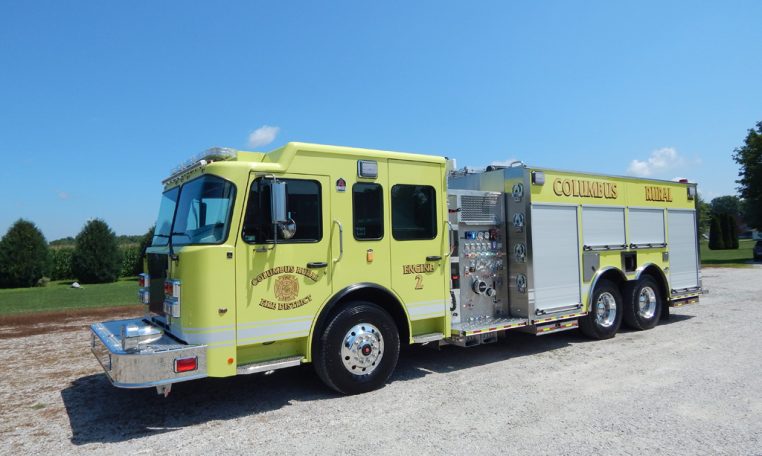

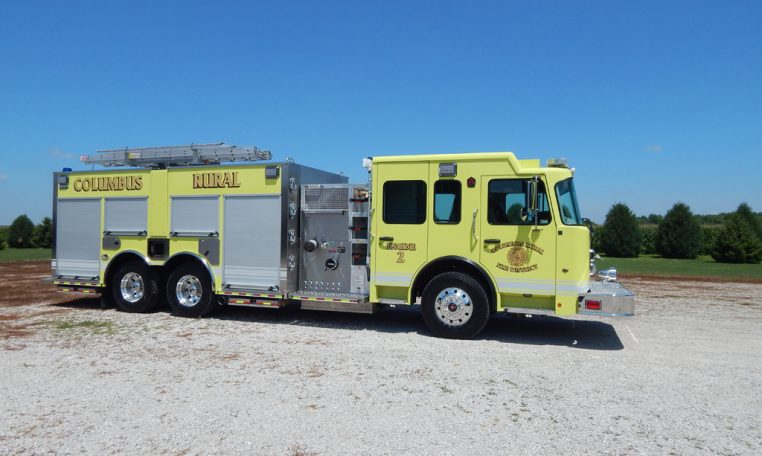

Delivered Apparatus

FEATURES:

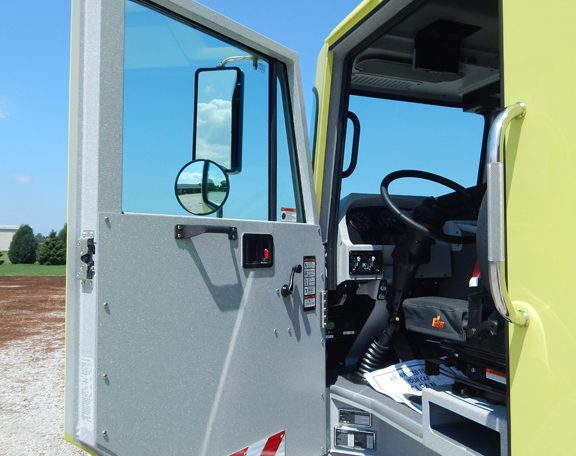

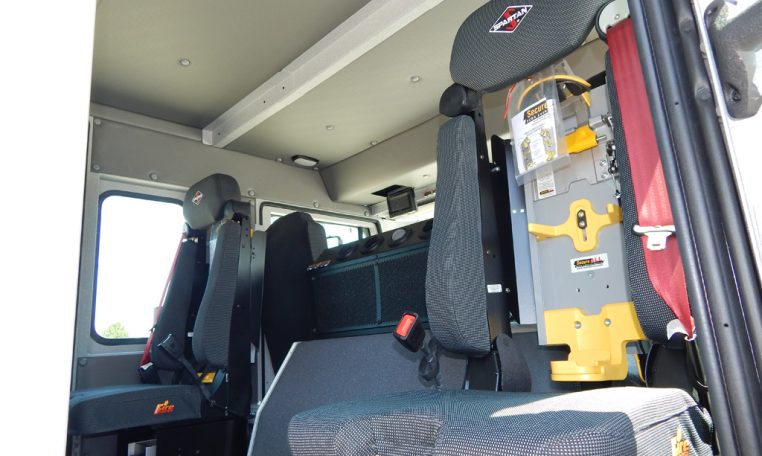

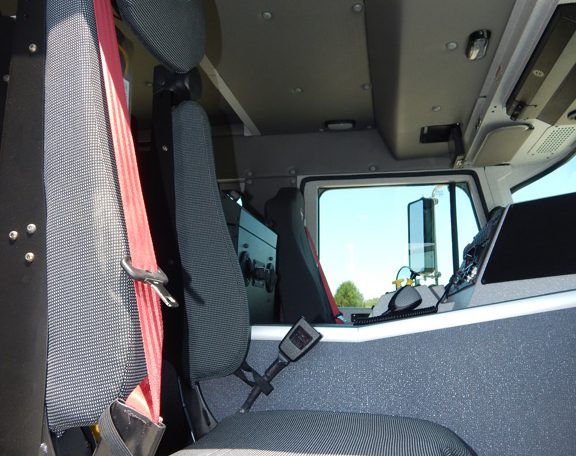

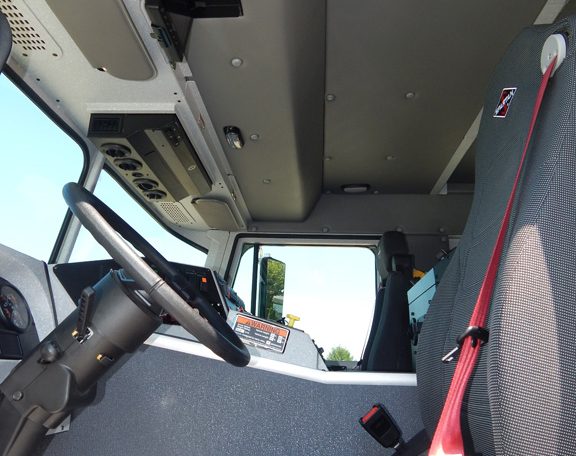

• Spartan FC-94 MFD 10” Raised Roof Chassis
• 450 HP Cummins L9 Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty 304 Stainless Steel Body and Subframe

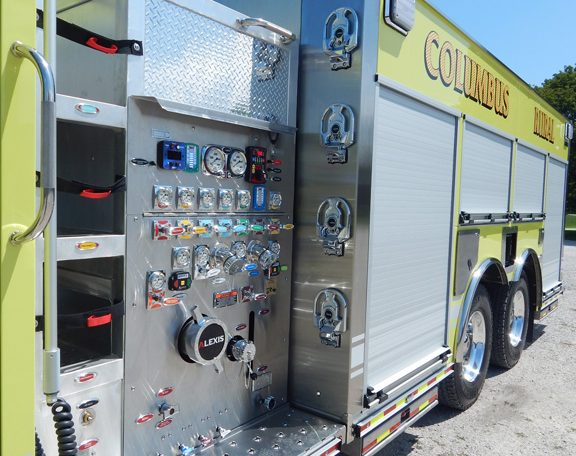

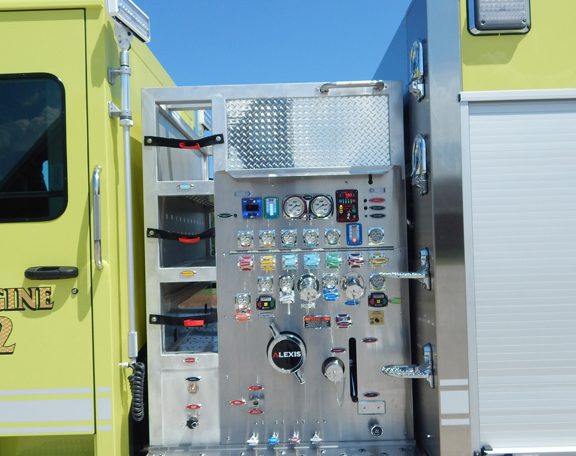

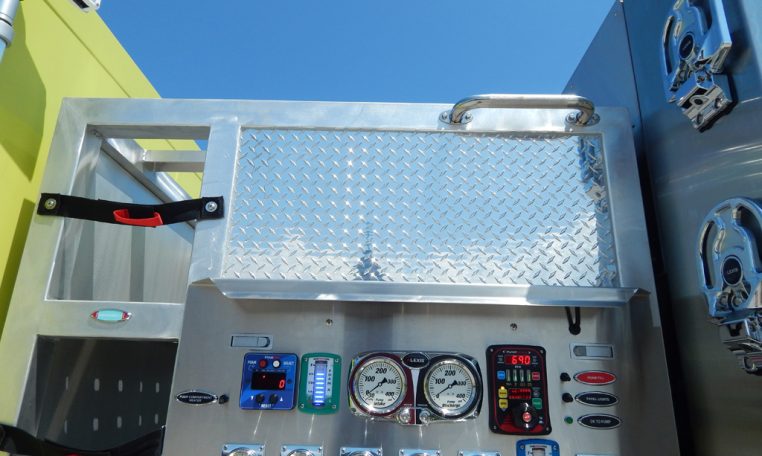

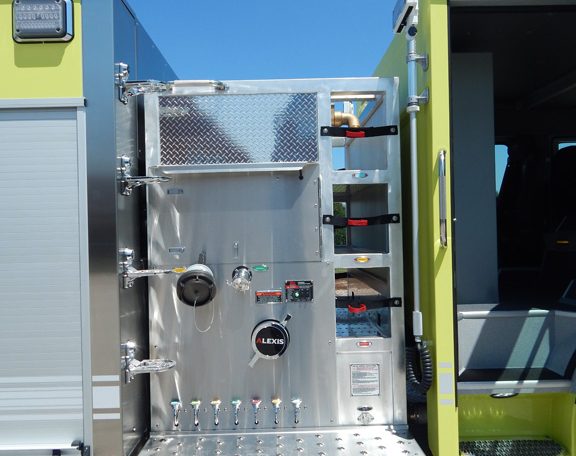

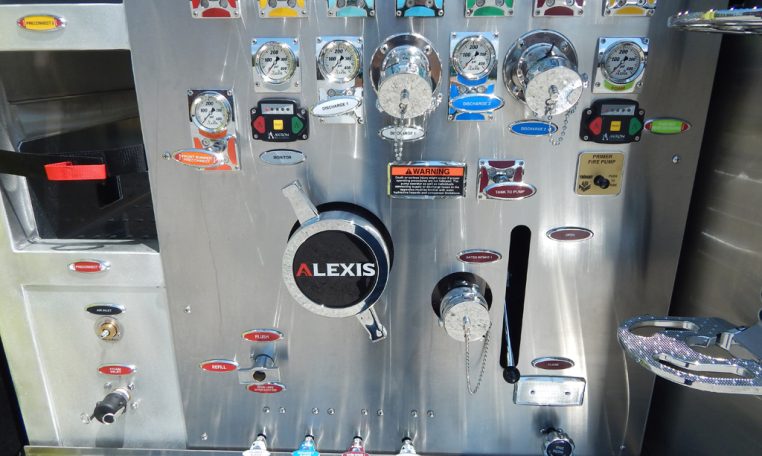

• Side Control Stainless Steel Pump Module
• Hale DSD 150 Single Stage Split-Shaft 1500 GPM Pump
• Trident Air Prime System
• FRC Pump Boss Pressure Governor & Monitoring System
• Two (2) 6” Intakes, One (1) Left Side, One (1) Right Side
• One (1) 2 ½” Gated Intake, Left Side
• Two (2) 2½” Discharges Left Side
• One (1) 2½” Discharge Right Side

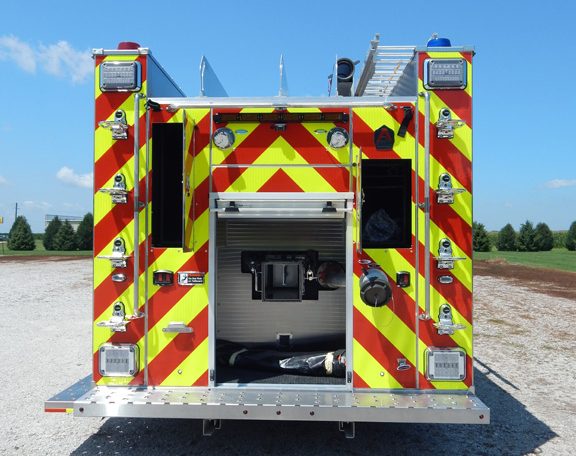

• Two (2) 2½” Discharges Rear
• One (1) 3” Discharge, Right Side adapted to 5” Storz
• FoamPro 2001 Foam System with 60 Gallon Foam Tank
• 4” Deck Gun Piping with Electric Valve Controller and Foam Pickup System
• Cartridge Lay Preconnect Module, Two (2) 1½” and One (1) 2½”

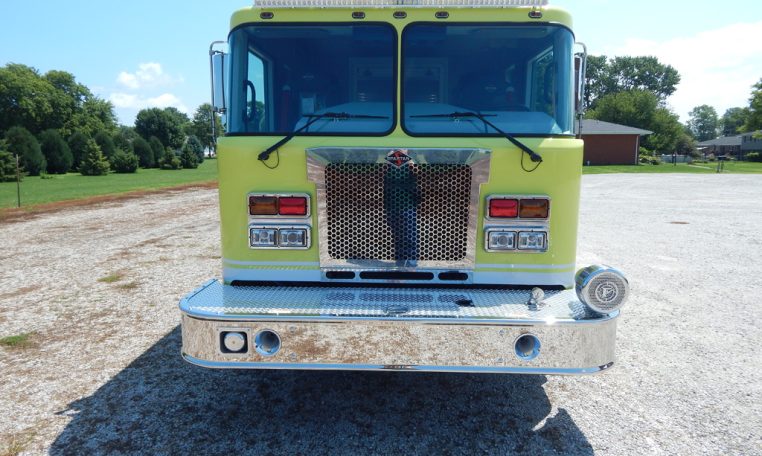

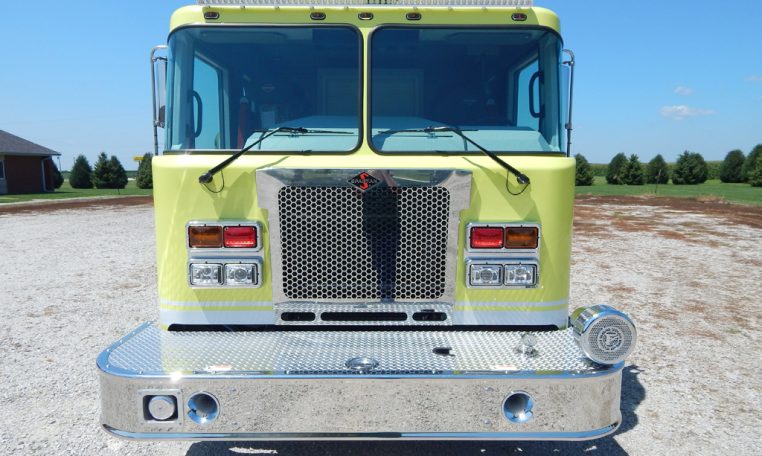

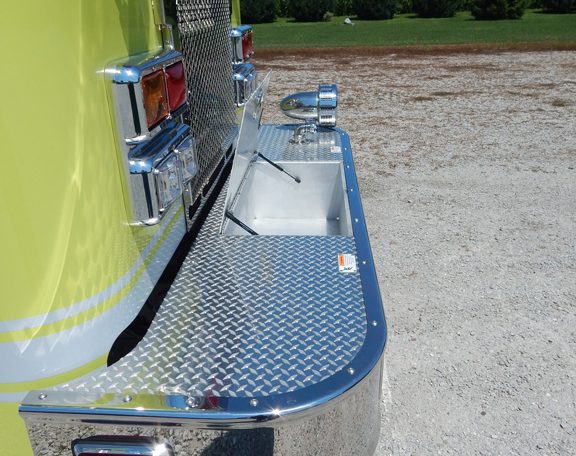

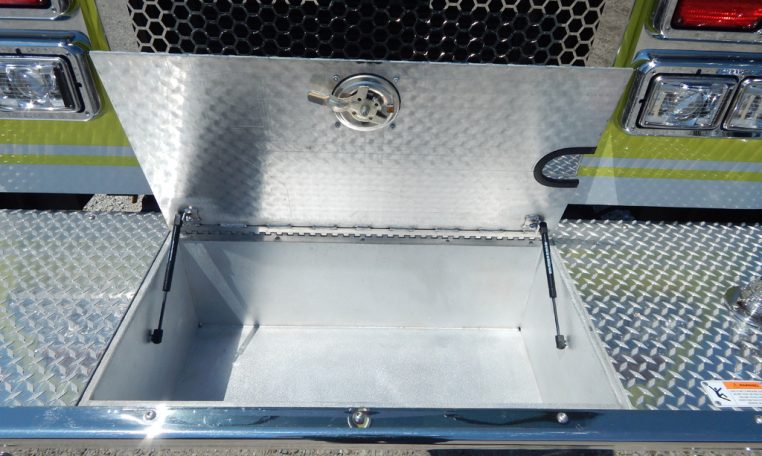

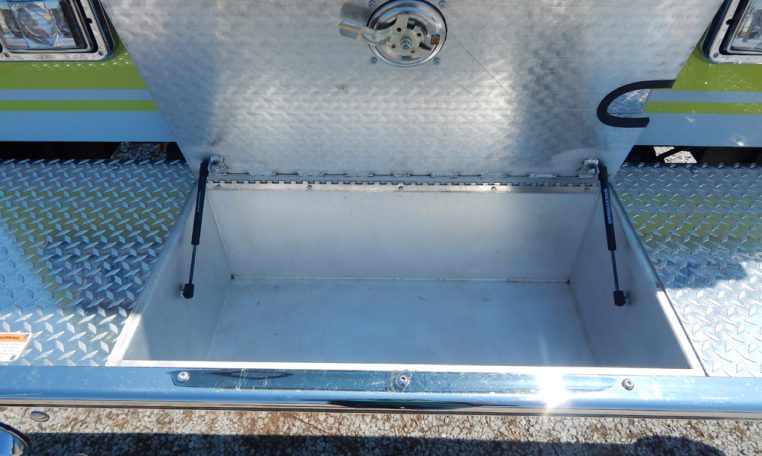

• 24” Front Bumper Extension with One (1) 1½” Preconnect and Center Hose Well

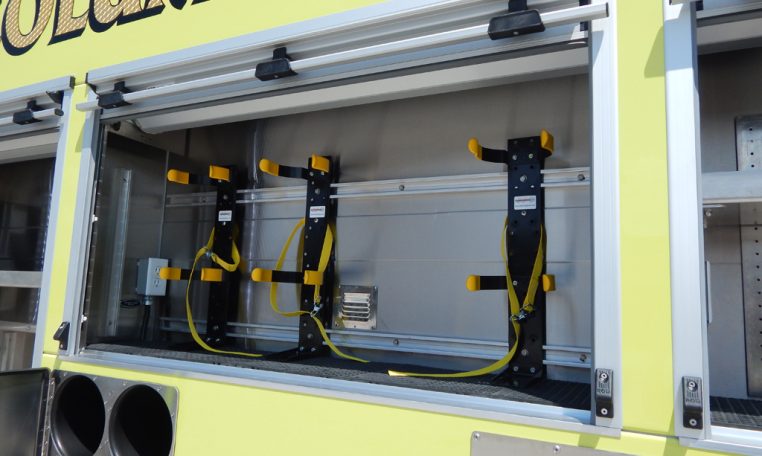

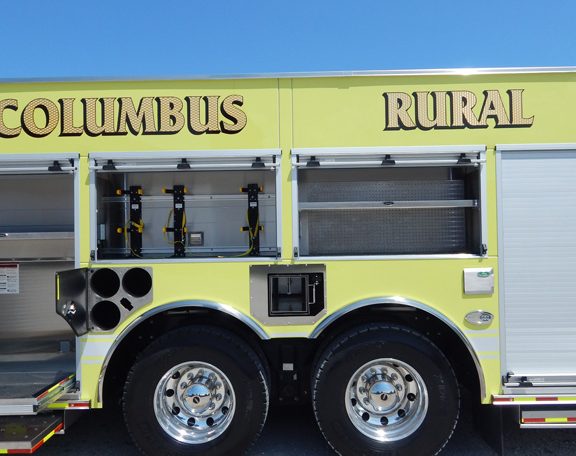

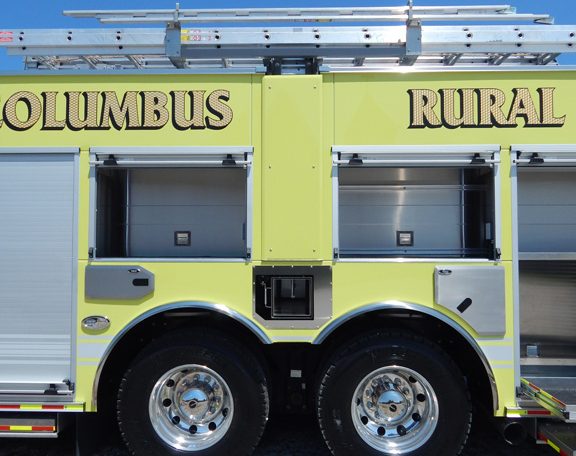

• Wheel Well Air Bottle Storage for Eight (8) Bottles
• Hose Bed with Three (3) Dividers, LED Strip Lights, Hypalon cover

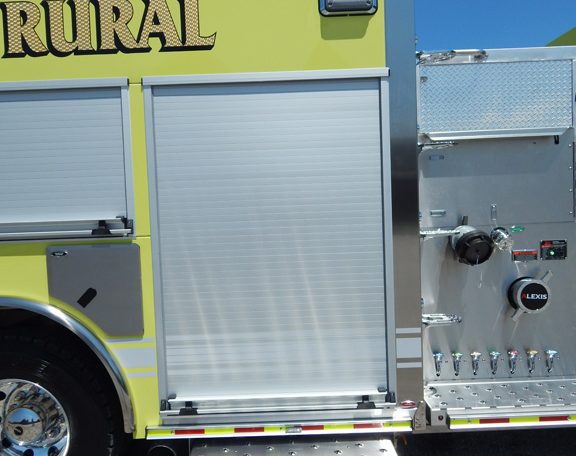

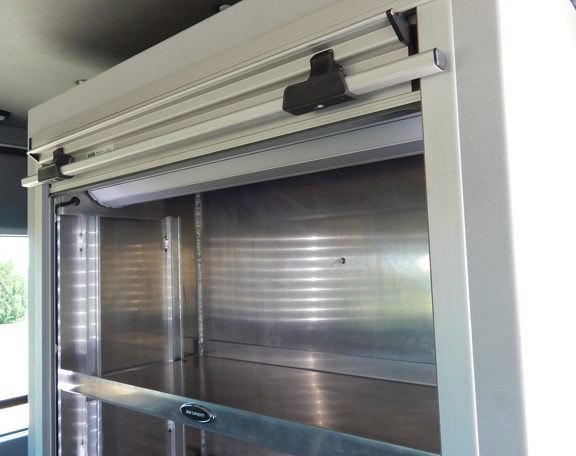

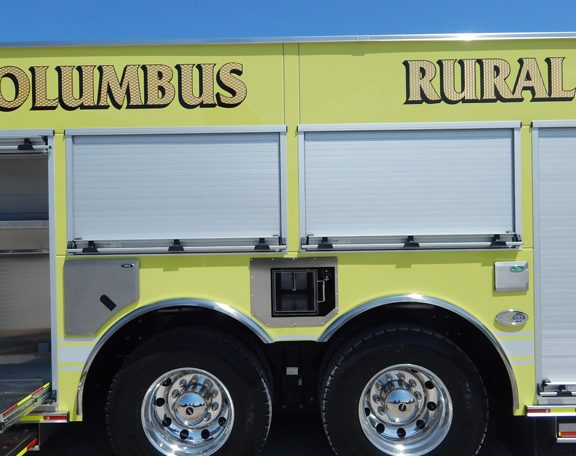

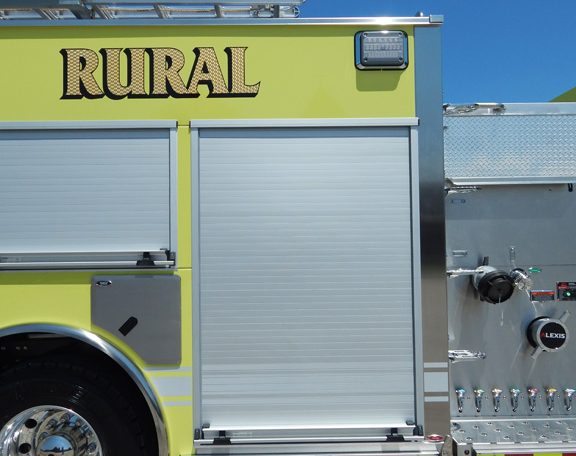

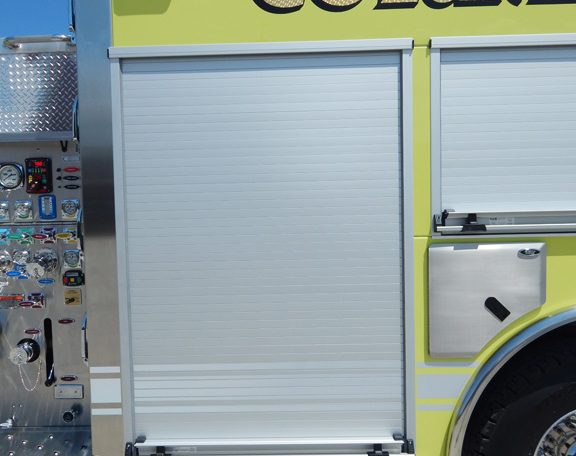

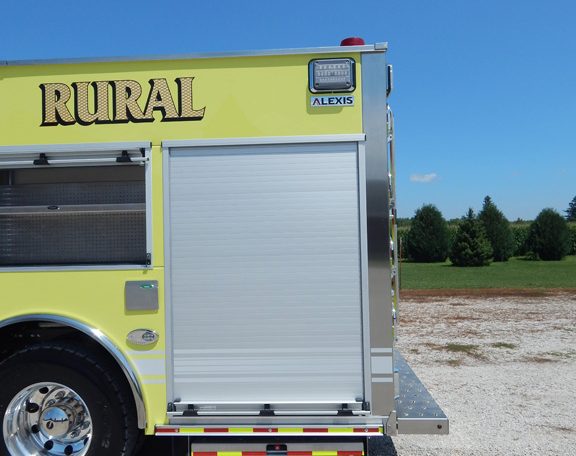

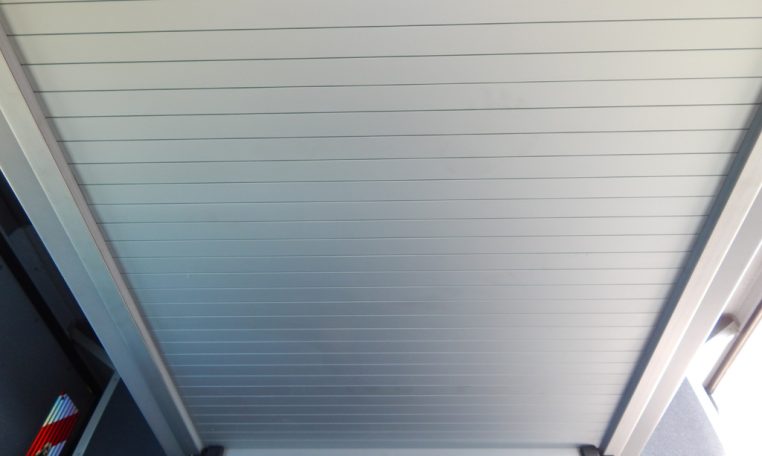

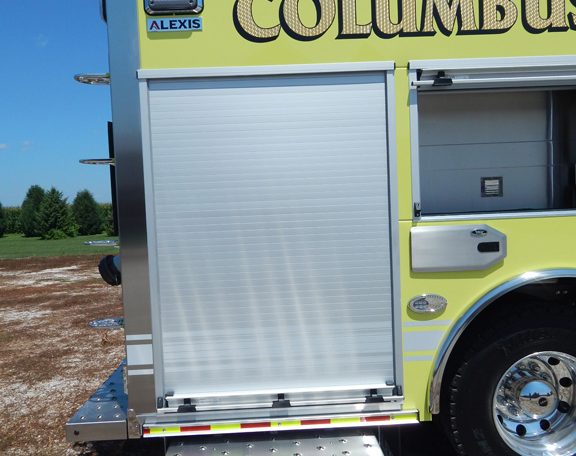

• ROM Series IV Roll Up Doors

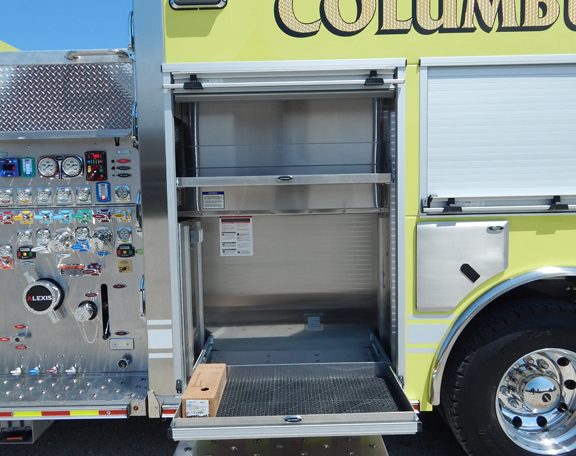

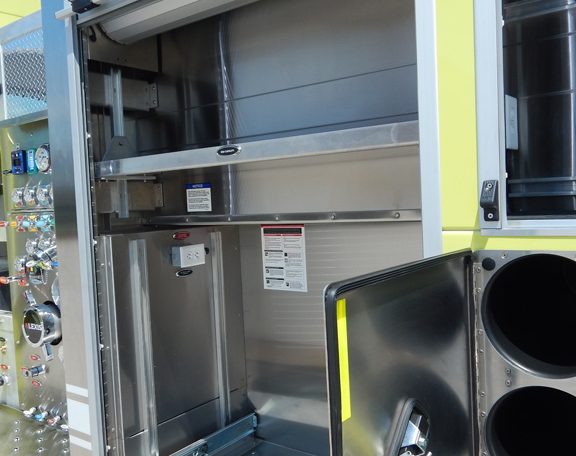

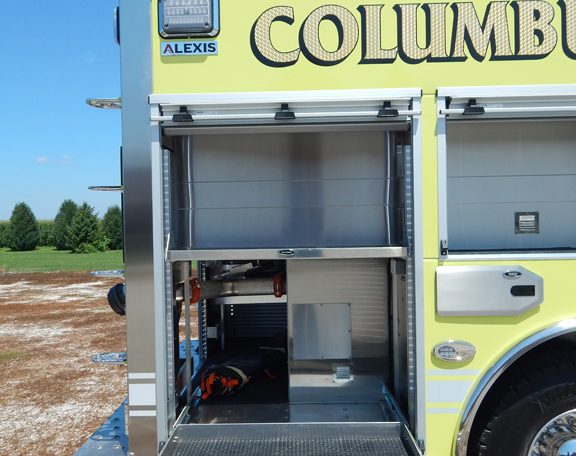

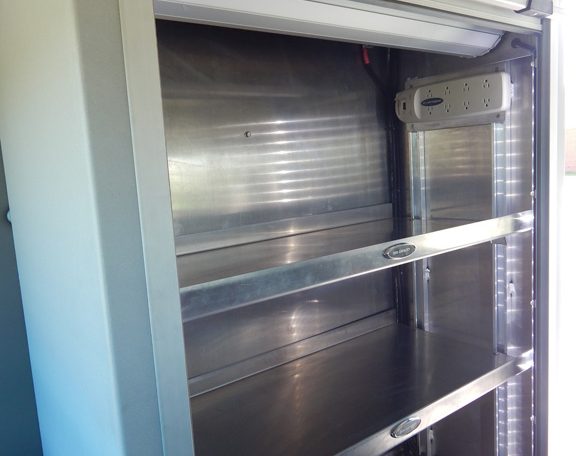

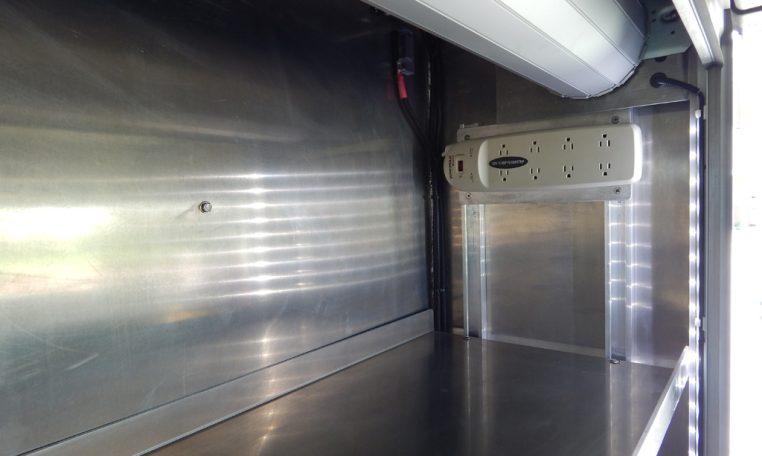

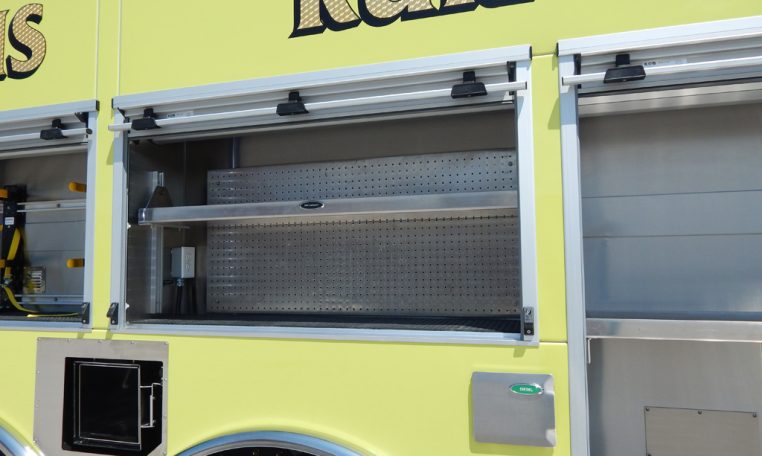

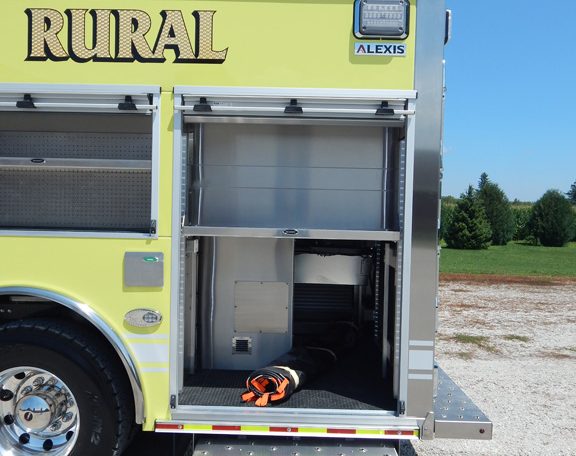

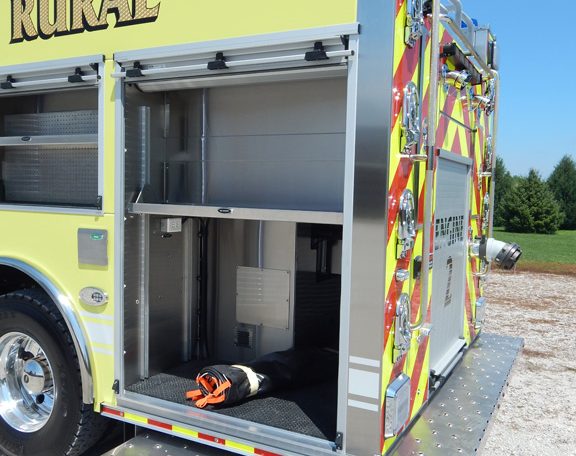

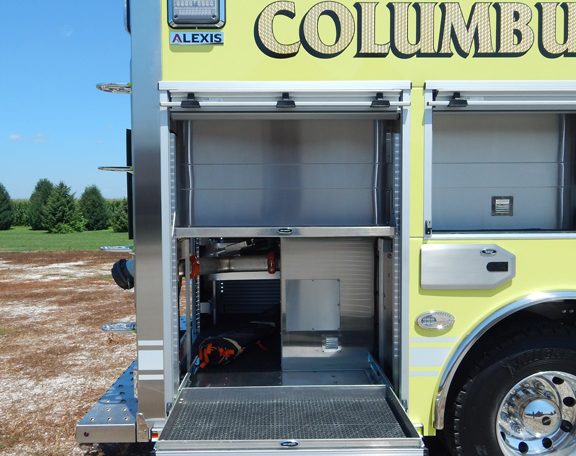

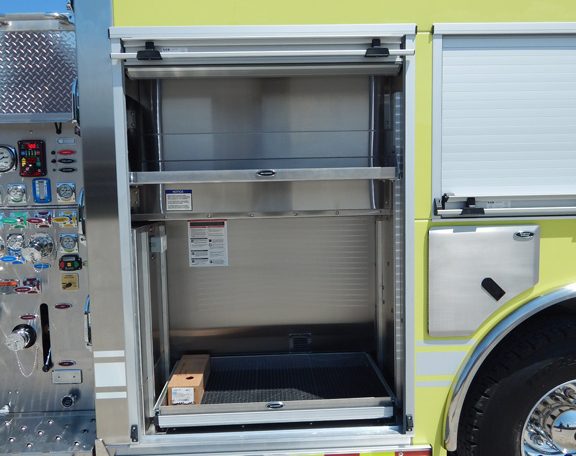

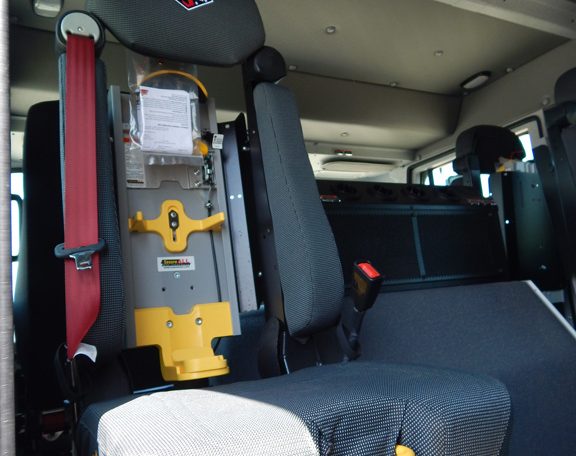

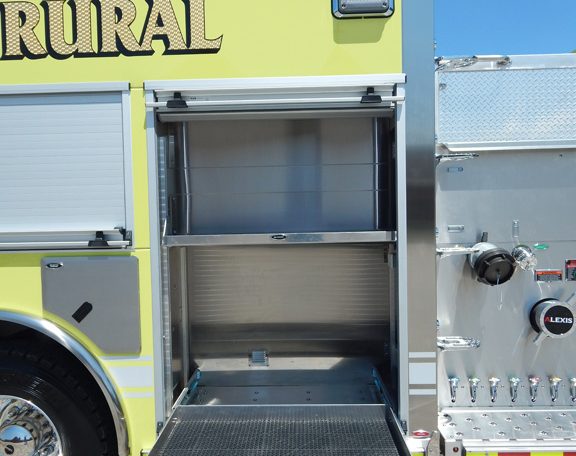

• Efficient Compartment Storage Package for Ease of Access to Stored Equipment Including Pegboard Tool Board, Air Pack Brackets, Shelving, and Roll Out Trays

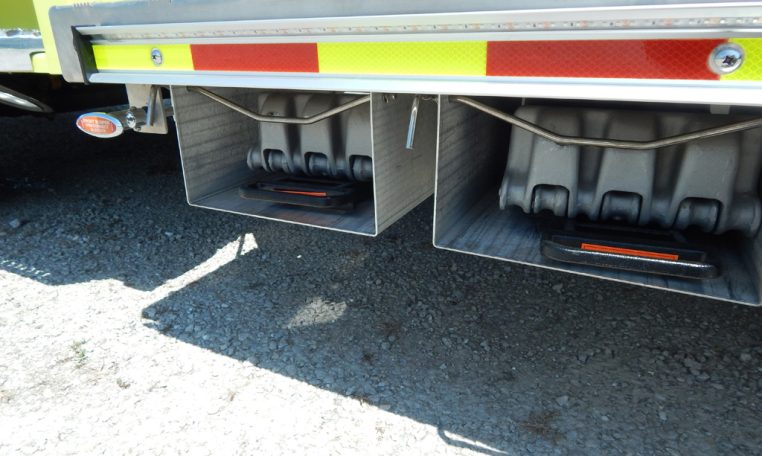

• Slide Out Steps below L1, L4, R1, and R4 for Improved Access
• Aluminum Rub Rails with LED Warning Lights & LED Undercarriage Lights

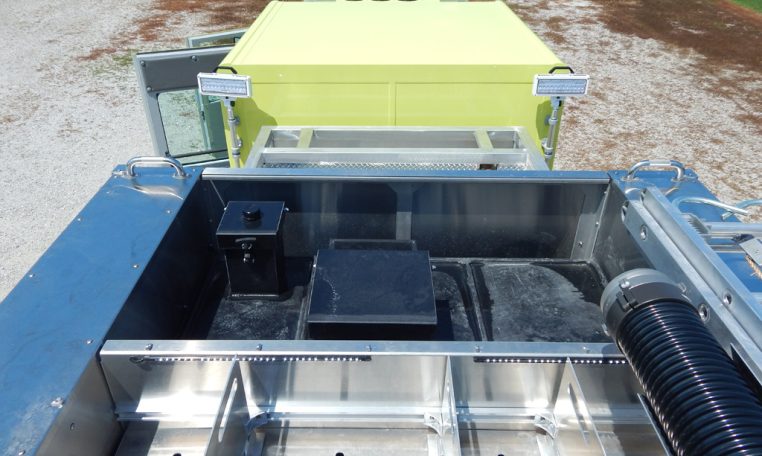

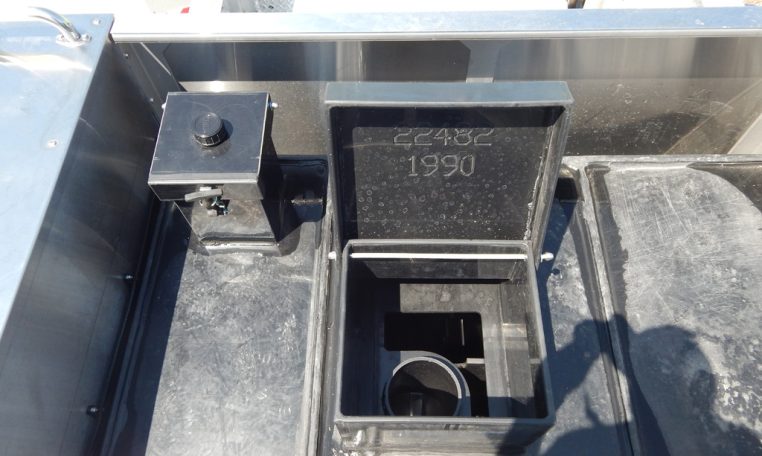

• 2000-Gallon Poly Tank
• 4” FirePrograms Tank Fill with 4” 5” Storz Elbow and 2½” Reducer
• Three (3) 10” Newton Dumps with Electric Valves and 18” Electric Extensions with Cab Controls for all.  Side Dumps Between the Tandem Rear Axles
• Kussmaul Battery Conditioner with Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Above Cab Left Wheel Well
• Whelen Warning Light Package
• Whelen LED Arrow Stick
• Federal Q2B Siren, Pedestal Mounted
• Whelen Electronic Siren & 100W Siren Speaker
• Whelen LED Scene Lighting Sides and Rear
• One (1) FireTech 72” LED Brow Light
• Two (2) FRC Telescopic LED Lights
• Slide In Storage for a 2100 Gallon Fol-Da-Tank

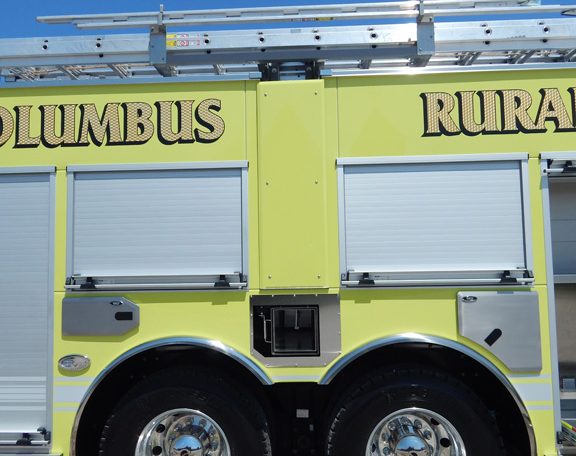

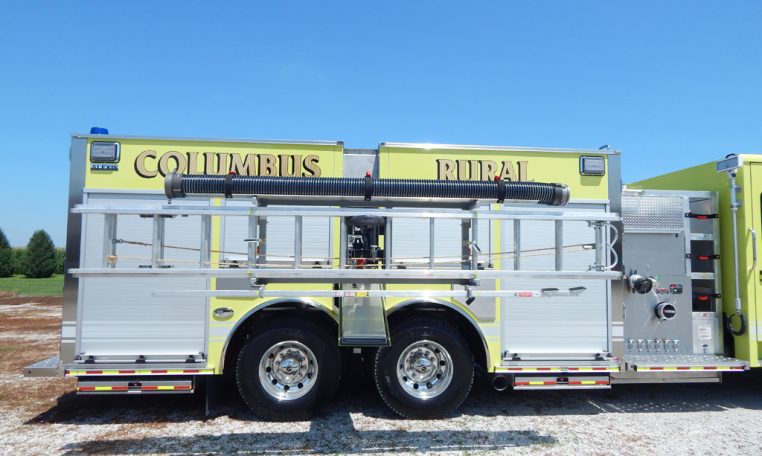

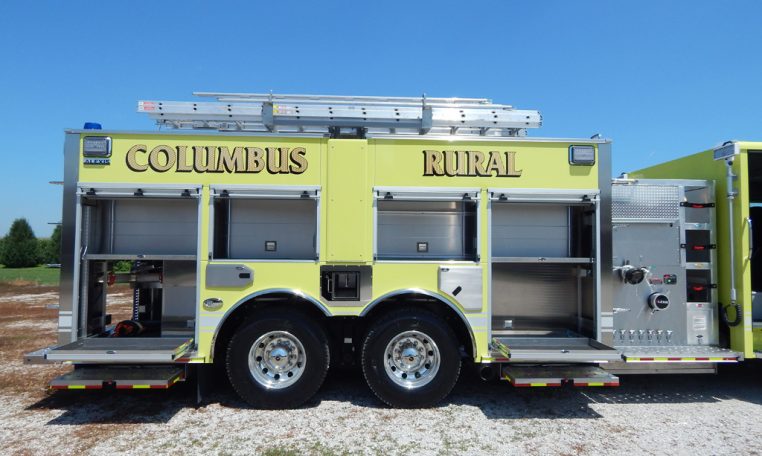

• Hydraulic Ladder Rack Right Side

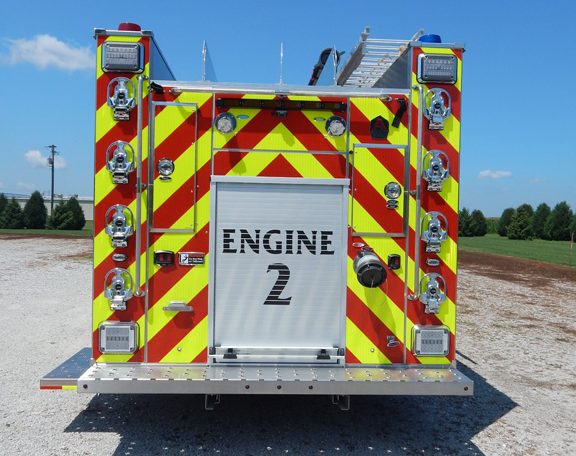

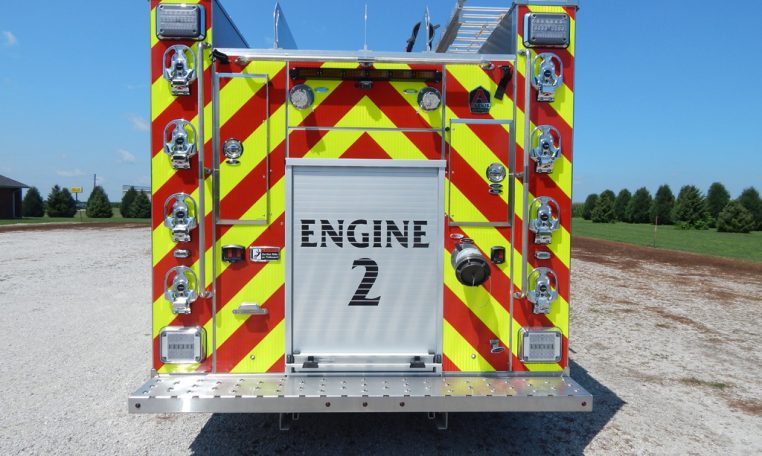

• Diamond Grade Chevron Striping
• 10’ 10” Overall height
• 37’-9” Overall length
• 226” Wheelbase
• 172” Cab to Axle
• 20,000 FAWR
• 44,000 RAWR
• 64,000 GVWR
