Delivered Apparatus

FEATURES:

• Spartan Gladiator MFD 10” Raised Roof Chassis
• Cummins 500 HP X12 Diesel Engine
• Allison 4000 EVS Automatic Transmission
• Heavy-Duty 304 Stainless Steel Body and Subframe
• Stainless Steel RIV Pump Module with Pump Operator’s Panel in L1
• Transverse Storage Compartment, Above Pump Module Behind Roll Up Door with Backboard Storage
• MAC1 LEA Single Stage Split-Shaft 1500 GPM Pump
• Heated Pump Enclosure
• Trident Air Prime System
• FRC Pump Boss Pressure Governor & Monitoring System
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 2½” Gated Intake, Left Side
• 24” Front Bumper Extension with Full Width Hose Tray and One (1) 1½” Preconnect in the Floor of the Tray
• One (1) 2½” Discharge, Left Side
• One (1) 2½” Discharge, Right Side
• One (1) 3” Discharge Adapted to 4” Storz, Right Side
• One (1) 2½” Discharge, Rear
• Two (2) 1½”, One (1) 2½”, Cartridge Lay Preconnects – Transverse Storage Module
• 1000-Gallon Poly Tank
• Whelen PSTANK2 Strip Lite Tank Gauges
• AFE Stainless-Steel Top Access Ladder
• Two (2) Coffin Compartments, One (1) Each Side of Hose Bed
• Hose Bed with Center Walkway, Three (3) LED Lights, and Hypalon Cover
• ROM Series IV Painted Roll Up Doors
• Ladder and Suction Hose Storage Through the Tank Accessible from the Rear Compartment

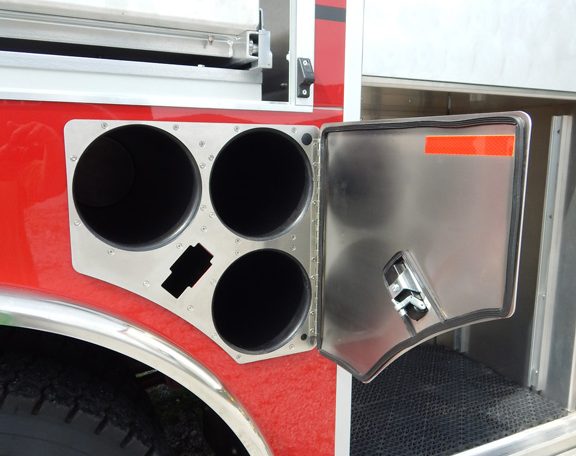

• Wheel Well Air Bottle Storage – Two (2) Triple Bottle
• Efficient Compartment Storage Package for Ease of Access to Stored Equipment Including Pull Out PAC TRAC Tool Boards, Shelving, C-Tech Custom Tool Box, and Roll Out Trays with Dividers
• Stainless Steel Rear Access Ladder
• Kussmaul Auto Charge 40 LPC Battery Conditioner with Viair Compressor and  Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Above Left Front Wheel Well
• Whelen LED Warning Light Package with Rear Arrow Stick
• FireTech 40” Scene Light Bars, Recess Mounted One (1) Each Side
• Whelen 9SC0ENZR Scene Lights – One (1) Each Side of Cab and Two (2) Rear
• Whelen Electric Siren & 100W Speaker
• 10’ 2” Overall height
• 33’-7” Overall length
• 198” Wheelbase
• 144” Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR
