Delivered Apparatus

FEATURES:

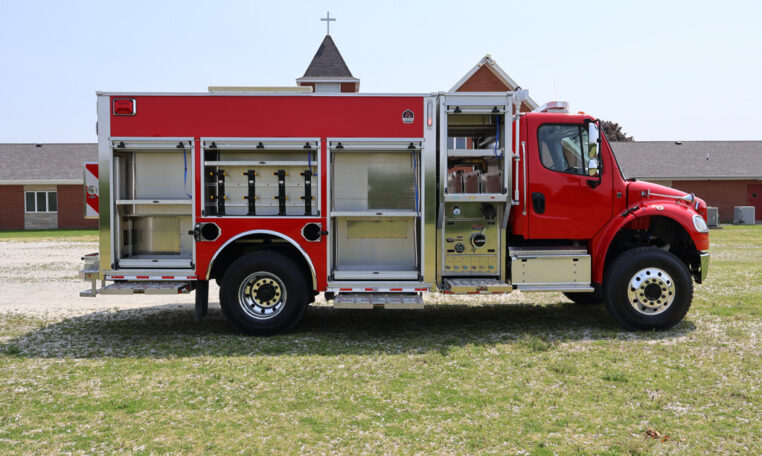

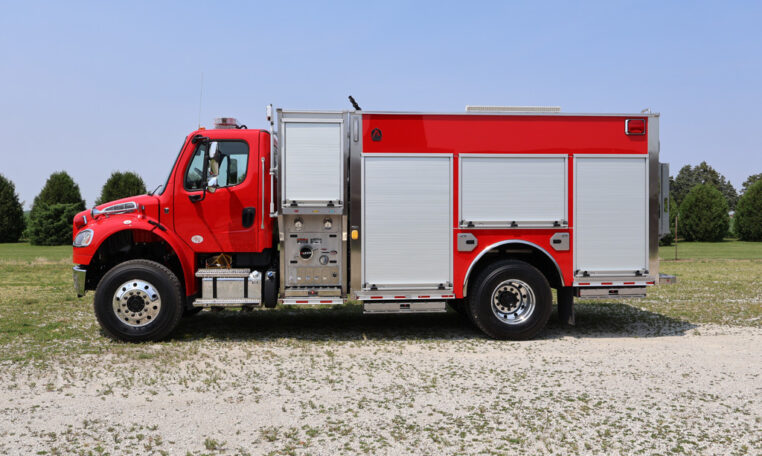

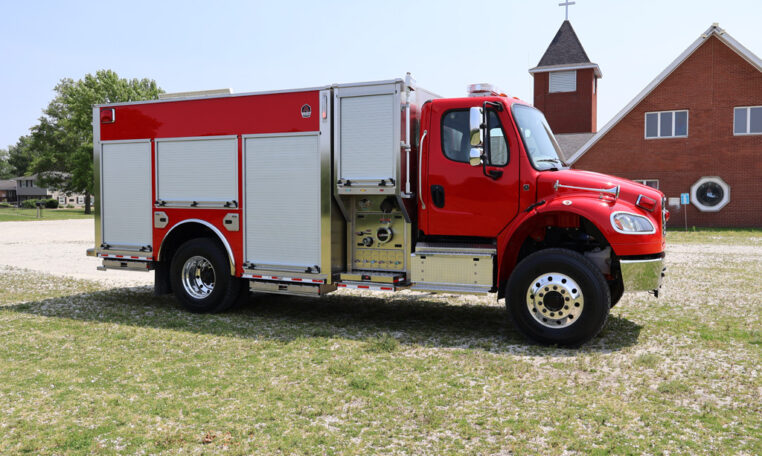

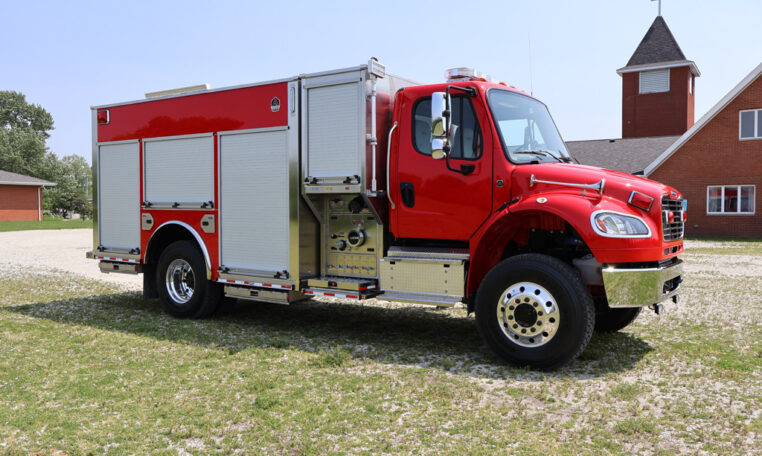

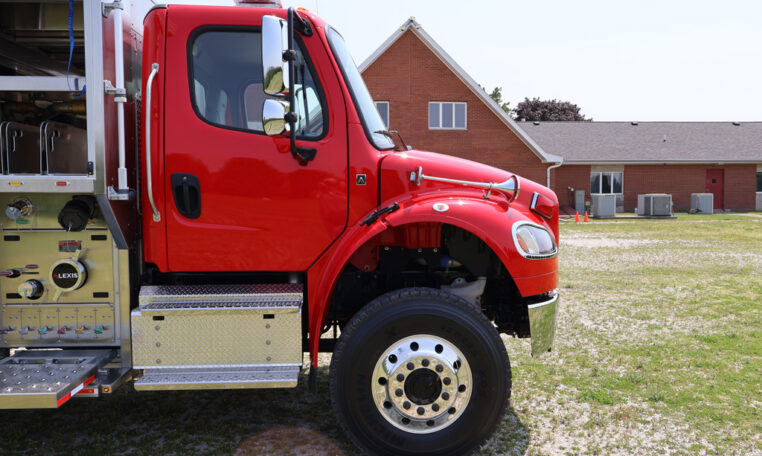

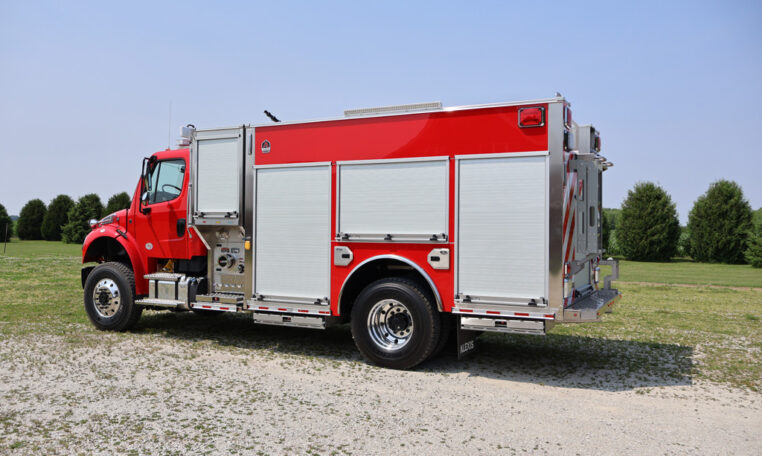

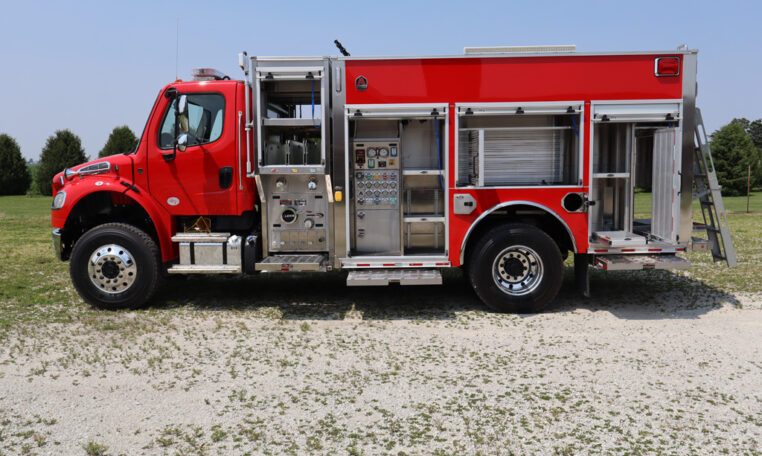

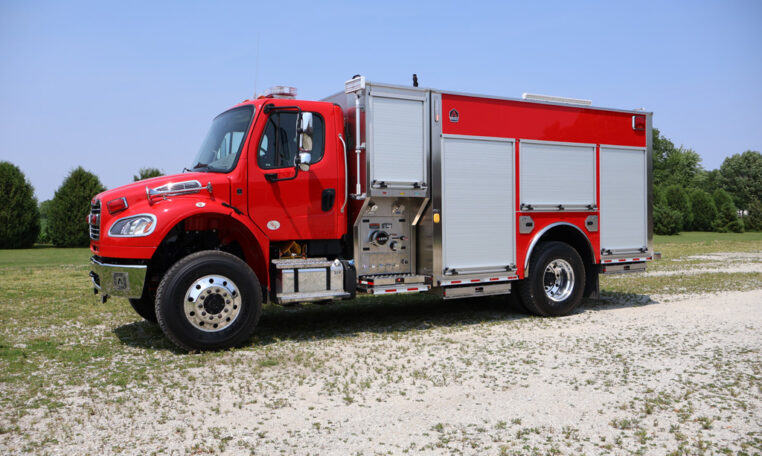

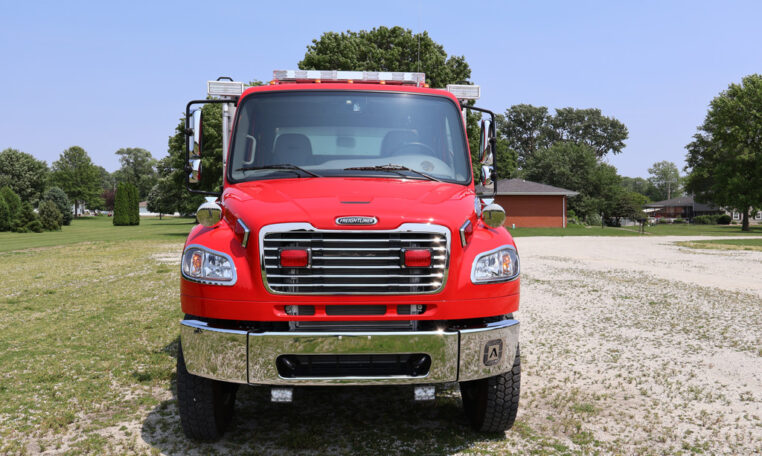

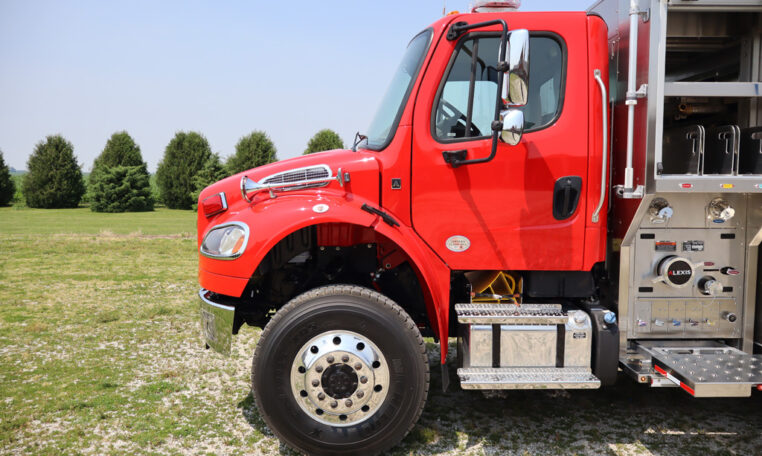

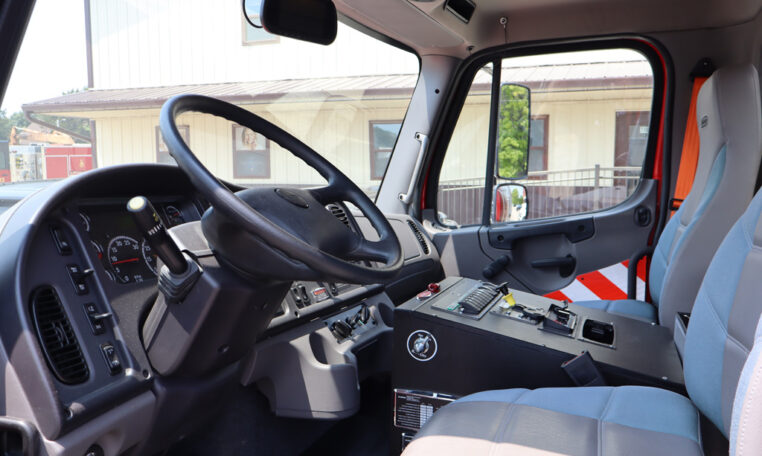

• Freightliner M2 106 2-Door Chassis
• Cummins L9 360 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Stainless Steel Body with Stainless Steel Subframe

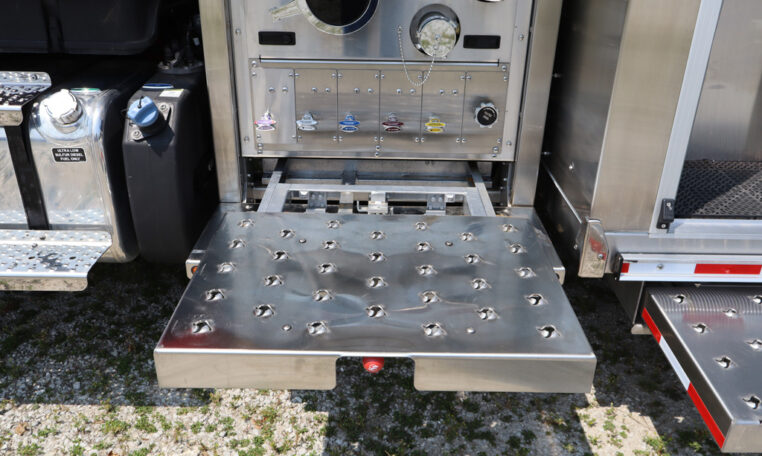

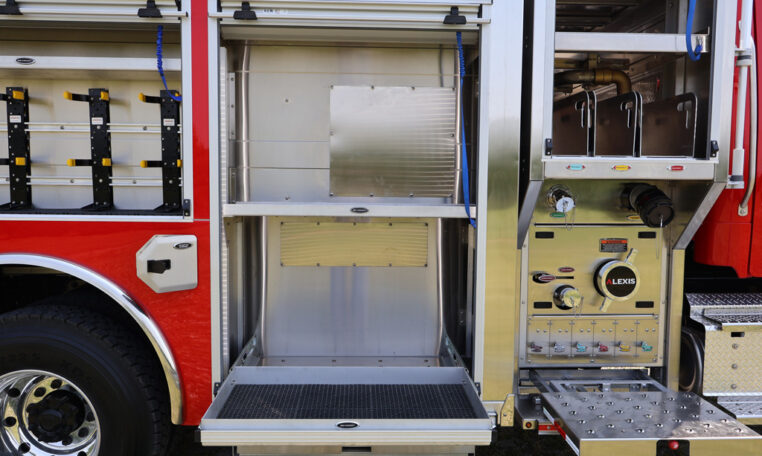

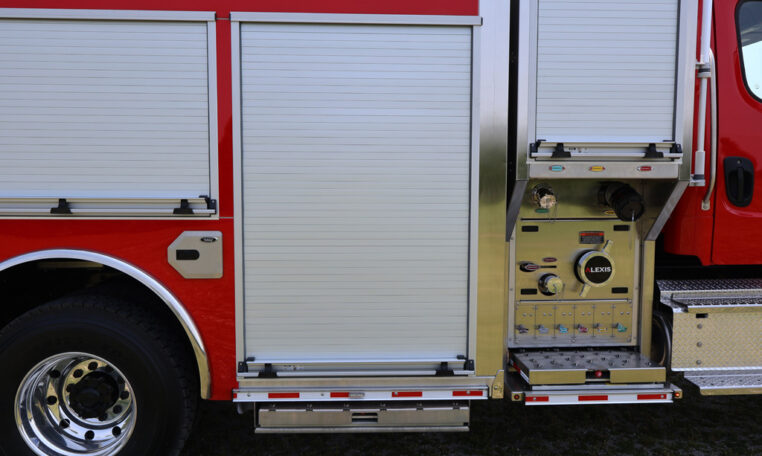

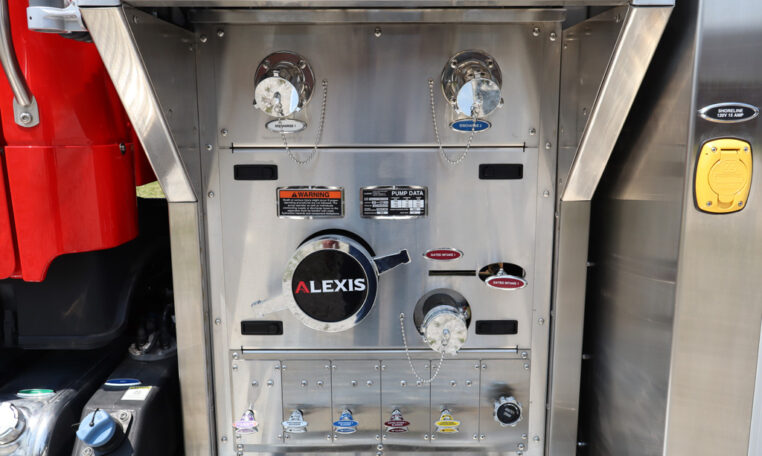

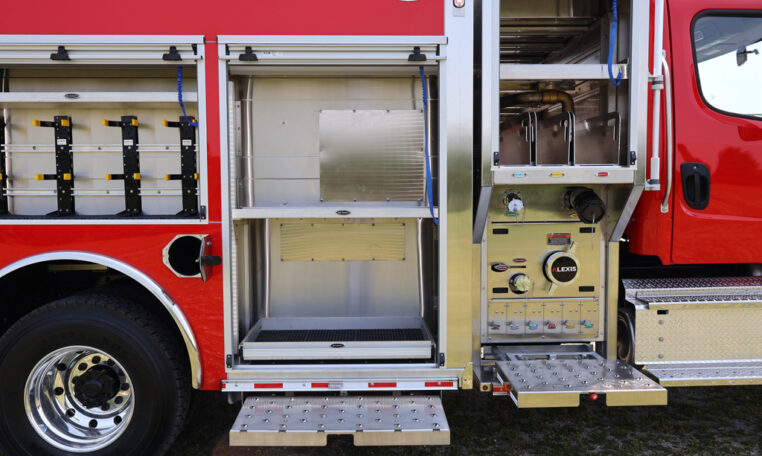

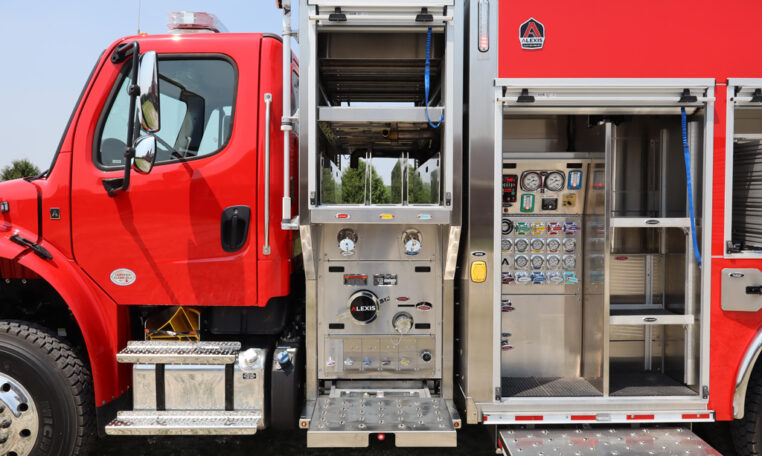

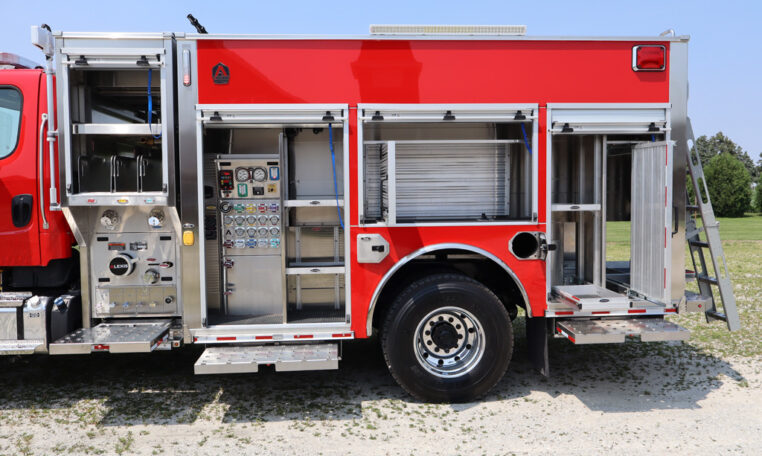

• Stainless Steel Side Control Pump Module with Stainless Steel Subframe

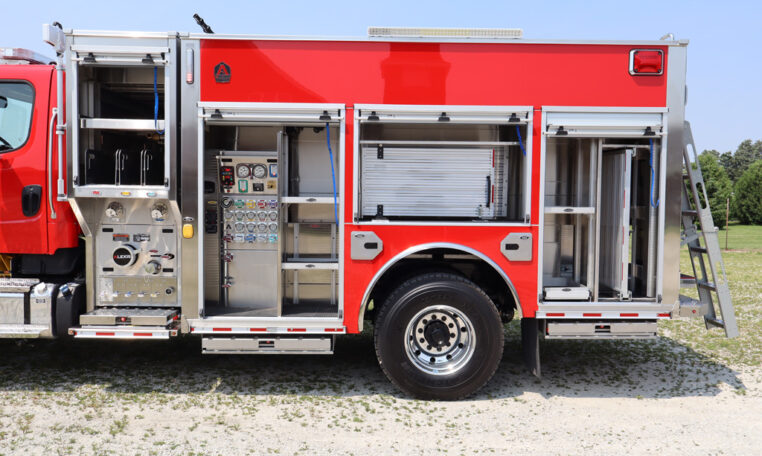

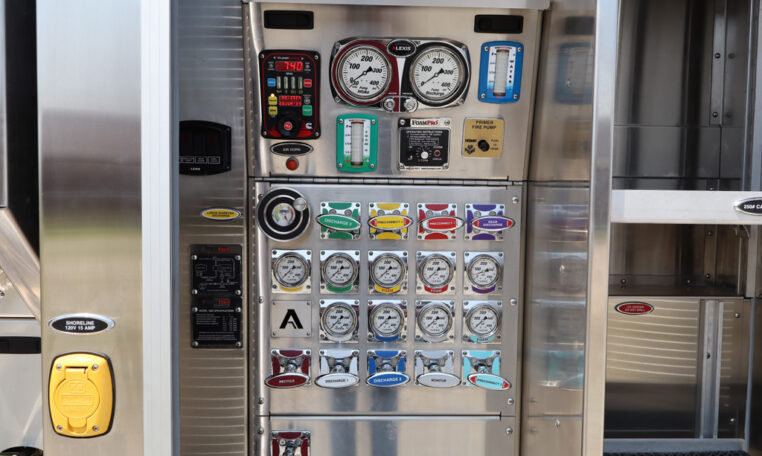

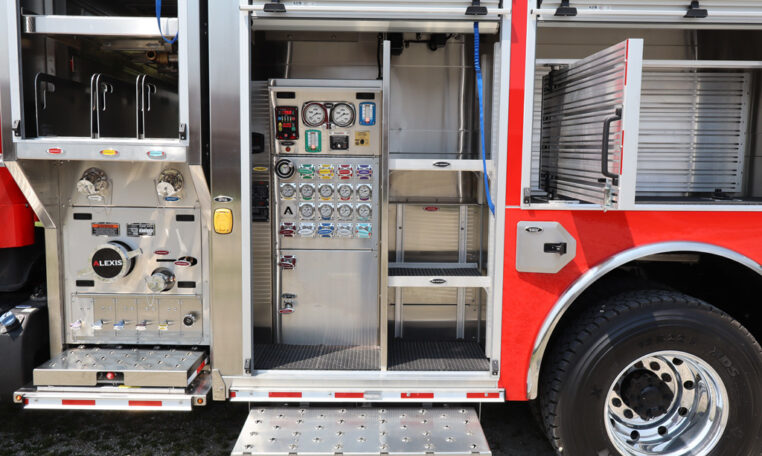

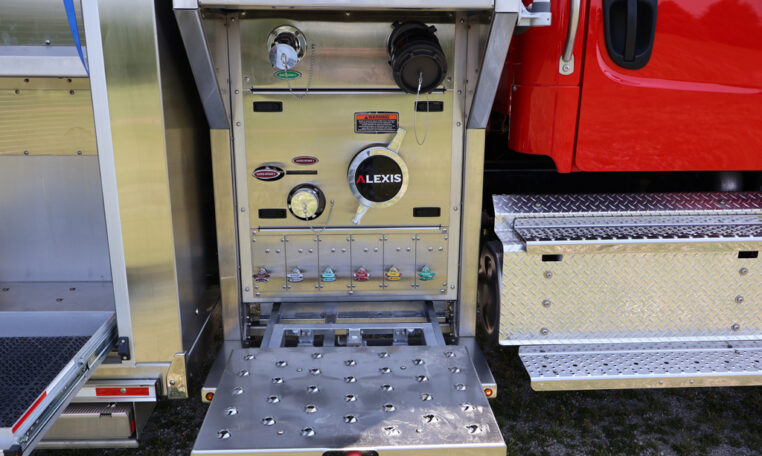

• Pump Operator’s panel located in L1 compartment
• Waterous CXVD 1500 GPM Pump
• Trident Air Primer
• FRC Pump Boss Pressure Governor Monitoring System
• FRC TankVision Water Tank Level Gauge with Three (3) Whelen Strip Lites

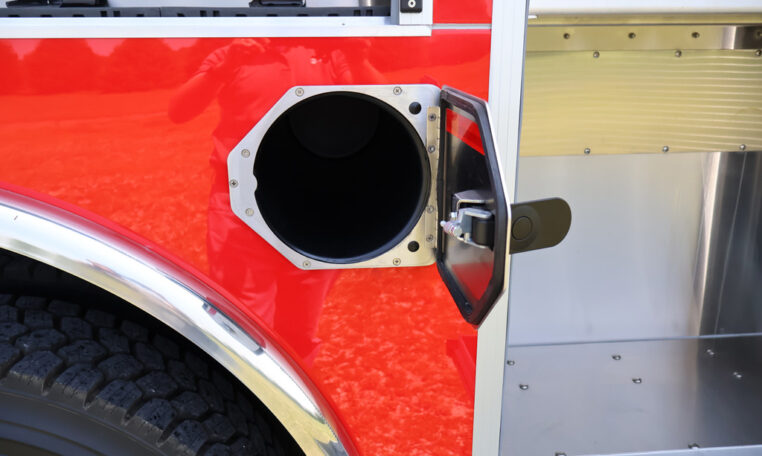

• Two (2) 6” Intakes, One (1) Each Side
• One (1) 2½” Gated Intake, Left Side
• Two (2) 2½” Discharges, Left Side, One (1) 2½” Discharge, Right Side and One (1) 2½” Discharge, Rear Right Side
• One (1) 4” Discharge Adapted to 4” Storz, Right Side

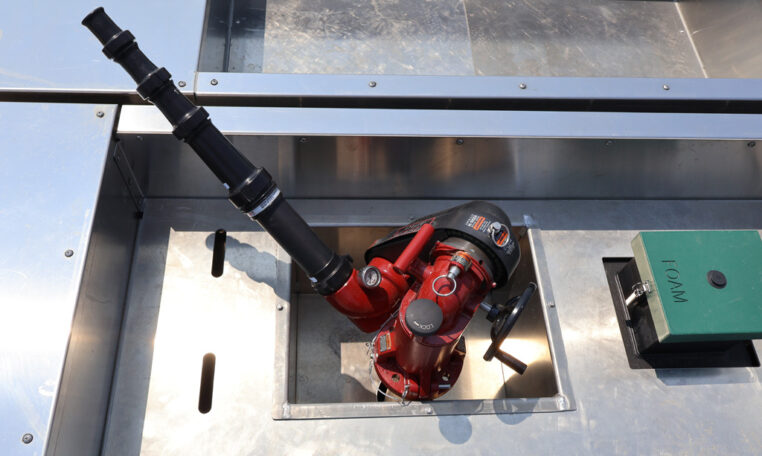

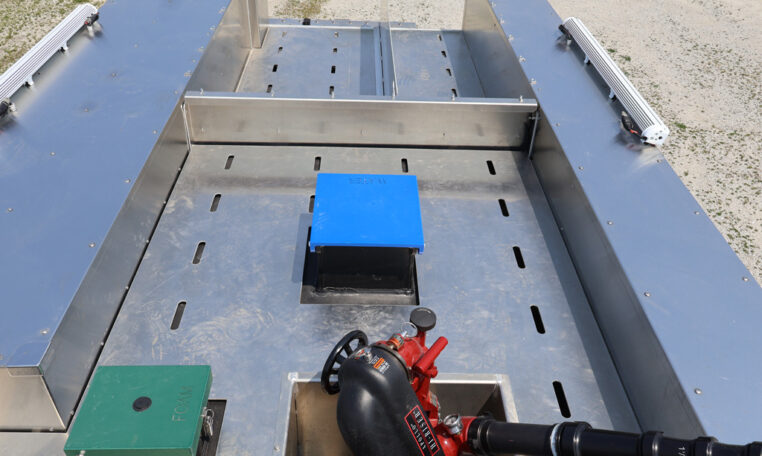

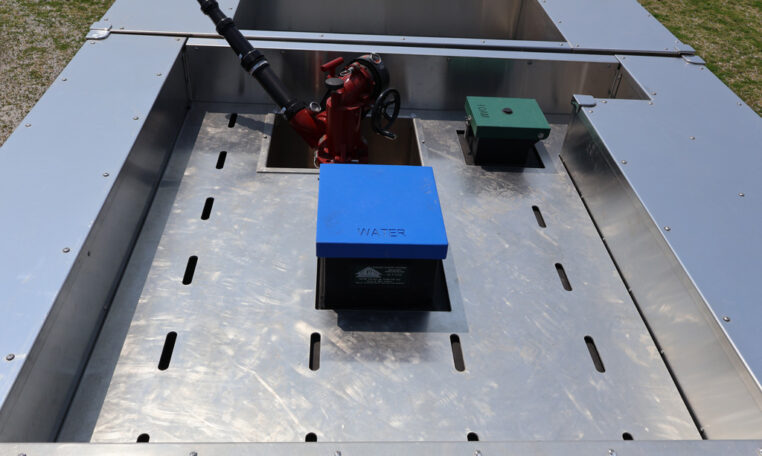

• One (1) 3” Discharge Dunnage Area with Akron 3433 Hi-Riser Deck Gun
• FoamPro 1600 Foam System with 10 Gallon Tank

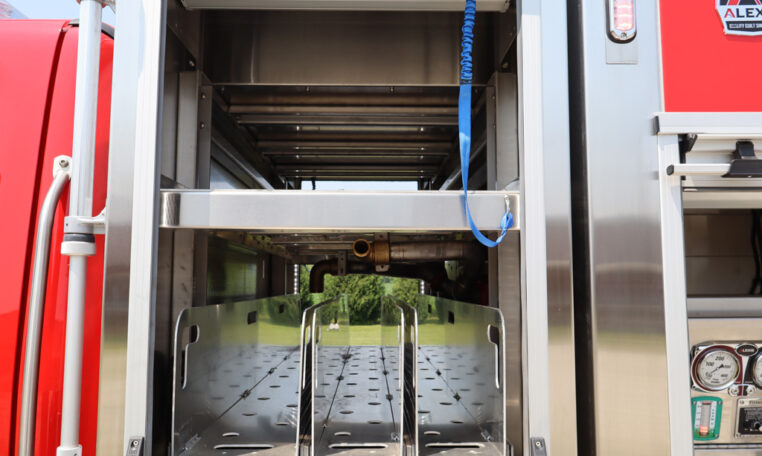

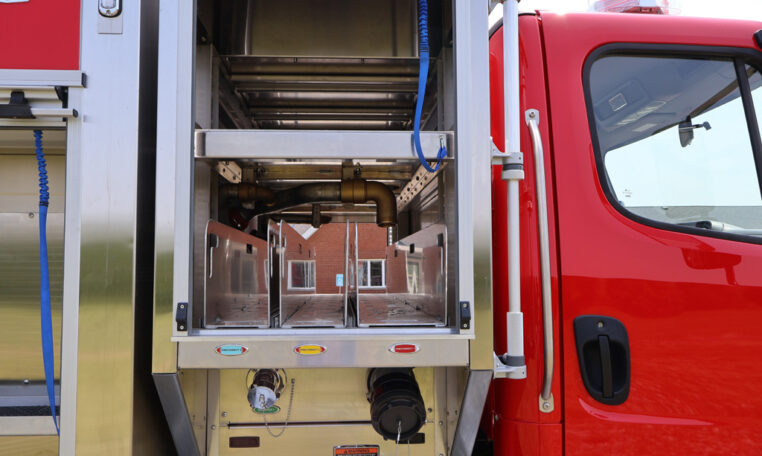

• Two (2) 1½” and One (1) 2½” Speedlay Preconnects with Trays Over Pump Behind Roll Up Doors

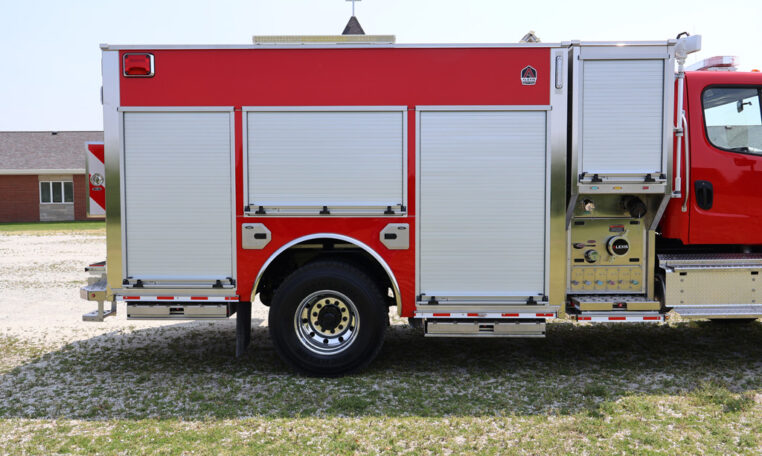

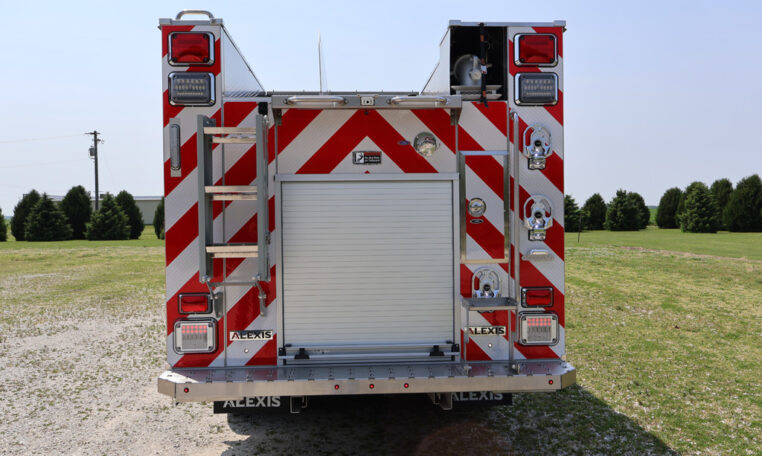

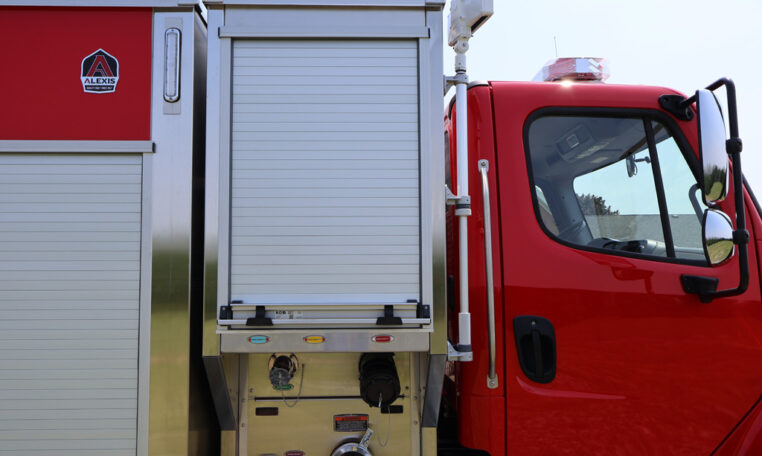

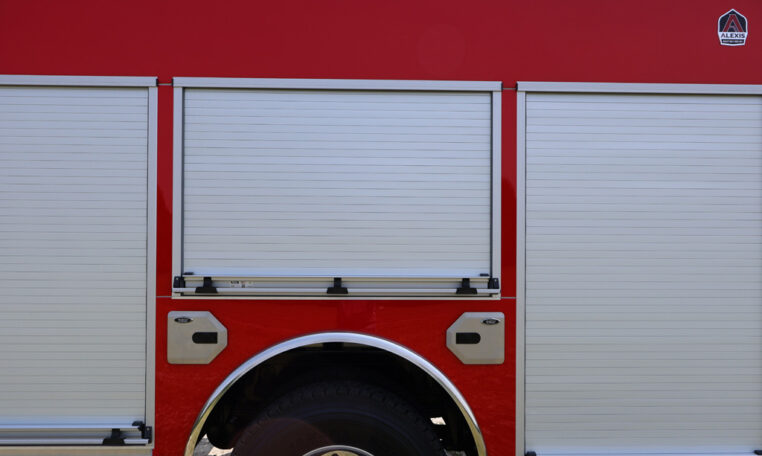

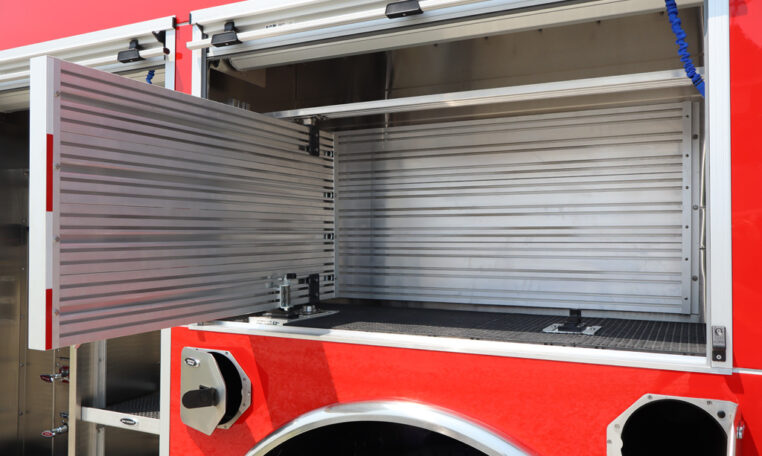

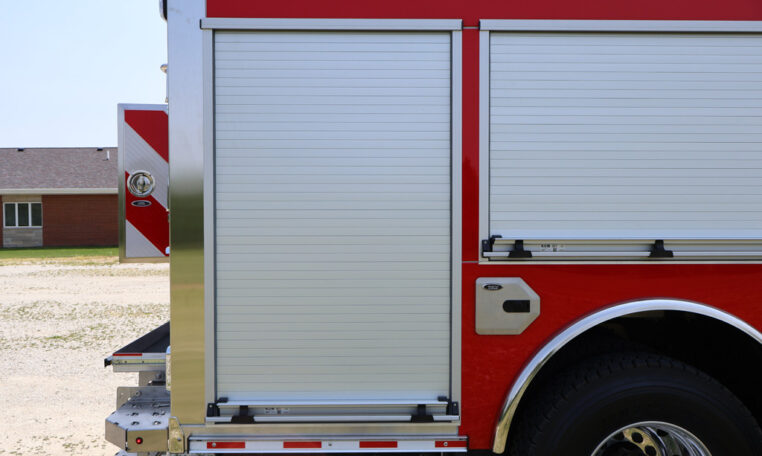

• ROM Roll-Up Doors

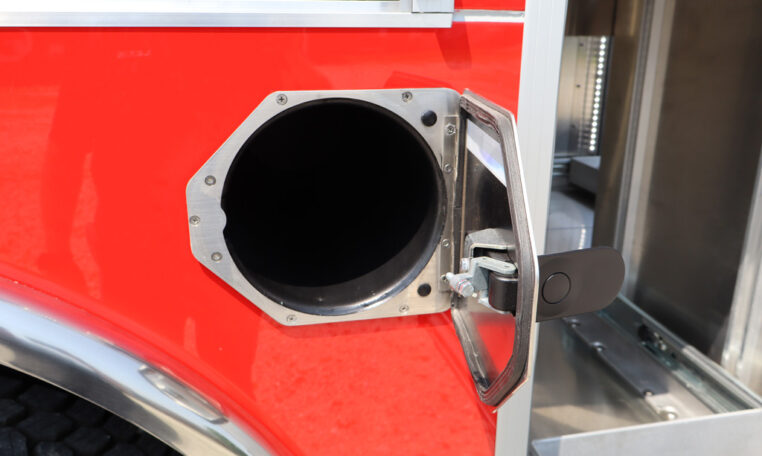

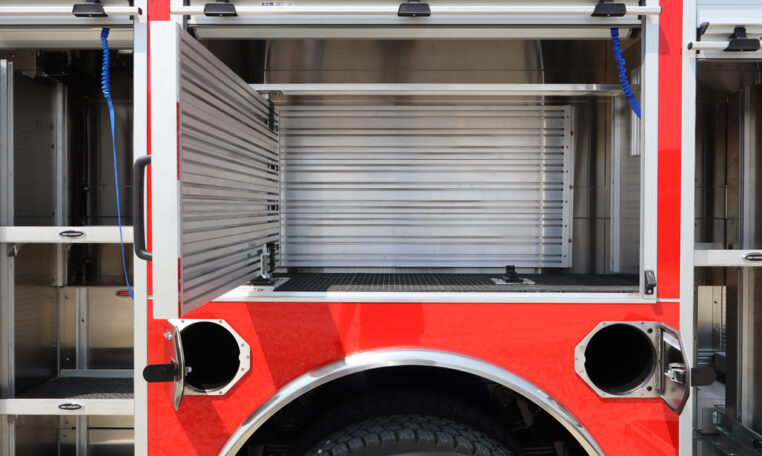

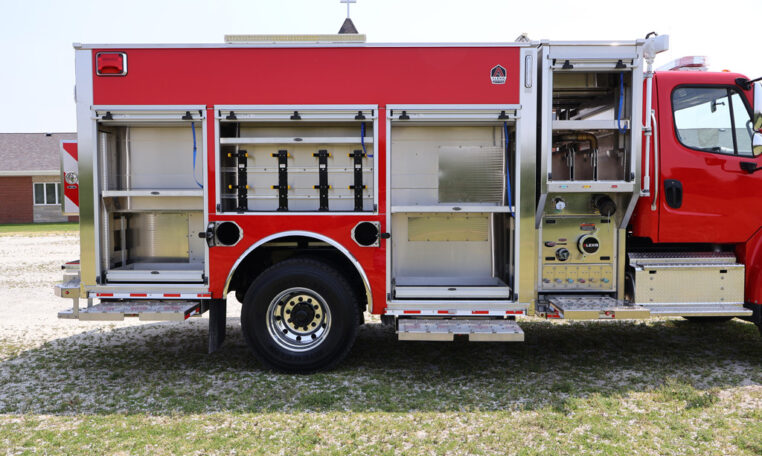

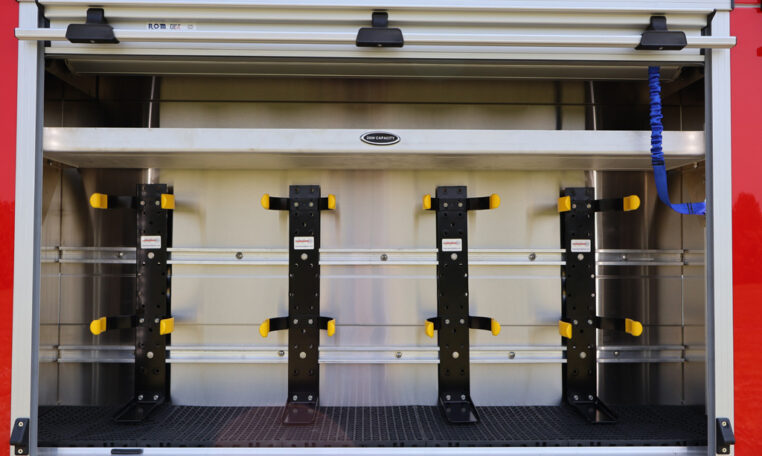

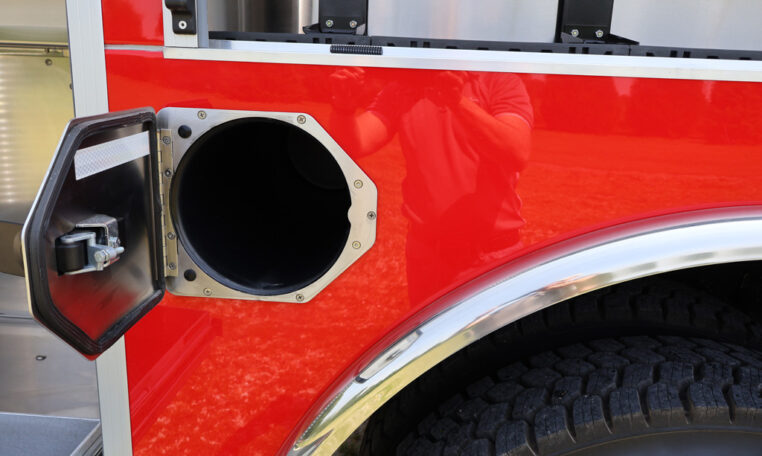

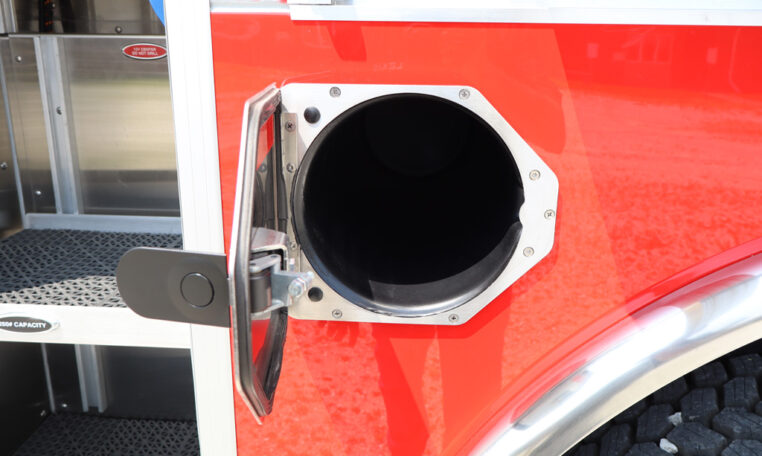

• Four (4) Single Wheel Well Air Bottle Compartments

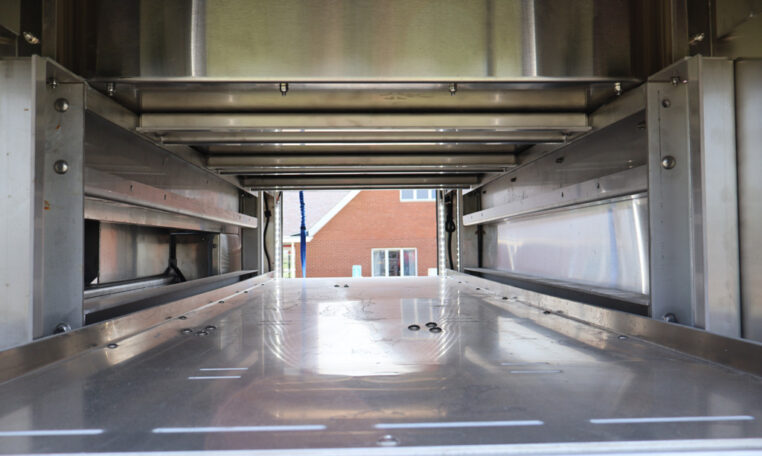

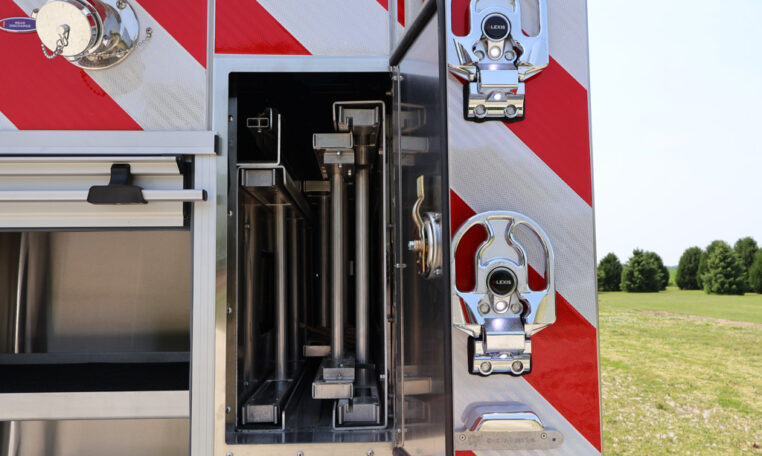

• Ladder Storage Compartment, Vertical Through Body, Right Side
• Suction Hose and Pike Pole Storage Compartment in Hose Bed, Right Side

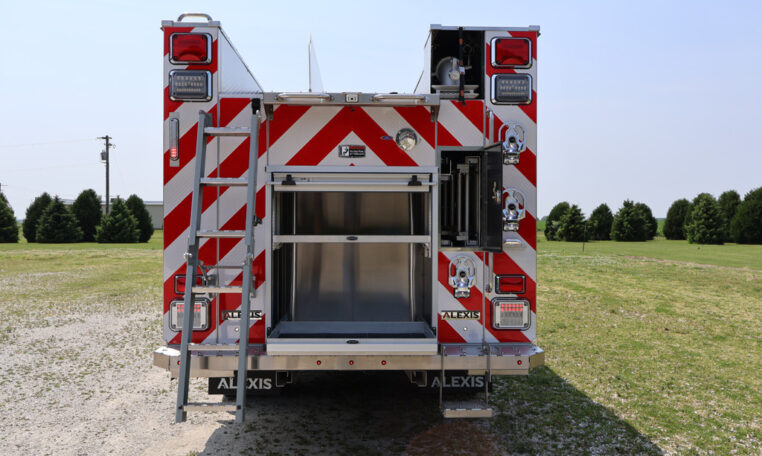

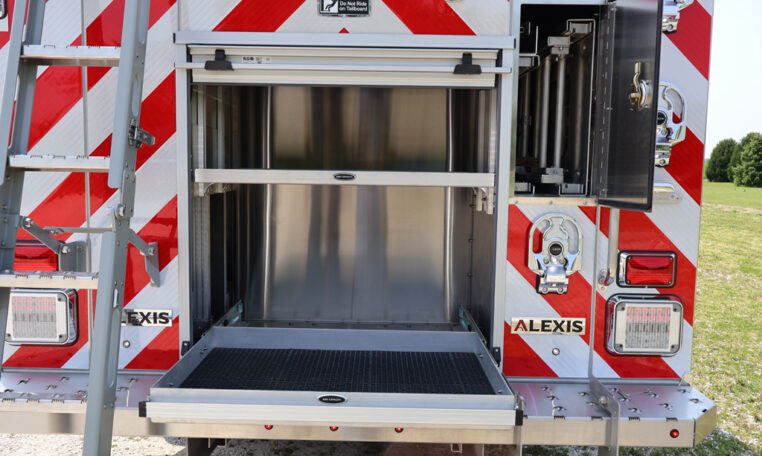

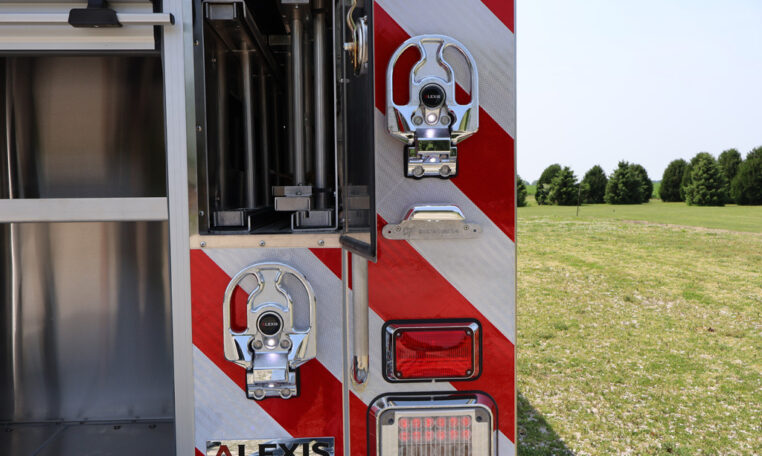

• AFE Stainless Steel Rear Access Ladder with Flip Down Step. Left Side
• 800 Gallon Poly Tank
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Whelen LED Warning Light Package
• Progressive Dynamics Battery Charger with Viair Compressor
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side
• Whelen 200W Siren and 100W Speaker
• Two (2) FireTech HiViz 49″ LED Scene Light Bars, One (1) Each Side
• Two (2) Whelen 9S LED Scene Lights, Rear

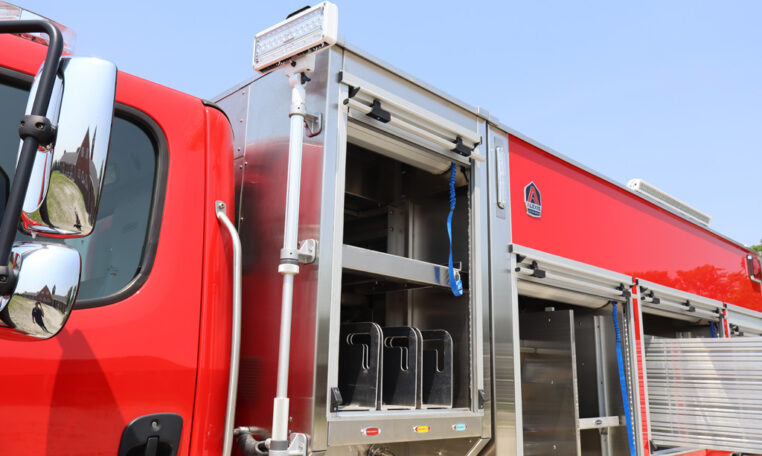

• Two (2) Fire Research Spectra LED Telescopic Lights, One (1) Each Side at the Front of the Body
• One (1) 10’ Attic Ladder, One (1) 12’ Roof Ladder with Hooks, One (1) 26’ 3-Section Ladder, and Two (2) 10’ Lengths of 6” Suction Hose
• 10’-3” Overall Height
• 26’-9”” Overall Length
• 190” Wheelbase
• 124.25” Cab to Axle
• 14,000 FAWR
• 27,000 RAWR
• 41,000 GVWR
