Delivered Apparatus

FEATURES:

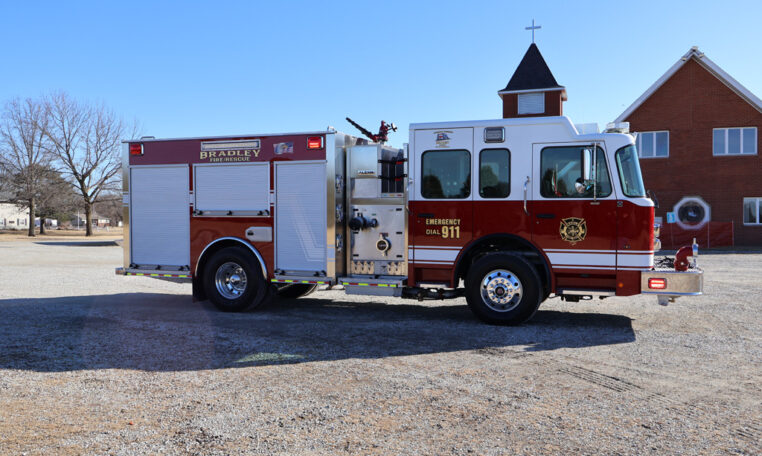

• Spartan FC-94 MFD Chassis with 10” Raised Roof
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Stainless Steel Body with Stainless Steel Subframe

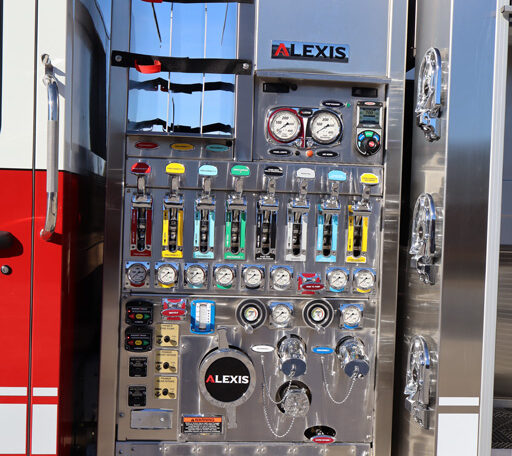

• Stainless Steel Side Control Pump Module with Stainless Steel Subframe
• Free Floating Hose Well for 100’ of 1¾” Hose, Right Running Board
• Hale DSD 1500 GPM Pump
• Trident 3-Location Air Primer
• FRC Pump Boss Pressure Governor Monitoring System
• FRC TankVision Water Tank Level Gauge
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 5” Front Bumper Intake
• One (1) 5” Rear Intake Adapted to 6” NSTM
• One (1) 2½” Gated Intake, Left Side
• Two (2) 2½” Discharge, Left Side and One (1) 2½” Discharge, Right Side
• Two (2) 2½” Discharges, Rear
• One (1) 3” Discharge with 5” Storz Elbow, Right Side
• One (1) 3” Discharge Dunnage Area with TFT Crossfire Deck Gun
• Two (2) 1½” and One (1) 2½” Mattydale Preconnects
• Two (2) Dual Air Bottle Wheel Well Compartments
• ROM Roll Up Doors
• Ladder Storage, Hose Bed Right Side
• 500 Gallon Poly Tank
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Kussmaul 40LPC Battery Charger
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab
• Kussmaul Auto Air Eject
• Whelen LED Warning Light Package with Rear Arrow Stick
• Whelen 200W Siren and CPI 100W Speaker
• Federal Q2B Siren
• Two (2) FireTech HiViz 40″ LED Scene Light Bars, One (1) Each Side
• Twi (2) FireTech HiViz GESM LED Scene Lights, Rear One (1) Each Side
• One (1) FireTech HiViz 72” LED Brow Light
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, and One (1) 24’ 2-Section Ladder
• 9’-11” Overall Height
• 31’ Overall Length
• 172” Wheelbase
• 118” Cab to Axle
• 21,500 FAWR
• 31,500 RAWR
• 53,000 GVWR
