Delivered Apparatus

FEATURES:

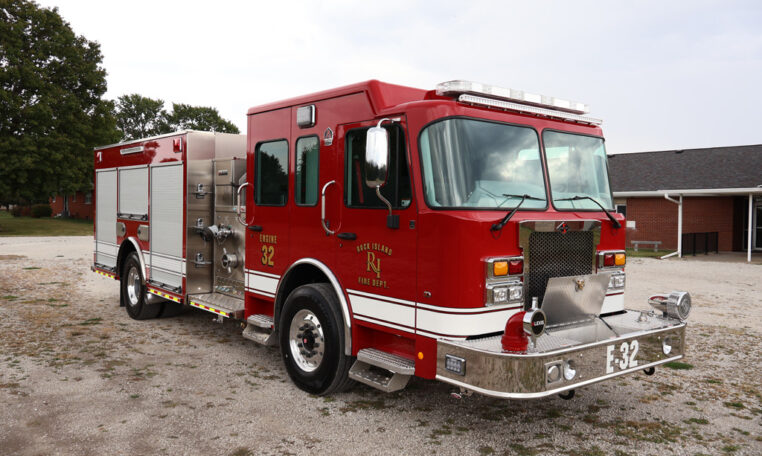

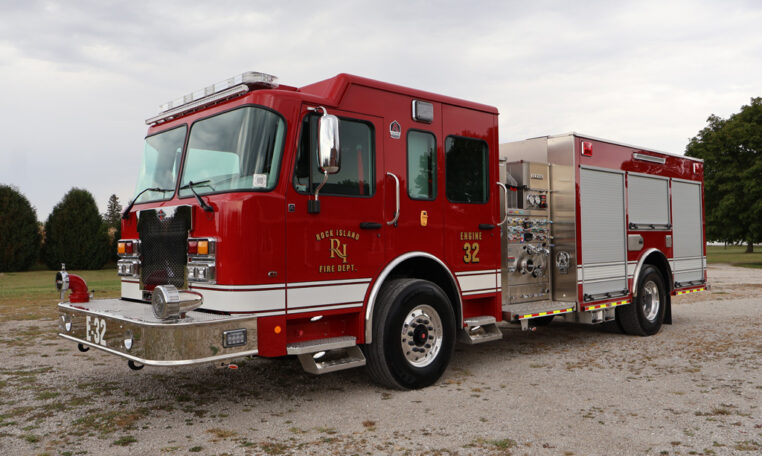

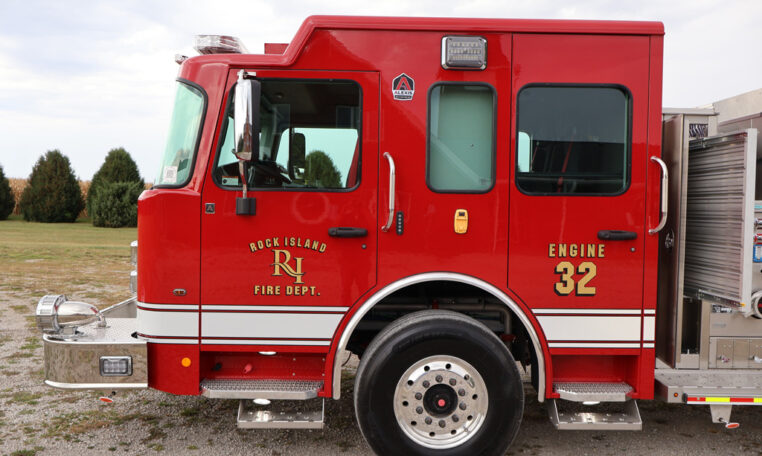

• Spartan FC-94 MFD Chassis with 10” Raised Roof
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Transmission

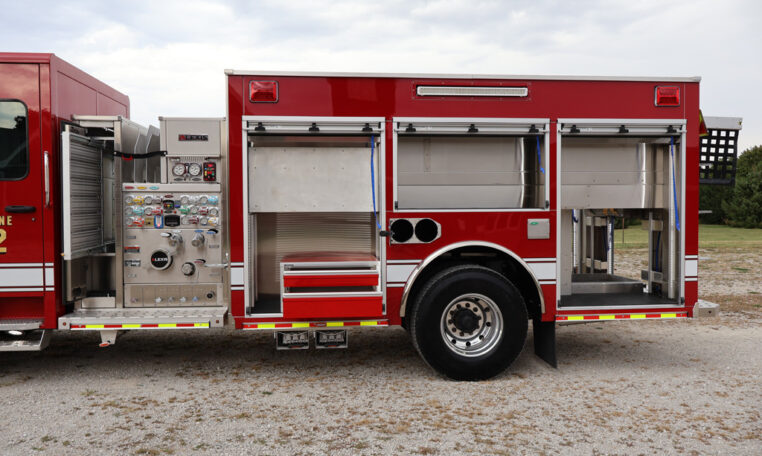

• Heavy Duty Stainless Steel Body with Stainless Steel Subframe

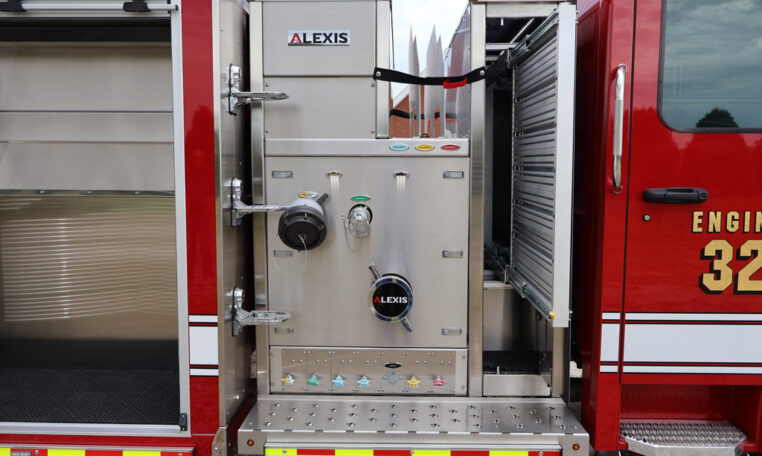

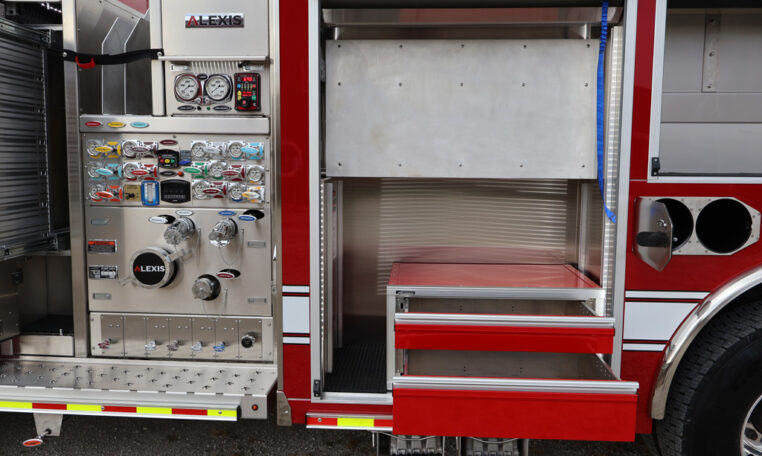

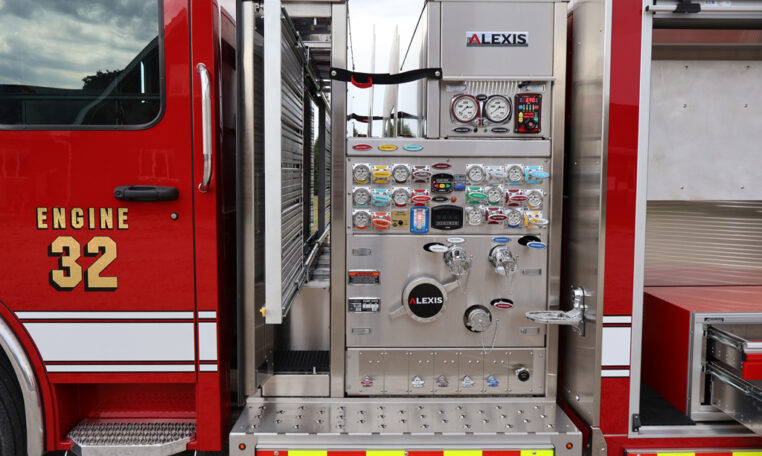

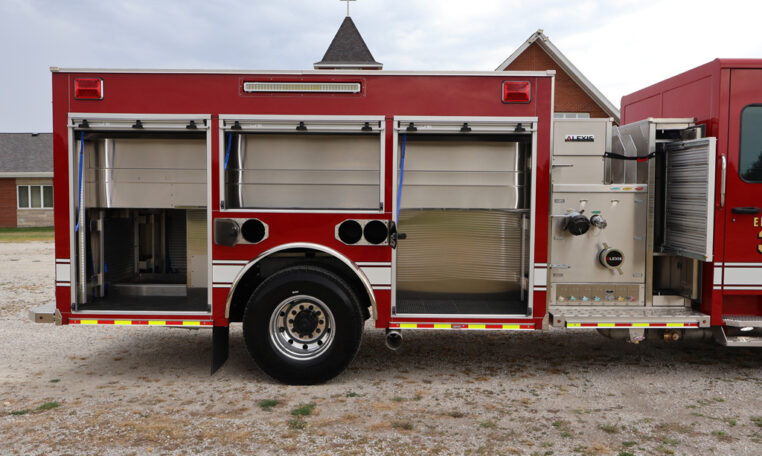

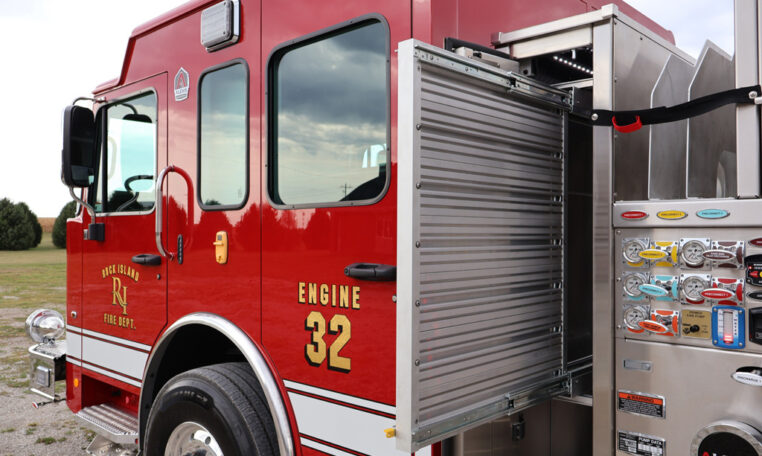

• Stainless Steel Side Control Pump Module with Stainless Steel Subframe

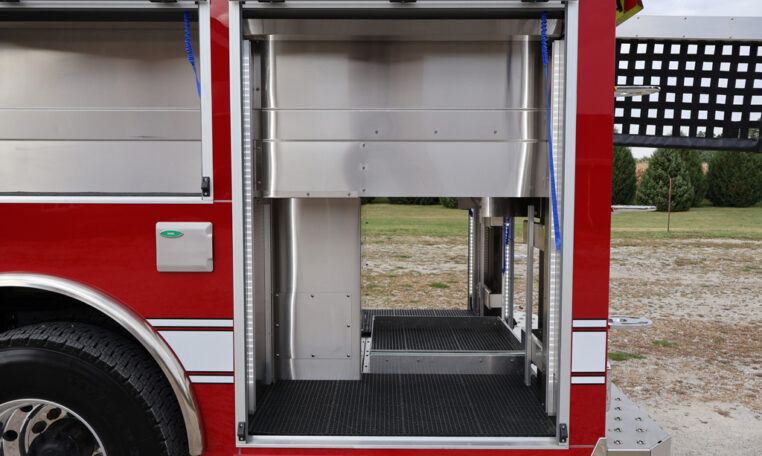

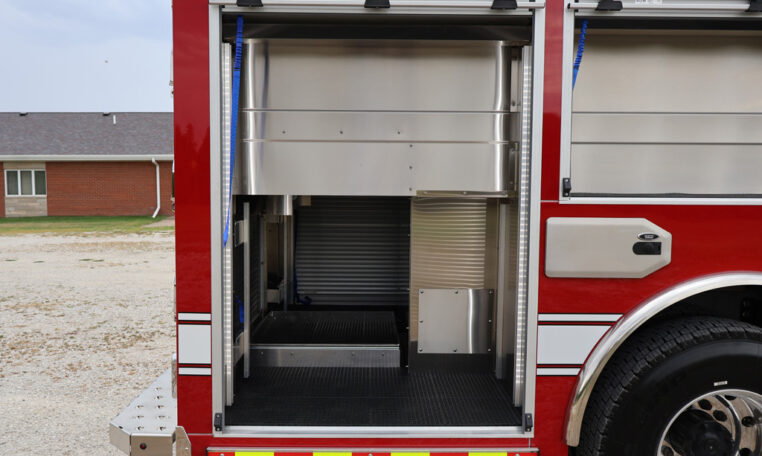

• Transverse Pump Module Compartment with PAC Vertical Pull Out Tool Boards
• Hale DSD 1500 GPM Pump
• Trident Air Primer

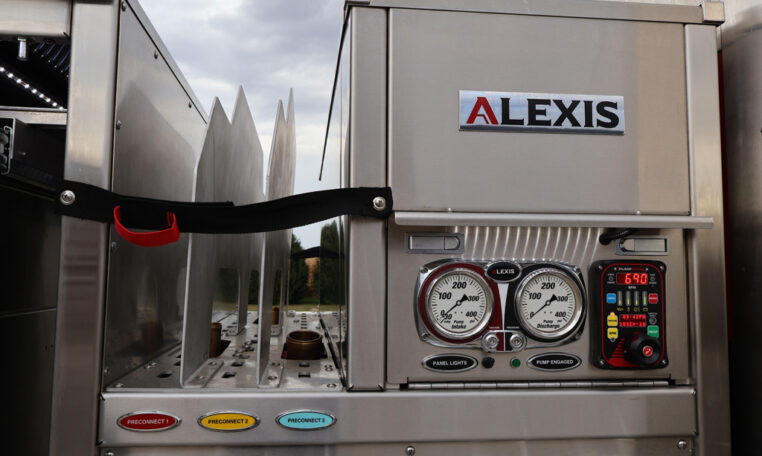

• FRC Pump Boss Pressure Governor Monitoring System
• FRC TankVision Water Tank Level Gauge

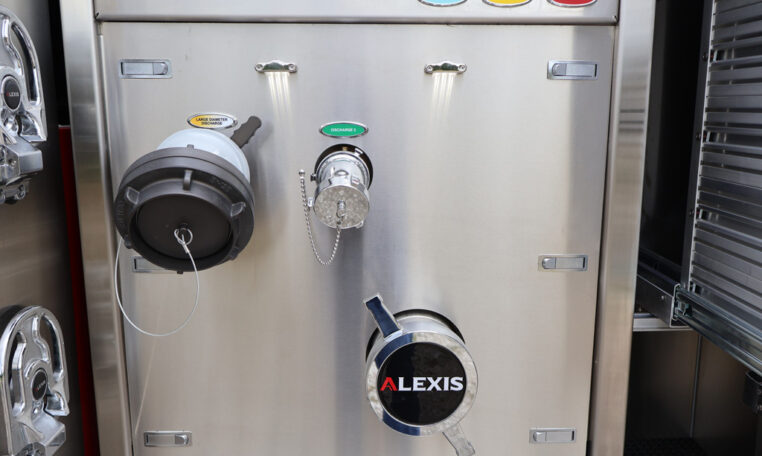

• Two (2) 6” Intakes, One (1) Each Side

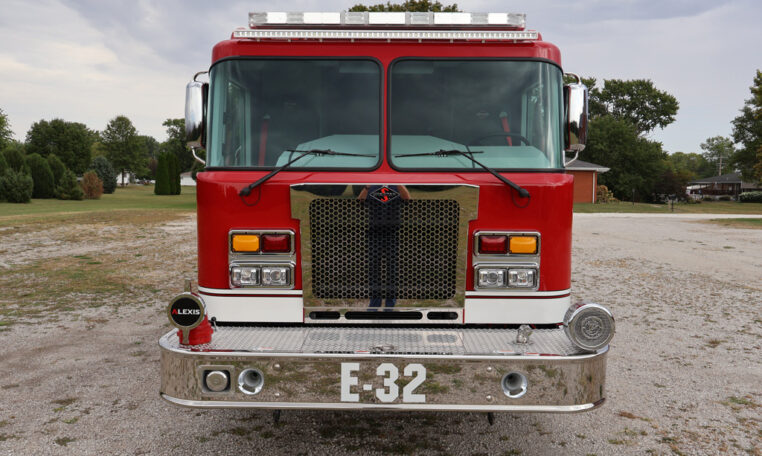

• One (1) 5” Front Bumper Intake
• One (1) 2½” Gated Intake, Left Side
• Four (4) 2½” Discharges, Two (2) Each Side
• Two (2) 2½” Discharges, Rear One (1) Each Side
• One (1) 3” Discharge, Right Side adapted to 5” Storz
• One (1) 3” Discharge Dunnage Area for Deck Gun
• Two (2) 1½” and One (1) 2½” Mattydale Preconnects, Deep Cut Single Lay

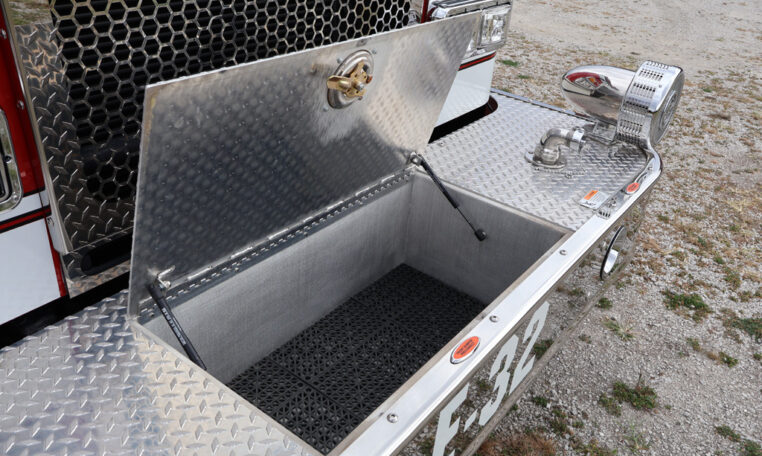

• One (1) 1½” Bumper Extension Preconnect

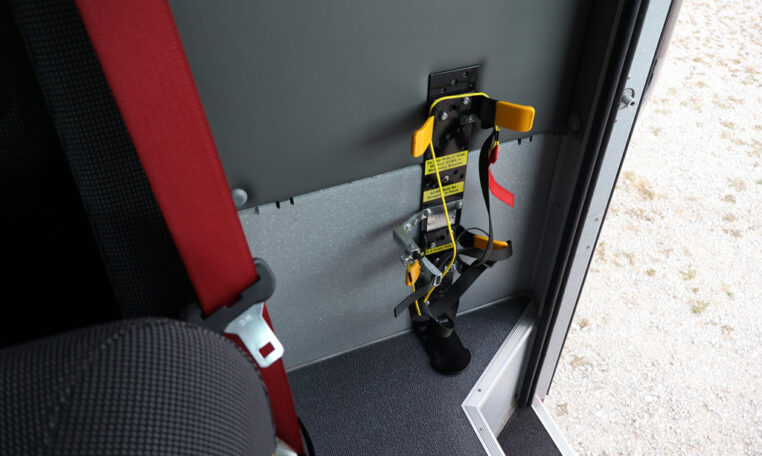

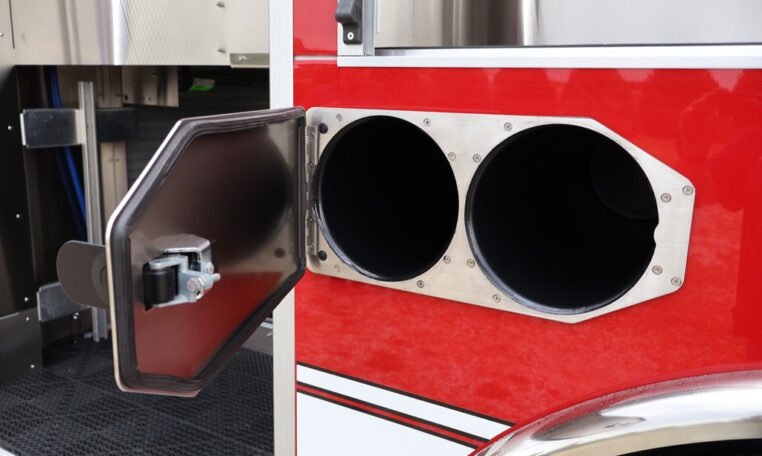

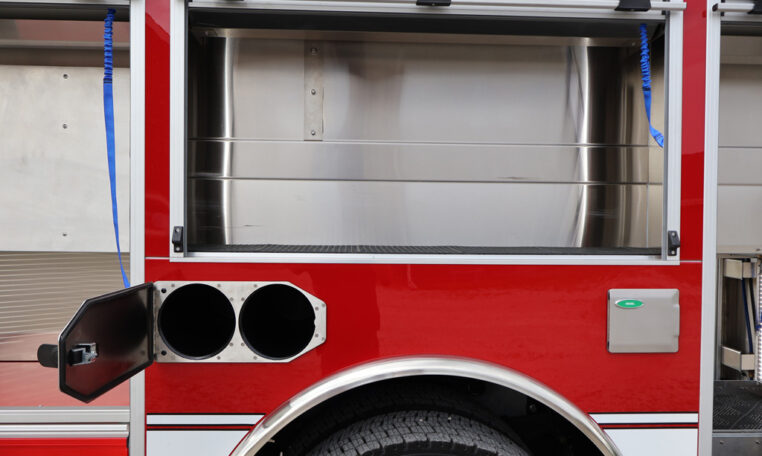

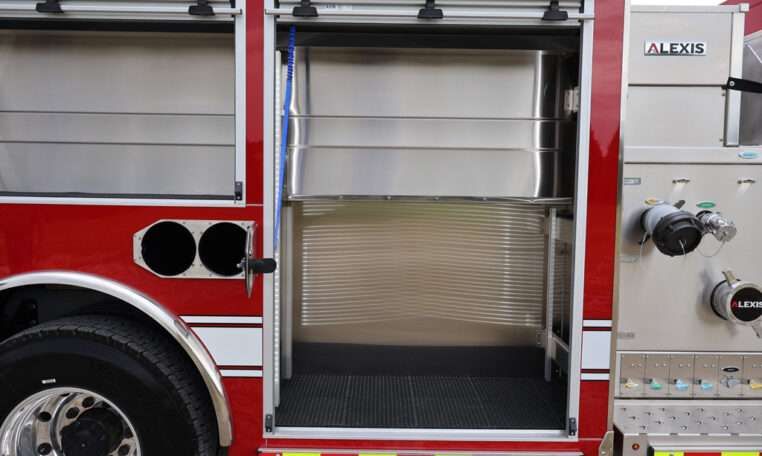

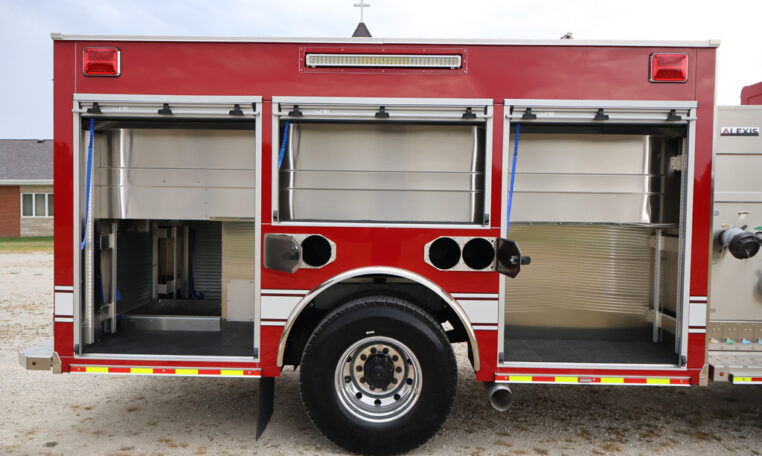

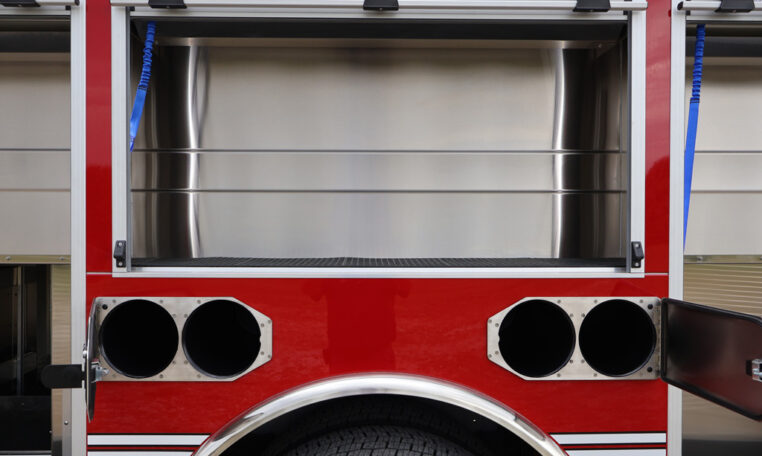

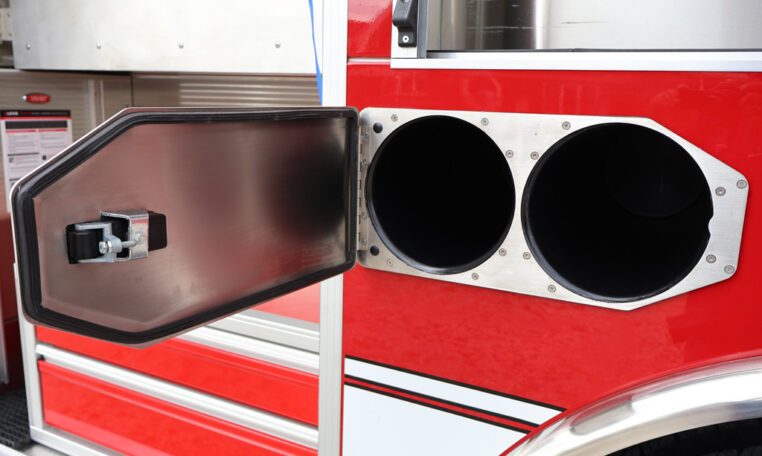

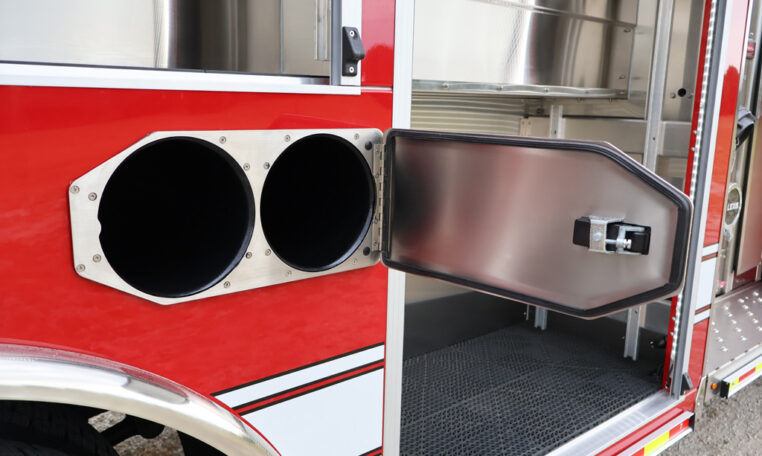

• Three (3) Dual Air Bottle Wheel Well Compartments

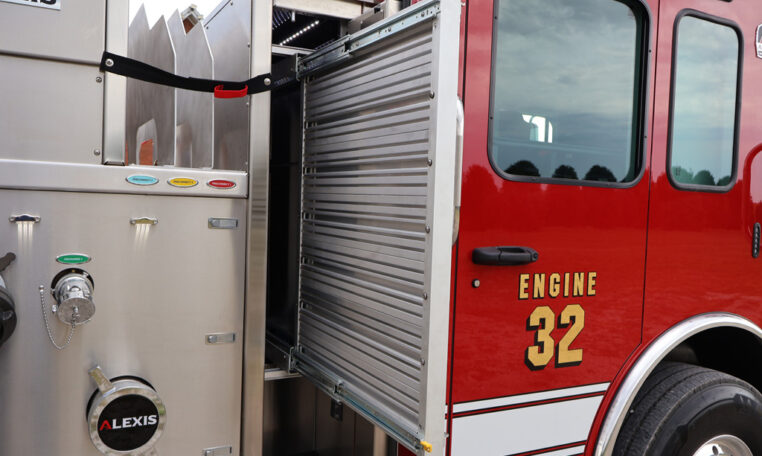

• ROM Roll Up Doors
• Ladder Storage Vertical in Hose Bed, Right Side

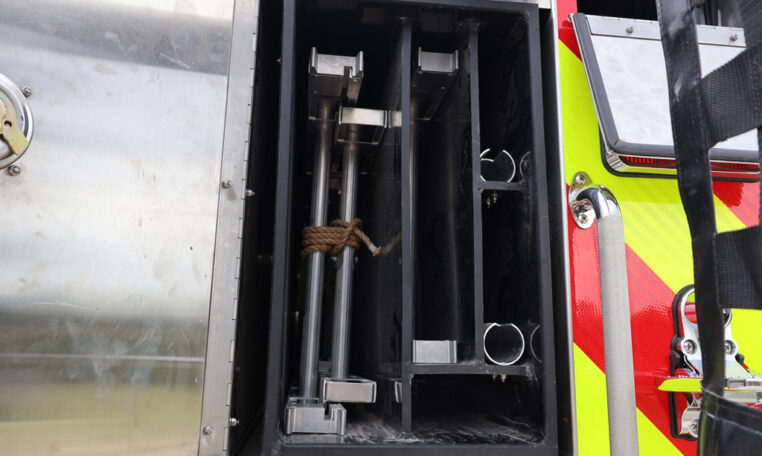

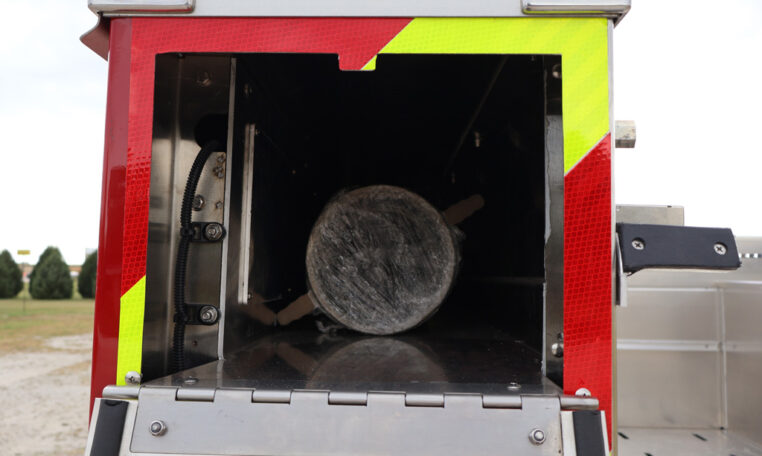

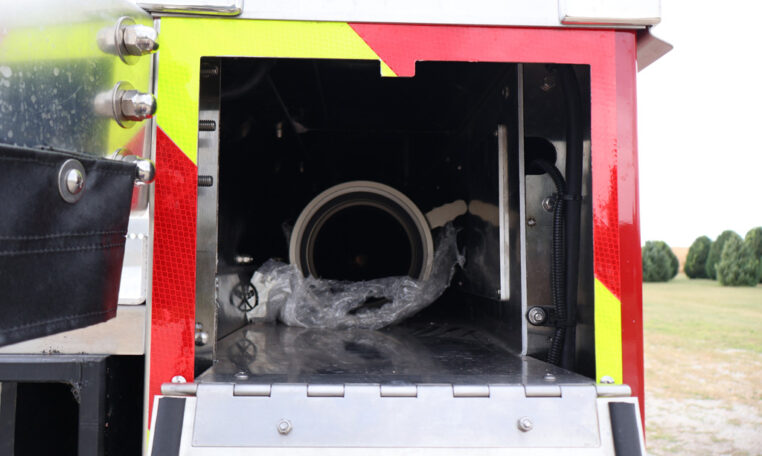

• Two (2) Suction Hose Storage Compartments, One (1) Each Side

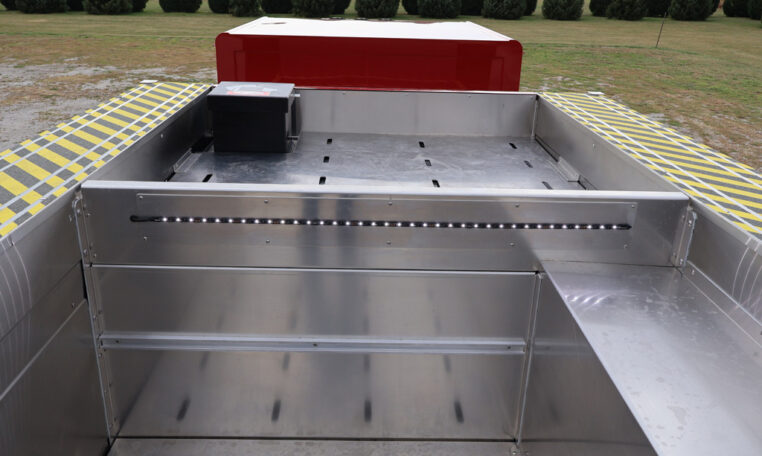

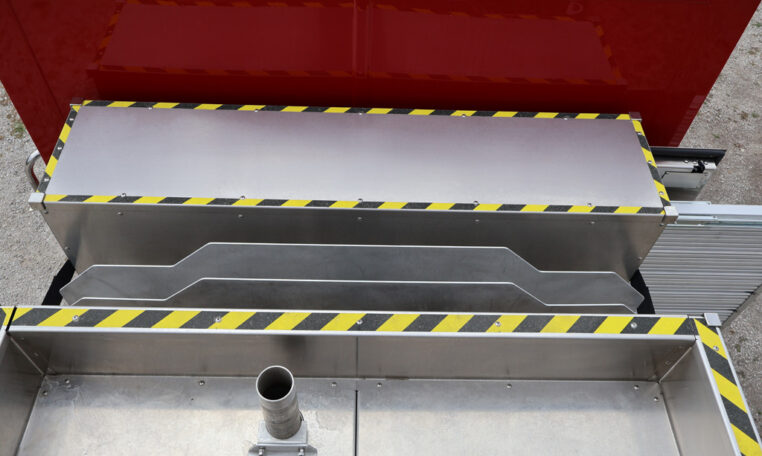

• 1000 Gallon Poly Tank – Inverted L Shaped for Lower Hose Bed
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Kussmaul Chief 4012 Battery Charger
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab
• Tecniq LED Warning Light Package
• Whelen 200W Siren and CPI 100W Speaker
• Federal Q2B Siren
• Two (2) FireTech HiViz 40″ LED Scene Light Bars, One (1) Each Side
• One (1) FireTech HiViz 21” LED Scene Light Bar, Rear
• One (1) FireTech HiViz 72” LED Brow Light
• Two (2) Whelen 900 Series LED Scene Lights, One (1) Each Side of the Cab
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, and Two (2) 10’ Lengths of 6” Hard Suction Hose
• 9’-10” Overall Height
• 33-4” Overall Length
• 200” Wheelbase
• 146” Cab to Axle
• 21,500 FAWR
• 31,500 RAWR
• 53,000 GVWR
