Delivered Apparatus

FEATURES:

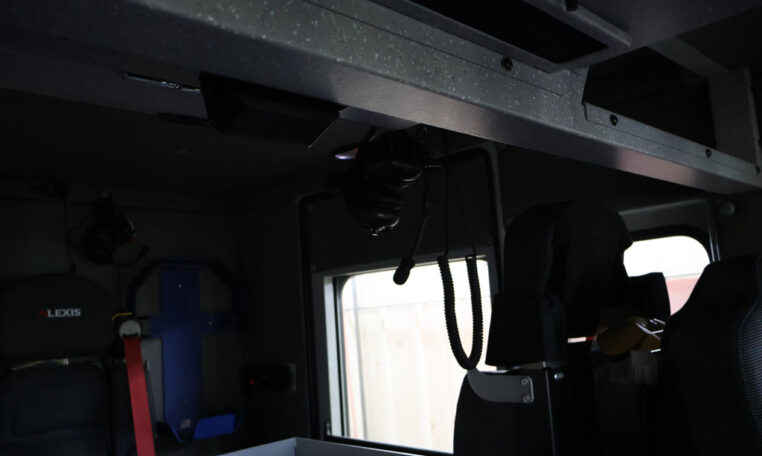

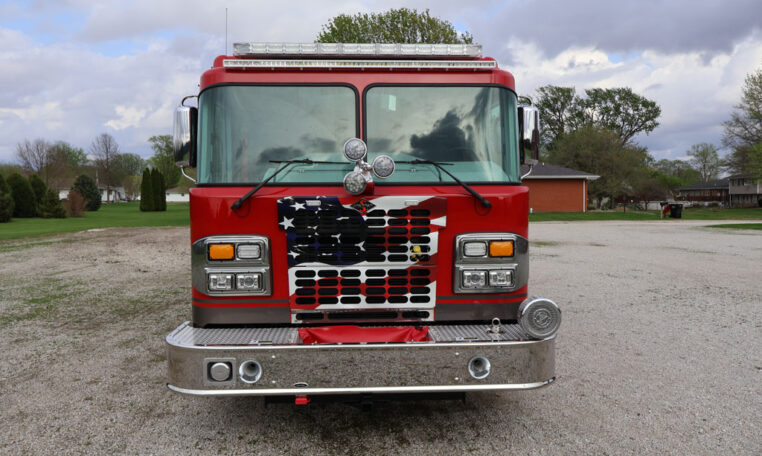

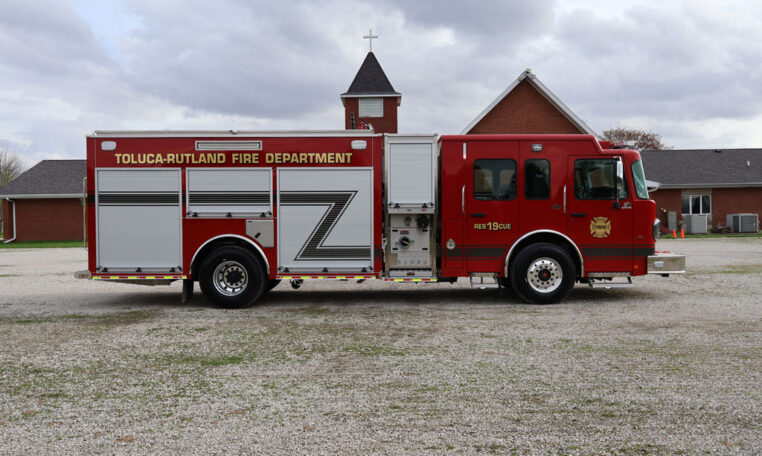

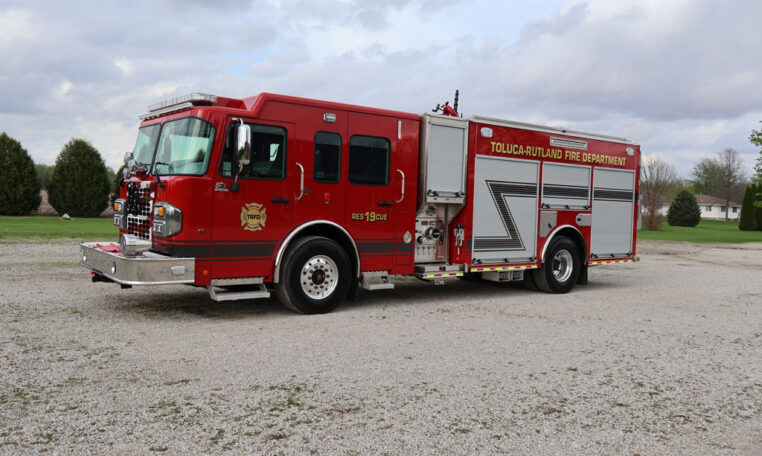

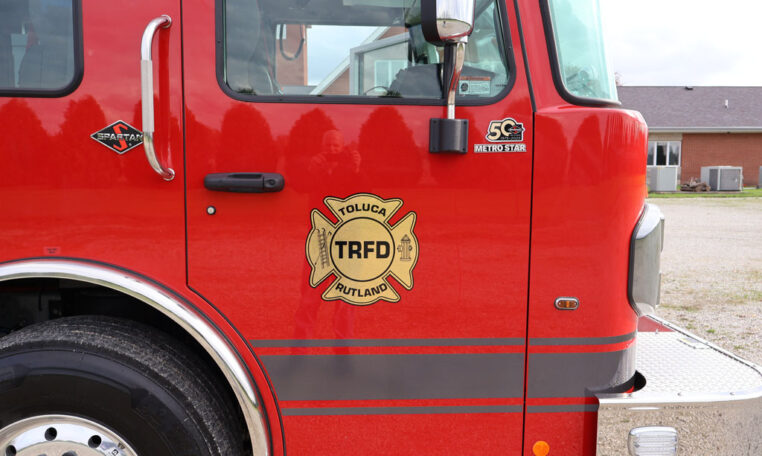

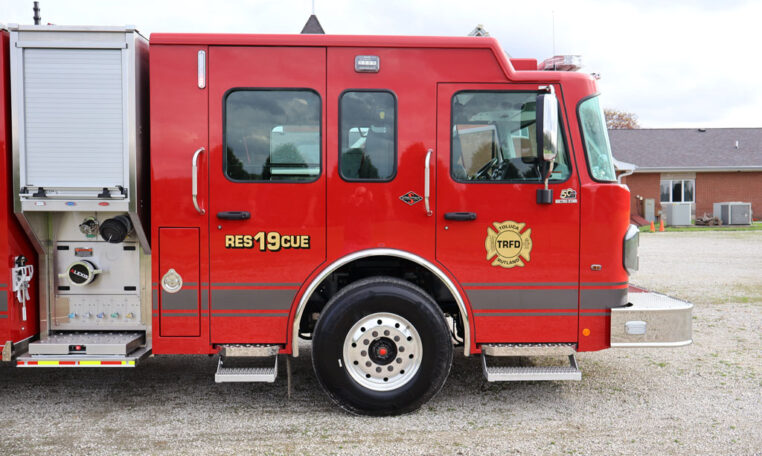

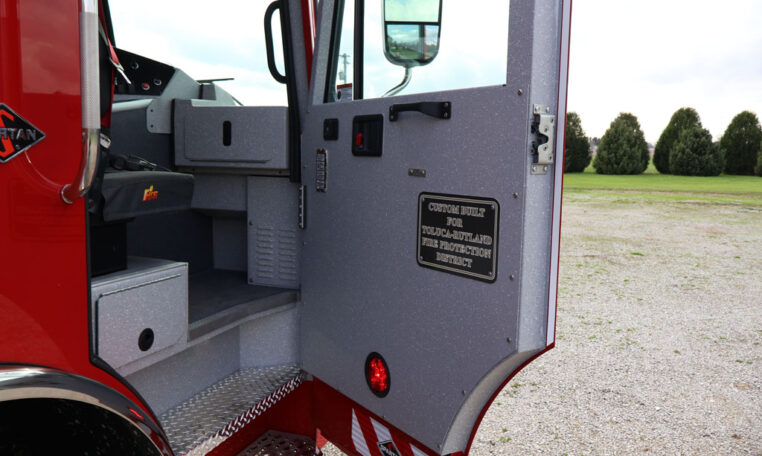

• Spartan Metro Star LFD 10” Raised Roof Cab
• Cummins 450 HP L9 Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body with Stainless Steel Subframe

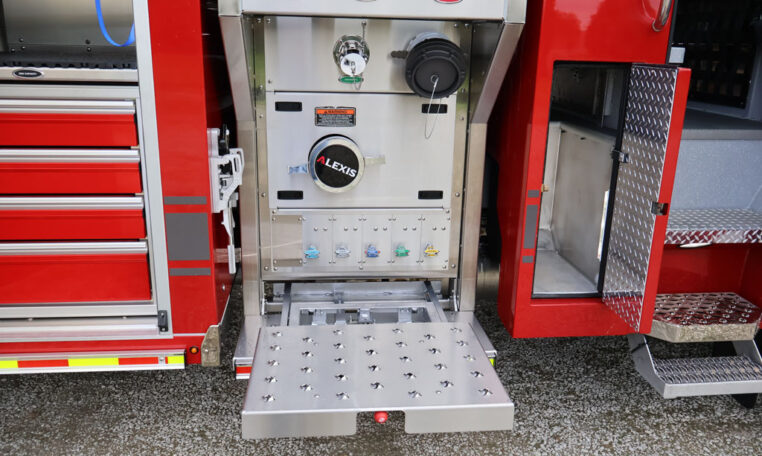

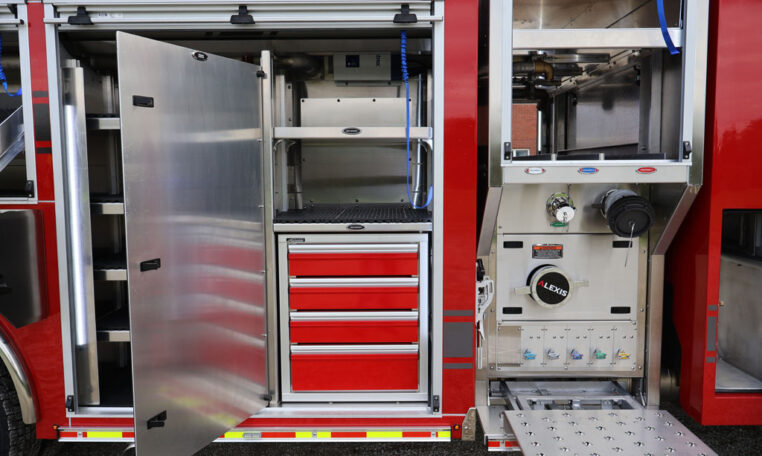

• Stainless Steel Side Control Pump Module with Stainless Steel Subframe

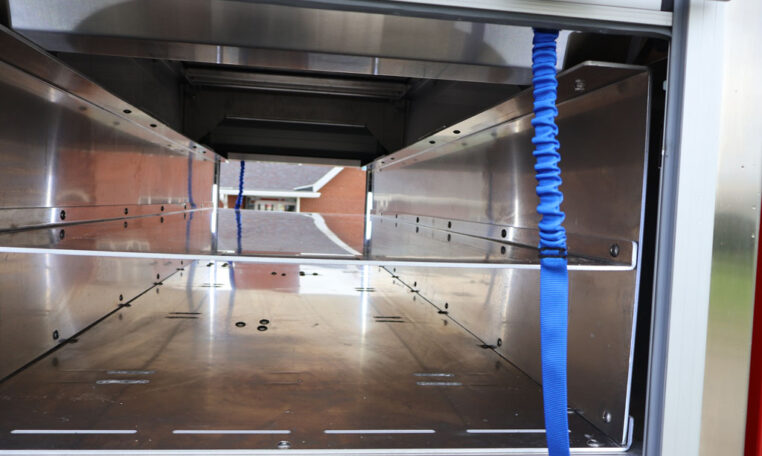

• Transverse Storage Compartment Above the Pump Accessible Each Side with Stokes Basket Storage

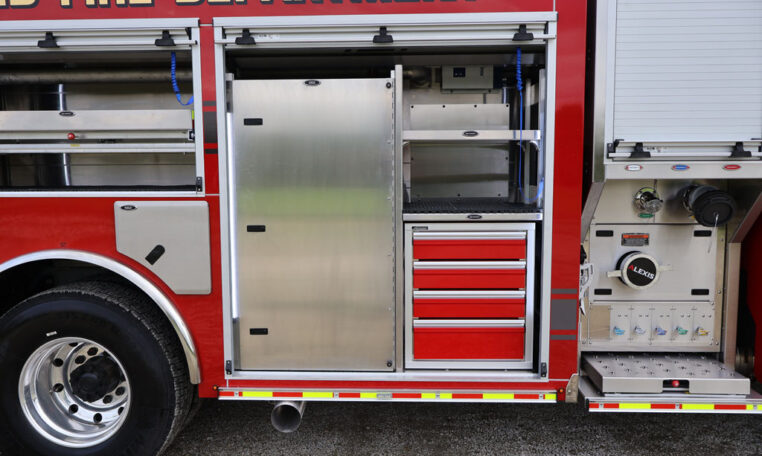

• Pump Operator’s panel located in L1 compartment
• Hale DSD 1500 GPM Split-Shaft Pump
• Trident 2 Location Air Prime System
• FRC Pump Boss Pressure Governor
• FRC TankVision Water Tank Level Gauge with Three (3) Whelen PSTANK2 Strip Lites
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 5” Rear Intake – Right Side
• One (1) 2½” Gated Intake, Left Side
• Two (2) 2½” Discharges Left Side and One (1) 2½” Discharge Right Side
• One (1) 2½” Discharge Rear Right
• One (1) 3” Discharge Adapted to 5” Storz, Right Side
• Waterous Aquis 1.5 Foam System with 30 Gallon Foam Tank
• One (1) 3” Discharge Dunnage Area with TFT Crossfire Deck Gun and Extenda-Gun

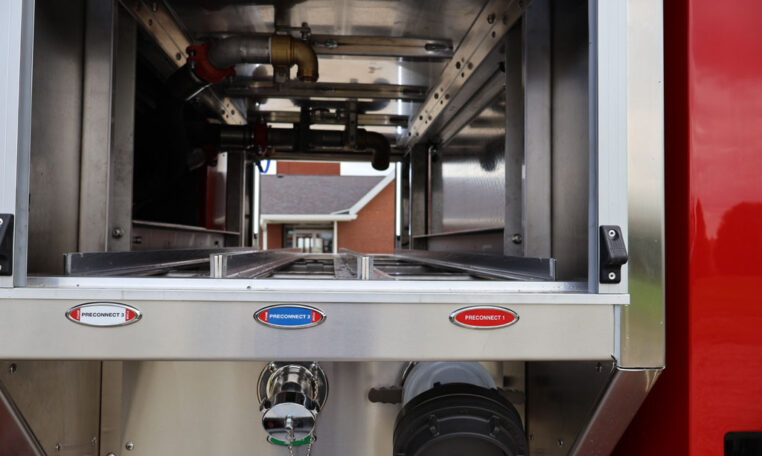

• Two (2) 1½” and One (1) 2½” Speedlay Preconnects with Trays–Transverse Area Above Pump

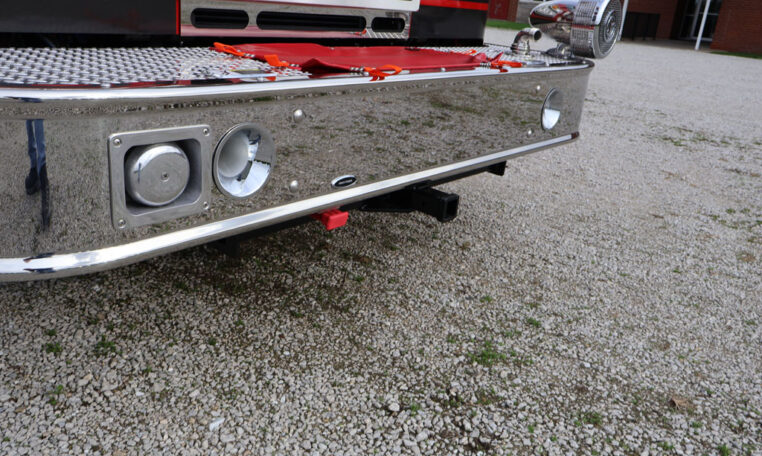

• One (1) 1½” Bumper Extension Preconnect

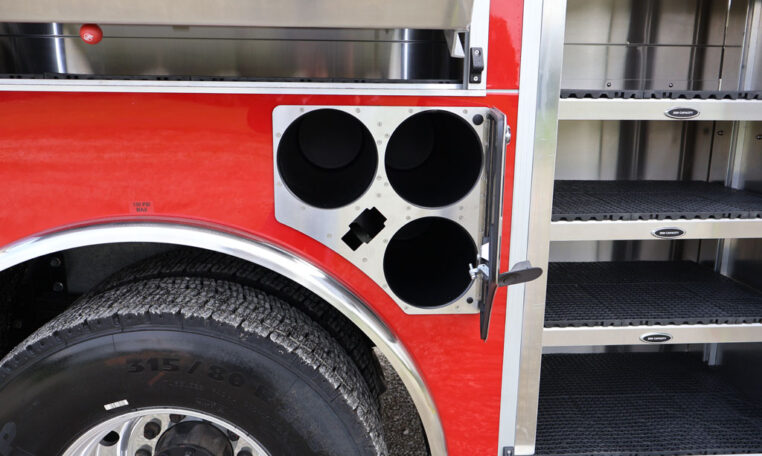

• Two (2) Triple Bottle Wheel Well Compartments
• ROM Roll-Up Doors

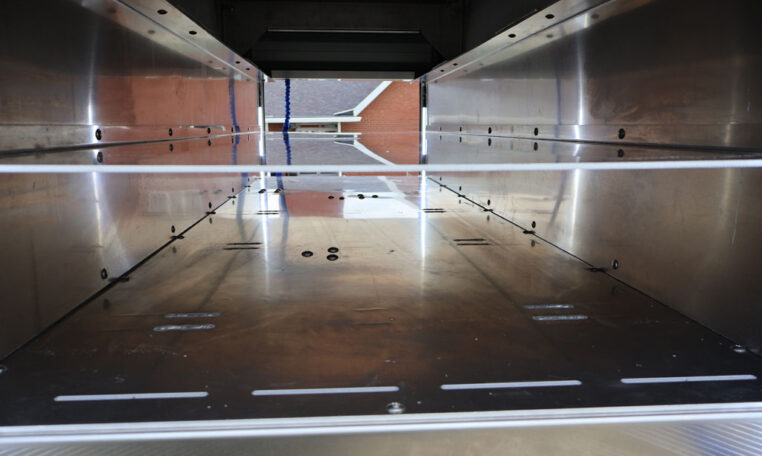

• Ladder Storage Horizontal Through the Tank, Accessible from the Rear Compartment
• Suction Hose Storage with the Ladders

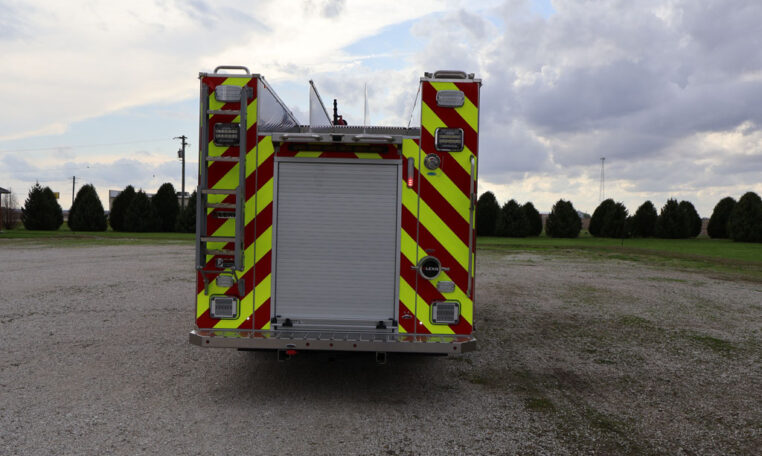

• Stainless Steel Rear Access Ladder with Flip Down Step, Rear Left Side
• Four (4) Upper Storage Compartments
• 1000 Gallon Poly Tank
• 12 Volt Electrical System with NFPA Compliant Warning Light Package

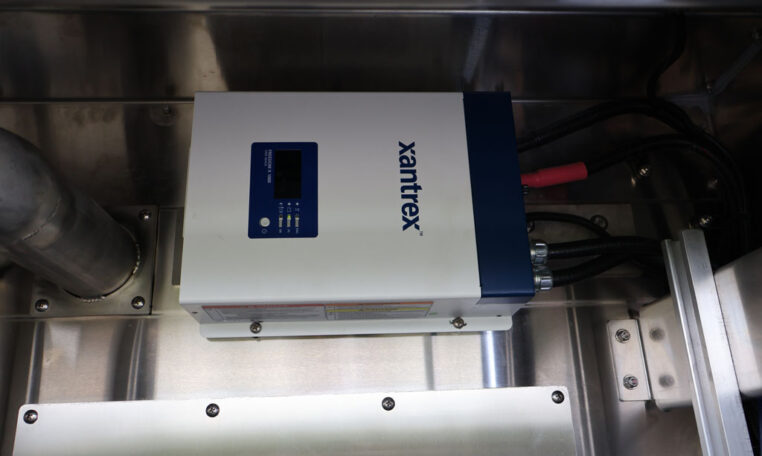

• Progressive Dynamics Battery Charger with Compressor

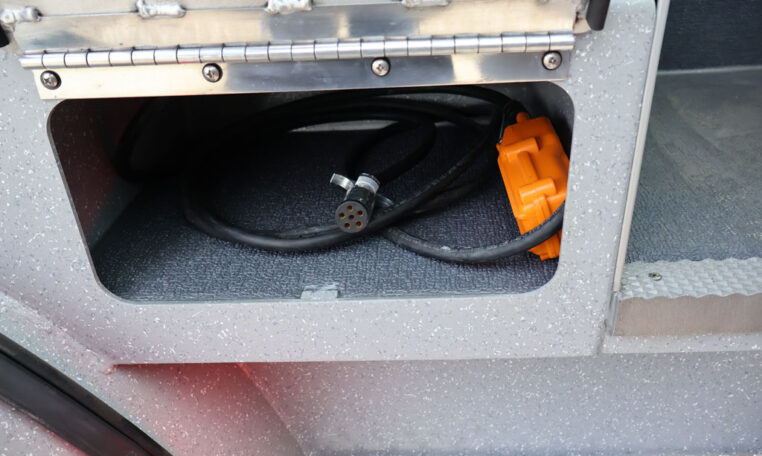

• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab
• Whelen LED Warning Light Package with Rear Arrow Stick
• RotoRays Warning Light, Cab Face Center Above Grille

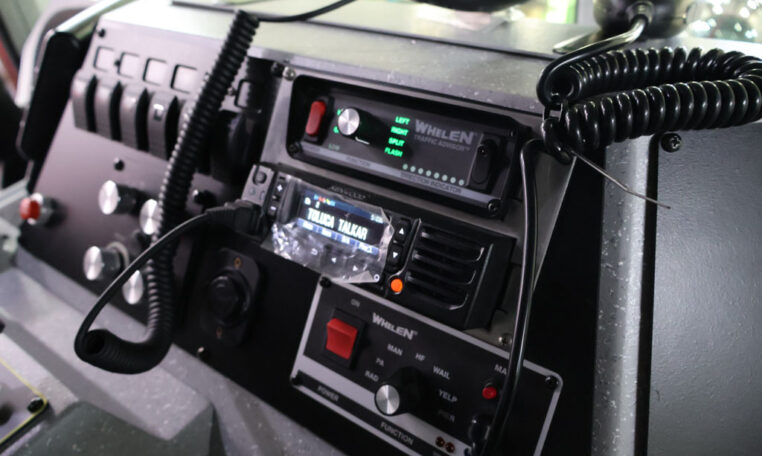

• Whelen 200W Siren and CPI 100W Speaker
• One (1) Federal Q2B Siren
• Two (2) FireTech HiViz 40″ LED Scene Light Bars, One (1) Each Side
• Two (2) FireTech HiViz Guardian Elite GESM LED Scene Lights, Rear
• One (1) FireTech HiViz 72” LED Brow Light
• Two (2) FireTech HiViz Guardian GSMJR LED Scene Lights, One (1) Each Side of Cab

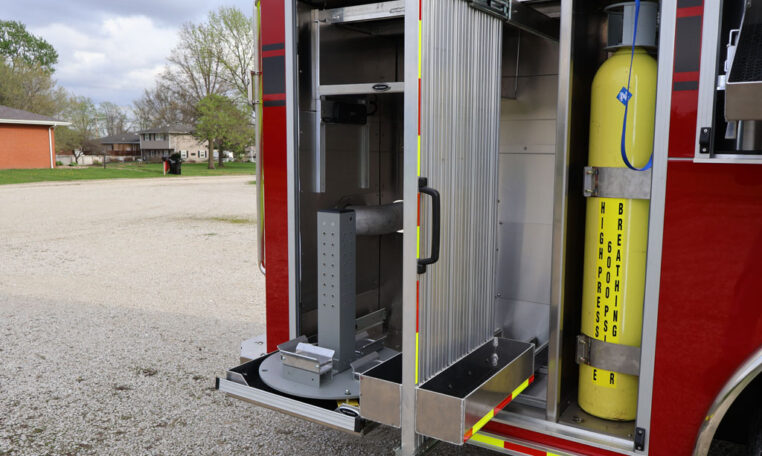

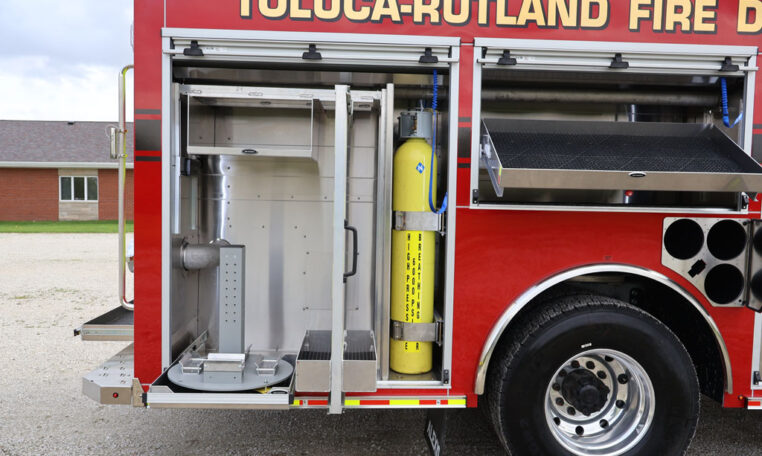

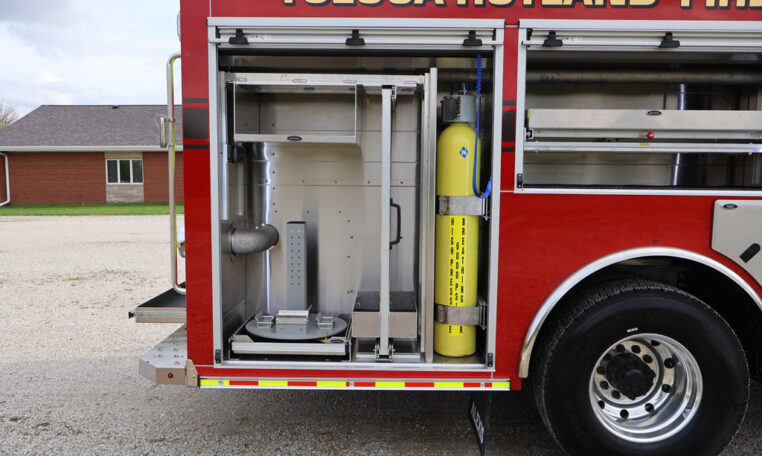

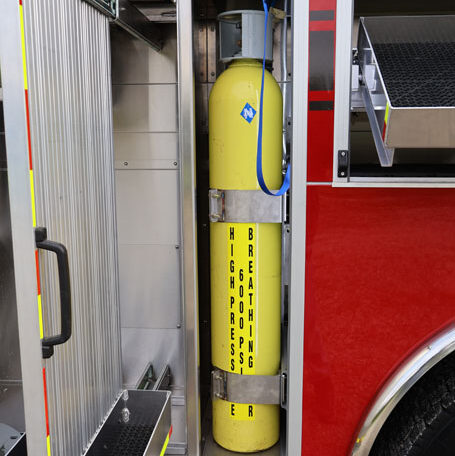

• 4-Bottle 6000 PSI Cascade System with Fill Station in L3
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, and Two (2) 10’ Lengths of 6” Hard Suction Hose
• 10’-9” Overall Height
• 34’-6” Overall Length
• 5” Wheelbase
• 141” Cab to Axle
• 21,500 FAWR
• 31,500 RAWR
• 53,000 GVWR
