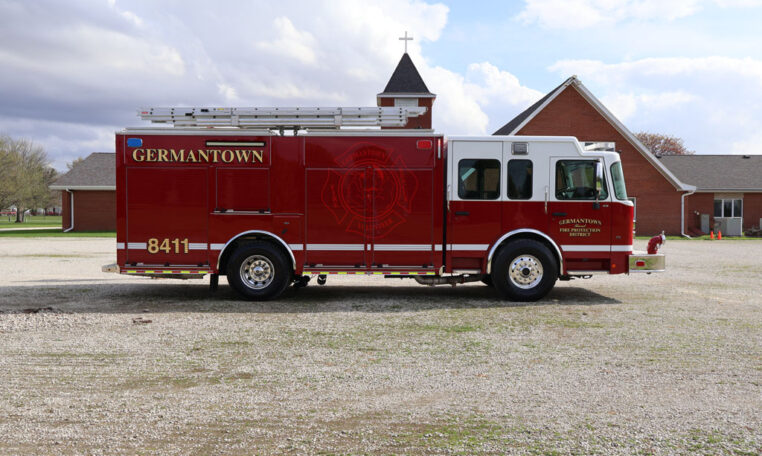

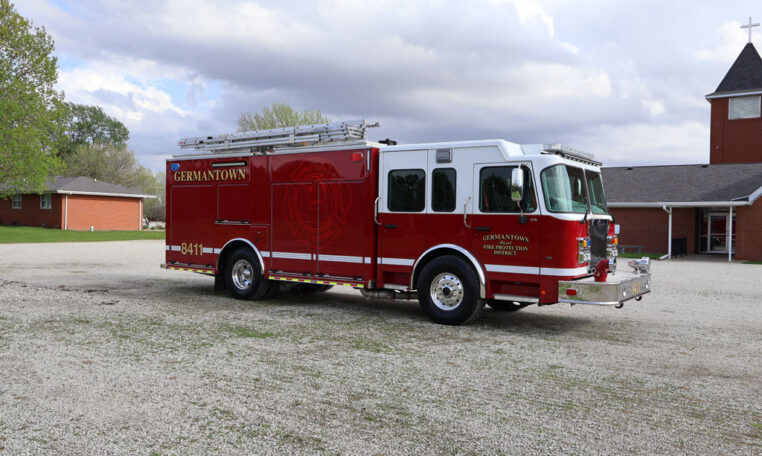

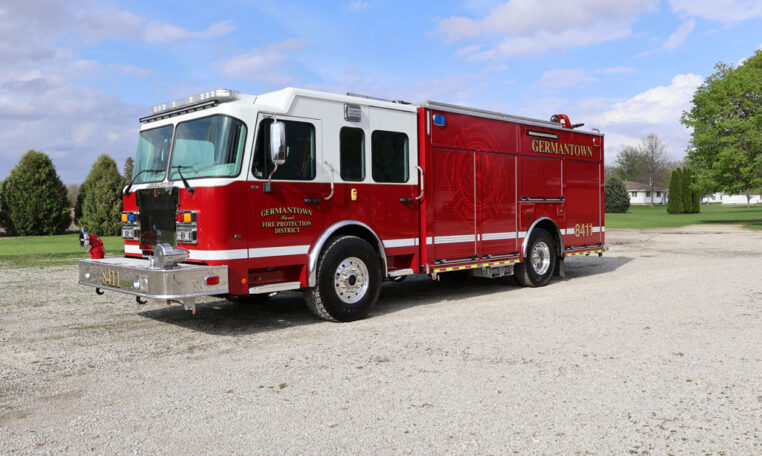

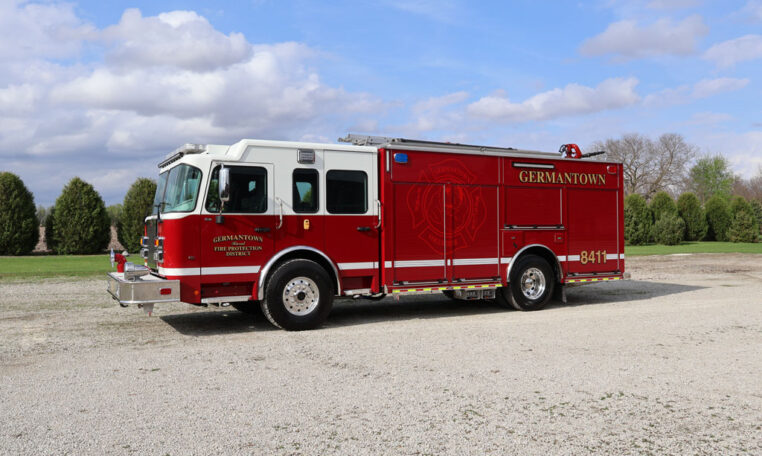

Delivered Apparatus

FEATURES:

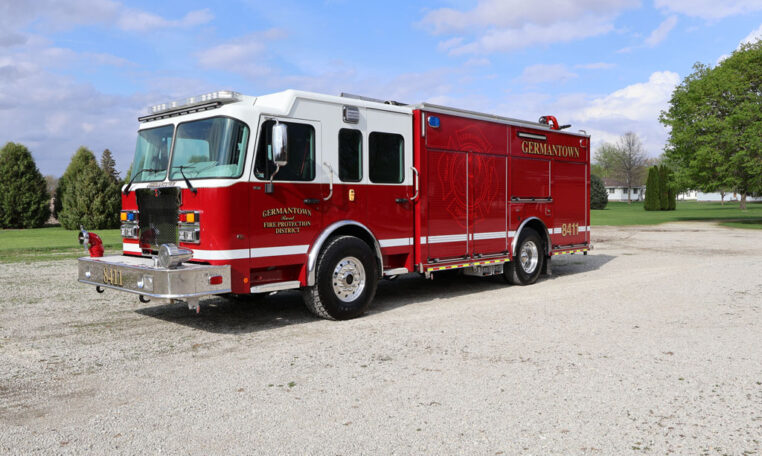

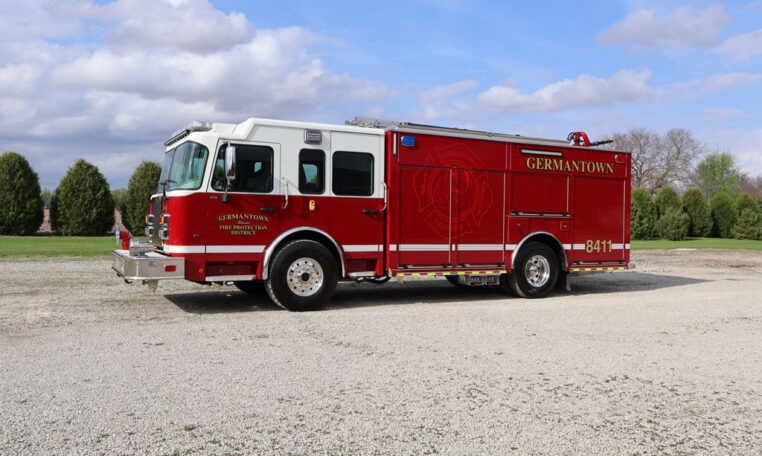

• Spartan FC-94 MFD 10” Raised Roof Chassis
• Cummins l9 450 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Stainless Steel Body with Stainless Steel Subframe

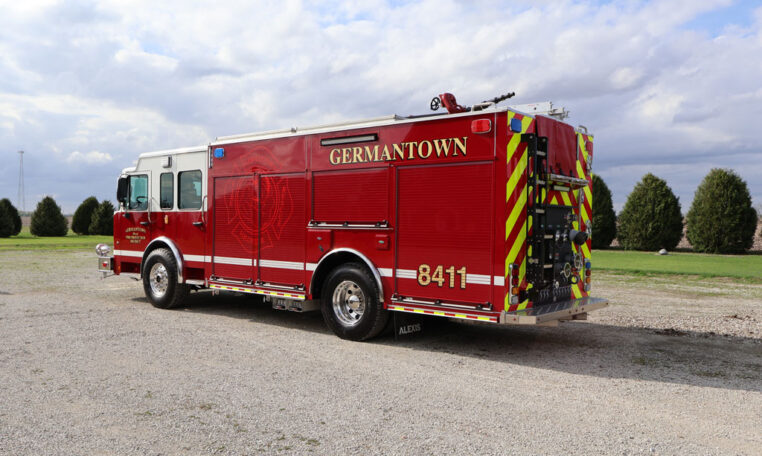

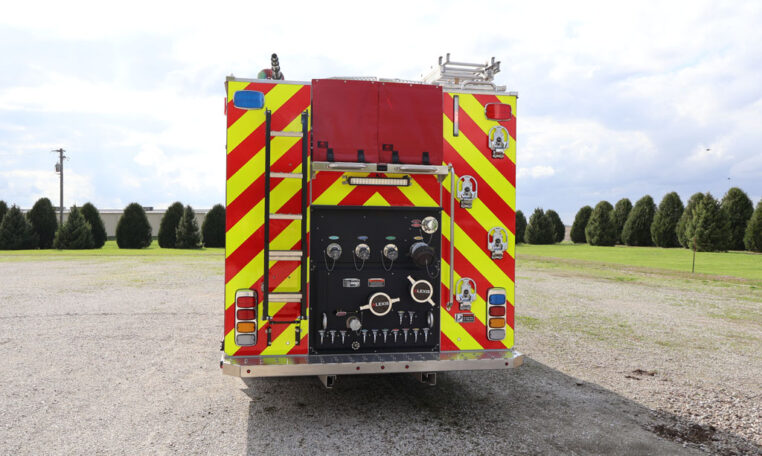

• Rear Mount Pumping System
• Waterous CXVK 1500 GPM Rear Mount Pump
• Trident 2-Location Air Primer
• Pump Operator’s Panel in L4 Behind Roll Up Door
• FRC Pump Boss Pressure Governor Monitoring System
• FRC Tankvision Water Tank Level Gauge with Three (3) Whelen PSTANK2 Strip Lites
• One (1) 6” Intake, Rear
• One (1) 2½” Gated Intake, Rear

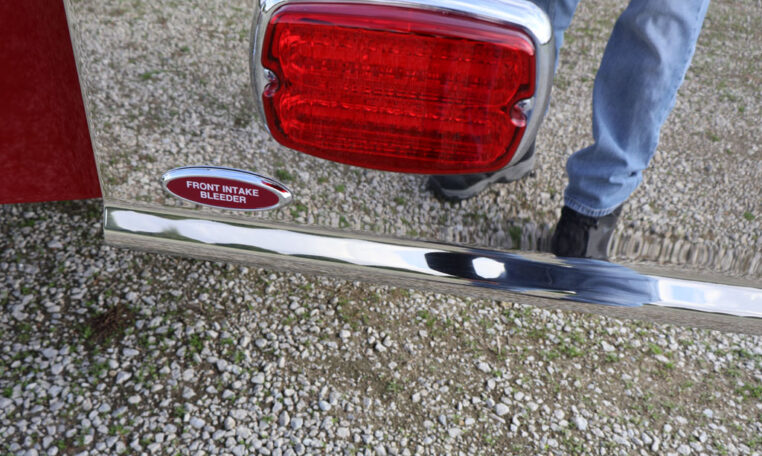

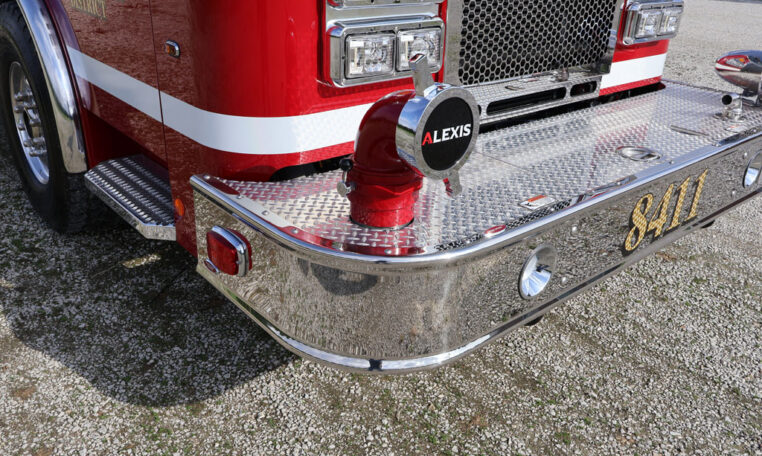

• One (1) 5” Front Intake, Bumper Extension Right Side
• Three (3) 2½” Discharges, Rear
• One (1) 3” Discharge adapted to 5” Storz, Rear
• One (1) 3” Deck Gun Discharge Rear Over L4 Compartment with Akron 3423 Monitor and TFT Extenda-Gun
• Waterous Aquis 1.5 Foam System with 20 Gallon Foam Tank
• Two (2) 1½” and One (1) 2½” Speedlay Preconnects – Front of Body in L1/R1
• One (1) 1½” Bumper Extension Preconnect
• One (1) Booster Reel with 100’ of 1” Hose, L2

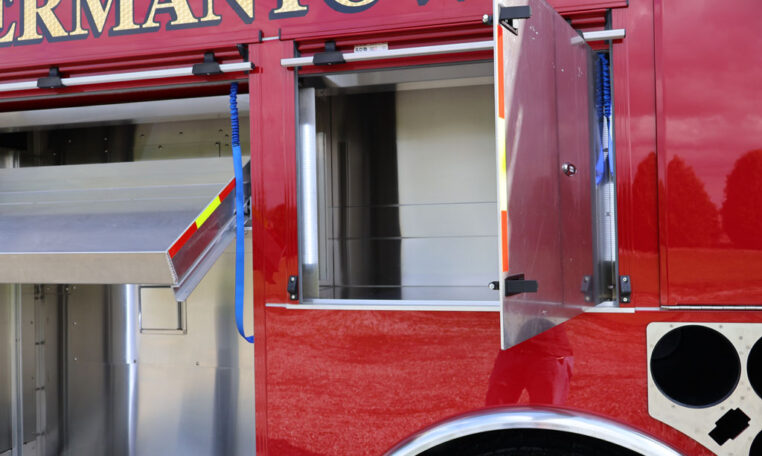

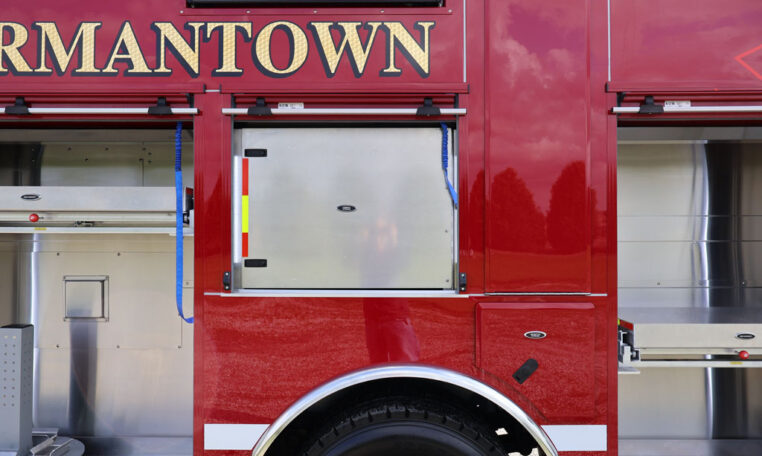

• ROM Painted Roll-Up Doors

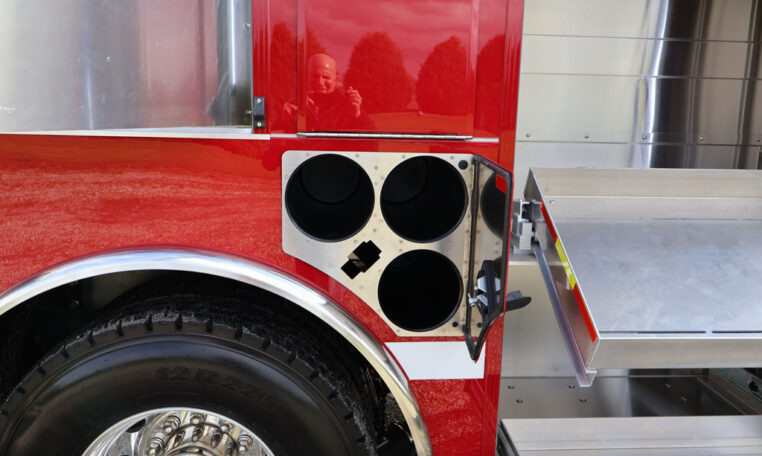

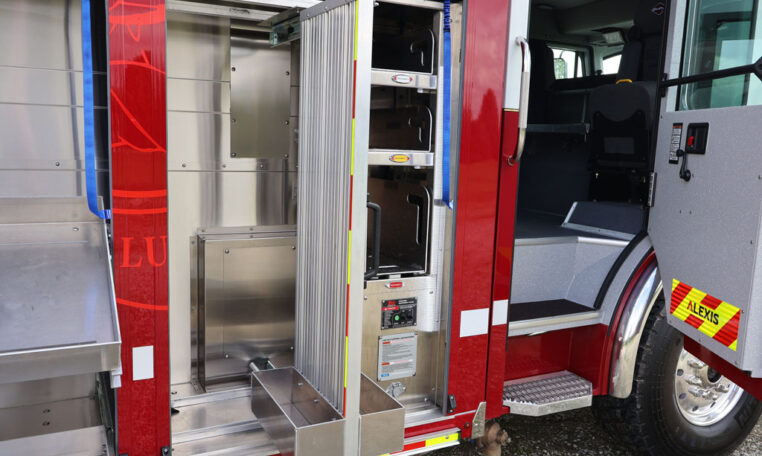

• Two (2) Triple Wheel Well Air Bottle Compartments

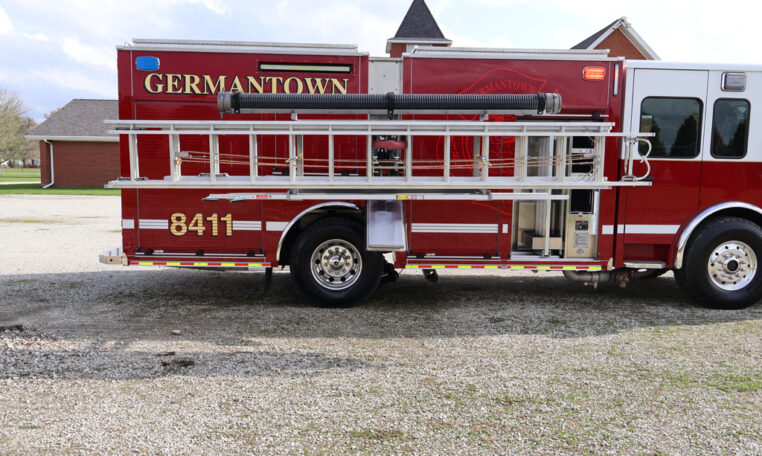

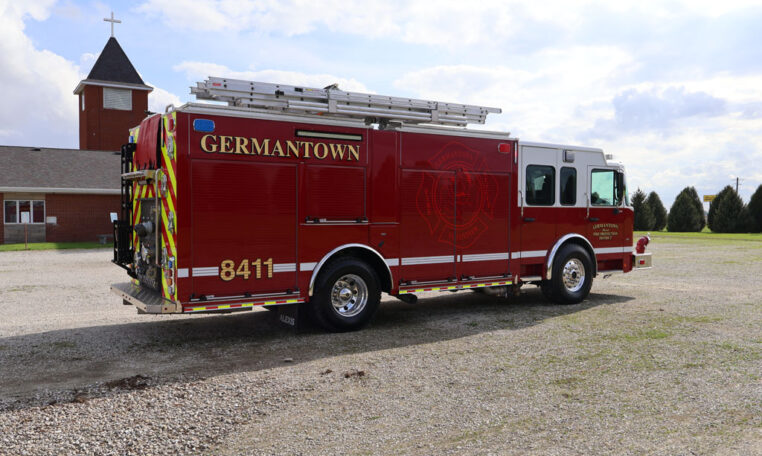

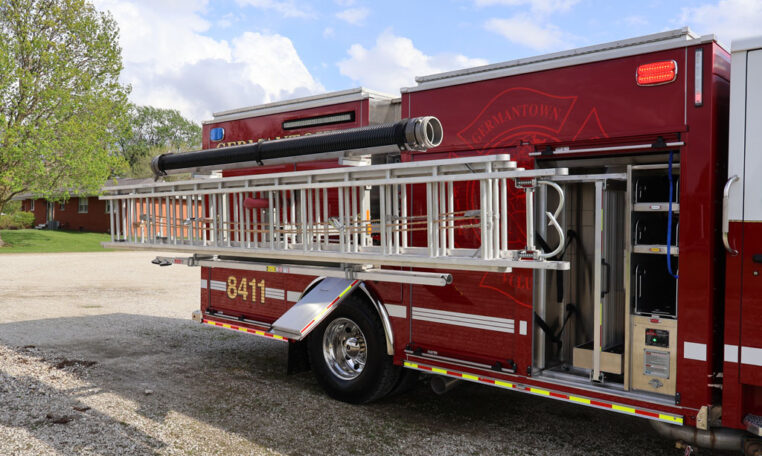

• Hydraulic Overhead Ladder Rack, Right Side
• Suction Hose Storage in Hose Bed and On Ladder Rack

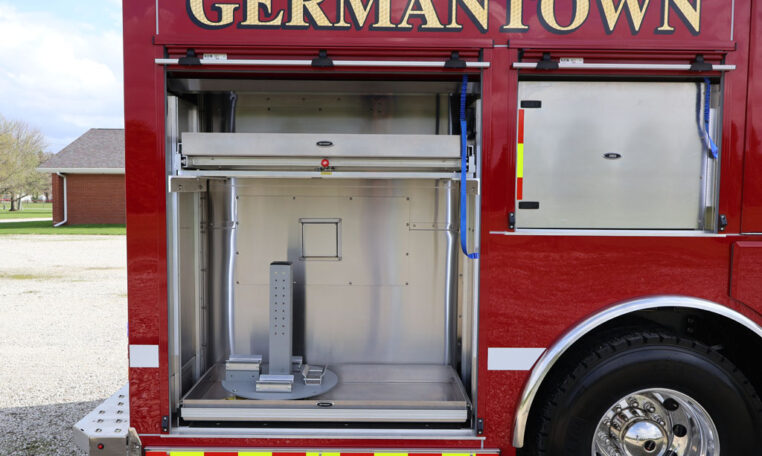

• Four (4) Upper Storage Compartments, Two (2) Each Side
• Stainless Steel Rear Access Ladder with Flip Down Step, Left Side
• 1000 Gallon Poly Tank
• One (1) 2½” FirePrograms Tank Fill, Rear Right
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Whelen LED Warning Light Package
• Kussmaul Chief 4012 Battery Charger with Auxiliary Air Compressor
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab

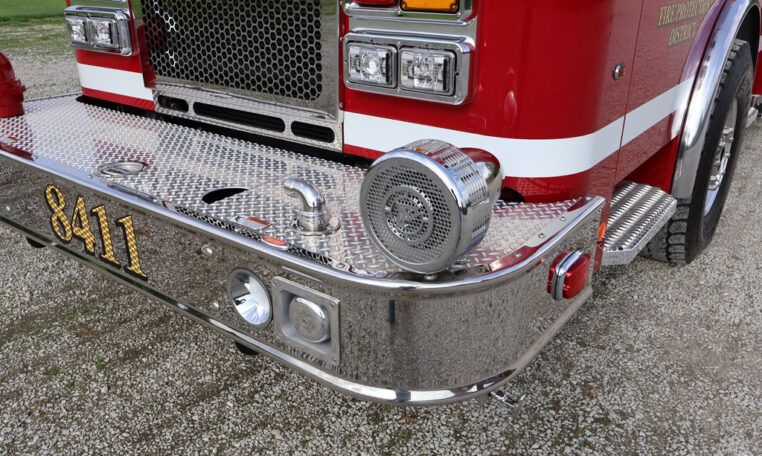

• Whelen 200W Siren and 100W Speaker
• Federal Q2B Siren
• Two (2) FireTech HiViz 40″ LED Scene Light Bars, One (1) Each Side
• One (1) FireTech HiViz 21″ LED Scene Light Bar, Rear
• One (1) FireTech HiViz 72” LED Brow Light
• Two (2) Whelen 9S LED Scene Lights, One (1) Each Side of Cab
• One (1) 10’ Attic Ladder, One (1) 16’ Roof Ladder with Hooks, One (1) 35’ 3-Section Ladder, and Two (2) 10’ Lengths of 6” Suction Hose
• 11’-6” Overall Height
• 32’-7” Overall Length
• 183” Wheelbase
• 129” Cab to Axle
• 21,500 FAWR
• 27,000 RAWR
• 48,500 GVWR
