Delivered Apparatus

Custom Built Since 1947.

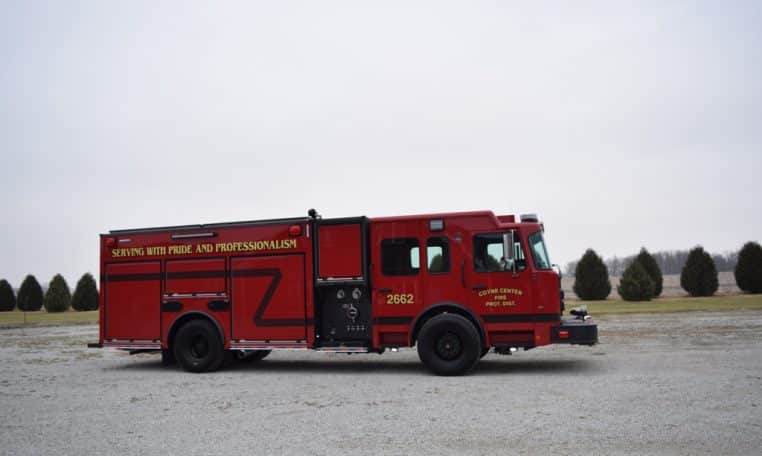

RIV PUMPER #2451

COYNE CENTER FIRE PROTECTION DISTRICT - COYNE CENTER, ILLINOIS
FDIC
FEATURES:
  • Spartan FC-94 MFD 10” Raised Roof Chassis
  • Cummins L9 450 HP Engine
  • Allison 3000 EVS Transmission
  • Heavy-Duty Stainless-Steel Body and Sub-Frame
  • Six (6) Person Cab
  • Stainless-Steel RIV Pump Module
  • Transverse Storage Compartment, Above Pump Module
  • MAC1 LRA Single Stage Split-Shaft 1500 GPM Pump
  • Trident Air Prime System
  • FRC Pump Boss Pressure Governor & Monitoring System
  • Two (2) 6” Intakes, One (1) Each Side
  • One (1) 5” Intake, Front Bumper
  • One (1) 5” Intake, Rear
  • One (1) 2½” Gated Intake, Left Side
  • 24” Front Bumper Extension with One (1) 1½” Preconnect, Center Hose Well
  • Two (2) 2½” Discharges, Left Side
  • One (1) 2½” Discharge, Right Side
  • One (1) 3” Discharge Adapted to 5” Storz, Right Side
  • One (1) 2½” Discharge, Rear
  • Two (2) 1½”, One (1) 2½”, Mattydale Preconnects
  • 1000-Gallon Poly Tank
  • Whelen LED Tank Level Gauges, One (1) Each Side, One (1) Rear
  • AFE Stainless-Steel Top Access Ladder
  • Four (4) Top Compartments, Two (2) Each Side of Hose Bed
  • Hose Bed with One (1) Divider, Three (3) LED Lights, Hypalon Cover
  • Ladder Storage Capacity: One (1) 24’ 2 Section Ladder, One (1) 14’ Roof Ladder, One (1) 10’ Attic Ladder, Rear Through Tank
  • Two (2) 10’ x 6” Hard Suction Hoses, Rear Through Tank

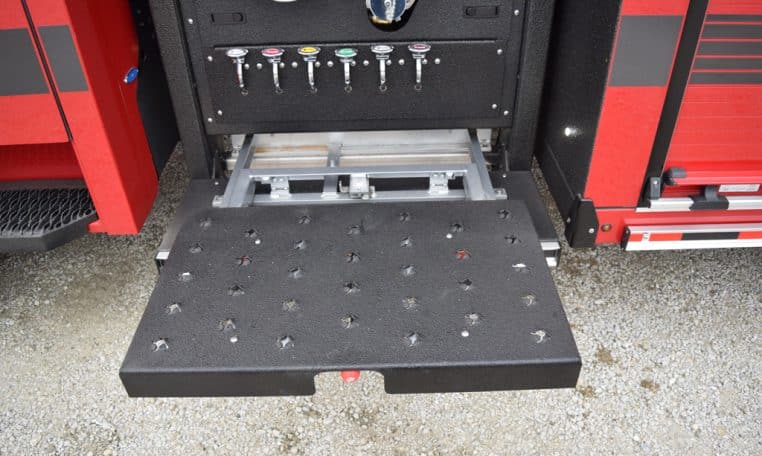

  • 250# Drop-Down Roll Out Tray, One (1) L3, One (1) R1 Compartment
  • 500# Roll Out Tray, One (1) L3, One (1) Rear Compartment
  • Three (3) Dual Wheel Well Air Bottle Compartments, One (1) Left, Two (2) Right
  • One (1) Center Console with Switches
  • Progressive Dynamics Battery Charger with Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Above Left Front Wheel Well
  • Whelen LED Warning Light Package
  • FireTech Scene Lights, Two (2) Each Side, One (1) Rear
  • Whelen Electric Siren & 100W Speaker
  • 10’ 2” Overall height
  • 34’ Overall length
  • 200” Wheelbase
  • 146” Cab to Axle
  • 21,500 FAWR
  • 31,500 RAWR
  • 53,000 GVWR
Year: 2023
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: RIV Pumper
Pump Size: MAC1 LEA150 Split Shaft 1500 GPM Pump
Tank Size: 1000
Exterior Color: Red with Black
New Delivery: New Delivery
Program Vehicle: RIV Pumper
