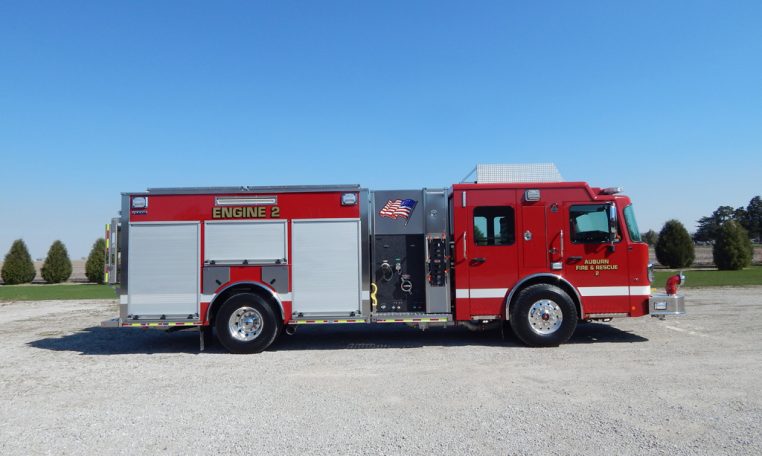

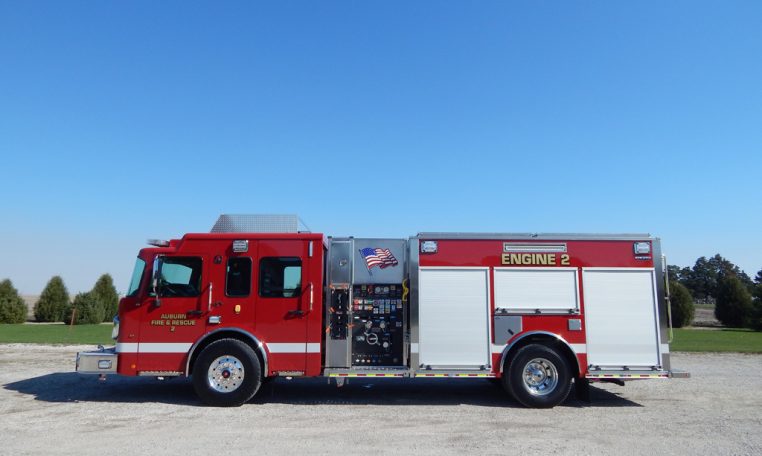

CUSTOM SIDE CONTROL PUMPER #2500

AUBURN FIRE PROTECTION DISTRICT - AUBURN, IL
FDIC
FEATURES:
  • Spartan Metro Star EMFD 10” Raised Roof Chassis
  • Weldon Vista Display Screen – Cab Dash Left Side
  • 450 HP Cummins L9 Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • 24” Front Bumper Extension with 6” Front Intake
  • 1½” Front Bumper Preconnect with Center Hose Well
  • 1000 Gallon Poly Tank with Lifetime Warranty
  • Heavy Duty Stainless-Steel Subframe & Body
  • Side Control Pump Module with Stokes Basket Storage
  • Waterous CXV 1500 GPM Pump
  • Two (2) 6” Intakes, One (1) Each Side
  • One (1) Rear 6” Intake
  • Two (2) 2 ½” Discharges, Left Side
  • One (1) 2 ½” Gated Intake, Left Side
  • One (1) 2½” Discharge Right Side
  • One (1) 3” Discharge Right side with 5” Storz Elbow
  • Akron 3423 Deck Gun with TFT Extenda-Gun
  • One (1) 2½” Hose Bed Preconnect – Right Side
  • Two (2) 1½” Cartridge Lay Preconnects with Trays and Black Die-Cut Hypalon Covers
  • One (1) 4” Rear Tank Fill Adapted to 5” Storz with a 5” Storz x 2½” Reducer
  • Hose Bed with Black Hypalon Cover and Two (2) Dividers
  • ROM Roll Up Doors

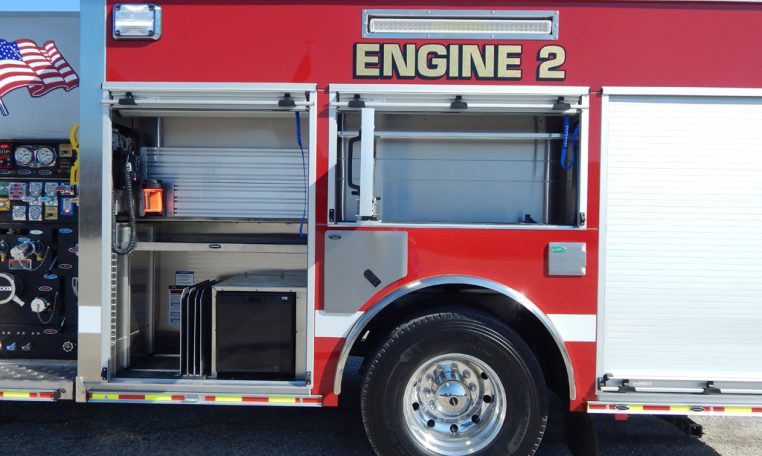

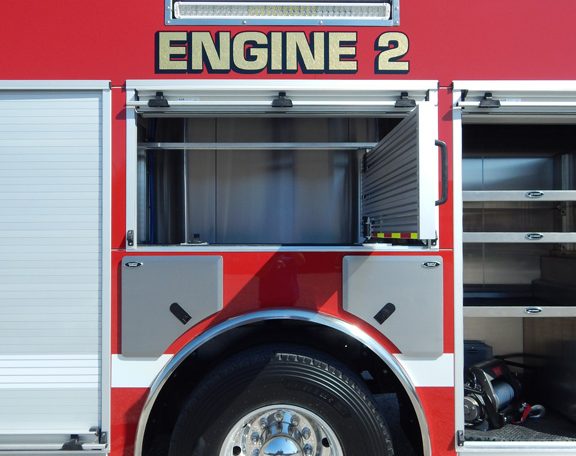

  • Compartments with Efficient Storage
  • Whelen LED Warning Light Package
  • Whelen Electronic Siren w/ 100-watt Speaker
  • Federal Q2B Recess Mounted in the Bumper
  • 360º Firetech HiViz Scene Lighting
  • Backup Camera
  • SmartPower 10 KW Hydraulic Generator with Electric Cord Reel and Power Strips
  • Command Light CL602A-SPC 120 Volt Light Tower with six (6) FRC Spectra light heads mounted on the Cab Roof with Brush Guard
  • Diamond Grade Chevron Striping, Rear
  • 11’ Overall Height
  • 33’-9” Overall Length
  • 205” Wheelbase
  • 145” Cab to Axle
  • 21,500 FAWR
  • 27,000 RAWR
  • 48,500 GVWR
Year: 2023
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Spartan
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1000
Feature: Command Light
Exterior Color: Red
New Delivery: New Delivery
