FLATBED BRUSH TRUCK #SK861

WEST BROOKLYN FIRE PROTECTION DISTRICT - WEST BROOKLYN, ILLINOIS

• Ford F-550XL 4-Door 4×4 DRW Chassis
• Ford PowerStroke 6.7L, 330-HP Diesel Engine
• Ford TorqShift 6-speed Automatic Transmission

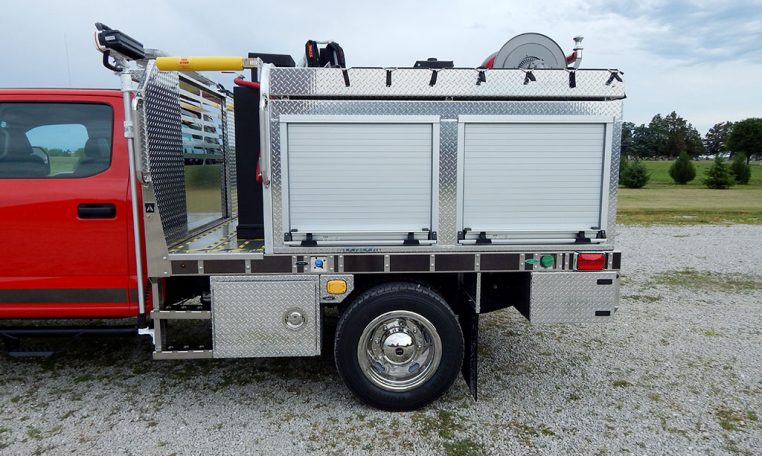

• Heavy Duty Aluminum flatbed Body
• Two (2) Compartments, one (1) each side with Two (2) roll up doors each
• Luverne Black Baja Cab Steps
• Alexis Custom stainless steel brush guard with integrated waterway
• Reese Type front and rear hitches with electrical connections
• One (1) Warn Multi-Mount 9000-lb Winch
• 400-Gallon Poly Skid Tank with 10-Gallon Foam Tank
• Darley 1.5AGE Pump with 20-HP Honda gasoline engine
• Two (2) 1” booster lines with 10-ft of hose
• One (1) 1 ½” Discharge, rear
• Two (2) Electrically controlled spray booms, front bumper
• One (1) Hannay Electric booster reel with 150-ft of 1” hose
• Trident “Foamate” around the pump foam system
• Akron Forestry monitor Front Turret
• Two (2) Hose trays, one (1) each side compartment top
• Four (4) walk-away air pack brackets, left side compartment
• Two (2) Under body compartments, one (1) each side ahead of rear wheel
• Two (2) Custom Under body compartments, one (1) each side behind rear wheels
• One (1) Custom leaf blower mounting bracket, top of tank
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline connection

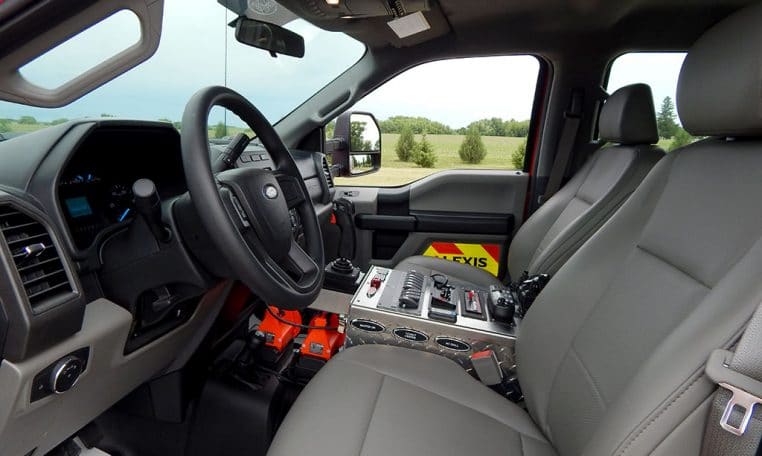

• Floor mounted console for Emergency switches with map/binder storage, cab
• Whelen Electronic Siren with 100-watt Whelen speaker
• Two (2) Whelen Scene lights, rear
• Two (2) Akron Extenda-Lite 12-volt LED Telescopic lights, one (1) each side
• One (1) Code 3 Utility LED work area light bar, rear
• Whelen LED Warning Light Package
• Diamond Grade Chevron pattern striping, rear
• 8’ 4” Overall height
• 22’ 10” Overall length
• 179.8” Wheelbase
• 60” Cab to Axle
• 7,500 FAWR
• 14,700 RAWR
• 19,500 GVWR

Year: 2018
Make: Alexis Fire Equipment
Model: Mini Units
Chassis: Ford F-550XL
Body Style: Brush Truck
Pump Size: Darley AGE Pump
Tank Size: 400
Exterior Color: Red
New Delivery: New Delivery
