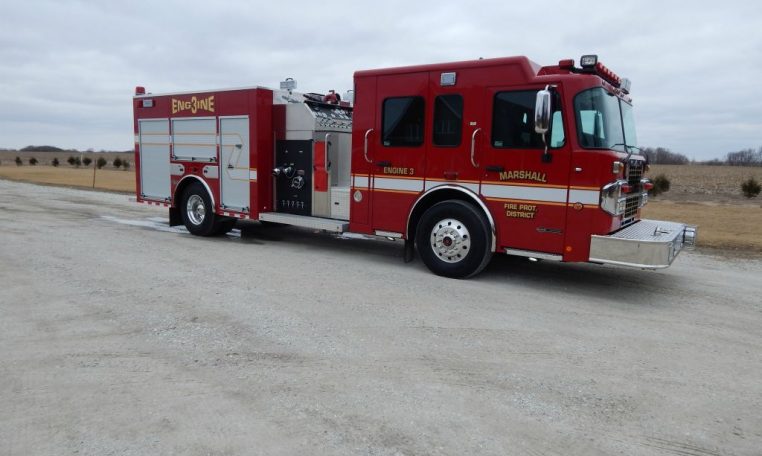

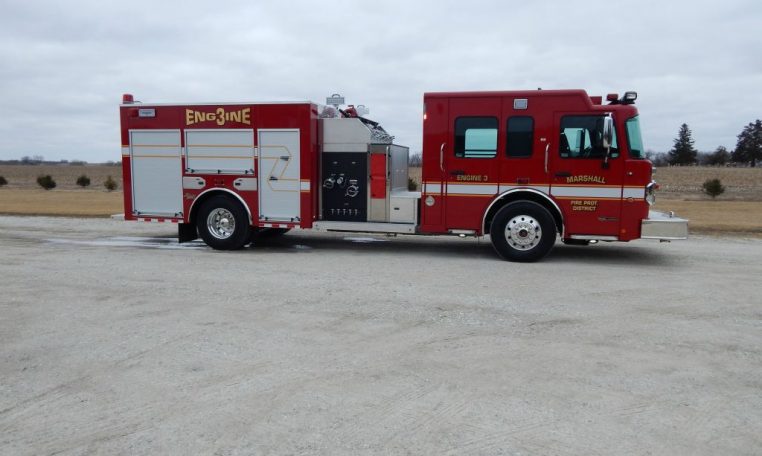

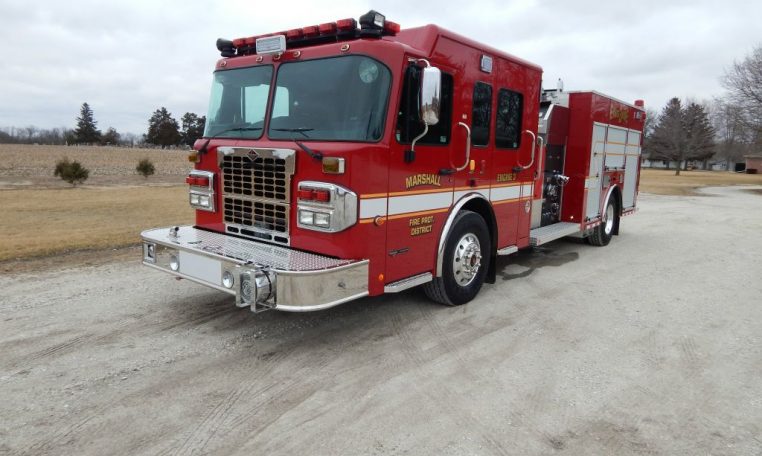

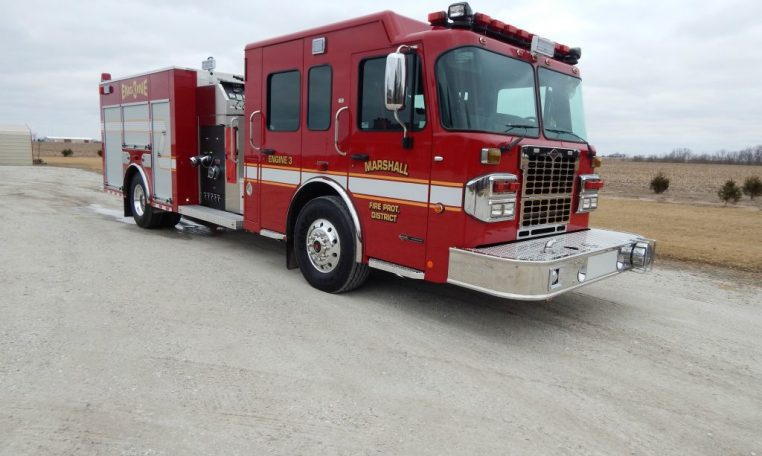

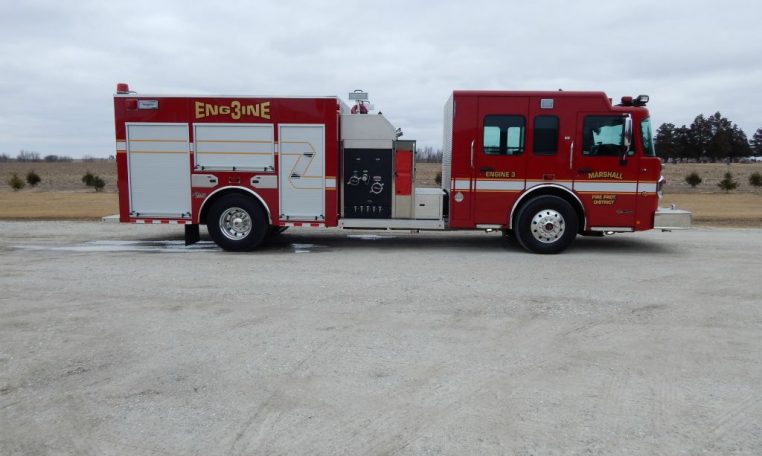

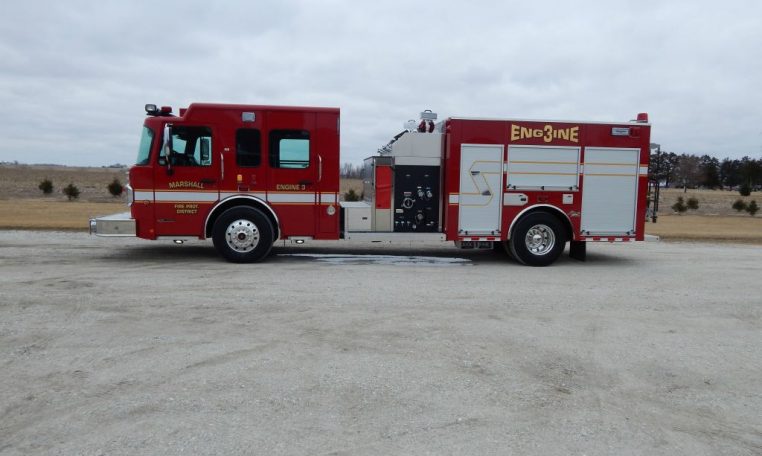

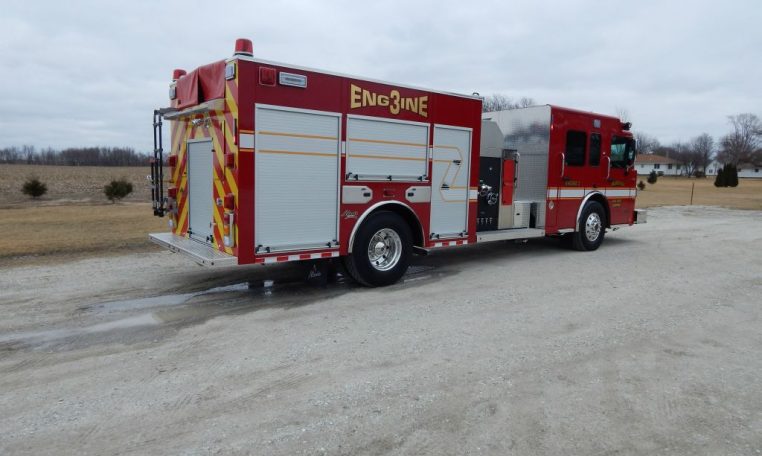

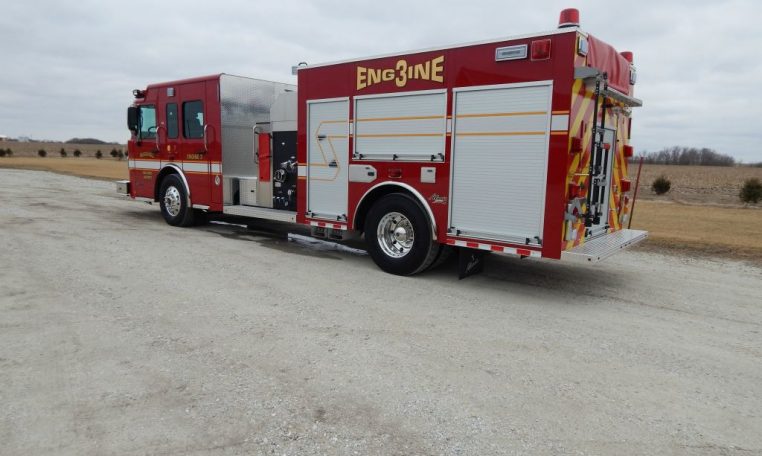

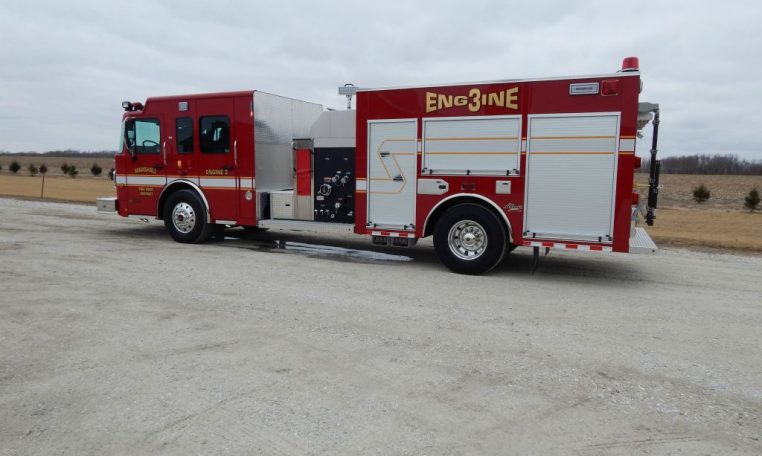

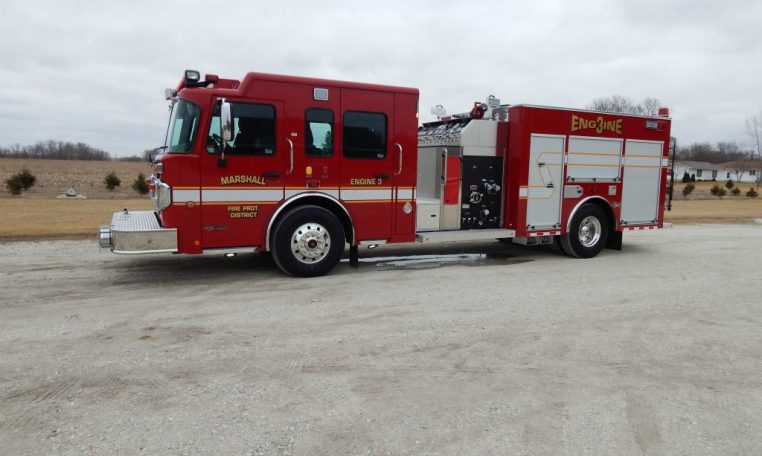

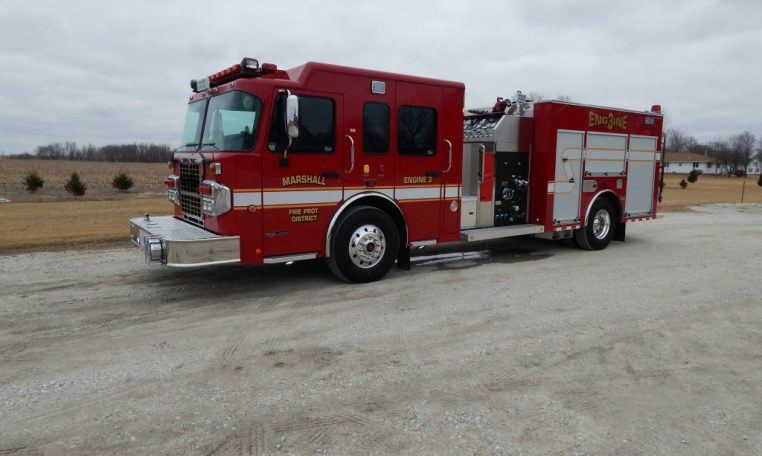

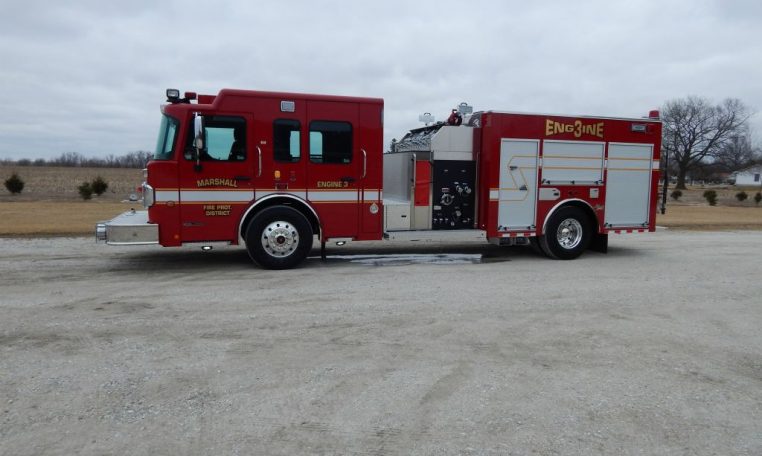

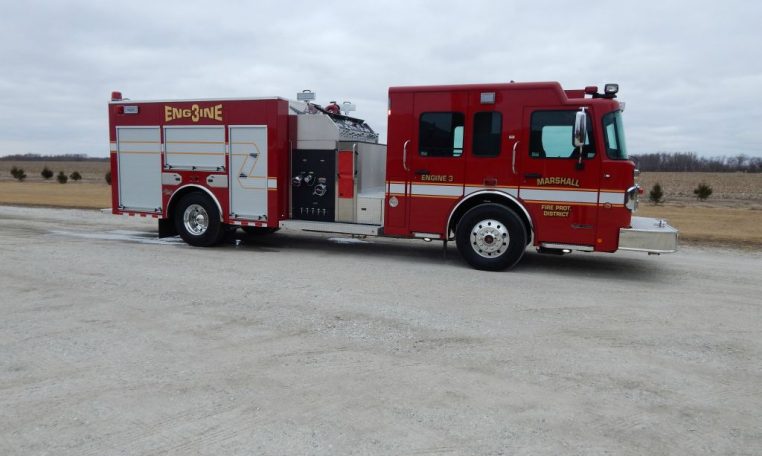

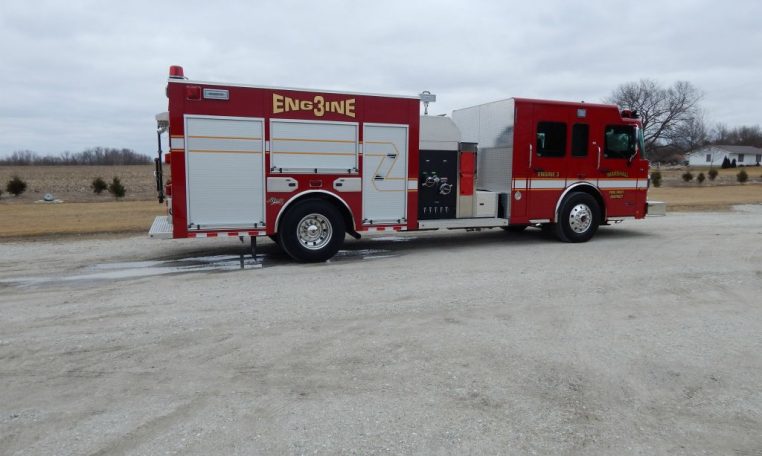

CUSTOM TOP CONTROL PUMPER #2269

MARSHALL FIRE PROTECTION DISTRICT MARSHALL, ILLINOIS

• Spartan Metro Star LFD 10″ raised roof Chassis
• Cummins ISL9, 400-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Five (5) man cab seating with four (4) SCBA seats

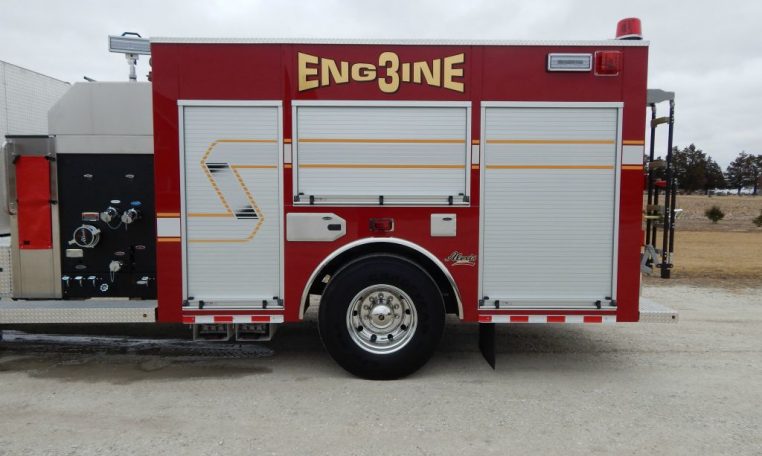

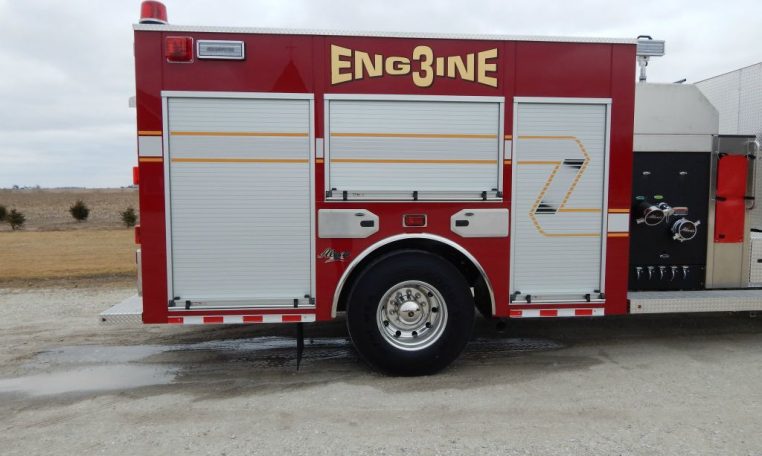

• Heavy Duty 3/16″ Aluminum Body with ROM roll up doors
• 1000-Gallon Poly Tank
• One (1) 2 ½” Fireman’s Friend tank fill, rear

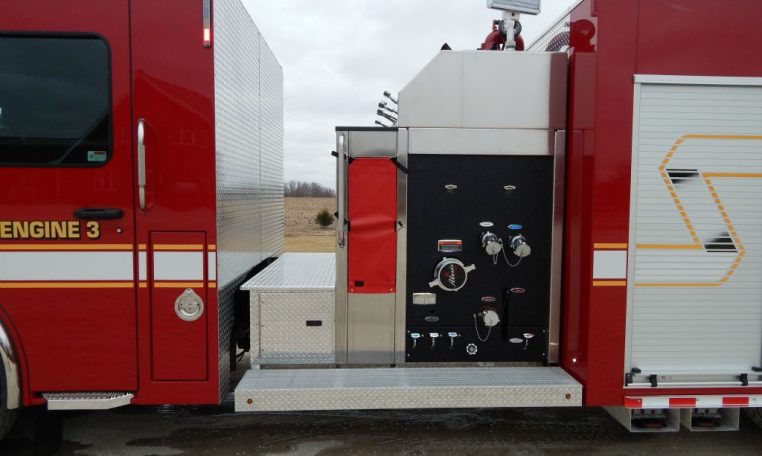

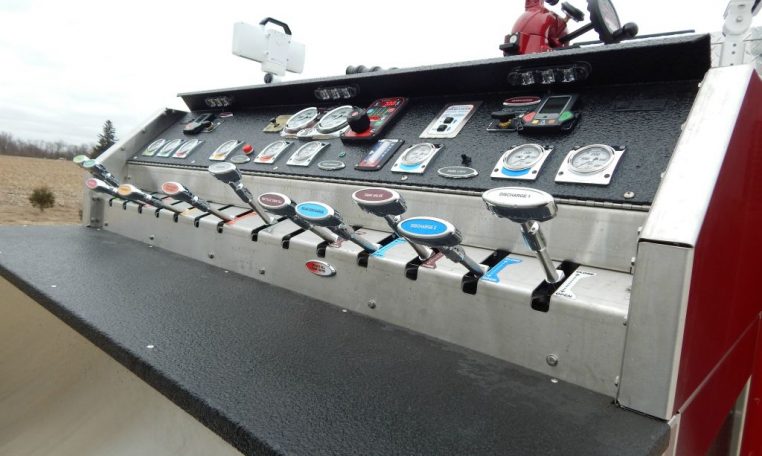

• Waterous CXS. 1500-GPM Pump with top operator’s controls
• Three (3) 2 ½” Discharges, two (2) left and one (1) right side
• Two (2) 3″ Discharges, one (1) right side and one (1) over pump for Deck gun

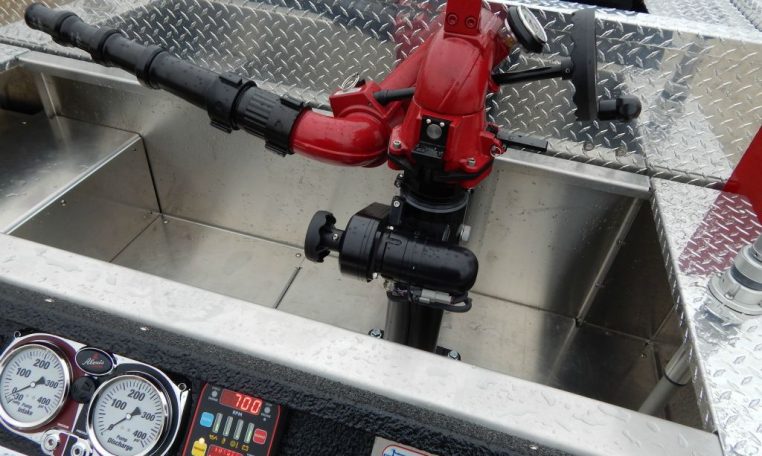

• One (1) TFT Crossfire monitor with TFT electric extend-a-gun

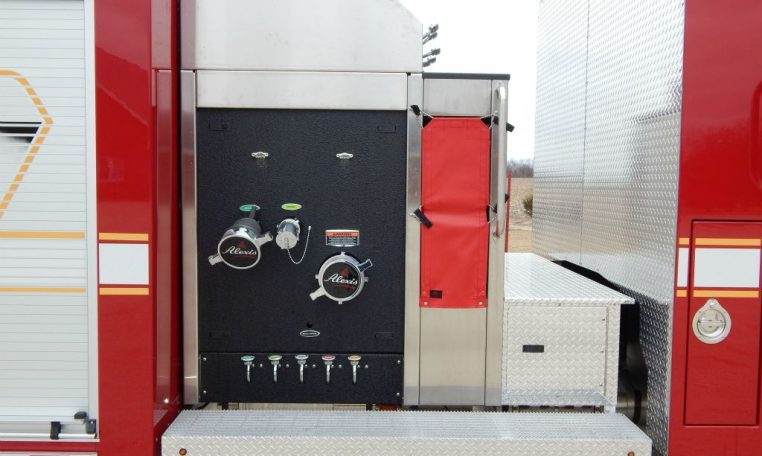

• One (1) 2 ½” Gated Suction, left side
• One (1) 2 ½” Preconnect, front of hosebed
• Two (2) 1 ½” Cartridge lay preconnects, front of body

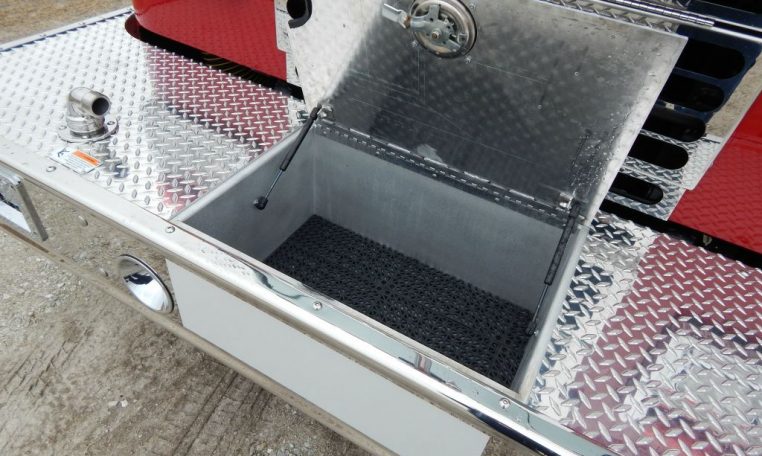

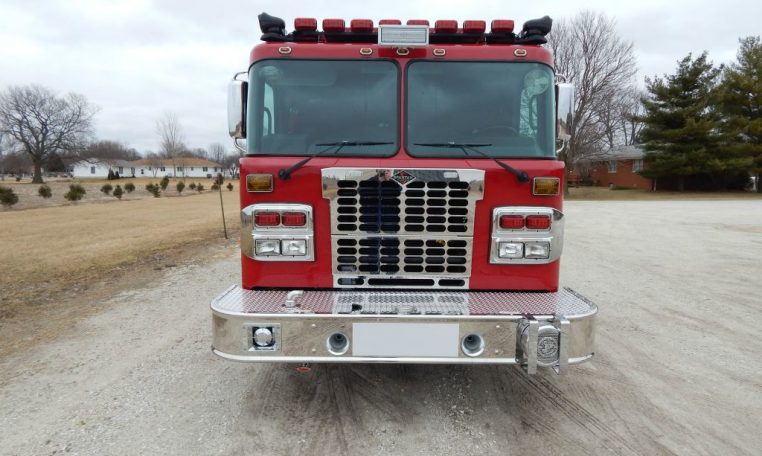

• 24″ Front Bumper extension with 1 ½” preconnect
• One (1) Norcold built-in refrigerator and map box, chassis cab

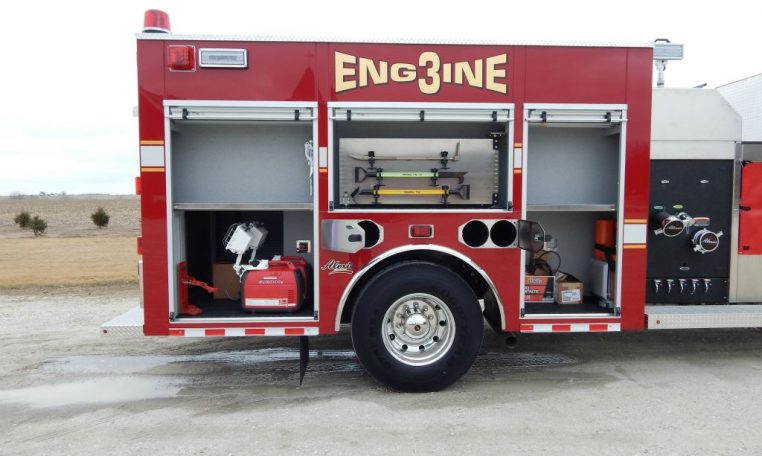

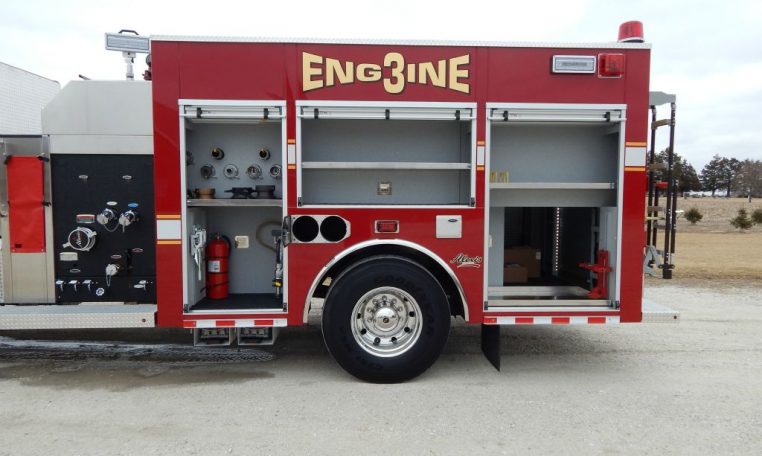

• Three (3) Duel bottle Air bottle compartments, two (2) left and one (1) right side
• Self supporting Treadplate hose bed cover
• Ladder/Pike pole storage compartment, right side with rear access
• Suction hose storage compartment for two (2) hose, left side with rear access
• One (1) Zico Top access ladder, rear mounted
• Turtle Tile on floors and/or shelves and trays of compartments
• Kussmaul 1200 on-board Battery charger with Auto Eject shoreline
• Air Auto Eject
• Whelen Electronic Siren with 100-watt Whelen speaker
• Audiovox Voyager Dual monitor camera system with rear and right side cameras
• Q2B mechanical Siren
• Two (2) Air Horns, front bumper
• FRC Spectra LED Scene light package
• PowerArc LED Warning Light package

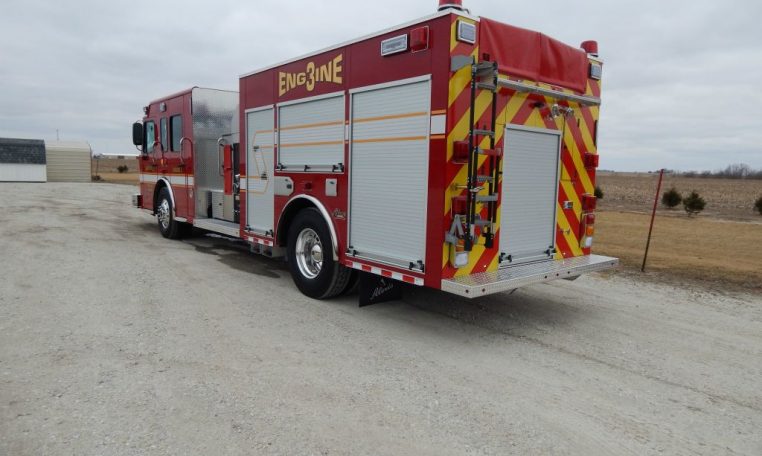

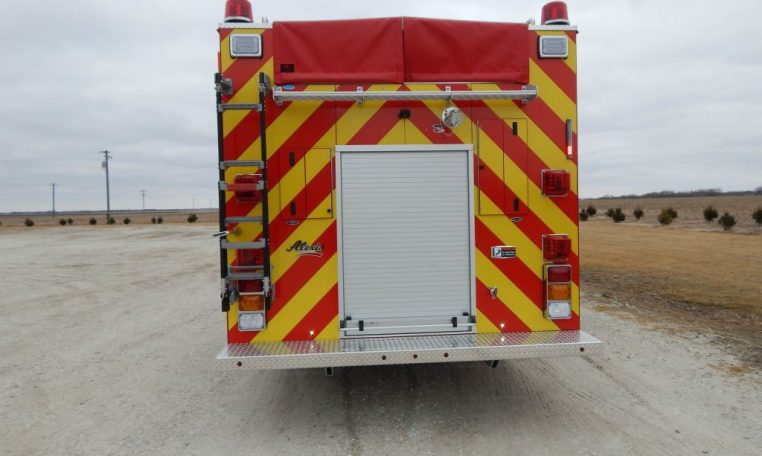

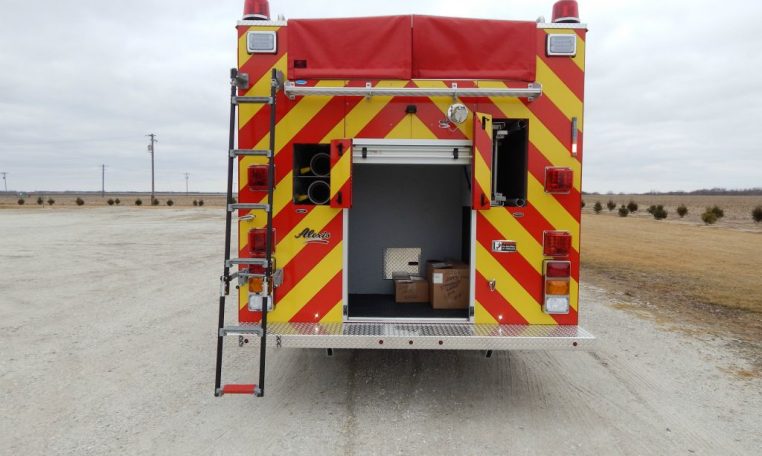

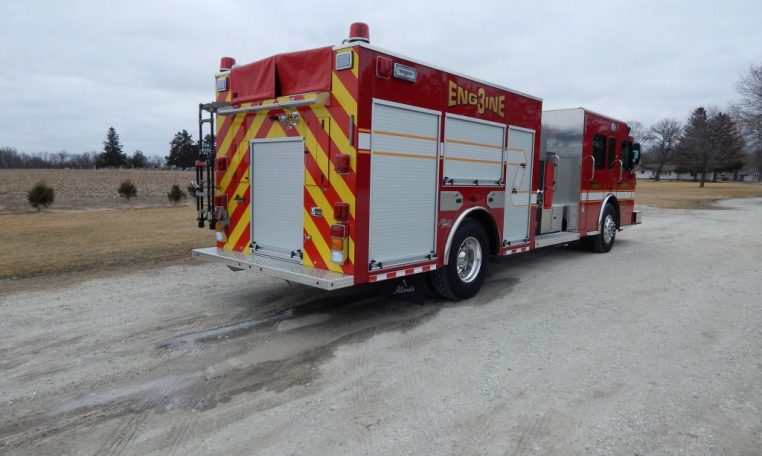

• Chevron pattern striping, rear
• 9′ 11″ Overall height
• 34′ 11″ Overall length
• 219.5″ Wheelbase
• 152″ Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR

Year: 2016
Make: Alexis Fire Equipment
Model: Pumper
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1000
Exterior Color: Red
