Apparatus Inventory

Custom Built Since 1947.

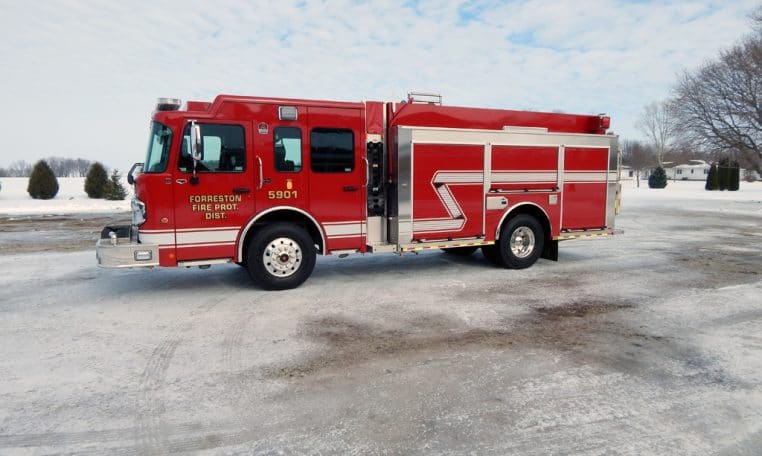

CUSTOM SIDE CONTROL EQUALIZER SAM PUMPER #2406

FORRESTON FIRE PROTECTION DISTRICT - FORRESTON, ILLINOIS
FEATURES:
  • Spartan Metro Star MFD 10” Raised Roof Chassis
  • Cummins L9, 450-HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy-Duty Stainless-Steel Body and Sub-Frame
  • ROM Painted Roll Up Doors
  • 1000-Gallon Poly Tank
  • Hale QMAX 2000-GPM Pump
  • Left Side Operator’s Panel with SAM (Scene Apparatus Management) Control System and Wireless Tablet
  • One (1) 2 ½” Discharge, Left Side
  • Three (3) 3” Discharges, Right Side, Over Pump for Deck Gun and Rear

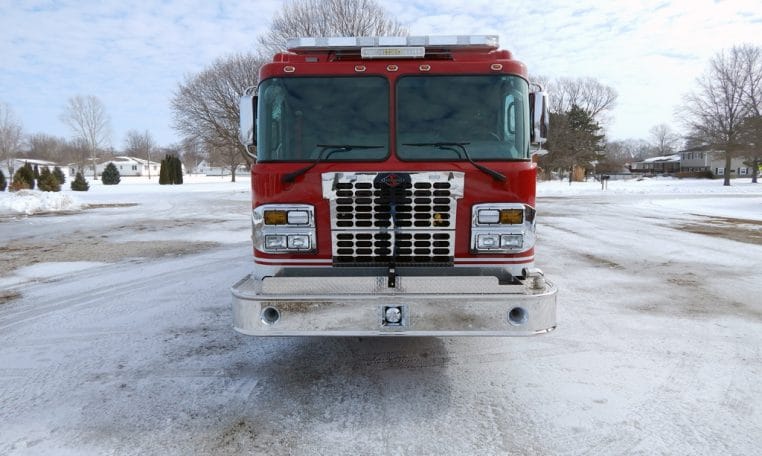

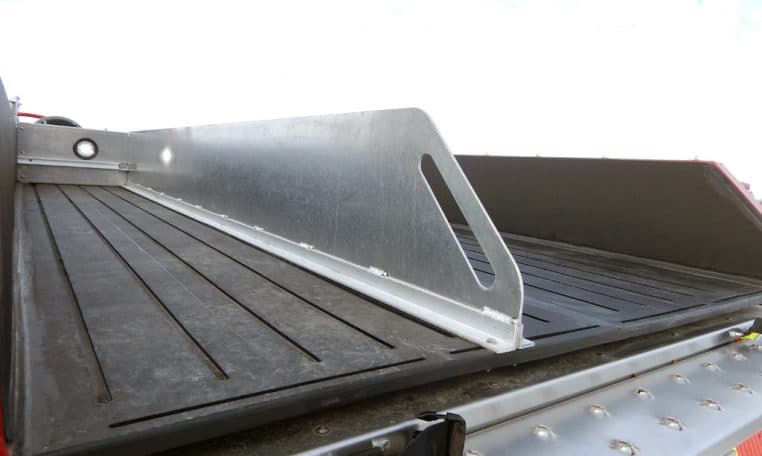

  • 21” Front Bumper Extension with 2 ½” Preconnect and Hose Tray

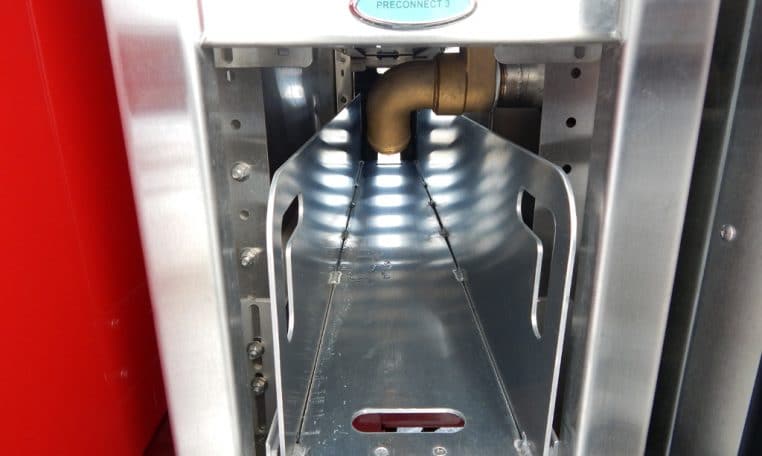

  • Three (3) Cartridge Lay Preconnects, Two 1 ½” and One 2 ½”, Front of Body
  • One (1) 2 ½” Gated Suction, Left Side
  • One (1) 2 ½” Tank Fill, Right Side
  • One (1) 5” Suction, Rear
  • Hannay 1” Booster Reel, Left Side Dunnage Area

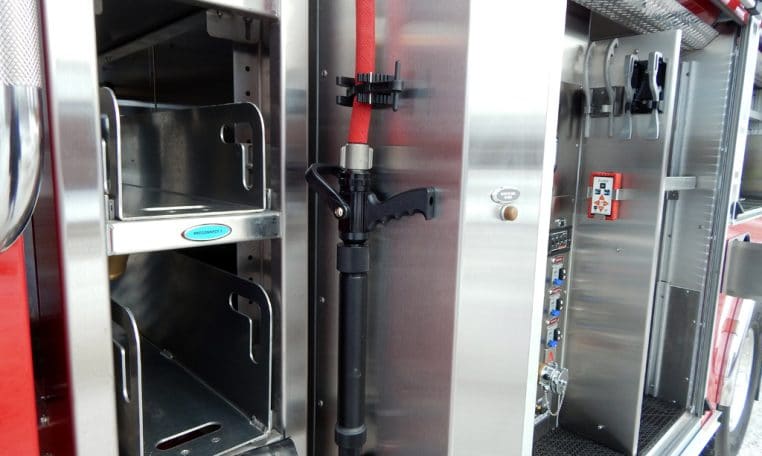

  • Three (3) Dual Bottle Air Bottle Compartments, One Left and Two Right Side
  • Ladder and Suction Hose Storage, Through the Tank
  • Progressive Dynamics Battery Charger and Viair Compressor
  • One (1) Audiovox Back-Up Camera System with 7” Color Monitor
  • Whelen Electronic Siren with 100-Watt Speaker
  • Two (2) Hadley Air Horns, Front Bumper
  • Whelen LED Warning Light Package
  • Firetech LED Scene Light Package
  • Diamond Grade Chevron Pattern Striping, Rear
  • 10’ 1” Overall height
  • 32’ 5” Overall length
  • 182” Wheelbase
  • 128” Cab to Axle
  • 20,000 FAWR
  • 31,500 RAWR
  • 51,500 GVWR
Year: 2021
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Side Control Pumper
Pump Size: 2000
Tank Size: 1000
Feature: SAM System
Exterior Color: Red
New Delivery: New Delivery
Program Vehicle: Equalizer
