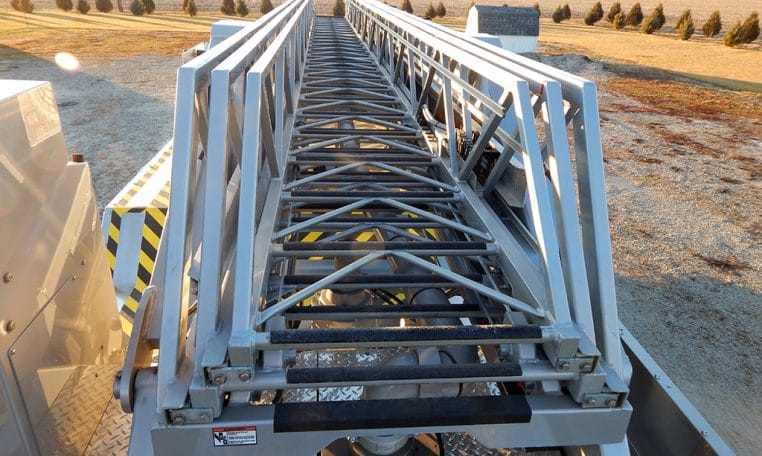

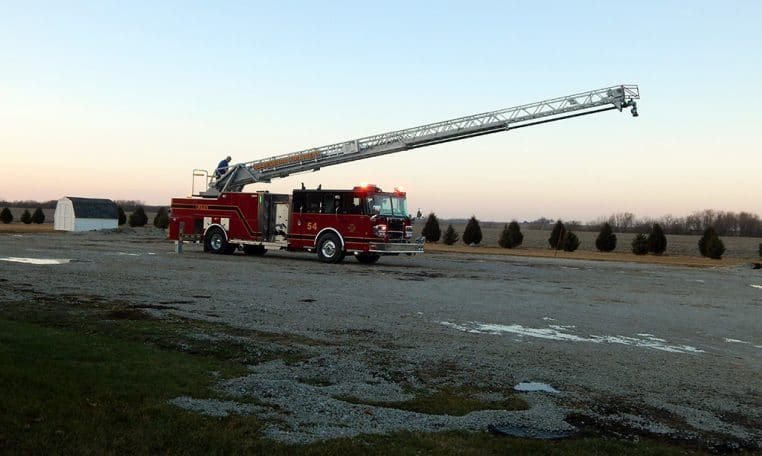

78-FOOT THREE SECTION REAR MOUNT AERIAL LADDER #2347

CITY OF GALESBURG FIRE DEPARTMENT - GALESBURG, ILLINOIS
FEATURES:

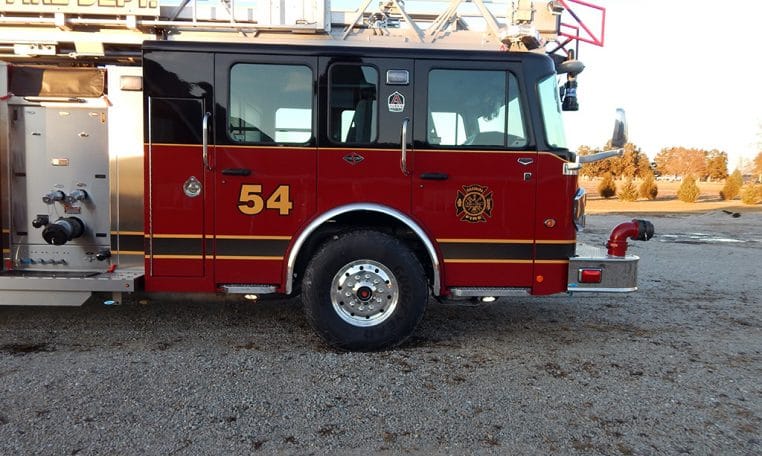

  • Spartan Metro Star ELFD flat roof Chassis
  • Cummins L9, 450-HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy Duty Stainless steel Body with Galvanized steel Sub-Frame
  • ROM painted Roll Up Doors
  • 24” Front Bumper Extension with 2 ½” Preconnect reduced 1 ½” and hosewell
  • Four (4) person cab seating with three (3) SCBA seats

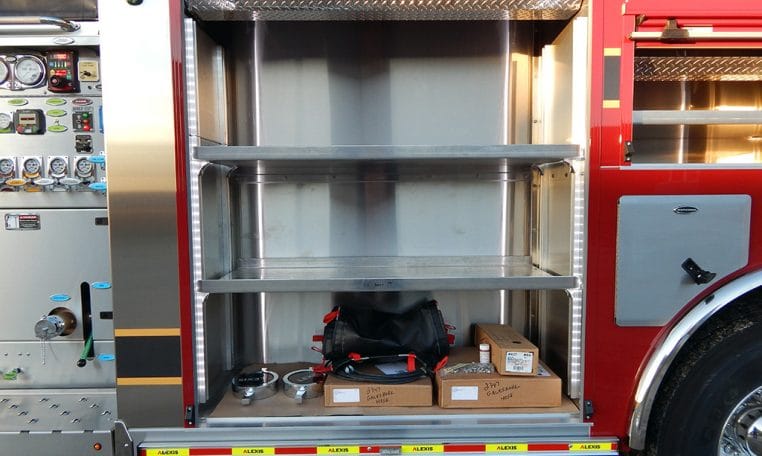

  • EMS Cabinet with Roll Up Doors, cab rear wall
  • 400-Gallon Poly Tank
  • Hale QMAX-XS150, 1500-GPM Pump with left side operator’s panel
  • One (1) 2 ½” and two (2) 1 ½” Mattydale Preconnects, across top of body
  • Two (2) 2 ½” Discharges, right side
  • Three (3) 3” Discharges, one (1) each side and one (1) rear
  • Two (2) TFT Typhoon manually controlled monitors, one (1) each side
  • One (1) 4” Discharge aerial waterway
  • One (1) 2 ½” Gated Suction, left side
  • Front and Rear 5” Suctions
  • TFT Typhoon RC remote controlled aerial monitor
  • One (1) Running board hose well, right side
  • Two (2) Triple bottle Air bottle compartments, one (1) each side wheel well
  • One (1) Fire Extinguisher compartment, right side wheel well
  • Side stack hose bed, right side
  • Long handle Tool and hose storage, rear above Ladder storage
  • Ladder storage, rear torque box
  • Federal Q2B mechanical Siren, pedestal mounted front bumper
  • Two (2) Air Horns with snow shields, front bumper
  • Audiovox back-up camera system with 7” color monitor
  • Progressive Dynamics on-board battery charger with Viair air compressor
  • Kussmaul Super Auto Eject 120-volt shoreline connection
  • Whelen LED Warning and Scene Light Packages
  • Diamond Grade Chevron pattern striping, rear
  • 11’ 7” Overall height
  • 37’ Overall length
  • 228” Wheelbase
  • 154” Cab to Axle
  • 22,000 FAWR
  • 33,000 RAWR
  • 55,000 GVWR
  • There are no features available
Year: 2018
Make: Alexis Fire Equipment
Model: Aerial
Chassis: Custom
Body Style: Ladder Aerial
Pump Size: 1500
Tank Size: 400
Feature: Interior Mount Ladder
Exterior Color: Red with Black
New Delivery: New Delivery
