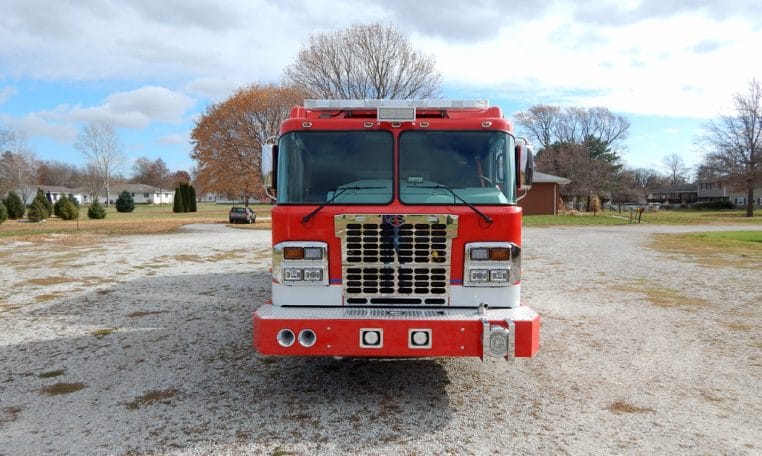

750-GALLON CUSTOM TOP MOUNT PUMPER #2408

SUGAR CREEK FIRE DEPARTMENT - WEST TERRE HAUTE, INDIANA
FEATURES:
  • Spartan Metro Star MFD 10” Raised Roof Chassis
  • Cummins L9 450 HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy Duty Aluminum or Stainless-Steel Body
  • Galvanized or Stainless-Steel Sub-Frame
  • Four (4) Person Cab Seating with Three (3) SCBA Seats
  • ROM Roll-Up Doors

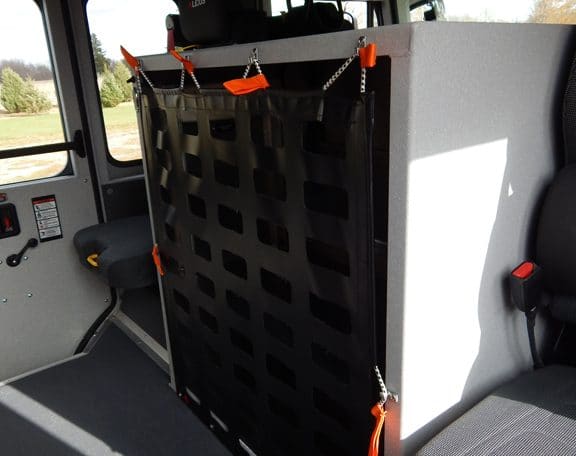

  • Custom EMS Compartment with Two (2) Adjustable Shelves and Power Strip, Cab
  • Hale DSD 1500 GPM Pump
  • 750-Gallon Poly Tank with 30-Gallon Foam Tank
  • Two (2) 6” Suctions, Left and Right Side
  • Two (2) Running Board Hose Wells
  • Four (4) 2 ½” Discharges, two (2) Right and two (2) Left
  • One (1) 3” Discharge with 5” Storz Adapter, Right Side
  • One (1) 2 ½” Gated Suction, Left Side
  • One (1) Rear Tank Fill

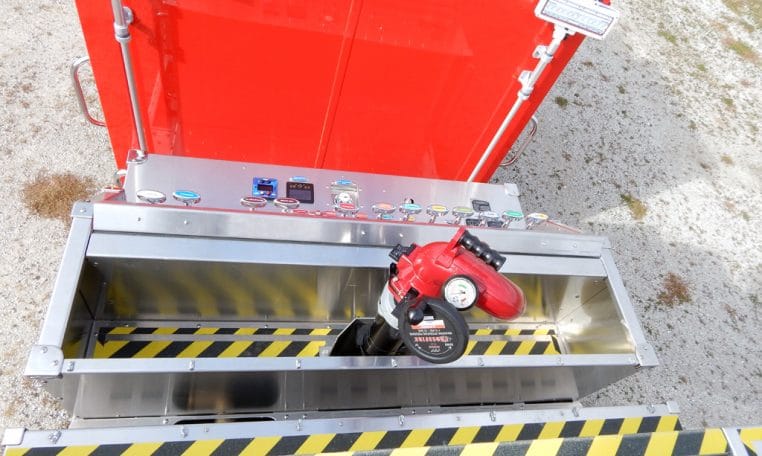

  • TFT Crossfire Monitor Package with Extend-a-Gun
  • One (1) 2 ½” Mattydale Preconnect

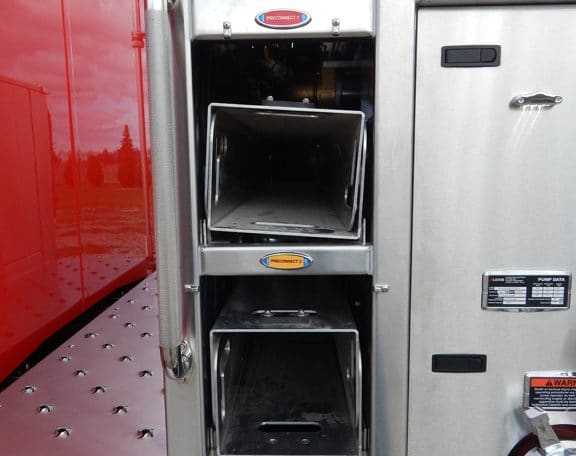

  • Two (2) 1 ½” Cartridge Lay Preconnects
  • One (1) 1 ½” Preconnect, Front Bumper Extension
  • Two (2) Dual Air Bottle Compartments, one (1) Each Side
  • Two (2) Dual Fire Extinguisher Compartments, one (1) Each Side
  • Ladder and Suction Hose Storage, Right Rear Compartment
  • Firecom Intercom System, Cab
  • Federal Q2B Siren
  • TecNiq Warning Light Package
  • Whelen Traffic Advisor Arrow Stick
  • Fire Research Scene Light Package
  • Diamond Grade Chevron Striping, Rear
  • Darley CAFS System
  • 10’ 5” Overall Height
  • 33’ 11” Overall Length
  • 211” Wheelbase
  • 157” Cab to Axle
  • 20,000 FAWR
  • 27,000 RAWR
  • 47,000 GVWR
Year: 2020
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 750
Feature: 30 Gallon Foam Tank
Exterior Color: Red
New Delivery: New Delivery
