Delivered Apparatus

FEATURES:

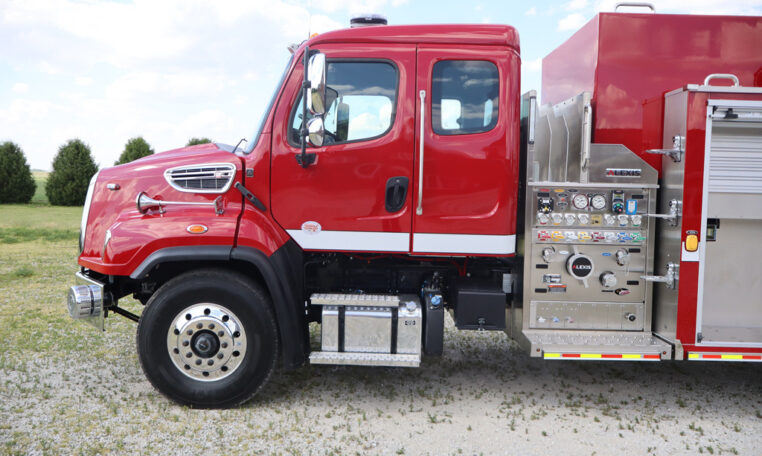

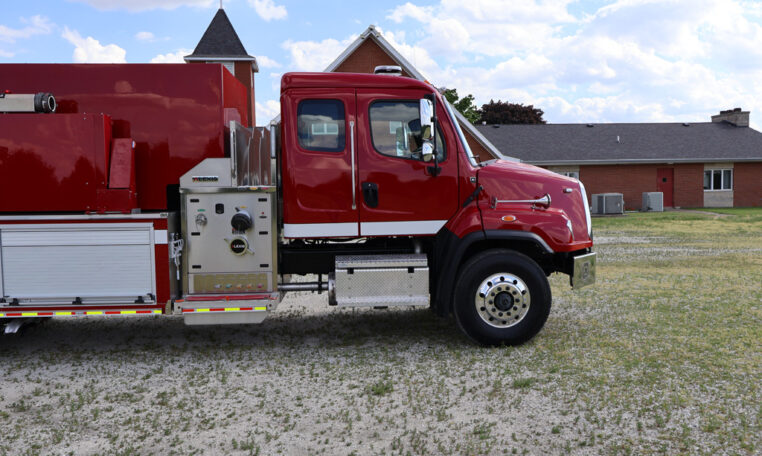

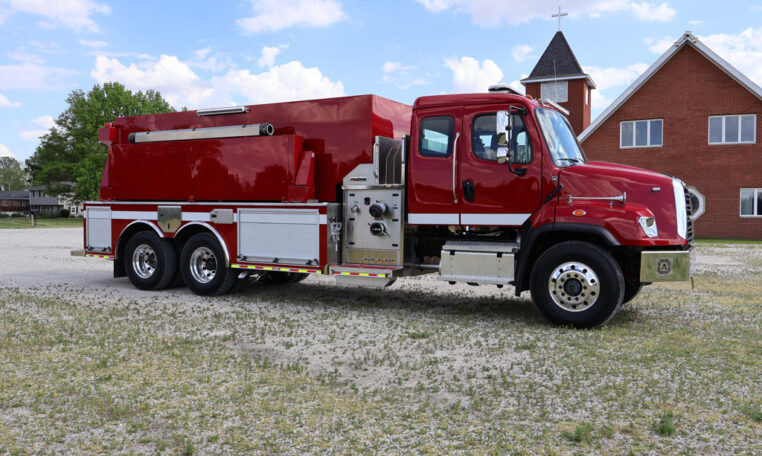

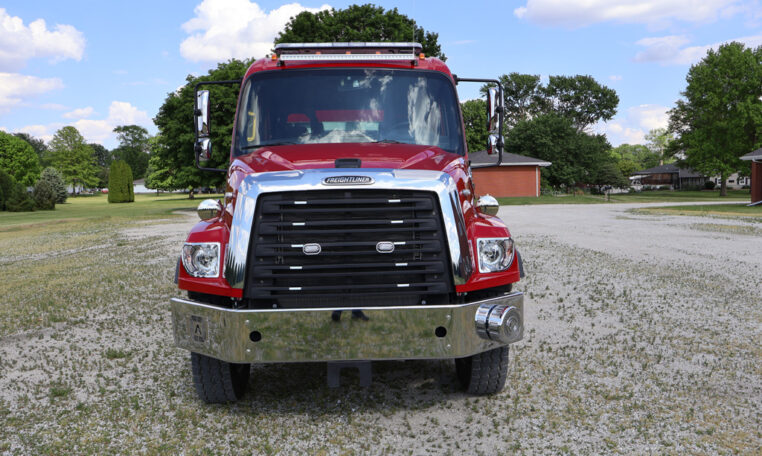

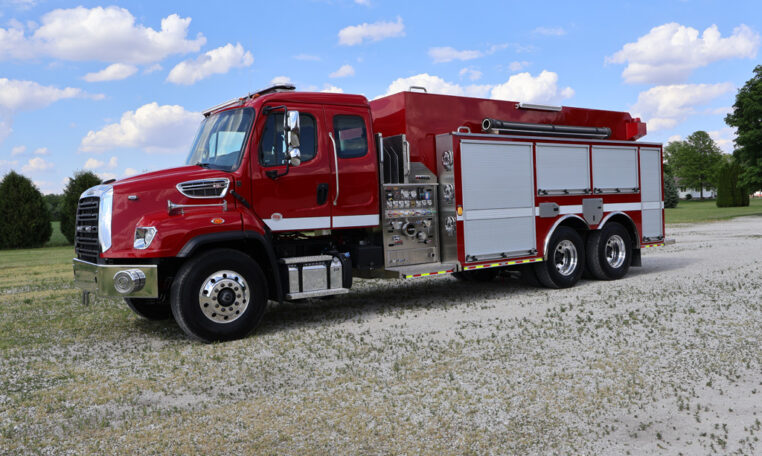

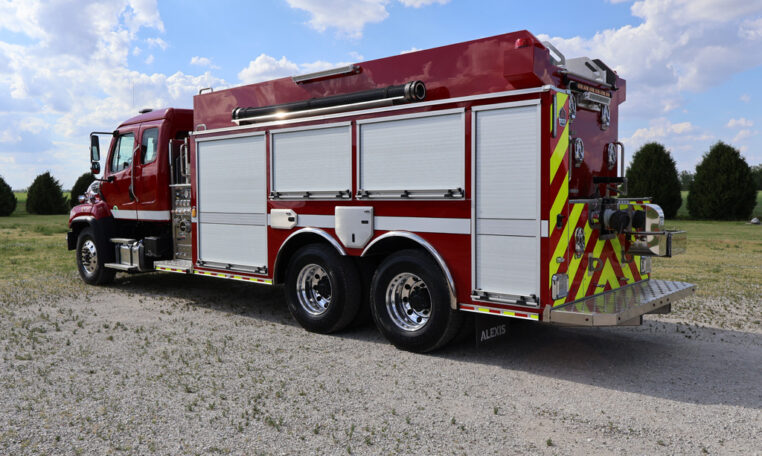

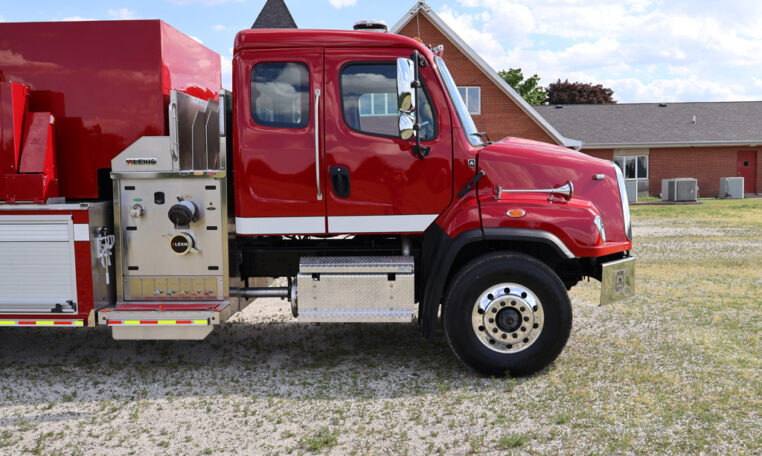

• Freightliner 114 SD 2-Door Extended Cab Chassis
• Cummins 450 HP L9 Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body and Stainless Steel Subframe

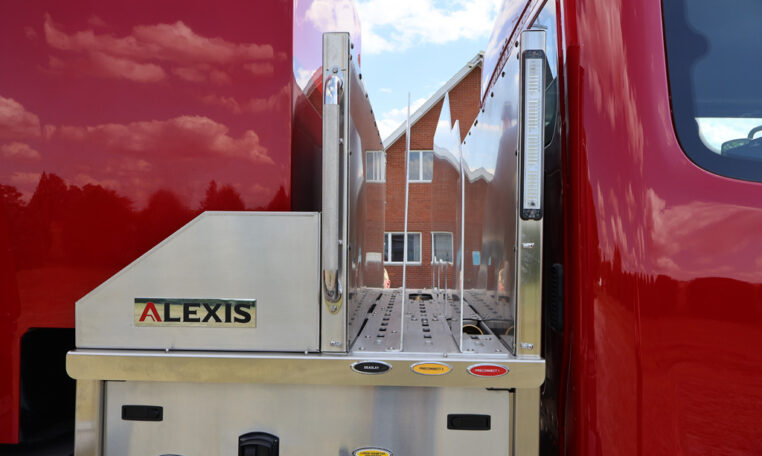

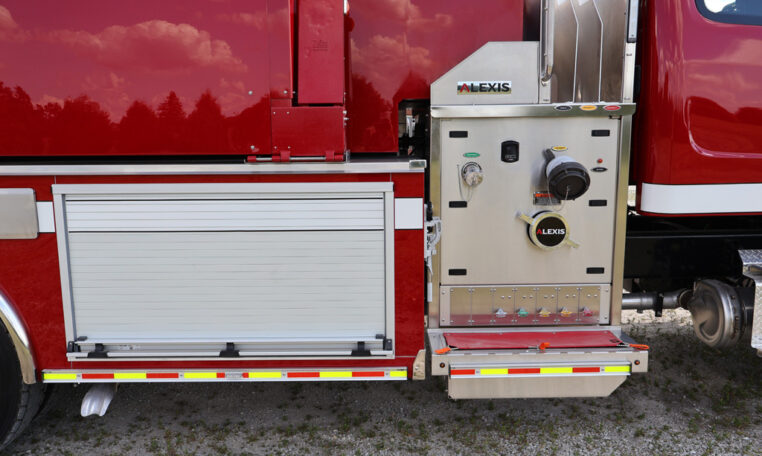

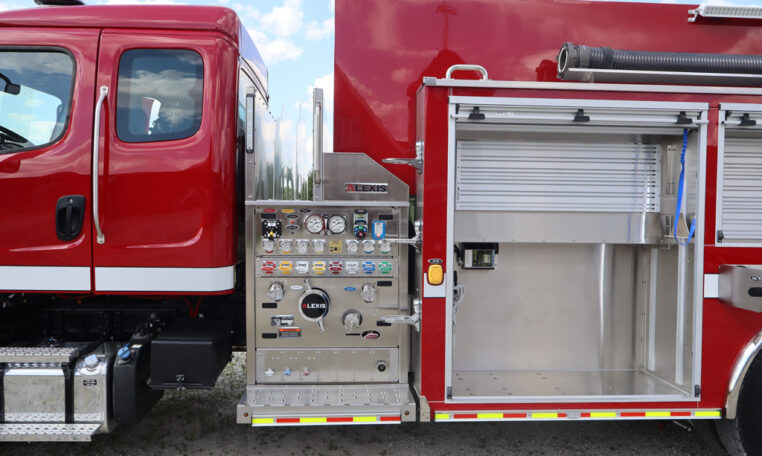

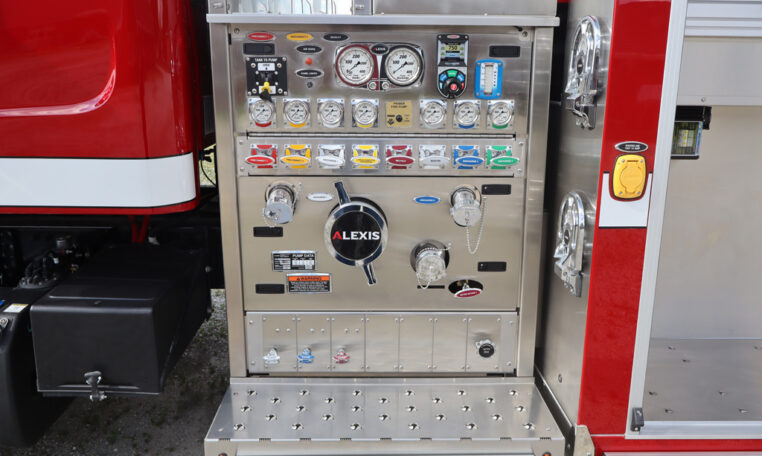

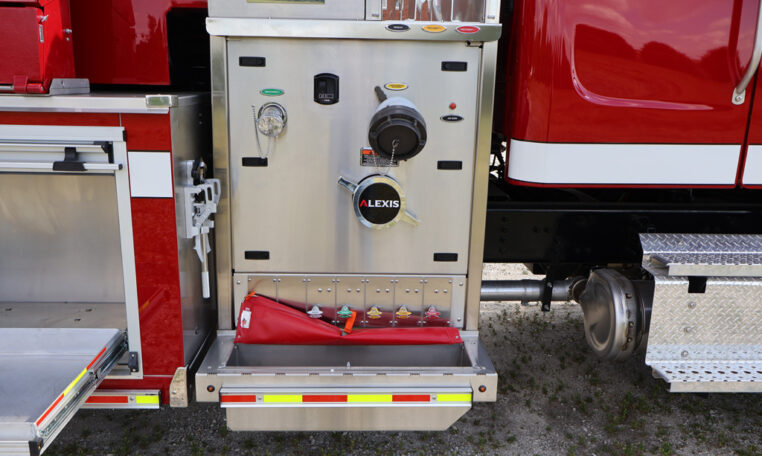

• Intermediate Stainless Pump Module with Stainless Steel Subframe
• Waterous CXVC20 1500 GPM Single Stage Pump
• Trident Air Prime System
• FRC Pump Boss Pressure Governor
• FRC TankVision Water Tank Level Gauge with Three (3) Whelen PSTANK Strip Lites
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 2½” Gated Intake, Left Side
• Two (2) 2½” Discharges, Left Side and One (1) 2½” Discharge, Right Side
• One (1) 3” Discharge Adapted to 5” Storz, Right Side
• One (1) 3” Discharge Dunnage Area with Elkhart Stinger Deck Gun with 18” Riser
• One (1) 1½” and one (1) 2½” Mattydale Preconnects with One (1) Deadlay Hose Bed

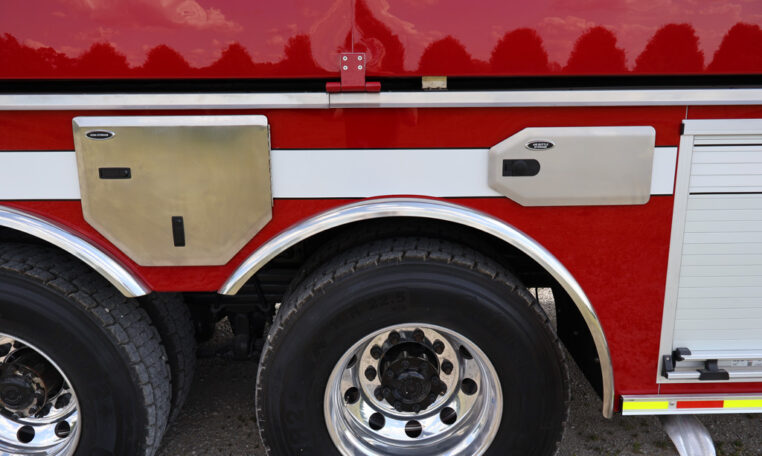

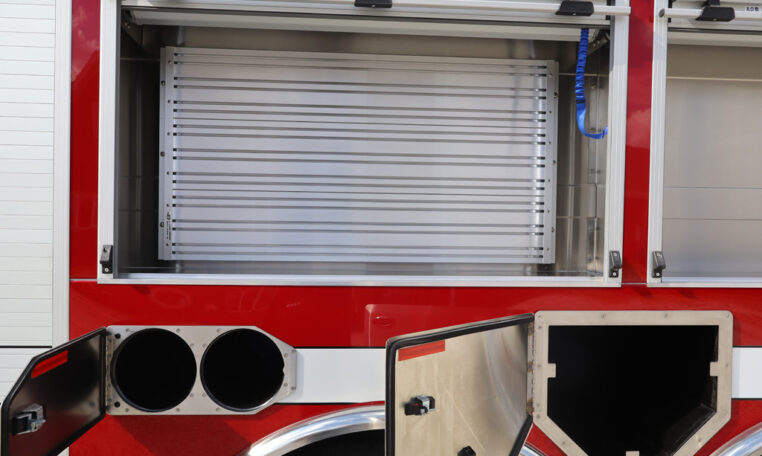

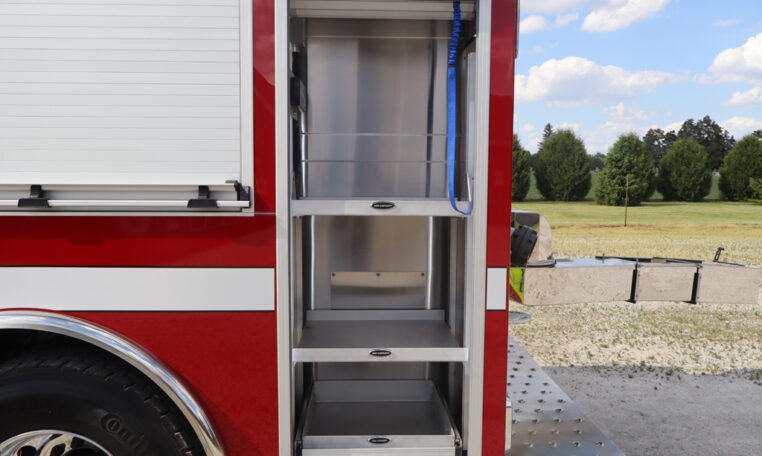

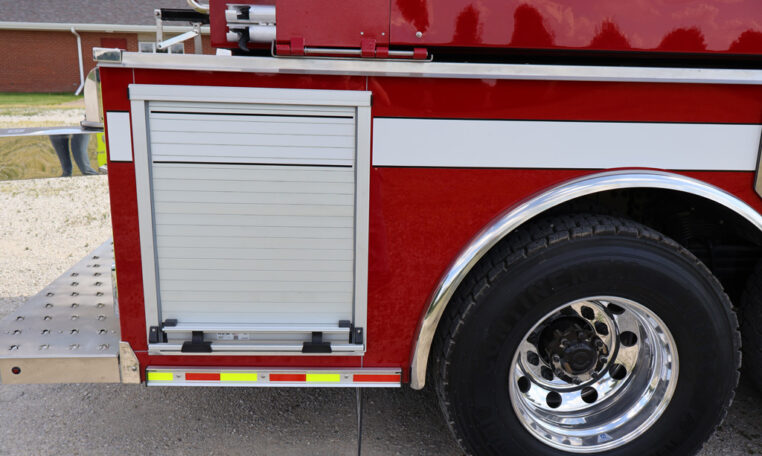

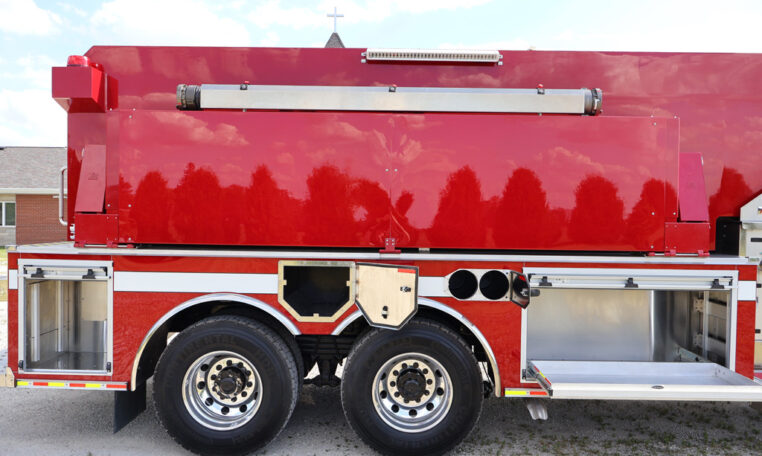

• Two (2) Dual Air Bottle Wheel Well Compartments
• Two (2) SCBA Storage Wheel Well Compartments

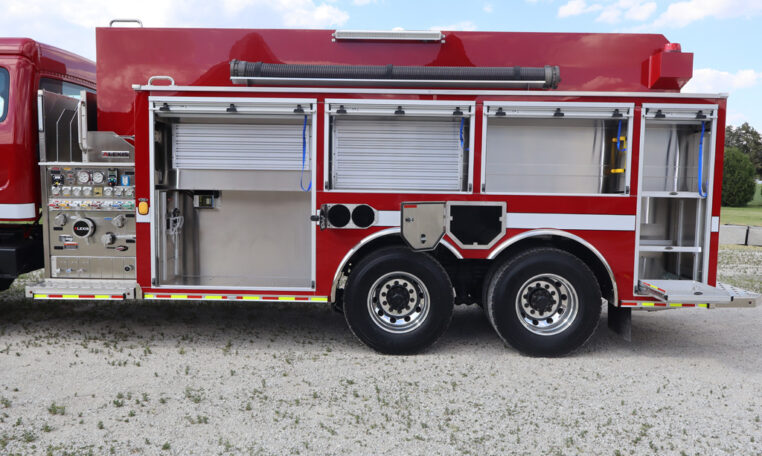

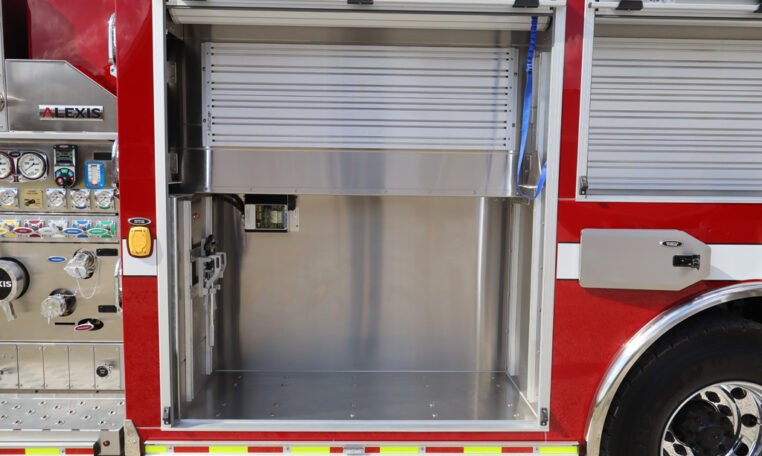

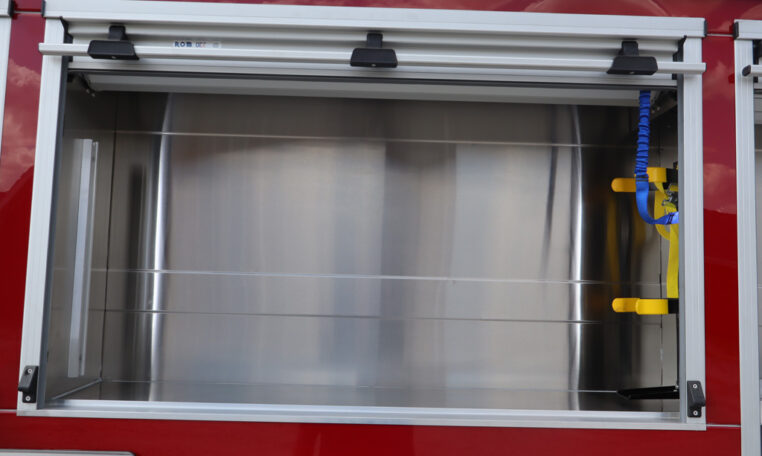

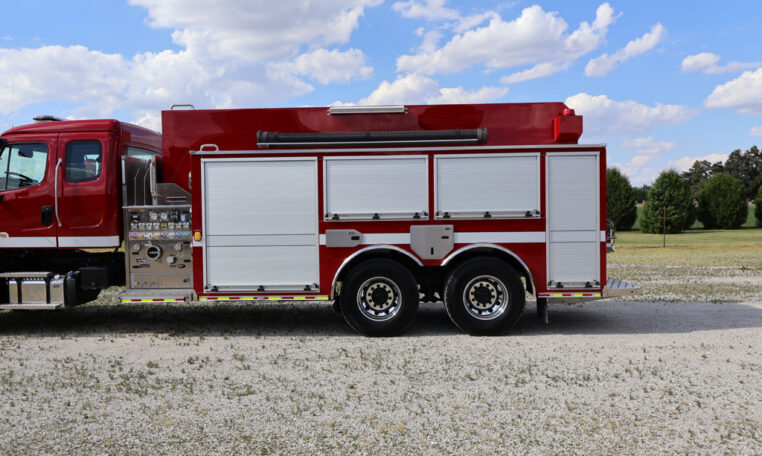

• ROM Roll Up Doors
• Zico Hydraulic Folding Tank Bracket, Right Side

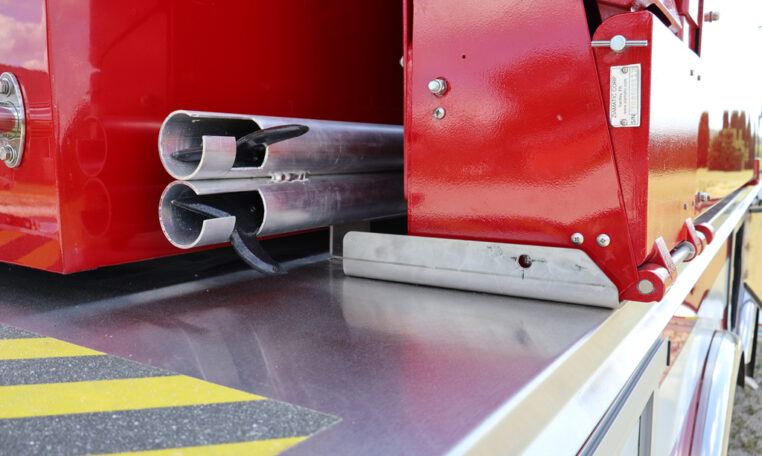

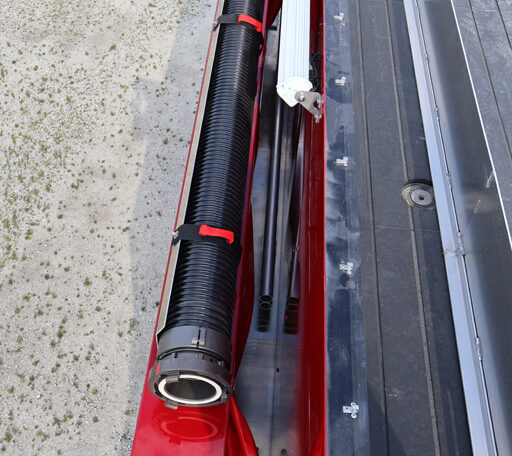

• Suction Hose Storage, One (1) Left Side Above the Ladders, One (1) Right Side

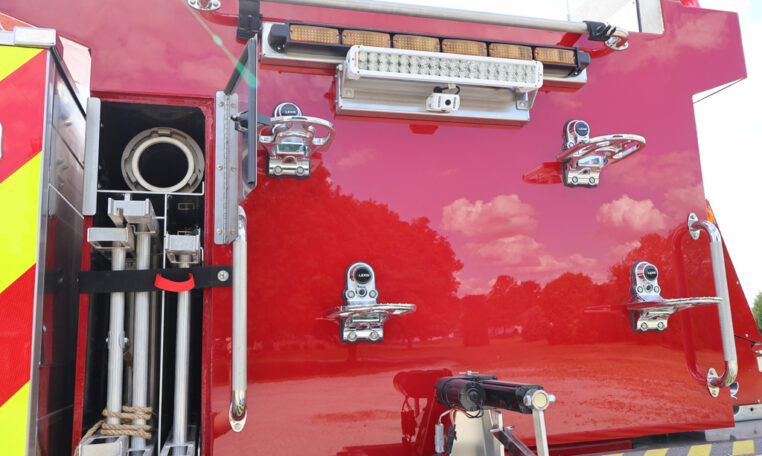

• Ladder Storage Vertical Through the Body, Left Side

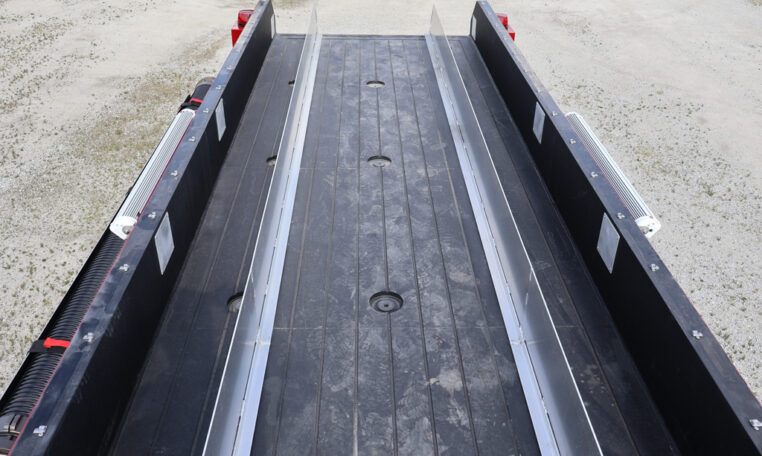

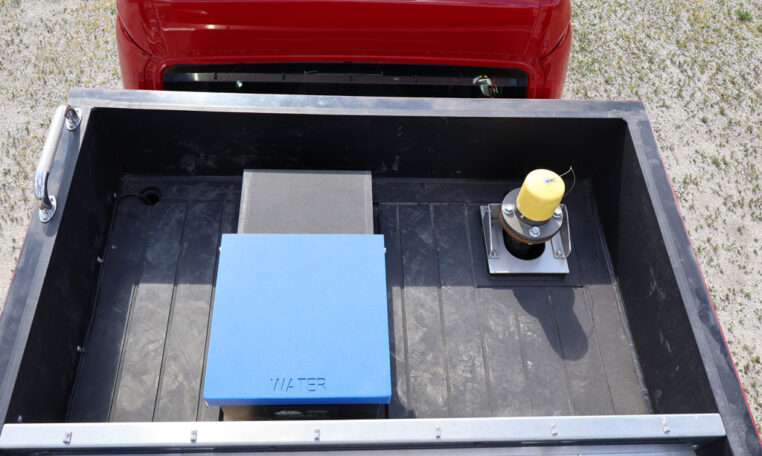

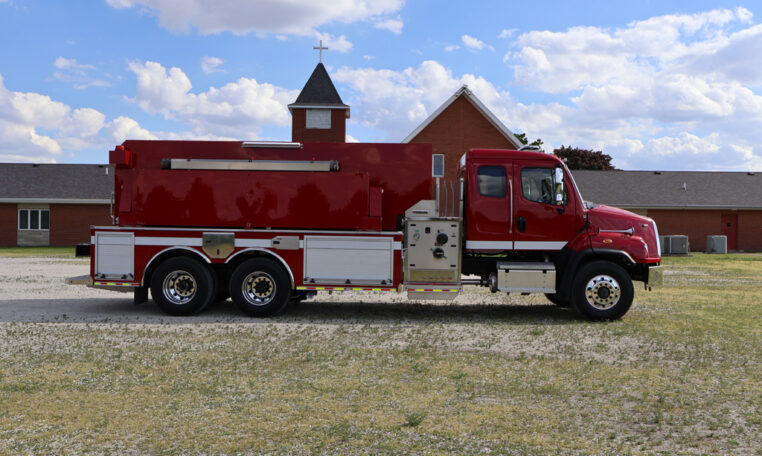

• 3000 Gallon Poly Wetside Tank with Wetside Hose Bed & Front Fill Tower
• One (1) 2½” FirePrograms Tank Fill, Rear Right Side
• One (1) 4” FirePrograms Tank Fill with 5” Storz Elbow, Rear Left Side

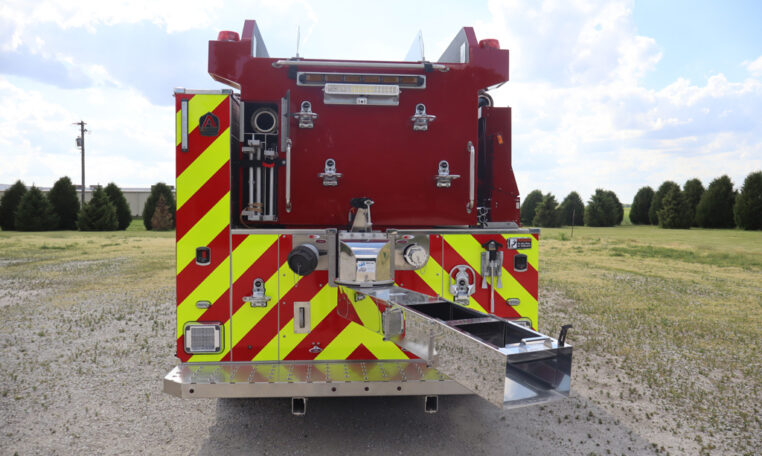

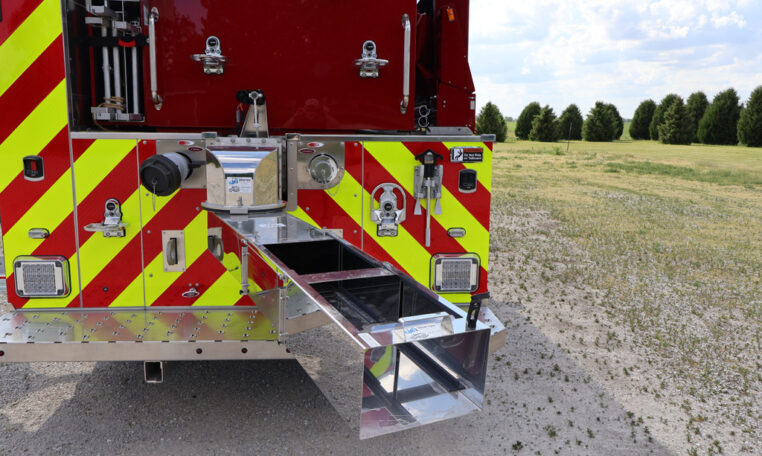

• One (1) 10” Newton Stainless Steel Swivel Electric Dump with 36” Manual Extension
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Progressive Dynamics Battery Charger, L1 Compartment
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Front Body Post
• Whelen LED Warning Lights with Rear Arrow Stick
• Whelen 200W Siren and 100W Speaker
• Federal Q2B Siren
• Two (2) FireTech HiViz 40″ LED Scene Light Bars, One (1) Each Side
• One (1) FireTech HiViz 21″ LED Scene Light Bar, Rear
• One (1) Firetech HiViz 21” LED Brow Light
• One (1) 10’ Attic Ladder, 14’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, Three (3) 10’ Lengths of 6” Suction Hose, Two (2) 10’ Lengths of 2½” Suction Hose and One (1) 3000 Gallon Fol-Da-Tank
• 10’-8” Overall Height
• 34’-11” Overall Length
• 261” Wheelbase
• 169.90” Cab to Axle
• 18,000 FAWR
• 46,000 RAWR
• 64,000 GVWR
