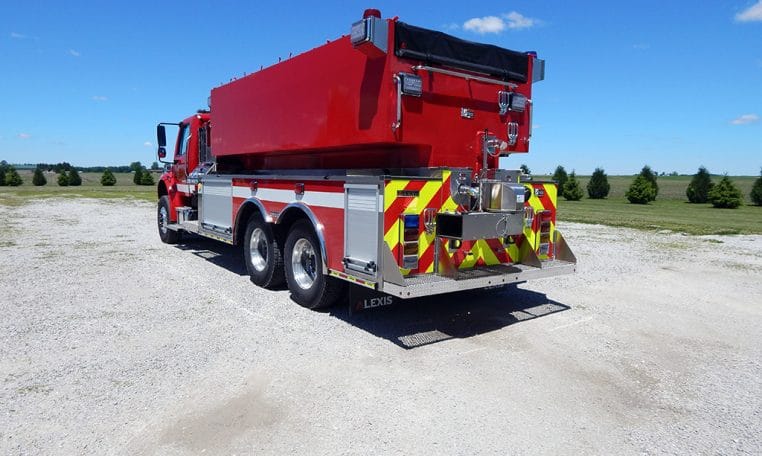

3000-GALLON PUMPER/TANKER #2363

WEST POINT ST. PAUL COMMUNITY FIRE ASSOCIATION - WEST POINT, IOWA
FEATURES:
  • Freightliner M2 106 2-Door Tandem Chassis
  • Detroit DD8, 7.7L 375-HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy Duty Stainless Steel Body and Sub-Frame
  • ROM Roll Up Doors
  • 3000-Gallon Wet side Poly Tank

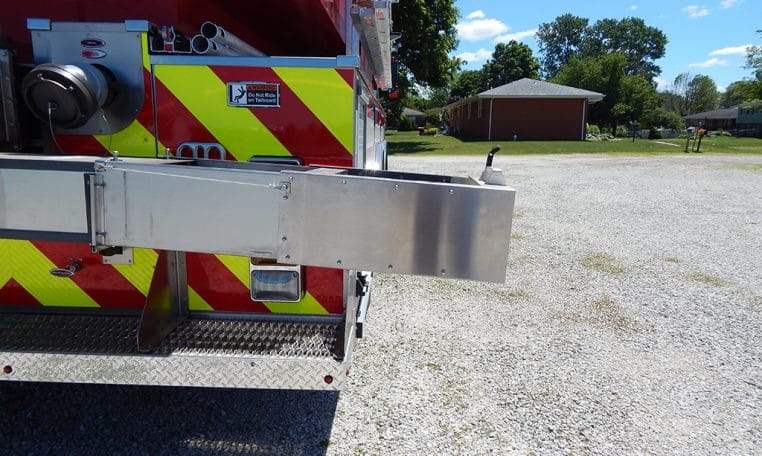

  • One (1) 10” Square Newton manual swivel Dump with 36” extension
  • One (1) 2 ½” and one (1) 4” FirePrograms Tank Fills, rear
  • Darley PSM 1500-GPM Pump

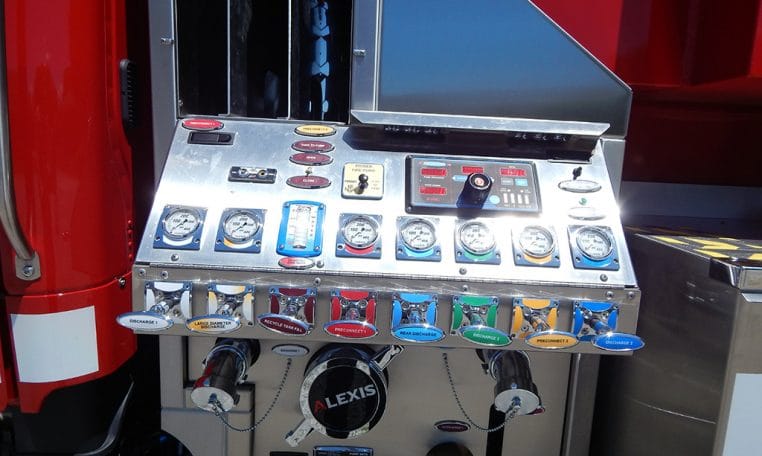

  • Side Control Intermediate pump operator’s panel
  • Four (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
  • One (1) 3” Discharge, right side
  • One (1) 1 ½” and one (1) 2 ½” Mattydale Preconnect,, behind cab
  • Folding Tank Storage, right side compartment top
  • Suction Hose Storage, left side compartment top

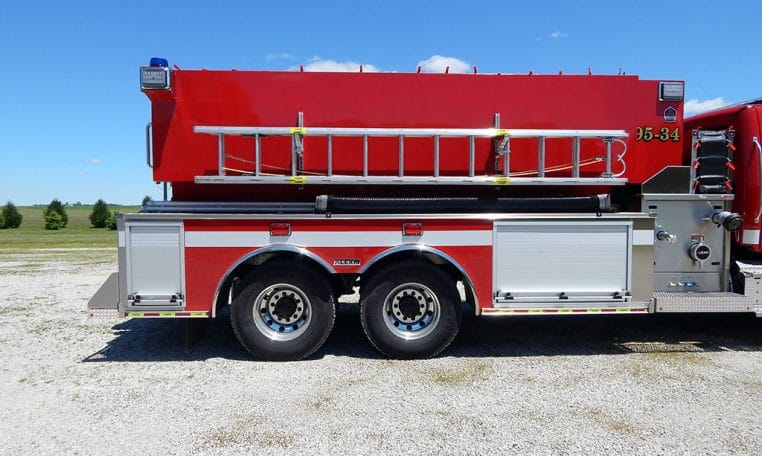

  • Ladder Storage brackets, left side
  • Two (2) Pike pole tubes, right side compartment top
  • Progressive Dynamics on-board battery charger
  • Kussmaul Super Auto Eject 120-volt shoreline connection
  • Floor mounted console for emergency switches with map/binder storage, cab
  • Code-3 Electronic Siren with 100-watt Code-3 speaker
  • Whelen LED Scene Light Package
  • Whelen LED Warning Light Package
  • Diamond Grade Chevron pattern striping, rear
  • 10’ 6” Overall height
  • 31’ 6” Overall length
  • 236” Wheelbase
  • 170.45” Cab to Axle
  • 16,000 FAWR
  • 40,000 RAWR
  • 46,000 GVWR
Year: 2019
Make: Alexis Fire Equipment
Model: Pumper/Tanker
Chassis: Commercial
Body Style: Pumper/Tanker
Pump Size: 1500
Tank Size: 3000
Feature: Exterior Mount Ladder
Exterior Color: Red
New Delivery: New Delivery
