Delivered Apparatus

Custom Built Since 1947.

300 GALLON MINI PUMPER #2473

CLENDENIN VOLUNTEER FIRE DEPARTMENT, INC. - CLENDENIN, WEST VIRGINIA
FEATURES:

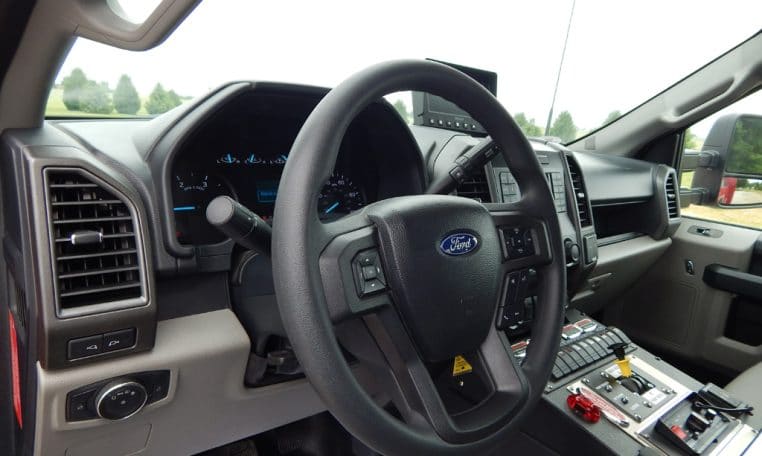

  • Ford F-550 4×4 Super Duty Crew Cab
  • 6.7L 4V OHV V8 Turbo Diesel Engine
  • Automatic TorqShift 10-Speed Transmission
  • Heavy-Duty Stainless-steel body and Sub-Frame

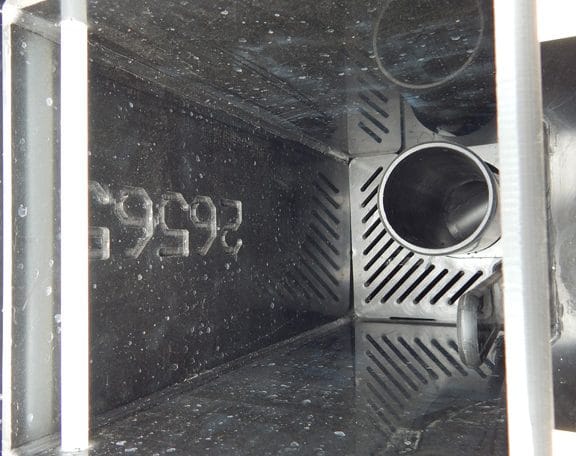

  • 300-Gallon Poly Tank
  • Hale DSD 150 SS 1500 gpm Pump
  • FRC Pump Boss Pressure Governor & Monitoring System
  • Hale ESP-12 Priming Pump
  • 6” Suction One (1) Each Side
  • Two (2) 2 ½” Discharges Left Side
  • One (1) 2 ½” Discharge Right Side
  • One (1) 3” Discharge Right Side
  • One (1) 2 ½” Gated Suction Left Side
  • Two (2) 2 ½” Preconnects Front of Hose Bed
  • Two (2) Cartridge Deadlays L1/R1 Compartments Transverse
  • Booster Reel 100’ of 1” Hose Rear Compartment
  • Cast Products Hose Hooks Rear Compartment

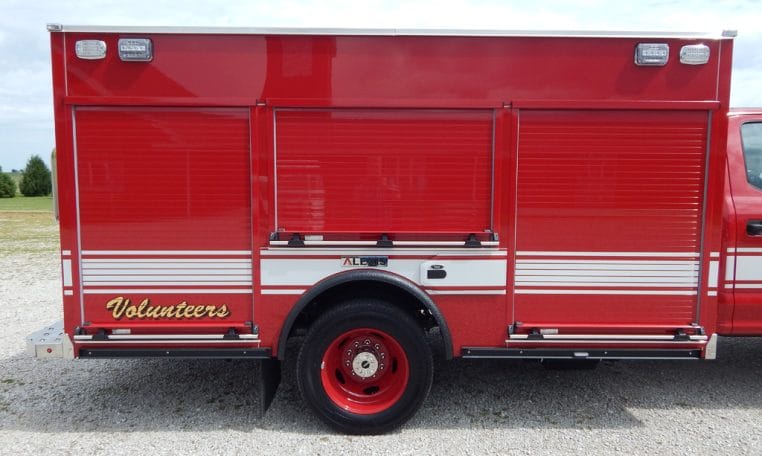

  • ROM Painted Roll-Up Doors

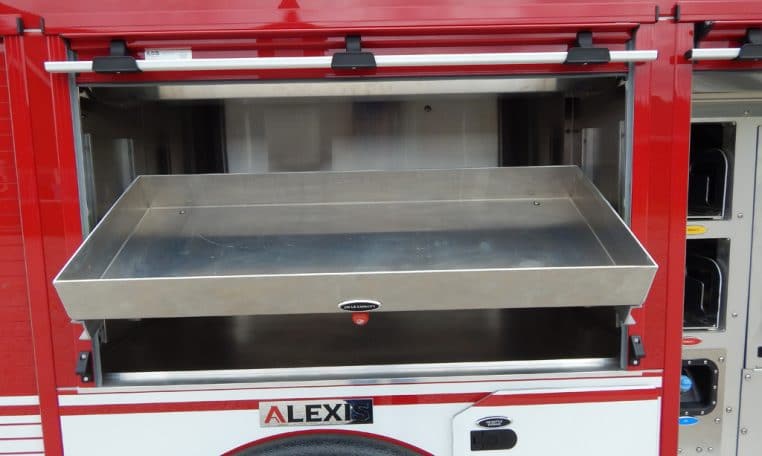

  • 250# Roll Out Drop Down Trays One (1) Each L2/R2 Compartments
  • 250# Roll Out Trays One (1) Each L3/R3 Compartments
  • 500# Roll Out Tray One (1) Rear Compartment
  • PAC Trac Rear Wall L2 Compartment
  • Three (3) Hose Bed Dividers
  • Four (4) Folding Steps Rear of Apparatus
  • Dual Air Bottle Compartment One (1) Each Side
  • Suction Hose and Ladder Storage Upper Compartments Rear
  • Warn Zeon 12-S 12,000# Winch Mounted in Custom CJC Bumper
  • Rear Tow Eyes
  • 2” Rear Hitch Receiver and Wiring
  • Whelen LED Warning Light Package
  • Whelen Justice JE2NFPA 56” Light Bar
  • FireTech 46” Brow light
  • FireTech Guardian Junior Scene Lights Two (2) Each Side, Two (2) Rear
  • Whelen Electric Siren & 100W Speaker
  • 8’ 2” Overall Height
  • 26’ 11” Overall length
  • 203.8” Wheelbase
  • 84” Cab to Axle
  • 7500 FAWR
  • 14700 RAWR
  • 19500 GVWR
Year: 2022
Make: Alexis Fire Equipment
Model: Mini Units
Chassis: Ford F550
Body Style: Mini Pumper
Pump Size: Hale DSD 150 Split Shaft 1500 GPM
Tank Size: 300
Exterior Color: Red
New Delivery: New Delivery
