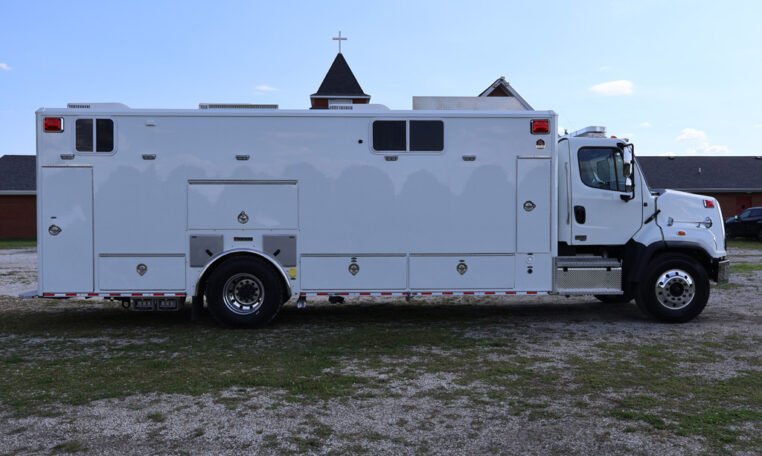

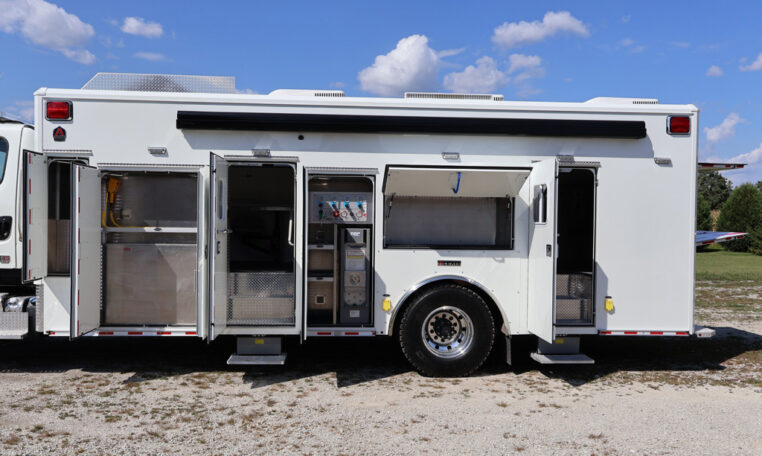

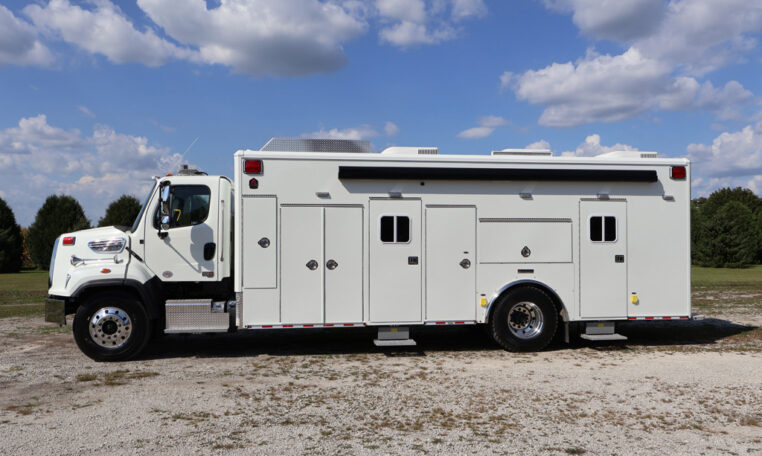

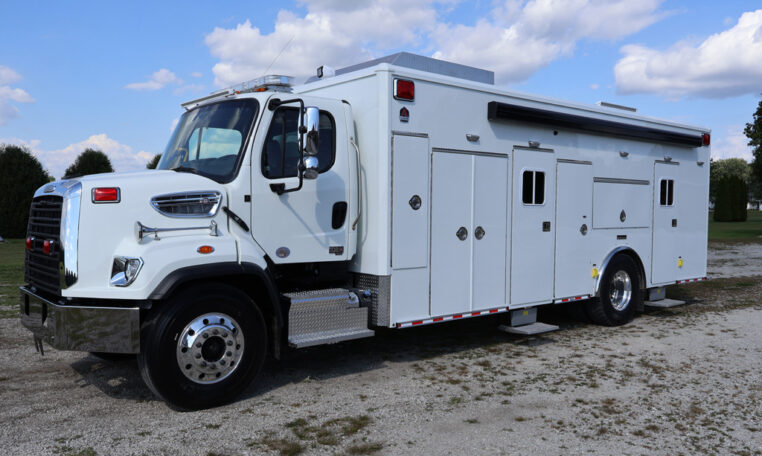

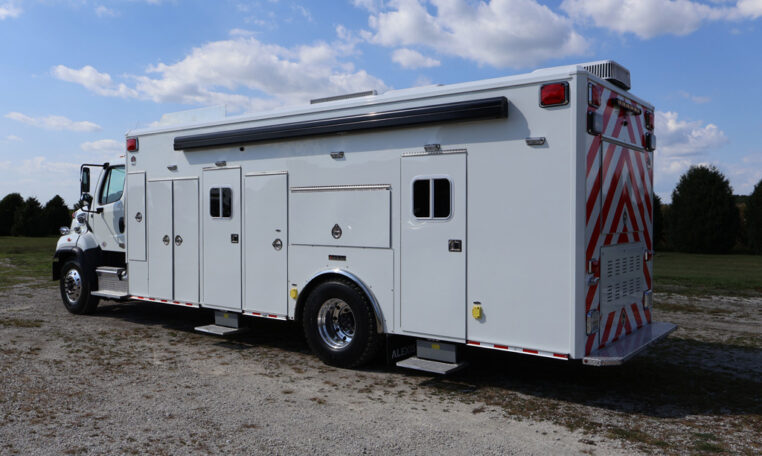

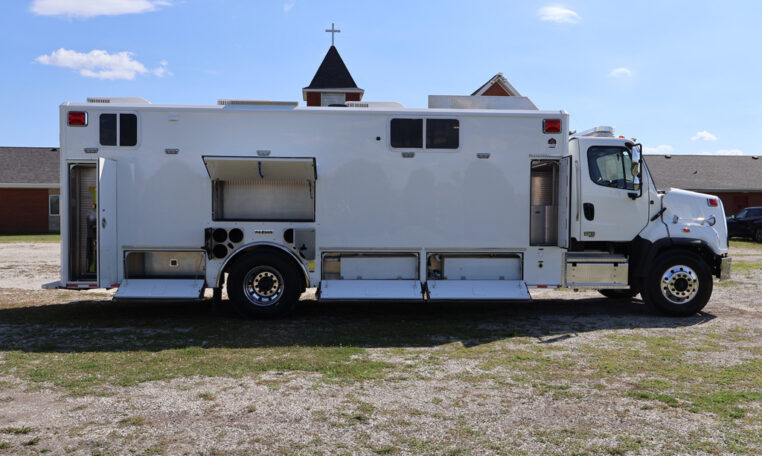

22’ HEAVY WALK-IN RESCUE #S795
DOÑA ANA COUNTY FIRE & RESCUE SERVICES DEPARTMENT / LAS CRUCES, NEW MEXICO

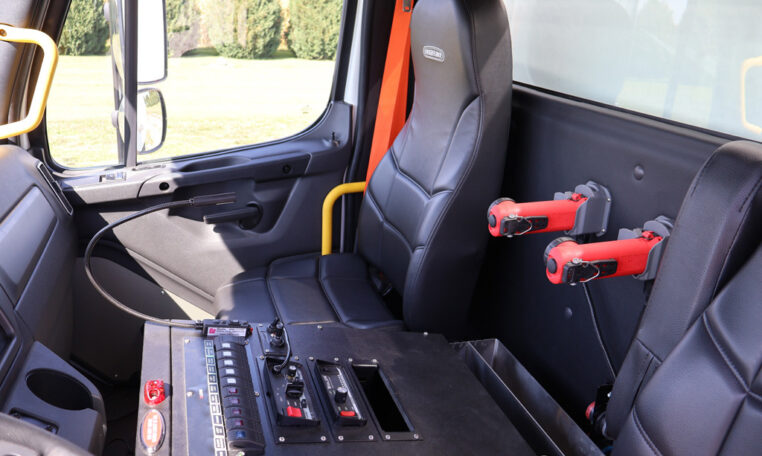

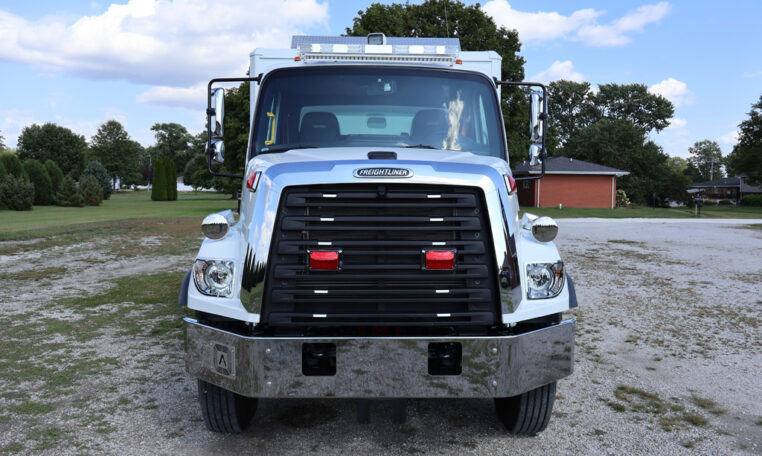

- Freightliner 108SD 2-Door Chassis
- Cummins 400 HP L9 Engine
- Allison 3000 EVS Automatic Transmission
- Heavy Duty Aluminum Body and Subframe
- Beveled Lap Style Exterior Compartment Doors

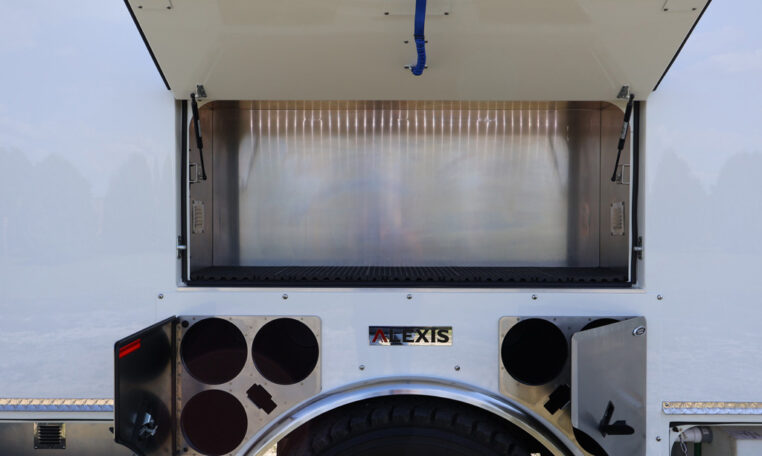

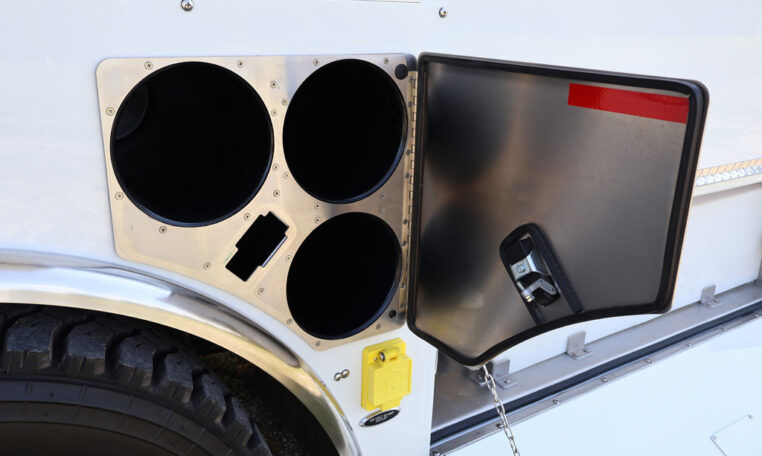

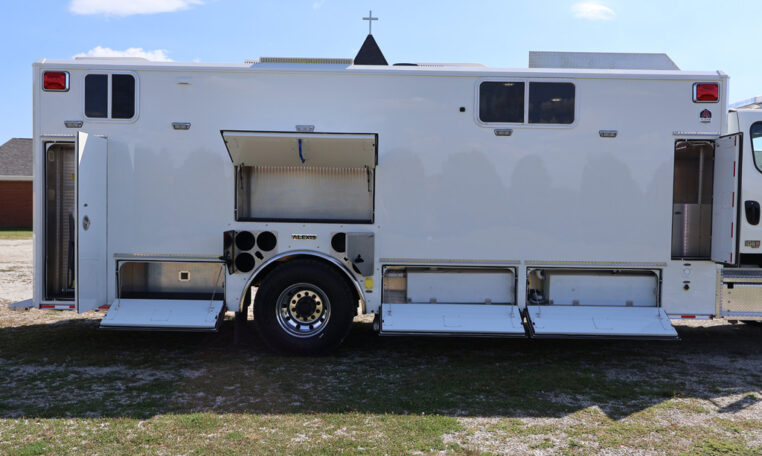

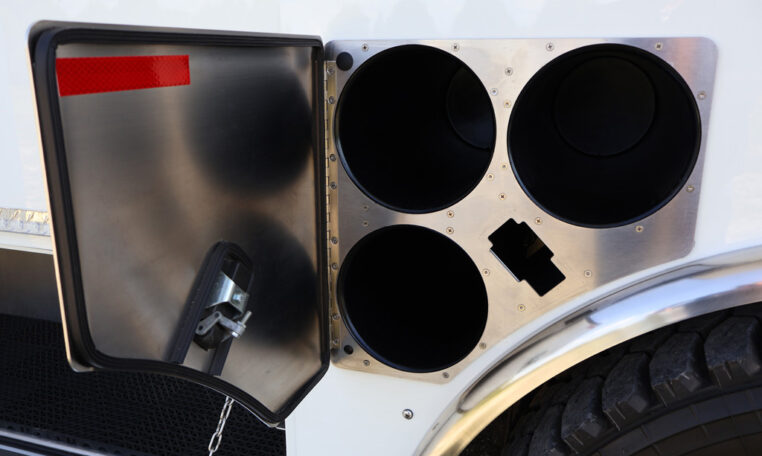

- Two (2) Triple Bottle Wheel Well Compartments, Right Side
- Gray Loncoin Interior Flooring with Gray Interior Countertops and Upholstery
- White Magnetic Interior Walls with White Kemlite Ceiling
- Forward Command Area and Rearward Rehab Area in the Rescue Interior

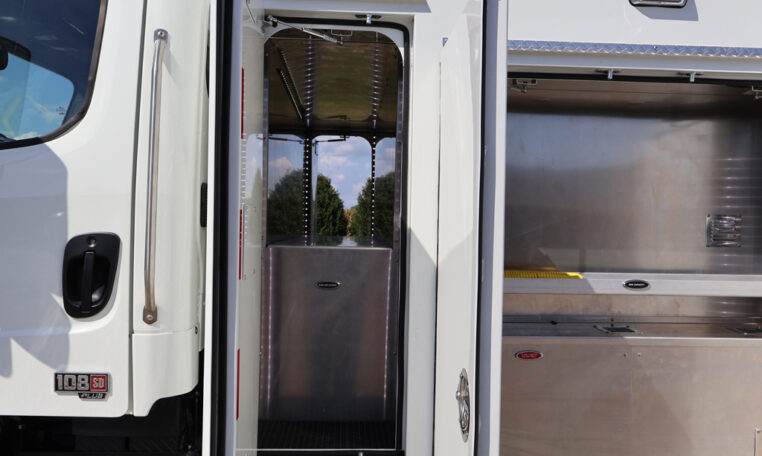

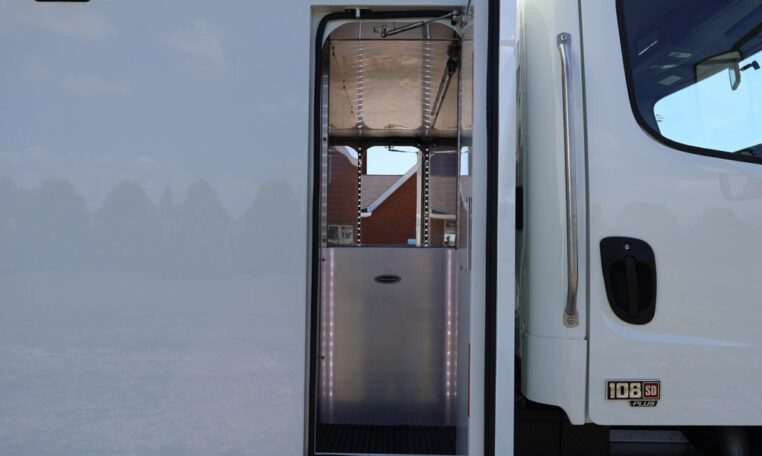

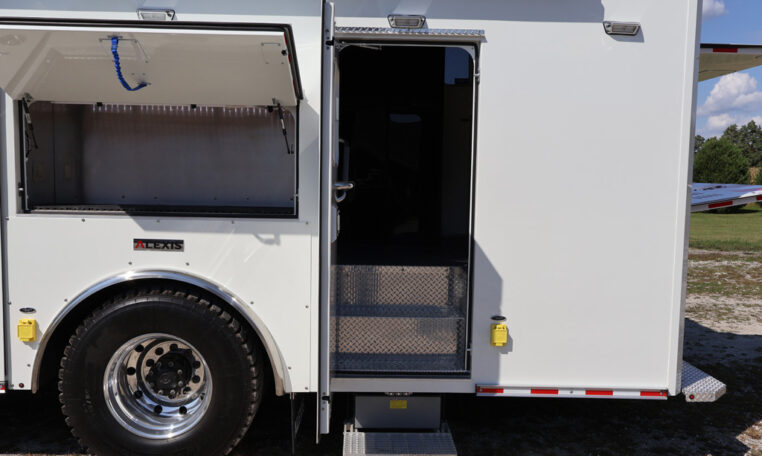

- Two (2) Side Entry Doors, Left Side with One (1) Forward for Command Area Access and One (1) Rearward for Rehab Area Access
- Automatic Steps interlocked with Park Brake at Each Door Opening
- Enhanced Interior Insulation and Reflective Spray on Roof Coating to Reflect the Sun’s Energy and Reduce the Heat
- Gained through the Top of the Vehicle
- Two (2) Large Sliding Windows with Egress Option, One (1) Each Side

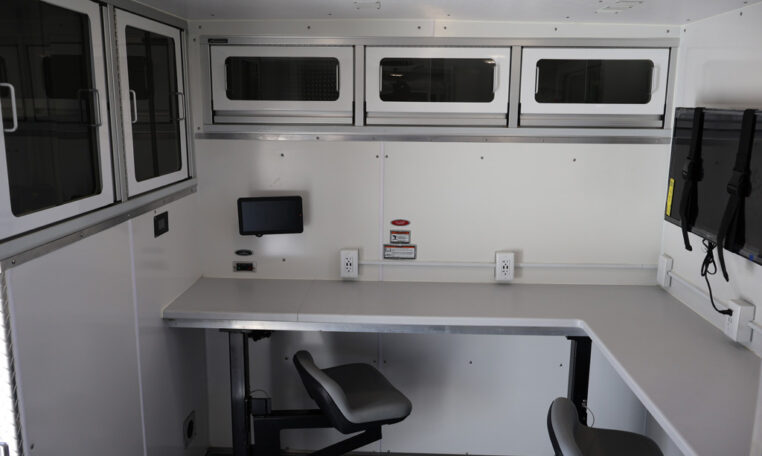

- “L” Shaped 18” Deep Corian Desktop in the Command Area at the Front of the Rescue Interior with Panduit Style Outlet Strip Containing 120 Volt and USB style Outlets
- Three (3) Non-Riding Swing Out Style Swivel Chairs at Command Desk

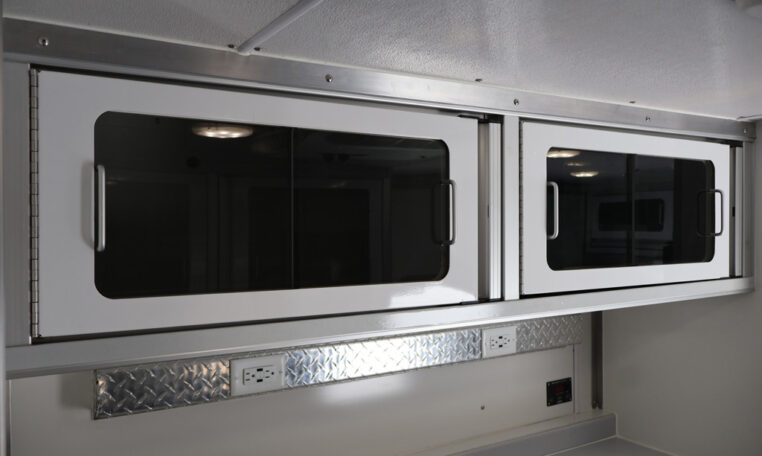

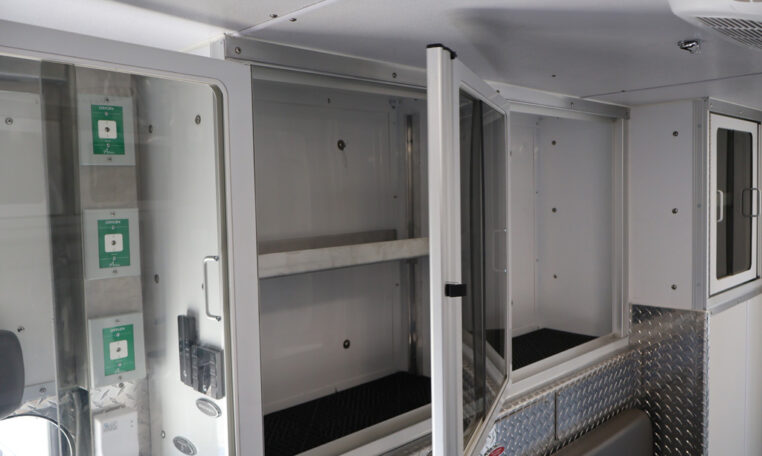

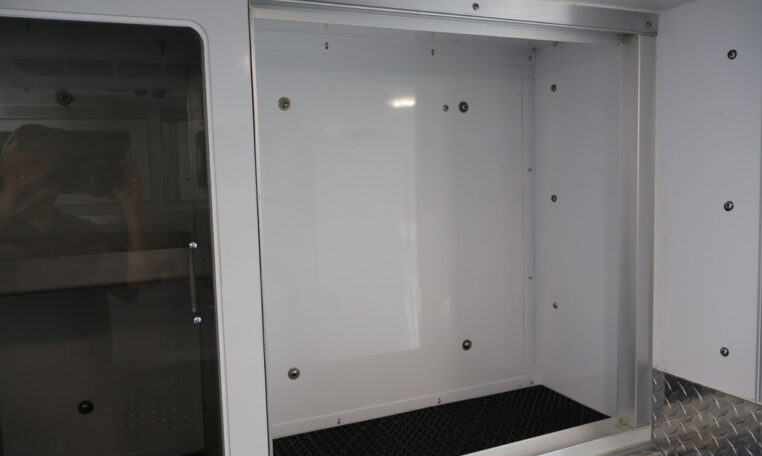

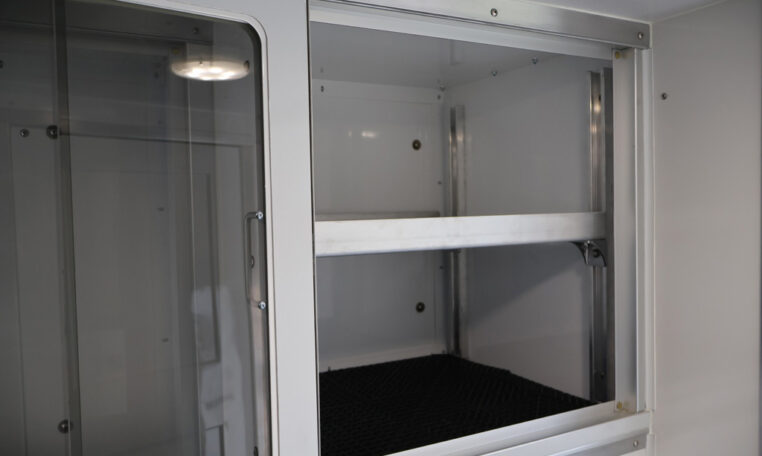

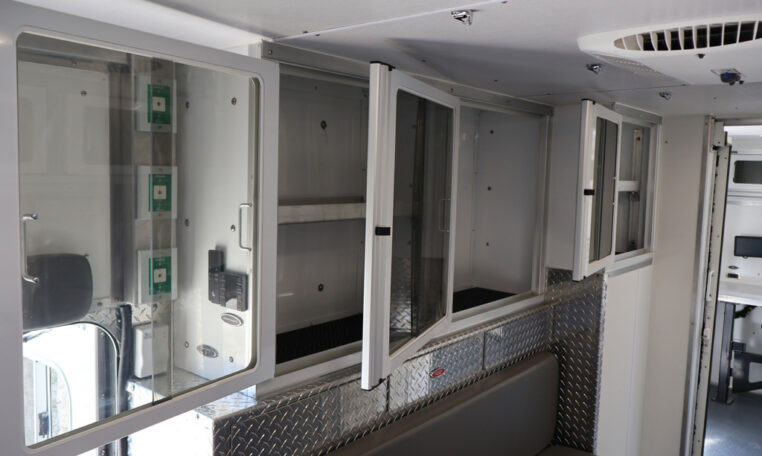

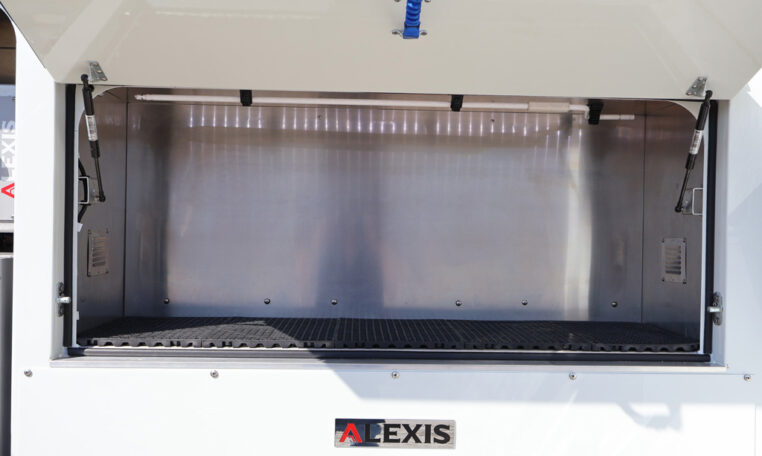

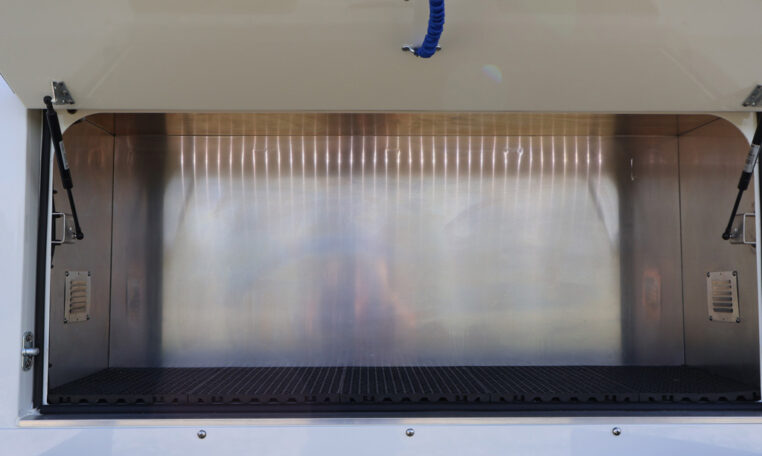

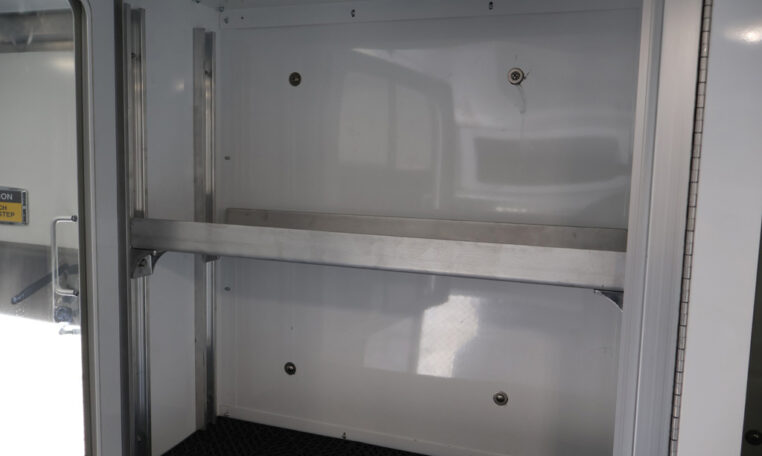

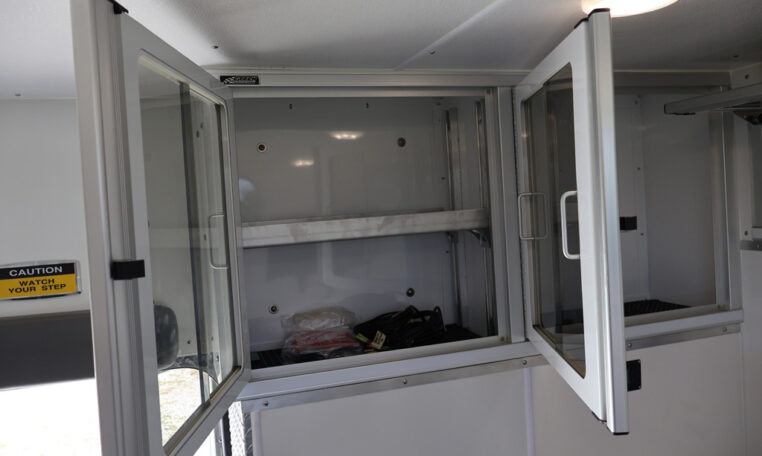

- Aluminum Interior Compartments with Sliding Smoked Plexiglass Restocking Doors
- Communications Compartment in Interior Command Area for Radios

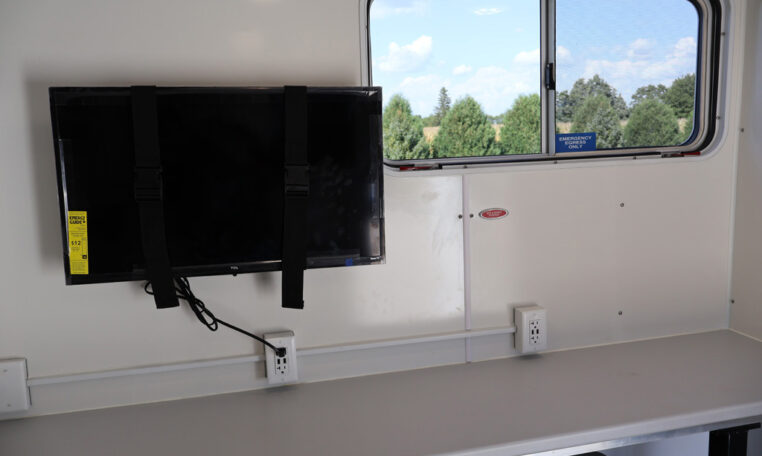

- 32” TV in Command Area
- FRC InView 360 Camera System with Monitor in Command Area Only
- Rear Backup Camera with Monitor in Cab

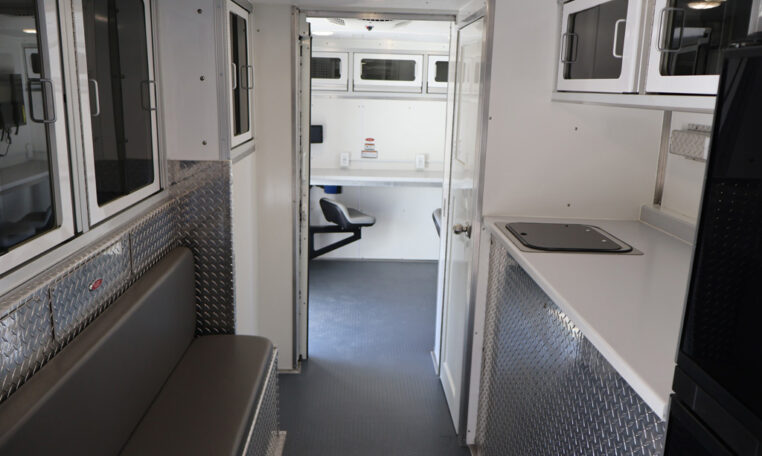

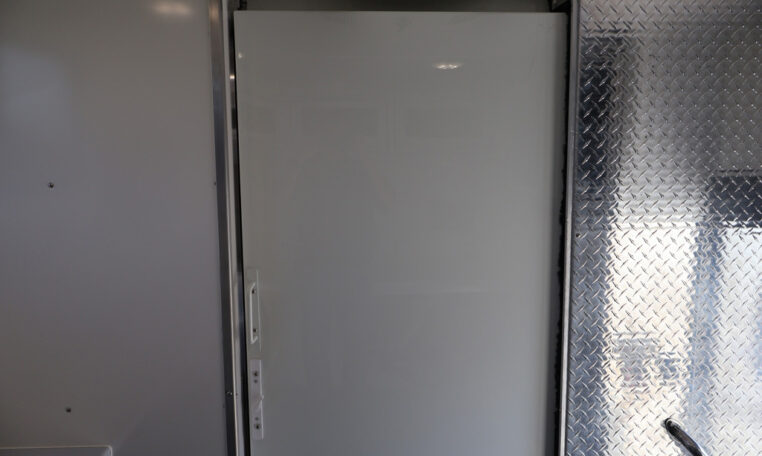

- Aluminum Pocket Door in Wall separating the Forward Command Area and the Rear Rehab Area

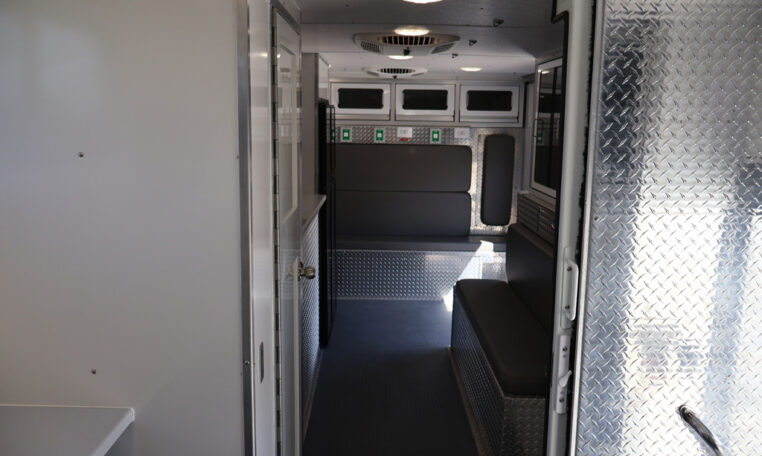

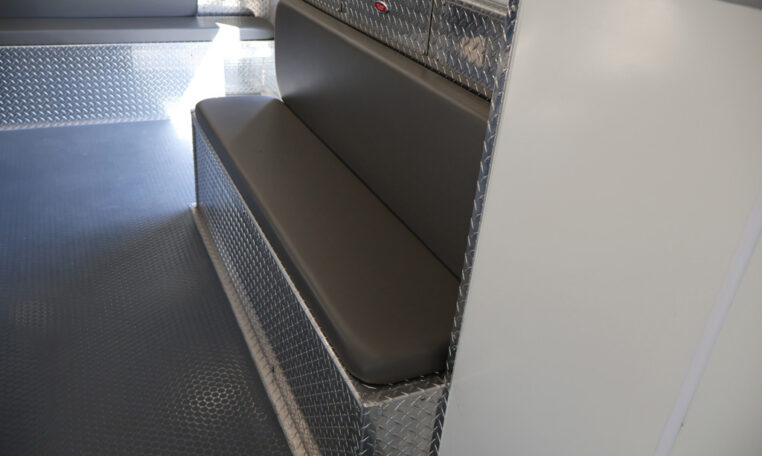

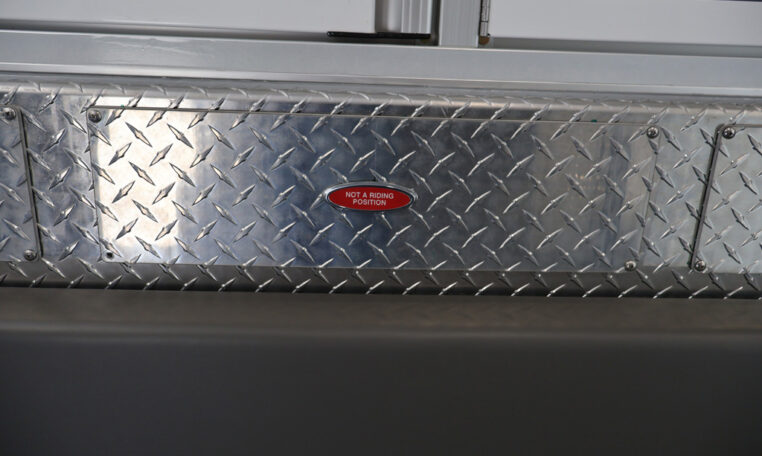

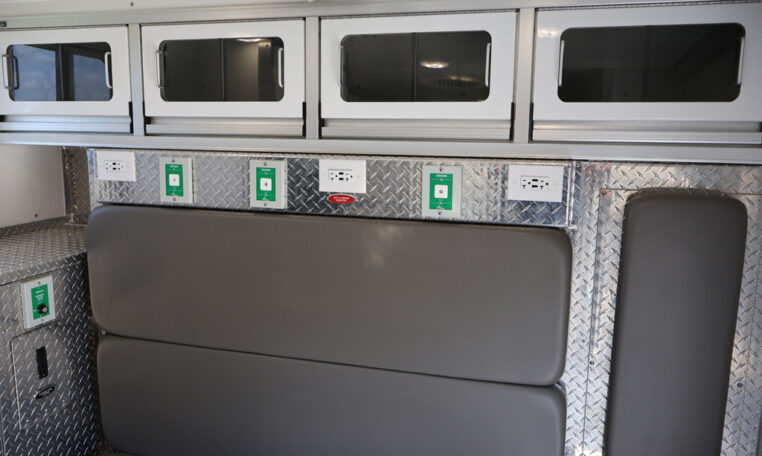

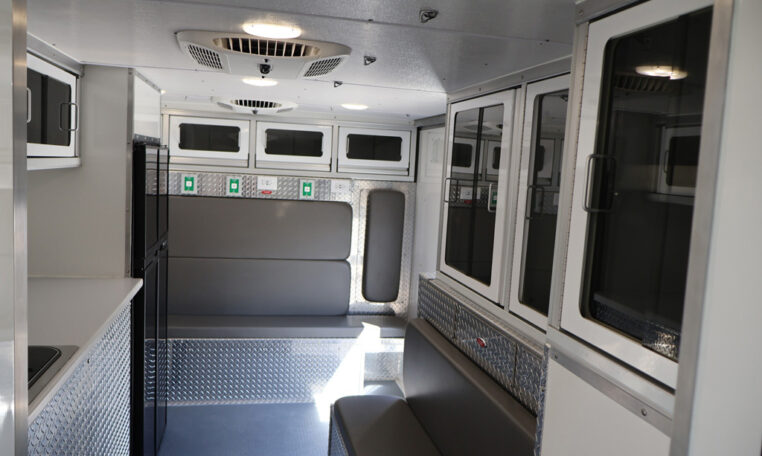

- Non-Riding Transverse Squad Bench for Three (3) Occupants in the Rear Rehab Area
- Non-Riding Seating for Three (3) Occupants, Left Side in the Rear Rehab Area

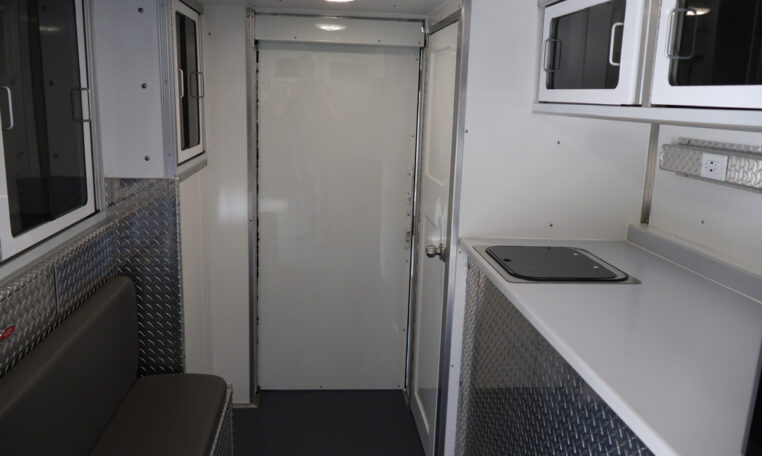

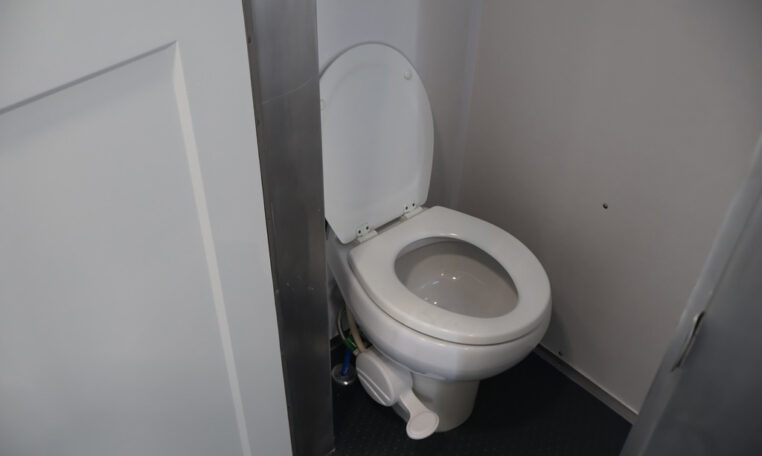

- RV Style Toilet with Hinged Privacy Door, Right Side in the Rehab Area Ahead of the Kitchen Area

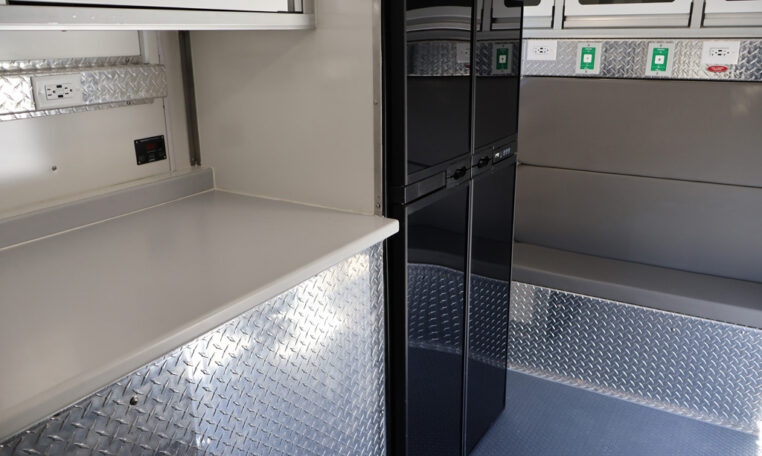

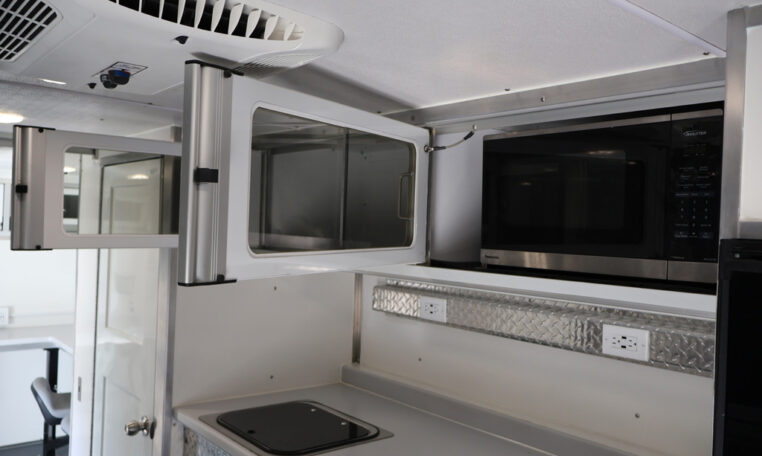

- Kitchen Area on the Right Side of the Rear Rehab Area, including Sink with a Folding Faucet, Microwave, and Tall Double Door Refrigerator
- Panduit Style Outlet Strip Containing 120 Volt and USB style Outlets in the Kitchen Area

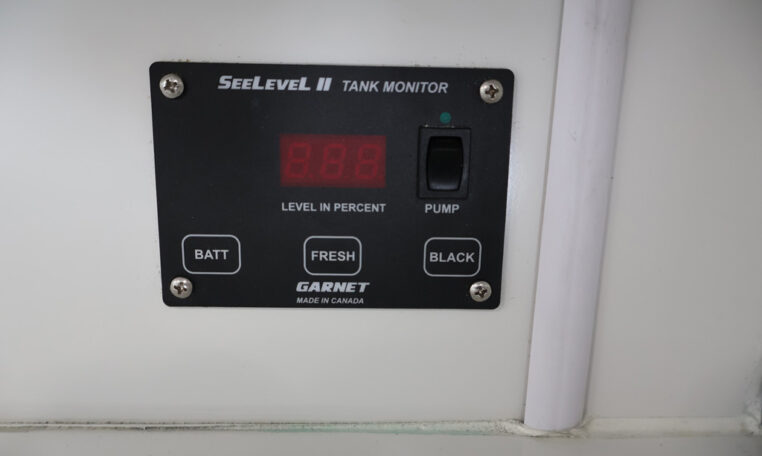

- 36 Gallon Freshwater Tank with Drain Valve and Exterior Inlet for Filling
- 36 Gallon Wastewater Tank with Drain Valve and Hose for Draining
- Exterior Tap for Hand Washing during Wastewater Draining Operations

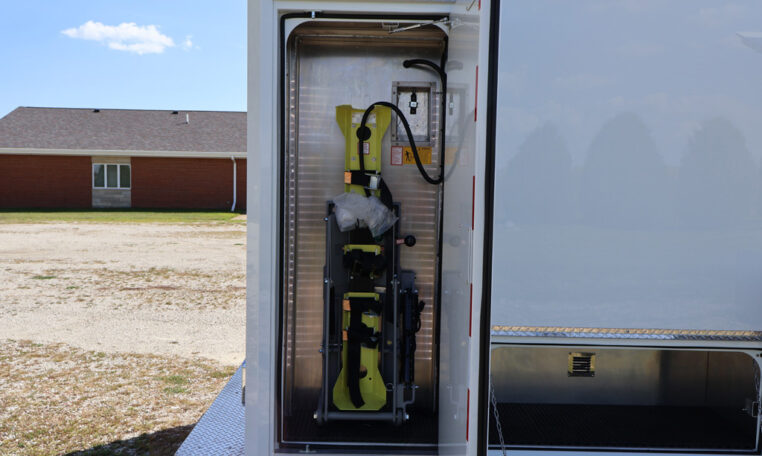

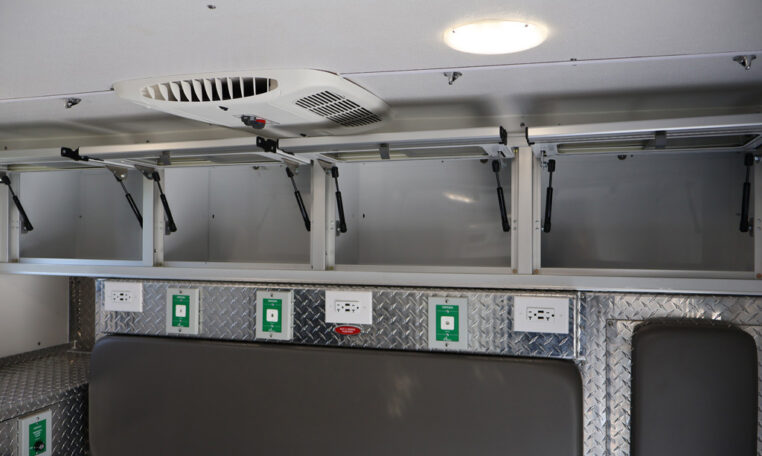

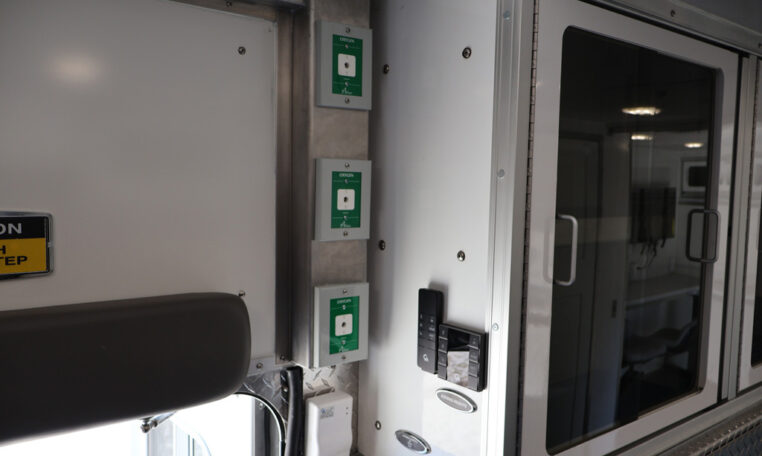

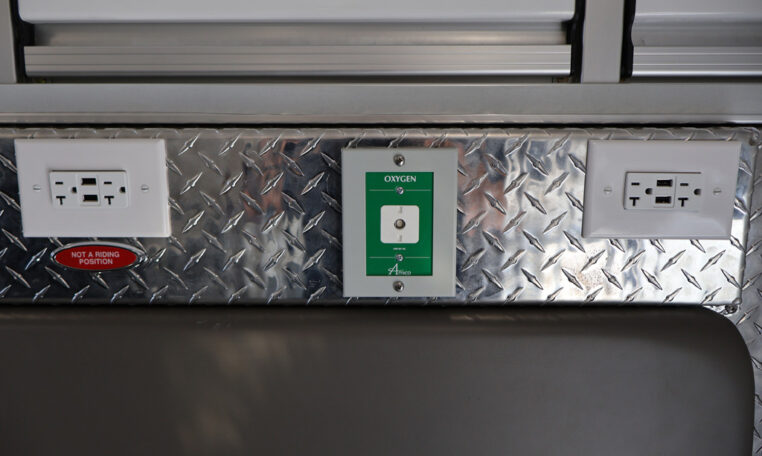

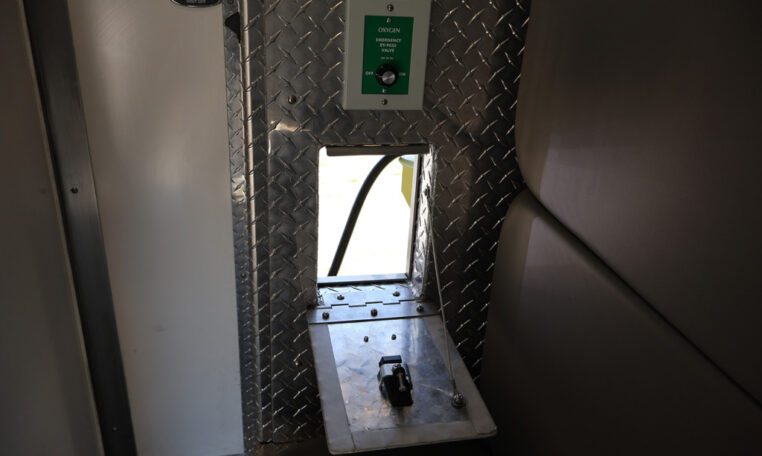

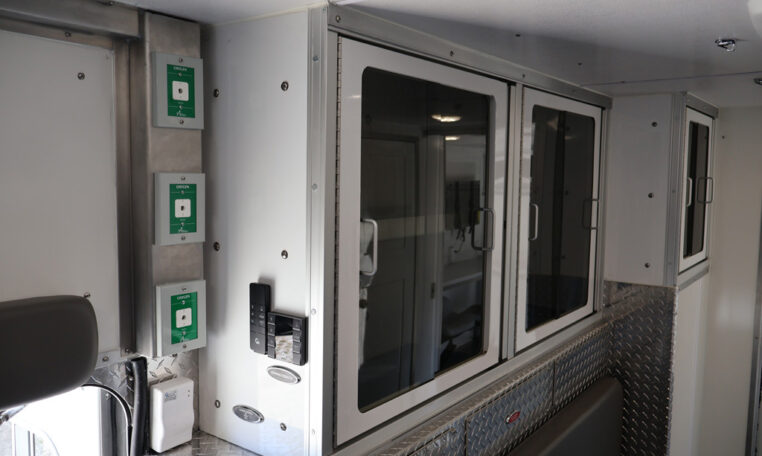

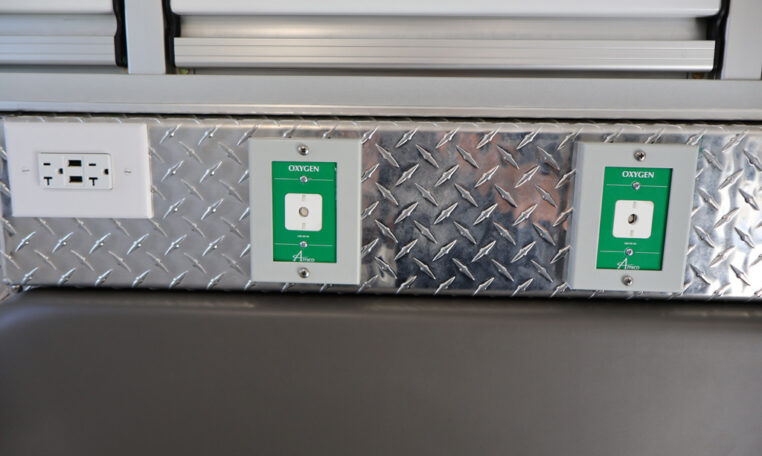

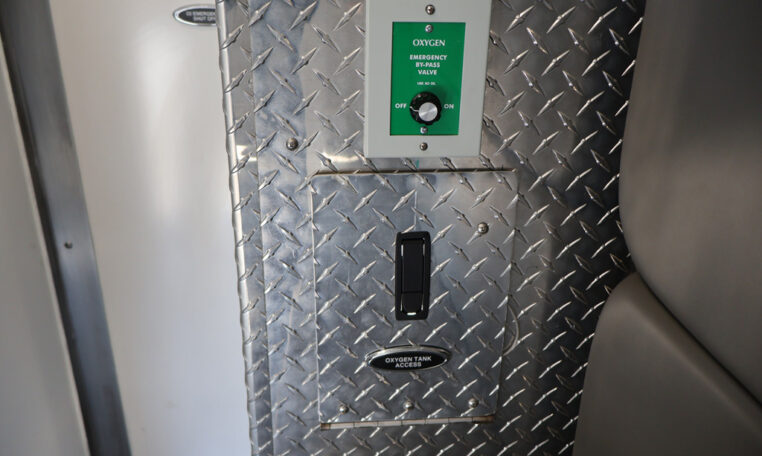

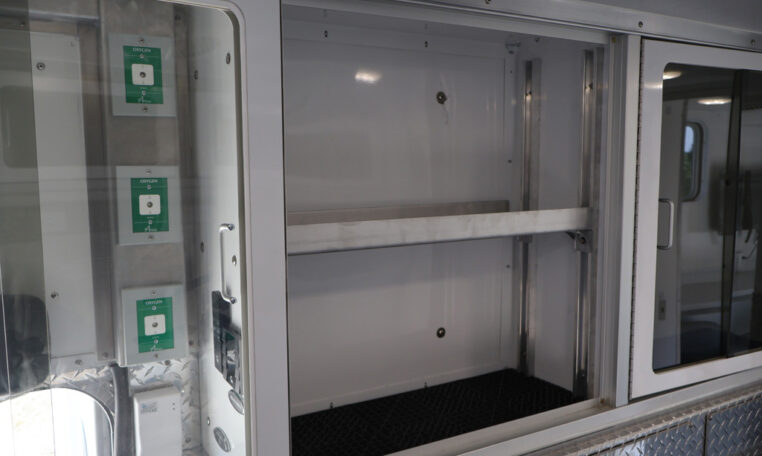

- One (1) Zico Electric Drop-Down Oxygen Bottle Lift in Right Rear Compartment with Oxygen Piped to Outlets
- Located at Each Seating Position in the Rear Rehab Area
- Cardiac Monitor Mounting Counter with Outlet in the Rear Rehab Area
- One (1) IV Hook Ceiling Mounted near Each Seating Position in the Rear Rehab Area

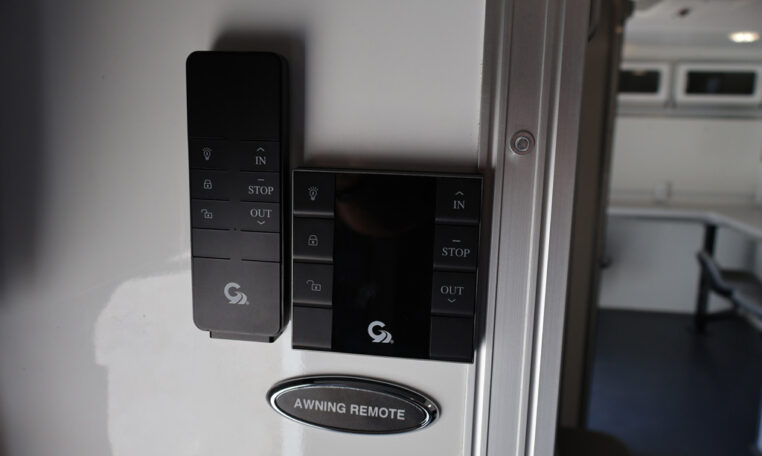

- One (1) Girard G2000 Automatic Awning with Wind Sensor, Left Side
- 12 Volt Electrical System with NFPA Compliant Warning Light Package
- Progressive Dynamics Battery Charger with Viair Air Pump
- 50 Amp Shoreline Connection with 50’ Cord in Rear Compartment
- Whelen LED Warning Light Package with Rear LED Arrow Stick
- Whelen 200W Siren and One (1) CPI 100W Speaker

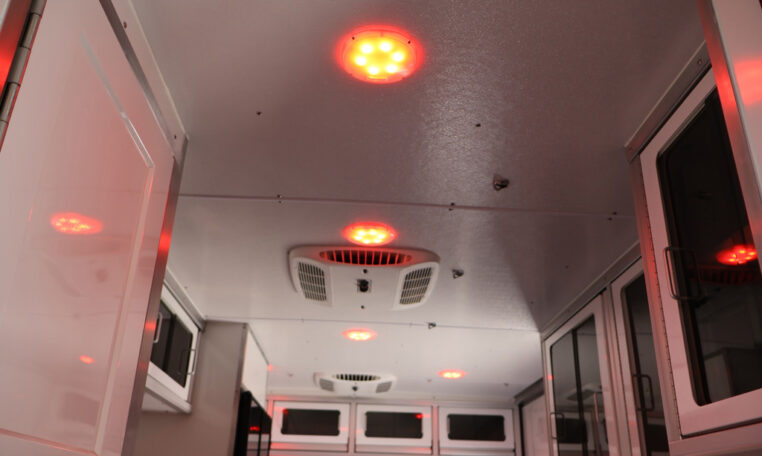

- Eight (8) Whelen LED Interior Dome Lights with Three (3) in the Forward Command Area and Five (5) in the Rear
- Rehab Area with Switches and Checkout Timers at Each Side Entry Door
- Two (2) FireTech HiViz 40″ LED Scene Light Bars, One (1) Each Side
- Two (2) Whelen 9S LED Scene Lights, Rear One (1) Each Side
- Ten (10) Whelen PEL LED Perimeter Enhancement Lights, Five (5) Each Side
- One (1) FireTech HiViz 46” LED Brow Light
- One (1) GoLight LED Remote Controlled Spotlight, Centered at the Front of the Body
- Three (3) Coleman Mach RV Style HVAC Units

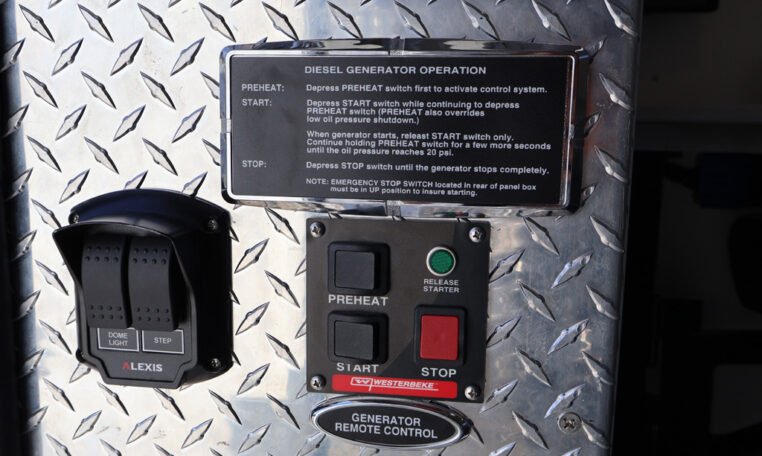

- Westerbeke 15 KW Diesel Generator Mounted in the Rear Compartment

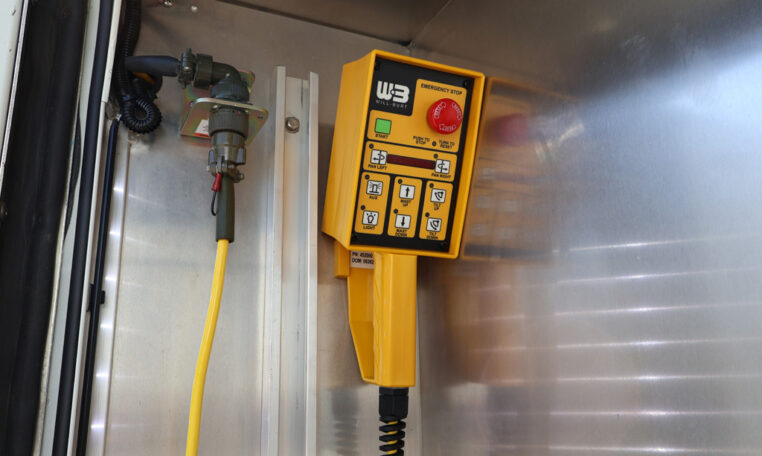

- Night Scan 12 Volt LED Light Tower with Whelen PFH LED Lights on the Body Roof with Aluminum Treadplate Brush Guard

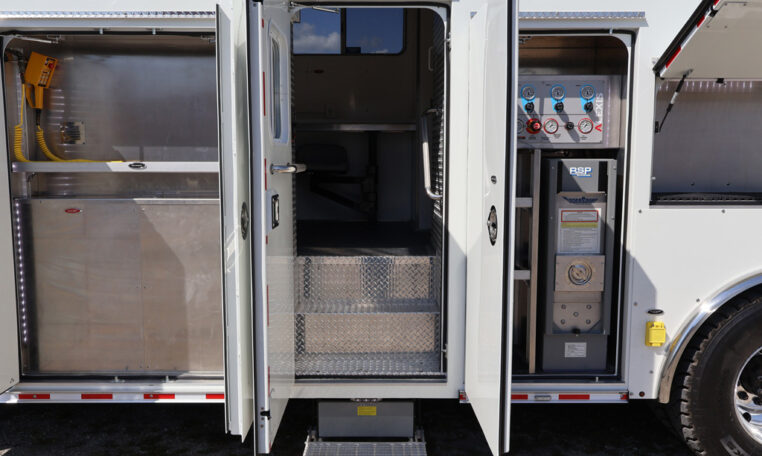

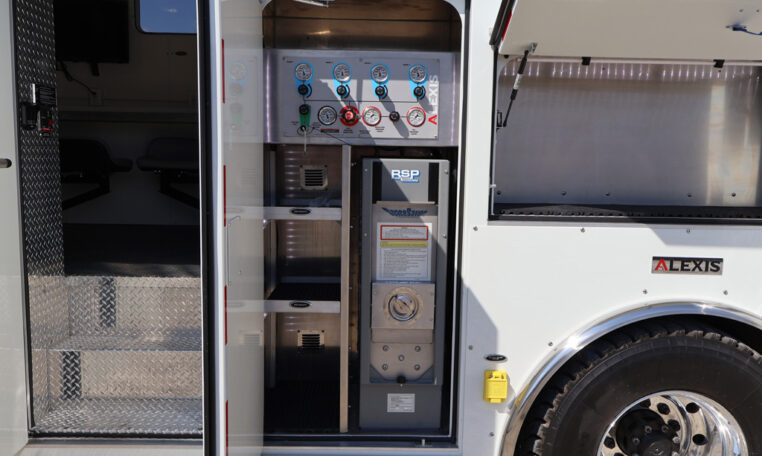

- 4-Bottle 6000 PSI Cascade System with ASME Cylinders
- Spacesaver 2-Cylinder Fill Enclosure in L2
- 11’ 0” Overall Height
- 34’-6” Overall Length
- 248” Wheelbase
- 182.5” Cab to Axle
- 14,600 FAWR
- 31,000 RAWR
- 45,600 GVWR
