Delivered Apparatus

FEATURES:

• International HV607 Standard Cab Chassis
• Cummins 3600 HP L9 Engine
• Allison 3000 EVS Automatic Transmission
• Two (2) Person Cab
• Heavy Duty Stainless-Steel Body and Sub-Frame

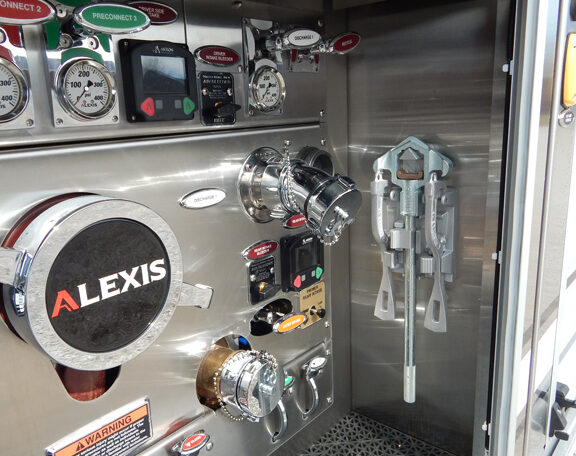

• Stainless-Steel Pump Module
• Waterous CXVPA 1250 GPM PTO Pump
• Trident Air Prime System Two (2) Location
• FRC Pump Boss Pressure Governor & Monitoring System
• One (1) 6” Intake, Left Side
• One (1) 2½” Gated Intake, Left Side
• One (1) 5” Intake, Adapted to 6” NSTM, Rear
• One (1) 2½” Discharge, Left Side
• One (1) 2½” Mattydale Preconnect
• Two (2) 1½” Cartridge Lay Preconnects
• One (1) 3″ Bumper Extension Preconnect
• One (1) 3” Discharge, Rear
• One (1) Triple Wheel Well Air Bottle Compartment, Right Side Ahead of Rear Wheels
• One (1) Fire Extinguisher/Spare SCBA Cylinder Compartment – Left Side, Rear Wheel Well
• 2000 Gallon Poly Tank
• One (1) 4” FirePrograms Tank Fill
• Newton 10” Stainless-Steel Manual Swivel Dump, Rear
• Hose Bed w/ 3 Dividers
• ROM Roll-Up Doors
• Six (6) Folding Steps, Rear
• Progressive Dynamics Battery Charger w/ Compressor
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Front Body Post
• Whelen Warning and Scene Light Package
• Whelen TAL65 Traffic Advisor
• Whelen 200W Siren and 100W Speaker
• Federal Q2B Recess Mounted Siren
• Two (2) 8″ FireTech Scene Lights, Rear
• Two (2) 40″ FireTech Scene Lights, One (1) Each Side
• FireTech Brow Light
• Zico Hydraulic Folding Tank Bracket, Left Side
• Suction Hose Storage on One (1) Each, Ladder Rack and Folding Tank Rack
• 10’ 0” Overall Height
• 28’ 8” Overall Length
• 222” Wheelbase
• 154.7” Cab to Axle
• 16,000 FAWR
• 31,000 RAWR
• 47,000 GVWR
