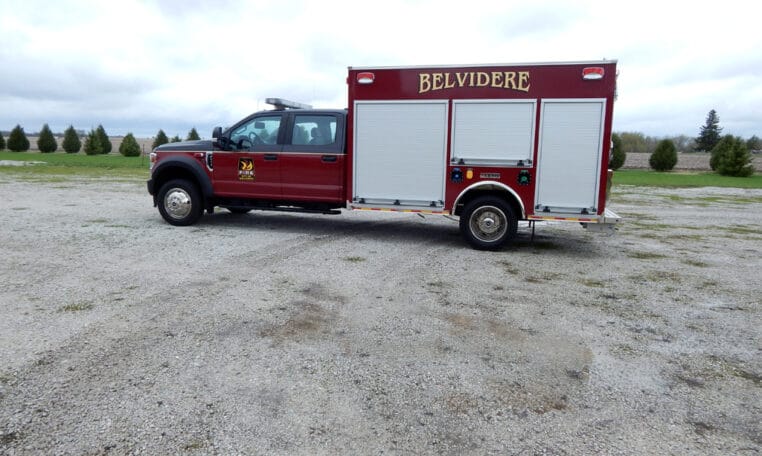

200 GALLON - RESPONSE QUICK ATTACK UNIT #2430

CITY OF BELVIDERE FIRE DEPARTMENT - BELVIDERE, ILLINOIS
FEATURES:
  • Ford F-550 4×4 Crew Cab Chassis
  • 6.7L Power Stroke V8 330HP Diesel Engine
  • TorqShift 10-Speed Automatic Transmission
  • Heavy Duty Stainless-Steel Body & Subframe
  • Five (5) Person Cab Seating
  • ROM Roll-Up Doors
  • HMA Proteus 1 PTO High Pressure Fire Suppression System
  • 200-Gallon Poly Tank
  • Two (2) Hannay High Pressure Hose Reels
  • Two (2) Single Air Bottle Storage Compartments, Right Side Wheel Well
  • Floor Mounted Console for Emergency Switches w/ Map/Binder Storage
  • Progressive Dynamics On-Board Battery Charger
  • Kussmaul Super Auto Eject Shoreline Connection
  • Whelen LED Warning Light and Scene Light Package
  • Whelen Electronic Siren and 100-Watt Speaker
  • Audiovox Color Observation Back-up Camera System
  • Ladder/Pike Pole Storage, Under Rear Compartment
  • Chevron Striping, Rear
  • 8’ 8” Overall Height
  • 25’ 10” Overall Length
  • 203” Wheelbase
  • 84” Cab to Axle
  • 6,500 FAWR
  • 14,706 RAWR
  • 19,500 GVWR
Year: 2021
Make: Alexis Fire Equipment
Model: Response One
Chassis: Ford F550
Body Style: Response One
Pump Size: HMA Proteus 1
Tank Size: 200
Exterior Color: Red
New Delivery: New Delivery
Program Vehicle: Response One
