Delivered Apparatus

FEATURES:

• Spartan Metro Star MFD 10” Raised Roof Chassis
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless-Steel Body and Sub-Frame
• Four (4) Person Cab
• Side Control Stainless-Steel Pump Module
• Hale QMAX 150 XS Single Stage Split-Shaft 1500 GPM Pump
• Trident Air Prime System
• FRC Pump Boss Pressure Governor & Monitoring System
• Two (2) 6” Intakes, One (1) Each Side with 30° Adaptor to 5” NST
• One (1) 2½” Gated Intake, Left Side
• One (1) 5” Front Bumper Intake Adapted to 6” NST
• One (1) 2½” Discharge, Left Side
• One (1) 2½” Discharge, Rear
• One (1) Elkhart 8297-98F Stinger Deck Gun with 18” Extension, 3” Fixed Monitor Piping Above Pump Module
• Two (2) 2½” Preconnects, Front of Hosebed
• Two (2) 1½” and One (1) 2½” Cartridge Lay Preconnects, Pump Module
• One (1) 4” Tank Fill FirePrograms Valve adapted to 5” Storz, Rear
• One (1) 2½” Tank Fill FirePrograms Valve, Rear
• One (1) Newton 10” Stainless-Steel Electric Rear Swivel Dump
• 2200-Gallon Poly Tank with Stainless-Steel Side Panels
• Hosebed with Three (3) Dividers, LED Lighting, Hypalon Cover
• EMS Compartment in Cab with 120V Power Strip
• One (1) Custom Bumper Extension with 2½” Front Preconnect Center Hose Well Compartment
• ROM Painted Roll-Up Doors
• Aluminum Rub Rails with LED Warning Lights & LED Undercarriage Lights
• Pac Trac on the Upper Rear Wall L1/R1, L3/R3, L4 Compartments
• One (1) Oil Dry Hopper, Slide Rail Mounted R1 Compartment
• Pac Trac Hinged Tool Boards, L2/R2 Compartments
• Pac Trac Tool Board, Rear wall of Cab

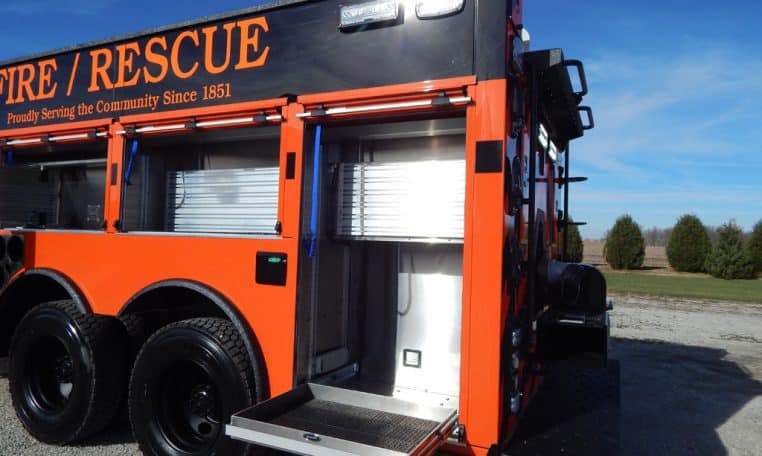

• Four (4) 500# Roll-Out Trays, L1/R1, L4/R4 Compartments
• One (1) Zico Rotary Quic Index, On Tray in R4 Compartment
• One (1) Aluminum 2500-Gallon Folding Tank, Rear Access Through the Tank
• Ladder Storage, Rear Through the Tank, One (1) 14’ Roof Ladder with Hooks, One (1) Attic Ladder, Two (2) Pike Poles
• Hard Suction Storage Compartments, Rear Access, One (1) Each Side Above Compartments
• Dual Fire Extinguisher Compartment, Right Side Ahead of Wheel Well
• Two (2) Triple Air Bottle Storage Compartments, One (1) Left Side Ahead of Wheel Wells, One (1) Right Side Behind Wheel Wells
• Eight (8) Folding Steps, Rear Four (4) Each Side
• One (1) Kussmaul LPC 40 Battery Conditioner with 120V 20A Auto Eject
• Whelen Warning Light Package
• FRC Spectra LED Scene Lights
• One (1) Whelen Traffic Advisor, Rear
• Rear and Side Cameras with Cab Mounted Display

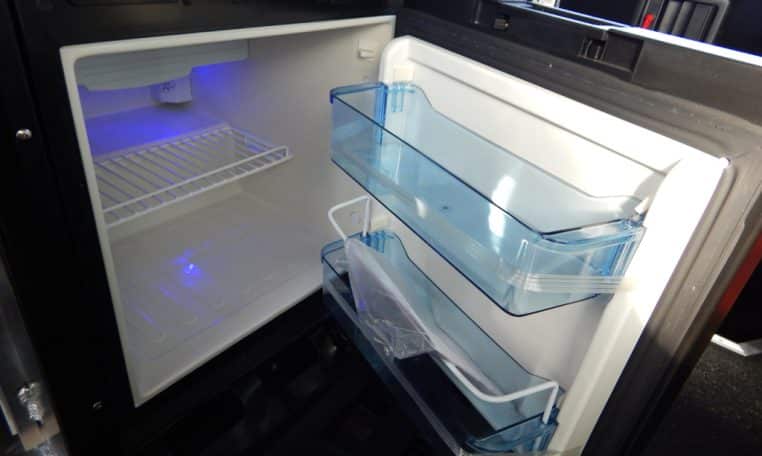

• Norcold 2.7 cu ft Refrigerator, Rear of cab
• 9’ 10” Overall height
• 37’ 1” Overall length
• 231” Wheelbase
• 177” Cab to Axle
• 21,500 FAWR
• 44,000 RAWR
• 65,000 GVWR
