Delivered Apparatus

FEATURES:

• Spartan FC-94 MFD 10” Raised Roof
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Stainless-Steel Body and Subframe
• Four (4) Person Cab
• 24” Front Bumper Extension with Center Hose Well
• Hale DSD 1500 GPM Split Shaft Pump
• Trident Air Primer, Two (2) Location
• 1000 Gallon Poly Tank
• Transverse Storage Compartment Ahead of Pump Module with Vertical Pull Out Boards Each Side
• Stainless-Steel Side Mount Pump Module
• Two (2) 6” Intakes, One Each Side, Left and Right
• One (1) 5” Front Intake Adapted to 6” NST
• Two (2) 1½” Mattydale and One (1) 2½” Preconnects
• One (1) 1½” Bumper Extension Preconnect
• Two (2) 2½” Discharges, Left Side
• One (1) 2½” Discharge, Right Side
• Two (2) 2½” Discharges, Rear
• One (1) 3” Discharge Adapted to 5” Storz, Right Side
• 3” Fixed Monitor Piping Pump Panel Controlled
• Three (3) Triple Air Bottle Wheel Well Compartments, One (1) Left, Two (2) Right Side
• Two (2) Hose Bed Dividers
• ROM Painted Roll-Up Doors
• 500# Roll Out Tray, Rear Compartment

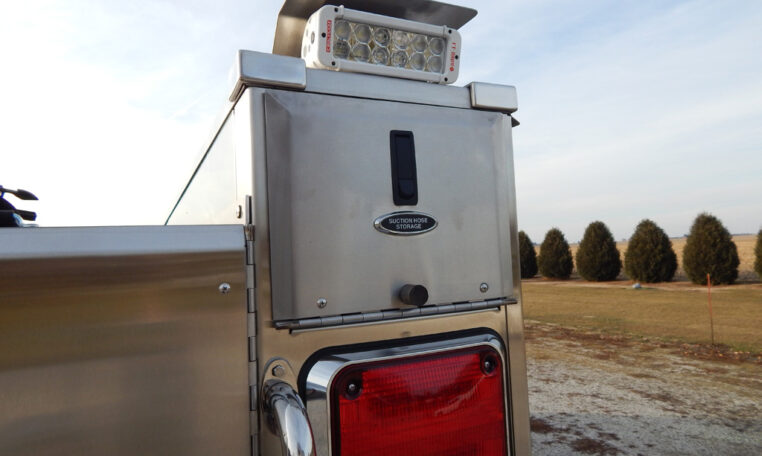

• Two (2) Hard Suction Hose Storage Compartments, Rear Access One (1) Each Side
• Ladder Storage Right Side Vertical in Hose Bed
• Progressive Dynamics Battery Charger with Viair Compressor and Kussmaul 120V 20A Super Auto Eject
• Whelen LED Warning Light Package
• FireTech Scene Light Package
• Twelve (12) Folding Steps, Three (3) Ahead Each Side, Three (3) Each Side Rear
• 9’ 10” Overall Height
• 33’ 4” Overall Length
• 200” Wheelbase
• 146” Cab to Axle
• 21,500 FAWR
• 31,500 RAWR
• 53,000 GVWR
