1000-GALLON TOP-MOUNT PUMPER #2394

AKRON-PRINCEVILLE FIRE PROTECTION DISTRICT - PRINCEVILLE, ILLINOIS
FEATURES:
  • Spartan Metro Star LFD 10” Raised Roof Chassis
  • Six (6) Person Cab Seating w/ Five (5) SCBA Seats
  • Cummins L9 450-HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy Duty Stainless-Steel Body & Subframe
  • Stainless Steel Plumbing and Manifold
  • Black Out Trim Package

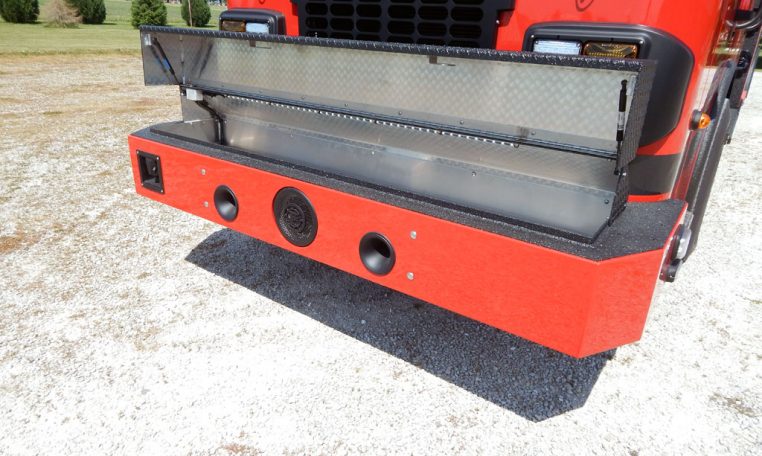

  • Front Bumper Compartment for Rescue Tool Storage
  • ROM Painted Roll-up Doors
  • Darley PSM 1500-GPM Split Shaft Pump
  • Trident Air Primer, Two (2) Locations
  • Top Control Pump Module
  • 1000-Gallon Poly Tank
  • Five (5) 2 ½” Discharges, Two (2) Left, Two (2) Right, One (1) Rear
  • One (1) 3” Discharge, Right Side
  • One (1) 2 ½” Gated Suction, Left Side
  • 5” Rear Suction
  • 3” Deck Gun Piping
  • Akron Apollo Deck Gun w/ Elkhart Monitor Riser
  • One (1) 2 ½” Front of Hosebed Preconnect
  • Two (2) 1 ½” Mattydale Preconnects

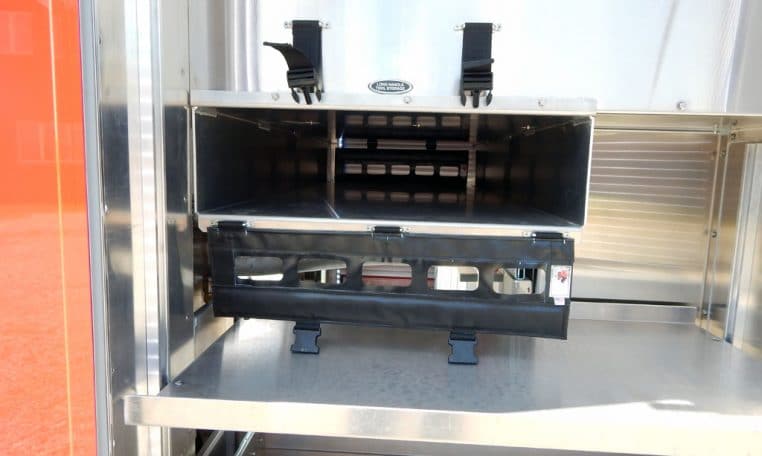

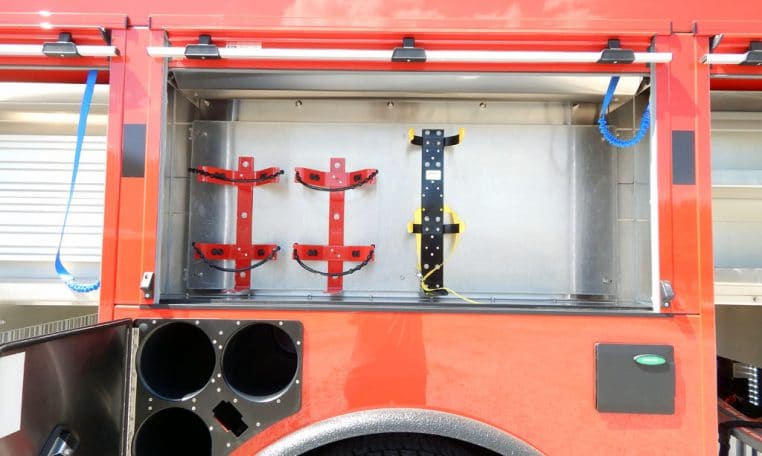

  • Two (2) Triple Air Bottle Wheel Well Compartments, One (1) Each Side
  • Zico Hydraulic Ladder Rack, Right Side
  • Suction Hose Storage, Left Side Compartment Top and Right Rear Compartment
  • Whelen LED Warning Light Package
  • FireTech LED Scene Light Package
  • Audiovox Color Observation Back-up Camera System
  • 10’ Overall Height
  • 36’ 6” Overall Length
  • 238” Wheelbase
  • 170.5” Cab to Axle
  • 21,500 FAWR
  • 31,500 RAWR
  • 53,000 GVWR
Year: 2021
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1000
Feature: Hydraulic Ladder Rack
Exterior Color: Red with Black
New Delivery: New Delivery
