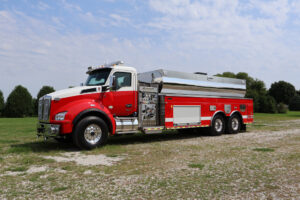

• Peterbilt 367 2-Door Tandem Chassis
• Cummins X15, 600-HP Diesel Engine
• Allison 4000 EVS Automatic Transmission
• On Spot Automatic Tire chains
• Heavy Duty Stainless Steel Body and Sub-Frame
• ROM Roll Up Doors
• 4000-Gallon Poly Elliptical Tank with Stainless Steel Jacket
• Two (2) 4” Fire Programs Tank fills, rear
• Three (3) Newton 10” square electric swivel dump with 18” manual extension
• Waterous S100C20, 2000-GPM Pump
• Four (4) 3” Discharges, one (1) each side and two (2) rear
• One (1) 4” Discharge, right side
• Two (2) 1 ½” Mattydale Preconnects, front of body
• One (1) 2 ½” Gated Suction, left side
• Free floating hosewell, left side pump module running board
• Two (2) Dual bottle Air bottle compartments, wheel well
• Two (2) SCBA pack compartments, rear tandem wheels
• Ziamatic hydraulic hinged folding tank rack for 4000-gallon tank, right side
• Two (2) Suction hose/Pike pole storage compartments with rear access
• Two (2) Hose Trays, rear step
• Turtle tile [...]

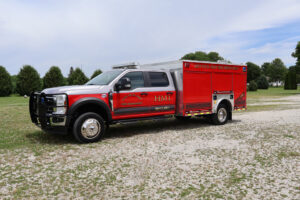

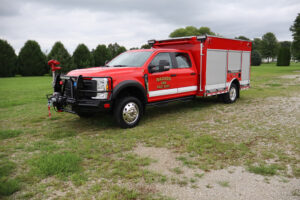

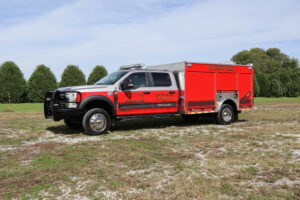

• Ford F-550XL 4×4 Supercab DRW Chassis
• Ford PowerStroke 6.7L 330-HP Diesel Engine
• Ford TorqueShift 6-speed Automatic Transmission
• Heavy Duty Aluminum Body
• ROM painted Roll Up compartment Doors
• Walk-in EMS forward area with right side walk-in door and windows
• Two (2) Drop down squad bench seat, interior squad area
• Interior squad cabinet, above bench seat
• Stainless Steel Top Access Ladder, rear mounted
• Two (2) Upper storage compartments with lift-up doors, one (1) each side roof
• Progressive Dynamics on-board battery charger
• Stokes Basket and three (3) backboard storage racks, transverse compartment
• Floor mounted console for emergency switches, cab
• Kussmaul Super Auto Eject 120-volt shoreline connection
• Whelen Electronic Siren with warning light controls and 100-watt speaker
• Code 3 LED front work lightbar
• Four (4) Whelen LED Scene lights, one (1) each side and two (2) rear
• Two (2) Akron Exenda-Lite LED 12-volt Telescopic lights, one (1) each side
• Whelen LED Warning Light Package
• Diamond Grade Chevron [...]

• DOWNLOAD DRAWINGS AND SPECIFICATIONS

• International MV607 2-Door Chassis
• Cummins L9, 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 14 Gauge 304, #4 Stainless steel Body
• Stainless Steel Sub-Frame
• ROM Painted Roll Up Doors
• 1000-Gallon Poly Tank
• Darley PSM, 1500-GPM PTO Pump
• Pump operator’s panel across top of apparatus
• Two (2) 2 ½” Discharges, one (1) on each side
• Three (3) 3” Discharges, one (1) right side, one (1) rear and one (1) over pump
• Two (2) 1 1/2” Mattydale preconnect module, behind chassis cab
• One (1) 2 ½” Gated Suction, left side
• Ladder storage through tank with rear access
• One (1) AFE stainless steel top access ladder, rear mounted
• Progressive Dynamics on-board [...]

FEATURES:

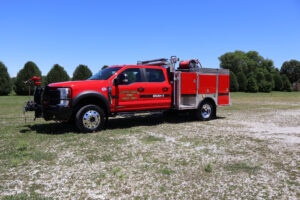

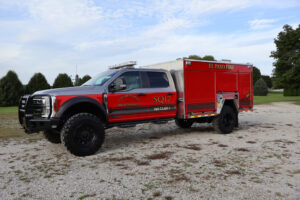

• Ford F-550XL 4×4 DRW Four (4) Door Chassis
• Ford 6.7L, V8, Diesel Engine
• Ford TorqShift 6-speed Automatic Transmission
• Heavy Duty Stainless Steel Body and Sub-Frame
• ROM Painted Roll Up Doors
• Floor mounted console for emergency switches, cab
• 300-Gallon Poly Skid Tank with 10-Gallon Foam Tank
• Darley 1 ½ AGE Pump with 20-HP Honda Gas Engine
• Two (2) 1” Discharges, rear
• One (1) 1 ½” Discharge, rear
• One (1) Akron front bumper Turret remote controlled from the cab
• Scotty Around the Pump Foam inductor/mixer
• One (1) Single and one (1) Dual bottle Air bottle compartment, right side
• One (1) Vertical pull-out tool board, right side
• Whelen Electronic Siren with 100-watt Whelen Speaker
• Two (2) Akron Extenda-Lite LED Telescopic lights, one (1) each side

• DOWNLOAD DRAWINGS AND SPECIFICATIONS

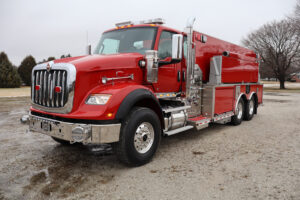

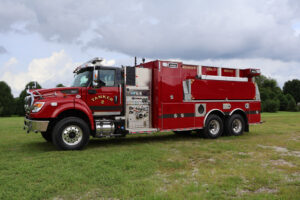

• International HV607 Tandem 2-Door Chassis
• Cummins L9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body and Sub-frame
• ROM Roll Up Doors
• 3000-Gallon Wet side Poly Tank
• One (1) 2 ½” Fire Programs Tank fill, rear
• One (1) Newton 10” square manual swivel dump with 36” extension
• Darley PSM 1500-GPM PTO Pump
• Left side intermediate pump operator’s panel
• Three (3) 2 ½” Discharges, two (2) left side and one (1) right side
• One (1) 3” Discharge with 5” Storz, right side
• One (1) 1 ½” and one (1) 2 ½” Mattydale Preconnects, behind cab
• One (1) 2 ½” Gated Suction, left side
• Folding Tank storage, right side compartment top
[...]

• Provided a new Freightliner 108 SD Crew Cab Chassis
• Remounted Rescue/Pumper Body on new chassis
• Remounted Existing Rear Mounted Pumping System
• Installed all new stainless steel plumbing on pumping system
• Added a 5” front suction Intake and bumper extension
• Refurbished (painted exterior) of existing body.
• Two Tone Painted New Chassis Cab
• Installed new Pro Poly Booster tank with front suction accommodation
• Reconditioned Wilburt Light Tower
• Reconditioned AMPS Hydraulic Generator
• Updated 12v Electrical System w/V-Mux Multiplex System
• Installed New LED Warning Light System
• Installed New LED 12v & 120v Scene Lights and Brow Light
• Headset Intercom System Installed in cab
• Installed Custom Console and EMS Cabinet In Cab
• Cleaned and Repaired under body sub-structure and tank cradle
• Applied New Custom Graphics and Chevron Striping
• Installed New Stainless Steel pump control and discharge panels

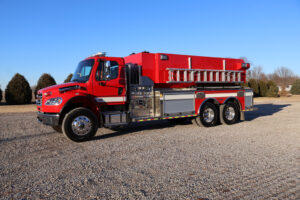

• Freightliner M2 106 2-Door Tandem Chassis
• Detroit DD8, 7.7L 375-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body and Sub-Frame
• ROM Roll Up Doors
• 3000-Gallon Wet side Poly Tank
• One (1) 10” Square Newton manual swivel Dump with 36” extension
• One (1) 2 ½” and one (1) 4” FirePrograms Tank Fills, rear
• Darley PSM 1500-GPM Pump
• Side Control Intermediate pump operator’s panel
• Four (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
• One (1) 3” Discharge, right side
• One (1) 1 ½” and one (1) 2 ½” Mattydale Preconnect,, behind cab
• Folding Tank Storage, right side compartment top
• Suction Hose Storage, left side compartment top
• Ladder Storage brackets, left side
• Two (2) Pike pole tubes, right side compartment top
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline connection
• Floor mounted console for emergency switches with map/binder storage, cab
• Code-3 Electronic [...]

FEATURES:

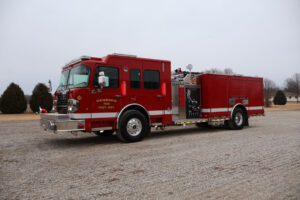

• Spartan Metro Star MFD 24” raised roof Tandem Chassis
• Cummins L9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless-steel Body and Sub-Frame
• ROM Roll Up Compartment Doors
• 24” Front bumper extension with 5” suction and 1 ½” Preconnect
• Five (5) Person Cab seating with four (4) SCBA seats
• 3000-Gallon Poly Tank
• One (1) 2 ½” Tank fill, right side and One (1) 4” Tank fill, rear
• One (1) Newton 10” square electric swivel dump with 36” manual extension
• Hale QMAX150, 1500-GPM Pump with enclosed top operator’s controls
• Two (2) 2 ½” Discharges, one (1) each side
• Three (3) 3” Discharges, one (1) right side, one (1) rear and one (1) over pump
• One (1) 2 ½” and two (2) 1 ½” Cartridge Lay [...]

FEATURES:

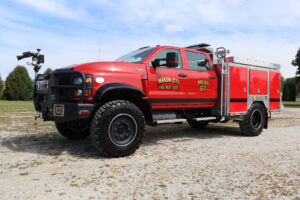

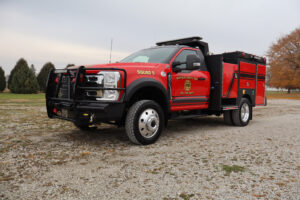

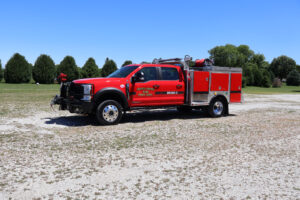

• Ford F-550XL, 4×4 4-Door DRW Chassis
• Ford 6.8L V10, 288-HP Gasoline Engine
• Ford TorqShift 6-speed Automatic Transmission
• Heavy Duty Aluminum Flatbed
• Two (2) compartments with two (2) Drop down doors each, one (1) each side
• n-FAB Textured Black stainless steel running boards
• Front and rear trailer/winch hitches with electrical wiring
• AFE Stainless steel Brush Guard and bumper
• Xtreme off Road Super single wheel and tire Package
• 400-Gallon Poly Skid Tank with 10-Gallon foam tank
• Darley 1 ½ AGE Portable Pump with 20-HP Honda gasoline engine
• Two (2) 1 ½” Booster lines with 6-ft of hose each
• Two (1) 1” Discharges, rear
• Two (2) Electrically controlled spray booms, front bumper
• Akron Front Turret monitor controlled from cab
• Hannay Electric Booster Reel with 150-ft of 1” hose
• Trident “Foamate” Class A Around-the-pump foam system
• Floor mounted console for emergency switches, cab
• Whelen Electronic Siren with 100-watt Whelen speaker
• One (1) LED Swivel flood work light
[...]
