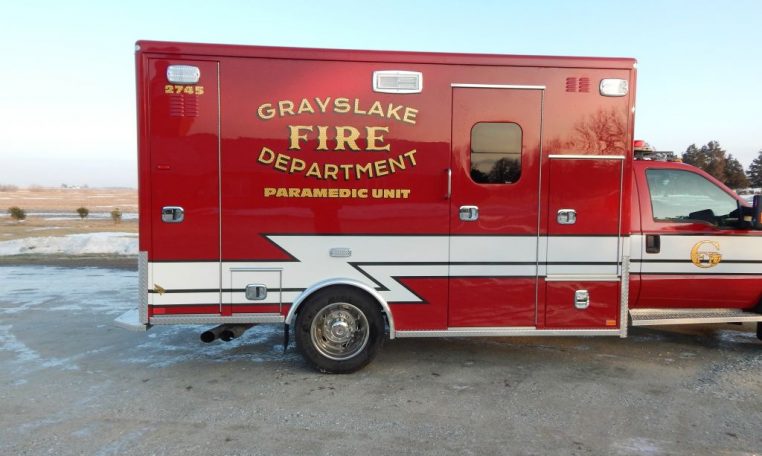

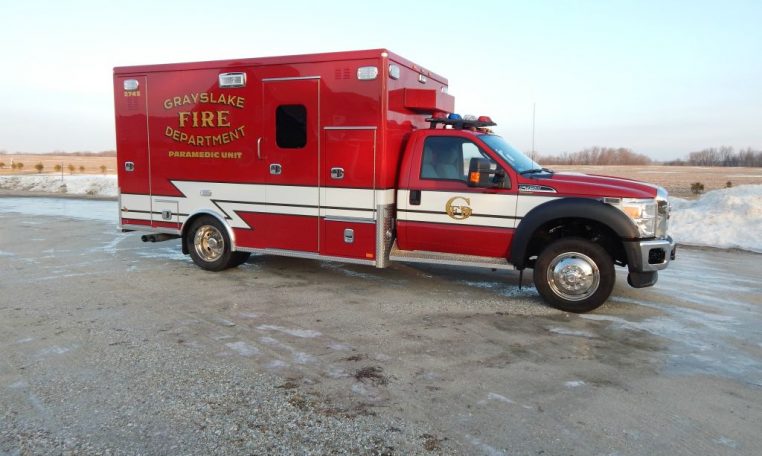

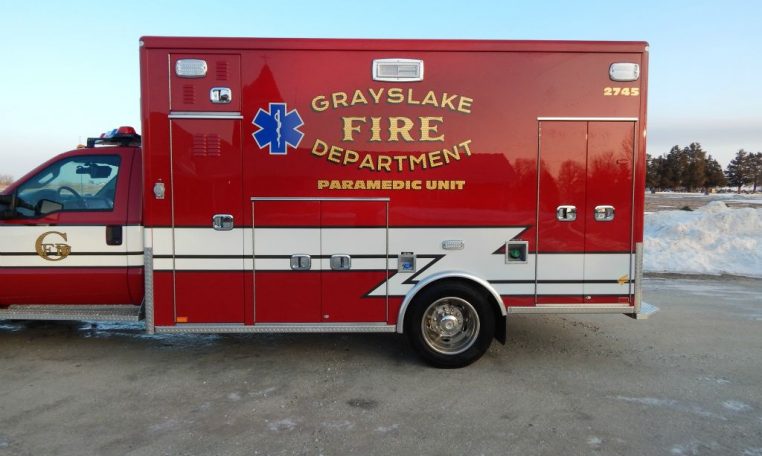

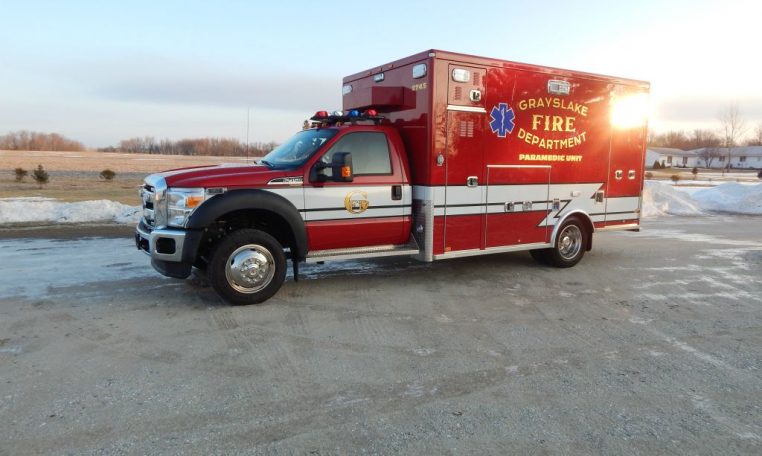

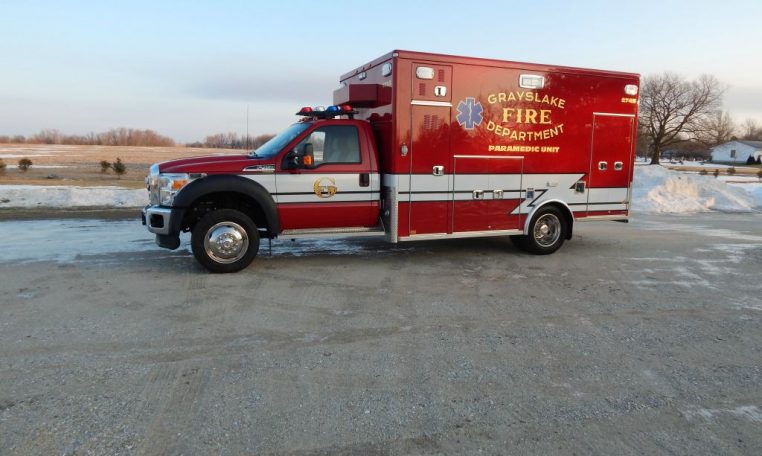

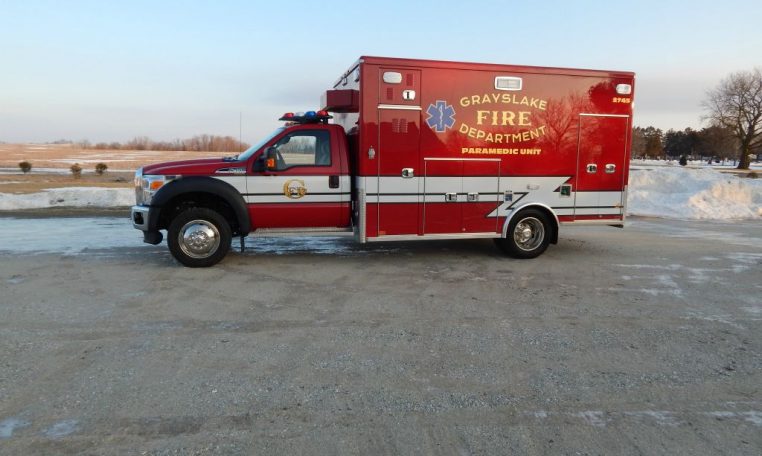

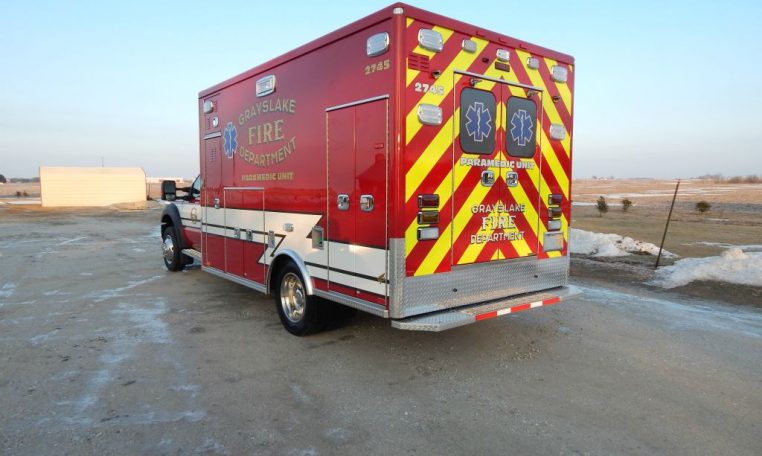

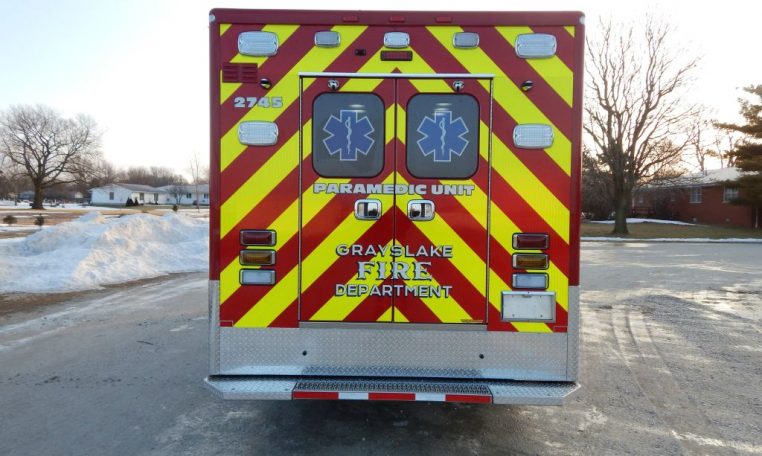

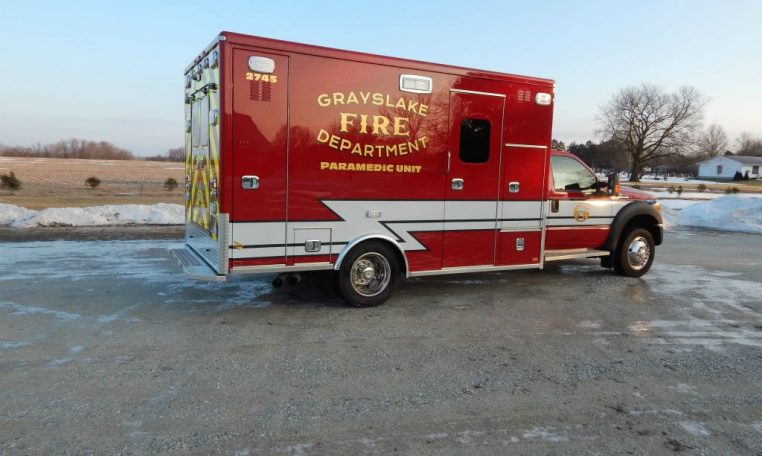

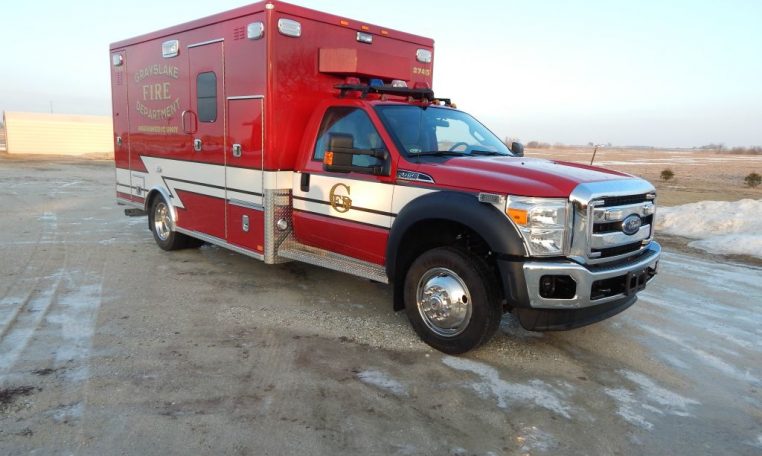

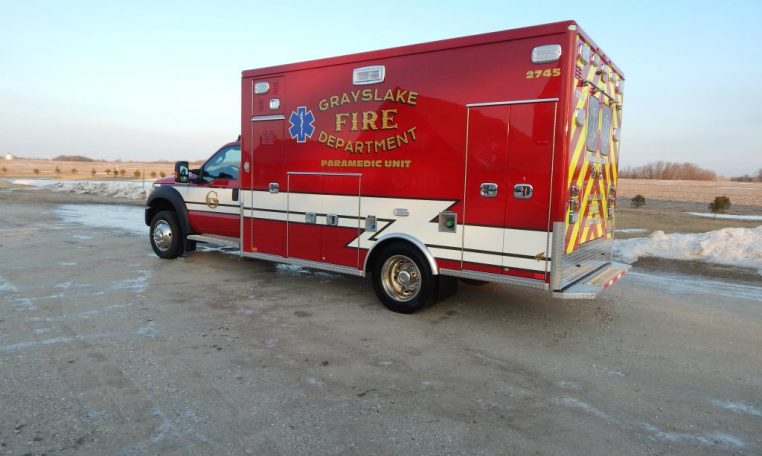

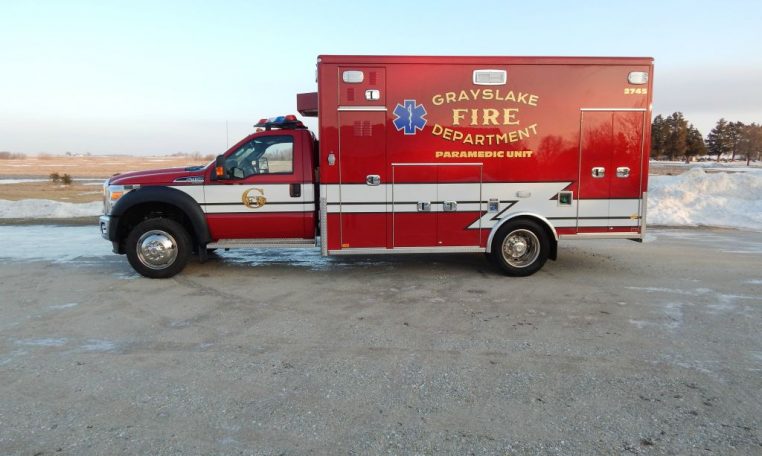

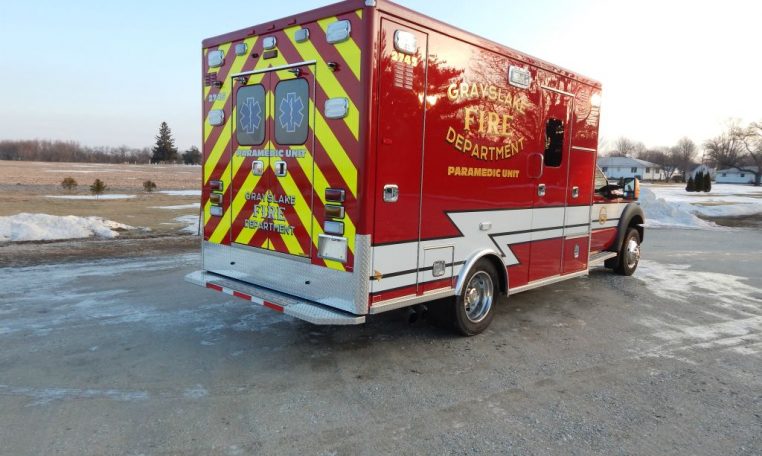

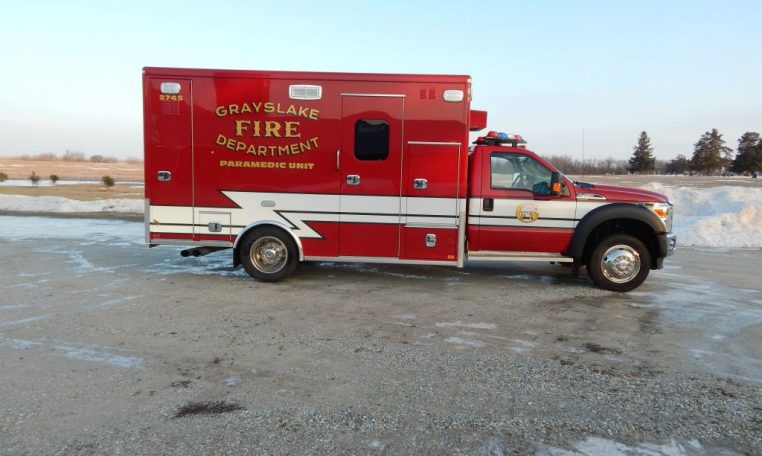

TYPE I AMBULANCE #A209/A224

GRAYSLAKE FIRE PROTECTION DISTRICT - GRAYSLAKE, ILLINOIS

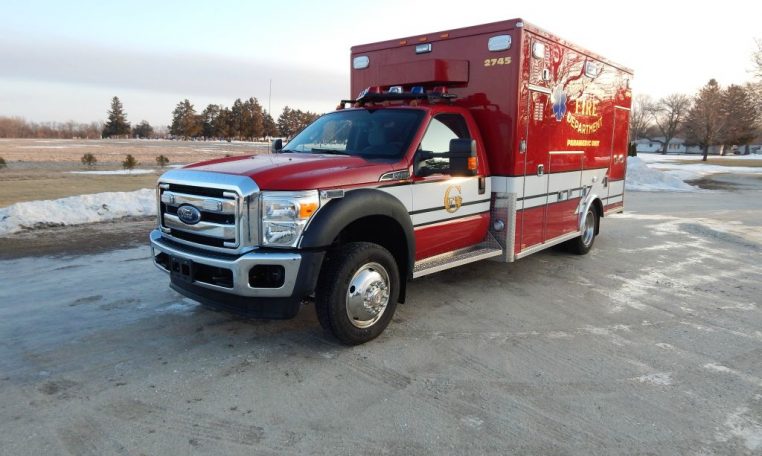

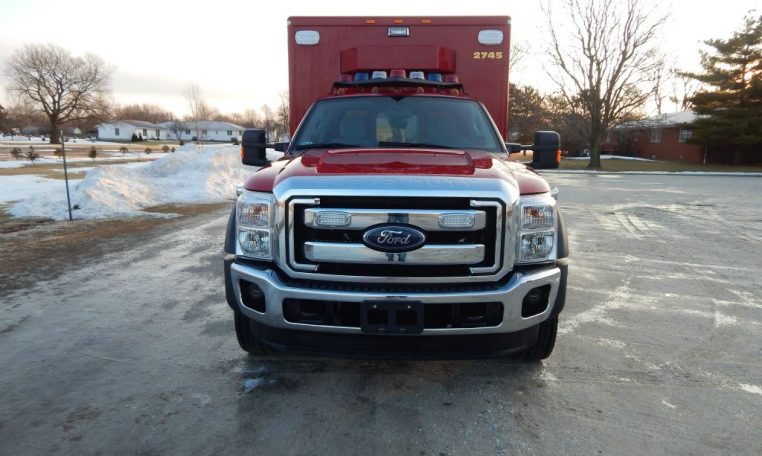

• Chassis: 2015, Ford F-450 4 x 4
• Engine: 6.7L Scorpion,, Power Stroke V-8 Turbo Diesel
• Transmission: 6-speed automatic
• Suspension: Kelderman Air Ride
• Body Drop: 6″ both sides, ahead of rear wheels
Condenser: ACC Dual Fan, Front of Body over cab, Arctic Wedge cover around Condenser.
• Warning Lights: LED M series
• Scene Lights: Whelen Pioneer
• Circuit Board: RMR Rail System
• Hand Held Spot Light: Optronics, Blue Eye, 400,000 CP
• Backup Camera: VCMS 140IB
• Power Locks: Full Mod

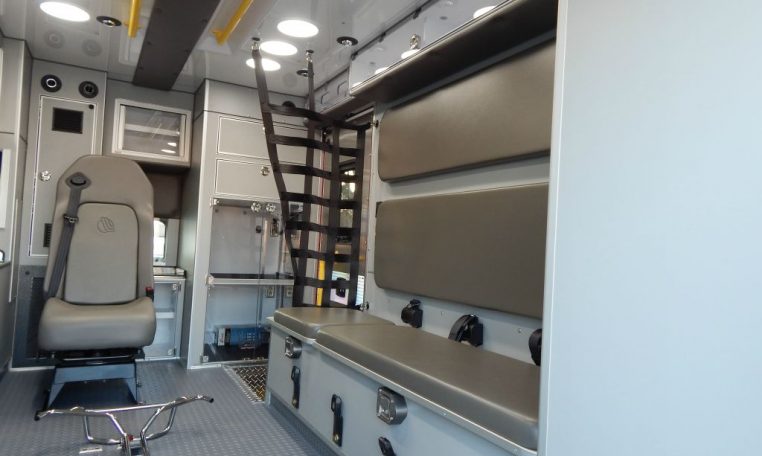

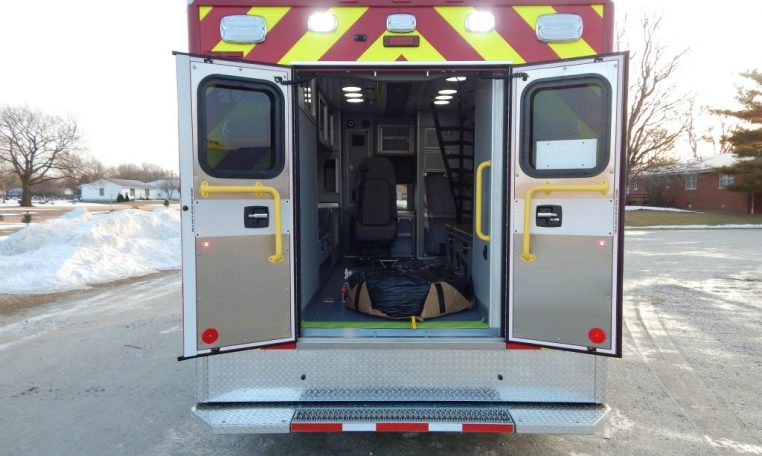

• AEV Extruded Aluminum Body : 172″ x 95″ x 72″

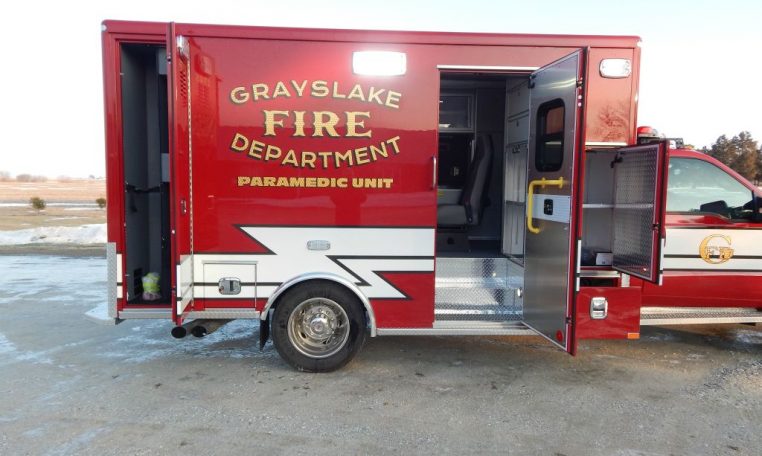

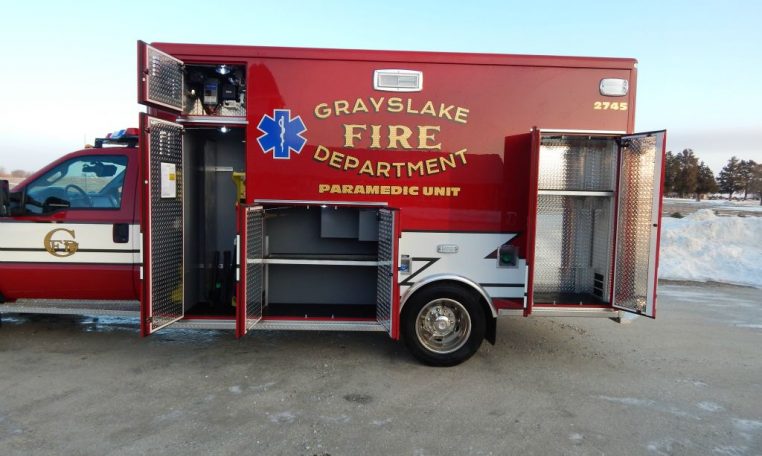

• Compartment type, Type 1 Aluminum

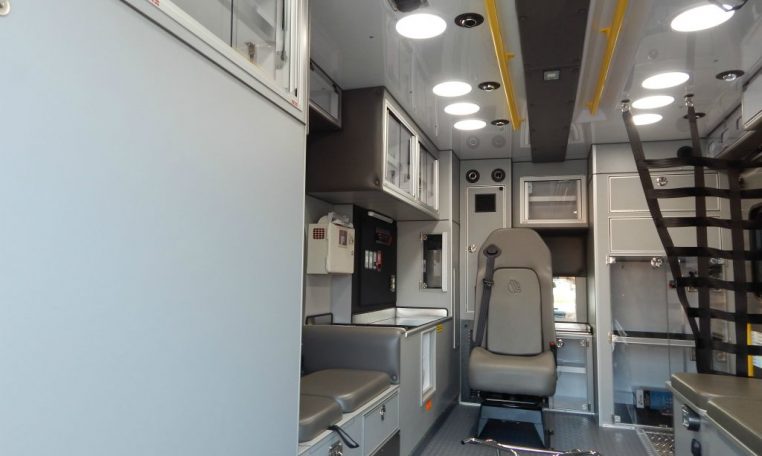

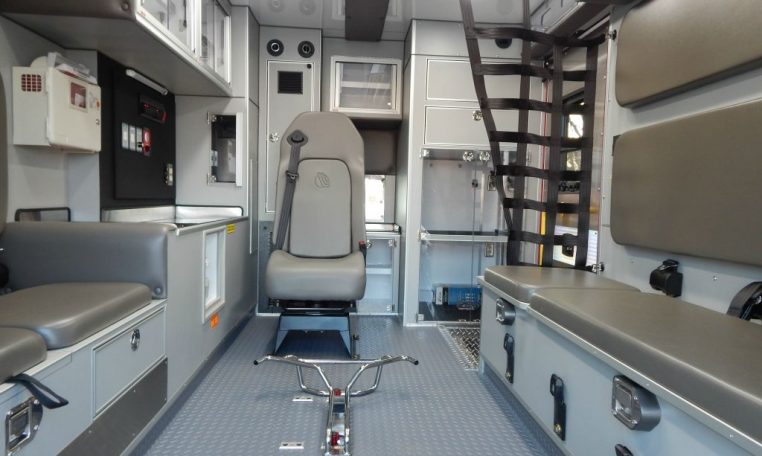

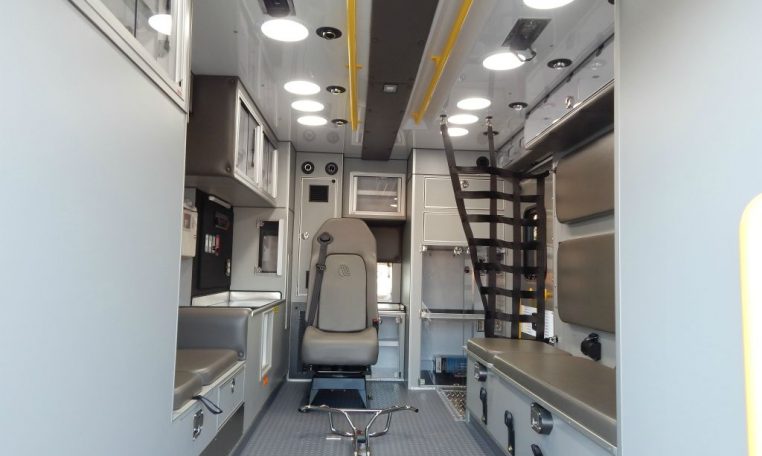

• Attendant Seat: EVS, Child Safety Seat, Swivel Base
• Flooring: Lonplate- # 176 Pewter (Dark Gray)
• Size/Headroom: 72″ HR
• Inverter: Pre Wire
• Shoreline: 20 amp
• Siren: Federal EQ2B
• Siren: Federal Rumber
• Air horn: Buell
• patient lights: Whelen , (5) streetside, (5) curbside
• Wheelbase: 189″
• FAWR: 7,000
• RAWR: 12,000
• GVWR: 16,500

Year: 2016
Make: AEV
Model: Ambulance
Exterior Color: Red
