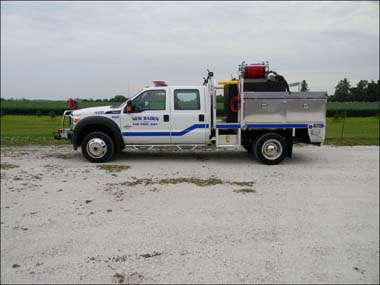

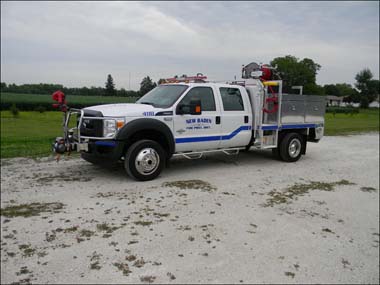

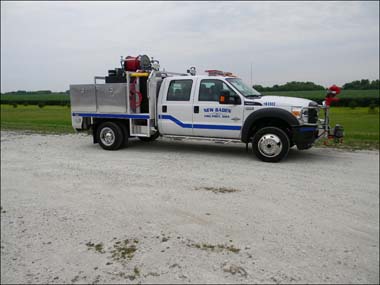

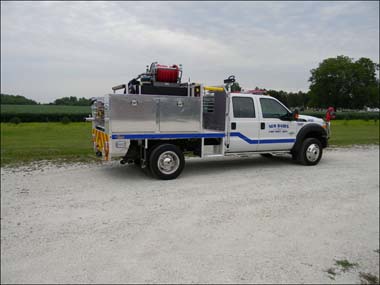

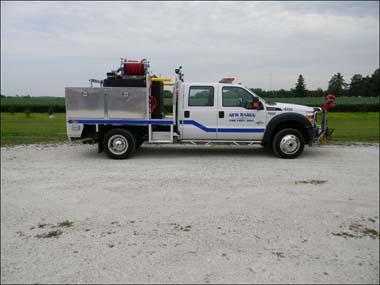

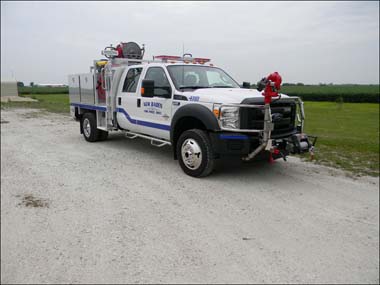

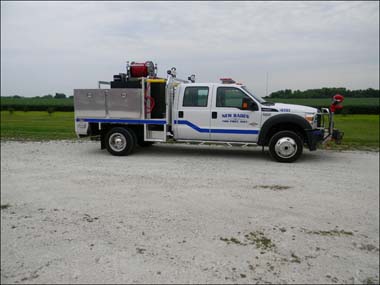

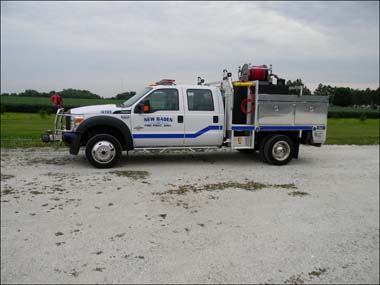

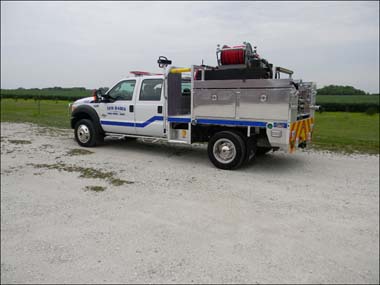

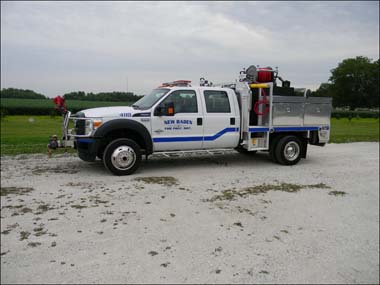

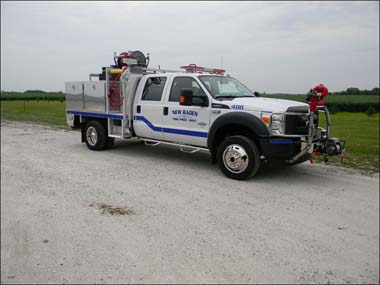

FLATBED BRUSH TRUCK #SK802

NEW BADEN FIRE PROTECTION DISTRICT - NEW BADEN, ILLINOIS

• Ford F-550XL 4-Door 4×4 DRW Chassis
• Powerstroke 6.7L V8, 300-HP Diesel Engine
• Torqshift 6-speed Automatic Transmission

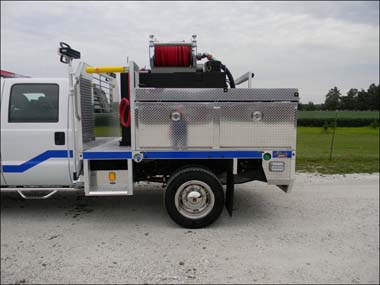

• Heavy Duty 3/16” Aluminum Body

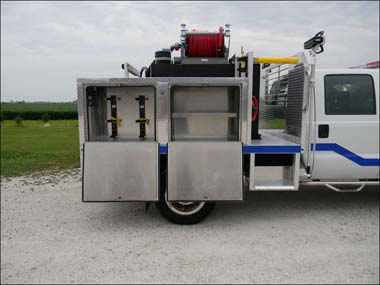

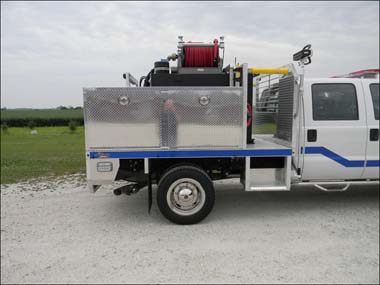

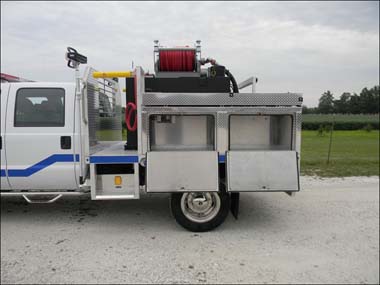

• Two (2) compartments, one (1) each side with two (2) doors

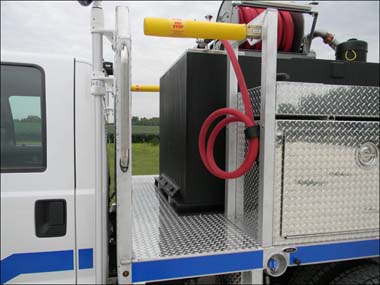

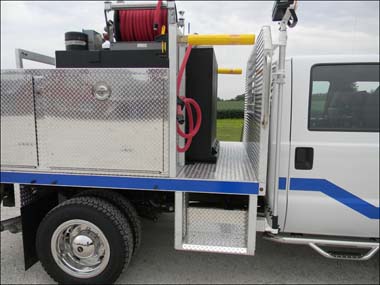

• One (1) Hose tray, left side compartment top
• One (1) set of Rhino Dominator stainless steel bars with steps, under cab doors

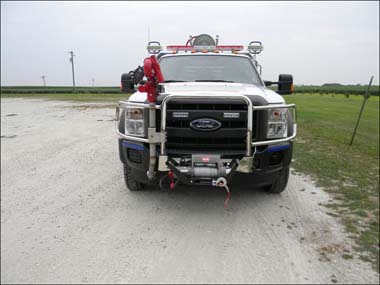

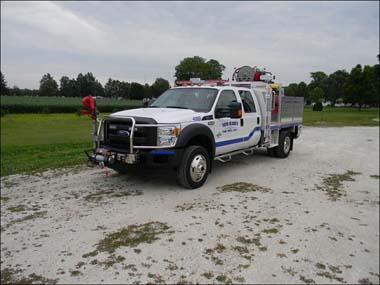

• Warn stainless steel brush guard with wrap around and front receiver
• One (1) Reese type trailer hitch/winch receiver, rear
• One (1) Warn 9000-lb multi winch
• 400-gallon Poly skid Tank with 12-Gallon foam tank

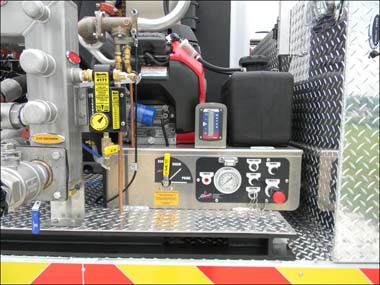

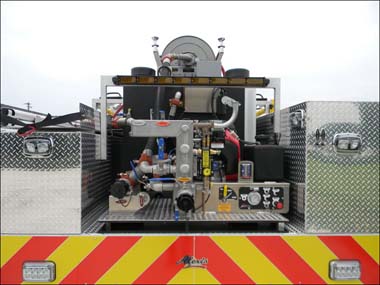

• Waterous PB18-3030LE Pump with 20-HP Honda gasoline engine
• One (1) 2 ½” Discharge, rear
• One (1) 1 ½” Discharge, hose tray
• Two (2) 1” booster lines with 10-ft of hose each, walkway
• Scotty Around the Pump foam inductor/mixer
• One (1) Hannay electric Booster Reel with 150-ft of 1” hose
• One (1) Akron front bumper turret controlled from the cab

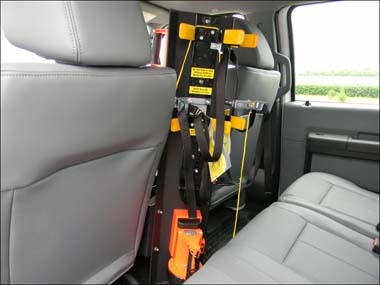

• Two (2) walk-away Air pack brackets, cab rear area

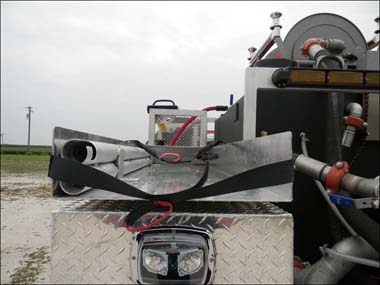

• Two (2) Pike pole storage tubes, left side tray
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline

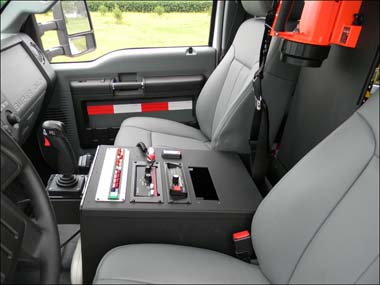

• Floor mounted console for emergency switches with map/binder storage, cab
• Two (2) Extenda-Lite 12-volt 220 watt telescopic lights, one (1) each side
• Three (3) Federal GHSCENE lights, two (2) rear and one (1) pump area
• Code 3 Electronic Siren with 100-watt Whelen speaker
• Whelen LED Arrow stick, rear
• Weldon LED Warning Light Package

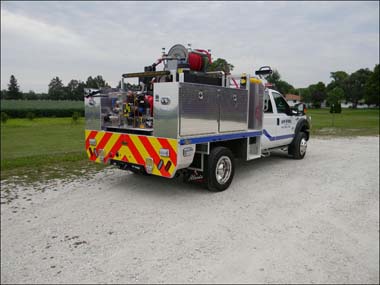

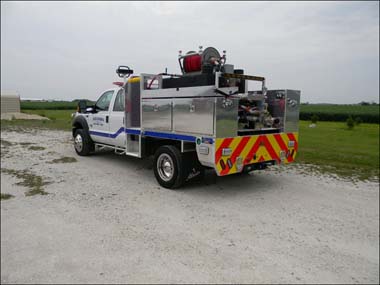

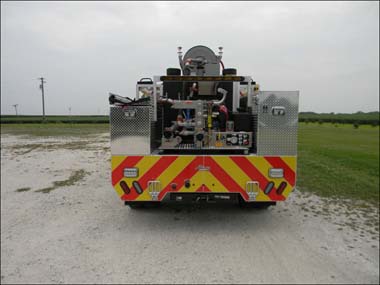

• Chevron pattern striping, rear
• 8’ 9” Overall height
• 22’ 11” Overall length
• 176” Wheelbase
• 60” Cab to Axle
• 7,000 FAWR
• 14,700 RAWR
• 19,500 GVWR

Year: 2016
Make: Alexis Fire Equipment
Model: Mini Units
Body Style: Brush Truck
Tank Size: 400
Exterior Color: White
