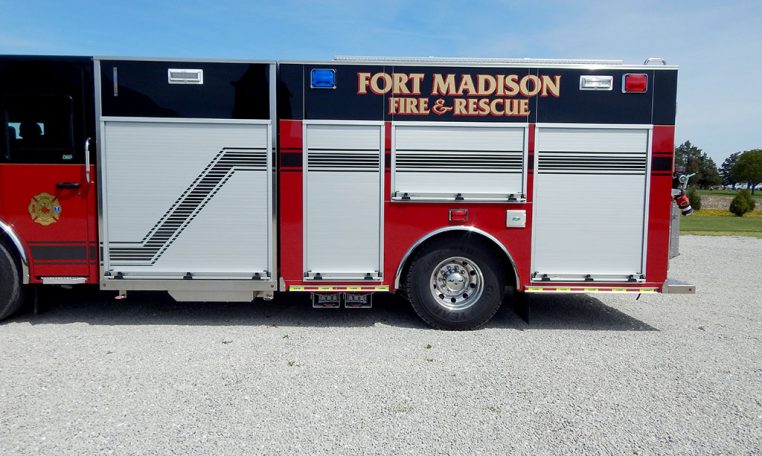

ENCLOSED SIDE CONTROL CAFS PUMPER #2334

CITY OF FORT MADISON FIRE DEPARTMENT, FORT MADISON, IOWA

• Spartan Metro Star MFD 10” raised roof Chassis
• Cummins ISL9, 400-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Four (4) Person cab seating with three (3) SCBA seats
• Custom EMS cabinet with Roll up Doors, shelves and lighting, cab rear wall
• On Spot Automatic Tire chains
• Heavy Duty Stainless Steel Body and Sub-frame with ROM Roll Up Doors
• 21” Front Bumper extension with 1 ½” Preconnect and center hosewell
• Free floating hose well left side running board
• Two (2) Upper storage compartments, one (1) each side of hosebed
• Two (2) Dual bottle Air bottle compartments, right side wheel well
• Ladder storage compartment right side with rear access
• Suction hose storage in the hosebed
• Self Supporting Aluminum treadplate hose bed cover
• Stainless Steel Top Access Ladder, rear mounted
• 980-Gallon Poly Tank with 50-Gallon foam tank
• Waterous CSU, 1500-GPM Pump with left side pump operator’s panel
• Four (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
• Two (2) 3” Discharges, one (1) right side and one (1) over pump for deck gun
• Elkhart Cobra Monitor system with wireless handheld remote controller
• Two (2) 1 ½” Cartridge lay Preconnects, ahead of pump module
• One (1) Hannay Electric Booster Reel with 75-ft of 1” hose
• One (1) 2 ½” Gated Suction, left side
• Waterous Eclipse CAFS System and Waterous Advantus 6 Foam System
• Kussmaull 1200 on-board battery conditioner/air compressor w/ Auto Eject
• Audiovox Back-up Camera system with 7” color monitor and right side camera
• FireCom Wireless Intercom System
• Whelen Electronic Siren with 100-watt Whelen speaker
• Federal Q2B Siren, recessed left side front bumper
• FRC Focus Evolution and Whelen LED Scene Light Packages
• Whelen LED Warning Light Package
• Diamond Grade Chevron pattern striping, rear
• 9’ 11” Overall height
• 33’ 11” Overall length
• 206” Wheelbase
• 152” Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR

Year: 2018
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Side Control Pumper
Pump Size: 1500
Tank Size: 980
Feature: Interior Mount Ladder
Exterior Color: Red with Black
New Delivery: New Delivery
