Apparatus Inventory

Custom Buillt Since 1947.

CUSTOM TOP MOUNT PUMPER #2351

NORTHERN DES MOINES COUNTY RURAL FIRE DISTRICT - MEDIAPOLIS, IOWA
FEATURES:
  • Spartan Metro Star MFD 10” Raised Roof Chassis
  • Cummins L9, 450-HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy-Duty Stainless-Steel Body and Sub-Frame with ROM Roll Up Doors
  • Six (6) person Cab seating with five (5) SCBA seats
  • 24” Front bumper extension with 5” front suction and preconnected hose
  • Front bumper center hosewell with 1 ½” Preconnect
  • 1000-Gallon Poly Tank with 10-gallon foam tank
  • One (1) 2 ½” Fireman’s Friend Tank fill, rear

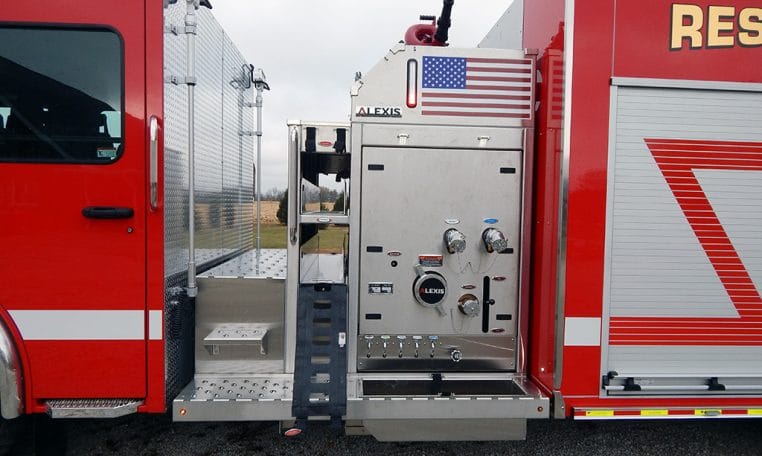

  • Waterous CX, 1500-GPM Pump with operator’s control across top of apparatus
  • Four (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
  • Two (2) 1 ½” Cartridge Lay Preconnects, front of pump module
  • Two (2) 3” Discharges, one (1) right side and one (1) over pump for deck gun

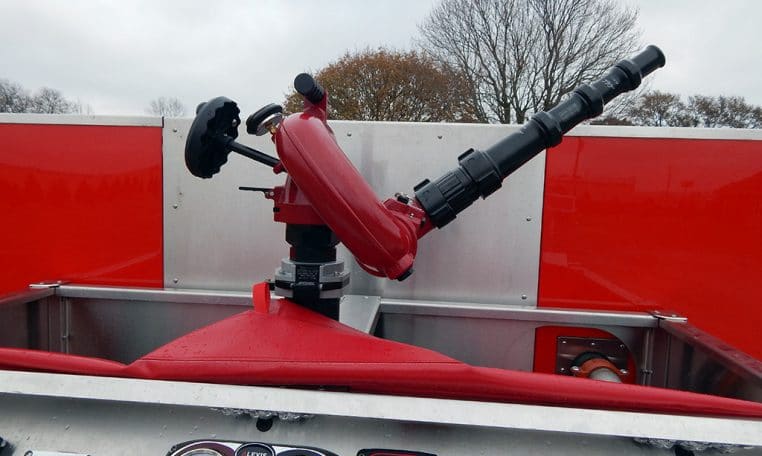

  • TFT Crossfire monitor with base, stream shaper and tips
  • TFT Extend-a gun 18” telescoping waterway
  • Two (2) 2 ½” Gated Suction, one (1) each side
  • Waterous Aquis 1.5 Foam System
  • Two (2) free floating hose wells, one (1) each side running board
  • Two (2) Triple bottle Air bottle compartments, right side wheel well
  • One (1) Wheel chock compartment, left side wheel well

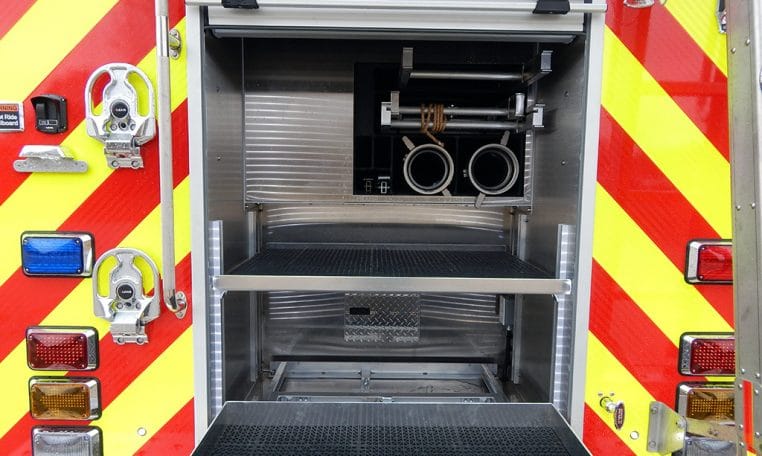

  • Ladder, Suction hose and Pike pole storage, through the tank with rear access
  • Two (2) Vertical pull-out Tool boards, one (1) each side
  • Turtle Tile on the floors and/or shelves and trays of compartments

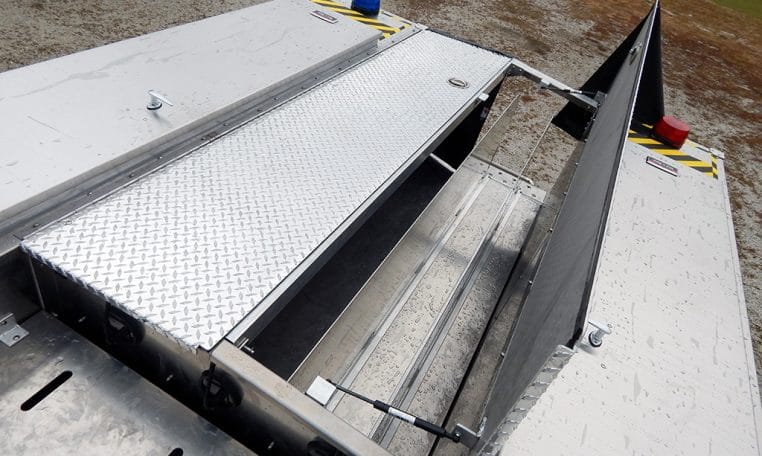

  • Two (2) Upper storage compartments, one (1) each side roof
  • One (1) Stainless Steel Top access ladder, rear mounted
  • Progressive Dynamics on-bard Battery charger with Viair air compressor
  • Whelen Electronic Siren with 100-watt Cast products speaker
  • Whelen LED Warning Light and Scene Light Packages
  • Two (2) 24” Hadley Air horns, front bumper
  • Diamond Grade Chevron pattern striping, rear
  • 10’ 6” Overall height
  • 35’ 7” Overall length
  • 227” Wheelbase
  • 173” Cab to Axle
  • 21,500 FAWR
  • 31,000 RAWR
  • 52,500 GVWR
  • There are no features available
Year: 2019
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1000
Exterior Color: Red
New Delivery: New Delivery
