CUSTOM TOP CONTROL PUMPER #2330

CITY OF BETTENDORF FIRE DEPARTMENT - BETTENDORF, IOWA
FEATURES:

• HME 1871 W LFD 12” raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission

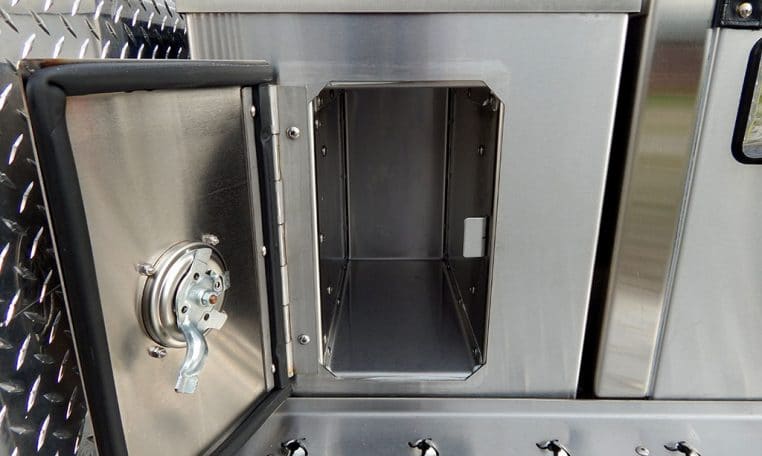

• Heavy Duty Stainless steel Body and Sub-Frame with ROM Roll Up Doors
• Five (5) Person cab seating with three (3) SCBA seat
• 24” Front Bumper extension
• Two (2) Custom EMS compartments, cab
• On Spot Automatic Tire chains
• Two (2) Walkway compartments, one (1) each side
• Two (2) Free floating running board hose wells, one (1) each side
• 1000-Gallon Poly Tank
• Hale QMAX-XS150, 1500-GPM Pump
• Five (5) 2 ½” Discharges, two (2) left, one (1) right side and two (2) rear
• Two (2) 3” Discharges, one (1) right side and one (1) over pump for deck gun
• Akron Apollo monitor with stream shaper, stacked tips and ground mounts
• Two (2) 2 ½” Gated Suctions, one (1) each side
• Two (2) Mattydale Preconnects and one (1) deadlay, top of pump module
• Two (2) 1 ½” Cartridge Lay Preconnects, front of body
• Three (3) Dual bottle Air bottle compartments, one (1) left and two (2) right side
• Zico Dual Arm Hydraulic Ladder and Pike pole storage rack, right side
• Two (2) Suction hose storage gutters, left side
• Progressive Dynamics on-board battery charger and Viair air compressor
• Sigtronics Intercom System
• Two (2) Air Horns, front bumper
• Federal Q2B Electronic Siren with 200-watt speaker
• Night Scan Profiler light tower with three (3) Whelen LED 150-watt lights
• Whelen LED Scene Light Package
• Tomar LED upper and Whelen LED lower Warning Light Packages
• Diamond Grade Chevron pattern striping, rear
• 10’ Overall height
• 34’ Overall length
• 225” Wheelbase
• 157” Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR

Year: 2018
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1000
Feature: Exterior Mount Ladder
Exterior Color: Yellow
New Delivery: New Delivery
