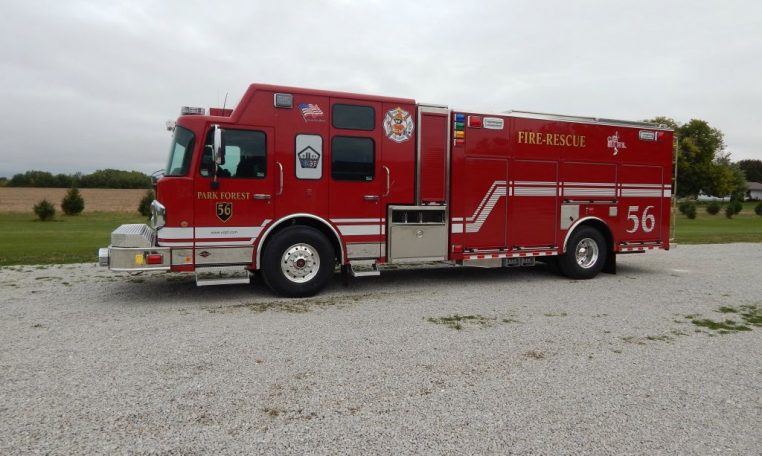

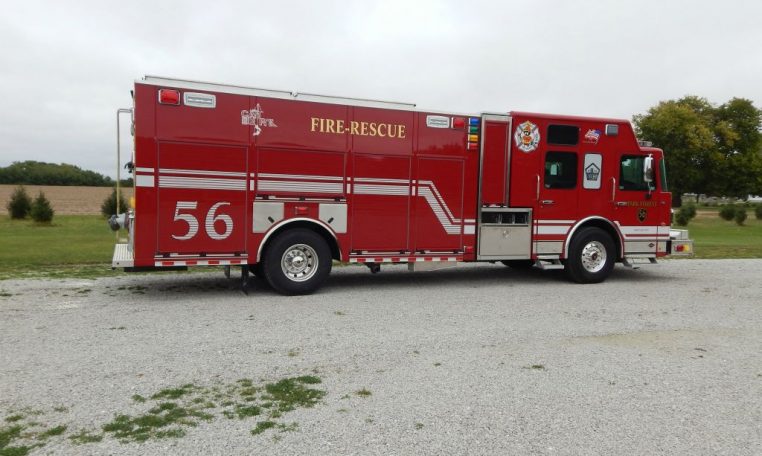

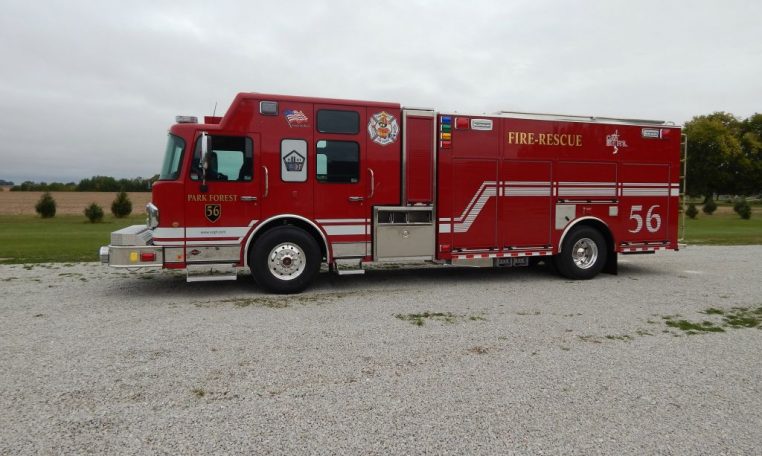

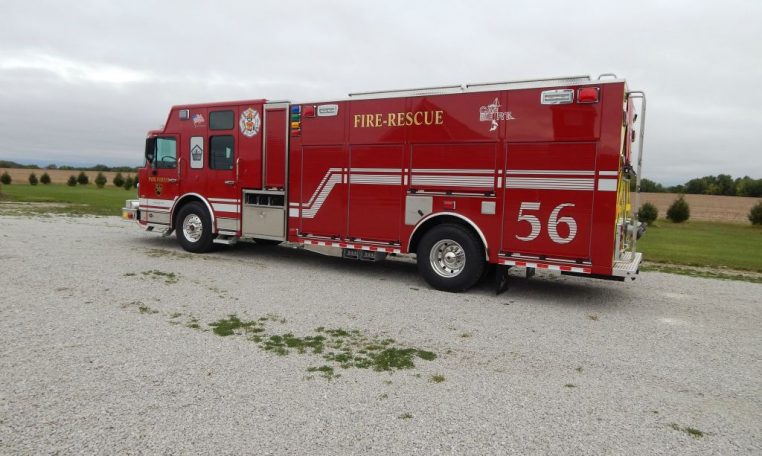

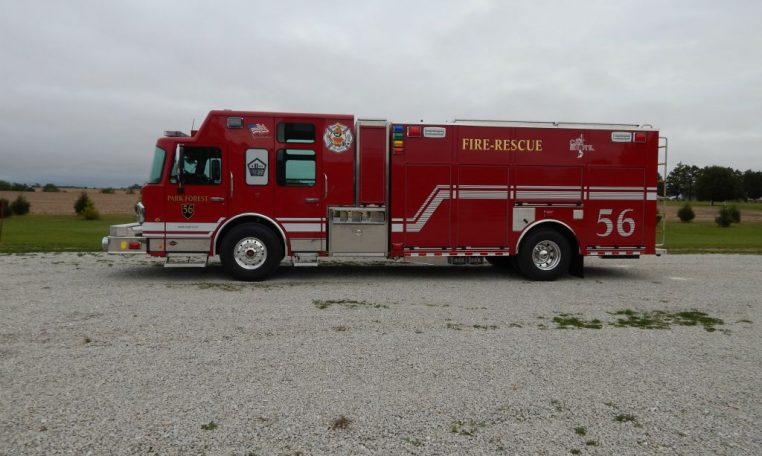

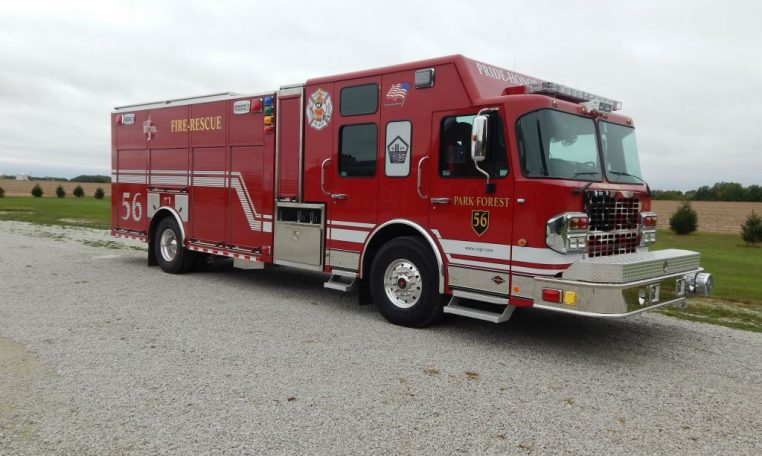

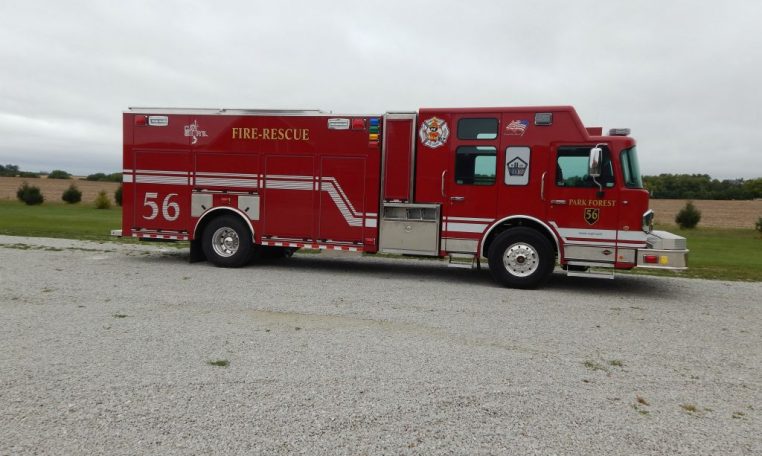

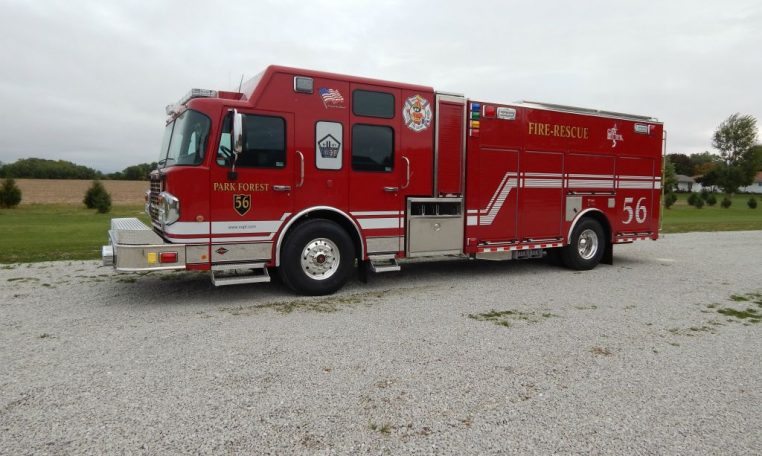

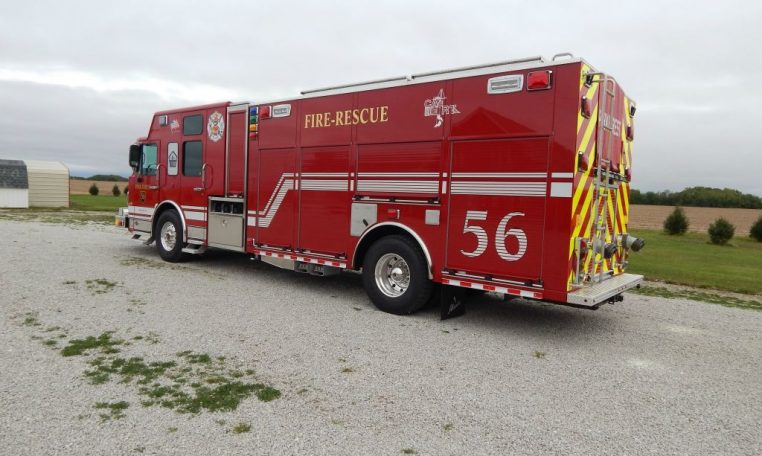

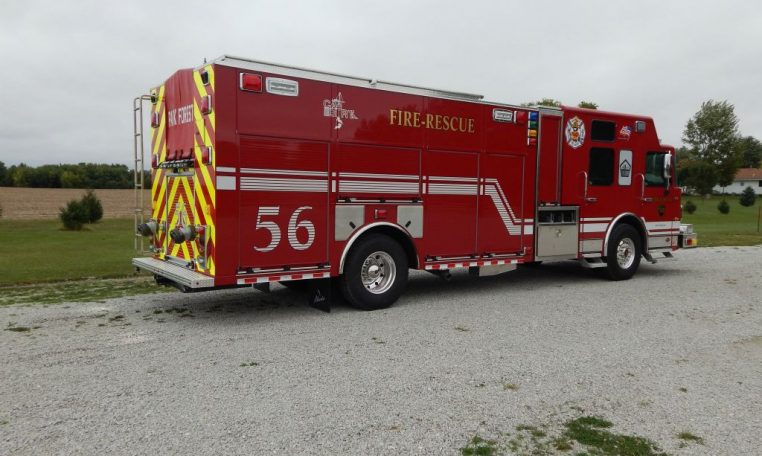

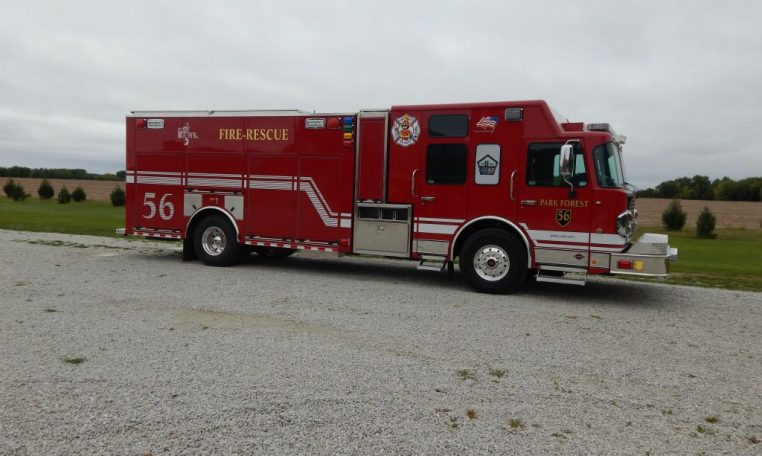

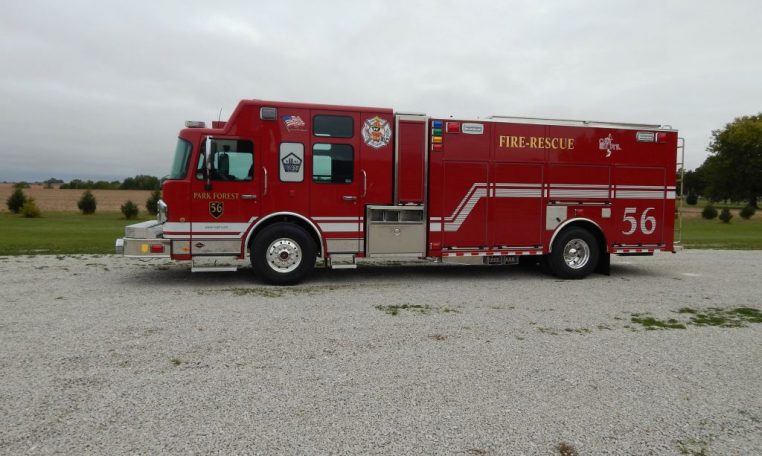

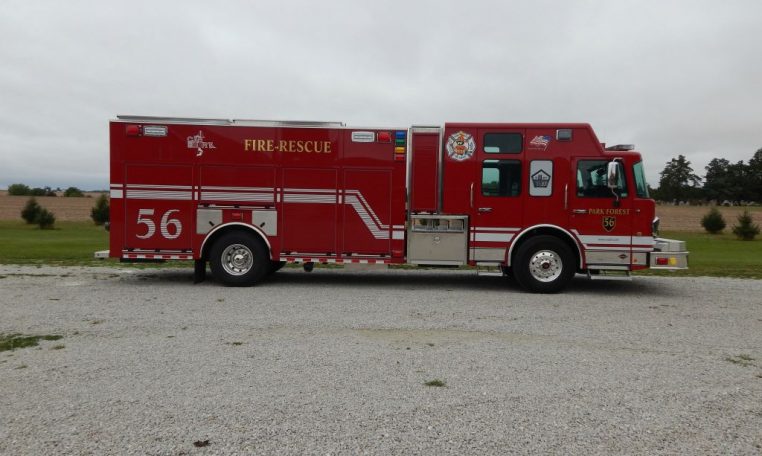

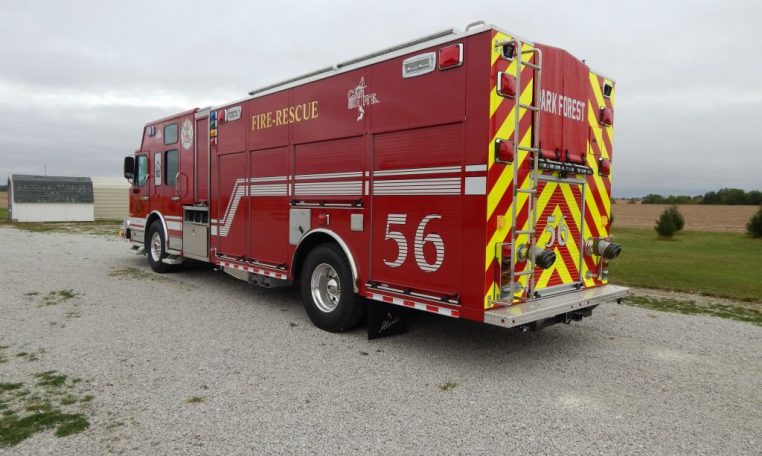

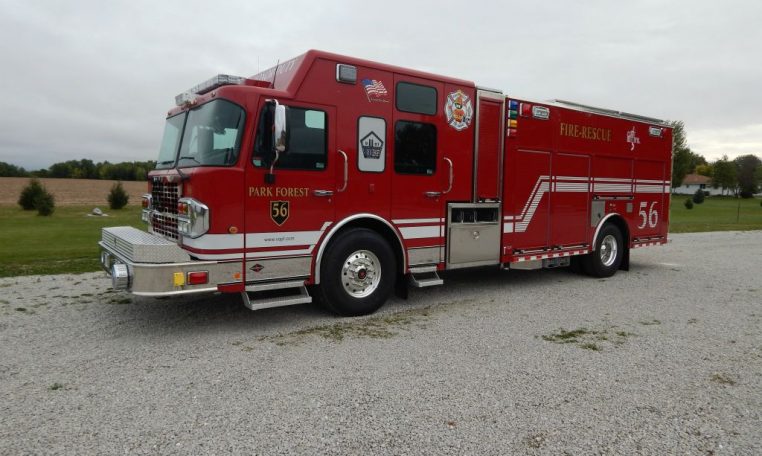

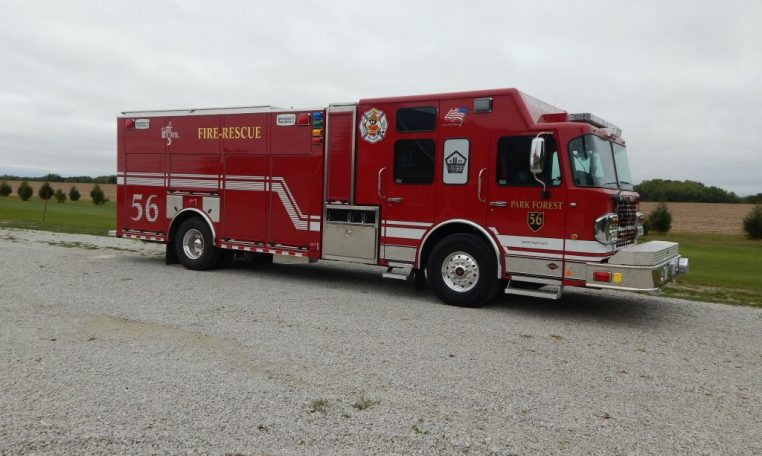

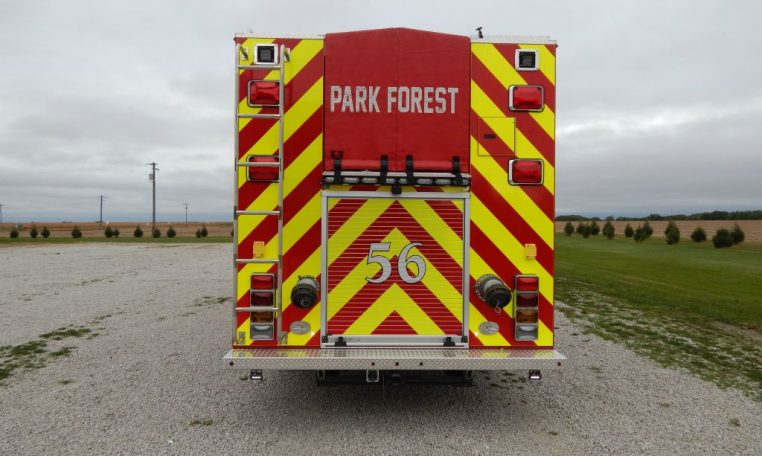

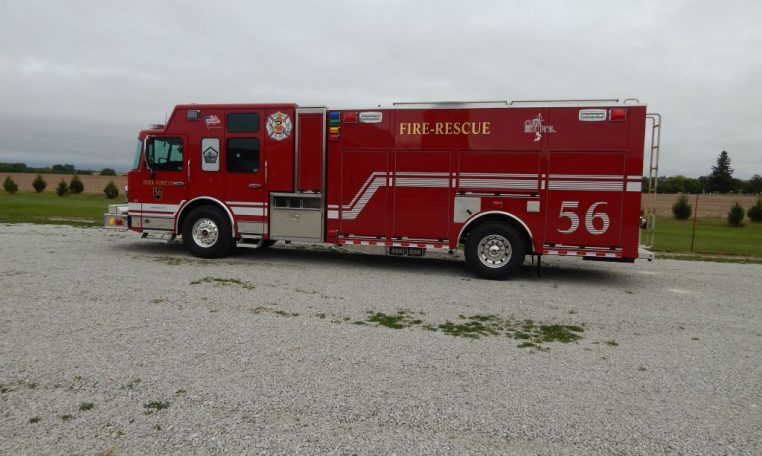

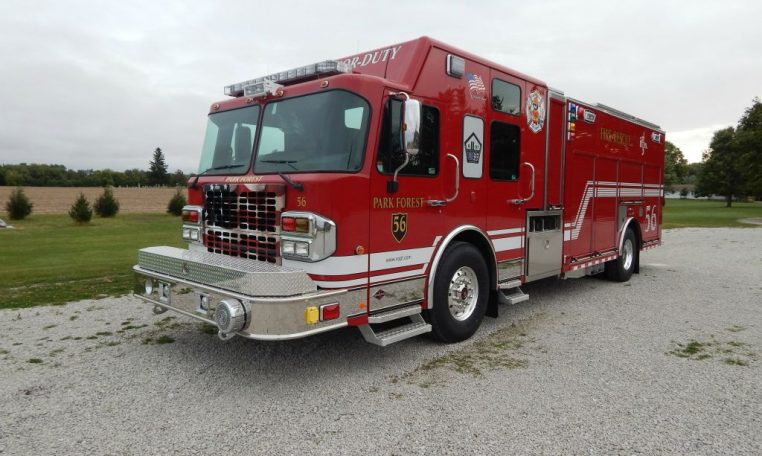

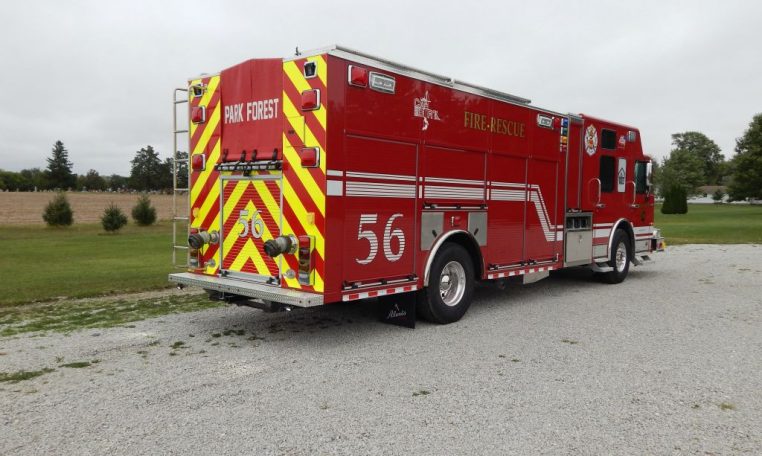

CUSTOM SIDE CONTROL RESCUE PUMPER #2284

VILLAGE OF PARK FOREST FIRE DEPARTMENT - PARK FOREST, ILLINOIS

• Spartan Gladiator MFD 20″ raised roof Chassis
• Cummins ISL9, 450 HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Five (5) man cab seating with four (4) SCBA seats
• Heavy Duty 3/16″ Aluminum Body with ROM painted roll up doors
• 500-Gallon Poly Tank with 25-Gallon foam tank

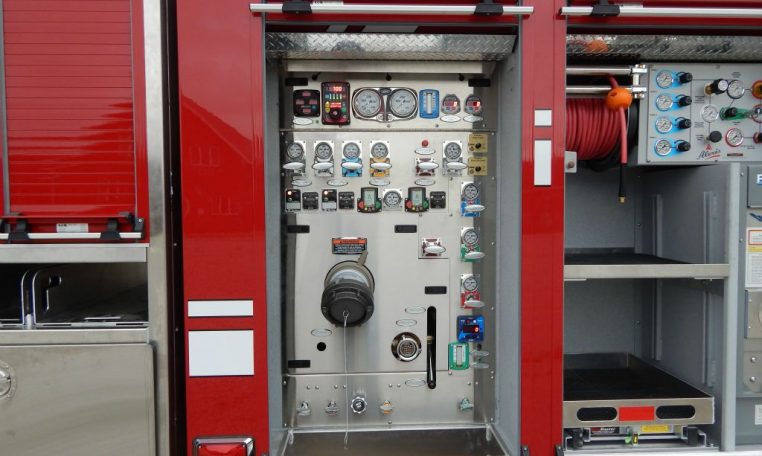

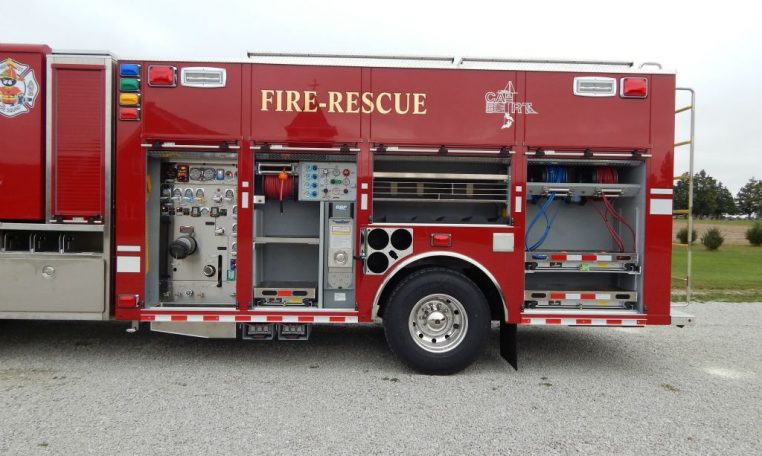

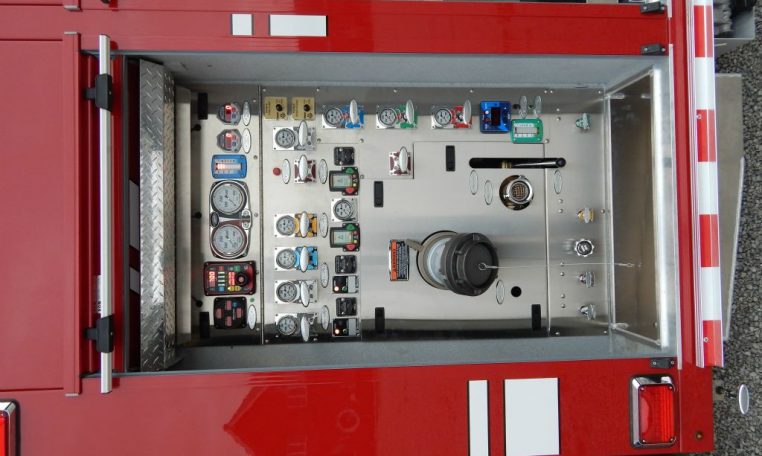

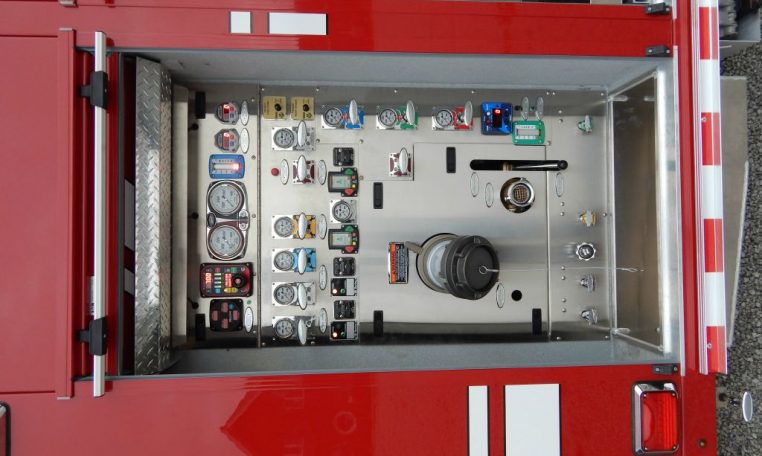

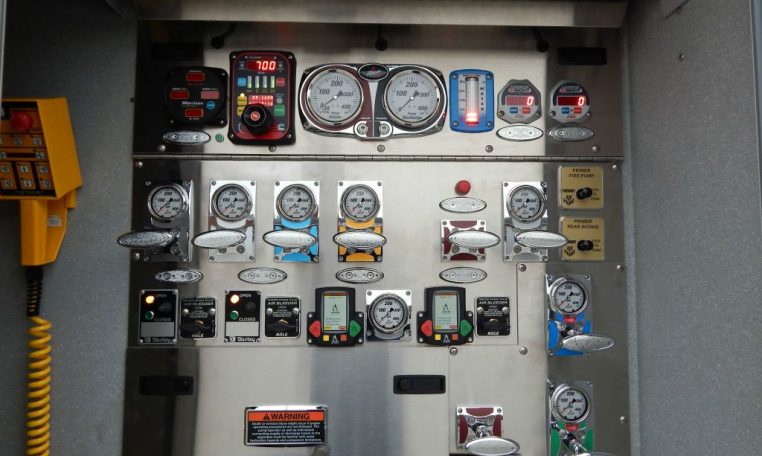

• Darley PSM 1500-GPM Pump with left side operator’s panel
• Foam Pro 2001 single tank foam system

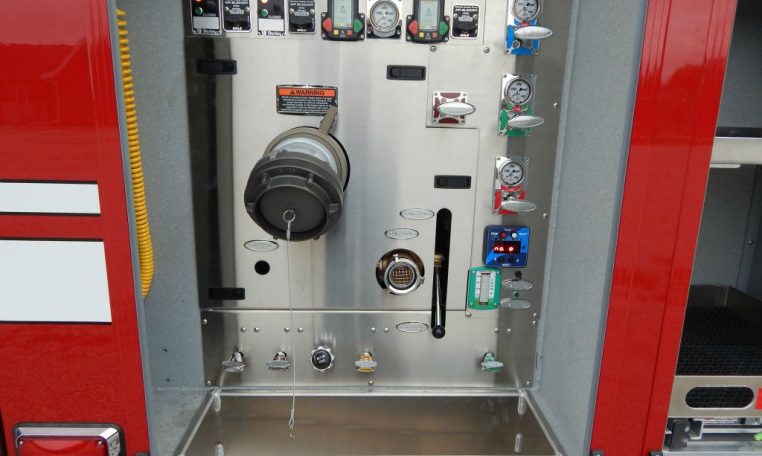

• Two (2) 2½” Discharges and one (1) 4″ Discharge, right side

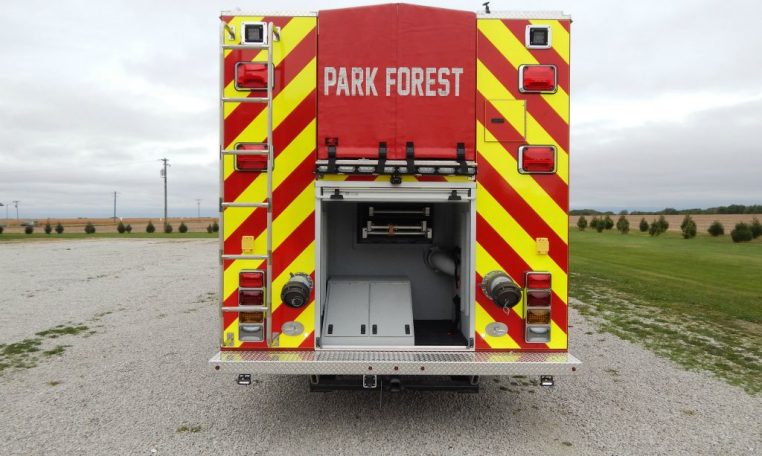

• Two (2) 3″ Discharges, one (1) rear and one (1) over pump for Deck Gun
• One (1) Akron Deck Gun with stream shaper, stacked tips, and mounts
• Two (2) 2½” Gated Suction, one (1) each side

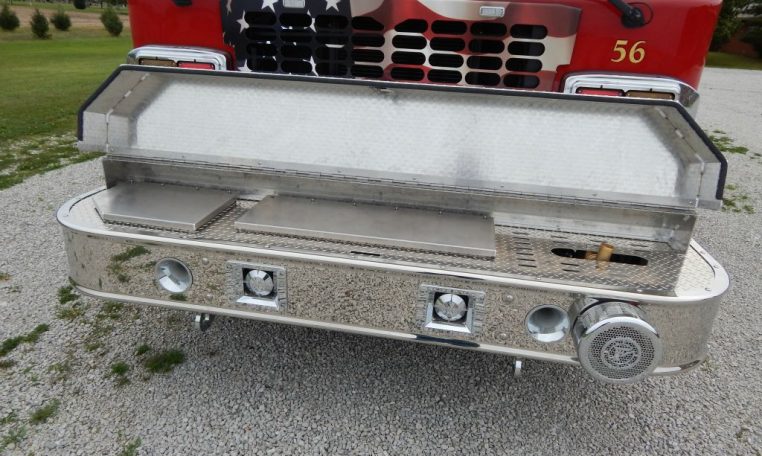

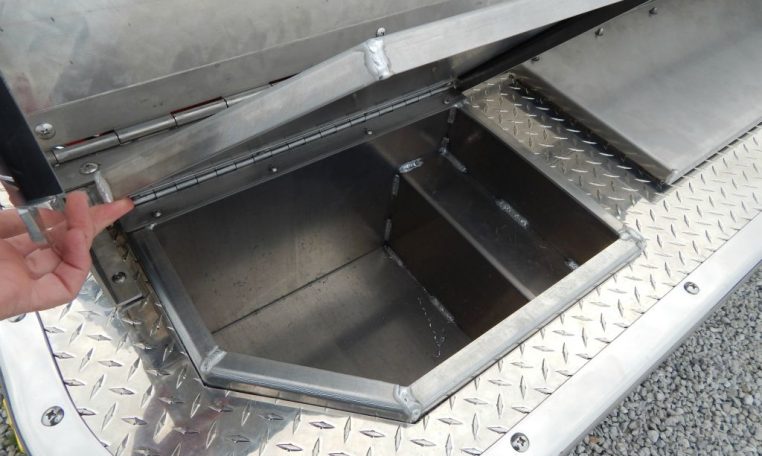

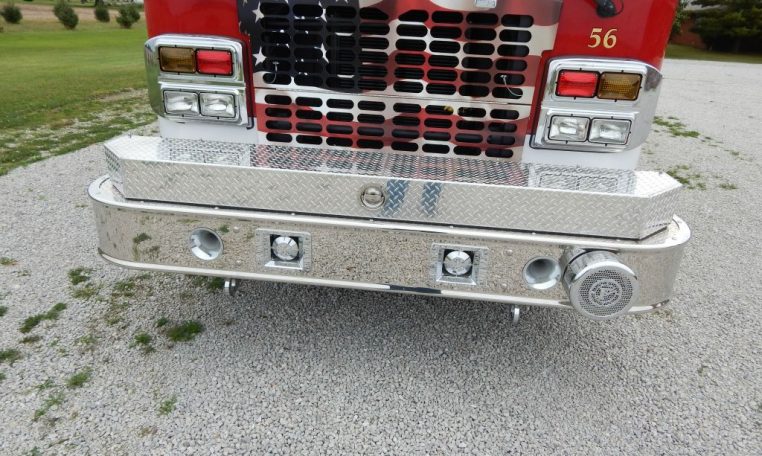

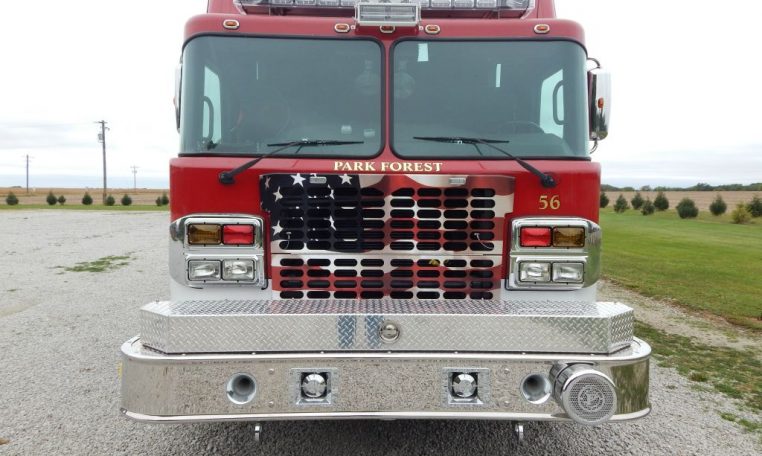

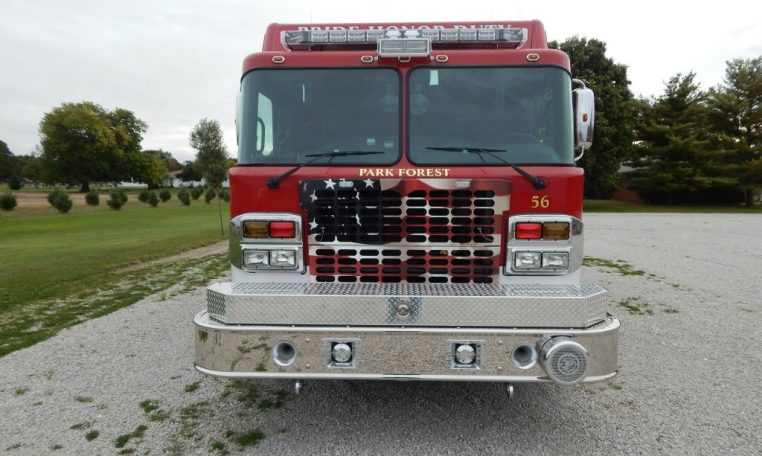

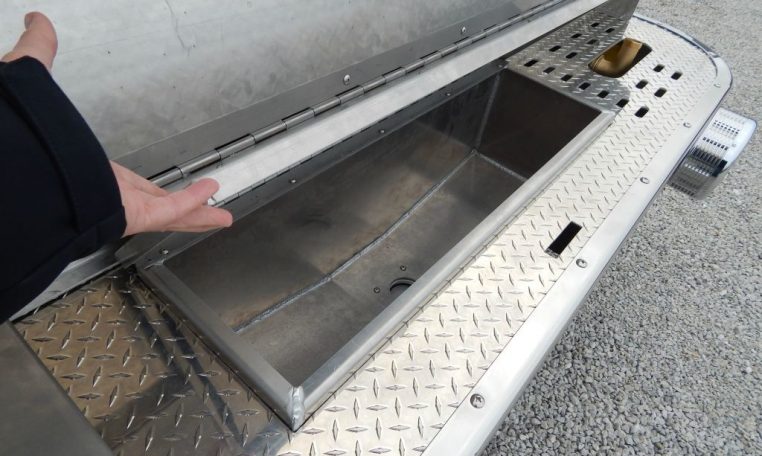

• 24″ Front bumper extension with one (1) 1½” preconnect and hose storage
• Three (3) EMS cabinets, upper raised roof area
• EMS compartment, between rear facing seats with Norcold built-in refrigerator

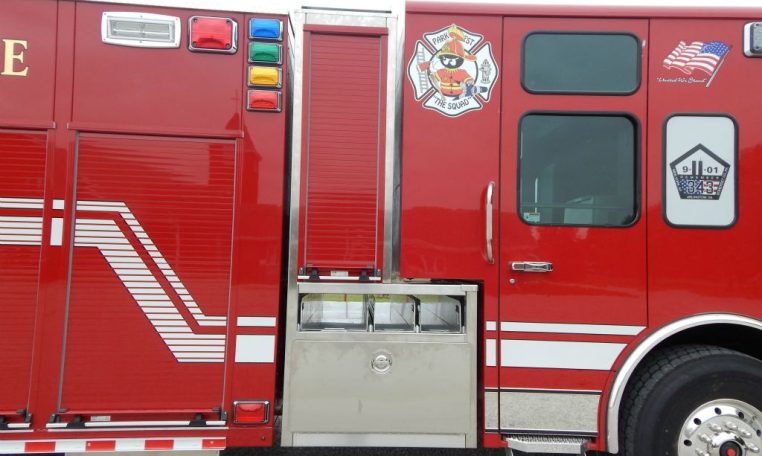

• Two (2) Free floating running board hose wells, right and left side
• Two (2) 1½” and One (1) 2½” Cartridge Lay Preconnects, ahead of pump module

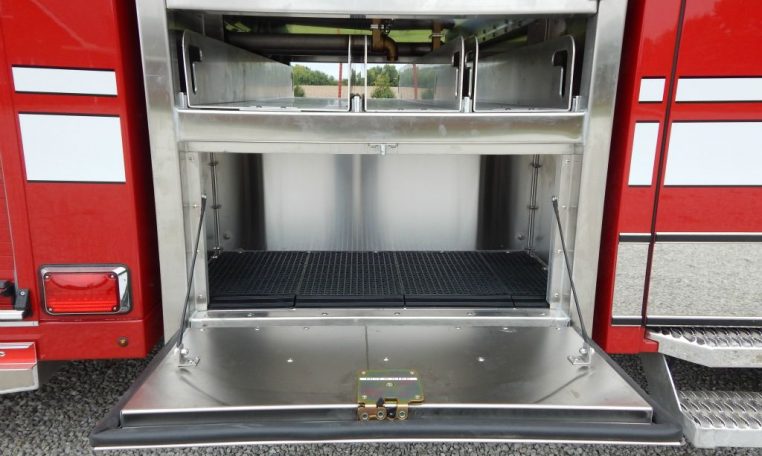

• Custom transverse compartment, above preconnect hose beds

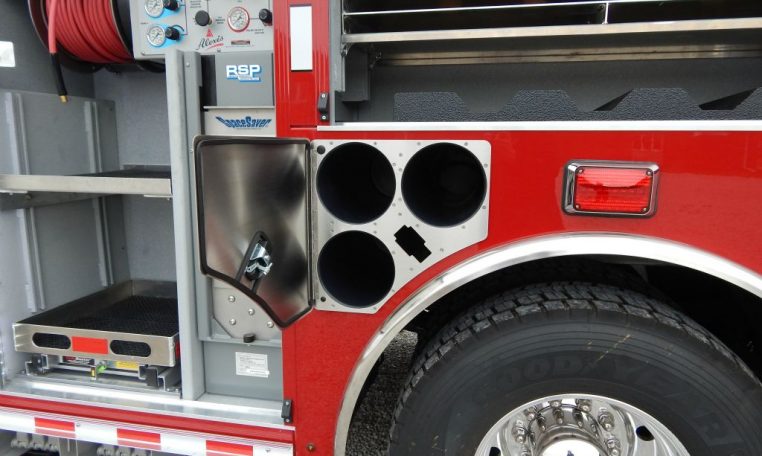

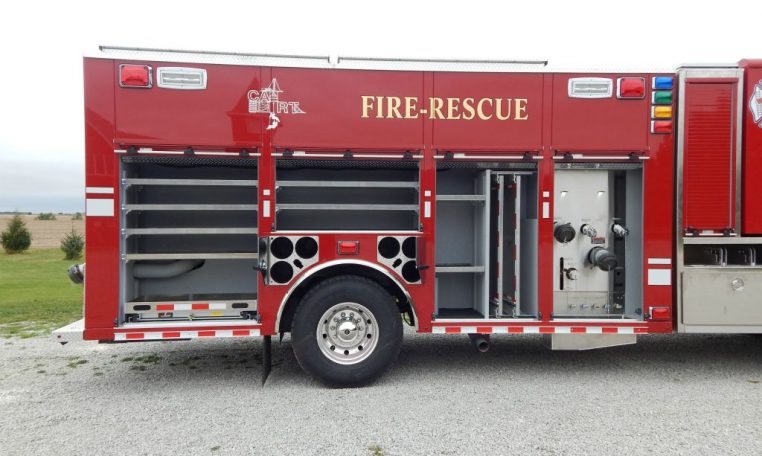

• Three (3) Triple Bottle Air bottle compartments, two (2) right and one (1) left side

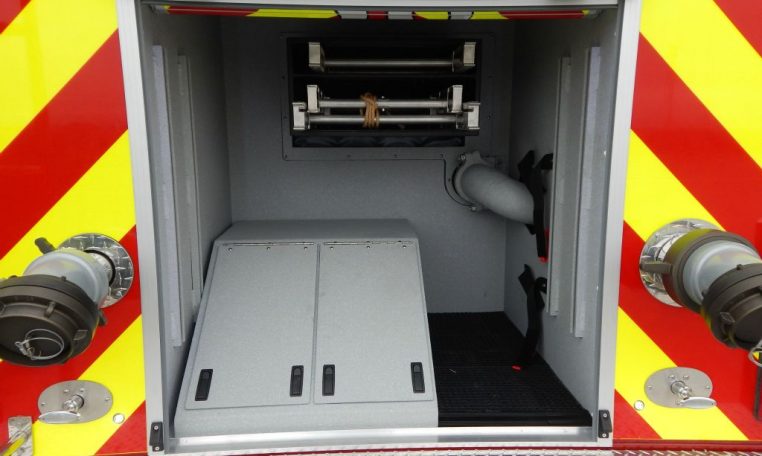

• Ladder storage through tank

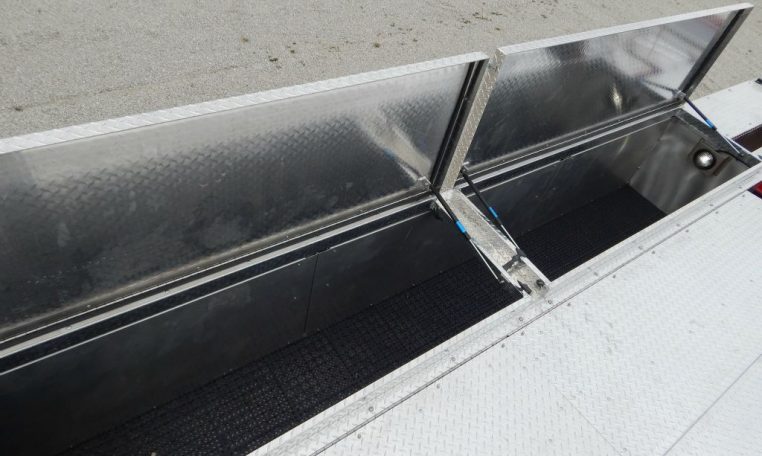

• Four (4) upper storage compartments with top access ladder

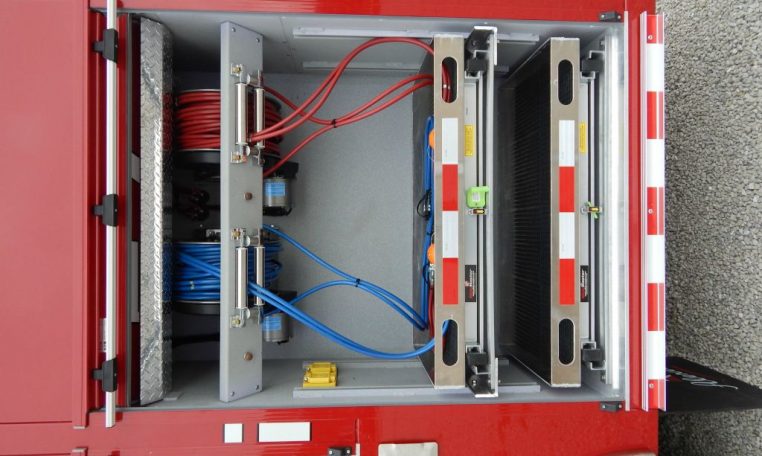

• Two (2) Hydraulic hose reels and Fire Extinguisher rack, left side
• Two (2) Vertical pull-out tool boards, right side
• 6000-PSI Cascade system with four (4) cylinders, control panel and fill enclosure
• Progressive Dynamics battery charger /Viair air compressor with Auto Eject
• Harris MAS 10-KW Hydraulic Generator

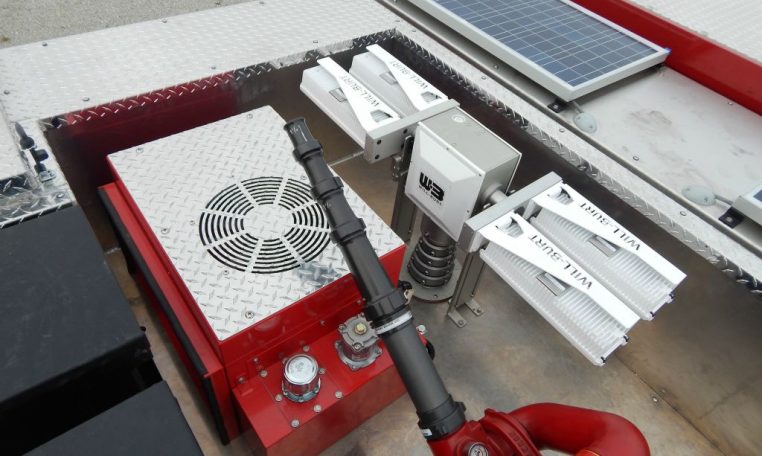

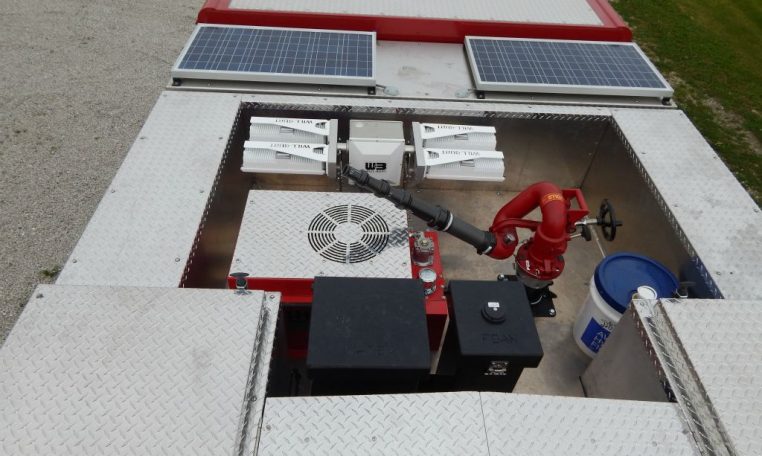

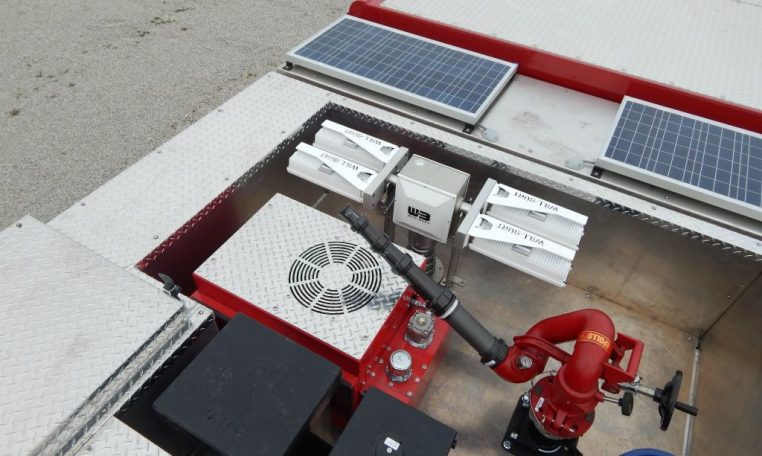

• Night Scan Vertical Light Tower with four (4) Whelen 150-watt LED lights

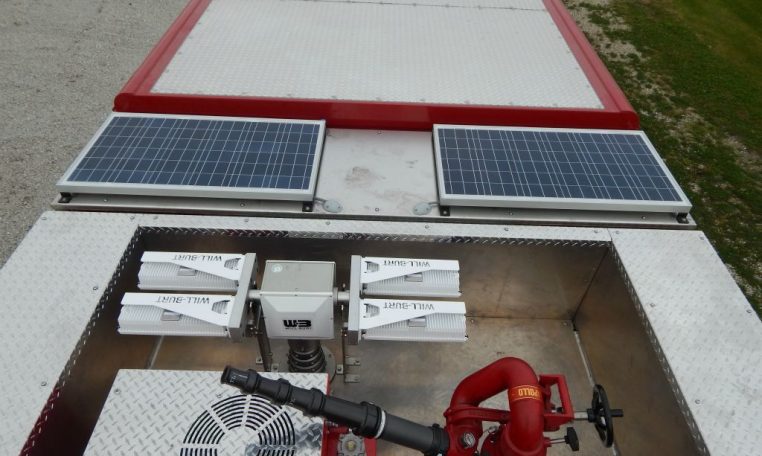

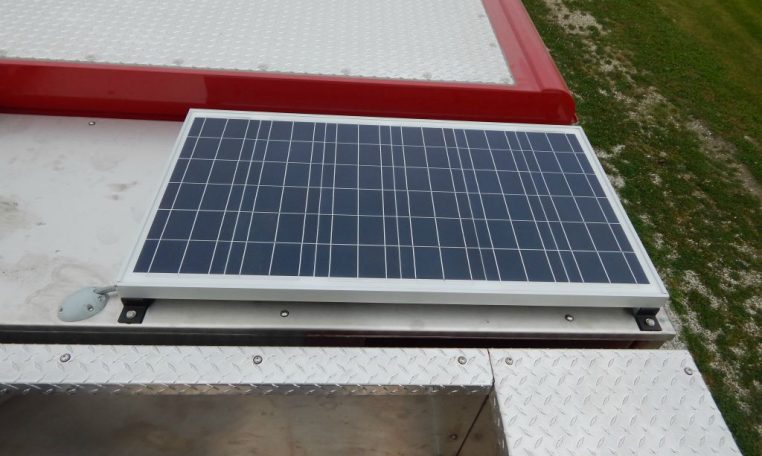

• Two (2) Kussmaul Solar Panel charging system
• Sigtronics intercom system and Audiovox Voyager Camera System
• Whelen Electronic Siren with two (2) 100-watt speakers
• Federal Q2B™ mechanical siren and two (2) Air Horns, front bumper
• Whelen LED Warning Light Package
• 10′ 8″ Overall height
• 35′ 10″ Overall length
• 227″ Wheelbase
• 173″ Cab to Axle
• 21,500 FAWR
• 31,000 RAWR
• 52,500 GVWR
