Delivered Apparatus

Chrisman Fire Protection District Custom Side Control Pumper/Tanker Specifications:

• HME 1871W MFDxL 12” raised roof Chassis
• Cummins ISL9, 330-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Eight (8) man cab seating with five (5) SCBA seats
• Heavy Duty 3/16” Aluminum Body with ROM Roll Up Doors
• 1500-Gallon Poly Tank
• One (1) 2 ½” Tank fill , rear

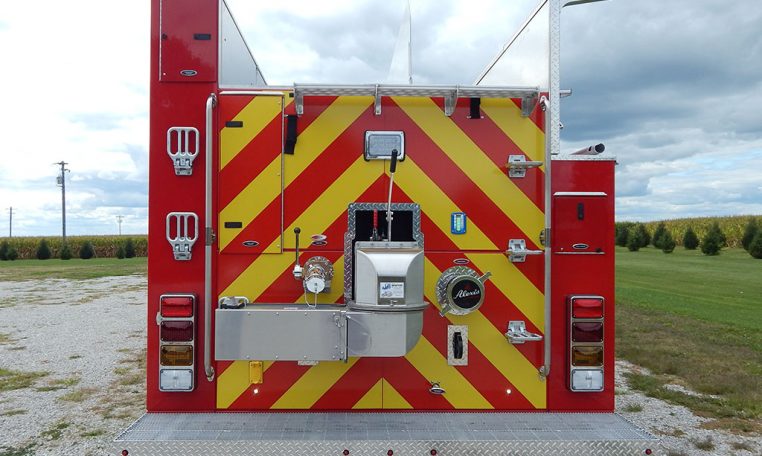

• One (1) Newton 10” square manual swivel dump with 36” extension
• Darley PSM, 1250-GPM Pump with left side pump operator’s panel
• Three (3) 2 ½” Discharges, two (2) left and one (1) right side
• Two (2) 3” Discharges, one (1) right side and one (1) over pump for deck gun
• One (1) Akron Apollo Deck gun with TFT Extend-A-Gun telescoping waterway
• One (1) 2 ½” Gated Suction, left side
• One (1) 5” rear suction.
• One (1) 2 ½” and two (2) 1 ½” Mattydale preconnects
• Two (2) Free floating hose wells, one (1) each side.
• Three (3) Dual bottle Air bottle compartments, two (2) right and one (1) left side

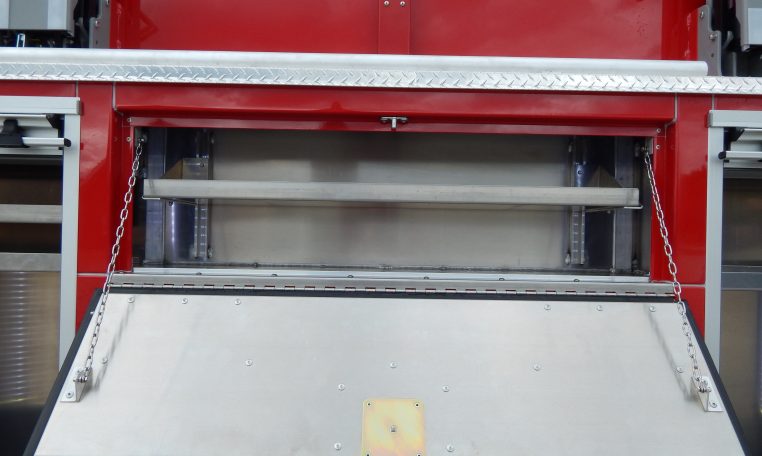

• Folding tank storage compartment,  left side with rear access
• Suction hose storage compartment for two (2) hose, left side with rear access
• One (1) Ziamatic Hydraulic Ladder rack and pike pole tube, right side
• Tool storage compartment, right side with rear access
• Kussmaul 1200 on-board battery charger/air compressor with Auto Eject
• Code 3 Electronic Siren with Cast Products 100-watt speaker
• Two (2) Air Horns, front bumper
• Smart Power HR-8, 8-kW hydraulically driven Generator with 120-volt system
• Akron 120-volt Halogen Scene Light Package
•  FRC 12-volt Scene Light
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 10’ 9” Overall height
• 31’ 10” Overall length
• 196” Wheelbase
• 136” Cab to Axle
• 18,180 FAWR
• 31,000 RAWR
• 49,180 GVWR
