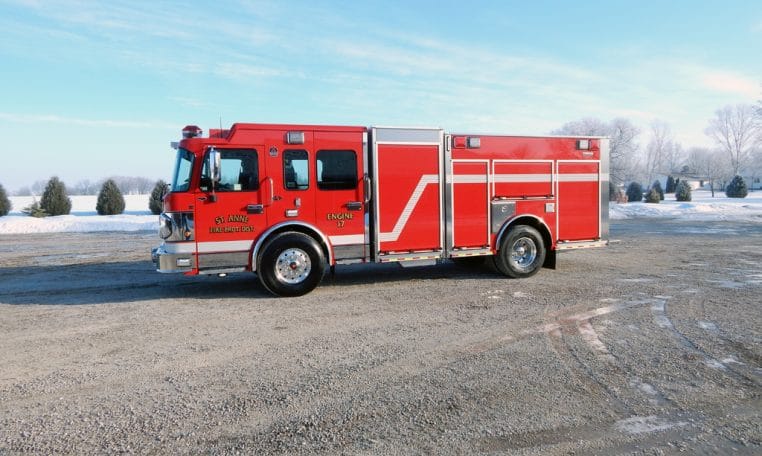

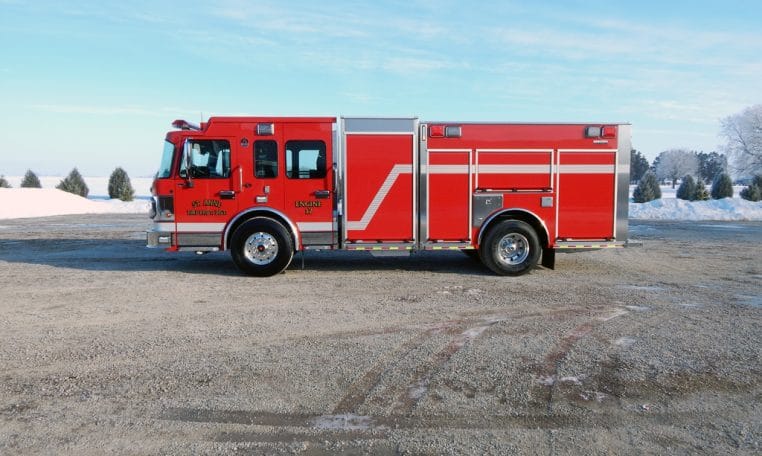

CUSTOM SIDE-CONTROL PUMPER #2402

ST. ANNE FIRE PROTECTION DISTRICT - ST. ANNE, ILLINOIS

FEATURES:
• Spartan Metro Star MFD 10” RR Chassis
• Cummins L9 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless-Steel Body and Sub-Frame

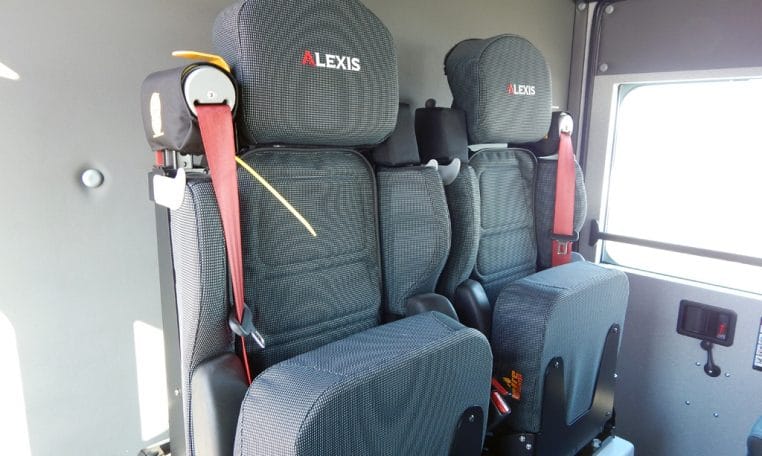

• Six (6) Person Cab Seating w/ Five (5) SCBA Seats
• ROM Painted Roll-up Doors

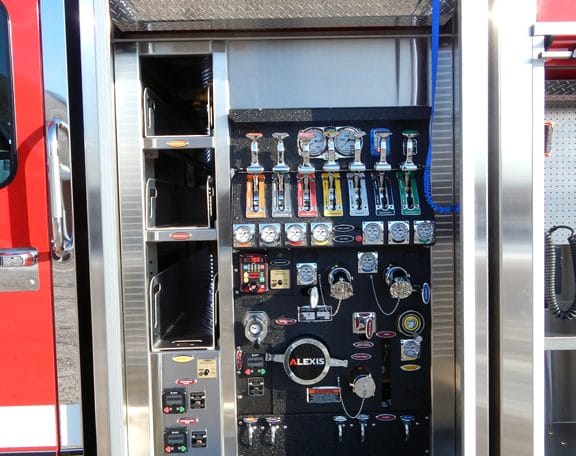

• Hale DSD 1500 GPM Pump
• 1000-Gallon Poly Tank
• Two (2) 6” Suctions, One (1) Each Side
• Four (4) 2 ½” Discharges, Two (2) Left, One (1) Right, One (1) Rear
• One (1) 4” Discharge w/ 5” Storz Adapter, Right Side
• One (1) 2 ½” Gated Suction, Left Side
• One (1) 5” Suction, Rear
• One (1) 3” Discharge for Deck Gun w/ TFT Extend-a-Gun
• Two (2) 1 ½” and One (1) 2 ½” Cartridge Lay Preconnects
• Hannay 1 ½” Booster Reel, Right Side
• One (1) 2 ½” Tank Fill, Rear
• Triple Air Bottle Wheel Well Storage Compartment, Right Side
• Fire Extinguisher Wheel Well Storage Compartment, Right Side

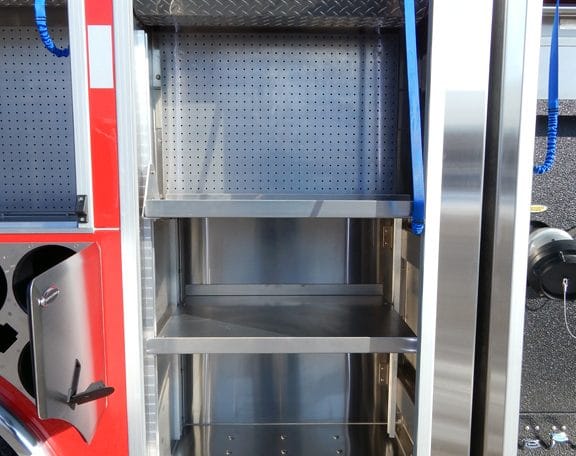

• Ladder/Pike Pole Storage, Right Rear Compartment
• Suction Hose Storage, Right Side of Hosebed
• Oil Dry Hopper, Left Side Wheel Well
• Code-3 LED Warning Light Package
• Whelen LED Scene Light Package
• Whelen Traffic Advisor Arrow Stick
• Federal Q2B Siren
• Whelen Electronic Siren w/ 100-Watt Speaker
• Audiovox Back-up Camera System
• Command Light Shadow-RT Light Tower
• Diamond Grade Chevron Striping, Rear
• 9’ 10” Overall Height
• 30’ 5” Overall Length
• 183” Wheelbase
• 129” Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR

Year: 2021
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Side Control Pumper
Pump Size: 1500
Tank Size: 1000
Exterior Color: Red
New Delivery: New Delivery
