CUSTOM ENCLOSED TOP CONTROL PUMPER #2449

COON CREEK FIRE & RESCUE - COON VALLEY, WISCONSIN

FEATURES:

  • Spartan Metro Star MFD 24” Raised Roof with Bustle Back Cut Out
  • Cummins 450 HP L9 Diesel Engine
  • Allison EVS 3000 Transmission
  • Occupant Advanced Protection System

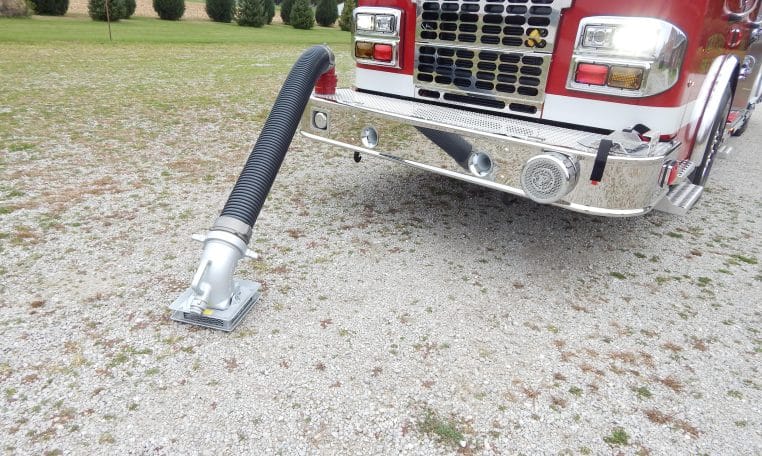

  • 24” Front Bumper Extension with Preconnected Front Suction
  • Cam In View 360 Bird’s Eye View System
  • Waterous CXVC 20 Single Stage 1500 GPM Pump

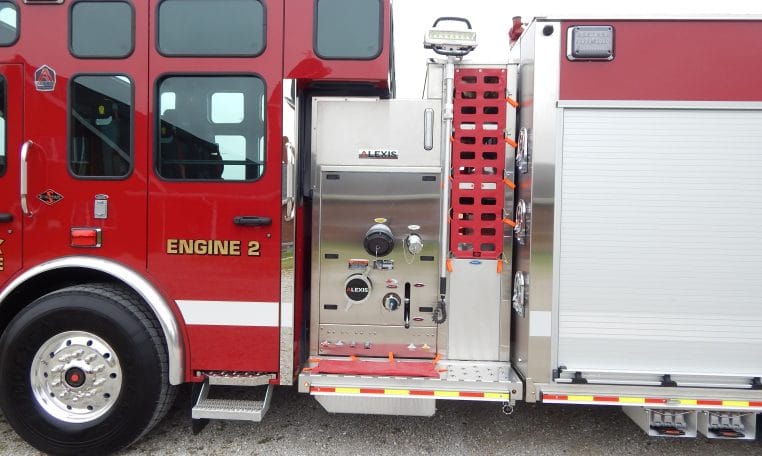

  • Stainless Steel Enclosed Top Mount Pump Module
  • FRC Pump Boss Pressure Governor
  • Whelen LED Tank Level Gauges, Operator’s Panel and Three (3) Sides
  • Stainless Steel Manifold and Plumbing
  • 2.5” Discharges- One (1) Left Side, One (1) Right Side & Two (2) Rear and 3” Discharges-One (1) Right Side & One (1) Left side
  • Three (3) Cartridge Lay Preconnects, Two (2) 1.5” & One (1) 2.5”
  • 2.5” Gated Intakes, One (1) Each Side
  • One (1) Front Suction Intake and One (1) Rear Suction Intake
  • Waterous Aquis 3.0 Single Tank Foam System with 20 Gallon Integral Tank
  • Fixed Monitor Piping with an Akron Model 3430 Deck Gun
  • Heavy Duty #304 Stainless Steel Body
  • Sub-Frame-Heavy Duty Stainless Steel
  • Three (3) Triple Wheel Well Air Bottle Compartments
  • Customize Tool Storage, Adjustable Shelves, Vertical Pull-Out Boards, Hinged Swing Out Tool Boards
  • Three (3) 6000 PSI Cascade System with Spacesaver Two Cylinder Fill Enclosure
  • 1000 Gallon Poly Tank
  • Whelen LED Warning Package including LED Arrow Stick
  • Rub Rail LED Warning Lights and LED Ground Lights
  • Whelen Electric Siren and Speaker & Federal Q Siren
  • Whelen LED 12 V Scene Light Package & Akron 12 V LED Lift Lights

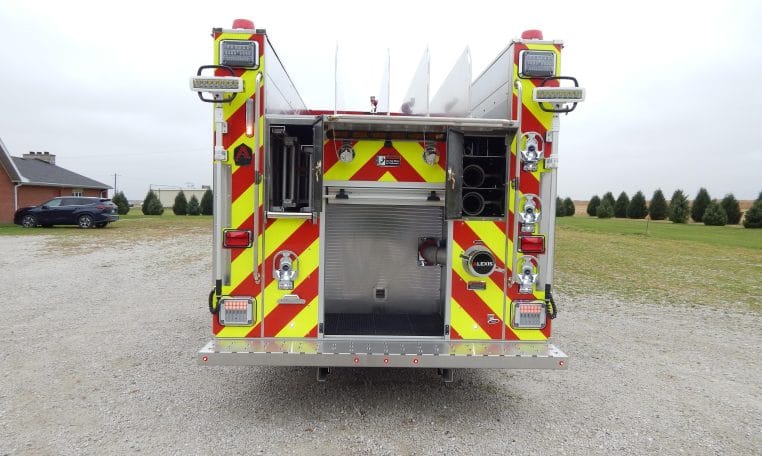

  • Ladders Vertical Rear Storage and Two (2) Suction Hose Storage
  • Fold Da Tank Storage in Hose Bed
  • 11’ Overall height
  • 33’ 7” Overall length
  • 203” Wheelbase
  • 149” Cab to Axle
  • 21,500 LB FAWR
  • 27,000 LB RAWR
  • 48,500 LB GVWR
Year: 2021
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1000
Feature: 30 Gallon Foam Tank
Exterior Color: Red
New Delivery: New Delivery
