Apparatus Inventory

Custom Buillt Since 1947.

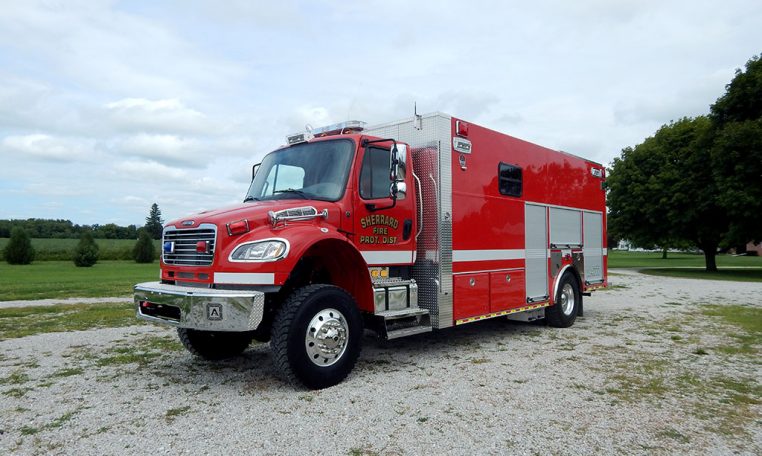

CUSTOM 20-FOOT WALK-IN RESCUE #S758

SHERRARD FIRE PROTECTION DISTRICT - SHERRARD, ILLINOIS
FEATURES:

• Freightliner M2 106, 2-Door 4×4 Chassis
• Cummins L9, 330-HP Diesel Engine
• Allison 3500 EVS Automatic Transmission
• Heavy Duty Stainless steel Body with stainless steel Sub-Frame
• Two (2) Reese type trailer hitches with electrical connections, front and rear
• Two (2) hitch receiver tie offs, one (1) each side behind rear wheels
• One (1) Warn 9500-lb Multi-mount Winch
• On-Spot Automatic Tire chains

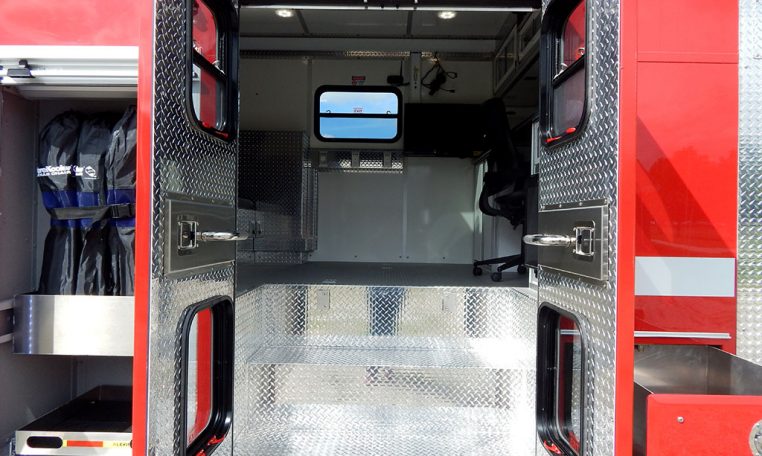

• Command area w/ roof escape hatch, forward section of body
• One (1) double side entry door and sliding window, command area
• One (1) squad area bench seat for three (3) people, rear wall of command area
• Command area shall include desk, cabinets and additional custom compartments

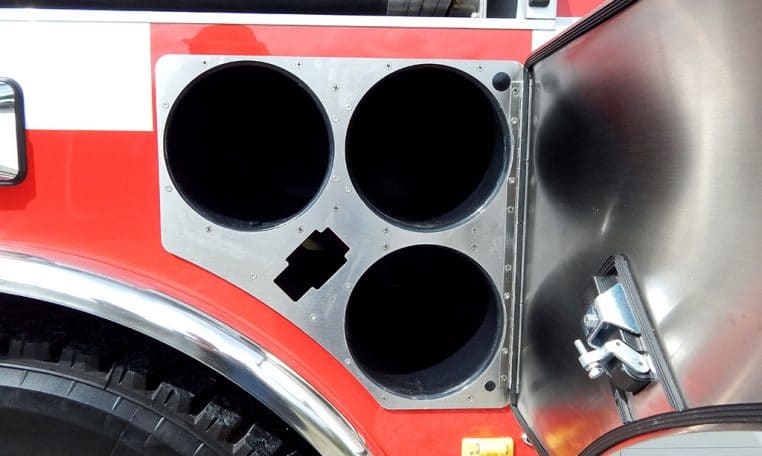

• Two (2) Triple bottle Air bottle compartments and one (1) General storage
• One (1) Wheel Well Oil Dry Hopper, left side

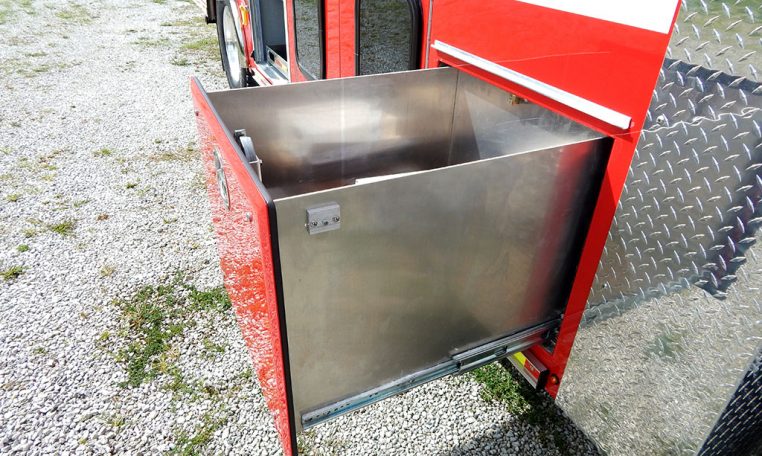

• Roll Up doors on exterior access compartments

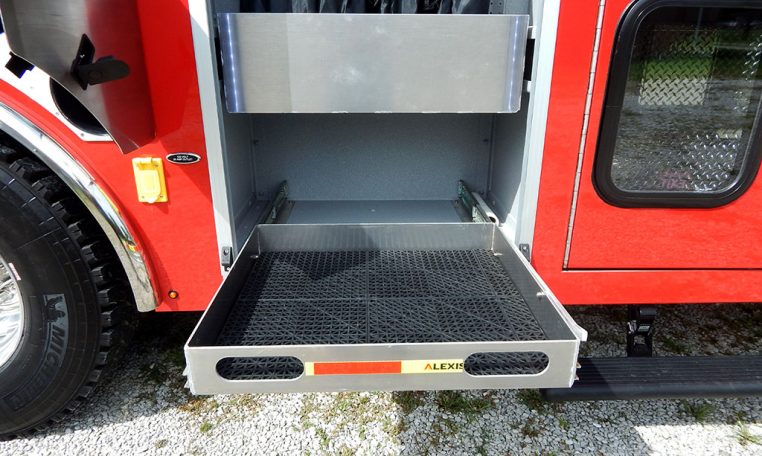

• Three (3) exterior access slide out storage compartments under command area
• Two (2) Upper storage compartments, one (1) each side apparatus roof
• One (1) Sure-Grip stainless steel top access ladder, rear mounted
• One (1) Girard 12-volt Automatic awning, full width right side
• Progressive Dynamics battery charger w/ Auto Eject
• Kussmaul Air Auto Eject
• FireCom Wireless Intercom system
• One (1) Norcold 2.7 cu. ft built-in refrigerator, command area
• Floor mounted console for emergency switches, cab
• Audiovox back up camera system w/ two (2) 7” color monitors and side cameras
• Whelen Electronic Siren with two (2) Whelen 100-watt speakers
• One (1) Smart Power 15,000-watt hydraulic generator w/ 120-volt system
• Two (2) Akron Electric Cord Reels w/ 150-ft of 10/3 cord and junction boxes
• Night Scan Light Tower w/ six (6) FRC Spectra Max LED lights, upper walk-way
• Four (4) bank 6000-PSI Cascade system w/ fill panel and 2-bottle fill enclosure
• Whelen LED Warning Light Package and LED Scene Light Package

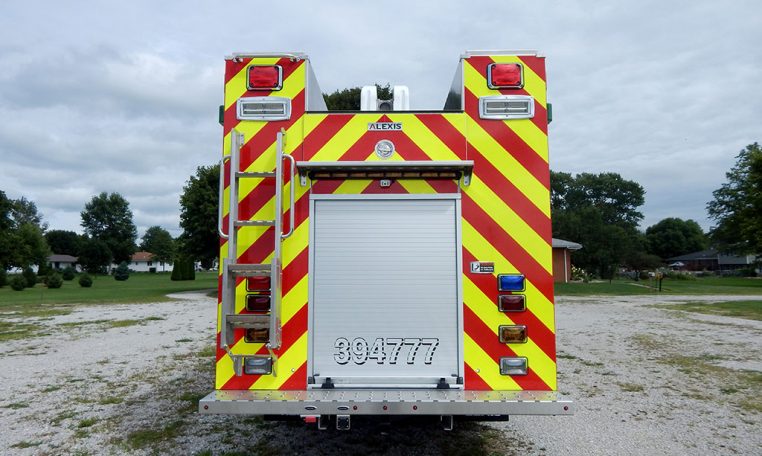

• Diamond Grade Chevron pattern striping, rear
• 10’ 9” Overall height
• 31’ 4” Overall length
• 234” Wheelbase
• 168” Cab to Axle
• 16,000 FAWR
• 30,000 RAWR
• 46,000 GVWR

Year: 2018
Make: Alexis Fire Equipment
Model: Rescue
Chassis: Commercial
Body Style: Heavy Rescue
Exterior Color: Red
New Delivery: New Delivery
