Apparatus Inventory

Custom Buillt Since 1947.

CHEMICAL UNIT 1 - #2389

Ameren / St. Louis Fire Department - St. Louis, Missouri

FEATURES:

• Spartan Metro Star LTD Tandem Chassis
• Cummins L9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body and Sub-Frame
• Painted ROM Roll Up Doors
• Three (3) Box Styled Doors, Rear, Left and Right Side
• 18” Front Bumper Extension with a 2½” Preconnect
• 300-Gallon Poly Tank with 800-Gallon Foam Tank

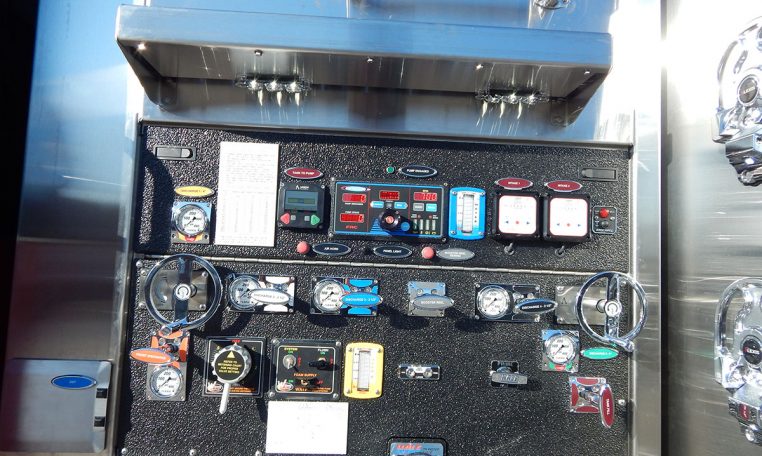

• Hale QTWO 2000 GPM Pump with Side Mount Controls
• Two (2) 6” Non-gated Suction, Right Side
• Two (2) 2½” Discharge, Right Side and Front Bumper
• Two (2) 4” Discharge, Right Side

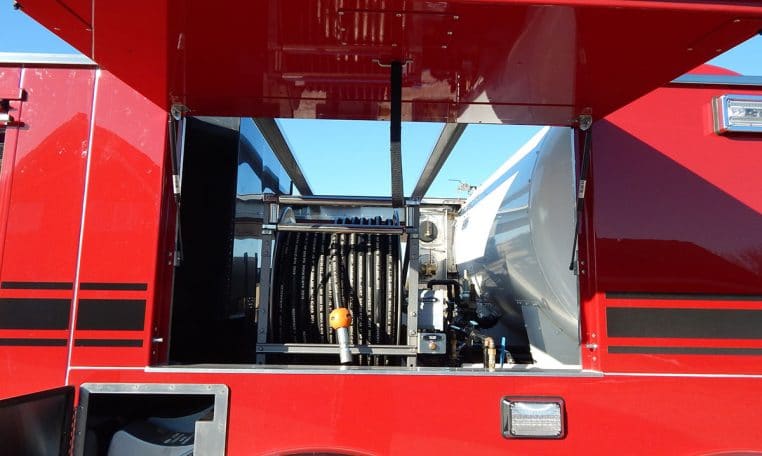

• One (1) Hannay Booster Reel with 150’ of 1” Hose
• One (1) Williams WATP 500V Around the Pump Foam System
• One (1) TOMCO Carbon Dioxide Refrigerated D.O.T Delivery Unit
• Vanner 3000 Inverter
• One (1) Amerex 500 lb. Dry Chemical Skid
• Electrically Actuated Roll-Out Tray, Rear
• Turtle Tile on the Floors of Compartments

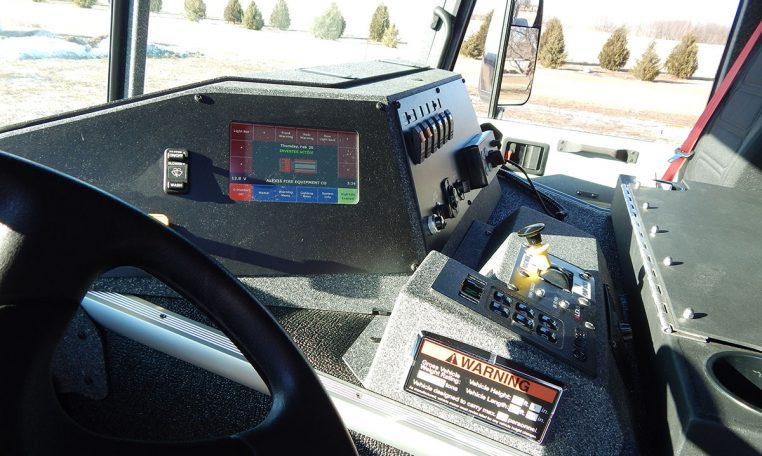

• One (1) Weldon Vista IV Touchscreen Display
• One (1) Whelen Freedom Lightbar
• Federal EQ2B Siren with 200-watt Speaker
• Whelen Warning Lights Package
• Whelen Scene Lights, Rear
• Fire Research Scene Lights, Sides
• Two (2) Hadley Air Horns, Front Bumper
• Chevron Pattern Striping, Rear
• 9’ 9” Overall height
• 37’ 2” Overall length
• 234” Wheelbase
• 201” Cab to Axle
• 20,000 FAWR
• 40,000 RAWR
• 60,000 GVWR

Year: 2020
Make: Alexis Fire Equipment
Model: Chemical Unit
Chassis: Spartan
Pump Size: 2000
Tank Size: 300
Exterior Color: Red with Black
New Delivery: New Delivery
