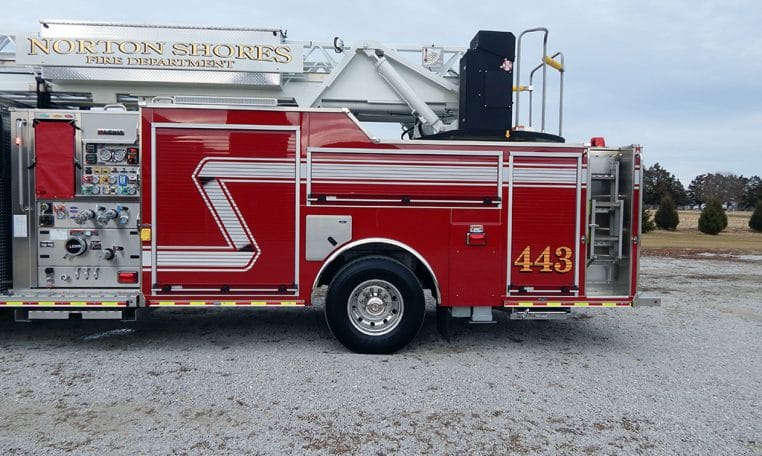

78-FOOT THREE SECTION AERIAL LADDER #2337

NORTON SHORES FIRE DEPARTMENT - NORTON SHORES, MICHIGAN
FEATURES:
  • HME 1871 MFD Custom Cab Chassis

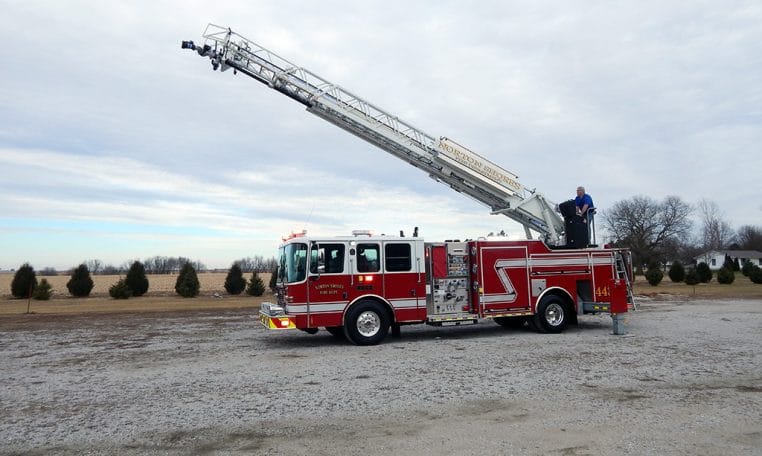

  • 75’ RK Straight Stick Aerial
  • Cummins ISL9, 450-HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy-Duty Stainless-Steel Body and Sub-Frame with ROM Roll Up Doors
  • Six (6) person cab seating with three (5) SCBA seats
  • Custom EMS Compartment, Cab
  • 18” Extended front bumper with one (1) 2½” Preconnect
  • 400-Gallon Poly Tank with a 20-Gallon Foam Tank

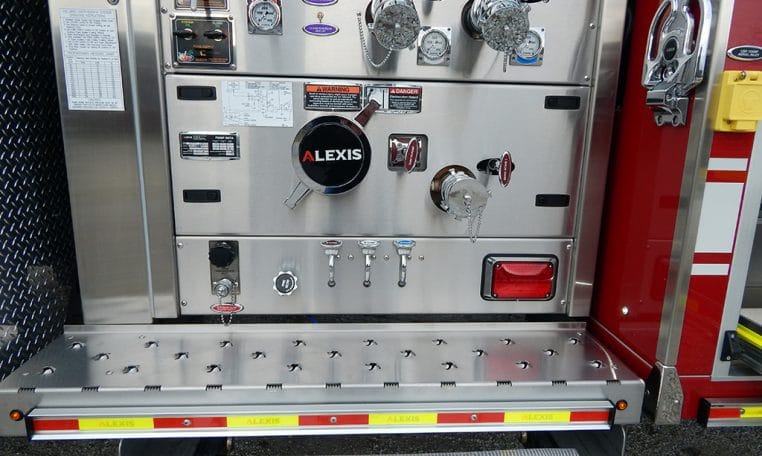

  • Waterous 1500 GPM Pump with left side operator’s panel
  • Two (2) 2 ½” Discharges, one (1) each side
  • Two (2) 1 ½” and One (1) 2 ½” Cartridge Lay preconnects, across top of body
  • One (1) 4” Discharge Aerial waterway
  • One (1) 3” Discharge right side
  • Two (2) 6” Non-gated suction, one (1) on each side
  • One (1) Gated 2 ½” suction on left side
  • One (1) 5” Suction, Rear
  • Two (2) Triple Wheel Well Air Bottle compartments, one (1) each side
  • One (1) Fire Extinguisher Storage Compartment, right side
  • Williams Around The Pump Foam System
  • Ladder, pike pole, and suction hose storage through the tank with rear access
  • FireCom Wireless Intercom System
  • One (1) ProMariner on-board battery charger
  • Two (2) Air Horns, Front Bumper
  • Federal Q2B Pedestal mount siren
  • Whelen LED Warning and Scene light package
  • Diamond Grade Chevron pattern on rear compartments
  • 11’ 5” Overall height
  • 38’ 6” Overall length
  • 214” Wheelbase
  • 154” Cab to Axle
  • 21,500 FAWR
  • 33,000 RAWR
  • 54,500 GVWR
Year: 2020
Make: Alexis Fire Equipment
Model: Aerial
Chassis: Custom
Body Style: Ladder Aerial
Pump Size: 1500
Tank Size: 400
Feature: 10-Gallon Foam Tank
Exterior Color: Red with White
New Delivery: New Delivery
