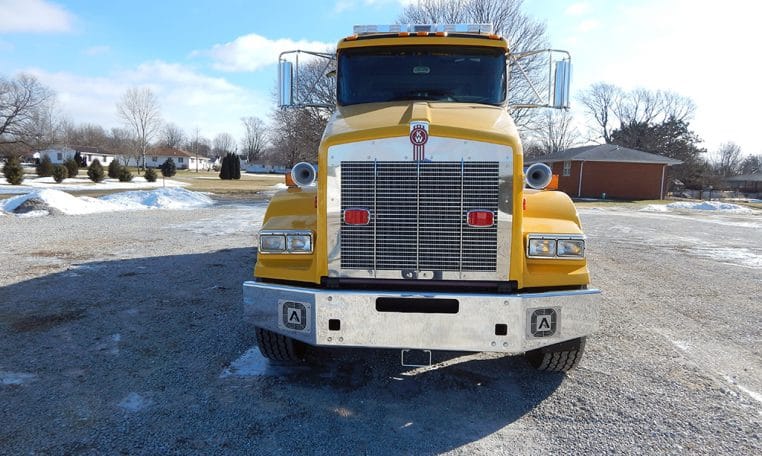

3000 GALLON ELLIPTICAL TANKER #2353

PINGREE GROVE & COUNTRYSIDE FIRE PROTECTION DISTRICT - ELGIN, IL
FEATURES:
  • Kenworth T800 2 Door Tandem Chassis
  • Cummins ISX12 500-HP Diesel Engine
  • Allison 4000 EVS Automatic Transmission
  • Heavy Duty Stainless steel Body and Stainless steel Sub-Frame
  • Hemmed Pan Style Doors
  • 3000 Gallon Elliptical Poly Tank with Stainless steel jacket
  • One (1) 4” and One (1) 2 ½” Tank fills, rear
  • One (1) Newton 10” square manual swivel dump with 36” extension
  • Waterous CLVK 500-GPM Pump
  • Left side pump operator’s panel under tank
  • One (1) 2 ½” Discharge, left side
  • One (1) 3” Discharge, right side
  • Two (2) Ziamatic Hydraulic folding tank brackets for 1500-gallon tanks, one (1) each side
  • Two (2) Pike pole tubes, right side
  • Progressive Dynamics on-board battery charger with Viair air compressor
  • Kussmaul Super Auto Eject 120-volt shoreline connection
  • Floor mounted console for emergency switches with map/binder storage
  • Two (2) Air horns, one (1) each side of hood
  • Code 3 Electronic Siren with two (2) Whelen 100-watt speakers
  • Code 3 Scene light Package
  • Audiovox back-up Camera system with 7” color monitor
  • Whelen LED Warning Light Package
  • Diamond Grade Chevron pattern striping, rear
  • 10’-1” Overall height
  • 31’ Overall length
  • 232” Wheelbase
  • 157.9” Cab to Axle
  • 20,000 FAWR
  • 40,000 RAWR
  • 60,000 GVWR
Year: 2019
Make: Alexis Fire Equipment
Model: Tanker
Chassis: Commercial
Body Style: Tanker
Pump Size: 500
Tank Size: 3000
Exterior Color: Yellow
New Delivery: New Delivery
