22’ CUSTOM HEAVY RESCUE #S776

ATKINSON FIRE PROTECTION DISTRICT - ATKINSON, ILLINOIS
FEATURES:
  • Spartan Metro Star LFD 24” Raised Roof Chassis
  • Cummins L9 450 HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy Duty Stainless-Steel Body and Sub-Frame

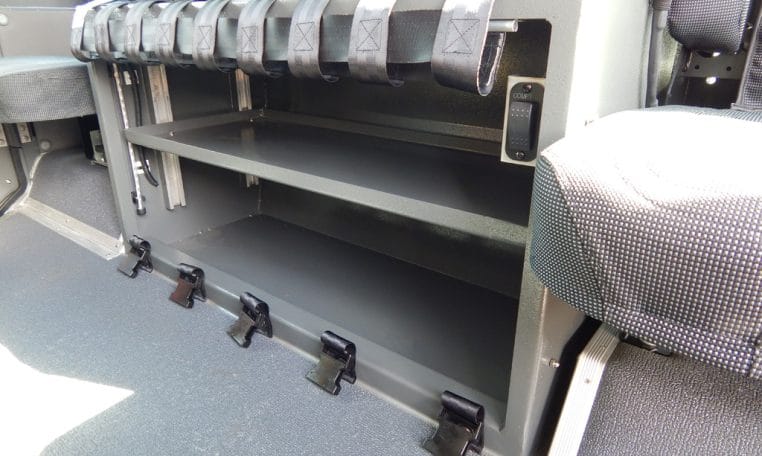

  • Six (6) Person Cab Seating w/ Four (4) SCBA Seats
  • ROM Roll-Up Doors

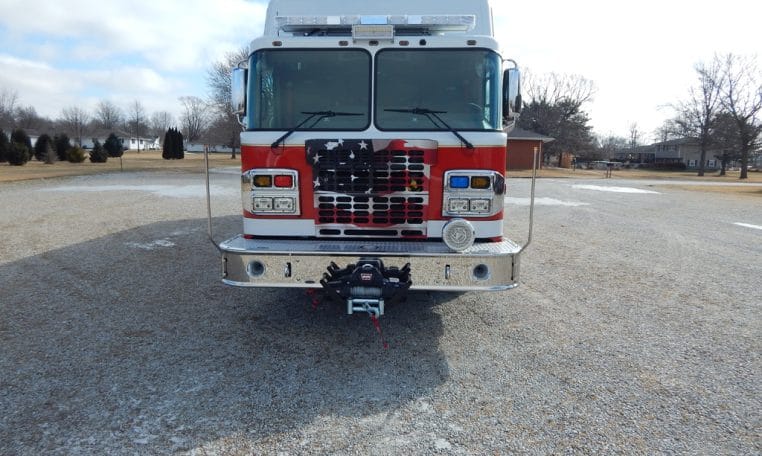

  • Warn Zeon 10 Multi-Mount Winch Kit
  • Two (2) Hitch Receiver Assemblies, Left and Right Side
  • Two (2) Vertical Pull Out Boards, Left Side
  • C-Tech Custom Tool Chest, Left Side
  • Custom Air Bag Rack, Right Side
  • Four (4) Bank 6000-PSI Cascade System w/ Fill Panel and Bottle Enclosure
  • Fifteen (15) Zico Air Bottle Holders, Right Side
  • Norcold Refrigerator, Right Side
  • Girard Automatic Awning, Right Side
  • Six (6) Upper Storage Compartments, Roof
  • Custom Oil Dry Hopper, Left Rear Upper Storage Compartment

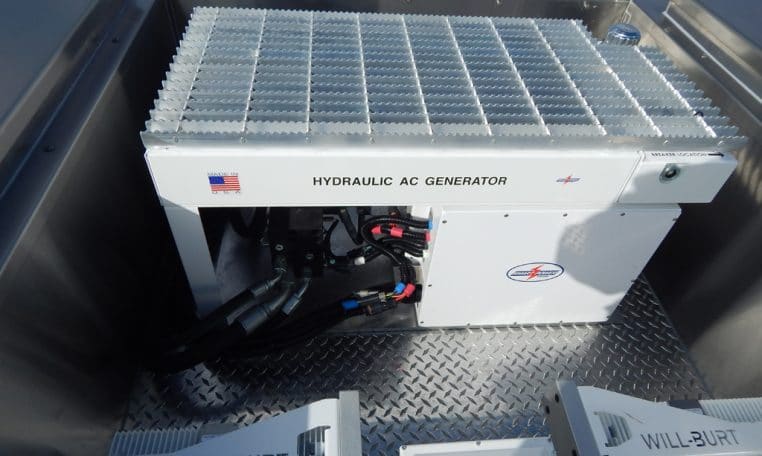

  • Onan 25,000-watt PTO-driven Generator with 120-volt Electrical System
  • Night Scan Powerlite Light Tower w/ Dual Tilt Whelen Super-LEDs
  • Whelen LED Warning and Scene Light Packages
  • InView 360° Cameras w/ Two (2) Vista Displays
  • One (1) Hannay Cord Reel, Rear Compartment
  • One (1) Hannay Air Hose Reel, Rear Compartment
  • Federal Q2B Siren

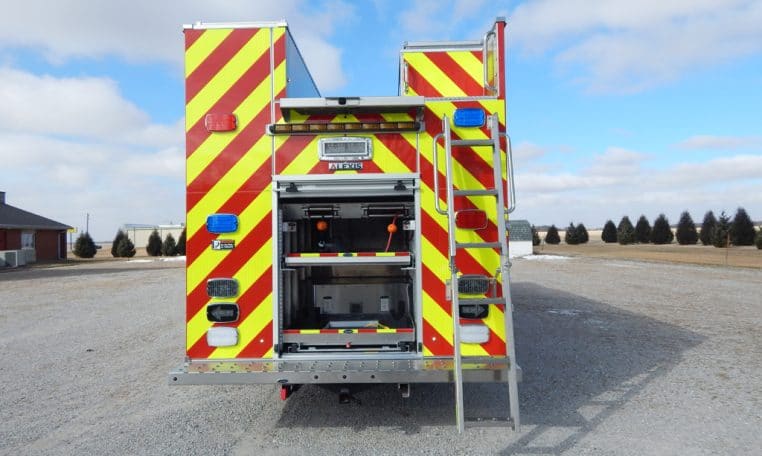

  • Diamond Grade Chevron Striping
  • 11’ 4” Overall Height
  • 37’ 2” Overall Length
  • 230” Wheelbase
  • 162.5” Cab to Axle
  • 20,000 FAWR
  • 27,000 RAWR
  • 47,000 GVWR
Year: 2022
Make: Alexis Fire Equipment
Model: Rescue
Chassis: Custom
Body Style: Heavy Rescue
Feature: Cascade System
Exterior Color: Red with White
New Delivery: New Delivery
