Delivered Apparatus

FEATURES:

• Spartan Metro Star MFD 10” Raised Roof
• Cummins 380 HP L9 Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless-Steel Body and Sub-Frame
• Six (6) Person Cab
• Stainless-Steel Pump Module
• Waterous CXVC20 1250 GPM Pump
• Trident Air Prime System
• FRC Pump Boss Pressure Governor & Monitoring System
• Two (2) 6” Intakes, One (1) Each Left and Right Side
• One (1) 2½” Gated Intake, Left Side
• Two (2) 2½” Discharges, Left Side
• One (1) 2½” Discharge, Right Side
• One (1) 3” Discharge 3” NST Adapted to 5” Storz, Right Side
• Two (2) 1½” and One (1) Deadlay Mattydale Preconnects

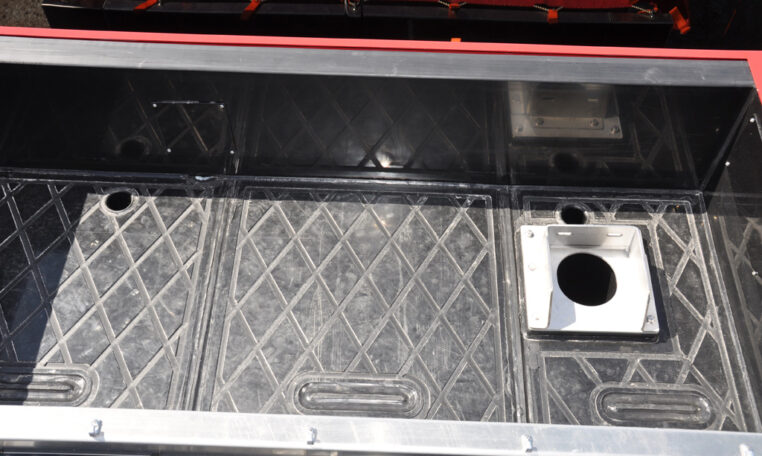

• 2000 Gallon Poly Tank
• One (1) 2½” FirePrograms Rear Tank Fill, Left of Dump
• One (1) 10” Newton Stainless-Steel Manual Swivel Dump, Rear
• Four (4) Folding Steps, Rear
• ROM Painted Roll-Up Doors
• Three (3) 250# Roll Out Trays, L1, L3 and R2 Compartments
• PacTrac Rear Wall, L2
• Zico 2,100G Hydraulic Folding Tank Rack Right Side with Hard Suction
• Ladder Storage Vertical, Left Side Through Tank
• Whelen Warning Light Package
• FireTech Scene Light Package
• 9’ 11” Overall Height
• 32’ 2” Overall Length
• 196” Wheelbase
• 142” Cab to Axle
• 21,500 FAWR
• 31,000 RAWR
• 52,500 GVWR
