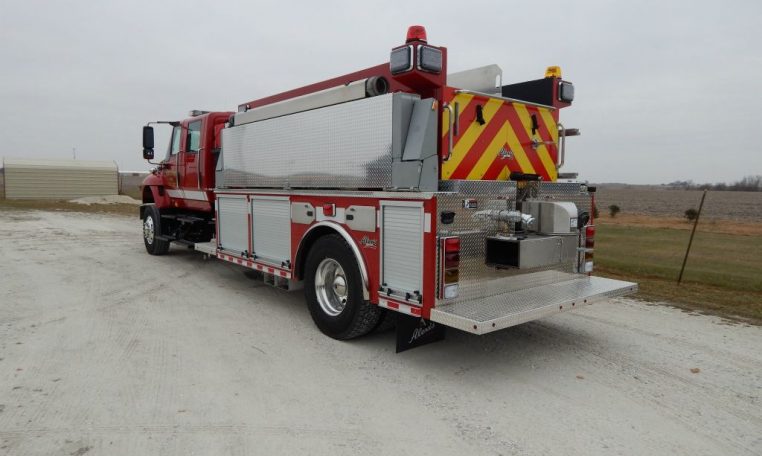

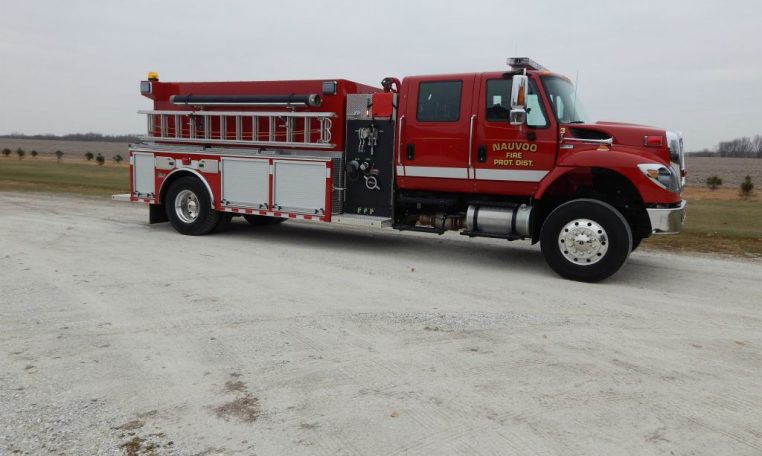

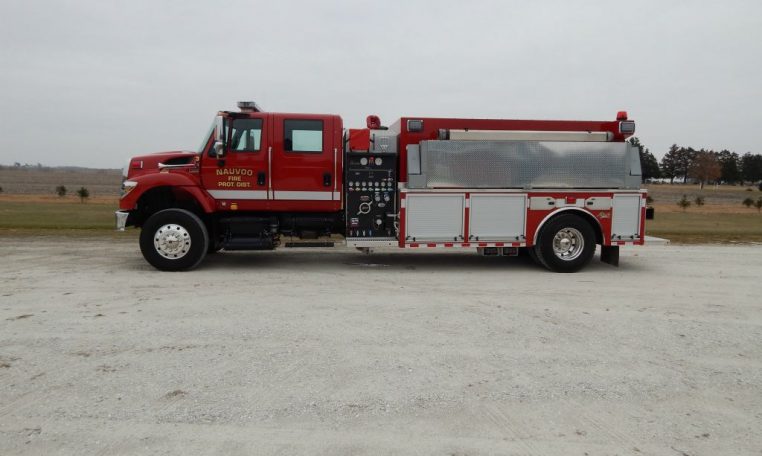

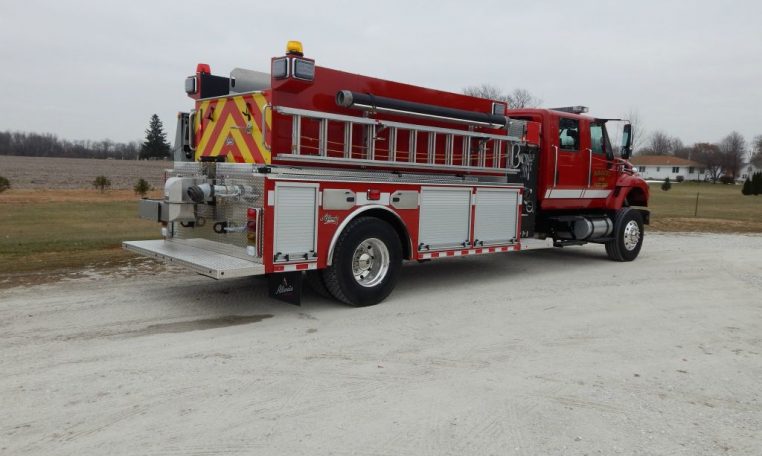

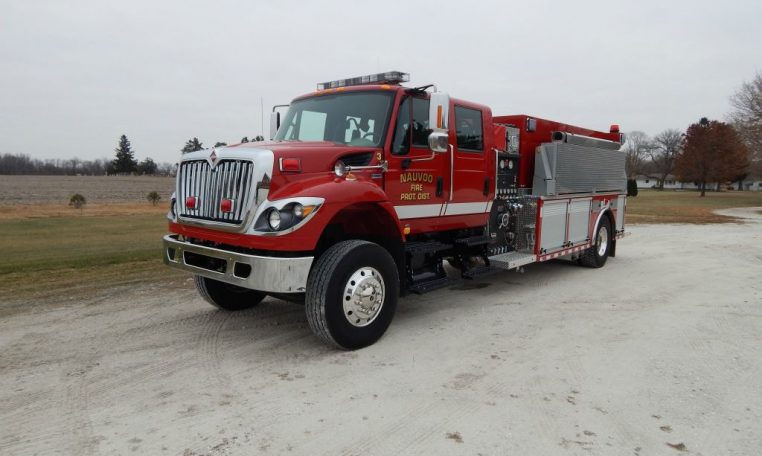

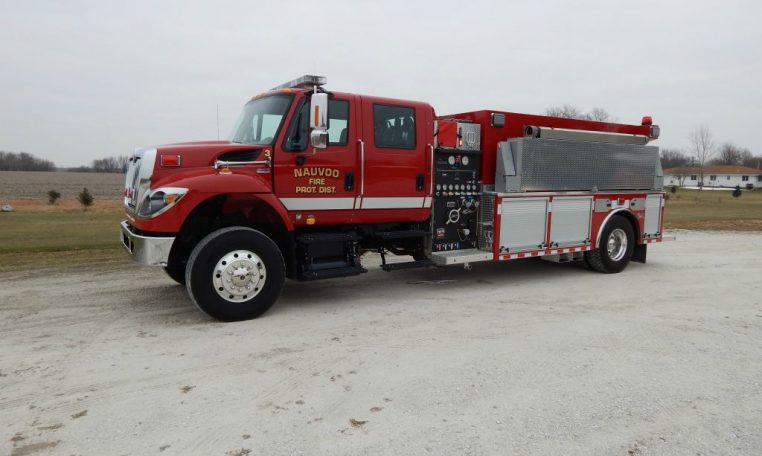

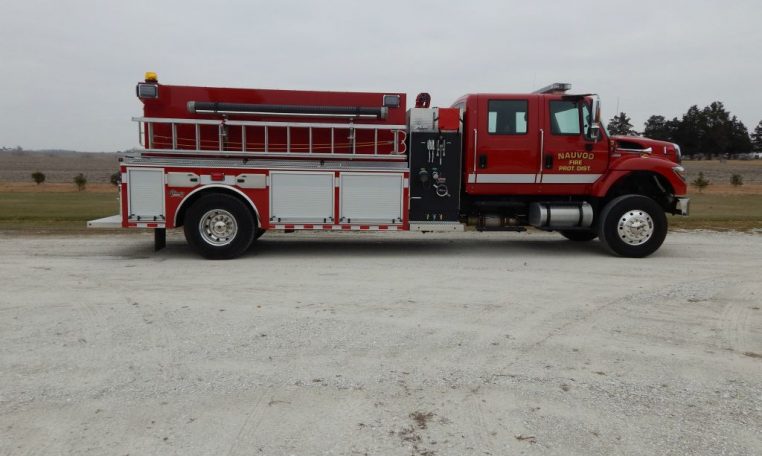

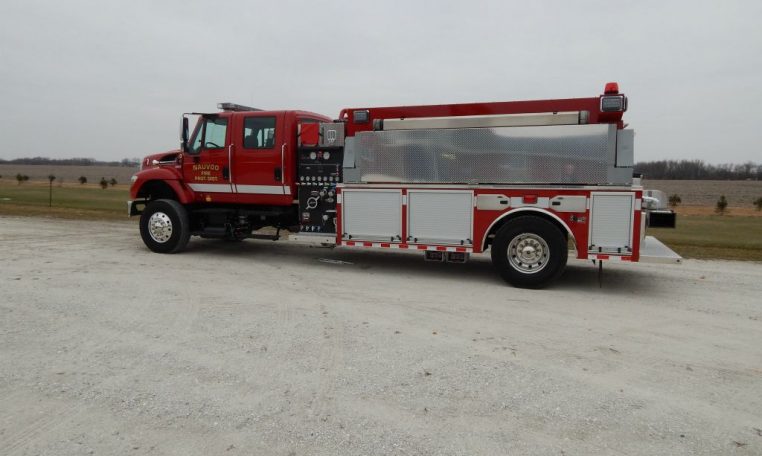

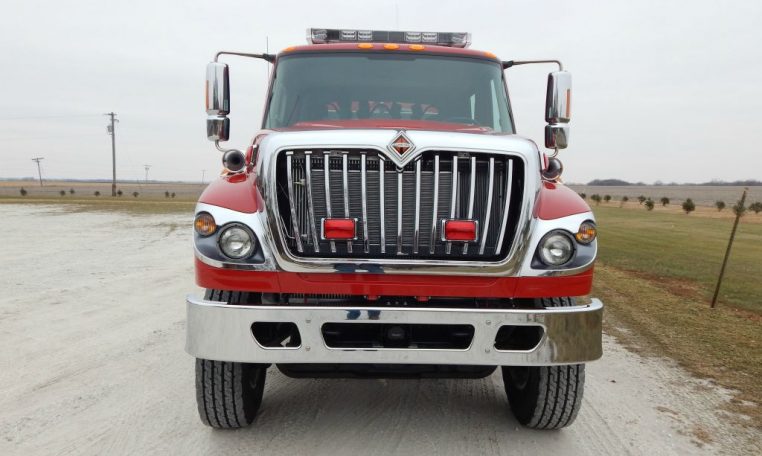

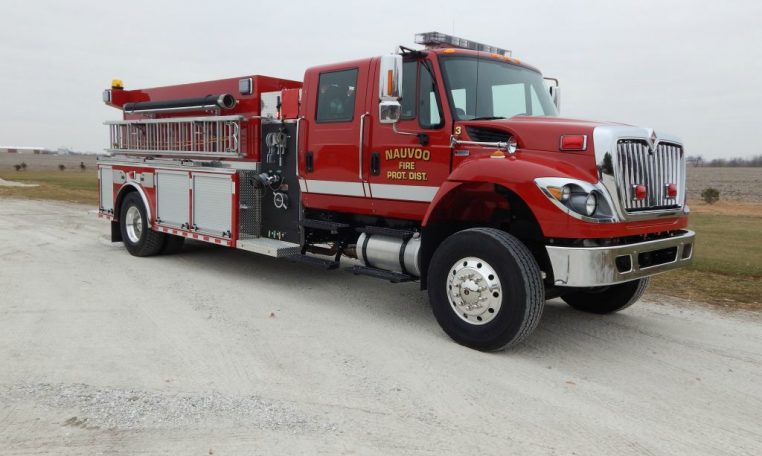

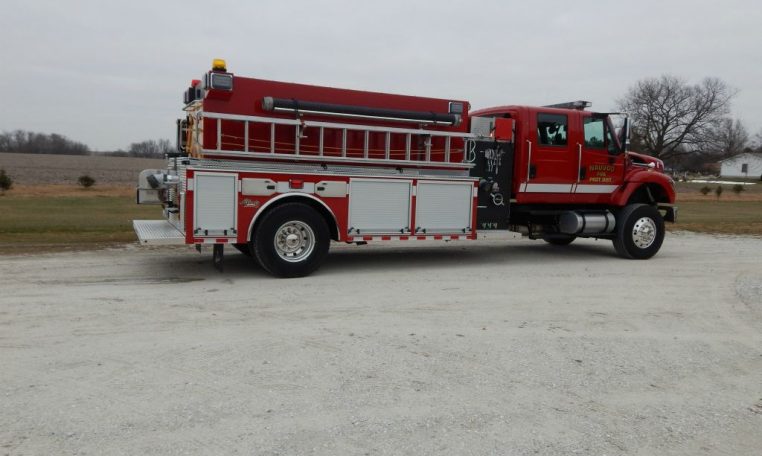

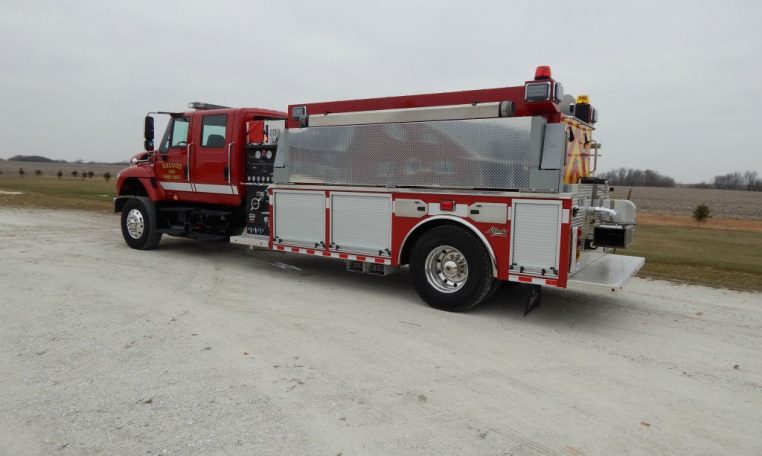

2000-GALLON TANKER #2236

NAUVOO FIRE PROTECTION DISTRICT - NAUVOO, ILLINOIS

• International 7400 4-Door Chassis
• MaxxForce 9, 330-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Five (5) man cab seating with four (4) SCBA seats
• Heavy Duty 3/16″ Aluminum Body

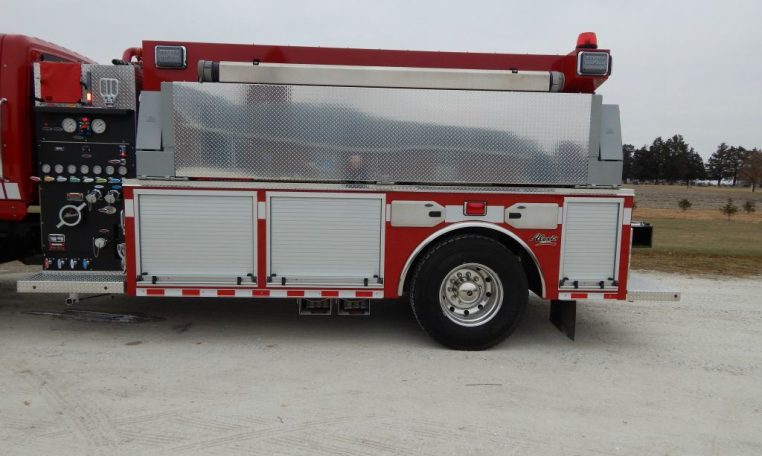

• ROM Roll Up Doors

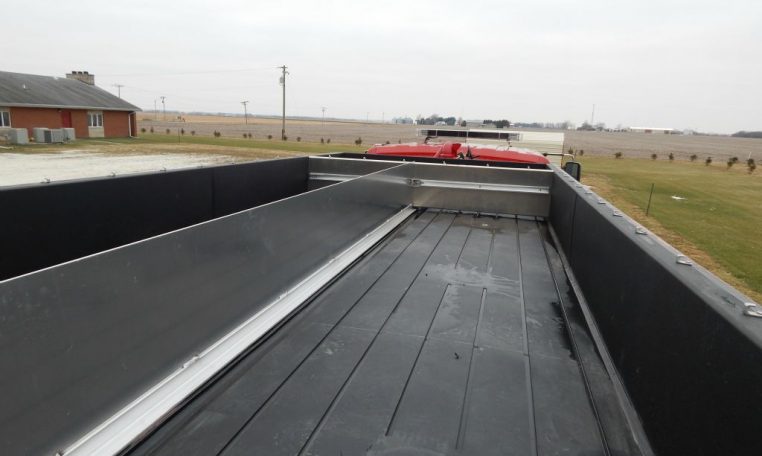

• 2000-Gallon Poly Tank

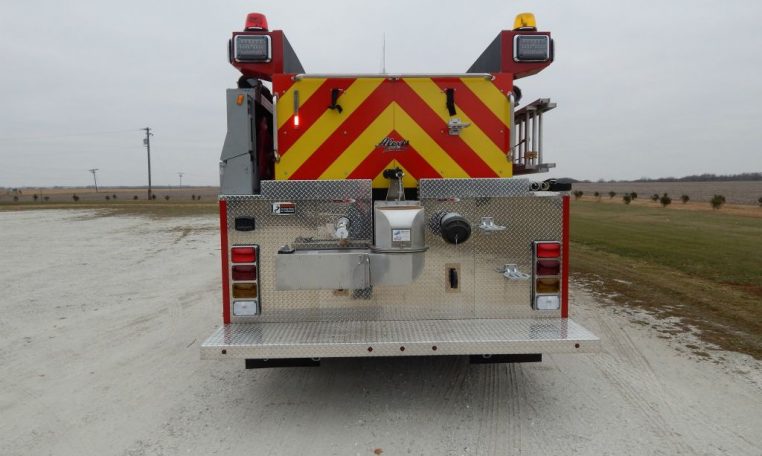

• One (1) 2 ½” and one (1) 4″ Fireman’s Friend Tank fills, rear

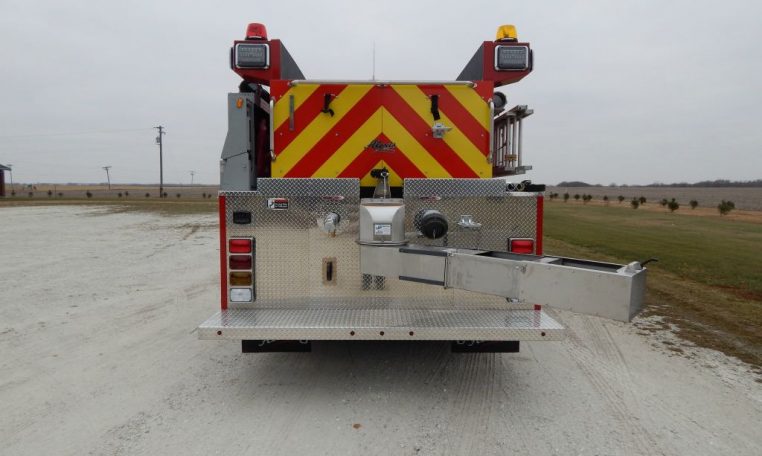

• One (1) 10″ square electric Newton swivel tank dump with 36″ extension
• Waterous CXVK, 1250-GPM PTO Pump

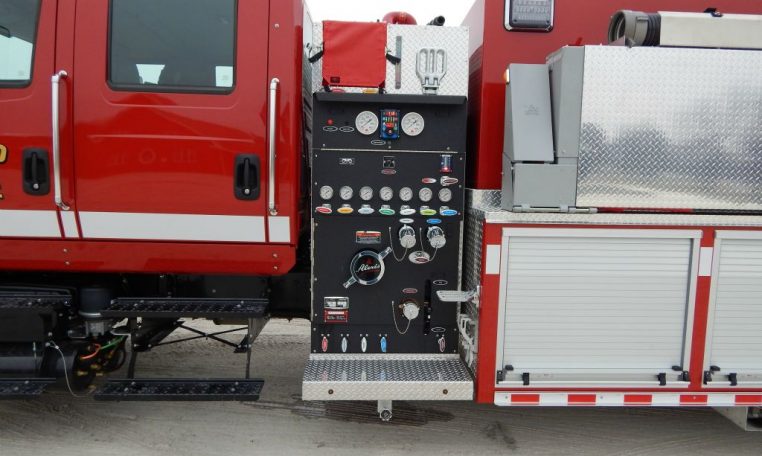

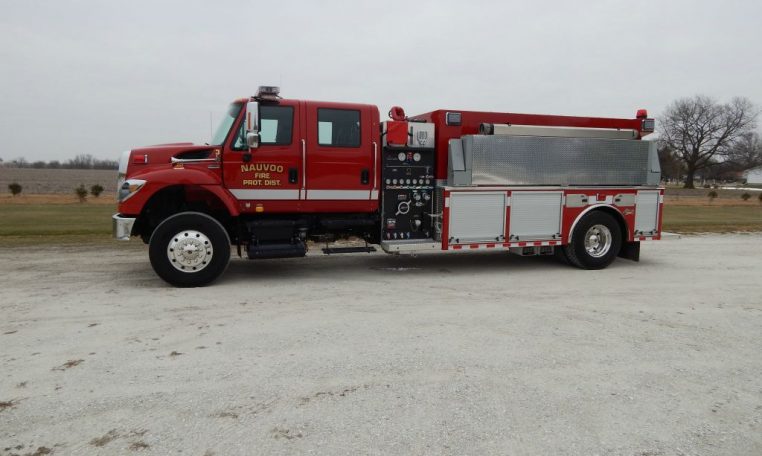

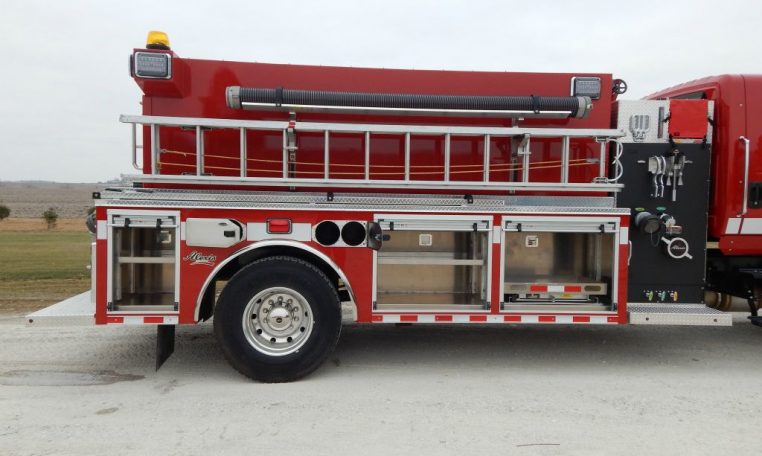

• Left side pump Operator’s panel
• Three (3) 2 ½” Discharges, two (2) left and one (1) right side
• Two (2) 3″ Discharges, one (1) right side and one (1) over pump for deck gun
• One (1) 2 ½” Gated Suction, left side

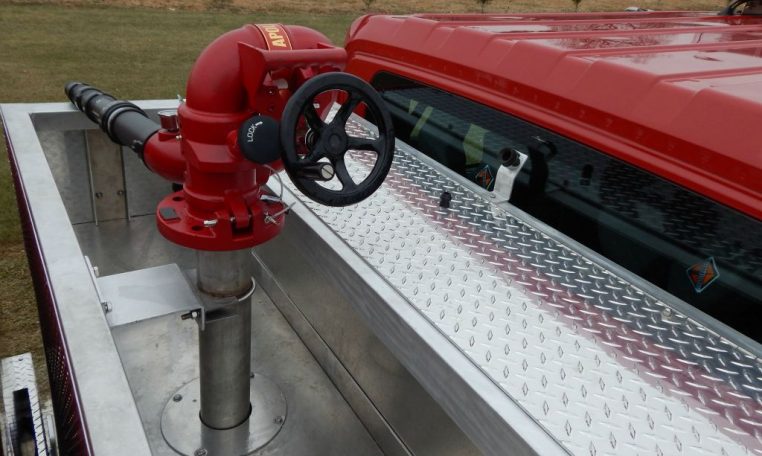

• One (1) Akron Apollo deck gun with stream shaper, tips and ground mounts
• Two (2) Mattydale 1 ½” Preconnects, across top of body

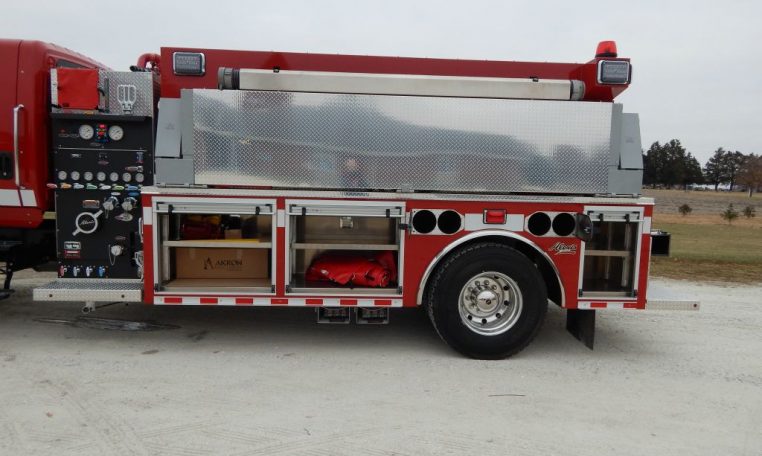

• Four (4) Dual bottle Air bottle compartments, two (2) each side wheel well

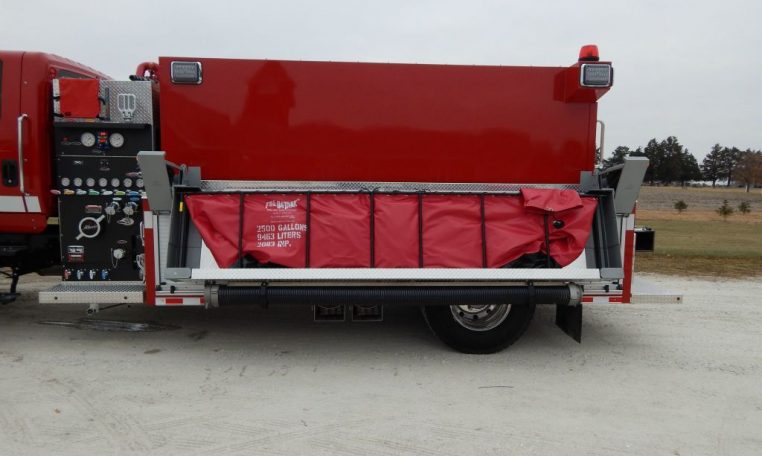

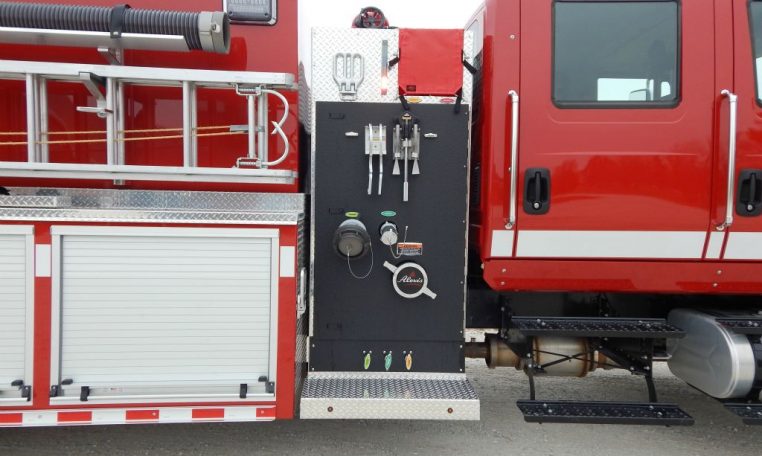

• Ziamatic Hydraulic hinged Folding tank bracket for 2500-Gallon tank, left side

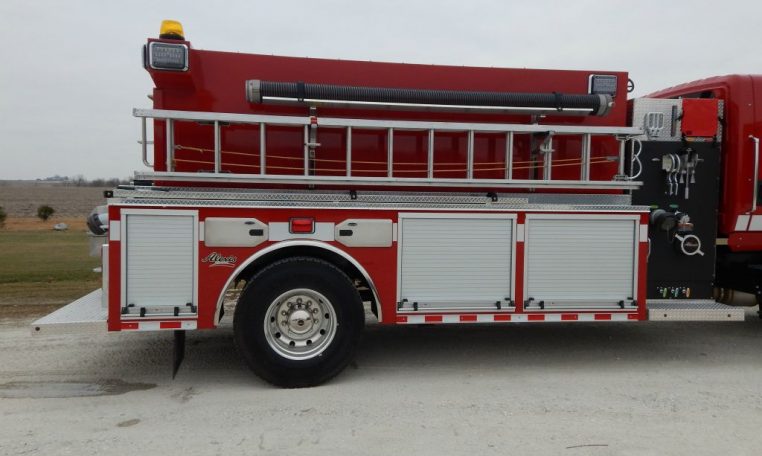

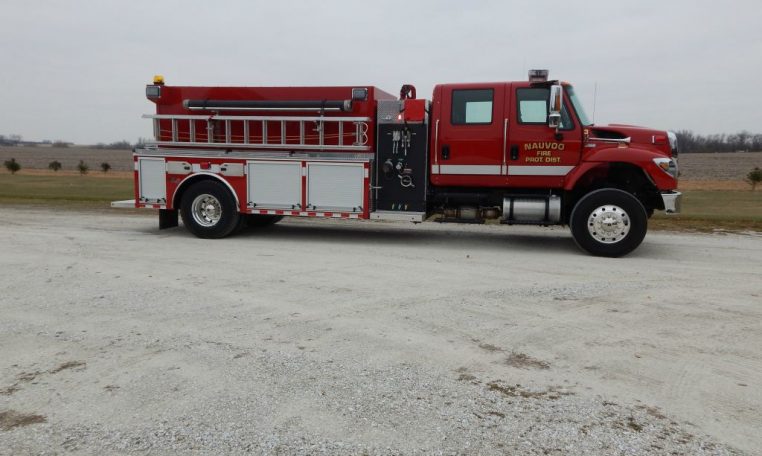

• Ladder and Pike pole brackets, right side
• Two (2) Suction hose storage, one (1) each side
• Progressive Dynamics on-board battery charger with Viair air compressor
• Kussmaul Super Auto Eject 120-volt shoreline connection

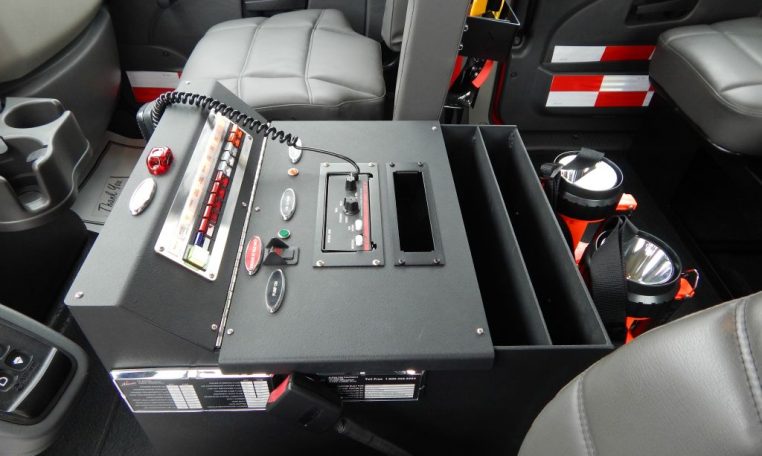

• Floor mounted console for emergency switches with map/binder storage, cab
• Two (2) Air Horns, one (1) each side of hood
• Code 3 Electronic Siren with 100-watt Whelen speaker
• Six (6) Whelen scene lights, two (2) each side and two (2) rear
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 9′ 8″ Overall height
• 32′ 5″ Overall length
• 272″ Wheelbase
• 161″ Cab to Axle
• 16,000 FAWR
• 30,000 RAWR
• 46,000 GVWR

Year: 2016
Make: Alexis Fire Equipment
Model: Tanker
Body Style: Tanker
Pump Size: 1250
Tank Size: 2000
Exterior Color: Red
