Delivered Apparatus

FEATURES:

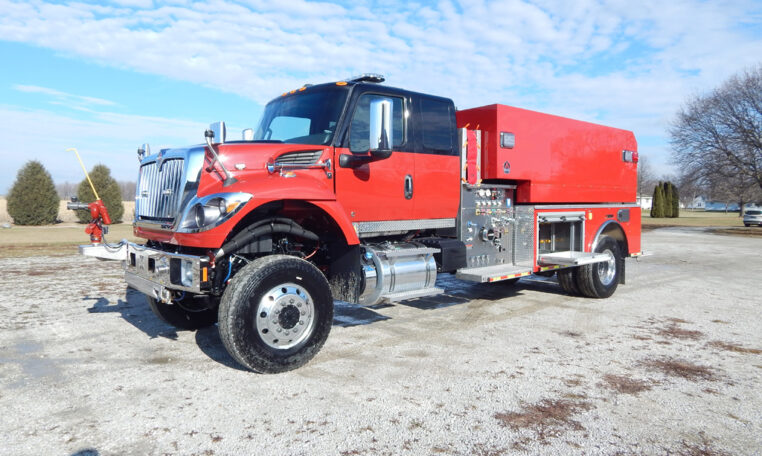

• International HV607 Chassis
• 450 HP Cummins L9 Diesel Engine
• Allison 3000 EVS Automatic Transmission

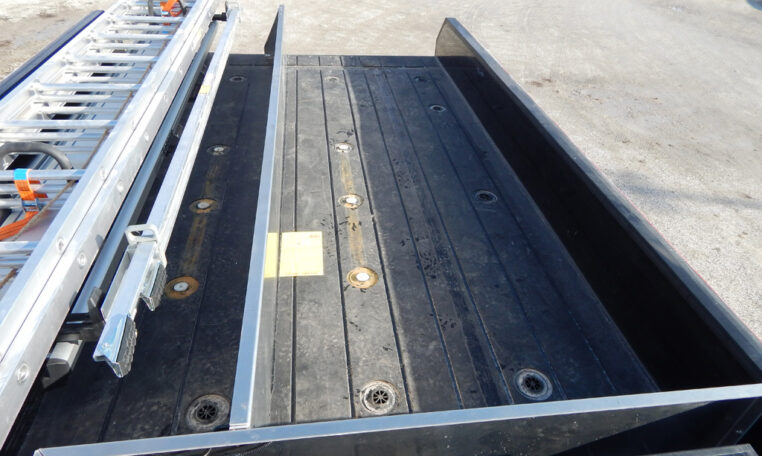

• Zico Slide Out Gantry Ladder Storage, One (1) 24’ 2-Section, One (1) 14’ Roof Ladder
• Two (2) Electric Spray Booms Each Front and Rear Bumper
• One (1) 2½” Front Bumper Preconnect
• Two (2) 1½” Mattydale Preconnects
• Akron 3462 Forestry Front Turret
• 2000-Gallon Poly Tank, Rear Access Compartment Right Side
• Two (2) Hard Suction, Rear Access Compartment Left Side
• Heavy Duty Aluminum Subframe & Body
• Aluminum Intermediate Pump Module
• Waterous CXVPA 1250 gpm PTO Pump
• One (1) 2½” Gated Intake Left Side
• One (1) 4” FirePrograms Tank Fill Rear Right
• Two (2) 6” Intakes, One (1) Each Side
• Two (2) 2½” Discharges Left Side
• One (1) 2½” Discharge Right Side
• One (1) 3” Discharge adapted to 5” Storz, Right Side
• Foam Pro 1600 Class A 20 Gallon Tank
• Hannay Booster Reel 100’ of 1” Rear
• 10” Newton Swivel Dump Rear
• ROM Roll-Up Doors
• Two (2) Dual Bottle Wheel Well Compartments, One (1) Each Side Behind
• One (1) 500# Roll Out Tray Each L1/R1 Compartments
• One (1) Walk-Away Air Pack Bracket Each L1/R1 Compartment

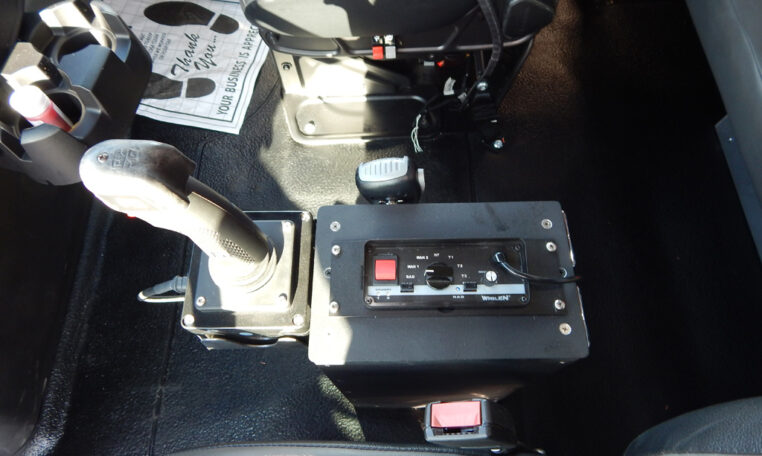

• Whelen Warning and Scene Light Package
• Whelen Electric Siren with 100W Speaker
• Kussmaul Battery Conditioner and Air Compressor with a Kussmaul 20-Amp 120V Super Auto-Eject Shoreline Inlet Left Side
• 9’ 11” Overall Height
• 28’ 9” Overall Length
• 230” Wheelbase
• 136.7” Cab to Axle
• 18,000 FAWR
• 31,000 RAWR
• 49,000 GVWR
