1800-GALLON TANKER #2338

FOX RIVER & COUNTRYSIDE FIRE RESCUE DISTRICT - ST. CHARLES, ILLINOIS
FEATURES:
  • Cummins ISL9, 450-HP Diesel Engine
  • HME 1871w MFD Chassis
  • Allison 3000 EVS Automatic Transmission
  • Heavy Duty Stainless steel Body and Sub-Frame
  • ROM Roll Up Doors
  • Six (6) person cab seating with five (5) SCBA seats
  • Custom EMS compartment, chassis cab between rear-facing seats
  • 18” Front bumper extension
  • 1800-Gallon Poly Tank
  • One (1) Newton 10” square electric control swivel dump with 36” extension
  • One (1) 4” Fireman’s Friend Tank Fill, rear
  • Waterous  CX 1500-GPM Pump

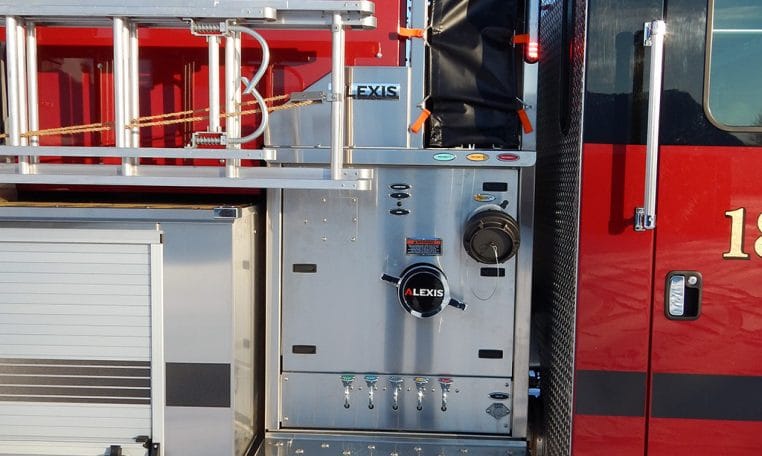

  • Left side Intermediate pump panel
  • Four (4) 2 ½” Discharges, two (2) left side, one (1) right side and one (1) rear
  • Two (2) 3” Discharges, one (1) right side and one (1) over pump for deck gun
  • One (1) 2 ½” Gated Suction, left side
  • Three (3) Mattydale preconnects, two (2) 1 ½” and one (1) 2 ½” above pump
  • Slide in Folding Tank storage for 2100-gallon tank with rear access
  • Three (3) Dual Bottle Air Bottle Compartments, one (1) left and two (2) right side
  • Ziamatic Electrically controlled Ladder Rack, right side compartment top
  • Pro Mariner on-board battery charger
  • One (1) Akron Apollo monitor with stream shaper, stacked tips and mounts
  • Whelen Electronic Siren with two (2) Cast Products speakers
  • Two (2) Air Horns, front bumper
  • Whelen and Fire Tech LED Scene Light Packages
  • Whelen LED Warning Light Package
  • Diamond Grade Chevron pattern striping, rear
  • 9’ 9” Overall height
  • 31’ 10” Overall length
  • 200” Wheelbase
  • 140” Cab to Axle
  • 21,500 FAWR
  • 33,000 RAWR
  • 54,500 GVWR
Year: 2019
Make: Alexis Fire Equipment
Model: Tanker
Chassis: Custom
Body Style: Tanker
Pump Size: 1500
Tank Size: 1800
Feature: Electric Ladder Rack
Exterior Color: Red with Black
New Delivery: New Delivery
